NISSAN 370Z COUPE 2016 Z34 Owners Manual

NISSAN 370Z COUPE 2016 Z34 Owners Manual 370Z COUPE 2016 Z34 NISSAN NISSAN https://www.carmanualsonline.info/img/5/465/w960_465-0.png NISSAN 370Z COUPE 2016 Z34 Owners Manual

Page 401 of 428

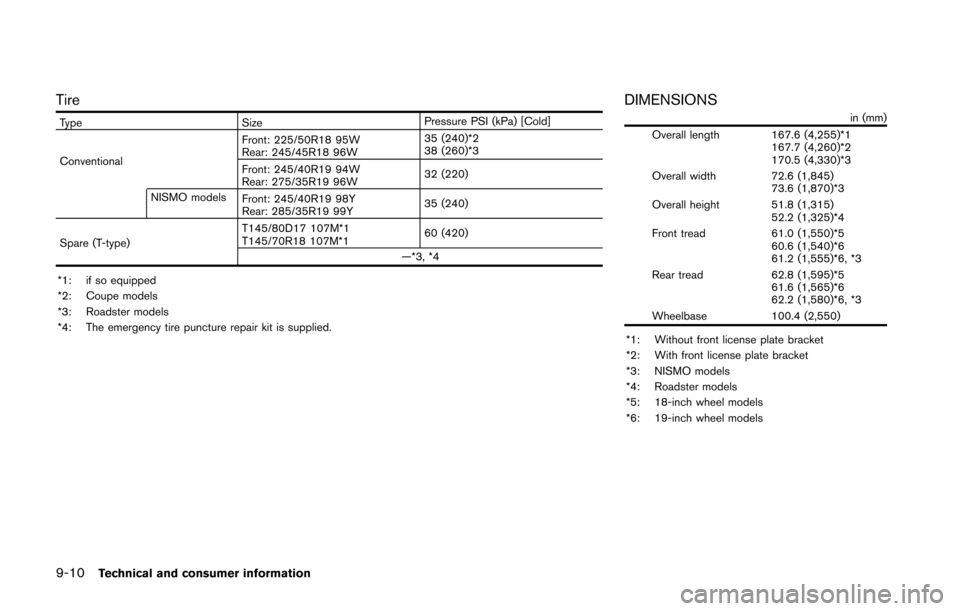

NISSAN 370Z COUPE 2016 Z34 Owners Manual 9-10Technical and consumer information
Tire
TypeSize Pressure PSI (kPa) [Cold]
Conventional Front: 225/50R18 95W
Rear: 245/45R18 96W
35 (240)*2
38 (260)*3
Front: 245/40R19 94W
Rear: 275/35R19 96W 32 (

Page 402 of 428

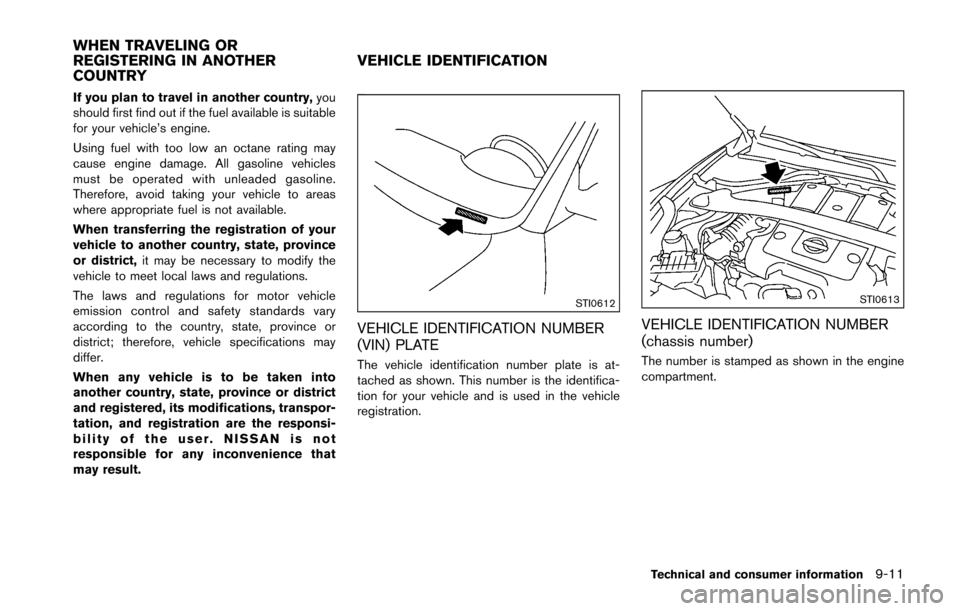

NISSAN 370Z COUPE 2016 Z34 Owners Manual If you plan to travel in another country,you
should first find out if the fuel available is suitable
for your vehicle’s engine.
Using fuel with too low an octane rating may
cause engine damage. All

Page 403 of 428

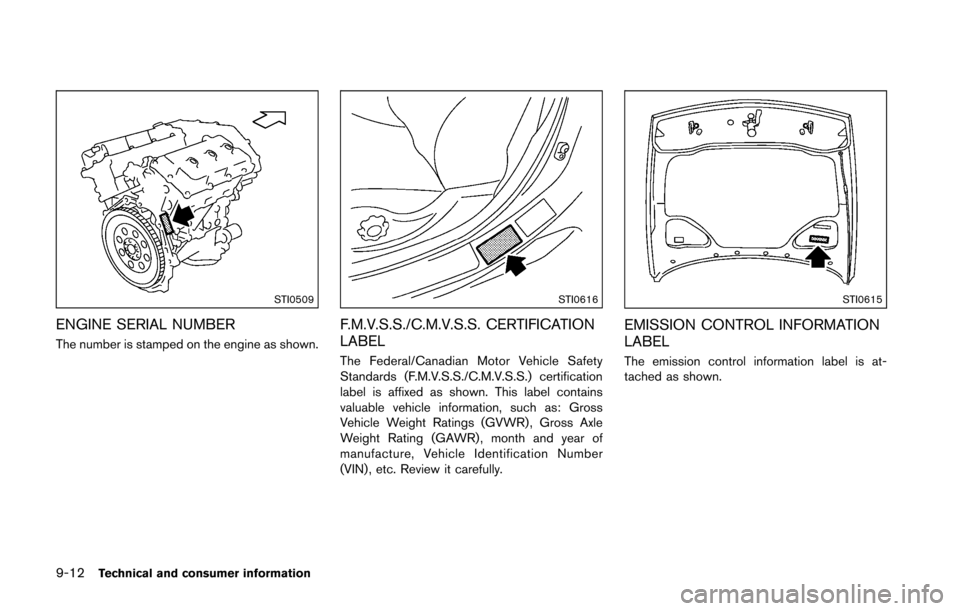

NISSAN 370Z COUPE 2016 Z34 Owners Manual 9-12Technical and consumer information
STI0509
ENGINE SERIAL NUMBER
The number is stamped on the engine as shown.
STI0616
F.M.V.S.S./C.M.V.S.S. CERTIFICATION
LABEL
The Federal/Canadian Motor Vehicle S

Page 404 of 428

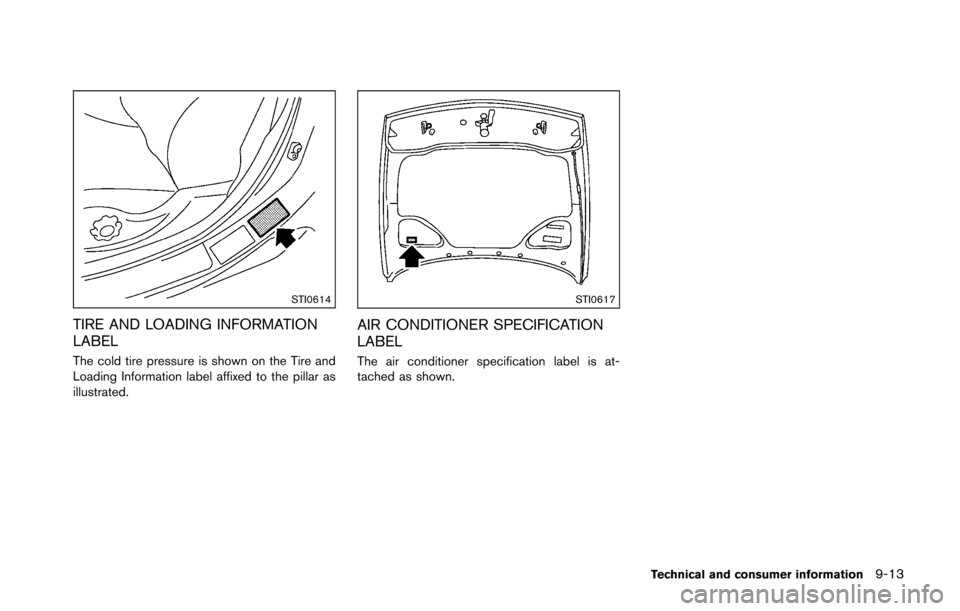

NISSAN 370Z COUPE 2016 Z34 Owners Manual STI0614
TIRE AND LOADING INFORMATION
LABEL
The cold tire pressure is shown on the Tire and
Loading Information label affixed to the pillar as
illustrated.
STI0617
AIR CONDITIONER SPECIFICATION
LABEL
T

Page 405 of 428

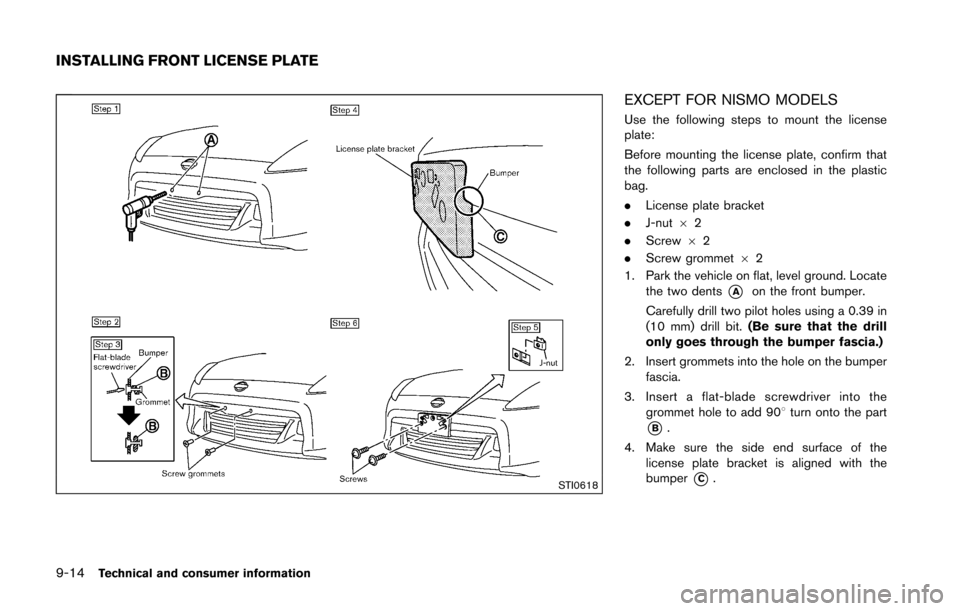

NISSAN 370Z COUPE 2016 Z34 Owners Manual 9-14Technical and consumer information
STI0618
EXCEPT FOR NISMO MODELS
Use the following steps to mount the license
plate:
Before mounting the license plate, confirm that
the following parts are enclo

Page 406 of 428

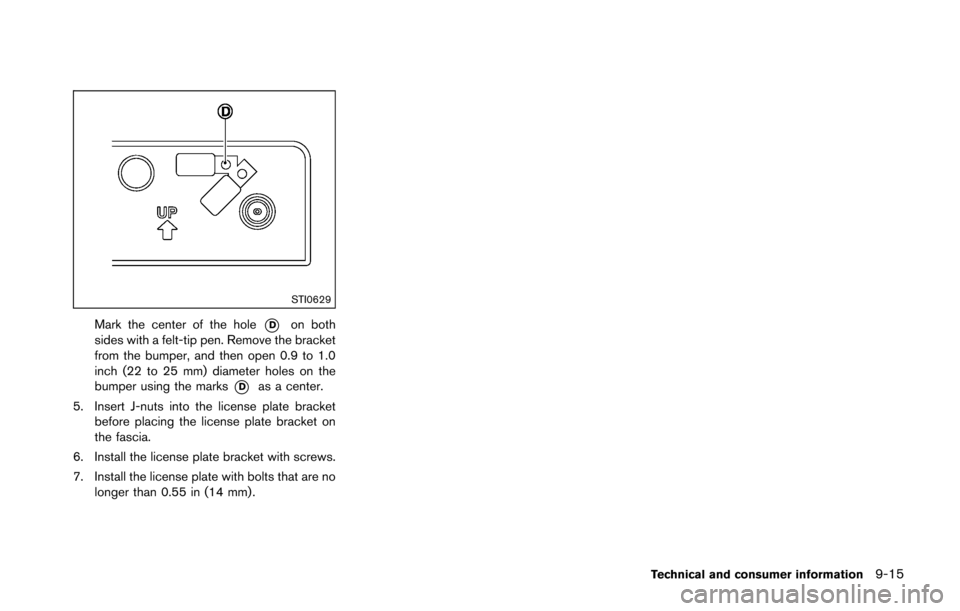

NISSAN 370Z COUPE 2016 Z34 Owners Manual STI0629
Mark the center of the hole*Don both
sides with a felt-tip pen. Remove the bracket
from the bumper, and then open 0.9 to 1.0
inch (22 to 25 mm) diameter holes on the
bumper using the marks
*Da

Page 407 of 428

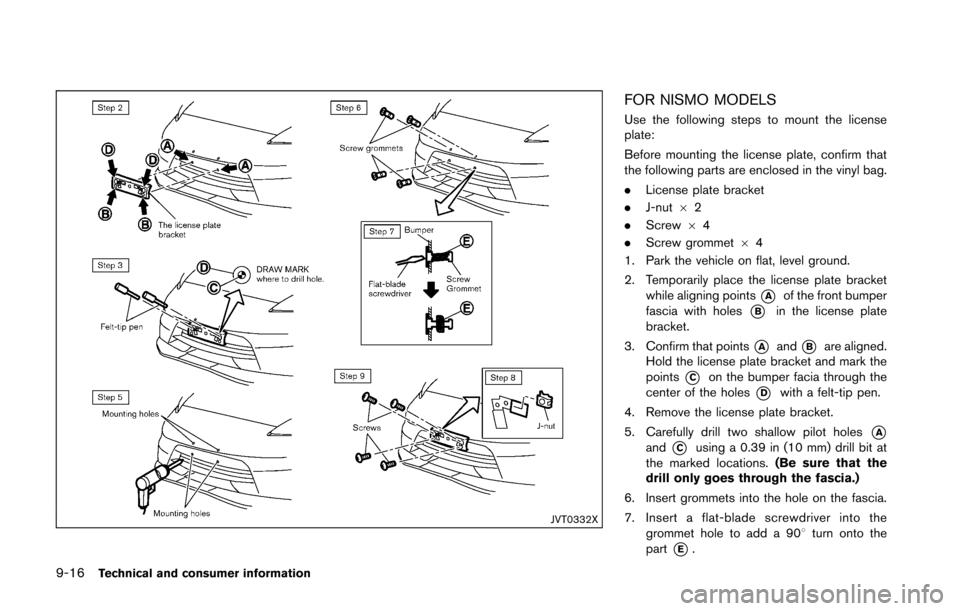

NISSAN 370Z COUPE 2016 Z34 Owners Manual 9-16Technical and consumer information
JVT0332X
FOR NISMO MODELS
Use the following steps to mount the license
plate:
Before mounting the license plate, confirm that
the following parts are enclosed in

Page 408 of 428

NISSAN 370Z COUPE 2016 Z34 Owners Manual 8. Insert a J-nut into the license plate bracketbefore placing the license plate bracket on
the fascia.
9. Install the license plate bracket with the screws.
10. Install the license plate with bolts t

Page 409 of 428

NISSAN 370Z COUPE 2016 Z34 Owners Manual 9-18Technical and consumer information
WARNING
.It is extremely dangerous to ride
in a cargo area inside the vehi-
cle. In a collision, people riding
in these areas are more likely to
be seriously inj

Page 410 of 428

NISSAN 370Z COUPE 2016 Z34 Owners Manual STI0365
VEHICLE LOAD CAPACITY
Do not exceed the load limit of your vehicle
shown as “The combined weight of occu-
pants and cargo” on the Tire and Loading
Information label. Do not exceed the
numb
