NISSAN 370Z COUPE 2017 Z34 Owners Manual
Manufacturer: NISSAN, Model Year: 2017, Model line: 370Z COUPE, Model: NISSAN 370Z COUPE 2017 Z34Pages: 443, PDF Size: 3.84 MB
Page 171 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @
SAA2143
MENU OPTIONSGUID-F0D47342-E539-4A34-A32F-3CC02A22DEF3The start menu can be displayed using the menu
control switch on the steering-wheel-mounted
controls.
1.While the MAP or STATUS screen is
displayed, push and hold the menu control
switch until the ªMenu Optionsº screen
appears.
2. Highlight the preferred item by tilting the menu control switch up or down, and then
push the menu control switch to select it.
SAA2476
Available itemsGUID-AA78AE73-5181-4235-9F62-8F622DB5EE87
Destination/Route:GUID-C1987160-819E-47A5-B4E8-FA378CD15FF9These items are for the navigation system. See
the separate Navigation System Owner's Man-
ual for details.
Info:
GUID-696B242B-077C-40E2-8D40-64ADAD7DA365Displays the information screen. It is the same
screen that appears when you push the INFO
button.
Settings:
GUID-AD76F72C-0D86-42E2-8F78-E5DCB3D68E21Displays the settings screen. It is the same
screen that appears when you push the
SETTING button.
SAA2477
HOW TO SELECT MENUS ON THE
SCREEN
GUID-971A50BB-99E3-49FF-93FC-8115615E85A0Vehicle functions are viewed on the display
screen in menus. To select each key item,
highlight the preferred item using the multi-
function controller and push the ENTER button.
Whenever a menu selection is made or menu
item is highlighted, different areas on the screen
provide you with important information. See the
following for details.
1. Header:
Shows the path used to get to the current
screen. (i.e. push SETTING button >
choose ªComfortº menu item.)
Center display, heater, air conditioner, audio, phone and voice recognition systems4-7
& R Q G L W L R Q
Page 172 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @
4-8Center display, heater, air conditioner, audio, phone and voice recognition systems
2. Menu Selections:Shows the options to choose within that
menu screen.
3. UP/DOWN Movement indicator: Shows that the multi-function controller may
be used to move UP/DOWN on the screen
and select more options.
4. Menu Items Counter: Shows the total number of items listed
across all pages for the current menu (i.e.
3/7) .
5. Footer/Information Line: Provides more information (if available)
about the menu selection currently high-
lighted. (i.e. Adjust head lamp on time after
shut-off.)GUID-1E8011D4-3695-404E-93CF-8F50DBA72472HOW TO USE STATUS BUTTONGUID-668201AC-867A-448C-9421-28170B799009You can check information related to the audio,
climate control system, fuel consumption and
navigation system by pressing the STATUS
button repeatedly.
HOW TO USE BRIGHTNESS CON-
TROL AND DISPLAY ON/OFF BUTTON
GUID-A5BA766E-74EF-4431-8E3D-BC70BE50C9EDPush the ªOFFº button to switch the display
brightness to the daytime mode or the nighttime
mode, and to adjust the display brightness using
the multi-function controller while the indicator is
displayed at the bottom of the screen.
The display brightness can also be adjusted
using the brightness UP button (+)or bright-
ness DOWN button (
Page 173 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @
selecting the ªOthersº key.
SAA2479
SAA2480
Fuel Economy informationGUID-8396B850-D64F-4D8C-B549-8F287D8ADE0FThe approximate distance to empty, average fuel
economy and current fuel economy will be
displayed for reference.
To reset the average fuel economy (Avg Fuel
Econ) , select the ªReset Fuel Ecoº key.
If the ªFuel Eco Historyº key is selected, the
average fuel consumption history will be dis-
played in graph form along with the average for
the previous Reset-to-Reset period.
The unit can be converted between ªUSº and
ªMetricº. (See ªHow to use SETTING buttonº
(P.4-11) .)
The fuel economy information may differ from the
information displayed on the vehicle information
display. This is due to the timing difference in
updating the information and does not indicate a
malfunction.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-9
& R Q G L W L R Q
Page 174 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @
4-10Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA2481
Maintenance informationGUID-89D9F6DB-354F-4A7B-B872-CD339D58060AThe maintenance intervals can be displayed for
the engine oil, oil filter, tire and other reminders.
To set a maintenance interval, select a preferred
item from the list.
You can also set to display a message to remind
you that the maintenance needs to be per-
formed.
The following example shows how to set the
engine oil maintenance information. Use the
same steps to set the other maintenance
information.
SAA2482
1. Set the interval (mileage) of the maintenanceschedule. To determine the recommended
maintenance interval, refer to the ª9. Main-
tenance and schedulesº section.
2. To display the reminder automatically when the desired distance is reached, select the
ªReminderº key.
3. Reset the driving distance to the new
maintenance schedule.
4. To return to the previous screen, push the BACK button.
The unit can be converted between ªUSº and
ªMetricº. (See ªHow to use SETTING buttonº
(P.4-11) .)
SAA3003
Example
The Reminder will be automatically displayed
when the specified distance has been driven
and every time the ignition switch is pushed to
the ACC or ON position. The reminder will not
appear while driving.
Select the ªOKº key to hide the reminder for the
rest of the current drive.
To stop the reminder from appearing, perform
one of the following actions:
. Select the ªReset Distanceº.
. Deactivate the ªReminderº.
. Increase the ªIntervalº distance to be more
than the current distance being tracked.
& R Q G L W L R Q
Page 175 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @
SAA2483
Others informationGUID-D662A7E5-DDB2-4470-A69A-D889DCD71F99The Others information display will appear when
pushing the INFO button and selecting the
ªOthersº key.
GPS Position:
GUID-4D4597AE-8B1E-4F80-B519-DAE04711CFF6For the details of this item, see the separate
Navigation System Owner's Manual.
Voice Recognition:
GUID-54E94323-97C4-4CC5-9BF7-68A971824389For the details of this item, see ªNISSAN Voice
Recognition System (models with navigation
system)º (P.4-99) .
SAA2484
HOW TO USE SETTING BUTTONGUID-2FEAB50E-DD77-435E-9347-1CA16505931AThe display as illustrated will appear when the
SETTING button is pushed.
For navigation settings, refer to the separate
Navigation System Owner's Manual.
SAA2485
Example
Audio settingsGUID-80D6355E-406A-46B5-8335-43929C307518The display as illustrated will appear when
pushing the SETTING button and selecting the
ªAudioº key.
Bass/Treble/Balance/Fade:
GUID-E8718B4B-ECBD-4243-B606-DE85DE96BD69To adjust the speaker tone quality and sound
balance, select the ªBassº, ªTrebleº, ªBalanceº
or ªFadeº key and adjust it with the multi-
function controller.
These items can also be adjusted by pushing
and turning the AUDIO knob.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-11
& R Q G L W L R Q
Page 176 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @
4-12Center display, heater, air conditioner, audio, phone and voice recognition systems
Speed Sensitive Vol.:GUID-989BD8C8-DBC0-4CB5-AD6F-BEEA6816CB24The audio system's volume is increased with the
vehicle speed. Select the ªSpeed Sensitive Vol.º
and adjust the effect level with the multi-function
controller. The Speed Sensitive Volume function
is turned off when the level is set to ªOFFº.
Increasing the value will cause the volume to
increase faster with vehicle speed.
DivX
Page 177 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @

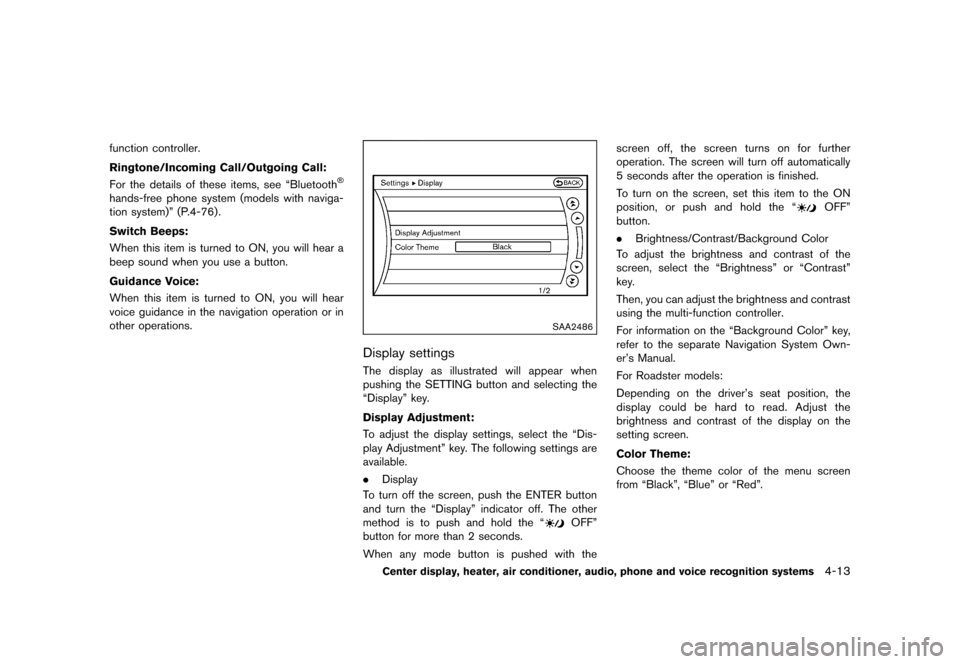

function controller.
Ringtone/Incoming Call/Outgoing Call:
GUID-3809E5EC-4482-4C72-81C5-FE7D5F42E82CFor the details of these items, see ªBluetooth
Page 178 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @
4-14Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA2487
Clock settingsGUID-D0FE04A9-3501-46DF-97D4-1FCF2C9A67C5The display as illustrated will appear when
pushing the SETTING button and selecting the
ªClockº key.
The clock settings display cannot be operated
while driving. Stop the vehicle in a safe place
and apply the parking brake before setting the
clock.
On-screen Clock:
GUID-195EEE27-2D5D-4BDD-8369-B561FD133C12When this item is turned to ON, a clock is
always displayed in the upper right corner of the
screen.
This clock will indicate the time almost exactly
because it is always adjusted by the GPSsystem.
Clock Format (24h):
GUID-0DA2F3B5-7D78-41C9-8492-CD7F03C842C7When this item is turned to ON, the 24-hour
clock is displayed. When this item is not turned
to ON, the 12-hour clock is displayed.
Offset (hour)/(min):
GUID-EAF2B626-D5B3-4413-A46B-F4CC4CB6F595Adjust the time by increasing or decreasing per
hour or per minute.
Daylight Saving Time:
GUID-7A907352-D3B6-4EDD-ABB5-86510EC76FB1Turn this item to ON for daylight saving time
application.
Time Zone:
GUID-675C66D0-27FE-4DD2-92F3-61D5ACA50520Choose the time zone from the following
.
Pacific
. Mountain
. Central
. Eastern
. Atlantic
. Newfoundland
. Hawaii
. Alaska
JVH0308M
Others settingsGUID-C261960E-CF67-4E55-8E50-328C98F1ABB5The Others settings display will appear when
pushing the SETTING button and selecting the
ªOthersº key.
The following items are available:
.Comfort
. Language & Units
. Voice Recognition
. Camera
. Image Viewer
& R Q G L W L R Q
Page 179 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @
SAA2488
Example
Comfort settingsGUID-EC638585-73FC-41A8-BFD6-B3ECBC976953The display as illustrated will appear when
pushing the SETTING button and selecting the
ªOthersº key, and then selecting the ªComfortº
key. This key does not appear on the display until
the ignition switch is pushed to the ON position.
Auto Interior Illumination:
GUID-39943DC2-81E7-46EF-B2D2-1CBC3ACD2006When this item is turned to ON, the interior
lights will illuminate if any door is unlocked.
Light Sensitivity:
GUID-531E6796-2F47-4D37-B59F-CACEF4CC12FDAdjust the sensitivity of the automatic headlights
higher (right) or lower (left) .Light Off Delay:
GUID-31CFCF7F-4EAB-4E76-85A9-C3845EE47CC0Choose the duration of the automatic headlight
off timer from 0, 30, 45, 60, 90, 120, 150 and
180 second periods.
Speed Sensing Wiper Interval:
GUID-DFD33264-BABC-440B-A3FD-951DED35D108When this item is turned to ON, the wiper
interval is adjusted automatically according to
the vehicle speed.
Selective Door Unlock:
GUID-8A34C073-DC3D-470D-8C62-41550CE4CC72When this item is turned to ON, only the driver's
door is unlocked first after the door unlock
operation. When the door handle request switch
on the driver's or front passenger's side door is
pushed to be unlocked, only the corresponding
door is unlocked first. All the doors can be
unlocked if the door unlock operation is per-
formed again within 60 seconds.
When this item is turned to OFF, all the doors
will be unlocked after the door unlock operation
is performed once.
Intelligent Key Lock/Unlock:
GUID-DC13EB5A-0A27-4E36-9437-AB536C3F2C11When this item is turned to ON, door lock/
unlock function by pushing the door handle
request switch will be activated.
Return All Settings to Default:
GUID-D51FCFFA-F7BA-48EB-91F7-2D449259DBA2Select this item and then select ªYESº to return
all settings to the default.
SAA2490
Language & Units settingsGUID-32072A6E-524E-4948-9A8A-1A1EFA3A6364The Language & Units settings display will
appear when pushing the SETTING button,
selecting the ªOthersº key, and then selecting
the ªLanguage & Unitsº key.
Select Language:
GUID-8FD4E89D-FE16-472D-AE75-B4CA80366565Select the ªSelect Languageº key. Choose
ªEnglishº, ªFranc
Ëaisº or ªEspan Ä
olº for your
favorite display appearance.
If you select the ªFrancË aisº key, the French
language will be displayed, so please use the
French Owner's Manual. To obtain a French
Owner's Manual, see ªOwner's Manual/Service
Manual order informationº (P.10-25) .
Center display, heater, air conditioner, audio, phone and voice recognition systems4-15
& R Q G L W L R Q
Page 180 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @
4-16Center display, heater, air conditioner, audio, phone and voice recognition systems
Select Units:GUID-8F0B0043-486B-4D87-847D-0D9CBA8EF4E5Select the ªSelect Unitsº key. Choose ªUSº
(Mile,8F, MPG) or ªMetricº (km, 8C, L/100 km)
for your favorite display appearance.
Voice Recognition settingsGUID-E44DDB7D-41F8-4BE9-972F-5D86FB5251F3For details about the ªVoice Recognitionº
settings, see ªNISSAN Voice Recognition Sys-
tem (models with navigation system)º (P.4-99) .
Camera settingsGUID-1E867F3A-C3CC-478A-9E23-63A28F1C44EFThe ªCameraº screen will appear when selecting
the ªCameraº key.
For details about the camera system operation,
see ªRearView Monitor (models with navigation
system)º (P.4-18) .
SAA2491
Image ViewerGUID-DEBE408B-3F76-430C-B0E0-C07F0795835EThe image files in the USB memory will be
displayed. To display the Image Viewer, push the
SETTING button, select the ªOtherº key and
then select the ªImage Viewerº key. The image of
the selected file is displayed on the right side of
the screen.
When a number of folders are included in the
USB memory, select a folder from the list to
display the file list.
Images will not be shown on the display while
the vehicle is in any drive position to reduce
driver distraction. To view images, stop the
vehicle in a safe location and apply the parking brake.
& R Q G L W L R Q
