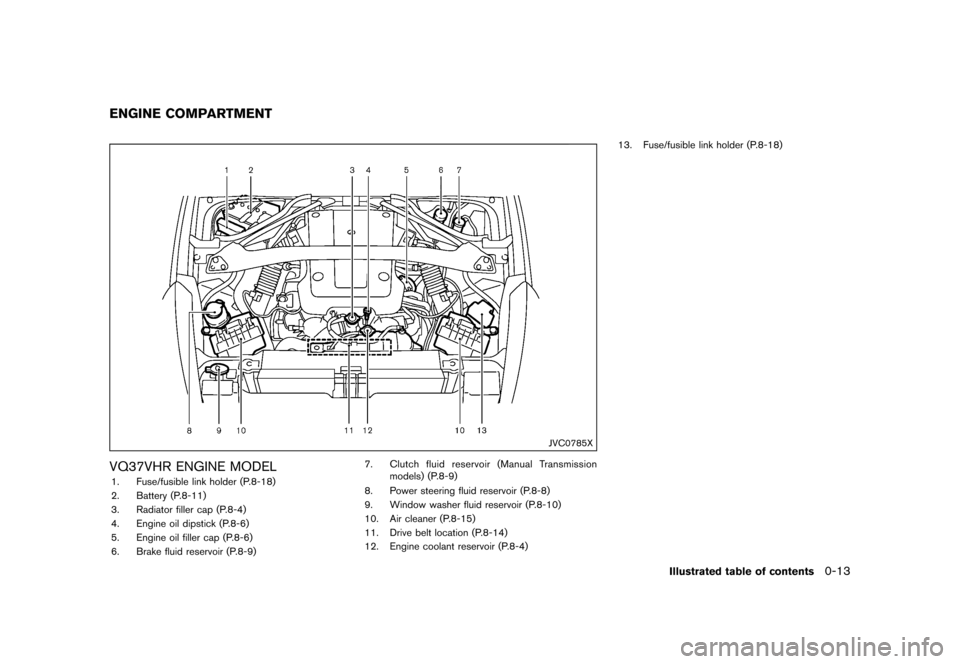

VQ37VHR ENGINE MODELGUID-CA1603F1-4C1A-4216-AA17-F6627E0A896D1. Fuse/fusible link holder (P.8-18)
2. Battery (P.8-11)
3. Radiator filler cap (P.8-4)
4. Engine oil dipstick (P.8-6)
5. Engine oil filler cap (P.8-6)
6. Brake fluid reservoir (P.8-9)7.
Clutch fluid reservoir (Manual Transmission
models) (P.8-9)
8. Power steering fluid reservoir (P.8-8)
9. Window washer fluid reservoir (P.8-10)
10. Air cleaner (P.8-15)
11. Drive belt location (P.8-14)
12. Engine coolant reservoir (P.8-4) 13. Fuse/fusible link holder (P.8-18)
Illustrated table of contents0-13
ENGINE COMPARTMENT
& R Q G L W L R Q
Page 22 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @
0-14Illustrated table of contents
GUID-2A805EB9-8ED6-49C4-8B1B-5A6F6731FA9F
Warninglight Name
Page
Anti-lock Braking System
(ABS) warning light 2-11
Automatic Transmission (AT)
check warning light (if so
equipped)2-11
Brake warning light
2-11
Charge warning light2-12
Engine oil pressure warning
light2-12
Intelligent Key system warning
light
2-12
Low tire pressure warning light
2-13
Master warning light2-14
Seat belt warning light2-14
Supplemental air bag warning
light2-14
Vehicle Dynamic Control (VDC)
warning light2-15Indicator
light Name
Page
Cruise indicator light 2-15
Exterior light indicator2-15
Front passenger air bag status
light2-15
High beam indicator light
2-15
Malfunction Indicator Light
(MIL)2-16
Rear fog light indicator light (if
so equipped)2-16
Security indicator light
2-16
Soft top indicator light (Road-
ster models)2-17
SynchroRev Match mode (S-
MODE) indicator (if so
equipped)2-17
Transmission position indicator
light (if so equipped)
2-17
Turn signal/hazard indicator
lights
2-18
Vehicle Dynamic Control (VDC)
off indicator light2-18
WARNING AND INDICATOR LIGHTS
& R Q G L W L R Q
Page 23 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @

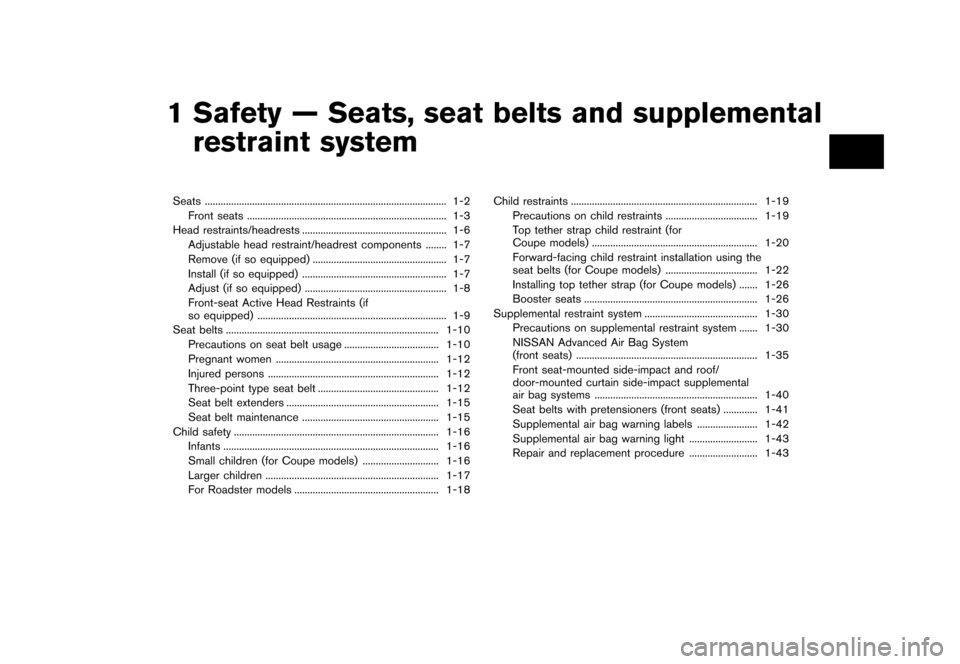

1 Safety Ð Seats, seat belts and supplementalrestraint system
Seats ...
........................................................................\
.................... 1-2
Front seats ...
........................................................................\
.... 1-3
Head restraints/headrests ...
....................................................... 1-6
Adjustable head restraint/headrest components ...
........ 1-7
Remove (if so equipped) ...
................................................... 1-7
Install (if so equipped) ...
....................................................... 1-7
Adjust (if so equipped) ...
...................................................... 1-8
Front-seat Active Head Restraints (if
so equipped) ...
........................................................................\
1-9
Seat belts ...
........................................................................\
......... 1-10
Precautions on seat belt usage ...
.................................... 1-10
Pregnant women ...
.............................................................. 1-12
Injured persons ...
................................................................. 1-12
Three-point type seat belt ...
.............................................. 1-12
Seat belt extenders ...
.......................................................... 1-15
Seat belt maintenance ...
.................................................... 1-15
Child safety ...
........................................................................\
...... 1-16
Infants ...
........................................................................\
.......... 1-16
Small children (for Coupe models) ...
............................. 1-16
Larger children ...
.................................................................. 1-17
For Roadster models ...
....................................................... 1-18 Child restraints
...
....................................................................... 1-19
Precautions on child restraints ...
................................... 1-19
Top tether strap child restraint (for
Coupe models) ...
............................................................... 1-20
Forward-facing child restraint installation using the
seat belts (for Coupe models) ...
................................... 1-22
Installing top tether strap (for Coupe models) ...
....... 1-26
Booster seats ...
.................................................................. 1-26
Supplemental restraint system ...
........................................... 1-30
Precautions on supplemental restraint system ...
....... 1-30
NISSAN Advanced Air Bag System
(front seats) ...
..................................................................... 1-35
Front seat-mounted side-impact and roof/
door-mounted curtain side-impact supplemental
air bag systems ...
.............................................................. 1-40
Seat belts with pretensioners (front seats) ...
............. 1-41
Supplemental air bag warning labels ...
....................... 1-42
Supplemental air bag warning light ...
.......................... 1-43
Repair and replacement procedure ...
.......................... 1-43
& R Q G L W L R Q
Page 24 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @
1-2Safety Ð Seats, seat belts and supplemental restraint system
GUID-5AA59FCF-5AAE-4C17-AFA7-074376CD08B4
SSS0133

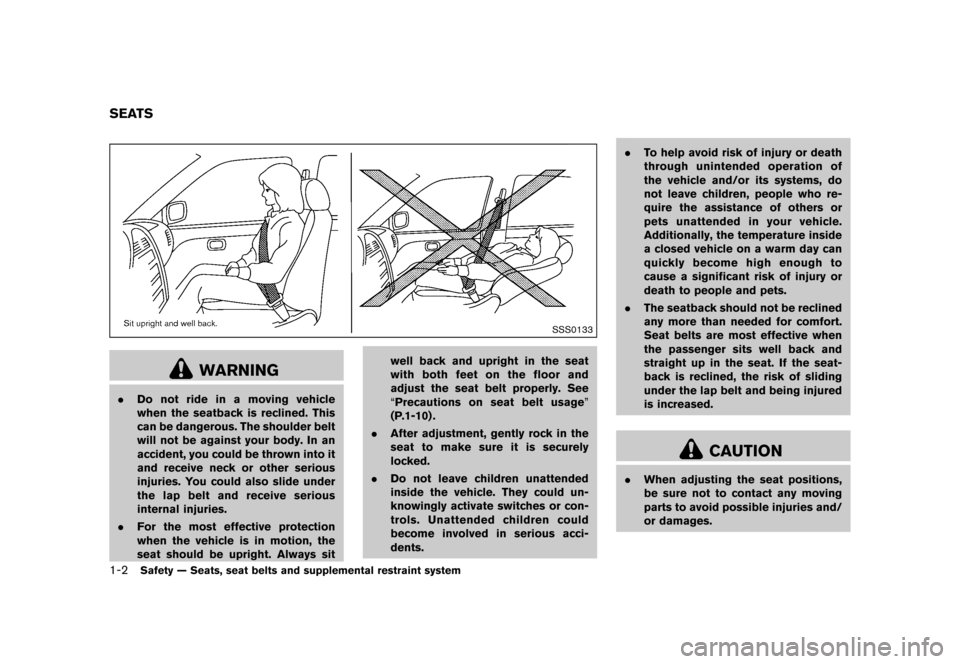

WARNING
.Do not ride in a moving vehicle
when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious
internal injuries.
. For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit well back and upright in the seat
with both feet on the floor and
adjust the seat belt properly. See
ªPrecautions on seat belt usageº
(P.1-10) .
. After adjustment, gently rock in the
seat to make sure it is securely
locked.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents. .
To help avoid risk of injury or death
through unintended operation of
the vehicle and/or its systems, do
not leave children, people who re-
quire the assistance of others or
pets unattended in your vehicle.
Additionally, the temperature inside
a closed vehicle on a warm day can
quickly become high enough to
cause a significant risk of injury or
death to people and pets.
. The seatback should not be reclined
any more than needed for comfort.
Seat belts are most effective when
the passenger sits well back and
straight up in the seat. If the seat-
back is reclined, the risk of sliding
under the lap belt and being injured
is increased.
CAUTION
.When adjusting the seat positions,
be sure not to contact any moving
parts to avoid possible injuries and/
or damages.
SEATS
& R Q G L W L R Q
Page 25 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @
FRONT SEATSGUID-C6067234-6222-4802-A21C-99B3011E856D
Front power seat adjustmentGUID-94CA7C16-FDB7-4D8E-9B77-534547D10839

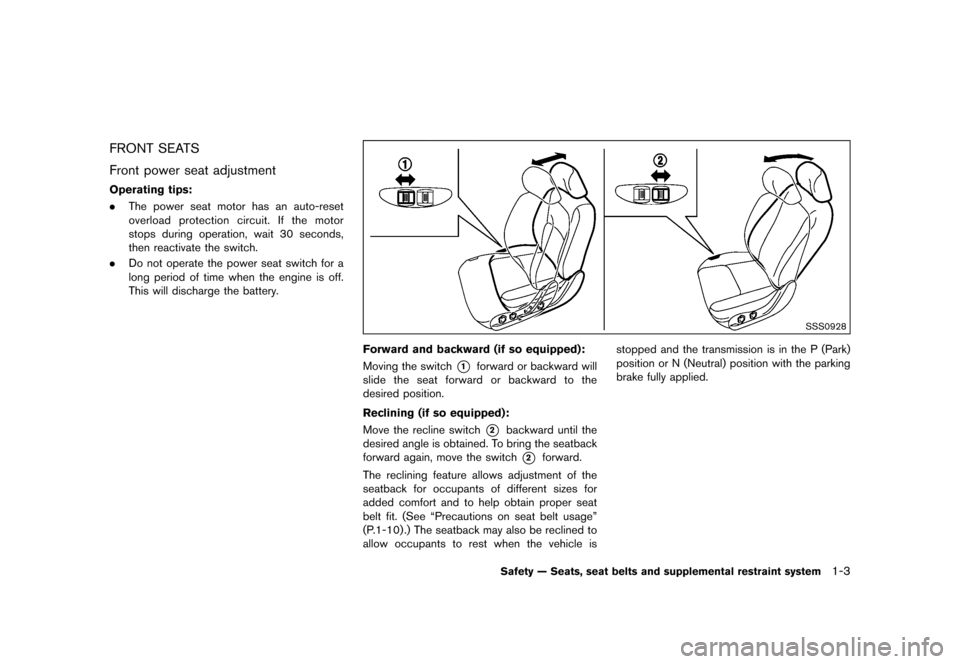

Operating tips:GUID-E7610B58-6533-4D66-B2BE-0BE3685003B6.The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.
. Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
SSS0928
Forward and backward (if so equipped):GUID-07A34C2B-9E2C-4F3E-971E-E98412E54A74Moving the switch*1forward or backward will
slide the seat forward or backward to the
desired position.
Reclining (if so equipped):
GUID-3730948B-B72A-41B4-B49F-2F4D28C8915FMove the recline switch*2backward until the
desired angle is obtained. To bring the seatback
forward again, move the switch
*2forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See ªPrecautions on seat belt usageº
(P.1-10) .) The seatback may also be reclined to
allow occupants to rest when the vehicle is stopped and the transmission is in the P (Park)
position or N (Neutral) position with the parking
brake fully applied.
Safety Ð Seats, seat belts and supplemental restraint system1-3
& R Q G L W L R Q
Page 26 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @
1-4Safety Ð Seats, seat belts and supplemental restraint system
SSS0394

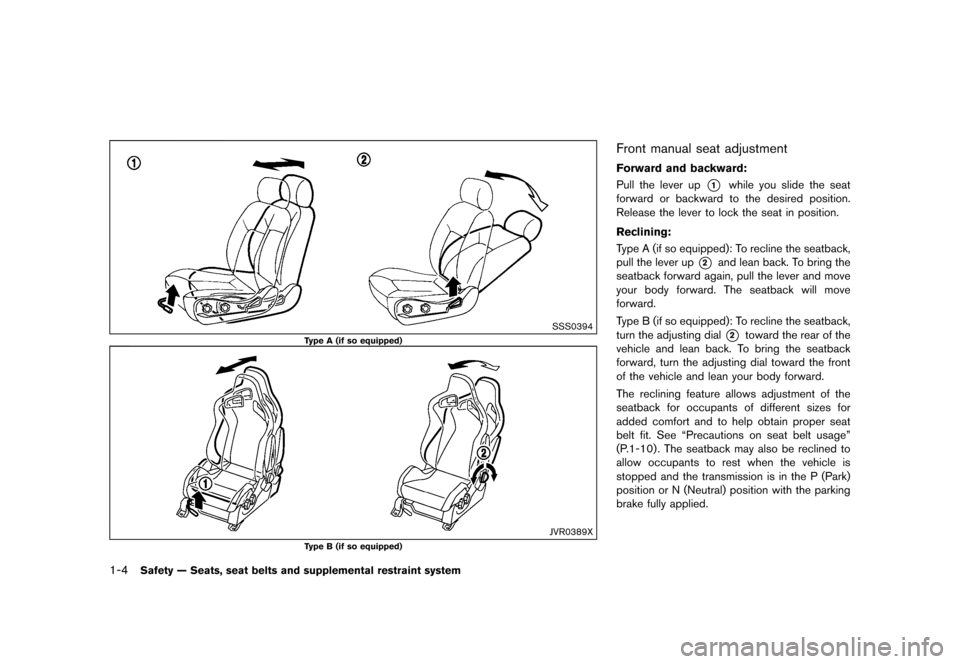

Type A (if so equipped)
JVR0389X
Type B (if so equipped)
Front manual seat adjustmentGUID-017634F1-4144-4E7F-A116-2A3E82265041
Forward and backward:GUID-EA3077C3-9C96-4F32-8237-ED2FA31DB5D1Pull the lever up*1while you slide the seat
forward or backward to the desired position.
Release the lever to lock the seat in position.
Reclining:
GUID-D8E6BFD9-A02F-4F62-BAC3-7910C52A7784Type A (if so equipped): To recline the seatback,
pull the lever up
*2and lean back. To bring the
seatback forward again, pull the lever and move
your body forward. The seatback will move
forward.
Type B (if so equipped): To recline the seatback,
turn the adjusting dial
*2toward the rear of the
vehicle and lean back. To bring the seatback
forward, turn the adjusting dial toward the front
of the vehicle and lean your body forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. See ªPrecautions on seat belt usageº
(P.1-10) . The seatback may also be reclined to
allow occupants to rest when the vehicle is
stopped and the transmission is in the P (Park)
position or N (Neutral) position with the parking
brake fully applied.
& R Q G L W L R Q
Page 27 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @
JVR0391X
Type B (if so equipped)

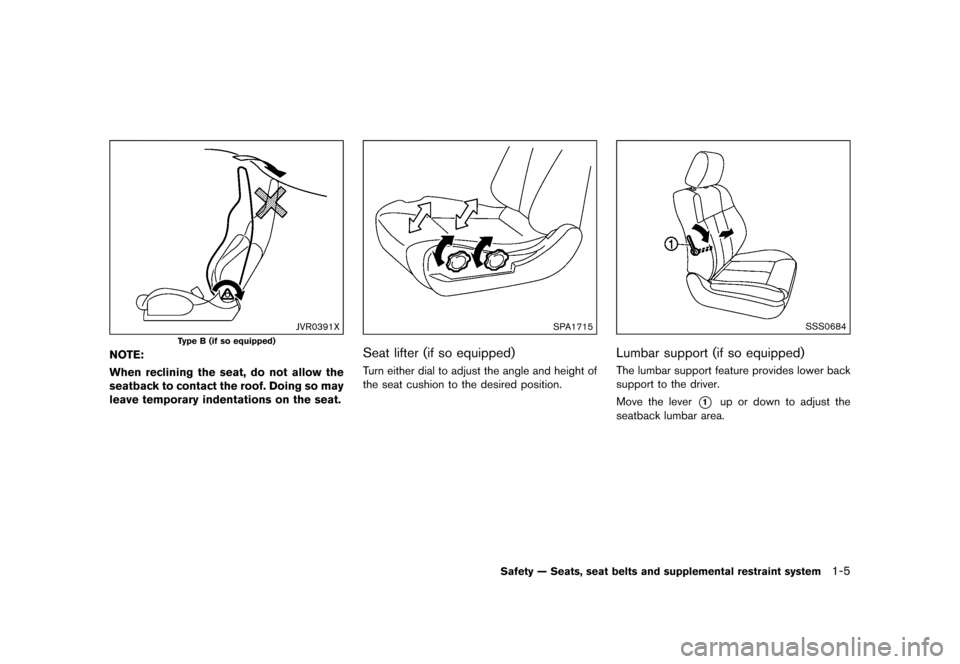

NOTE:
When reclining the seat, do not allow the
seatback to contact the roof. Doing so may
leave temporary indentations on the seat.
SPA1715
Seat lifter (if so equipped)GUID-1E5F24FB-9AF8-46E6-B5D6-1FC65C4F02ACTurn either dial to adjust the angle and height of
the seat cushion to the desired position.
SSS0684
Lumbar support (if so equipped)GUID-0A5814DF-B450-4B33-A364-33910EC58FD3The lumbar support feature provides lower back
support to the driver.
Move the lever
*1up or down to adjust the
seatback lumbar area.
Safety Ð Seats, seat belts and supplemental restraint system1-5
& R Q G L W L R Q
Page 28 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @
1-6Safety Ð Seats, seat belts and supplemental restraint system
GUID-2AE05AEA-9085-44D8-83F0-78B6E81AA242
WARNING
Head restraints/headrests supplement
the other vehicle safety systems. They
may provide additional protection
against injury in certain rear end colli-
sions. Adjustable head restraints/head-
rests must be adjusted properly, as
specified in this section. Check the
adjustment after someone else uses
the seat. Do not attach anything to the
head restraint/headrest stalks or re-
move the head restraint/headrest. Do
not use the seat if the head restraint/
headrest has been removed. If the head
restraint/headrest was removed, rein-
stall and properly adjust the head
restraint/headrest before an occupant
uses the seating position. Failure to
follow these instructions can reduce the
effectiveness of the head restraint/
headrest. This may increase the risk of
serious injury or death in a collision.
SSS1007

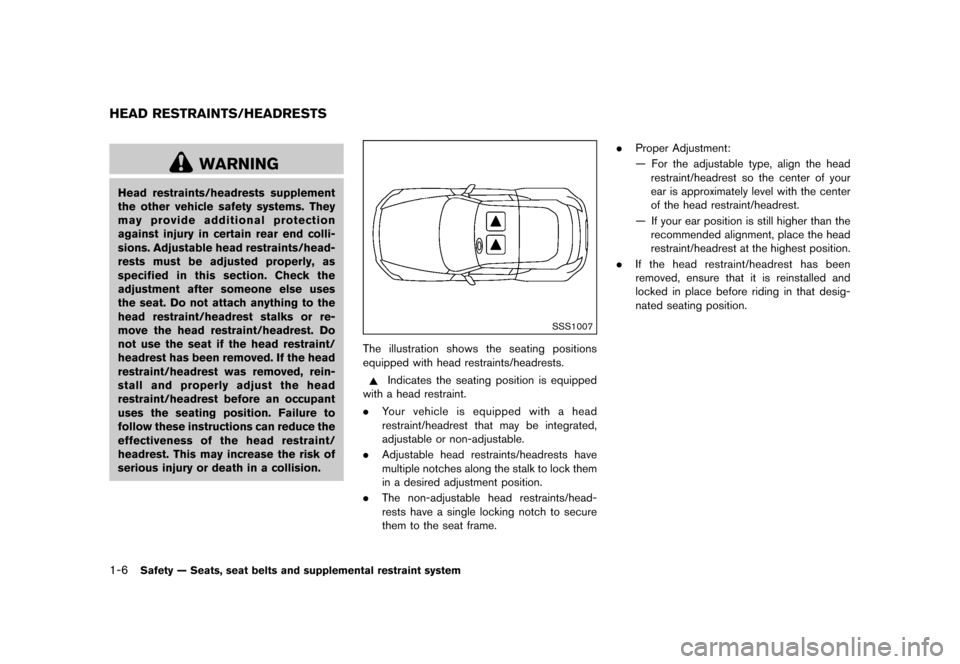

The illustration shows the seating positions
equipped with head restraints/headrests.
Indicates the seating position is equipped
with a head restraint.
. Your vehicle is equipped with a head
restraint/headrest that may be integrated,
adjustable or non-adjustable.
. Adjustable head restraints/headrests have
multiple notches along the stalk to lock them
in a desired adjustment position.
. The non-adjustable head restraints/head-
rests have a single locking notch to secure
them to the seat frame. .
Proper Adjustment:
Ð For the adjustable type, align the head
restraint/headrest so the center of your
ear is approximately level with the center
of the head restraint/headrest.
Ð If your ear position is still higher than the recommended alignment, place the head
restraint/headrest at the highest position.
. If the head restraint/headrest has been
removed, ensure that it is reinstalled and
locked in place before riding in that desig-
nated seating position.
HEAD RESTRAINTS/HEADRESTS
& R Q G L W L R Q
Page 29 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @
SSS0992

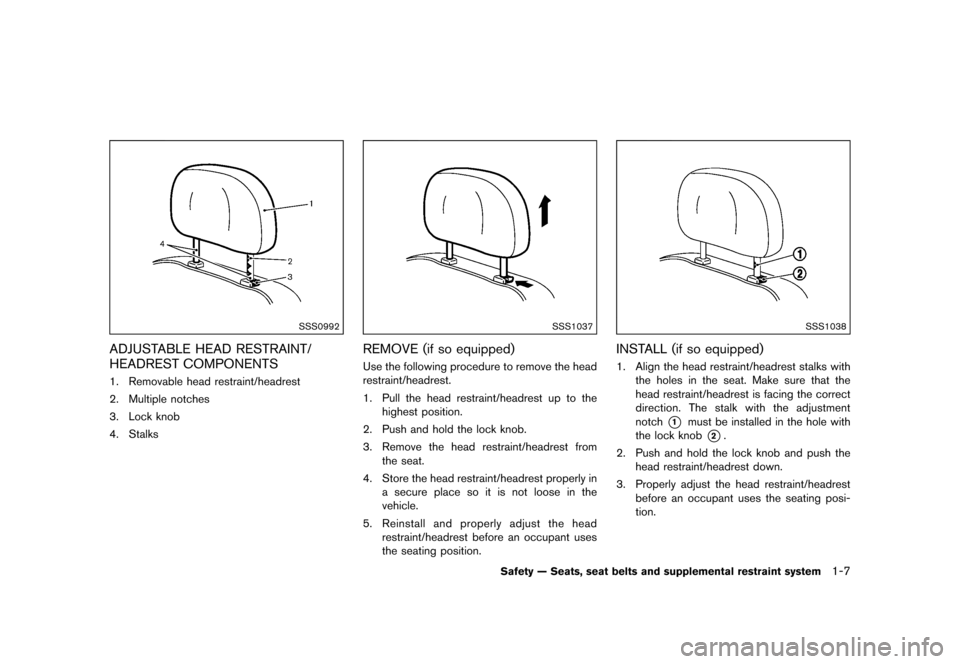

ADJUSTABLE HEAD RESTRAINT/
HEADREST COMPONENTS
GUID-31273986-74E7-410D-AA91-DE7542C6BB081. Removable head restraint/headrest
2. Multiple notches
3. Lock knob
4. Stalks
SSS1037
REMOVE (if so equipped)GUID-7F02C4EE-7C04-4E9A-81CF-B40E29A7EE1DUse the following procedure to remove the head
restraint/headrest.
1. Pull the head restraint/headrest up to thehighest position.
2. Push and hold the lock knob.
3. Remove the head restraint/headrest from the seat.
4. Store the head restraint/headrest properly in a secure place so it is not loose in the
vehicle.
5. Reinstall and properly adjust the head
restraint/headrest before an occupant uses
the seating position.
SSS1038
INSTALL (if so equipped)GUID-9370B543-9041-4A9E-80CB-3B76EDB2D6B01. Align the head restraint/headrest stalks with
the holes in the seat. Make sure that the
head restraint/headrest is facing the correct
direction. The stalk with the adjustment
notch
*1must be installed in the hole with
the lock knob
*2.
2. Push and hold the lock knob and push the head restraint/headrest down.
3. Properly adjust the head restraint/headrest before an occupant uses the seating posi-
tion.
Safety Ð Seats, seat belts and supplemental restraint system1-7
& R Q G L W L R Q
Page 30 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @
1-8Safety Ð Seats, seat belts and supplemental restraint system
SSS0997

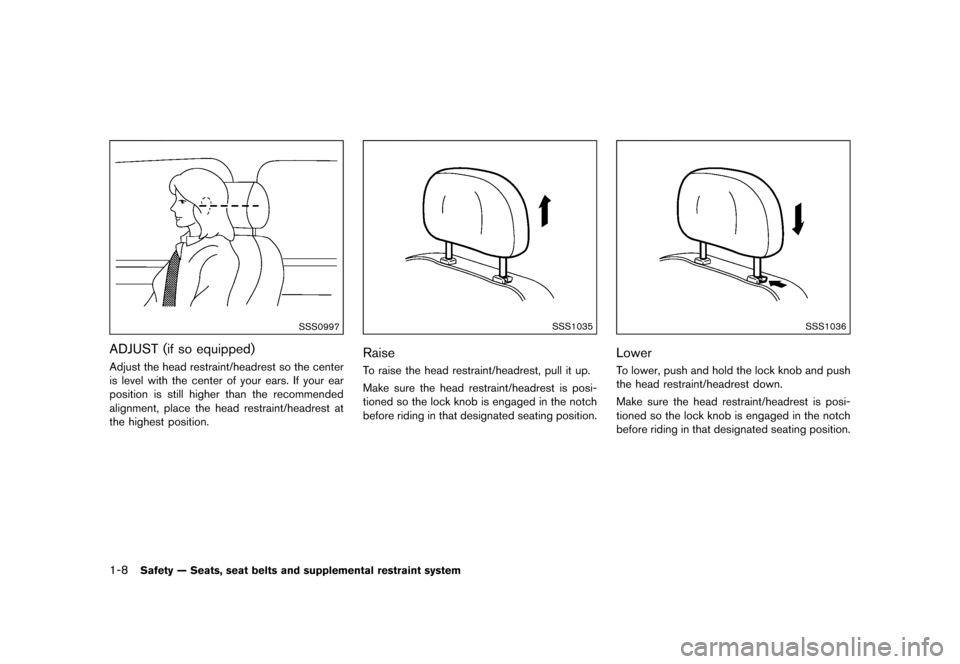

ADJUST (if so equipped)GUID-B78527A7-373D-40FE-8DAB-92105488A7B5Adjust the head restraint/headrest so the center
is level with the center of your ears. If your ear
position is still higher than the recommended
alignment, place the head restraint/headrest at
the highest position.
SSS1035
RaiseGUID-F35581D8-294A-4B88-B31E-999F5415B256To raise the head restraint/headrest, pull it up.
Make sure the head restraint/headrest is posi-
tioned so the lock knob is engaged in the notch
before riding in that designated seating position.
SSS1036
LowerGUID-132EBB91-0FC4-4E7D-B515-B7FA5B529650To lower, push and hold the lock knob and push
the head restraint/headrest down.
Make sure the head restraint/headrest is posi-
tioned so the lock knob is engaged in the notch
before riding in that designated seating position.
& R Q G L W L R Q
