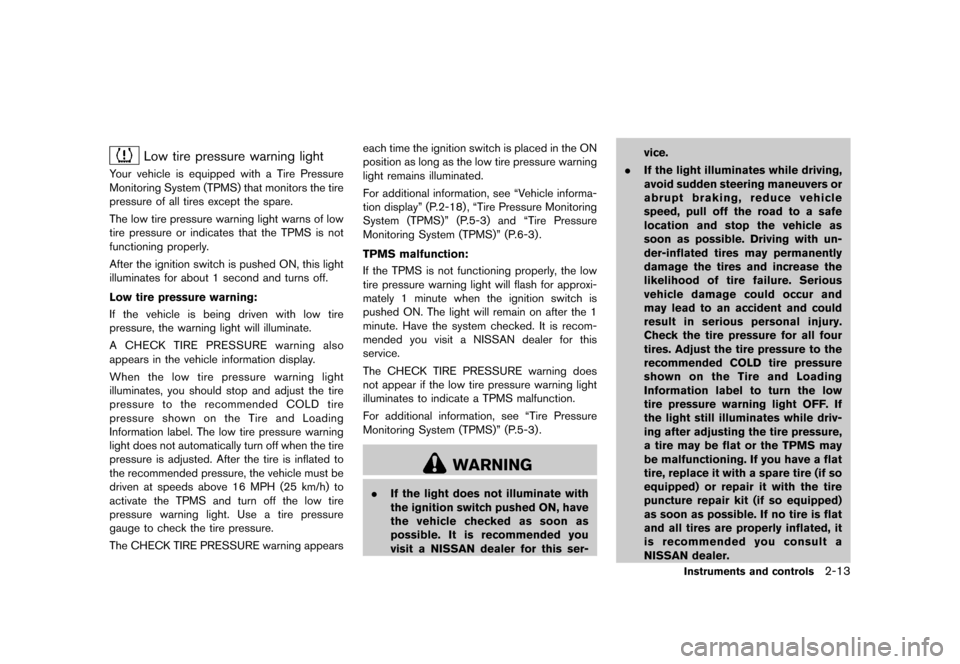

Low tire pressure warning lightGUID-198D6DCF-E9F3-4FE1-8C20-8D8063552643Your vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors the tire
pressure of all tires except the spare.
The low tire pressure warning light warns of low
tire pressure or indicates that the TPMS is not
functioning properly.
After the ignition switch is pushed ON, this light
illuminates for about 1 second and turns off.
Low tire pressure warning:
GUID-69F4FC02-810B-440F-9084-28E2D489975FIf the vehicle is being driven with low tire
pressure, the warning light will illuminate.
A CHECK TIRE PRESSURE warning also
appears in the vehicle information display.
When the low tire pressure warning light
illuminates, you should stop and adjust the tire
pressure to the recommended COLD tire
pressure shown on the Tire and Loading
Information label. The low tire pressure warning
light does not automatically turn off when the tire
pressure is adjusted. After the tire is inflated to
the recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h) to
activate the TPMS and turn off the low tire
pressure warning light. Use a tire pressure
gauge to check the tire pressure.
The CHECK TIRE PRESSURE warning appearseach time the ignition switch is placed in the ON
position as long as the low tire pressure warning
light remains illuminated.
For additional information, see ªVehicle informa-
tion displayº (P.2-18) , ªTire Pressure Monitoring
System (TPMS)º (P.5-3) and ªTire Pressure
Monitoring System (TPMS)º (P.6-3) .
TPMS malfunction:
GUID-18E1CA3E-BA97-48B2-9A93-C729F519BAC7If the TPMS is not functioning properly, the low
tire pressure warning light will flash for approxi-
mately 1 minute when the ignition switch is
pushed ON. The light will remain on after the 1
minute. Have the system checked. It is recom-
mended you visit a NISSAN dealer for this
service.
The CHECK TIRE PRESSURE warning does
not appear if the low tire pressure warning light
illuminates to indicate a TPMS malfunction.
For additional information, see ªTire Pressure
Monitoring System (TPMS)º (P.5-3) .
WARNING
.
If the light does not illuminate with
the ignition switch pushed ON, have
the vehicle checked as soon as
possible. It is recommended you
visit a NISSAN dealer for this ser- vice.
. If the light illuminates while driving,
avoid sudden steering maneuvers or
abrupt braking, reduce vehicle
speed, pull off the road to a safe
location and stop the vehicle as
soon as possible. Driving with un-
der-inflated tires may permanently
damage the tires and increase the
likelihood of tire failure. Serious
vehicle damage could occur and
may lead to an accident and could
result in serious personal injury.
Check the tire pressure for all four
tires. Adjust the tire pressure to the
recommended COLD tire pressure
shown on the Tire and Loading
Information label to turn the low
tire pressure warning light OFF. If
the light still illuminates while driv-
ing after adjusting the tire pressure,
a tire may be flat or the TPMS may
be malfunctioning. If you have a flat
tire, replace it with a spare tire (if so
equipped) or repair it with the tire
puncture repair kit (if so equipped)
as soon as possible. If no tire is flat
and all tires are properly inflated, it
is recommended you consult a
NISSAN dealer.
Instruments and controls2-13
& R Q G L W L R Q
Page 82 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @
2-14Instruments and controls

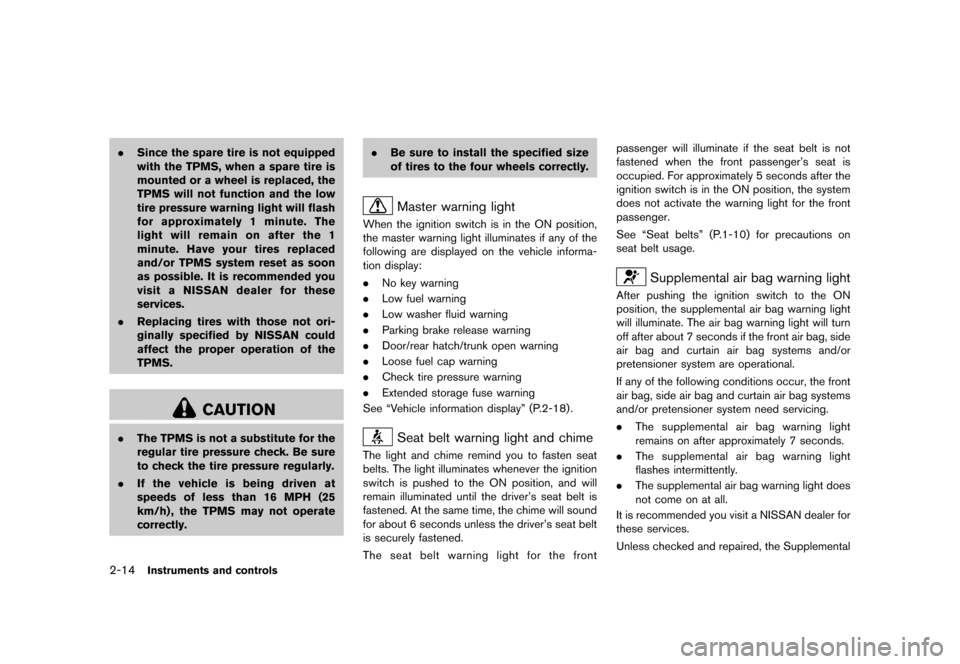

.Since the spare tire is not equipped
with the TPMS, when a spare tire is
mounted or a wheel is replaced, the
TPMS will not function and the low
tire pressure warning light will flash
for approximately 1 minute. The
light will remain on after the 1
minute. Have your tires replaced
and/or TPMS system reset as soon
as possible. It is recommended you
visit a NISSAN dealer for these
services.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.
CAUTION
.The TPMS is not a substitute for the
regular tire pressure check. Be sure
to check the tire pressure regularly.
. If the vehicle is being driven at
speeds of less than 16 MPH (25
km/h) , the TPMS may not operate
correctly. .
Be sure to install the specified size
of tires to the four wheels correctly.
Master warning lightGUID-BEC63814-B47C-4621-A314-0283456BF856When the ignition switch is in the ON position,
the master warning light illuminates if any of the
following are displayed on the vehicle informa-
tion display:
.No key warning
. Low fuel warning
. Low washer fluid warning
. Parking brake release warning
. Door/rear hatch/trunk open warning
. Loose fuel cap warning
. Check tire pressure warning
. Extended storage fuse warning
See ªVehicle information displayº (P.2-18) .
Seat belt warning light and chimeGUID-BF450C8C-4C53-4F6D-ABA7-E7CD2FB4067DThe light and chime remind you to fasten seat
belts. The light illuminates whenever the ignition
switch is pushed to the ON position, and will
remain illuminated until the driver's seat belt is
fastened. At the same time, the chime will sound
for about 6 seconds unless the driver's seat belt
is securely fastened.
The seat belt warning light for the front passenger will illuminate if the seat belt is not
fastened when the front passenger's seat is
occupied. For approximately 5 seconds after the
ignition switch is in the ON position, the system
does not activate the warning light for the front
passenger.
See ªSeat beltsº (P.1-10) for precautions on
seat belt usage.
Supplemental air bag warning lightGUID-2BED3AA4-0FC9-4559-9DF2-B9532612C064After pushing the ignition switch to the ON
position, the supplemental air bag warning light
will illuminate. The air bag warning light will turn
off after about 7 seconds if the front air bag, side
air bag and curtain air bag systems and/or
pretensioner system are operational.
If any of the following conditions occur, the front
air bag, side air bag and curtain air bag systems
and/or pretensioner system need servicing.
.
The supplemental air bag warning light
remains on after approximately 7 seconds.
. The supplemental air bag warning light
flashes intermittently.
. The supplemental air bag warning light does
not come on at all.
It is recommended you visit a NISSAN dealer for
these services.
Unless checked and repaired, the Supplemental
& R Q G L W L R Q
Page 83 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @

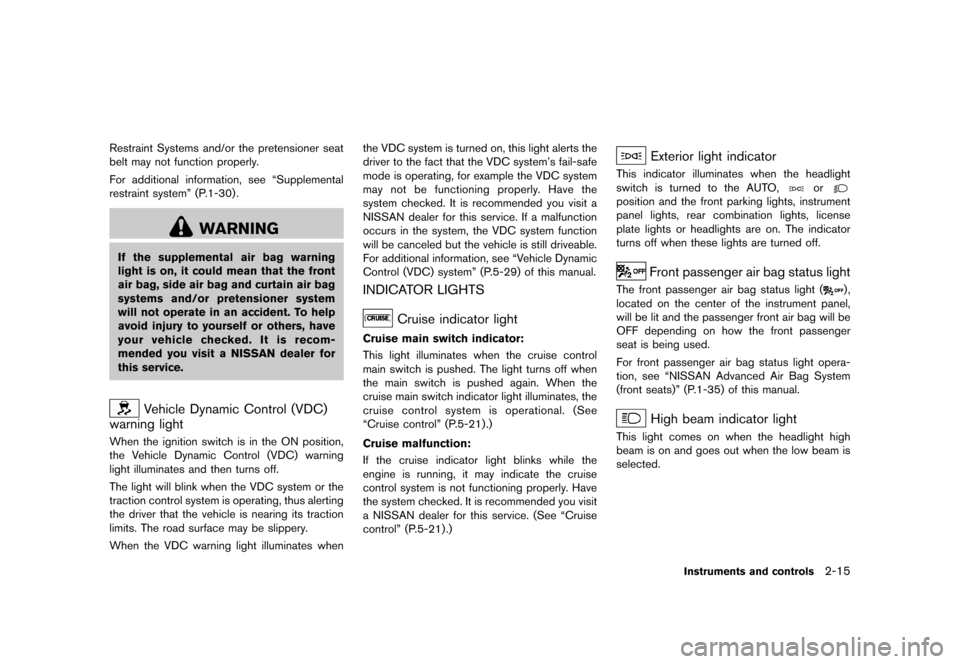

Restraint Systems and/or the pretensioner seat
belt may not function properly.
For additional information, see ªSupplemental
restraint systemº (P.1-30) .
WARNING
If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag and curtain air bag
systems and/or pretensioner system
will not operate in an accident. To help
avoid injury to yourself or others, have
your vehicle checked. It is recom-
mended you visit a NISSAN dealer for
this service.
Vehicle Dynamic Control (VDC)
warning light
GUID-5A9BB12B-5478-42C2-BF85-08F700A010D9When the ignition switch is in the ON position,
the Vehicle Dynamic Control (VDC) warning
light illuminates and then turns off.
The light will blink when the VDC system or the
traction control system is operating, thus alerting
the driver that the vehicle is nearing its traction
limits. The road surface may be slippery.
When the VDC warning light illuminates when the VDC system is turned on, this light alerts the
driver to the fact that the VDC system's fail-safe
mode is operating, for example the VDC system
may not be functioning properly. Have the
system checked. It is recommended you visit a
NISSAN dealer for this service. If a malfunction
occurs in the system, the VDC system function
will be canceled but the vehicle is still driveable.
For additional information, see ªVehicle Dynamic
Control (VDC) systemº (P.5-29) of this manual.
INDICATOR LIGHTSGUID-5C08865B-DCE3-4E16-93AB-6B77D32CE96B
Cruise indicator lightGUID-2461EE07-B4FE-4009-B529-37E16578538F
Cruise main switch indicator:GUID-5383A06F-804A-4723-990E-BA0E267DE361This light illuminates when the cruise control
main switch is pushed. The light turns off when
the main switch is pushed again. When the
cruise main switch indicator light illuminates, the
cruise control system is operational. (See
ªCruise controlº (P.5-21).)
Cruise malfunction:
GUID-631B27E1-9CF1-4F1A-8278-C63C9502CE54If the cruise indicator light blinks while the
engine is running, it may indicate the cruise
control system is not functioning properly. Have
the system checked. It is recommended you visit
a NISSAN dealer for this service. (See ªCruise
controlº (P.5-21) .)
Exterior light indicatorGUID-CA4BF6C0-A5BD-4A04-95DE-903720E77D96This indicator illuminates when the headlight
switch is turned to the AUTO,
or
position and the front parking lights, instrument
panel lights, rear combination lights, license
plate lights or headlights are on. The indicator
turns off when these lights are turned off.
Front passenger air bag status lightGUID-DD654487-22A6-4A1B-9743-5306D27CD18DThe front passenger air bag status light () ,
located on the center of the instrument panel,
will be lit and the passenger front air bag will be
OFF depending on how the front passenger
seat is being used.
For front passenger air bag status light opera-
tion, see ªNISSAN Advanced Air Bag System
(front seats)º (P.1-35) of this manual.
High beam indicator lightGUID-C52945F9-7FB1-4FB4-902C-011D40C80C81This light comes on when the headlight high
beam is on and goes out when the low beam is
selected.
Instruments and controls2-15
& R Q G L W L R Q
Page 84 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @
2-16Instruments and controls

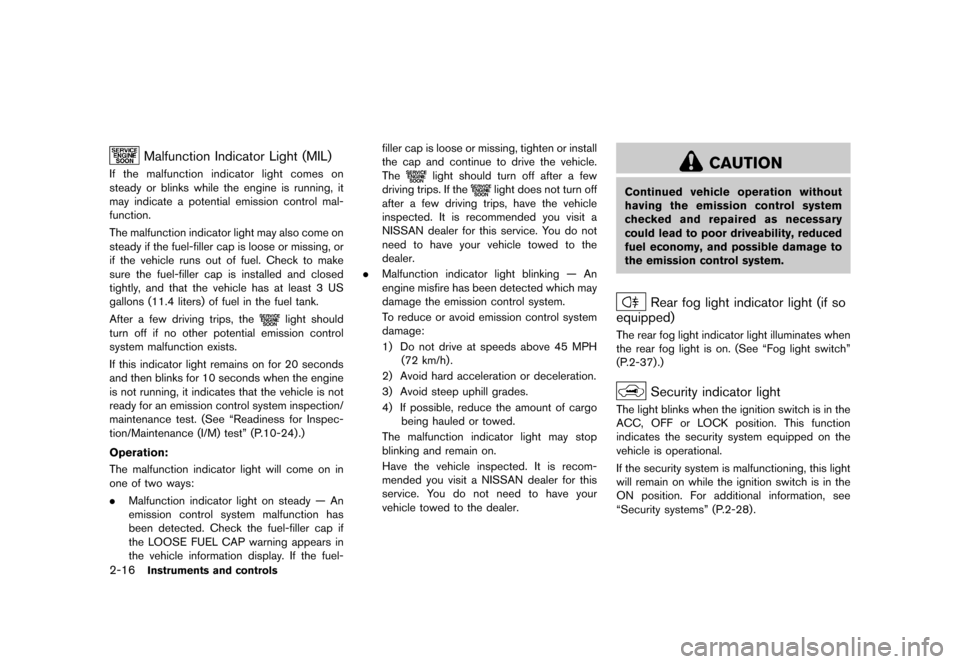

Malfunction Indicator Light (MIL)GUID-9E78C1B0-5871-4B15-924B-0676AB904329If the malfunction indicator light comes on
steady or blinks while the engine is running, it
may indicate a potential emission control mal-
function.
The malfunction indicator light may also come on
steady if the fuel-filler cap is loose or missing, or
if the vehicle runs out of fuel. Check to make
sure the fuel-filler cap is installed and closed
tightly, and that the vehicle has at least 3 US
gallons (11.4 liters) of fuel in the fuel tank.
After a few driving trips, the
light should
turn off if no other potential emission control
system malfunction exists.
If this indicator light remains on for 20 seconds
and then blinks for 10 seconds when the engine
is not running, it indicates that the vehicle is not
ready for an emission control system inspection/
maintenance test. (See ªReadiness for Inspec-
tion/Maintenance (I/M) testº (P.10-24) .)
Operation:
GUID-0D441637-68C6-4091-800D-3B0432A1AC46The malfunction indicator light will come on in
one of two ways:
. Malfunction indicator light on steady Ð An
emission control system malfunction has
been detected. Check the fuel-filler cap if
the LOOSE FUEL CAP warning appears in
the vehicle information display. If the fuel- filler cap is loose or missing, tighten or install
the cap and continue to drive the vehicle.
The
light should turn off after a few
driving trips. If the
light does not turn off
after a few driving trips, have the vehicle
inspected. It is recommended you visit a
NISSAN dealer for this service. You do not
need to have your vehicle towed to the
dealer.
. Malfunction indicator light blinking Ð An
engine misfire has been detected which may
damage the emission control system.
To reduce or avoid emission control system
damage:
1) Do not drive at speeds above 45 MPH
(72 km/h) .
2) Avoid hard acceleration or deceleration.
3) Avoid steep uphill grades.
4) If possible, reduce the amount of cargo being hauled or towed.
The malfunction indicator light may stop
blinking and remain on.
Have the vehicle inspected. It is recom-
mended you visit a NISSAN dealer for this
service. You do not need to have your
vehicle towed to the dealer.
CAUTION
Continued vehicle operation without
having the emission control system
checked and repaired as necessary
could lead to poor driveability, reduced
fuel economy, and possible damage to
the emission control system.
Rear fog light indicator light (if so
equipped)
GUID-17119FCB-67E9-4F8A-A2B5-A378FF3B2866The rear fog light indicator light illuminates when
the rear fog light is on. (See ªFog light switchº
(P.2-37) .)
Security indicator lightGUID-9F729430-3E34-44B2-AF7C-8A7F9C95A94AThe light blinks when the ignition switch is in the
ACC, OFF or LOCK position. This function
indicates the security system equipped on the
vehicle is operational.
If the security system is malfunctioning, this light
will remain on while the ignition switch is in the
ON position. For additional information, see
ªSecurity systemsº (P.2-28) .
& R Q G L W L R Q
Page 85 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @

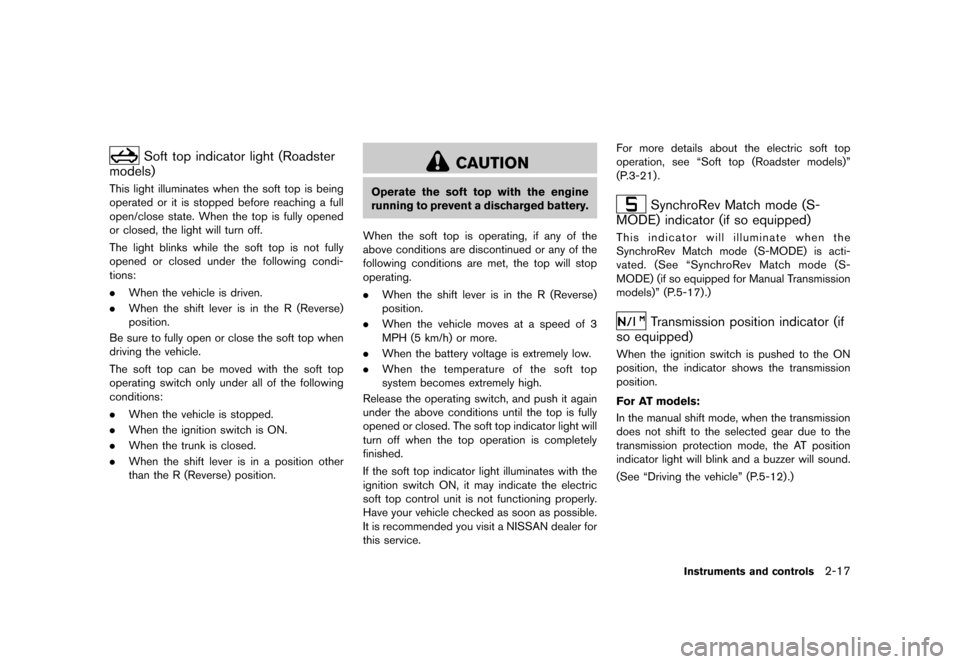

Soft top indicator light (Roadster
models)
GUID-0030E277-2F8A-4DD8-BC11-0858364444B4This light illuminates when the soft top is being
operated or it is stopped before reaching a full
open/close state. When the top is fully opened
or closed, the light will turn off.
The light blinks while the soft top is not fully
opened or closed under the following condi-
tions:
. When the vehicle is driven.
. When the shift lever is in the R (Reverse)
position.
Be sure to fully open or close the soft top when
driving the vehicle.
The soft top can be moved with the soft top
operating switch only under all of the following
conditions:
. When the vehicle is stopped.
. When the ignition switch is ON.
. When the trunk is closed.
. When the shift lever is in a position other
than the R (Reverse) position.
CAUTION
Operate the soft top with the engine
running to prevent a discharged battery.
When the soft top is operating, if any of the
above conditions are discontinued or any of the
following conditions are met, the top will stop
operating.
. When the shift lever is in the R (Reverse)
position.
. When the vehicle moves at a speed of 3
MPH (5 km/h) or more.
. When the battery voltage is extremely low.
. When the temperature of the soft top
system becomes extremely high.
Release the operating switch, and push it again
under the above conditions until the top is fully
opened or closed. The soft top indicator light will
turn off when the top operation is completely
finished.
If the soft top indicator light illuminates with the
ignition switch ON, it may indicate the electric
soft top control unit is not functioning properly.
Have your vehicle checked as soon as possible.
It is recommended you visit a NISSAN dealer for
this service. For more details about the electric soft top
operation, see ªSoft top (Roadster models)º
(P.3-21) .
SynchroRev Match mode (S-
MODE) indicator (if so equipped)
GUID-2927619B-A346-486C-9292-AB2E7BF55DB4This indicator will illuminate when the
SynchroRev Match mode (S-MODE) is acti-
vated. (See ªSynchroRev Match mode (S-
MODE) (if so equipped for Manual Transmission
models)º (P.5-17) .)
Transmission position indicator (if
so equipped)
GUID-FE9057C6-C578-4D43-9C37-74A0F49967B0When the ignition switch is pushed to the ON
position, the indicator shows the transmission
position.
For AT models:
GUID-E9739894-F62B-4F55-8691-8323F7DF0F3CIn the manual shift mode, when the transmission
does not shift to the selected gear due to the
transmission protection mode, the AT position
indicator light will blink and a buzzer will sound.
(See ªDriving the vehicleº (P.5-12) .)
Instruments and controls2-17
& R Q G L W L R Q
Page 86 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @

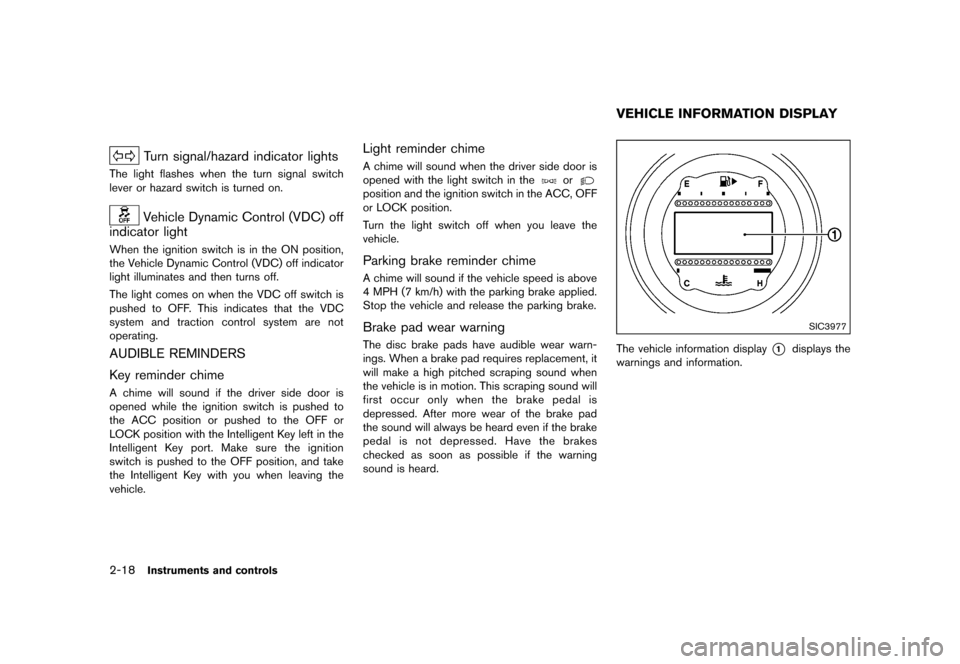

2-18Instruments and controls
Turn signal/hazard indicator lightsGUID-9C6EB1FE-EFF7-4C93-9787-C431A6626D02The light flashes when the turn signal switch
lever or hazard switch is turned on.
Vehicle Dynamic Control (VDC) off
indicator light
GUID-1AC3BC5D-06E7-428D-99F3-6CF4B0507DE9When the ignition switch is in the ON position,
the Vehicle Dynamic Control (VDC) off indicator
light illuminates and then turns off.
The light comes on when the VDC off switch is
pushed to OFF. This indicates that the VDC
system and traction control system are not
operating.
AUDIBLE REMINDERSGUID-2BDE1C56-810D-4853-B8E8-5ED0D0EB85F8
Key reminder chimeGUID-78D397CE-17E1-41D9-809E-162AB8D3FE85A chime will sound if the driver side door is
opened while the ignition switch is pushed to
the ACC position or pushed to the OFF or
LOCK position with the Intelligent Key left in the
Intelligent Key port. Make sure the ignition
switch is pushed to the OFF position, and take
the Intelligent Key with you when leaving the
vehicle.
Light reminder chimeGUID-04273DE2-5AA1-4549-A3D1-8AE3CBAF201EA chime will sound when the driver side door is
opened with the light switch in the
or
position and the ignition switch in the ACC, OFF
or LOCK position.
Turn the light switch off when you leave the
vehicle.
Parking brake reminder chimeGUID-FA15ECA6-7CE9-4157-8CBB-8BA6DC4C109EA chime will sound if the vehicle speed is above
4 MPH (7 km/h) with the parking brake applied.
Stop the vehicle and release the parking brake.
Brake pad wear warningGUID-62312BEE-6CA2-44FD-9333-572C0E009C0AThe disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion. This scraping sound will
first occur only when the brake pedal is
depressed. After more wear of the brake pad
the sound will always be heard even if the brake
pedal is not depressed. Have the brakes
checked as soon as possible if the warning
sound is heard.
GUID-ABA24F5A-8AD4-43D3-AEC0-71935183A7C3
SIC3977
The vehicle information display*1displays the
warnings and information.
VEHICLE INFORMATION DISPLAY
& R Q G L W L R Q
Page 87 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @

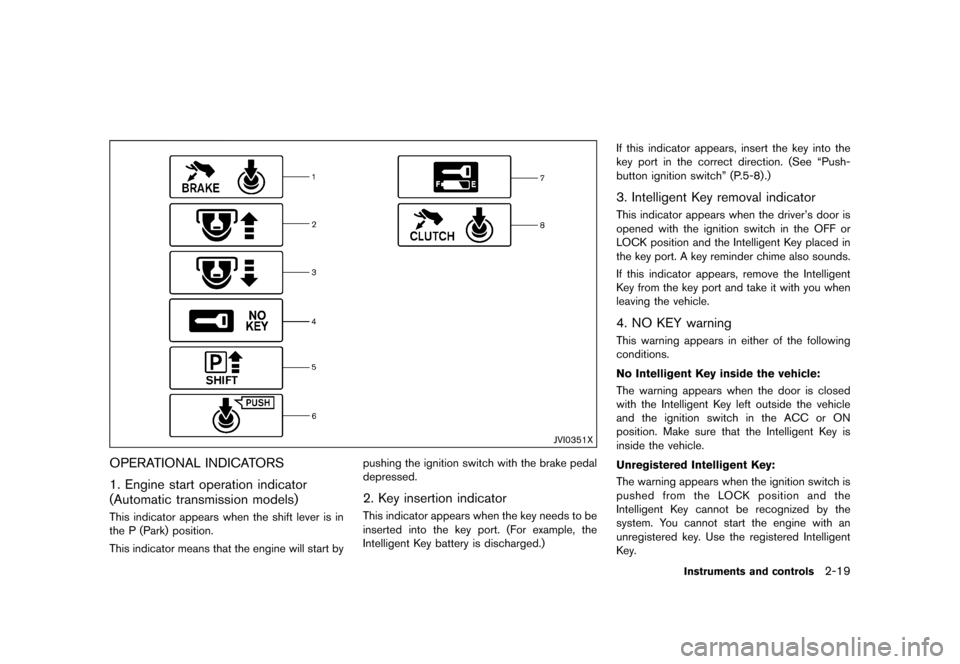

JVI0351X
OPERATIONAL INDICATORSGUID-7FA2EA2D-4563-4901-A910-3AD21F615094
1. Engine start operation indicator
(Automatic transmission models)
GUID-4B781A9C-51E6-4802-98C7-1E4BC12AA960This indicator appears when the shift lever is in
the P (Park) position.
This indicator means that the engine will start bypushing the ignition switch with the brake pedal
depressed.
2. Key insertion indicatorGUID-B2A51F88-F005-480D-9752-8C82EDDCB532This indicator appears when the key needs to be
inserted into the key port. (For example, the
Intelligent Key battery is discharged.)If this indicator appears, insert the key into the
key port in the correct direction. (See ªPush-
button ignition switchº (P.5-8).)
3. Intelligent Key removal indicatorGUID-B65BC5B8-22BE-4F85-ACFF-F0DDF25A14DBThis indicator appears when the driver's door is
opened with the ignition switch in the OFF or
LOCK position and the Intelligent Key placed in
the key port. A key reminder chime also sounds.
If this indicator appears, remove the Intelligent
Key from the key port and take it with you when
leaving the vehicle.
4. NO KEY warningGUID-622035A5-BEBF-4DF9-90B2-7F4F9674F17DThis warning appears in either of the following
conditions.
No Intelligent Key inside the vehicle:
GUID-F7BBC237-2E85-4133-9753-D95E40E7E1BBThe warning appears when the door is closed
with the Intelligent Key left outside the vehicle
and the ignition switch in the ACC or ON
position. Make sure that the Intelligent Key is
inside the vehicle.
Unregistered Intelligent Key:
GUID-DA1FB811-9ACA-4420-BB6B-E3344E9E38F9The warning appears when the ignition switch is
pushed from the LOCK position and the
Intelligent Key cannot be recognized by the
system. You cannot start the engine with an
unregistered key. Use the registered Intelligent
Key.
Instruments and controls2-19
& R Q G L W L R Q
Page 88 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @

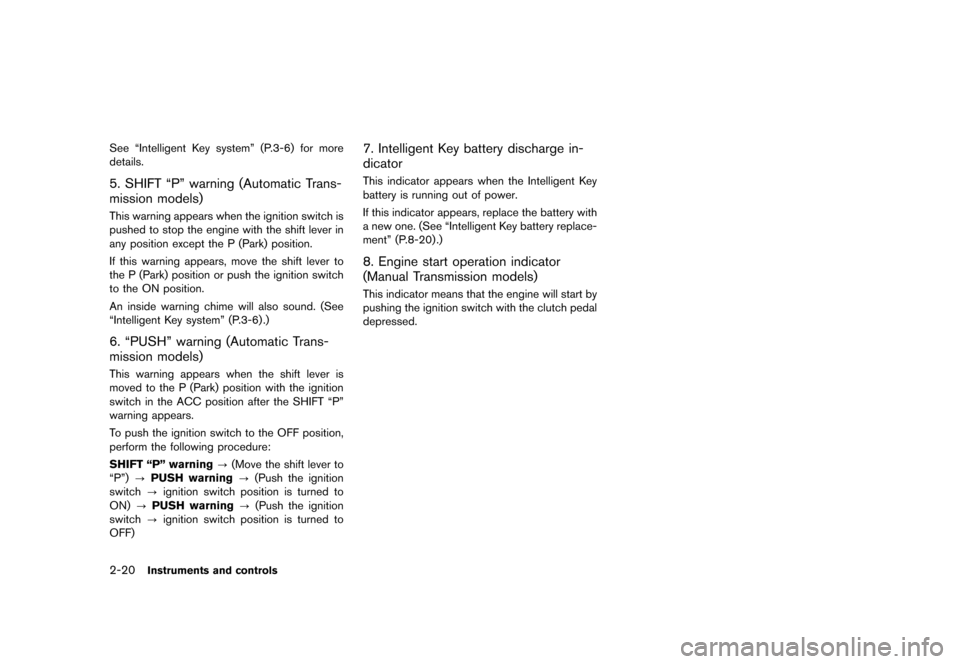

2-20Instruments and controls
See ªIntelligent Key systemº (P.3-6) for more
details.
5. SHIFT ªPº warning (Automatic Trans-
mission models)
GUID-A37F13DB-865B-48E7-95FA-614B76C276FCThis warning appears when the ignition switch is
pushed to stop the engine with the shift lever in
any position except the P (Park) position.
If this warning appears, move the shift lever to
the P (Park) position or push the ignition switch
to the ON position.
An inside warning chime will also sound. (See
ªIntelligent Key systemº (P.3-6) .)
6. ªPUSHº warning (Automatic Trans-
mission models)
GUID-1FD56988-42EF-4D11-B0E1-D102E5EC01BBThis warning appears when the shift lever is
moved to the P (Park) position with the ignition
switch in the ACC position after the SHIFT ªPº
warning appears.
To push the ignition switch to the OFF position,
perform the following procedure:
SHIFT ªPº warning?(Move the shift lever to
ªPº) ?PUSH warning ?(Push the ignition
switch ?ignition switch position is turned to
ON) ?PUSH warning ?(Push the ignition
switch ?ignition switch position is turned to
OFF)
7. Intelligent Key battery discharge in-
dicator
GUID-8AA15A5A-7AD3-4C32-BBD5-55F6539381DCThis indicator appears when the Intelligent Key
battery is running out of power.
If this indicator appears, replace the battery with
a new one. (See ªIntelligent Key battery replace-
mentº (P.8-20) .)
8. Engine start operation indicator
(Manual Transmission models)
GUID-0F221E31-1F01-48EA-AC4C-2B691FC0309AThis indicator means that the engine will start by
pushing the ignition switch with the clutch pedal
depressed.
& R Q G L W L R Q
Page 89 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @

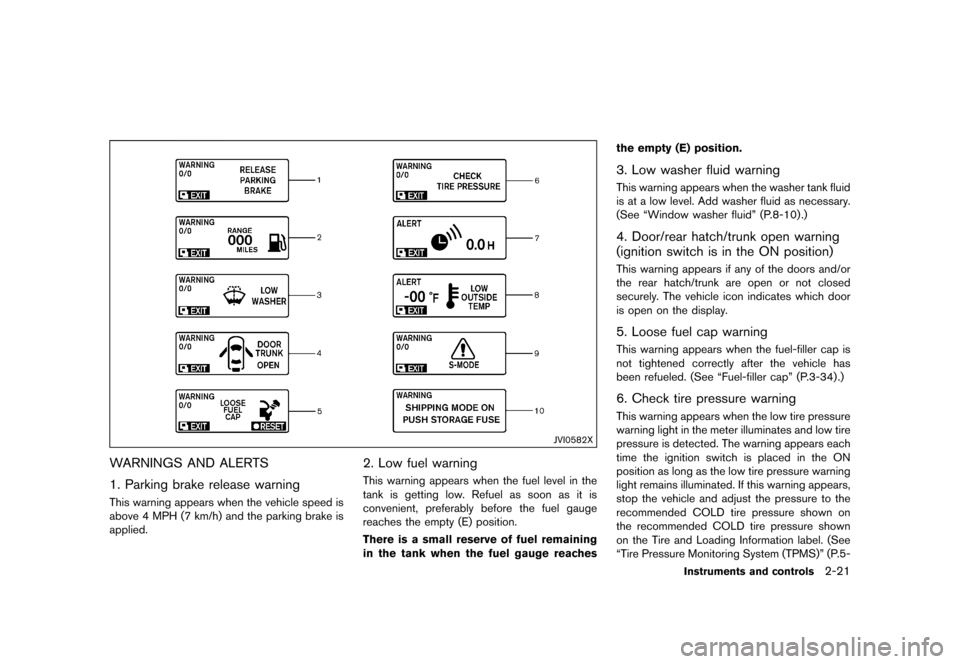

JVI0582X
WARNINGS AND ALERTSGUID-7C51E304-FB3A-4C63-98F6-0E0C01B9B975
1. Parking brake release warningGUID-CE1FB8E9-BFFC-4D48-B1B5-FC24A0C90140This warning appears when the vehicle speed is
above 4 MPH (7 km/h) and the parking brake is
applied.
2. Low fuel warningGUID-32CC5BA4-F25E-454D-9827-002C0AEEE1B0This warning appears when the fuel level in the
tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches the empty (E) position.
There is a small reserve of fuel remaining
in the tank when the fuel gauge reachesthe empty (E) position.
3. Low washer fluid warningGUID-771CA8EB-1B0B-48E3-9AA7-545D14F08D63This warning appears when the washer tank fluid
is at a low level. Add washer fluid as necessary.
(See ªWindow washer fluidº (P.8-10).)
4. Door/rear hatch/trunk open warning
(ignition switch is in the ON position)
GUID-0B575D32-572C-4B23-BCD1-CF8EA5F87236This warning appears if any of the doors and/or
the rear hatch/trunk are open or not closed
securely. The vehicle icon indicates which door
is open on the display.
5. Loose fuel cap warningGUID-F3CC1F40-8F19-49C3-9F34-DEFAC22FC305This warning appears when the fuel-filler cap is
not tightened correctly after the vehicle has
been refueled. (See ªFuel-filler capº (P.3-34) .)
6. Check tire pressure warningGUID-8A59F66F-2415-4F89-AA24-F83B0C214208This warning appears when the low tire pressure
warning light in the meter illuminates and low tire
pressure is detected. The warning appears each
time the ignition switch is placed in the ON
position as long as the low tire pressure warning
light remains illuminated. If this warning appears,
stop the vehicle and adjust the pressure to the
recommended COLD tire pressure shown on
the recommended COLD tire pressure shown
on the Tire and Loading Information label. (See
ªTire Pressure Monitoring System (TPMS)º (P.5-
Instruments and controls2-21
& R Q G L W L R Q
Page 90 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @

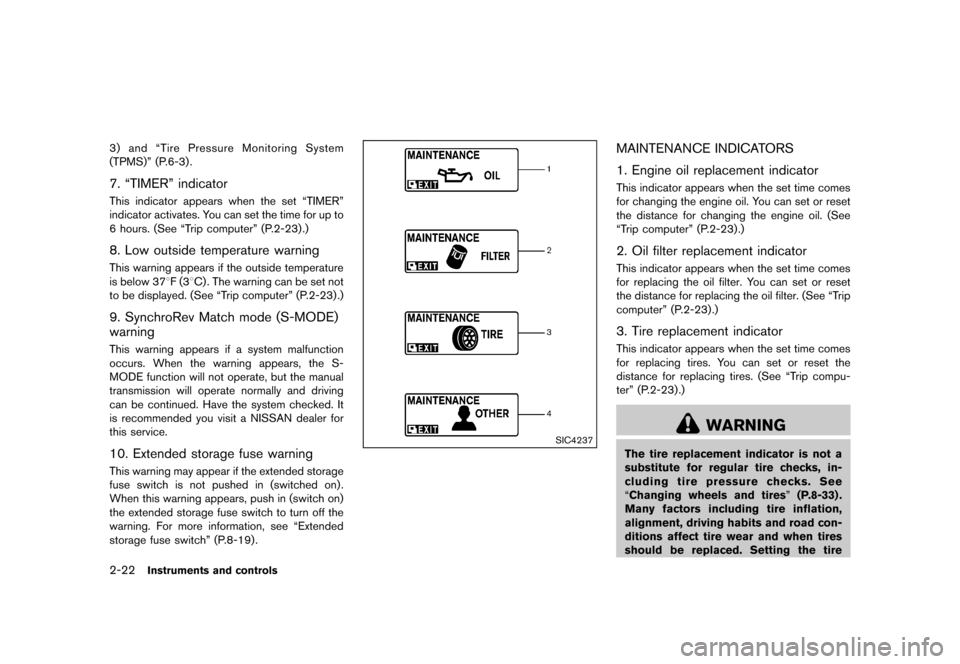

2-22Instruments and controls
3) and ªTire Pressure Monitoring System
(TPMS)º (P.6-3) .
7. ªTIMERº indicatorGUID-18E114C8-C2B4-404A-8A4E-84A7A42051BCThis indicator appears when the set ªTIMERº
indicator activates. You can set the time for up to
6 hours. (See ªTrip computerº (P.2-23) .)
8. Low outside temperature warningGUID-90E6D863-3B05-425C-9927-080F44CBDB15This warning appears if the outside temperature
is below 378F (38C) . The warning can be set not
to be displayed. (See ªTrip computerº (P.2-23) .)
9. SynchroRev Match mode (S-MODE)
warning
GUID-C447488B-81AA-430F-A921-D8024D24AA7AThis warning appears if a system malfunction
occurs. When the warning appears, the S-
MODE function will not operate, but the manual
transmission will operate normally and driving
can be continued. Have the system checked. It
is recommended you visit a NISSAN dealer for
this service.
10. Extended storage fuse warningGUID-2B7909ED-3C60-43BF-809C-8242216A5944This warning may appear if the extended storage
fuse switch is not pushed in (switched on) .
When this warning appears, push in (switch on)
the extended storage fuse switch to turn off the
warning. For more information, see ªExtended
storage fuse switchº (P.8-19) .
SIC4237
MAINTENANCE INDICATORSGUID-826D2792-78BB-4DB1-9F80-E2CC7FAC9686
1. Engine oil replacement indicatorGUID-82878847-AFB9-4DB0-9035-D418FB66756DThis indicator appears when the set time comes
for changing the engine oil. You can set or reset
the distance for changing the engine oil. (See
ªTrip computerº (P.2-23) .)
2. Oil filter replacement indicatorGUID-63D34095-F93B-4620-A0A5-C319653463CBThis indicator appears when the set time comes
for replacing the oil filter. You can set or reset
the distance for replacing the oil filter. (See ªTrip
computerº (P.2-23).)
3. Tire replacement indicatorGUID-E1E9DA72-EE66-4904-893A-4A123B2B1CAAThis indicator appears when the set time comes
for replacing tires. You can set or reset the
distance for replacing tires. (See ªTrip compu-
terº (P.2-23) .)
WARNING
The tire replacement indicator is not a
substitute for regular tire checks, in-
cluding tire pressure checks. See
ªChanging wheels and tiresº(P.8-33) .
Many factors including tire inflation,
alignment, driving habits and road con-
ditions affect tire wear and when tires
should be replaced. Setting the tire
& R Q G L W L R Q
