Page 361 of 428

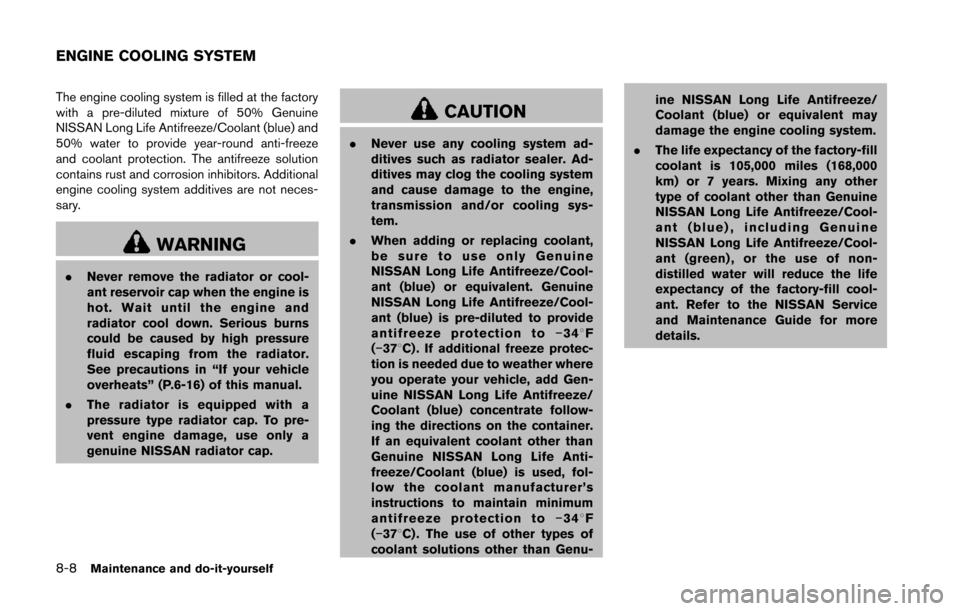

NISSAN 370Z ROADSTER 2014 Z34 Owners Manual 8-8Maintenance and do-it-yourself
The engine cooling system is filled at the factory
with a pre-diluted mixture of 50% Genuine
NISSAN Long Life Antifreeze/Coolant (blue) and
50% water to provide year-

Page 362 of 428

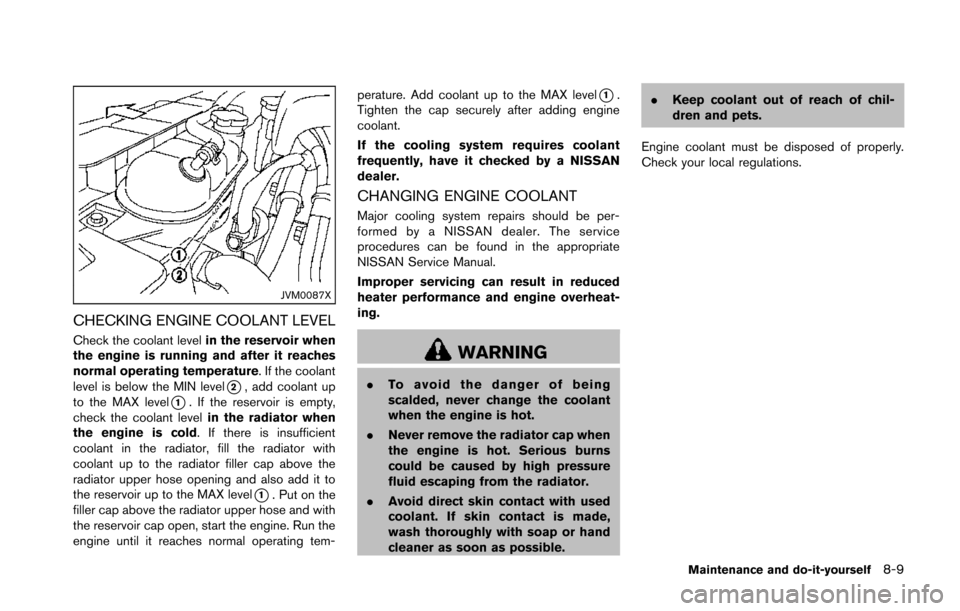

NISSAN 370Z ROADSTER 2014 Z34 Owners Manual JVM0087X
CHECKING ENGINE COOLANT LEVEL
Check the coolant levelin the reservoir when
the engine is running and after it reaches
normal operating temperature. If the coolant
level is below the MIN level

Page 363 of 428

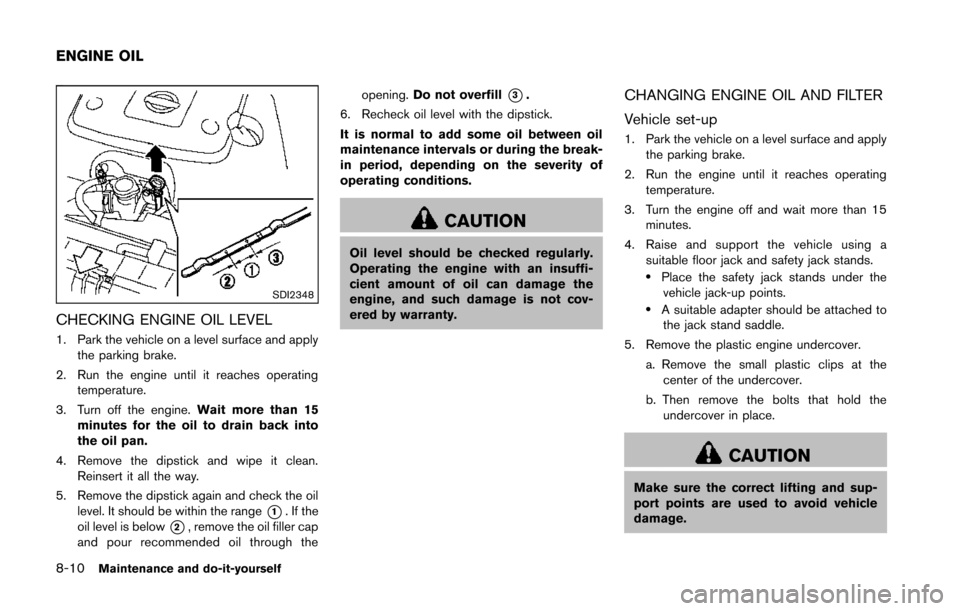

NISSAN 370Z ROADSTER 2014 Z34 Owners Manual 8-10Maintenance and do-it-yourself
SDI2348
CHECKING ENGINE OIL LEVEL
1. Park the vehicle on a level surface and applythe parking brake.
2. Run the engine until it reaches operating temperature.
3. Tur

Page 364 of 428

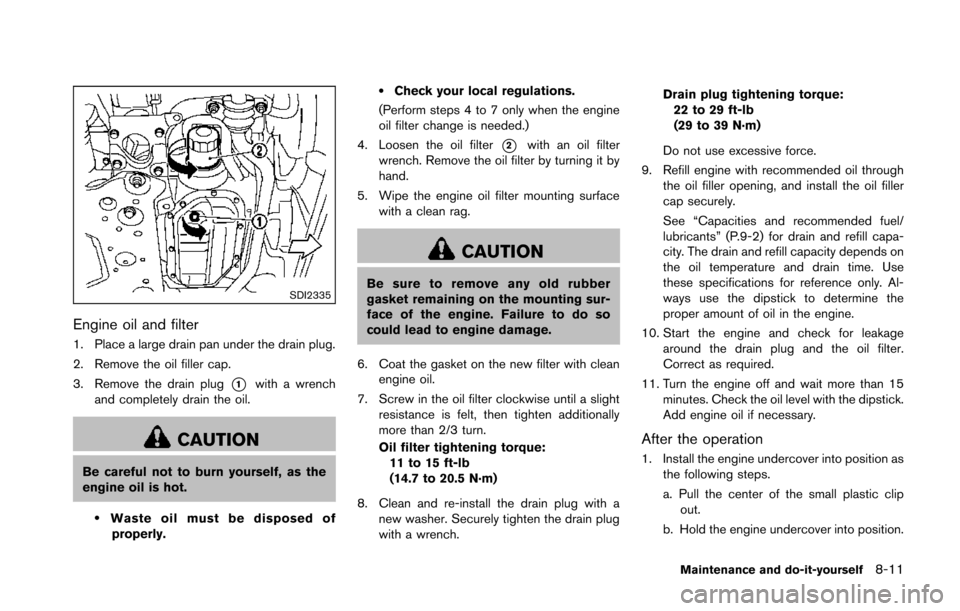

NISSAN 370Z ROADSTER 2014 Z34 Owners Manual SDI2335
Engine oil and filter
1. Place a large drain pan under the drain plug.
2. Remove the oil filler cap.
3. Remove the drain plug
*1with a wrench
and completely drain the oil.
CAUTION
Be careful n

Page 365 of 428

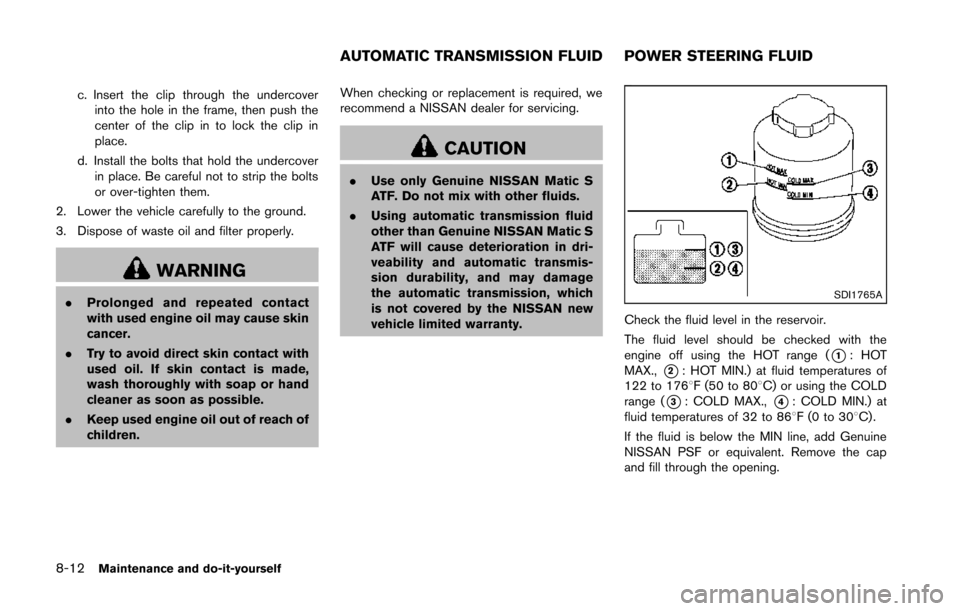

NISSAN 370Z ROADSTER 2014 Z34 Owners Manual 8-12Maintenance and do-it-yourself
c. Insert the clip through the undercoverinto the hole in the frame, then push the
center of the clip in to lock the clip in
place.
d. Install the bolts that hold th

Page 366 of 428

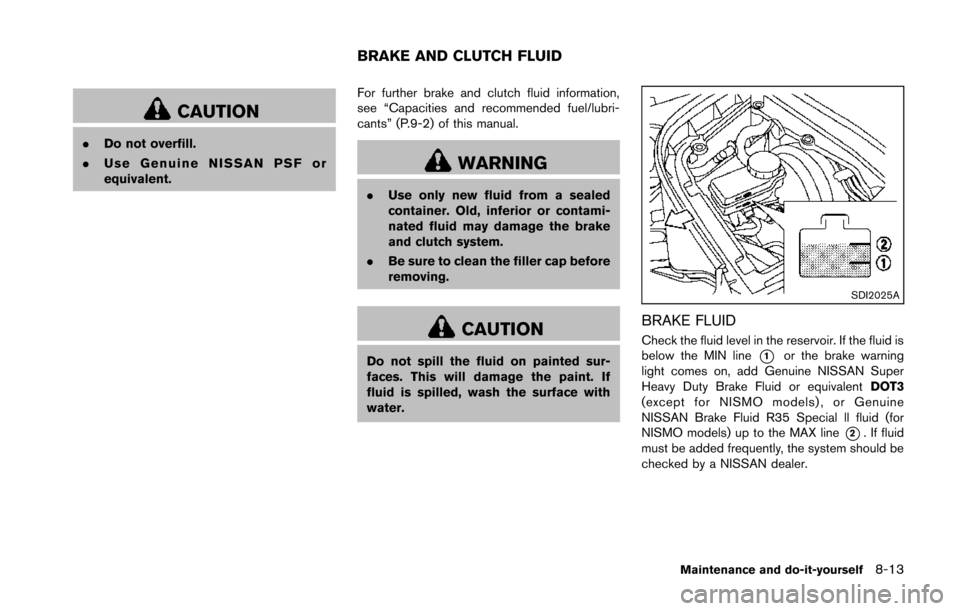

NISSAN 370Z ROADSTER 2014 Z34 Owners Manual CAUTION
.Do not overfill.
. Use Genuine NISSAN PSF or
equivalent. For further brake and clutch fluid information,
see “Capacities and recommended fuel/lubri-
cants” (P.9-2) of this manual.
WARNING

Page 367 of 428

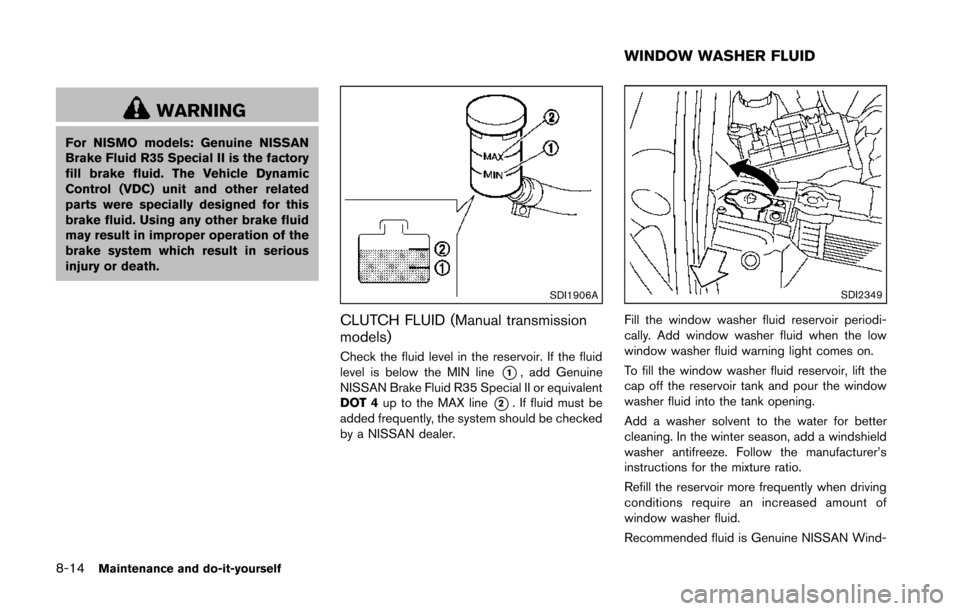

NISSAN 370Z ROADSTER 2014 Z34 Owners Manual 8-14Maintenance and do-it-yourself
WARNING
For NISMO models: Genuine NISSAN
Brake Fluid R35 Special II is the factory
fill brake fluid. The Vehicle Dynamic
Control (VDC) unit and other related
parts w

Page 368 of 428

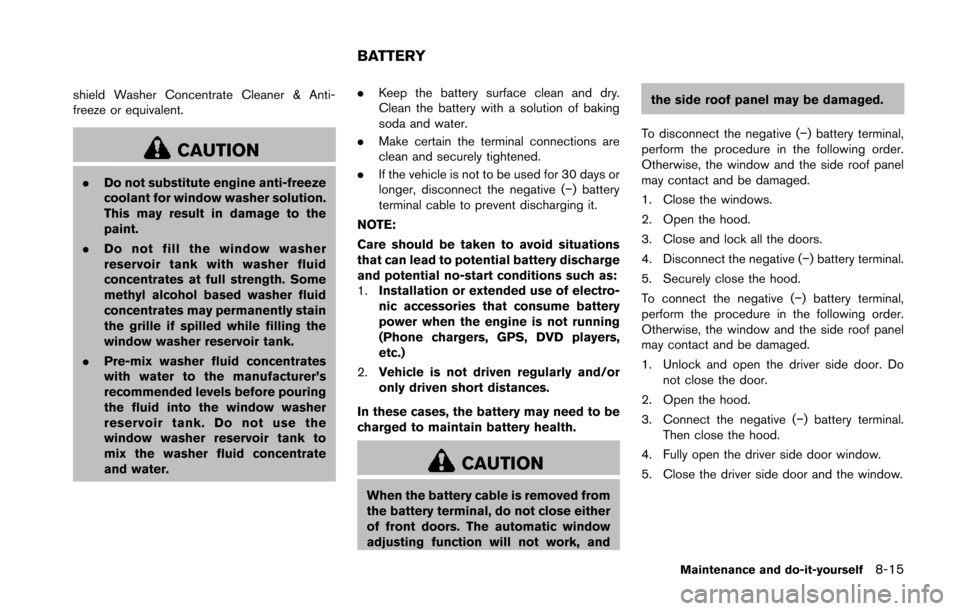

NISSAN 370Z ROADSTER 2014 Z34 Owners Manual shield Washer Concentrate Cleaner & Anti-
freeze or equivalent.
CAUTION
.Do not substitute engine anti-freeze
coolant for window washer solution.
This may result in damage to the
paint.
. Do not fill

Page 369 of 428

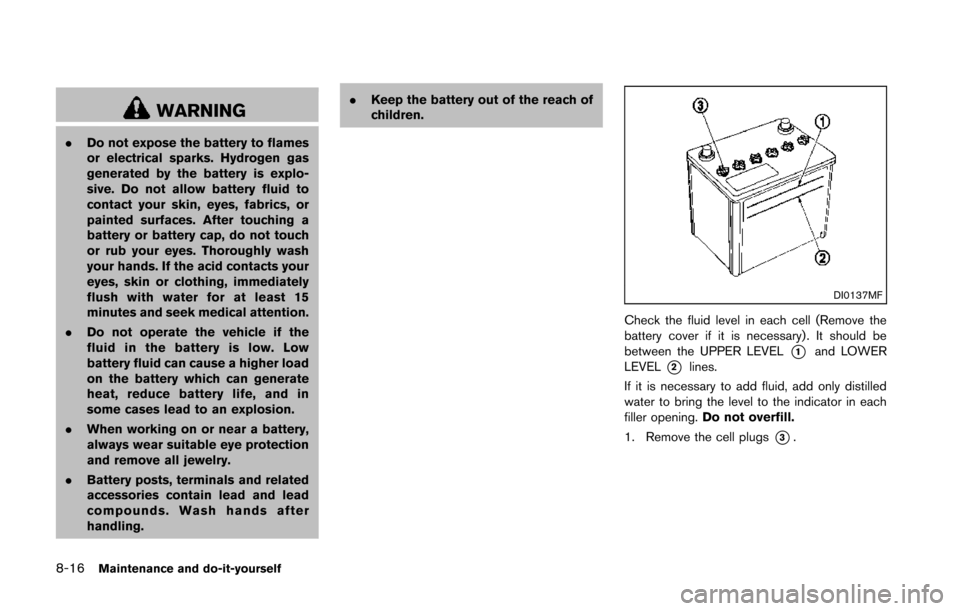

NISSAN 370Z ROADSTER 2014 Z34 Owners Manual 8-16Maintenance and do-it-yourself
WARNING
.Do not expose the battery to flames
or electrical sparks. Hydrogen gas
generated by the battery is explo-
sive. Do not allow battery fluid to
contact your s

Page 370 of 428

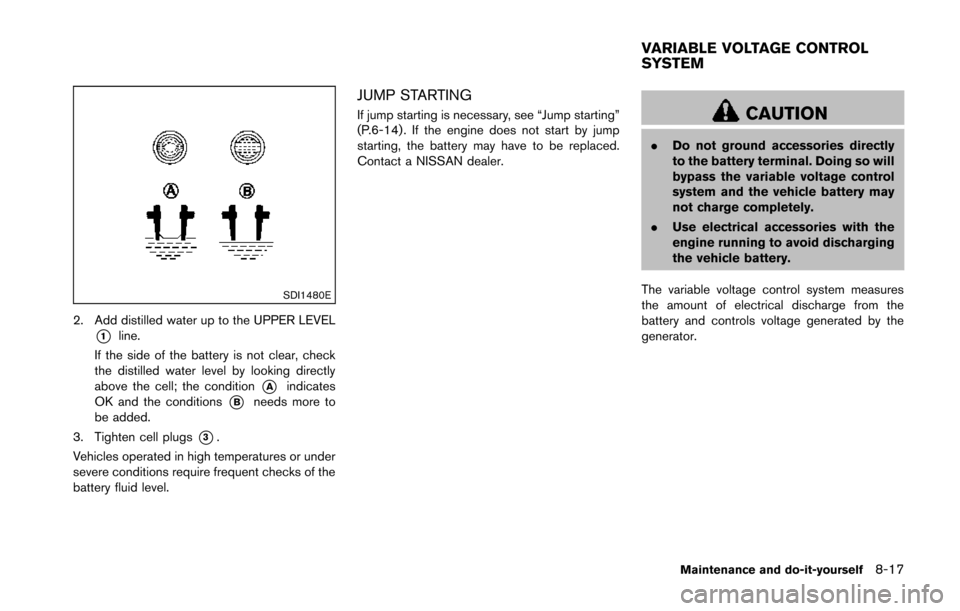

NISSAN 370Z ROADSTER 2014 Z34 Owners Manual SDI1480E
2. Add distilled water up to the UPPER LEVEL
*1line.
If the side of the battery is not clear, check
the distilled water level by looking directly
above the cell; the condition
*Aindicates
OK
