NISSAN 370Z ROADSTER 2015 Z34 Owners Manual


> (GLW    0RGHO =' @

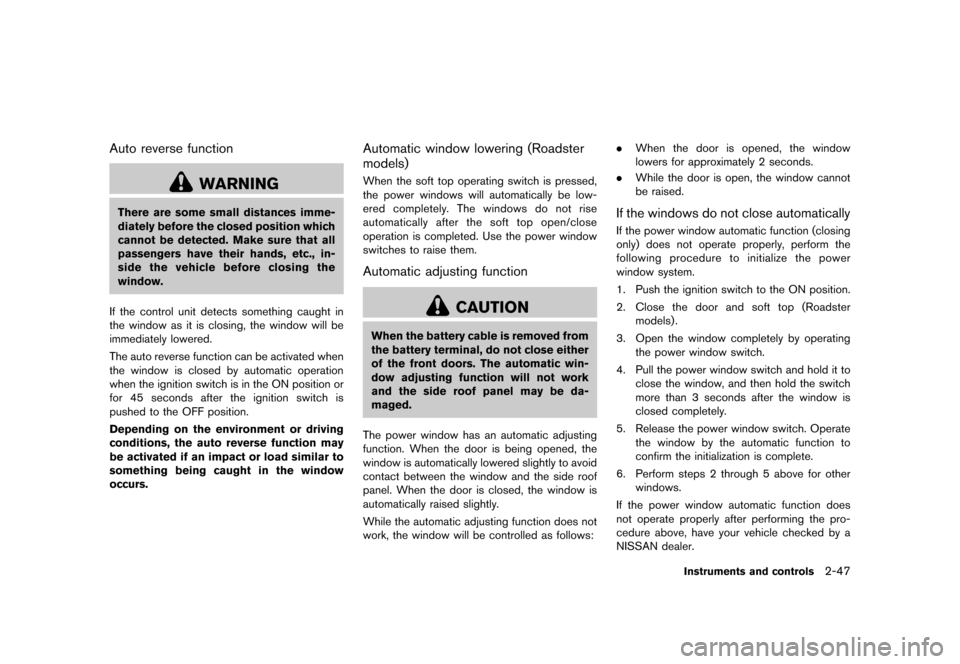

Auto reverse functionGUID-CD50126A-281E-4A58-A6B8-DCB361A120C3
WARNING
There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
window.
If the control unit detects something caught in
the window as it is closing, the window will be
immediately lowered.
The auto reverse function can be activated when
the window is closed by automatic operation
when the ignition switch is in the ON position or
for 45 seconds after the ignition switch is
pushed to the OFF position.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the window
occurs.
Automatic window lowering (Roadster
models)
GUID-CE4AA486-124C-40EE-80C5-DBE4F8C22C28When the soft top operating switch is pressed,
the power windows will automatically be low-
ered completely. The windows do not rise
automatically after the soft top open/close
operation is completed. Use the power window
switches to raise them.
Automatic adjusting functionGUID-6854CEC8-70B2-4EA8-8E56-6D5CF57B1C28
CAUTION
When the battery cable is removed from
the battery terminal, do not close either
of the front doors. The automatic win-
dow adjusting function will not work
and the side roof panel may be da-
maged.
The power window has an automatic adjusting
function. When the door is being opened, the
window is automatically lowered slightly to avoid
contact between the window and the side roof
panel. When the door is closed, the window is
automatically raised slightly.
While the automatic adjusting function does not
work, the window will be controlled as follows: .
When the door is opened, the window
lowers for approximately 2 seconds.
. While the door is open, the window cannot
be raised.
If the windows do not close automaticallyGUID-563CD3C3-E4B1-4FD9-AFDD-C6378120F9EBIf the power window automatic function (closing
only) does not operate properly, perform the
following procedure to initialize the power
window system.
1. Push the ignition switch to the ON position.
2.Close the door and soft top (Roadster
models) .
3. Open the window completely by operating the power window switch.
4. Pull the power window switch and hold it to close the window, and then hold the switch
more than 3 seconds after the window is
closed completely.
5. Release the power window switch. Operate the window by the automatic function to
confirm the initialization is complete.
6. Perform steps 2 through 5 above for other windows.
If the power window automatic function does
not operate properly after performing the pro-
cedure above, have your vehicle checked by a
NISSAN dealer.
Instruments and controls2-47
&RQGLWLRQ


> (GLW    0RGHO =' @

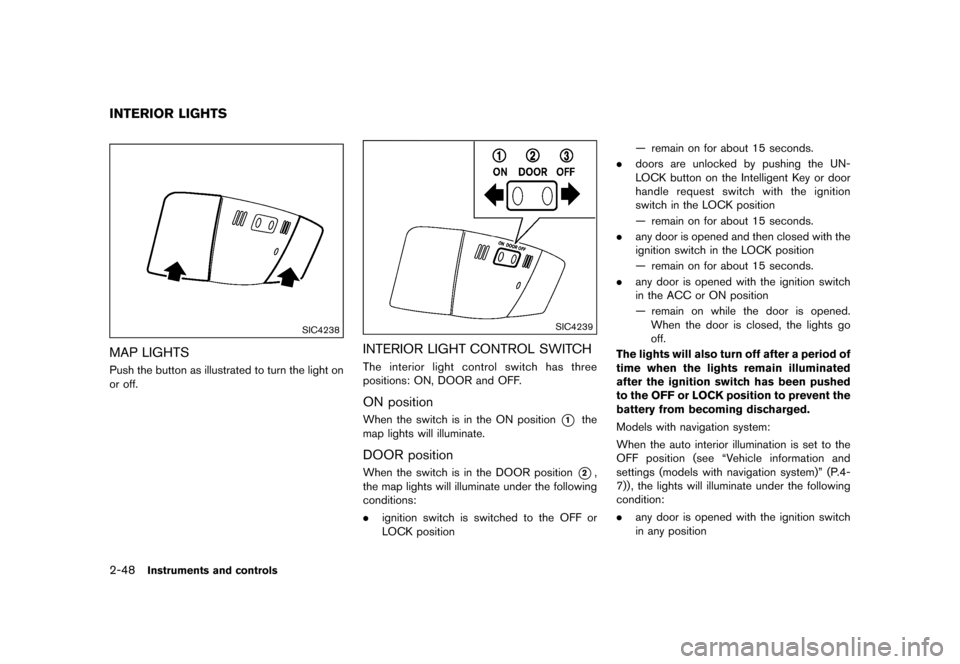

2-48Instruments and controls
GUID-EB8A90DE-235F-48E6-A41D-DCA68C944D61
SIC4238
MAP LIGHTSGUID-63E0140B-AB30-4F26-B607-6D71FF432844Push the button as illustrated to turn the light on
or off.
SIC4239
INTERIOR LIGHT CONTROL SWITCHGUID-B369A0F1-3593-452D-A9AB-AB457EB2CCB7The interior light control switch has three
positions: ON, DOOR and OFF.
ON positionGUID-CF6B68D4-BB47-4735-AA45-9104BC2F2DA7When the switch is in the ON position*1the
map lights will illuminate.
DOOR positionGUID-B190F75C-E5A5-446F-BA74-B3DDEFFB9DBAWhen the switch is in the DOOR position*2,
the map lights will illuminate under the following
conditions:
. ignition switch is switched to the OFF or
LOCK position Ð remain on for about 15 seconds.
. doors are unlocked by pushing the UN-
LOCK button on the Intelligent Key or door
handle request switch with the ignition
switch in the LOCK position
Ð remain on for about 15 seconds.
. any door is opened and then closed with the
ignition switch in the LOCK position
Ð remain on for about 15 seconds.
. any door is opened with the ignition switch
in the ACC or ON position
Ð remain on while the door is opened.
When the door is closed, the lights go
off.
The lights will also turn off after a period of
time when the lights remain illuminated
after the ignition switch has been pushed
to the OFF or LOCK position to prevent the
battery from becoming discharged.
Models with navigation system:
When the auto interior illumination is set to the
OFF position (see ªVehicle information and
settings (models with navigation system)º (P.4-
7)) , the lights will illuminate under the following
condition:
. any door is opened with the ignition switch
in any position
INTERIOR LIGHTS
&RQGLWLRQ


> (GLW    0RGHO =' @

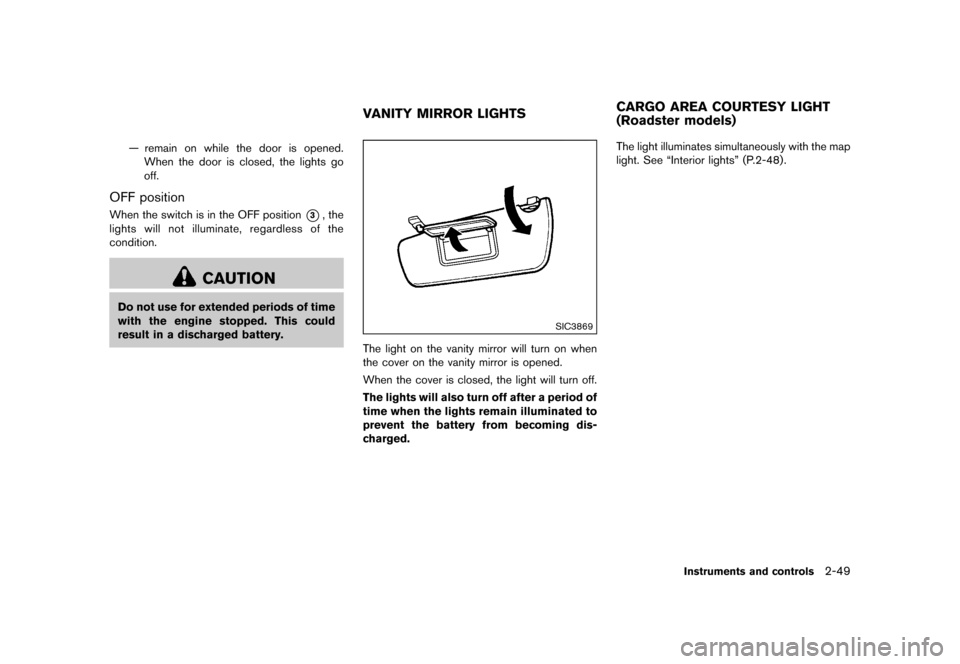

Ð remain on while the door is opened.When the door is closed, the lights go
off.
OFF positionGUID-1E5AD799-C9B5-4BE9-AD45-ADF123B00735When the switch is in the OFF position*3, the
lights will not illuminate, regardless of the
condition.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could
result in a discharged battery.
GUID-B346630C-75B9-46AE-B61E-18B063DCA5D2
SIC3869
The light on the vanity mirror will turn on when
the cover on the vanity mirror is opened.
When the cover is closed, the light will turn off.
The lights will also turn off after a period of
time when the lights remain illuminated to
prevent the battery from becoming dis-
charged.
GUID-6447FE90-98AB-45D1-B72B-E25AAC29F10BThe light illuminates simultaneously with the map
light. See ªInterior lightsº (P.2-48).
Instruments and controls2-49
VANITY MIRROR LIGHTS CARGO AREA COURTESY LIGHT
(Roadster models)
&RQGLWLRQ


> (GLW    0RGHO =' @

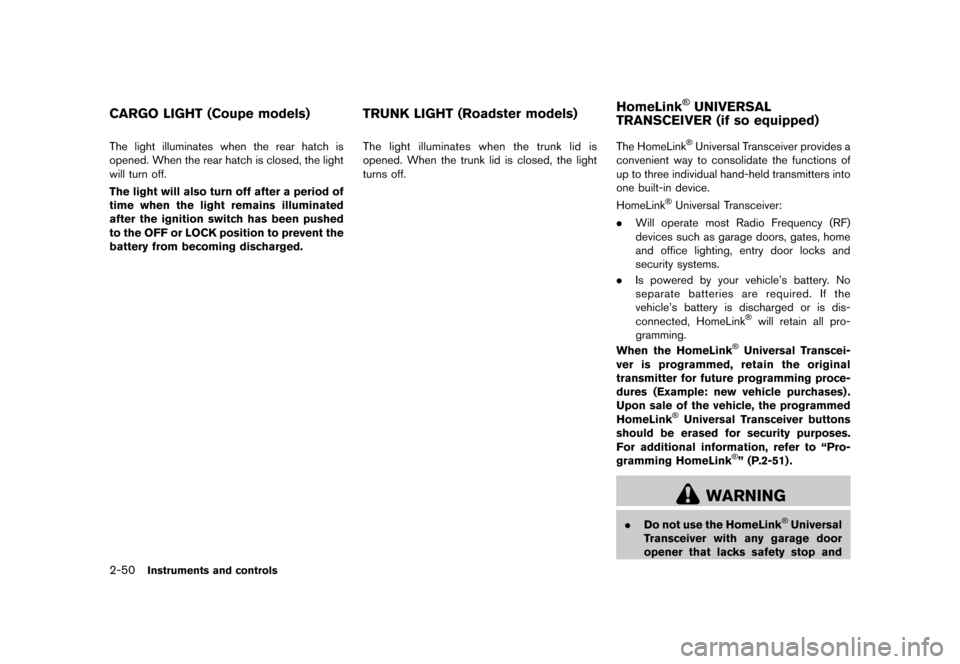

2-50Instruments and controls
GUID-59FB4F32-C095-499C-B3B5-1B79C5899138The light illuminates when the rear hatch is
opened. When the rear hatch is closed, the light
will turn off.
The light will also turn off after a period of
time when the light remains illuminated
after the ignition switch has been pushed
to the OFF or LOCK position to prevent the
battery from becoming discharged.GUID-000A2C5B-945E-4FD8-9BA6-2AB1B7CB6758The light illuminates when the trunk lid is
opened. When the trunk lid is closed, the light
turns off.GUID-661C751B-74AB-44AC-8867-D5F1F66CE5FBThe HomeLink


> (GLW    0RGHO =' @

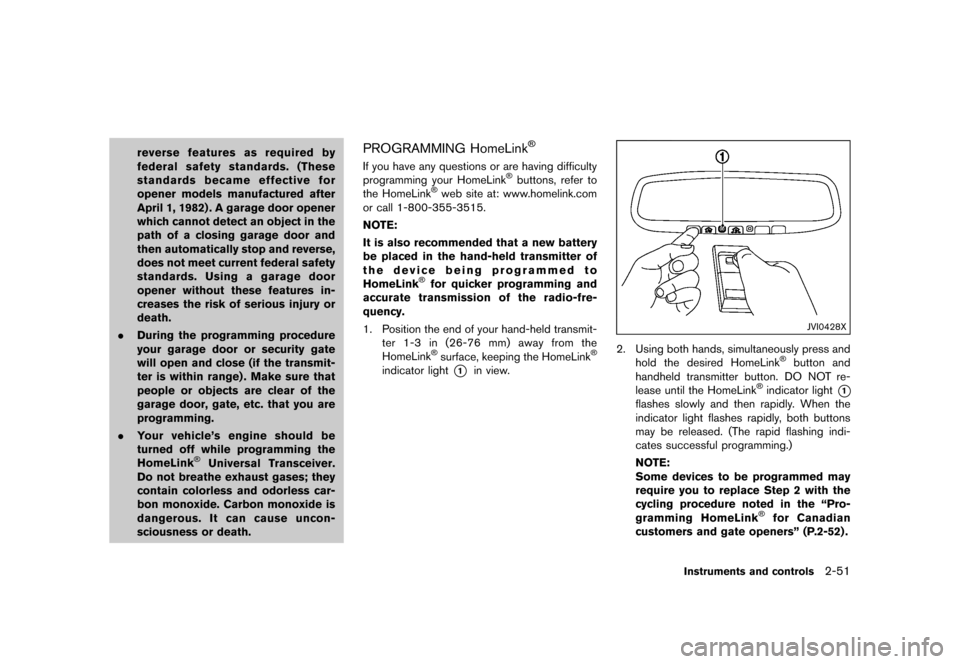

reverse features as required by
federal safety standards. (These
standards became effective for
opener models manufactured after
April 1, 1982) . A garage door opener
which cannot detect an object in the
path of a closing garage door and
then automatically stop and reverse,
does not meet current federal safety
standards. Using a garage door
opener without these features in-
creases the risk of serious injury or
death.
. During the programming procedure
your garage door or security gate
will open and close (if the transmit-
ter is within range) . Make sure that
people or objects are clear of the
garage door, gate, etc. that you are
programming.
. Your vehicle's engine should be
turned off while programming the
HomeLink


> (GLW    0RGHO =' @

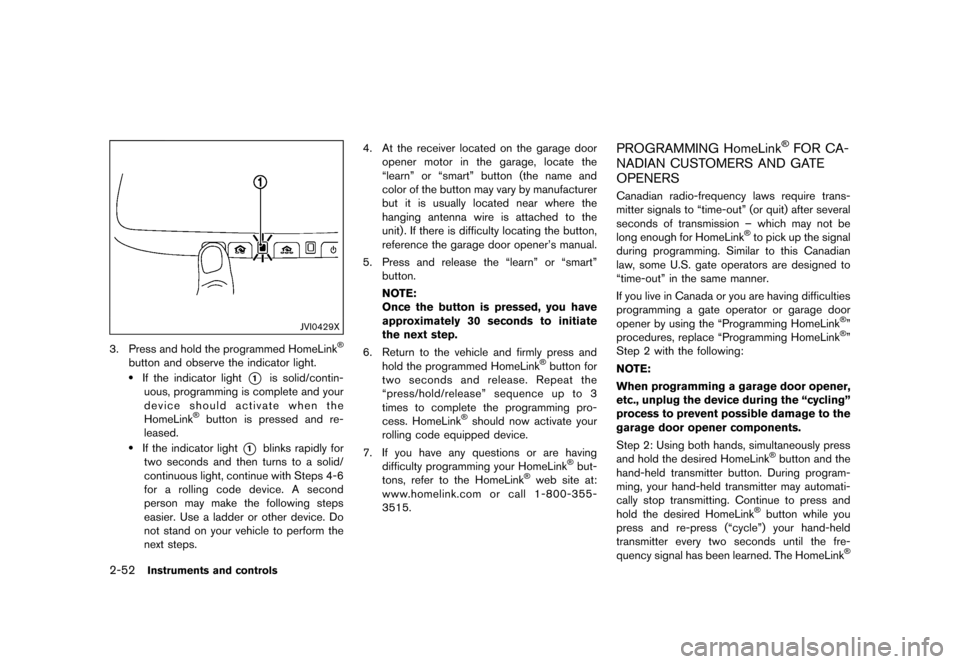

2-52Instruments and controls
JVI0429X
3. Press and hold the programmed HomeLink


> (GLW    0RGHO =' @

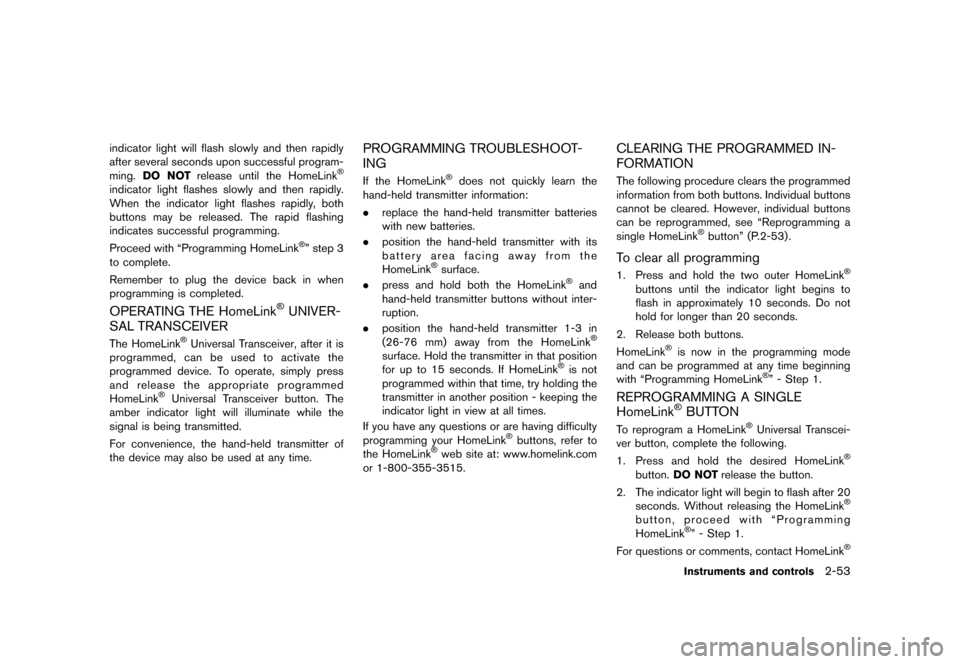

indicator light will flash slowly and then rapidly
after several seconds upon successful program-
ming.DO NOT release until the HomeLink


> (GLW    0RGHO =' @

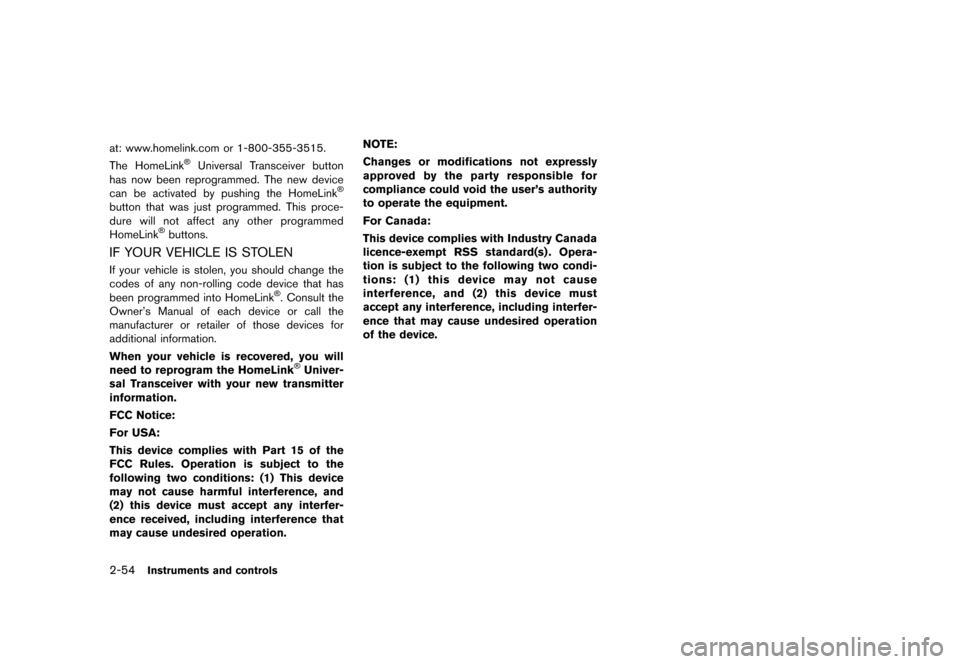

2-54Instruments and controls
at: www.homelink.com or 1-800-355-3515.
The HomeLink


> (GLW    0RGHO =' @

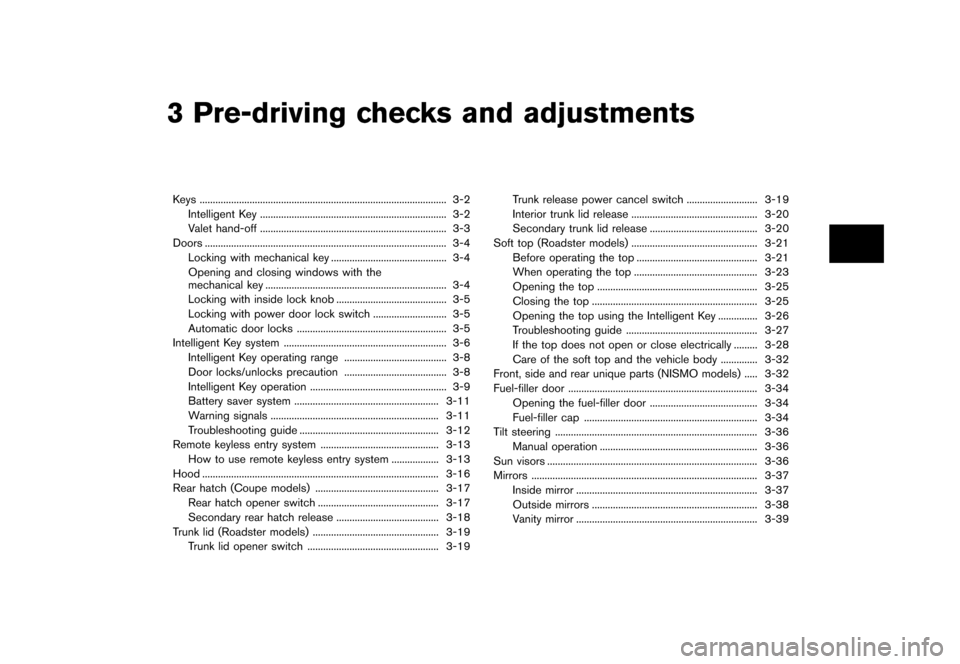

3 Pre-driving checks and adjustments
Keys...
........................................................................\
...................... 3-2
Intelligent Key ...
....................................................................... 3-2
Valet hand-off ...
....................................................................... 3-3
Doors ...
........................................................................\
.................... 3-4
Locking with mechanical key ...
............................................ 3-4
Opening and closing windows with the
mechanical key ...
..................................................................... 3-4
Locking with inside lock knob ...
.......................................... 3-5
Locking with power door lock switch ...
............................ 3-5
Automatic door locks ...
......................................................... 3-5
Intelligent Key system ...
.............................................................. 3-6
Intelligent Key operating range ...
....................................... 3-8
Door locks/unlocks precaution ...
....................................... 3-8
Intelligent Key operation ...
.................................................... 3-9
Battery saver system ...
....................................................... 3-11
Warning signals ...
................................................................ 3-11
Troubleshooting guide ...
..................................................... 3-12
Remote keyless entry system ...
............................................. 3-13
How to use remote keyless entry system ...
.................. 3-13
Hood ...
........................................................................\
.................. 3-16
Rear hatch (Coupe models) ...
............................................... 3-17
Rear hatch opener switch ...
.............................................. 3-17
Secondary rear hatch release ...
....................................... 3-18
Trunk lid (Roadster models) ...
................................................ 3-19
Trunk lid opener switch ...
.................................................. 3-19 Trunk release power cancel switch
...
........................... 3-19
Interior trunk lid release ...
................................................ 3-20
Secondary trunk lid release ...
......................................... 3-20
Soft top (Roadster models) ...
................................................ 3-21
Before operating the top ...
.............................................. 3-21
When operating the top ...
............................................... 3-23
Opening the top ...
............................................................. 3-25
Closing the top ...
............................................................... 3-25
Opening the top using the Intelligent Key ...
............... 3-26
Troubleshooting guide ...
.................................................. 3-27
If the top does not open or close electrically ...
......... 3-28
Care of the soft top and the vehicle body ...
.............. 3-32
Front, side and rear unique parts (NISMO models) ...
..... 3-32
Fuel-filler door ...
........................................................................\
3-34
Opening the fuel-filler door ...
......................................... 3-34
Fuel-filler cap ...
.................................................................. 3-34
Tilt steering ...
........................................................................\
..... 3-36
Manual operation ...
............................................................ 3-36
Sun visors ...
........................................................................\
........ 3-36
Mirrors ...
........................................................................\
.............. 3-37
Inside mirror ...
..................................................................... 3-37
Outside mirrors ...
............................................................... 3-38
Vanity mirror ...
..................................................................... 3-39
&RQGLWLRQ


> (GLW    0RGHO =' @

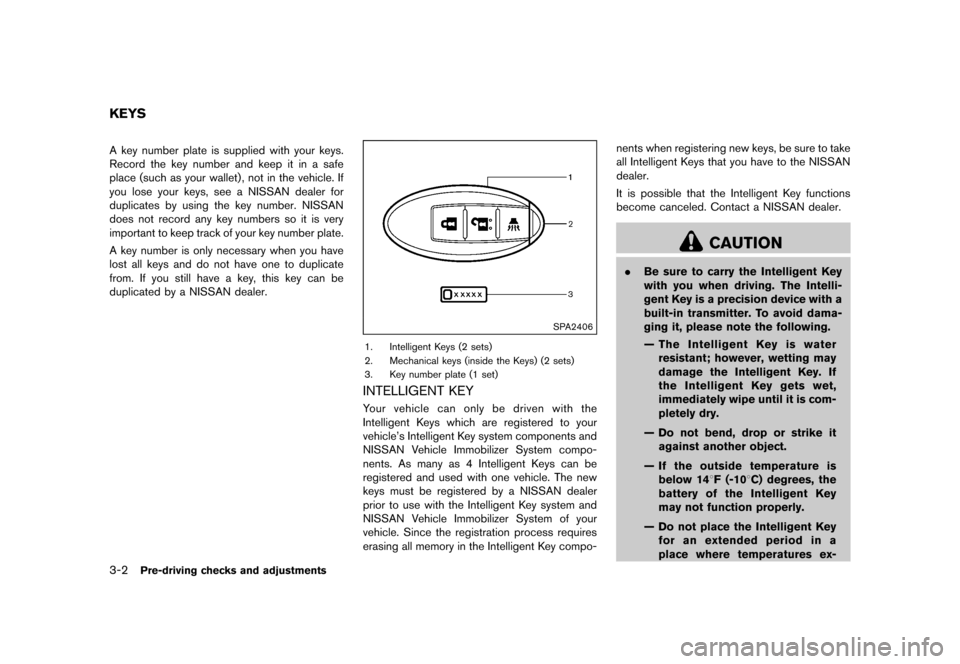

3-2Pre-driving checks and adjustments
GUID-1AB4EDEC-0989-4EEA-BD62-9CEAF4A2249EA key number plate is supplied with your keys.
Record the key number and keep it in a safe
place (such as your wallet) , not in the vehicle. If
you lose your keys, see a NISSAN dealer for
duplicates by using the key number. NISSAN
does not record any key numbers so it is very
important to keep track of your key number plate.
A key number is only necessary when you have
lost all keys and do not have one to duplicate
from. If you still have a key, this key can be
duplicated by a NISSAN dealer.
SPA2406
1. Intelligent Keys (2 sets)
2. Mechanical keys (inside the Keys) (2 sets)
3. Key number plate (1 set)
INTELLIGENT KEYGUID-3DC5AAE4-F953-49C3-B2F5-C9070439F430Your vehicle can only be driven with the
Intelligent Keys which are registered to your
vehicle's Intelligent Key system components and
NISSAN Vehicle Immobilizer System compo-
nents. As many as 4 Intelligent Keys can be
registered and used with one vehicle. The new
keys must be registered by a NISSAN dealer
prior to use with the Intelligent Key system and
NISSAN Vehicle Immobilizer System of your
vehicle. Since the registration process requires
erasing all memory in the Intelligent Key compo-nents when registering new keys, be sure to take
all Intelligent Keys that you have to the NISSAN
dealer.
It is possible that the Intelligent Key functions
become canceled. Contact a NISSAN dealer.
CAUTION
.
Be sure to carry the Intelligent Key
with you when driving. The Intelli-
gent Key is a precision device with a
built-in transmitter. To avoid dama-
ging it, please note the following.
Ð The Intelligent Key is water
resistant; however, wetting may
damage the Intelligent Key. If
the Intelligent Key gets wet,
immediately wipe until it is com-
pletely dry.
Ð Do not bend, drop or strike it against another object.
Ð If the outside temperature is below 148F (-108C) degrees, the
battery of the Intelligent Key
may not function properly.
Ð Do not place the Intelligent Key for an extended period in a
place where temperatures ex-
KEYS
&RQGLWLRQ
