NISSAN 370Z ROADSTER 2015 Z34 Owners Manual
Manufacturer: NISSAN, Model Year: 2015, Model line: 370Z ROADSTER, Model: NISSAN 370Z ROADSTER 2015 Z34Pages: 419, PDF Size: 3.71 MB
Page 231 of 419
> ( G L W 0 R G H O = ' @

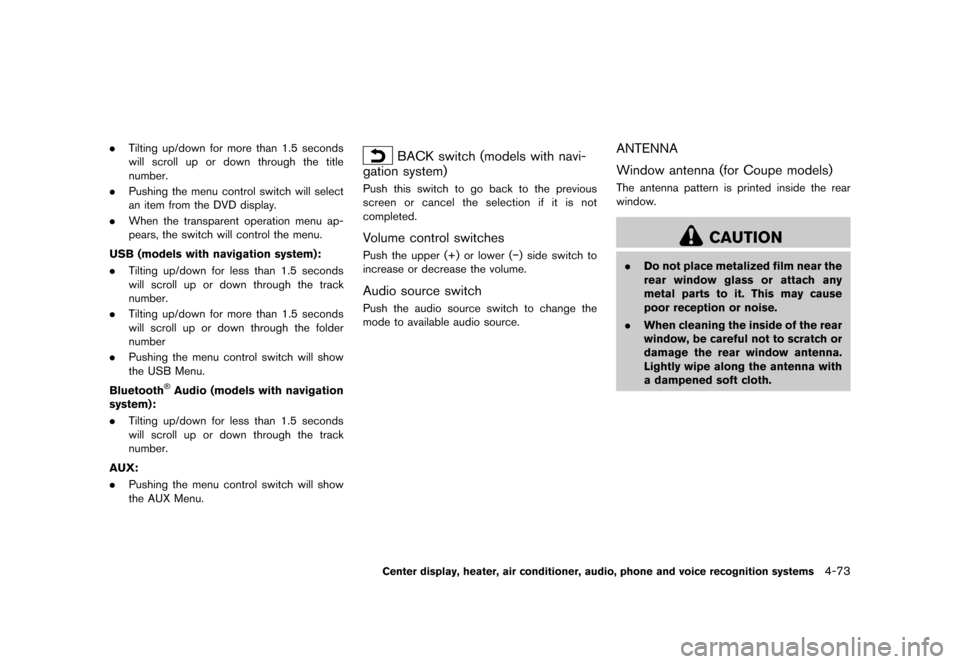

.Tilting up/down for more than 1.5 seconds
will scroll up or down through the title
number.
. Pushing the menu control switch will select
an item from the DVD display.
. When the transparent operation menu ap-
pears, the switch will control the menu.
USB (models with navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Tilting up/down for less than 1.5 seconds
will scroll up or down through the track
number.
. Tilting up/down for more than 1.5 seconds
will scroll up or down through the folder
number
. Pushing the menu control switch will show
the USB Menu.
Bluetooth
Page 232 of 419
> ( G L W 0 R G H O = ' @
4-74Center display, heater, air conditioner, audio, phone and voice recognition systems

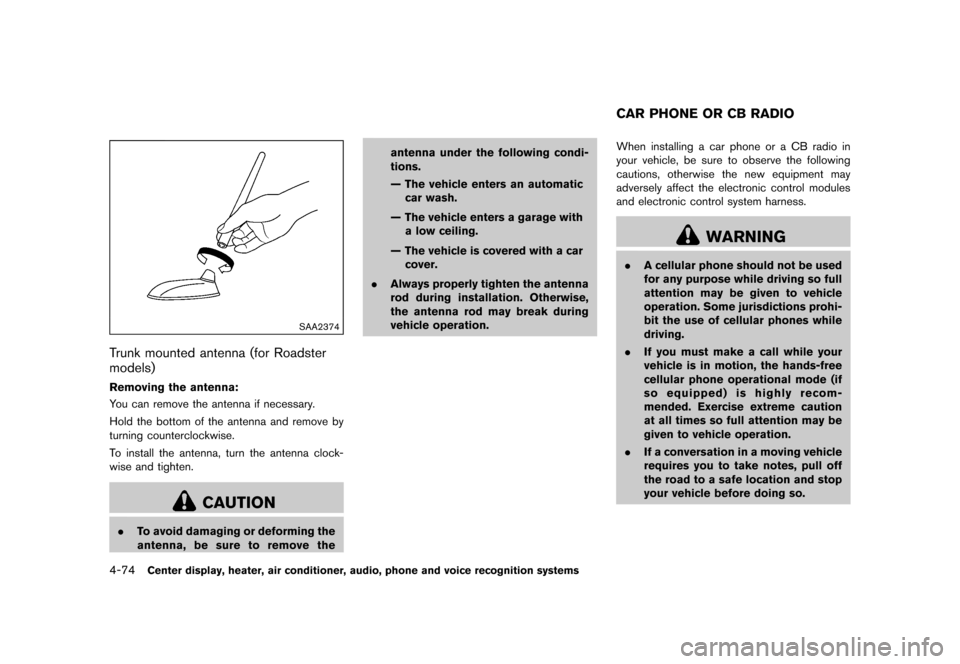

SAA2374
Trunk mounted antenna (for Roadster
models)
GUID-AFADBDC3-763E-4A9A-A02F-C590307D9175
Removing the antenna:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407You can remove the antenna if necessary.
Hold the bottom of the antenna and remove by
turning counterclockwise.
To install the antenna, turn the antenna clock-
wise and tighten.
CAUTION
.To avoid damaging or deforming the
antenna, be sure to remove the antenna under the following condi-
tions.
Ð The vehicle enters an automatic
car wash.
Ð The vehicle enters a garage with a low ceiling.
Ð The vehicle is covered with a car cover.
. Always properly tighten the antenna
rod during installation. Otherwise,
the antenna rod may break during
vehicle operation.
GUID-9D975CE2-D725-41E1-B5A4-B94CB459F82AWhen installing a car phone or a CB radio in
your vehicle, be sure to observe the following
cautions, otherwise the new equipment may
adversely affect the electronic control modules
and electronic control system harness.
WARNING
.A cellular phone should not be used
for any purpose while driving so full
attention may be given to vehicle
operation. Some jurisdictions prohi-
bit the use of cellular phones while
driving.
. If you must make a call while your
vehicle is in motion, the hands-free
cellular phone operational mode (if
so equipped) is highly recom-
mended. Exercise extreme caution
at all times so full attention may be
given to vehicle operation.
. If a conversation in a moving vehicle
requires you to take notes, pull off
the road to a safe location and stop
your vehicle before doing so.
CAR PHONE OR CB RADIO
& R Q G L W L R Q
Page 233 of 419
> ( G L W 0 R G H O = ' @

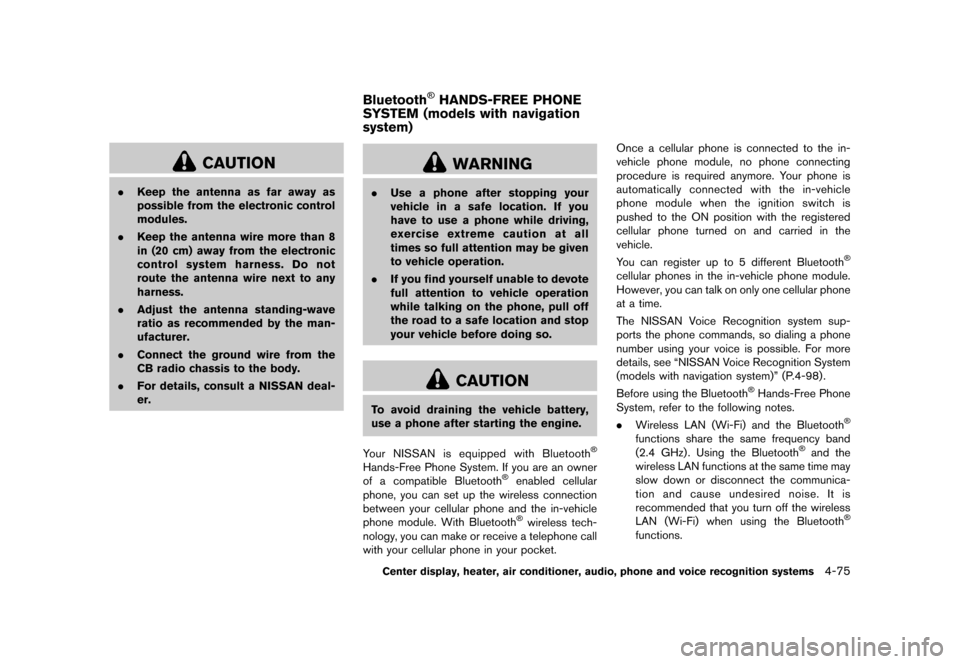

CAUTION
.Keep the antenna as far away as
possible from the electronic control
modules.
. Keep the antenna wire more than 8
in (20 cm) away from the electronic
control system harness. Do not
route the antenna wire next to any
harness.
. Adjust the antenna standing-wave
ratio as recommended by the man-
ufacturer.
. Connect the ground wire from the
CB radio chassis to the body.
. For details, consult a NISSAN deal-
er.
GUID-ACB03DAD-8D94-4546-8D41-7769E7C1CA42
WARNING
.Use a phone after stopping your
vehicle in a safe location. If you
have to use a phone while driving,
exercise extreme caution at all
times so full attention may be given
to vehicle operation.
. If you find yourself unable to devote
full attention to vehicle operation
while talking on the phone, pull off
the road to a safe location and stop
your vehicle before doing so.
CAUTION
To avoid draining the vehicle battery,
use a phone after starting the engine.
Your NISSAN is equipped with Bluetooth

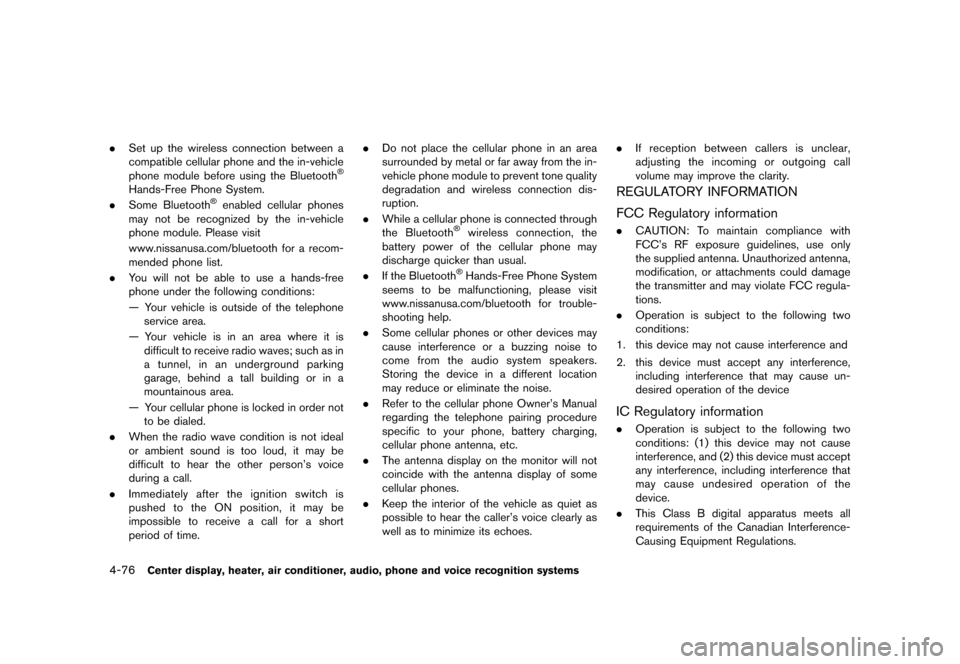

Page 234 of 419
> ( G L W 0 R G H O = ' @
4-76Center display, heater, air conditioner, audio, phone and voice recognition systems
.Set up the wireless connection between a
compatible cellular phone and the in-vehicle
phone module before using the Bluetooth
Page 235 of 419
> ( G L W 0 R G H O = ' @
Bluetooth
Page 236 of 419
> ( G L W 0 R G H O = ' @
4-78Center display, heater, air conditioner, audio, phone and voice recognition systems

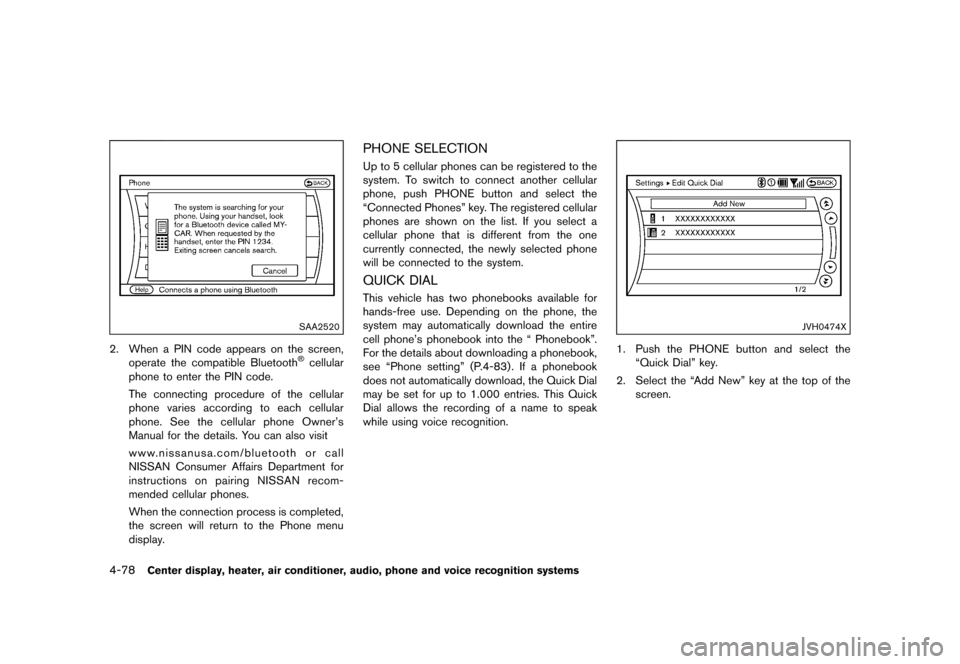

SAA2520
2. When a PIN code appears on the screen,operate the compatible Bluetooth
Page 237 of 419
> ( G L W 0 R G H O = ' @

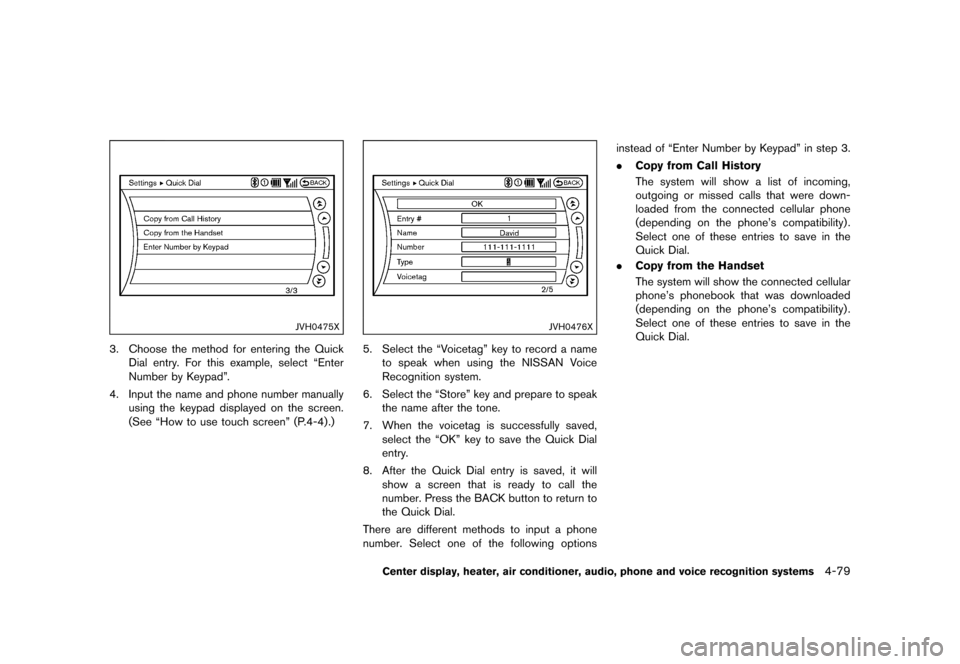

JVH0475X
3. Choose the method for entering the QuickDial entry. For this example, select ªEnter
Number by Keypadº.
4. Input the name and phone number manually using the keypad displayed on the screen.
(See ªHow to use touch screenº (P.4-4).)
JVH0476X
5. Select the ªVoicetagº key to record a name
to speak when using the NISSAN Voice
Recognition system.
6. Select the ªStoreº key and prepare to speak the name after the tone.
7. When the voicetag is successfully saved, select the ªOKº key to save the Quick Dial
entry.
8. After the Quick Dial entry is saved, it will show a screen that is ready to call the
number. Press the BACK button to return to
the Quick Dial.
There are different methods to input a phone
number. Select one of the following options instead of ªEnter Number by Keypadº in step 3.
.
Copy from Call History
The system will show a list of incoming,
outgoing or missed calls that were down-
loaded from the connected cellular phone
(depending on the phone's compatibility) .
Select one of these entries to save in the
Quick Dial.
. Copy from the Handset
The system will show the connected cellular
phone's phonebook that was downloaded
(depending on the phone's compatibility) .
Select one of these entries to save in the
Quick Dial.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-79
& R Q G L W L R Q
Page 238 of 419
> ( G L W 0 R G H O = ' @
4-80Center display, heater, air conditioner, audio, phone and voice recognition systems

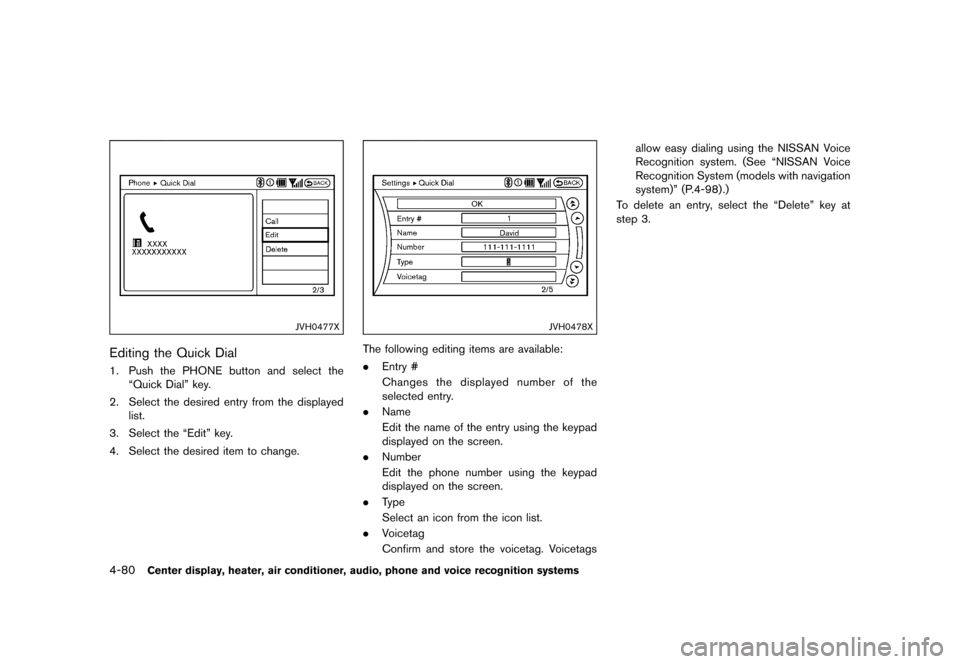

JVH0477X
Editing the Quick DialGUID-0BF20AE8-FD1E-48B4-B16D-4E85E1B2CCF71. Push the PHONE button and select theªQuick Dialº key.
2. Select the desired entry from the displayed list.
3. Select the ªEditº key.
4. Select the desired item to change.
JVH0478X
The following editing items are available:
. Entry #
Changes the displayed number of the
selected entry.
. Name
Edit the name of the entry using the keypad
displayed on the screen.
. Number
Edit the phone number using the keypad
displayed on the screen.
. Type
Select an icon from the icon list.
. Voicetag
Confirm and store the voicetag. Voicetags allow easy dialing using the NISSAN Voice
Recognition system. (See ªNISSAN Voice
Recognition System (models with navigation
system)º (P.4-98) .)
To delete an entry, select the ªDeleteº key at
step 3.
& R Q G L W L R Q
Page 239 of 419
> ( G L W 0 R G H O = ' @

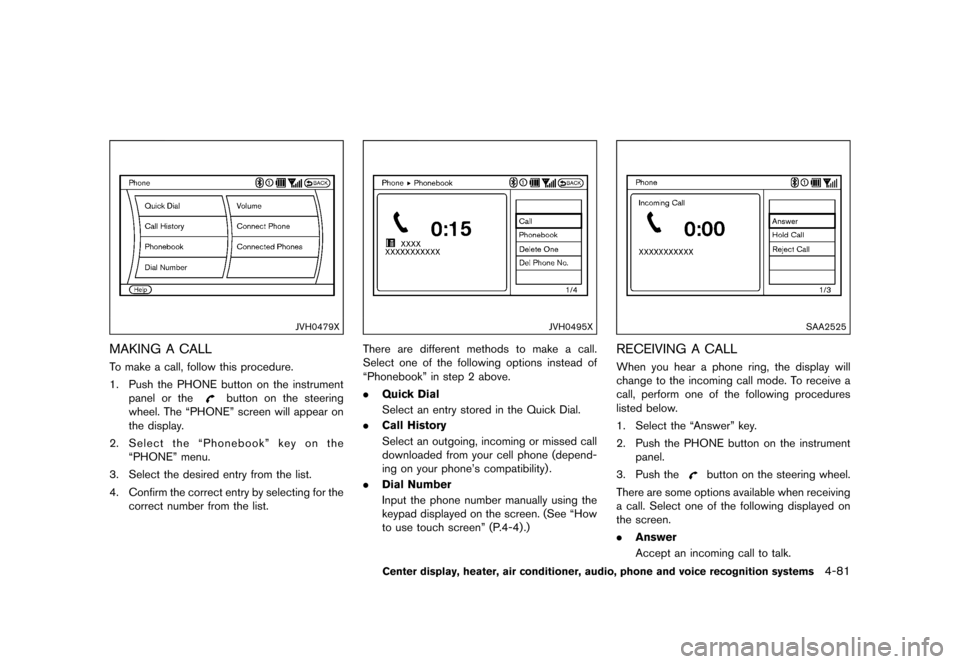

JVH0479X
MAKING A CALLGUID-39543C85-59E5-4F1C-83D0-B5A4B46D003CTo make a call, follow this procedure.
1. Push the PHONE button on the instrumentpanel or the
button on the steering
wheel. The ªPHONEº screen will appear on
the display.
2. Select the ªPhonebookº key on the
ªPHONEº menu.
3. Select the desired entry from the list.
4. Confirm the correct entry by selecting for the correct number from the list.
JVH0495X
There are different methods to make a call.
Select one of the following options instead of
ªPhonebookº in step 2 above.
.Quick Dial
Select an entry stored in the Quick Dial.
. Call History
Select an outgoing, incoming or missed call
downloaded from your cell phone (depend-
ing on your phone's compatibility) .
. Dial Number
Input the phone number manually using the
keypad displayed on the screen. (See ªHow
to use touch screenº (P.4-4) .)
SAA2525
RECEIVING A CALLGUID-0777A815-B287-4B03-A019-2D4078464681When you hear a phone ring, the display will
change to the incoming call mode. To receive a
call, perform one of the following procedures
listed below.
1. Select the ªAnswerº key.
2. Push the PHONE button on the instrument
panel.
3. Push the
button on the steering wheel.
There are some options available when receiving
a call. Select one of the following displayed on
the screen.
. Answer
Accept an incoming call to talk.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-81
& R Q G L W L R Q
Page 240 of 419
> ( G L W 0 R G H O = ' @
4-82Center display, heater, air conditioner, audio, phone and voice recognition systems
.Hold Call
Put an incoming call on hold.
. Reject Call
Reject an incoming call.
To finish the call, perform one of the
following procedures listed below.
1. Select the ªHang upº key.
2. Push the PHONE button on the instrument panel.
3. Push the
button on the steering wheel.
SAA3587
DURING A CALLGUID-08505588-D7A0-44F2-A5FB-BEDD444B2DDEThere are some options available during a call.
Select one of the following displayed on the
screen if necessary.
. Hang up
Finish the call.
. Use Handset
Transfer the call to the cellular phone.
. Mute
Mute your voice to the person.
. Keypad
Using the touch tone, send digits to the
connected party for using services such as
voicemail. .
Cancel Mute
This will appear after ªMuteº is selected.
Mute will be canceled.
. Switch Call*
Select ªSwitch Callº to answer another
incoming call. By selecting ªHang upº, you
can end a call and can speak to a caller who
is on hold again.
* This function may not be usable, depend-
ing on the model of phone.
To adjust the person's voice to be louder or
quieter, push the volume control switch (+ or
