Page 181 of 428

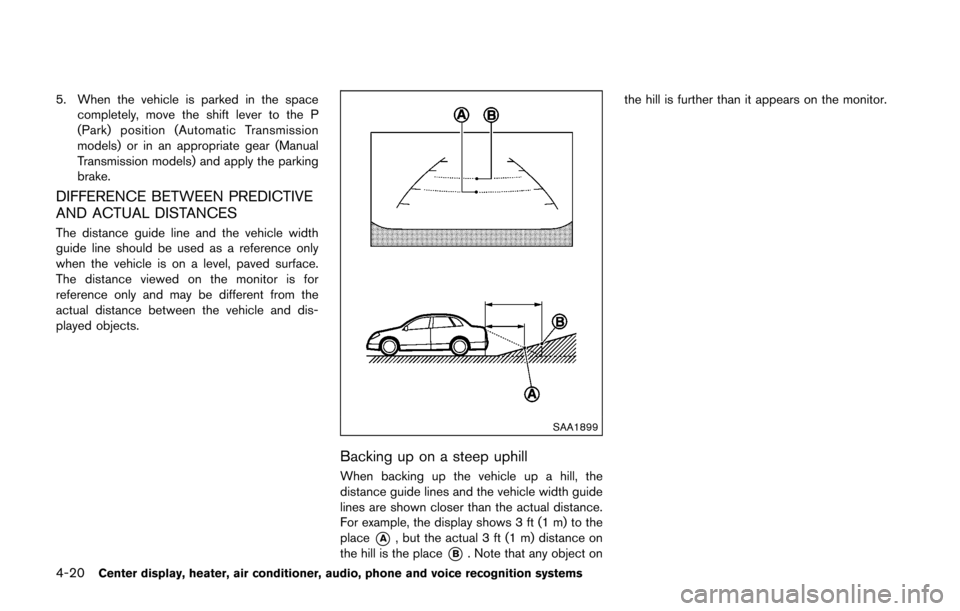

NISSAN 370Z ROADSTER 2016 Z34 Owners Manual 4-20Center display, heater, air conditioner, audio, phone and voice recognition systems
5. When the vehicle is parked in the spacecompletely, move the shift lever to the P
(Park) position (Automatic T

Page 182 of 428

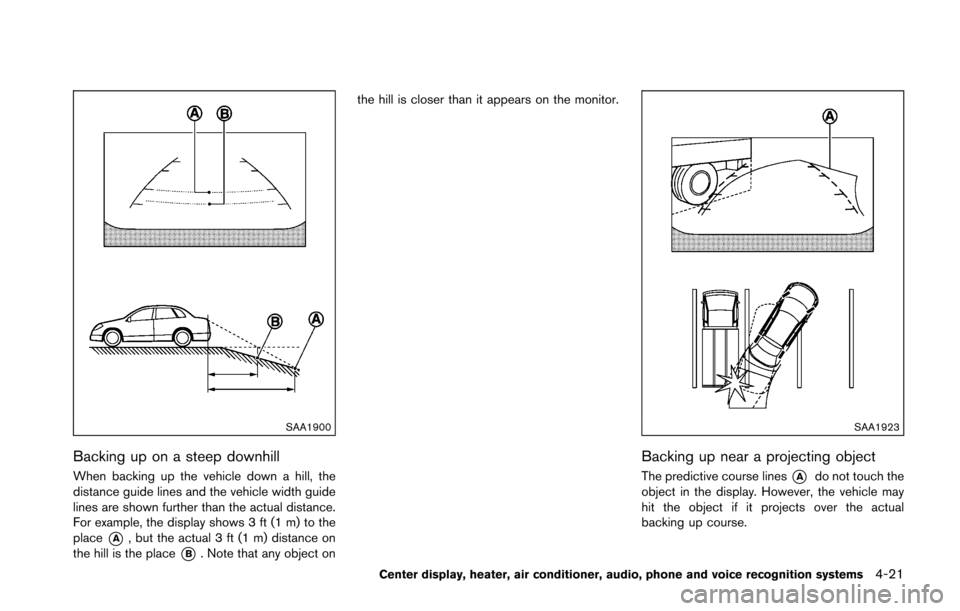

NISSAN 370Z ROADSTER 2016 Z34 Owners Manual SAA1900
Backing up on a steep downhill
When backing up the vehicle down a hill, the
distance guide lines and the vehicle width guide
lines are shown further than the actual distance.
For example, the

Page 183 of 428

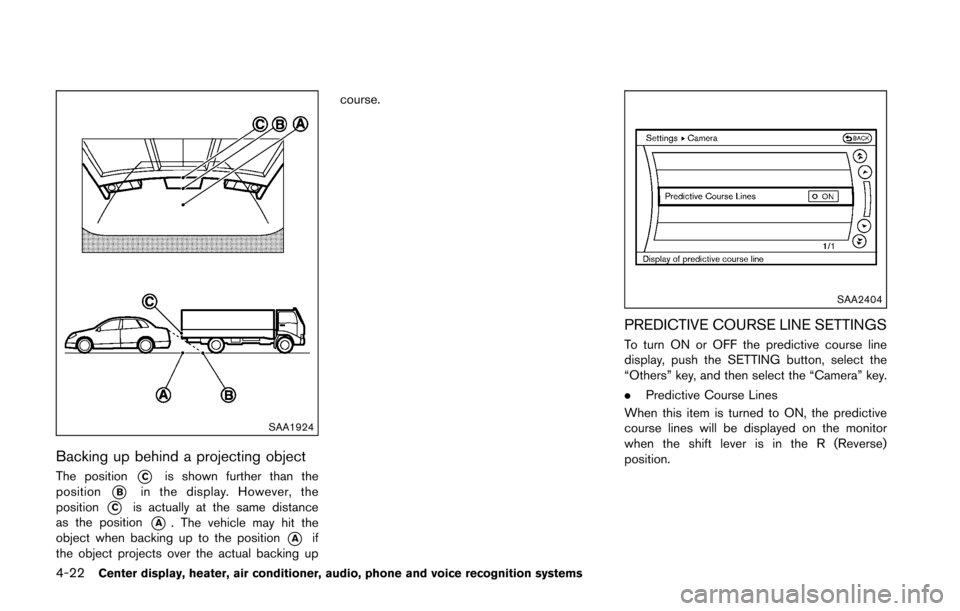

NISSAN 370Z ROADSTER 2016 Z34 Owners Manual 4-22Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA1924
Backing up behind a projecting object
The position*Cis shown further than the
position
*Bin the display.

Page 184 of 428

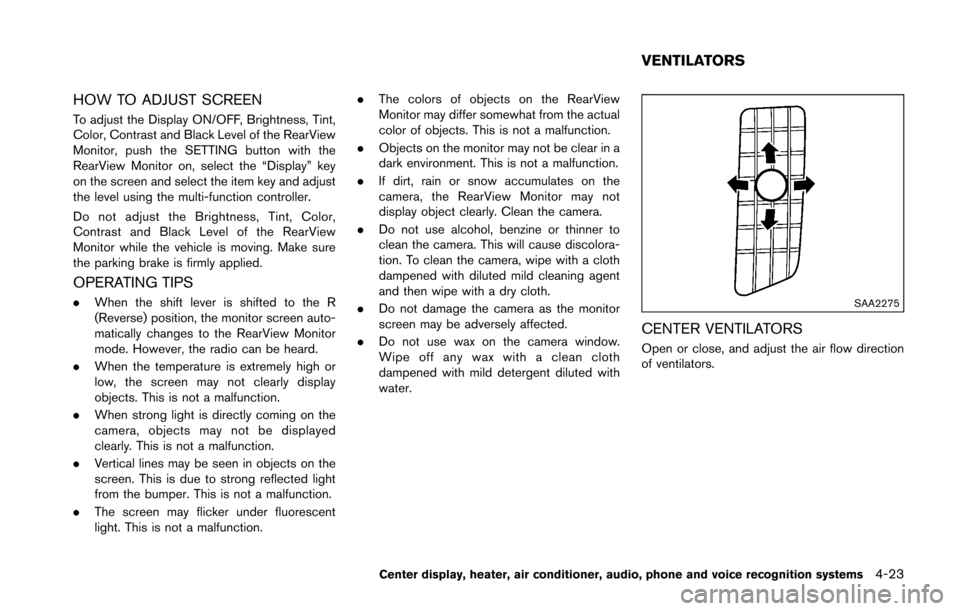

NISSAN 370Z ROADSTER 2016 Z34 Owners Manual HOW TO ADJUST SCREEN
To adjust the Display ON/OFF, Brightness, Tint,
Color, Contrast and Black Level of the RearView
Monitor, push the SETTING button with the
RearView Monitor on, select the “Displa

Page 185 of 428

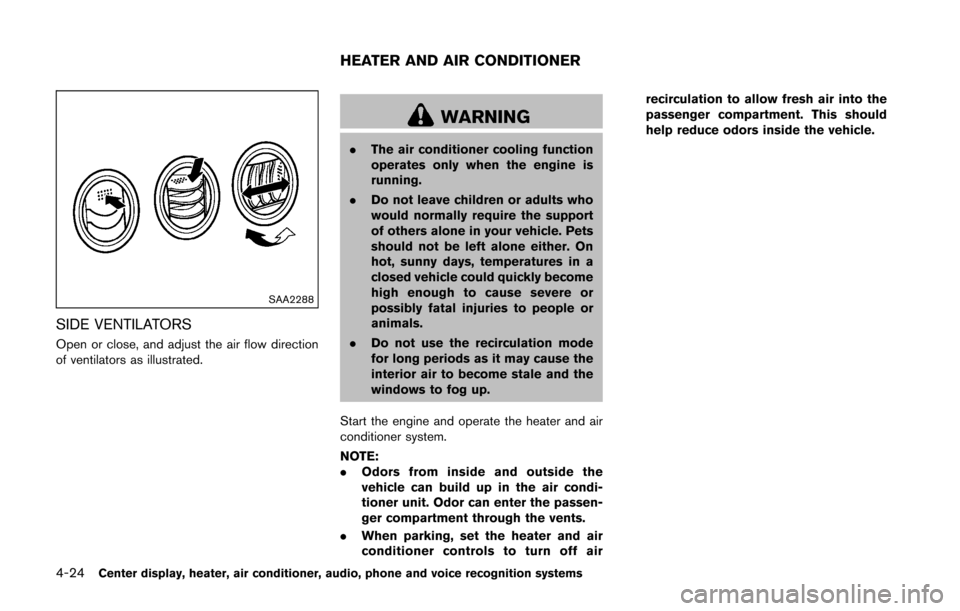

NISSAN 370Z ROADSTER 2016 Z34 Owners Manual 4-24Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA2288
SIDE VENTILATORS
Open or close, and adjust the air flow direction
of ventilators as illustrated.
WARNING

Page 186 of 428

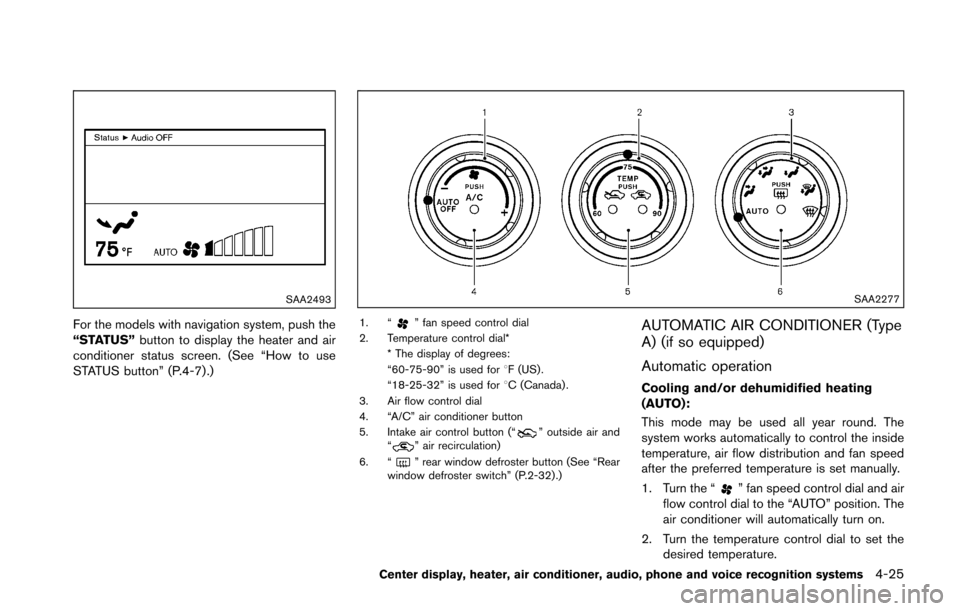

NISSAN 370Z ROADSTER 2016 Z34 Owners Manual SAA2493
For the models with navigation system, push the
“STATUS”button to display the heater and air
conditioner status screen. (See “How to use
STATUS button” (P.4-7) .)
SAA2277
1. “” fan

Page 187 of 428

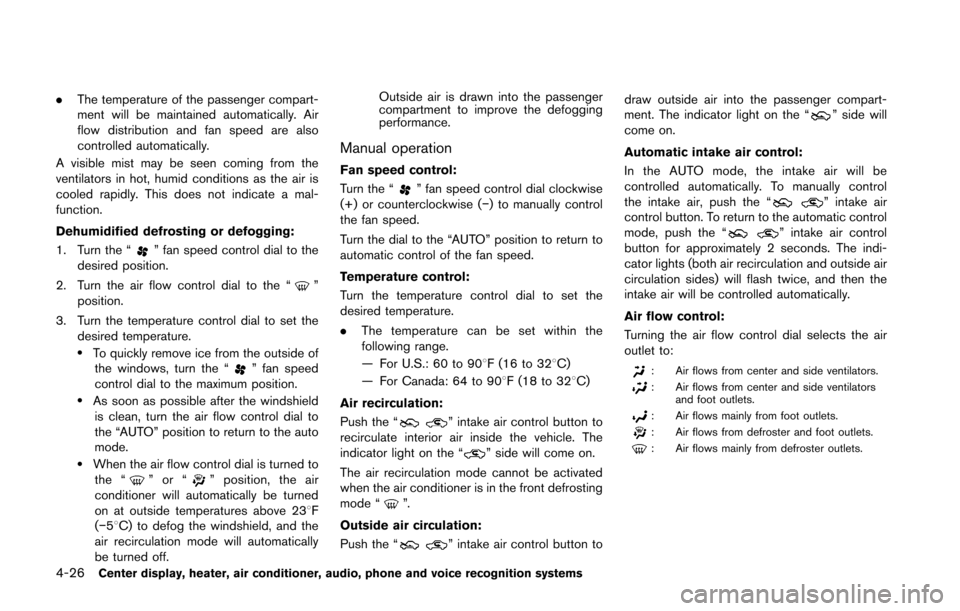

NISSAN 370Z ROADSTER 2016 Z34 Owners Manual 4-26Center display, heater, air conditioner, audio, phone and voice recognition systems
.The temperature of the passenger compart-
ment will be maintained automatically. Air
flow distribution and fan

Page 188 of 428

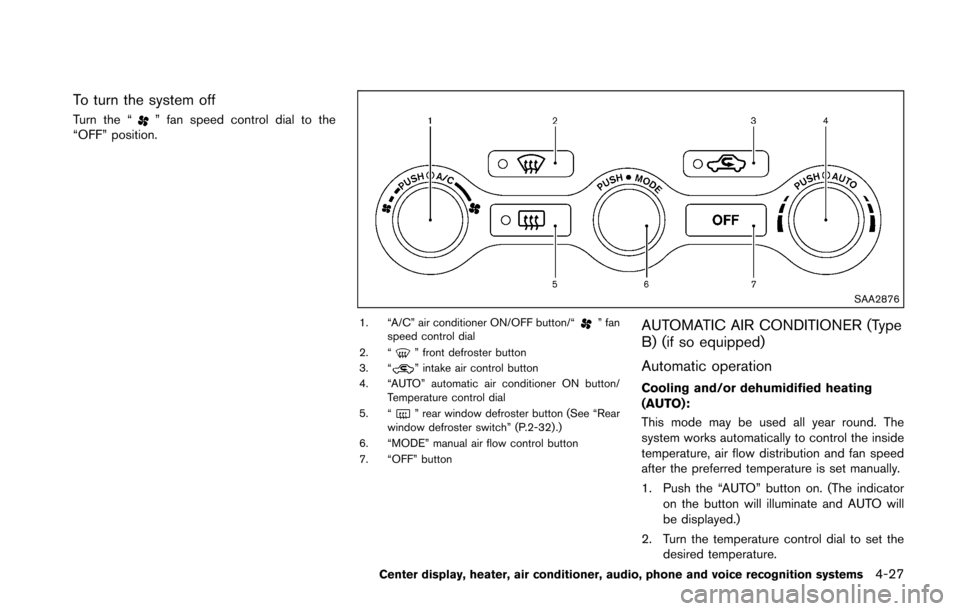

NISSAN 370Z ROADSTER 2016 Z34 Owners Manual To turn the system off
Turn the “” fan speed control dial to the
“OFF” position.
SAA2876
1. “A/C” air conditioner ON/OFF button/“” fan
speed control dial
2. “
” front defroster but

Page 189 of 428

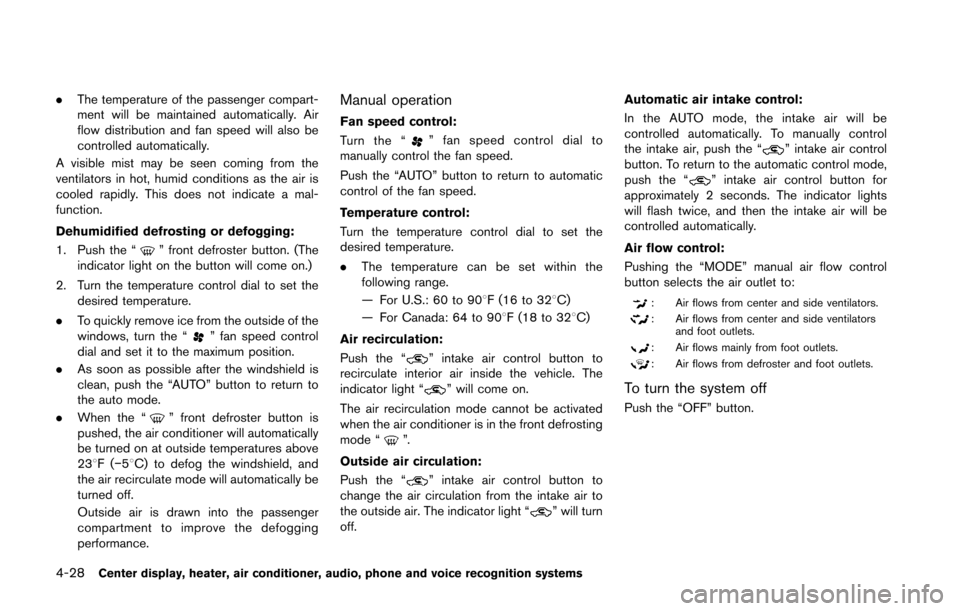

NISSAN 370Z ROADSTER 2016 Z34 Owners Manual 4-28Center display, heater, air conditioner, audio, phone and voice recognition systems
.The temperature of the passenger compart-
ment will be maintained automatically. Air
flow distribution and fan

Page 190 of 428

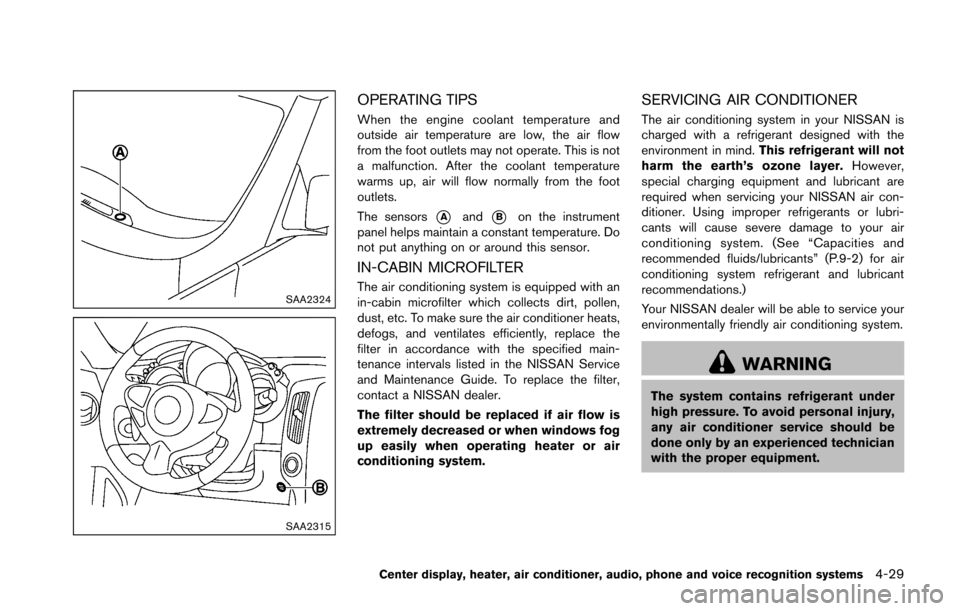

NISSAN 370Z ROADSTER 2016 Z34 Owners Manual SAA2324
SAA2315
OPERATING TIPS
When the engine coolant temperature and
outside air temperature are low, the air flow
from the foot outlets may not operate. This is not
a malfunction. After the coolant
