Page 81 of 428

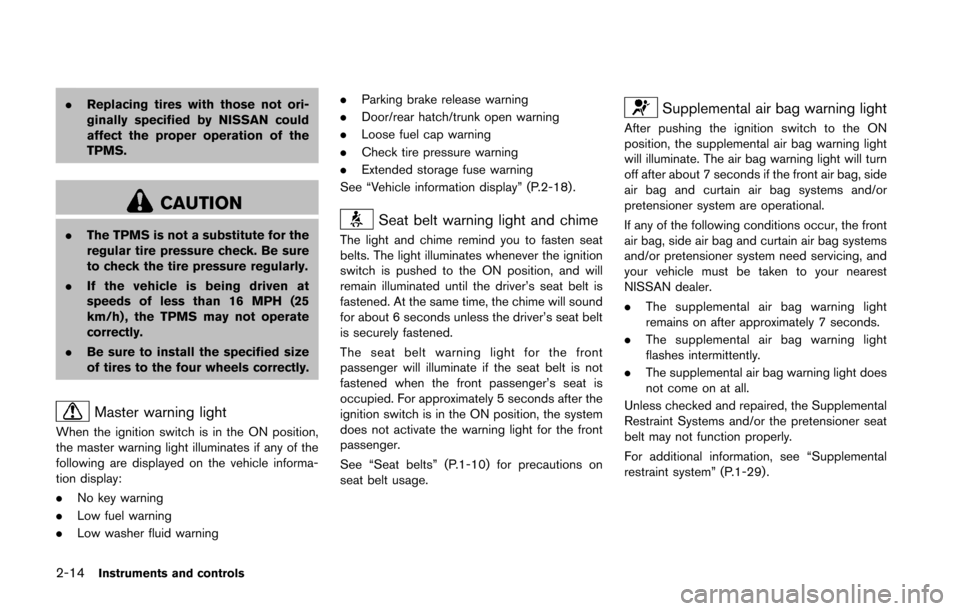

NISSAN 370Z ROADSTER 2016 Z34 Manual Online 2-14Instruments and controls
.Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.
CAUTION
.The TPMS is not a substitute for the
regular tire

Page 82 of 428

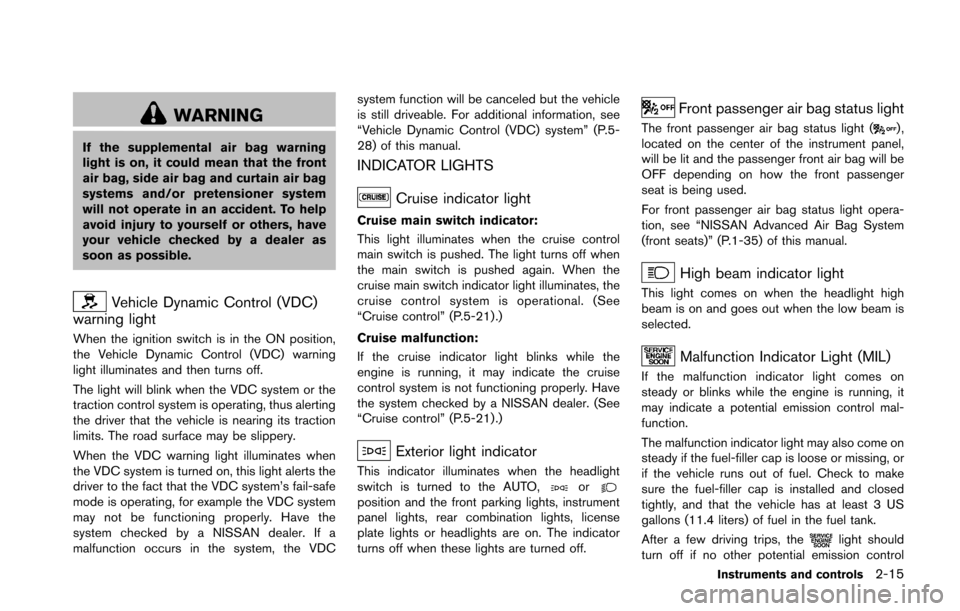

NISSAN 370Z ROADSTER 2016 Z34 Manual Online WARNING
If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag and curtain air bag
systems and/or pretensioner system
will not operate in an accident. To h

Page 83 of 428

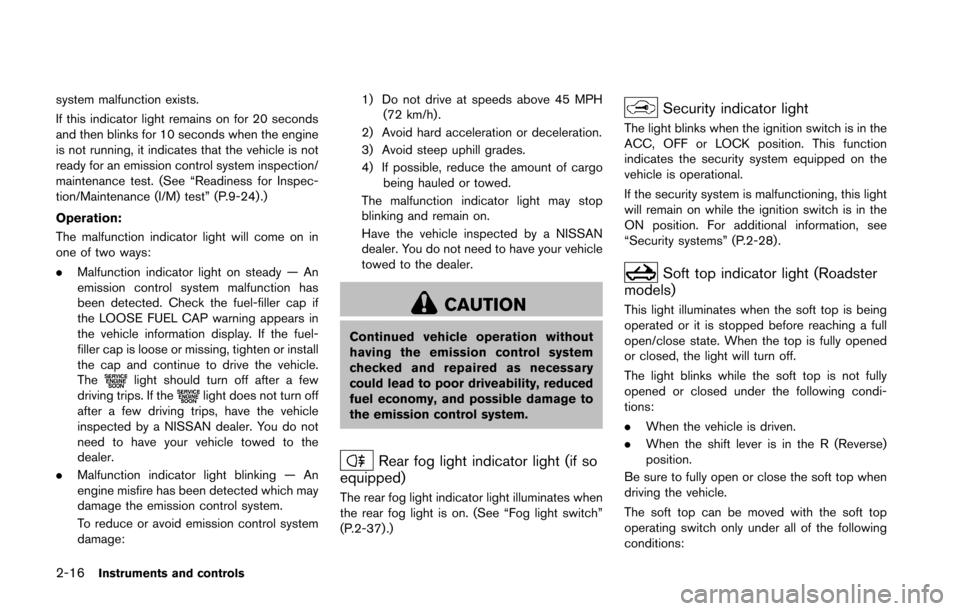

NISSAN 370Z ROADSTER 2016 Z34 Manual Online 2-16Instruments and controls
system malfunction exists.
If this indicator light remains on for 20 seconds
and then blinks for 10 seconds when the engine
is not running, it indicates that the vehicle i

Page 84 of 428

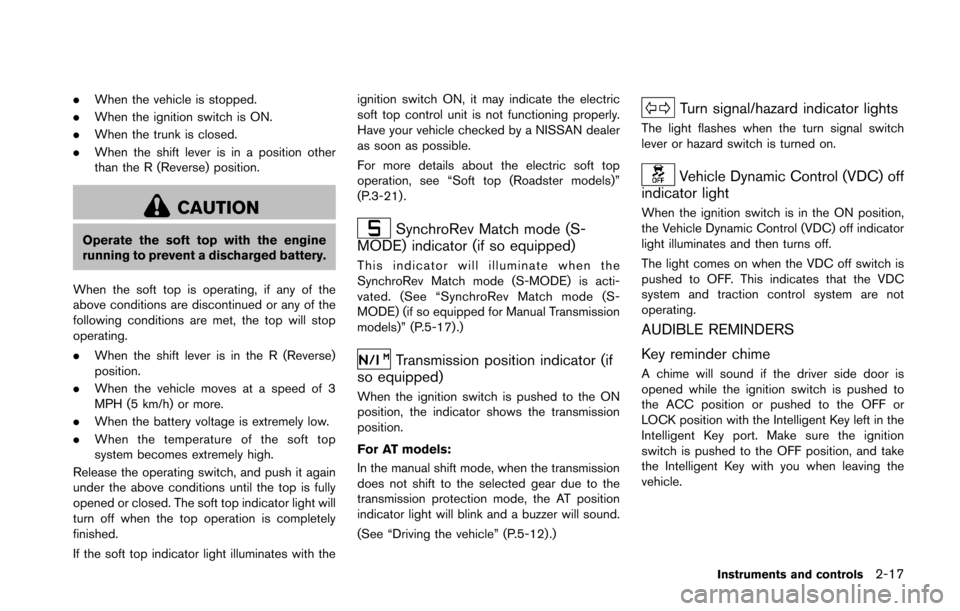

NISSAN 370Z ROADSTER 2016 Z34 Manual Online .When the vehicle is stopped.
. When the ignition switch is ON.
. When the trunk is closed.
. When the shift lever is in a position other
than the R (Reverse) position.
CAUTION
Operate the soft top wi

Page 85 of 428

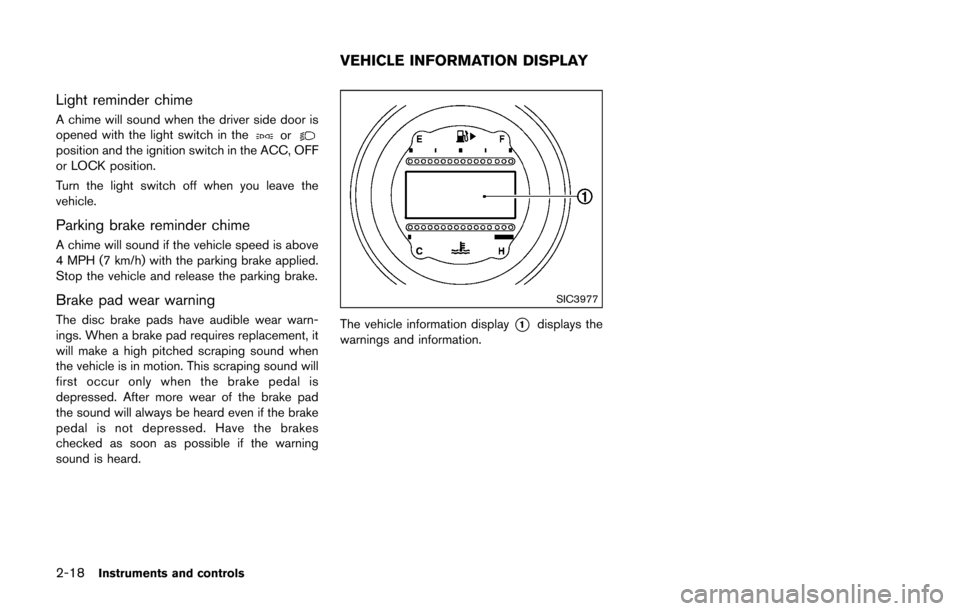

NISSAN 370Z ROADSTER 2016 Z34 Manual Online 2-18Instruments and controls
Light reminder chime
A chime will sound when the driver side door is
opened with the light switch in theorposition and the ignition switch in the ACC, OFF
or LOCK position

Page 86 of 428

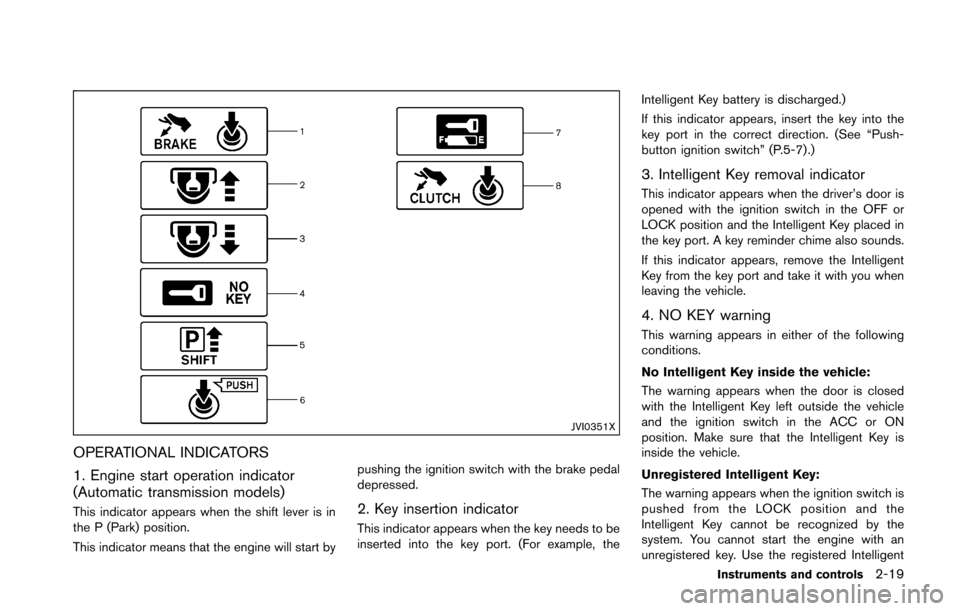

NISSAN 370Z ROADSTER 2016 Z34 Manual Online JVI0351X
OPERATIONAL INDICATORS
1. Engine start operation indicator
(Automatic transmission models)
This indicator appears when the shift lever is in
the P (Park) position.
This indicator means that t

Page 87 of 428

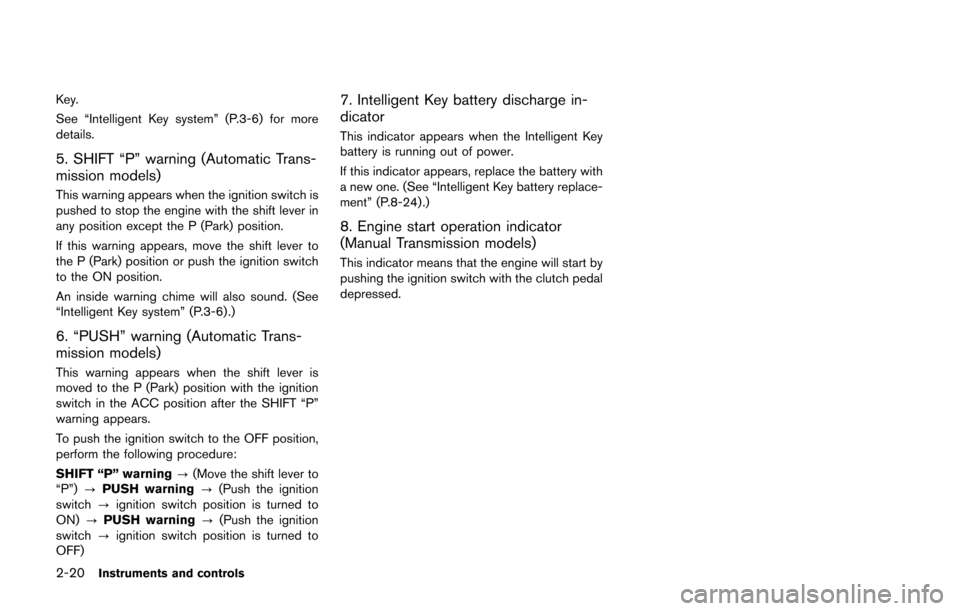

NISSAN 370Z ROADSTER 2016 Z34 Manual Online 2-20Instruments and controls
Key.
See “Intelligent Key system” (P.3-6) for more
details.
5. SHIFT “P” warning (Automatic Trans-
mission models)
This warning appears when the ignition switch is

Page 88 of 428

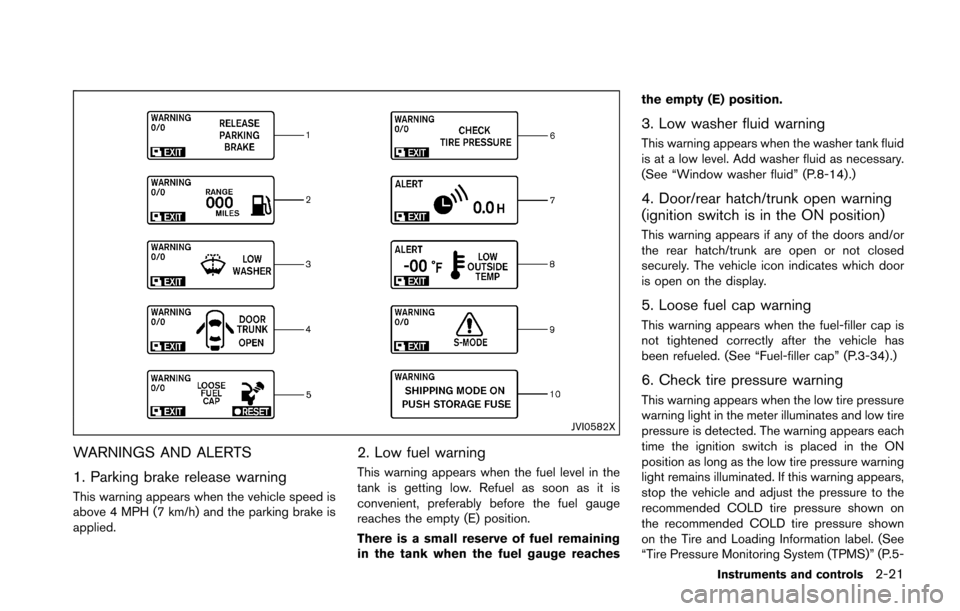

NISSAN 370Z ROADSTER 2016 Z34 Manual Online JVI0582X
WARNINGS AND ALERTS
1. Parking brake release warning
This warning appears when the vehicle speed is
above 4 MPH (7 km/h) and the parking brake is
applied.
2. Low fuel warning
This warning app

Page 89 of 428

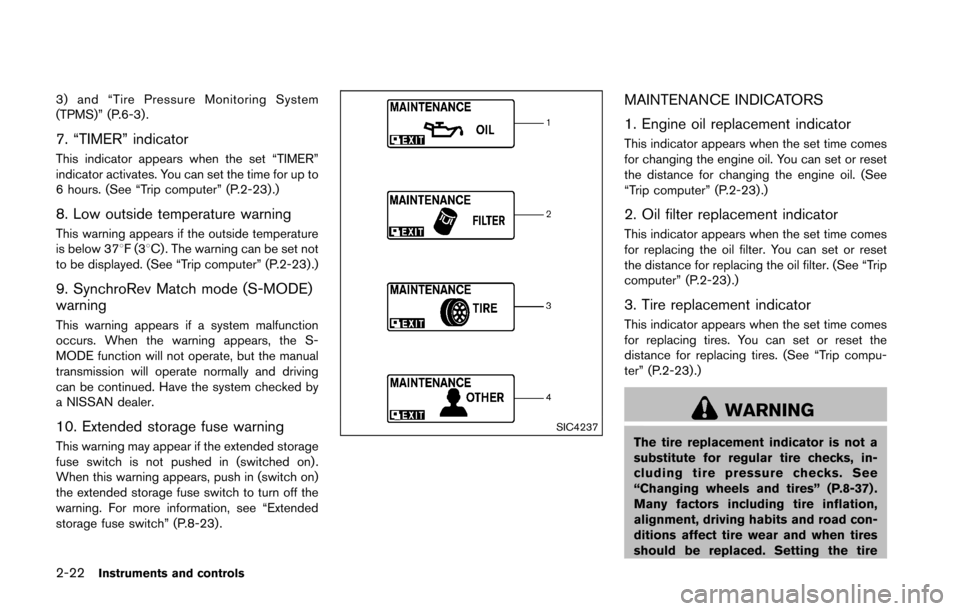

NISSAN 370Z ROADSTER 2016 Z34 Manual Online 2-22Instruments and controls
3) and “Tire Pressure Monitoring System
(TPMS)” (P.6-3) .
7. “TIMER” indicator
This indicator appears when the set “TIMER”
indicator activates. You can set the

Page 90 of 428

NISSAN 370Z ROADSTER 2016 Z34 Manual Online replacement indicator for a certain
driving distance does not mean your
tires will last that long. Use the tire
replacement indicator as a guide only
and always perform regular tire checks.
Failure to
