NISSAN 370Z ROADSTER 2017 Z34 Owners Manual
Manufacturer: NISSAN, Model Year: 2017, Model line: 370Z ROADSTER, Model: NISSAN 370Z ROADSTER 2017 Z34Pages: 443, PDF Size: 3.84 MB
Page 351 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @

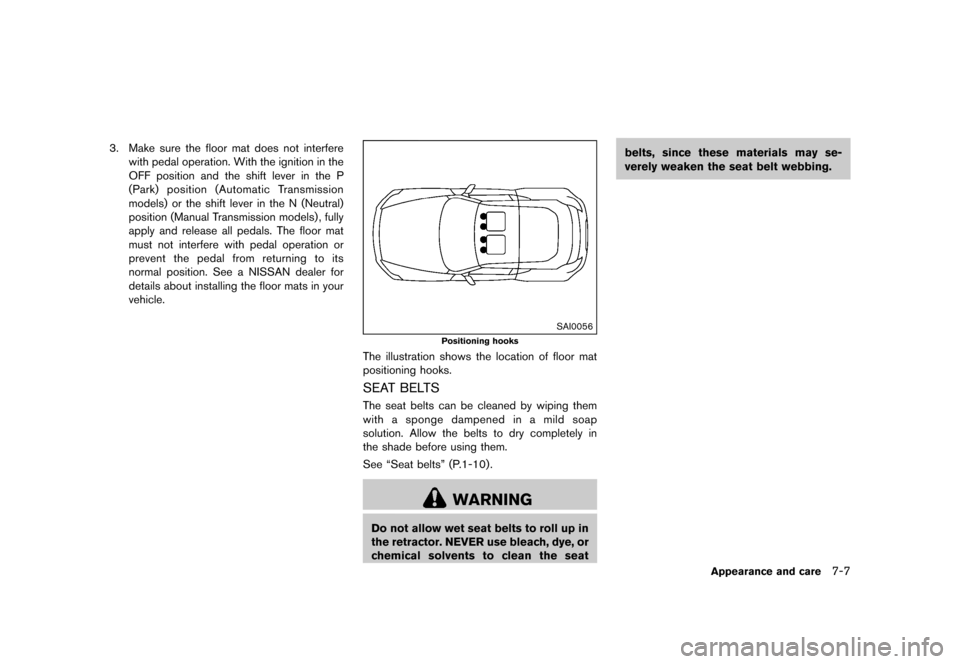

3. Make sure the floor mat does not interferewith pedal operation. With the ignition in the
OFF position and the shift lever in the P
(Park) position (Automatic Transmission
models) or the shift lever in the N (Neutral)
position (Manual Transmission models) , fully
apply and release all pedals. The floor mat
must not interfere with pedal operation or
prevent the pedal from returning to its
normal position. See a NISSAN dealer for
details about installing the floor mats in your
vehicle.
SAI0056
Positioning hooks
The illustration shows the location of floor mat
positioning hooks.
SEAT BELTSGUID-0FE41C50-56C9-4ACA-8C7E-0D791E98F8DCThe seat belts can be cleaned by wiping them
with a sponge dampened in a mild soap
solution. Allow the belts to dry completely in
the shade before using them.
See ªSeat beltsº (P.1-10).
WARNING
Do not allow wet seat belts to roll up in
the retractor. NEVER use bleach, dye, or
chemical solvents to clean the seat belts, since these materials may se-
verely weaken the seat belt webbing.
Appearance and care7-7
& R Q G L W L R Q
Page 352 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @
7-8Appearance and care

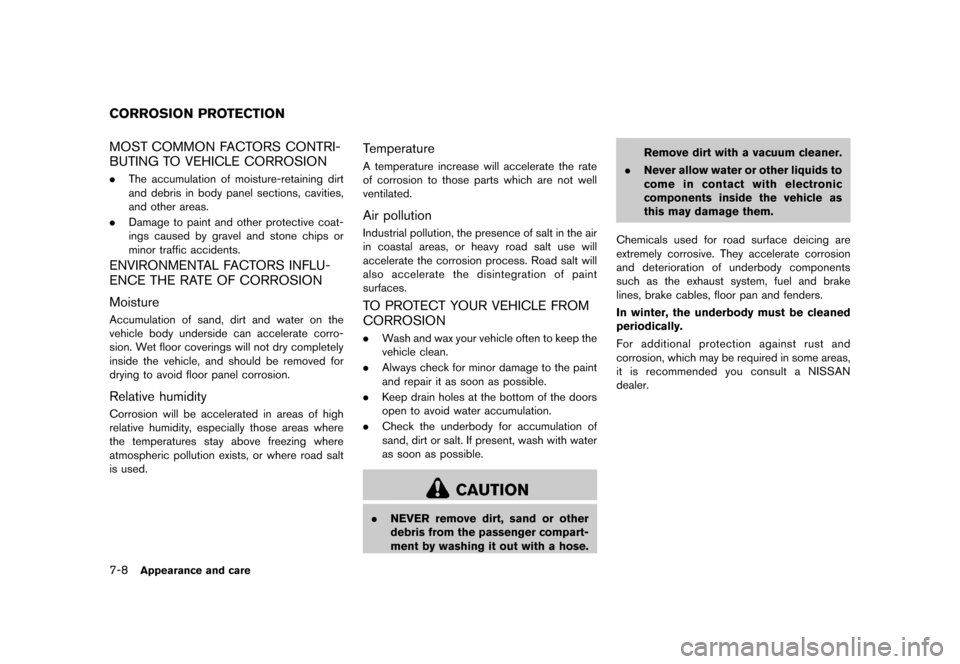

GUID-1AFA0C78-C890-4982-BB7E-89520EC077B5MOST COMMON FACTORS CONTRI-
BUTING TO VEHICLE CORROSION
GUID-67C57974-E9DE-4FEB-AF3F-D9F1EDEAA3CD.The accumulation of moisture-retaining dirt
and debris in body panel sections, cavities,
and other areas.
. Damage to paint and other protective coat-
ings caused by gravel and stone chips or
minor traffic accidents.
ENVIRONMENTAL FACTORS INFLU-
ENCE THE RATE OF CORROSION
GUID-FC2435B8-508C-4BF8-8483-9D8BC37032C5
MoistureGUID-C449A4DA-87A1-45EC-B0DD-BE070AA201ECAccumulation of sand, dirt and water on the
vehicle body underside can accelerate corro-
sion. Wet floor coverings will not dry completely
inside the vehicle, and should be removed for
drying to avoid floor panel corrosion.
Relative humidityGUID-6EE073CB-8348-4E26-B659-B0D23F72E520Corrosion will be accelerated in areas of high
relative humidity, especially those areas where
the temperatures stay above freezing where
atmospheric pollution exists, or where road salt
is used.
TemperatureGUID-66337590-A714-4CDB-B8D7-109CB6494DEEA temperature increase will accelerate the rate
of corrosion to those parts which are not well
ventilated.
Air pollutionGUID-AE672010-5203-4B08-8AA6-02DC301DD452Industrial pollution, the presence of salt in the air
in coastal areas, or heavy road salt use will
accelerate the corrosion process. Road salt will
also accelerate the disintegration of paint
surfaces.
TO PROTECT YOUR VEHICLE FROM
CORROSION
GUID-82466474-2854-4204-AD97-9816A1F122FC.Wash and wax your vehicle often to keep the
vehicle clean.
. Always check for minor damage to the paint
and repair it as soon as possible.
. Keep drain holes at the bottom of the doors
open to avoid water accumulation.
. Check the underbody for accumulation of
sand, dirt or salt. If present, wash with water
as soon as possible.
CAUTION
.NEVER remove dirt, sand or other
debris from the passenger compart-
ment by washing it out with a hose. Remove dirt with a vacuum cleaner.
. Never allow water or other liquids to
come in contact with electronic
components inside the vehicle as
this may damage them.
Chemicals used for road surface deicing are
extremely corrosive. They accelerate corrosion
and deterioration of underbody components
such as the exhaust system, fuel and brake
lines, brake cables, floor pan and fenders.
In winter, the underbody must be cleaned
periodically.
For additional protection against rust and
corrosion, which may be required in some areas,
it is recommended you consult a NISSAN
dealer.
CORROSION PROTECTION
& R Q G L W L R Q
Page 353 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @

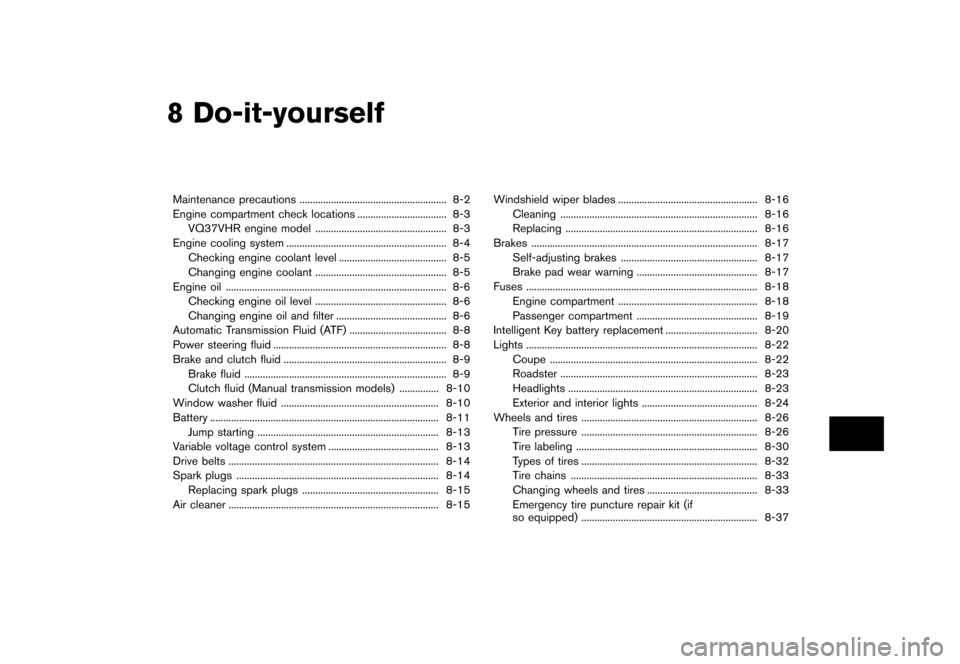

8 Do-it-yourself
Maintenance precautions...
........................................................ 8-2
Engine compartment check locations ...
.................................. 8-3
VQ37VHR engine model ...
.................................................. 8-3
Engine cooling system ...
............................................................. 8-4

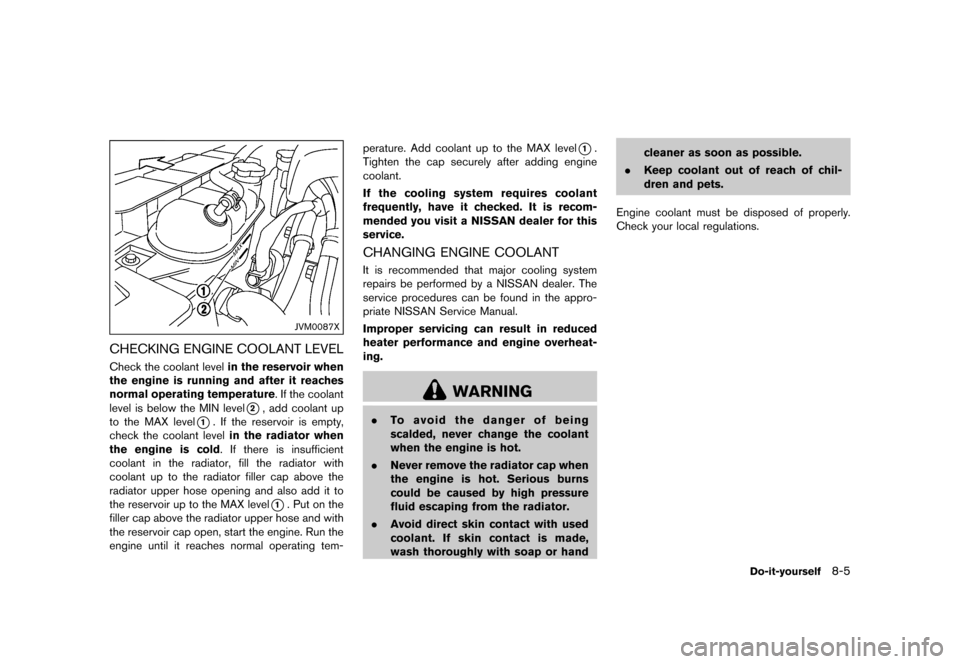

Checking engine coolant level ...
......................................... 8-5
Changing engine coolant ...
.................................................. 8-5
Engine oil ...
........................................................................\
............ 8-6

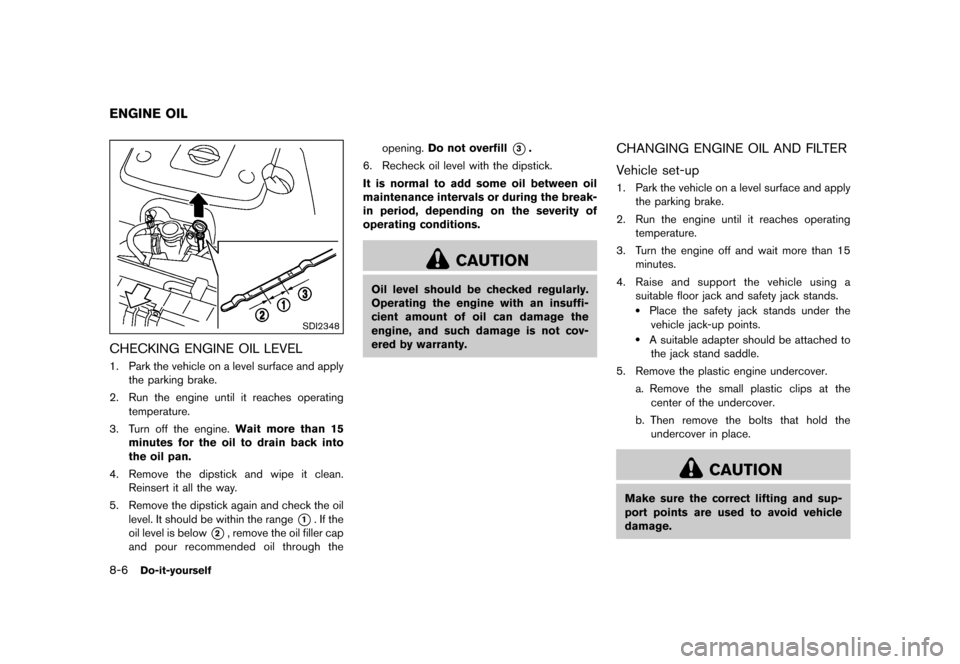

Checking engine oil level ...
.................................................. 8-6

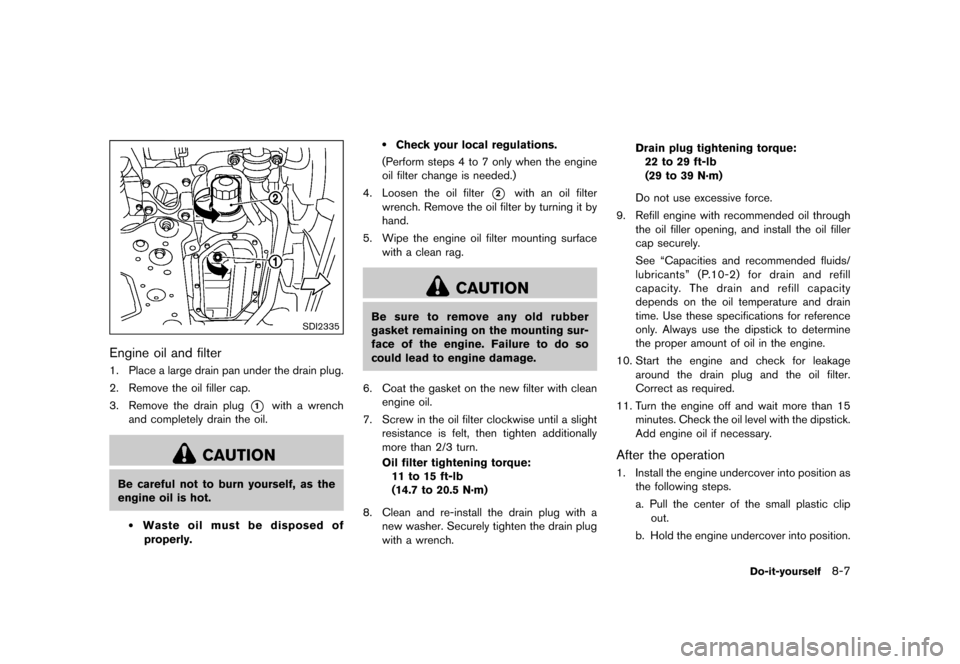

Changing engine oil and filter ...
.......................................... 8-6

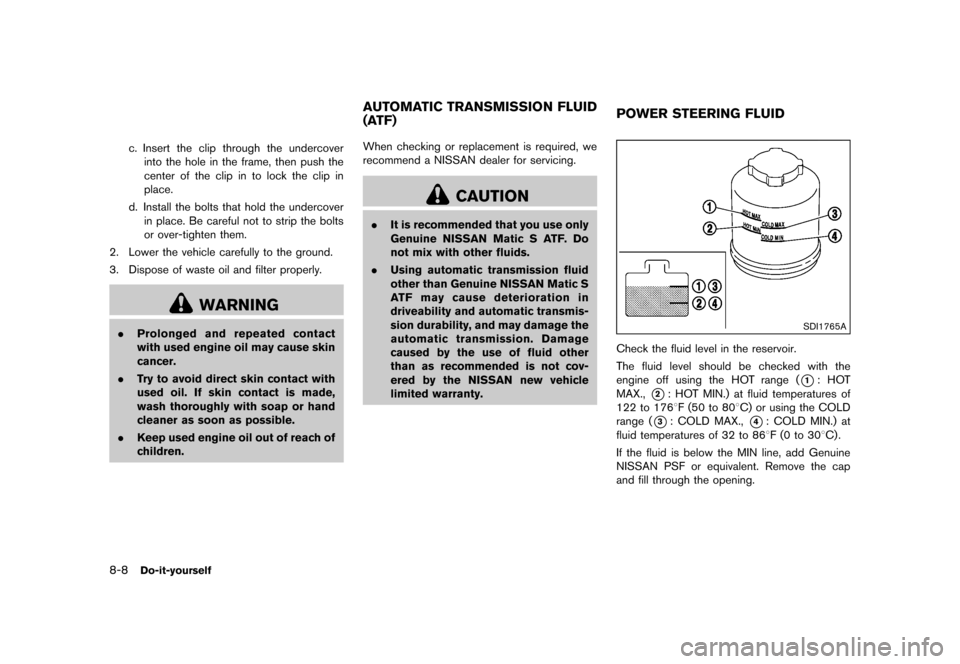

Automatic Transmission Fluid (ATF) ...
..................................... 8-8
Power steering fluid ...
.................................................................. 8-8
Brake and clutch fluid ...
.............................................................. 8-9
Brake fluid ...
........................................................................\
..... 8-9
Clutch fluid (Manual transmission models) ...
............... 8-10
Window washer fluid ...
............................................................ 8-10
Battery ...
........................................................................\
............... 8-11
Jump starting ...
..................................................................... 8-13
Variable voltage control system ...
.......................................... 8-13
Drive belts ...
........................................................................\
........ 8-14
Spark plugs ...
........................................................................\
..... 8-14
Replacing spark plugs ...
.................................................... 8-15
Air cleaner ...
........................................................................\
........ 8-15 Windshield wiper blades
...
..................................................... 8-16
Cleaning ...
........................................................................\
... 8-16
Replacing ...
........................................................................\
. 8-16
Brakes ...
........................................................................\
.............. 8-17
Self-adjusting brakes ...
.................................................... 8-17
Brake pad wear warning ...
.............................................. 8-17
Fuses ...
........................................................................\
................ 8-18
Engine compartment ...
..................................................... 8-18
Passenger compartment ...
.............................................. 8-19
Intelligent Key battery replacement ...
................................... 8-20
Lights ...
........................................................................\
................ 8-22
Coupe ...
........................................................................\
....... 8-22
Roadster ...
........................................................................\
... 8-23
Headlights ...
........................................................................\
8-23
Exterior and interior lights ...
............................................ 8-24
Wheels and tires ...
................................................................... 8-26
Tire pressure ...
................................................................... 8-26
Tire labeling ...
..................................................................... 8-30
Types of tires ...
................................................................... 8-32
Tire chains ...
....................................................................... 8-33
Changing wheels and tires ...
.......................................... 8-33
Emergency tire puncture repair kit (if
so equipped) ...
................................................................... 8-37
& R Q G L W L R Q
Page 354 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @

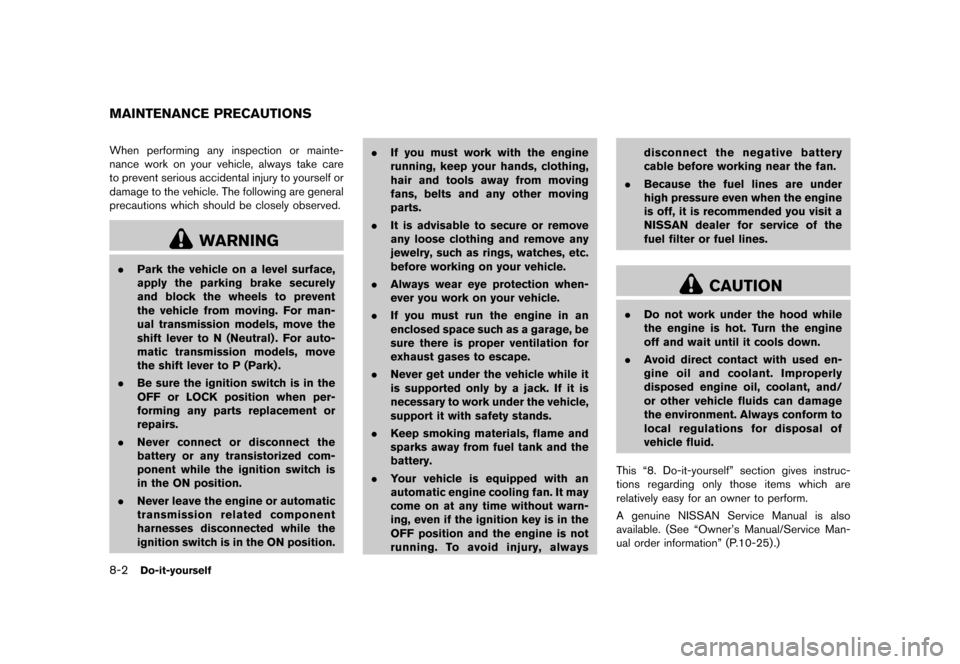

8-2Do-it-yourself
GUID-AC78F4C5-074B-4FD0-8070-61F7D0EF17ACWhen performing any inspection or mainte-
nance work on your vehicle, always take care
to prevent serious accidental injury to yourself or
damage to the vehicle. The following are general
precautions which should be closely observed.
WARNING
.Park the vehicle on a level surface,
apply the parking brake securely
and block the wheels to prevent
the vehicle from moving. For man-
ual transmission models, move the
shift lever to N (Neutral) . For auto-
matic transmission models, move
the shift lever to P (Park) .
. Be sure the ignition switch is in the
OFF or LOCK position when per-
forming any parts replacement or
repairs.
. Never connect or disconnect the
battery or any transistorized com-
ponent while the ignition switch is
in the ON position.
. Never leave the engine or automatic
transmission related component
harnesses disconnected while the
ignition switch is in the ON position. .
If you must work with the engine
running, keep your hands, clothing,
hair and tools away from moving
fans, belts and any other moving
parts.
. It is advisable to secure or remove
any loose clothing and remove any
jewelry, such as rings, watches, etc.
before working on your vehicle.
. Always wear eye protection when-
ever you work on your vehicle.
. If you must run the engine in an
enclosed space such as a garage, be
sure there is proper ventilation for
exhaust gases to escape.
. Never get under the vehicle while it
is supported only by a jack. If it is
necessary to work under the vehicle,
support it with safety stands.
. Keep smoking materials, flame and
sparks away from fuel tank and the
battery.
. Your vehicle is equipped with an
automatic engine cooling fan. It may
come on at any time without warn-
ing, even if the ignition key is in the
OFF position and the engine is not
running. To avoid injury, always disconnect the negative battery
cable before working near the fan.
. Because the fuel lines are under
high pressure even when the engine
is off, it is recommended you visit a
NISSAN dealer for service of the
fuel filter or fuel lines.
CAUTION
.Do not work under the hood while
the engine is hot. Turn the engine
off and wait until it cools down.
. Avoid direct contact with used en-
gine oil and coolant. Improperly
disposed engine oil, coolant, and/
or other vehicle fluids can damage
the environment. Always conform to
local regulations for disposal of
vehicle fluid.
This ª8. Do-it-yourselfº section gives instruc-
tions regarding only those items which are
relatively easy for an owner to perform.
A genuine NISSAN Service Manual is also
available. (See ªOwner's Manual/Service Man-
ual order informationº (P.10-25).)
MAINTENANCE PRECAUTIONS
& R Q G L W L R Q
Page 355 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @
You should be aware that incomplete or
improper servicing may result in operating
difficulties or excessive emissions, and could
affect your warranty coverage.If in doubt
about any servicing, it is recommended
you have it done by a NISSAN dealer.
GUID-7EA2D50B-7A0C-4012-9C54-7BD3CF10A3D8
JVC0785X

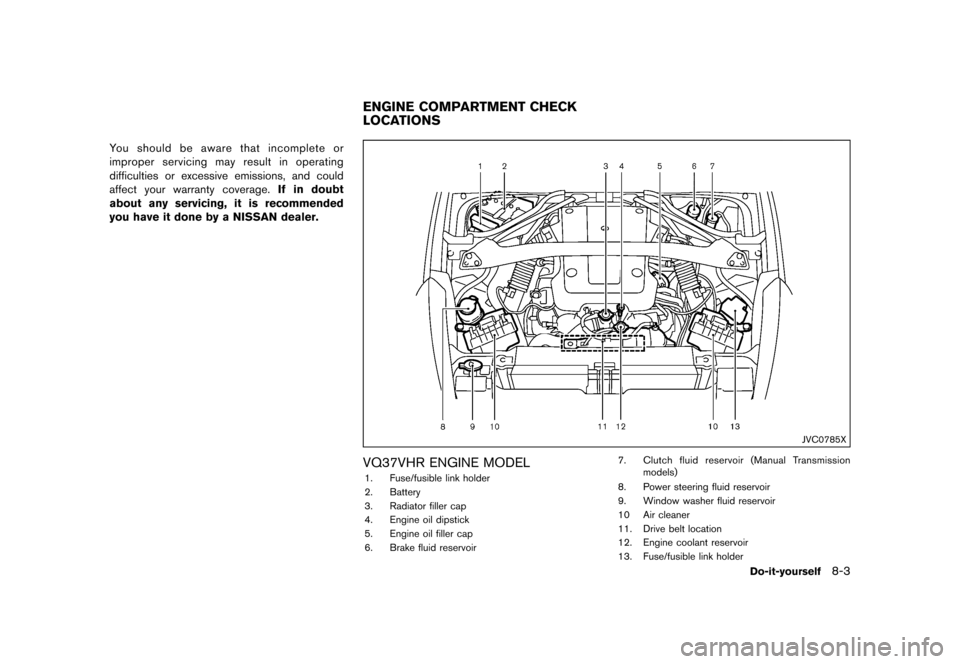

VQ37VHR ENGINE MODELGUID-E1841C16-4100-4792-B654-1F167FCA4F2B1. Fuse/fusible link holder
2. Battery
3. Radiator filler cap
4. Engine oil dipstick
5. Engine oil filler cap
6. Brake fluid reservoir 7.
Clutch fluid reservoir (Manual Transmission
models)
8. Power steering fluid reservoir
9. Window washer fluid reservoir
10 Air cleaner
11. Drive belt location
12. Engine coolant reservoir
13. Fuse/fusible link holder
Do-it-yourself8-3
ENGINE COMPARTMENT CHECK
LOCATIONS
& R Q G L W L R Q
Page 356 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @
8-4Do-it-yourself
GUID-7C2A5D55-3270-45C4-9FE4-8875ED1488BFThe engine cooling system is filled at the factory
with a pre-diluted mixture of 50% Genuine
NISSAN Long Life Antifreeze/Coolant (blue) and
50% water to provide year-round anti-freeze
and coolant protection. The antifreeze solution
contains rust and corrosion inhibitors. Additional
engine cooling system additives are not neces-
sary.
WARNING
.Never remove the radiator or cool-
ant reservoir cap when the engine is
hot. Wait until the engine and
radiator cool down. Serious burns
could be caused by high pressure
fluid escaping from the radiator.
See precautions in ªIf your vehicle
overheatsº (P.6-17) of this manual.
. The radiator is equipped with a
pressure type radiator cap. To pre-
vent engine damage, use only a
genuine NISSAN radiator cap.
CAUTION
.Never use any cooling system ad-
ditives such as radiator sealer. Ad-
ditives may clog the cooling system
and cause damage to the engine,
transmission and/or cooling sys-
tem.
. When adding or replacing coolant,
be sure to use only Genuine
NISSAN Long Life Antifreeze/Cool-
ant (blue) or equivalent. Genuine
NISSAN Long Life Antifreeze/Cool-
ant (blue) is pre-diluted to provide
antifreeze protection to
Page 357 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @
JVM0087X
CHECKING ENGINE COOLANT LEVELGUID-8D88E26B-6554-4240-9753-2F3C8FB26D07Check the coolant levelin the reservoir when
the engine is running and after it reaches
normal operating temperature. If the coolant
level is below the MIN level
*2, add coolant up
to the MAX level
*1. If the reservoir is empty,
check the coolant level in the radiator when
the engine is cold. If there is insufficient
coolant in the radiator, fill the radiator with
coolant up to the radiator filler cap above the
radiator upper hose opening and also add it to
the reservoir up to the MAX level
*1. Put on the
filler cap above the radiator upper hose and with
the reservoir cap open, start the engine. Run the
engine until it reaches normal operating tem- perature. Add coolant up to the MAX level
*1.
Tighten the cap securely after adding engine
coolant.
If the cooling system requires coolant
frequently, have it checked. It is recom-
mended you visit a NISSAN dealer for this
service.
CHANGING ENGINE COOLANTGUID-7F6F3245-7935-4F2B-B499-406A6E070196It is recommended that major cooling system
repairs be performed by a NISSAN dealer. The
service procedures can be found in the appro-
priate NISSAN Service Manual.
Improper servicing can result in reduced
heater performance and engine overheat-
ing.
WARNING
. To avoid the danger of being
scalded, never change the coolant
when the engine is hot.
. Never remove the radiator cap when
the engine is hot. Serious burns
could be caused by high pressure
fluid escaping from the radiator.
. Avoid direct skin contact with used
coolant. If skin contact is made,
wash thoroughly with soap or hand cleaner as soon as possible.
. Keep coolant out of reach of chil-
dren and pets.
Engine coolant must be disposed of properly.
Check your local regulations.
Do-it-yourself8-5
& R Q G L W L R Q
Page 358 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @
8-6Do-it-yourself
GUID-DBF82AD0-64FF-486B-8520-99D09AEB7790
SDI2348
CHECKING ENGINE OIL LEVELGUID-3307BC60-A419-45F0-BF46-B15DF6448E8A1. Park the vehicle on a level surface and applythe parking brake.
2. Run the engine until it reaches operating temperature.
3. Turn off the engine. Wait more than 15
minutes for the oil to drain back into
the oil pan.
4. Remove the dipstick and wipe it clean.
Reinsert it all the way.
5. Remove the dipstick again and check the oil level. It should be within the range
*1. If the
oil level is below
*2, remove the oil filler cap
and pour recommended oil through the opening.
Do not overfill
*3.
6. Recheck oil level with the dipstick.
It is normal to add some oil between oil
maintenance intervals or during the break-
in period, depending on the severity of
operating conditions.
CAUTION
Oil level should be checked regularly.
Operating the engine with an insuffi-
cient amount of oil can damage the
engine, and such damage is not cov-
ered by warranty.
CHANGING ENGINE OIL AND FILTERGUID-12EAAC67-EBF6-427A-BB68-EEE3F292CBF0
Vehicle set-upGUID-EC83CAC7-030D-423B-A443-3B82D26BEA3A1. Park the vehicle on a level surface and apply the parking brake.
2. Run the engine until it reaches operating temperature.
3. Turn the engine off and wait more than 15 minutes.
4. Raise and support the vehicle using a
suitable floor jack and safety jack stands.
.Place the safety jack stands under the
vehicle jack-up points.
.A suitable adapter should be attached tothe jack stand saddle.
5. Remove the plastic engine undercover. a. Remove the small plastic clips at thecenter of the undercover.
b. Then remove the bolts that hold the undercover in place.
CAUTION
Make sure the correct lifting and sup-
port points are used to avoid vehicle
damage.
ENGINE OIL
& R Q G L W L R Q
Page 359 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @
SDI2335
Engine oil and filterGUID-39A1DAC9-917D-40F6-9016-EB7D4F1C88861. Place a large drain pan under the drain plug.
2. Remove the oil filler cap.
3. Remove the drain plug
*1with a wrench
and completely drain the oil.
CAUTION
Be careful not to burn yourself, as the
engine oil is hot.
.Waste oil must be disposed of properly.
.Check your local regulations.
(Perform steps 4 to 7 only when the engine
oil filter change is needed.)
4. Loosen the oil filter
*2with an oil filter
wrench. Remove the oil filter by turning it by
hand.
5. Wipe the engine oil filter mounting surface with a clean rag.
CAUTION
Be sure to remove any old rubber
gasket remaining on the mounting sur-
face of the engine. Failure to do so
could lead to engine damage.
6. Coat the gasket on the new filter with clean engine oil.
7. Screw in the oil filter clockwise until a slight resistance is felt, then tighten additionally
more than 2/3 turn.
Oil filter tightening torque:11 to 15 ft-lb
(14.7 to 20.5 N´m)
8. Clean and re-install the drain plug with a new washer. Securely tighten the drain plug
with a wrench. Drain plug tightening torque:
22 to 29 ft-lb
(29 to 39 N´m)
Do not use excessive force.
9. Refill engine with recommended oil through the oil filler opening, and install the oil filler
cap securely.
See ªCapacities and recommended fluids/
lubricantsº (P.10-2) for drain and refill
capacity. The drain and refill capacity
depends on the oil temperature and drain
time. Use these specifications for reference
only. Always use the dipstick to determine
the proper amount of oil in the engine.
10. Start the engine and check for leakage around the drain plug and the oil filter.
Correct as required.
11. Turn the engine off and wait more than 15 minutes. Check the oil level with the dipstick.
Add engine oil if necessary.
After the operationGUID-3A3566B2-A3CE-4A09-8FC9-36E90C21FBBB1. Install the engine undercover into position asthe following steps.
a. Pull the center of the small plastic clipout.
b. Hold the engine undercover into position.
Do-it-yourself8-7
& R Q G L W L R Q
Page 360 of 443
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 = = 2 0 ( = 8 @
8-8Do-it-yourself
c. Insert the clip through the undercoverinto the hole in the frame, then push the
center of the clip in to lock the clip in
place.
d. Install the bolts that hold the undercover in place. Be careful not to strip the bolts
or over-tighten them.
2. Lower the vehicle carefully to the ground.
3. Dispose of waste oil and filter properly.
WARNING
. Prolonged and repeated contact
with used engine oil may cause skin
cancer.
. Try to avoid direct skin contact with
used oil. If skin contact is made,
wash thoroughly with soap or hand
cleaner as soon as possible.
. Keep used engine oil out of reach of
children.
GUID-D1D37907-83E3-4CC7-B62C-CF4B03454DD4When checking or replacement is required, we
recommend a NISSAN dealer for servicing.
CAUTION
.It is recommended that you use only
Genuine NISSAN Matic S ATF. Do
not mix with other fluids.
. Using automatic transmission fluid
other than Genuine NISSAN Matic S
ATF may cause deterioration in
driveability and automatic transmis-
sion durability, and may damage the
automatic transmission. Damage
caused by the use of fluid other
than as recommended is not cov-
ered by the NISSAN new vehicle
limited warranty.
GUID-0C98D963-EE83-4B4D-8093-048A177C9B8A
SDI1765A
Check the fluid level in the reservoir.
The fluid level should be checked with the
engine off using the HOT range (
*1: HOT
MAX.,
*2: HOT MIN.) at fluid temperatures of
122 to 1768F (50 to 808C) or using the COLD
range (
*3: COLD MAX.,*4: COLD MIN.) at
fluid temperatures of 32 to 868F (0 to 308C) .
If the fluid is below the MIN line, add Genuine
NISSAN PSF or equivalent. Remove the cap
and fill through the opening.
AUTOMATIC TRANSMISSION FLUID
(ATF) POWER STEERING FLUID
& R Q G L W L R Q
