Page 4 of 28
2
OPENING THE SOFT TOP (Roadster models)
It is important to make sure the Nissan
Intelligent Key® is with you (that is, in your
pocket or purse).
The soft top can be opened from outside
the vehicle using the door handle request
switch
1 as follows:
• The ignition switch must be in the OFF position.
•
Push and hold the door hand le request switch 1 until the sof t top is
fully opened.
For more information, refer to the “Pre-driving checks and adjustments (section 3)” of your
Owner’s Manual.
1
NEW SYSTEM FEATURES
REARVIEW MONITOR (if so equipped)
When the shif t lever is shif ted into the
R (REVERSE) position, the monitor display
shows a rearward view from the vehicle.
The colored guide lines on the display screen
indicate vehicle width and approximate
distances to objects with reference to the
vehicle body line.
• Red 1.5 f t (0.5 m); Yellow 3 f t (1 m); Green 7 f t (2 m) and 10 f t (3 m).
For more information, refer to the “Center display, heater, air conditioner, audio, phone and voice
recognition systems (section 4)” of your Owner’s Manual.
USB (Universal Serial Bus) CONNECTION PORT/
AUX JACK AND iPOD® INTERFACE
The USB por t/AUX jack is located in the center console under the armrest.
When a compatible USB port device, iPod® or auxiliary device is plugged into the
USB port/AUX jack, compatible audio and video files stored on the device can be
played through the vehicle’s audio system and front display.
For more information, refer to the “Center display, heater, air conditioner, audio, phone and voice
recognition systems (section 4)” of your Owner’s Manual.
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

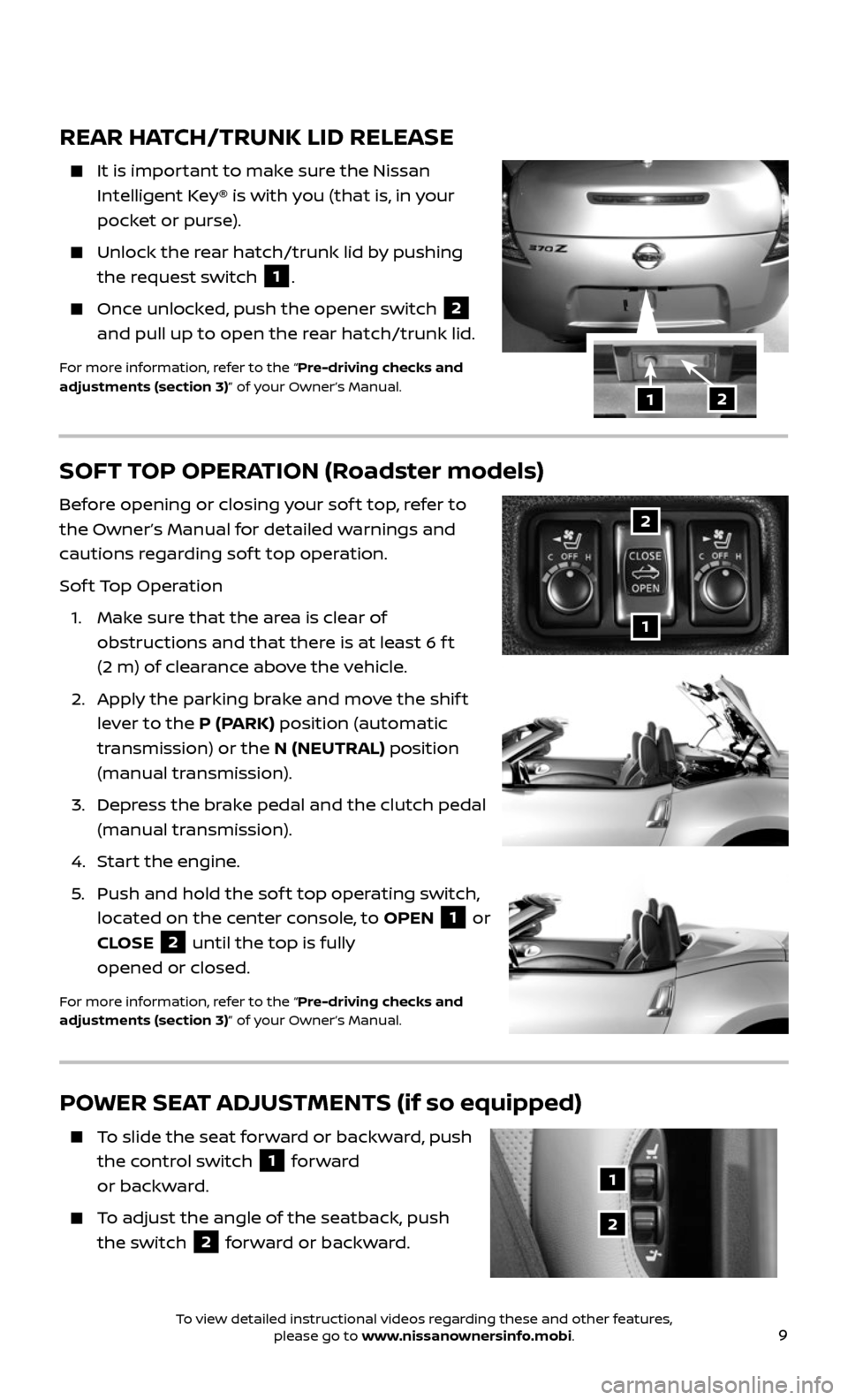

Page 11 of 28
9
REAR HATCH/TRUNK LID RELEASE
It is important to make sure the Nissan
Intelligent Key® is with you (that is, in your
pocket or purse).
Unlock the r ear hatch/trunk lid by pushing
the request switch 1.
Once unlocked, push the opener switch 2
and pull up to open the rear hatch/trunk lid.
For more information, refer to the “Pre-driving checks and
adjustments (section 3)” of your Owner’s Manual.
12
SOFT TOP OPERATION (Roadster models)
Before opening or closing your sof t top, refer to
the Owner’s Manual for detailed warnings and
cautions regarding sof t top operation.
Sof t Top Operation
1. Make sure that the area is clear of
obstructions and that there is at least 6 f t
(2 m) of clearance above the vehicle.
2. Apply the parking brake and move the shif t
lever to the P (PARK) position (automatic
transmission) or the N (NEUTRAL) position
(manual transmission).
3. Depress the brake pedal and the clutch pedal
(manual transmission).
4. Start the engine.
5. Push and hold the sof t top operating switch,
located on the center console, to OPEN 1 or
CLOSE
2 until the top is fully
opened or closed.
For more information, refer to the “Pre-driving checks and
adjustments (section 3)” of your Owner’s Manual.
1
2
POWER SEAT ADJUSTMENTS (if so equipped)
To slide the seat forward or backward, push
the control switch 1 forward
or backward.
To adjust the angle of the seatback, push
the switch 2 forward or backward.
1
2
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
