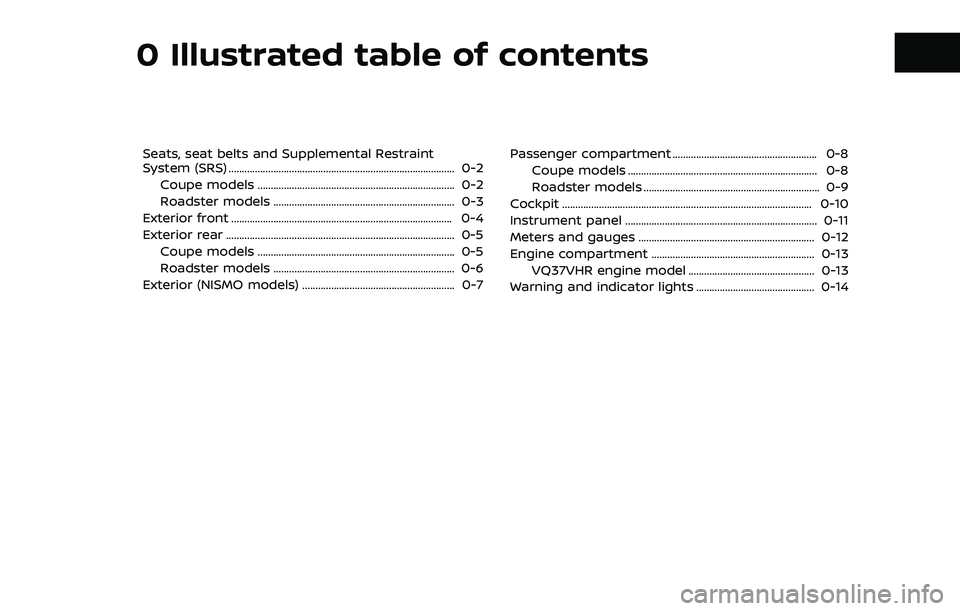

0 Illustrated table of contents
Seats, seat belts and Supplemental Restraint
System (SRS) ........................................................................\
.............. 0-2Coupe models ........................................................................\
... 0-2
Roadster models ..................................................................... 0-3
Exterior front ........................................................................\
............ 0-4
Exterior rear ........................................................................\
............... 0-5
Coupe models ........................................................................\
... 0-5
Roadster models ..................................................................... 0-6
Exterior (NISMO models) .......................................................... 0-7 Passenger compartment ....................................................... 0-8
Coupe models ........................................................................\
0-8
Roadster models ................................................................... 0-9
Cockpit ........................................................................\
....................... 0-10
Instrument panel ........................................................................\
. 0-11
Meters and gauges ................................................................... 0-12
Engine compartment .............................................................. 0-13 VQ37VHR engine model ................................................ 0-13
Warning and indicator lights ............................................. 0-14
Page 12 of 453
0-2Illustrated table of contents
SSI0648

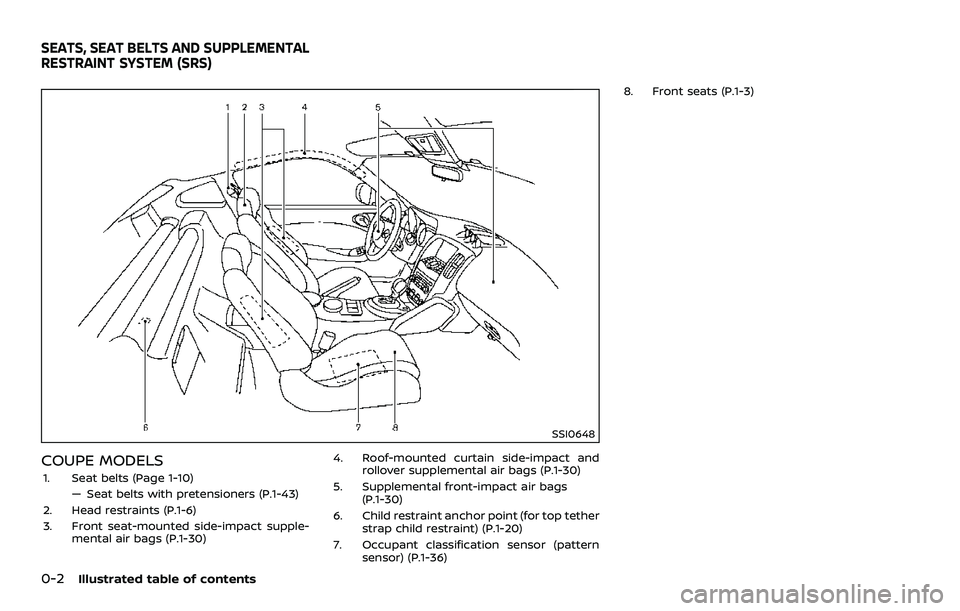

COUPE MODELS
1. Seat belts (Page 1-10)— Seat belts with pretensioners (P.1-43)
2. Head restraints (P.1-6)
3. Front seat-mounted side-impact supple- mental air bags (P.1-30) 4. Roof-mounted curtain side-impact and
rollover supplemental air bags (P.1-30)
5. Supplemental front-impact air bags (P.1-30)
6. Child restraint anchor point (for top tether strap child restraint) (P.1-20)
7. Occupant classification sensor (pattern sensor) (P.1-36) 8. Front seats (P.1-3)
SEATS, SEAT BELTS AND SUPPLEMENTAL
RESTRAINT SYSTEM (SRS)
Page 13 of 453
SSI0649

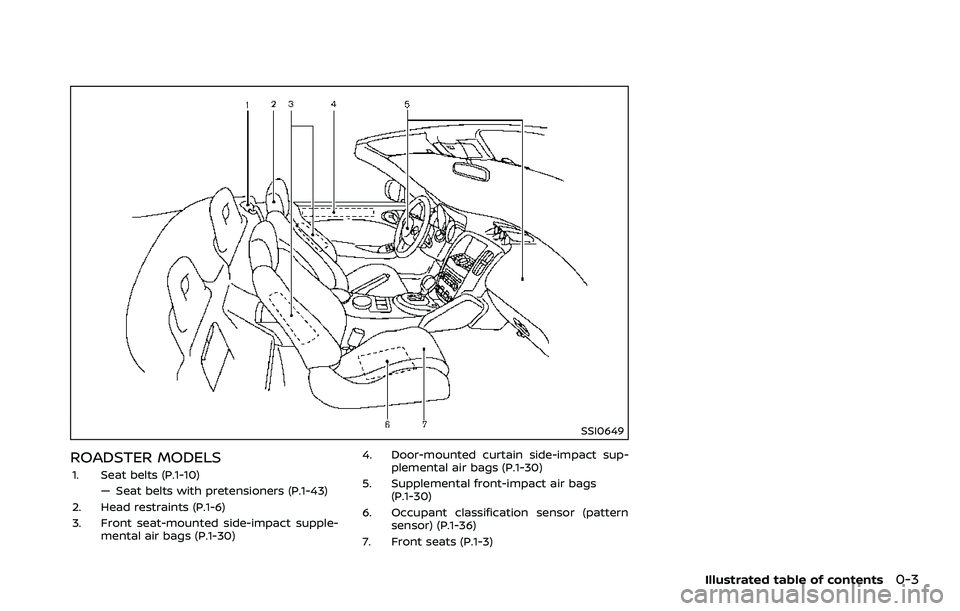

ROADSTER MODELS
1. Seat belts (P.1-10)— Seat belts with pretensioners (P.1-43)
2. Head restraints (P.1-6)
3. Front seat-mounted side-impact supple- mental air bags (P.1-30) 4. Door-mounted curtain side-impact sup-
plemental air bags (P.1-30)
5. Supplemental front-impact air bags (P.1-30)
6. Occupant classification sensor (pattern sensor) (P.1-36)
7. Front seats (P.1-3)
Illustrated table of contents0-3
Page 14 of 453
0-4Illustrated table of contents
JVC0933X
1. Hood (P.3-17)
2. Headlight and turn signal— Operation (P.2-34)
— Bulb replacement (P.8-22)
3. Windshield wiper and washer — Operation (P.2-32)
— Maintenance (P.8-16) 4. Power windows (P.2-46)
5. Outside mirrors (P.3-40)
6. License plate installation (P.10-15)
7. Daytime running light
— Operation (P.2-34)
— Bulb replacement (P.8-22) 8. Tires
— Wheels and tires (P.8-26, P.10-10)
— Flat tire (P.6-3)
— Tire Pressure Monitoring System
(TPMS) (P.2-13, P.5-3)
9. Side turn signal light (if so equipped) — Operation (P.2-34)
— Bulb replacement (P.8-22)
10. Doors — Keys (P.3-3)
— Door locks (P.3-5)
— Intelligent Key system (P.3-7)
— Remote keyless entry system (P.3-14)
EXTERIOR FRONT
Page 15 of 453
SSI0811

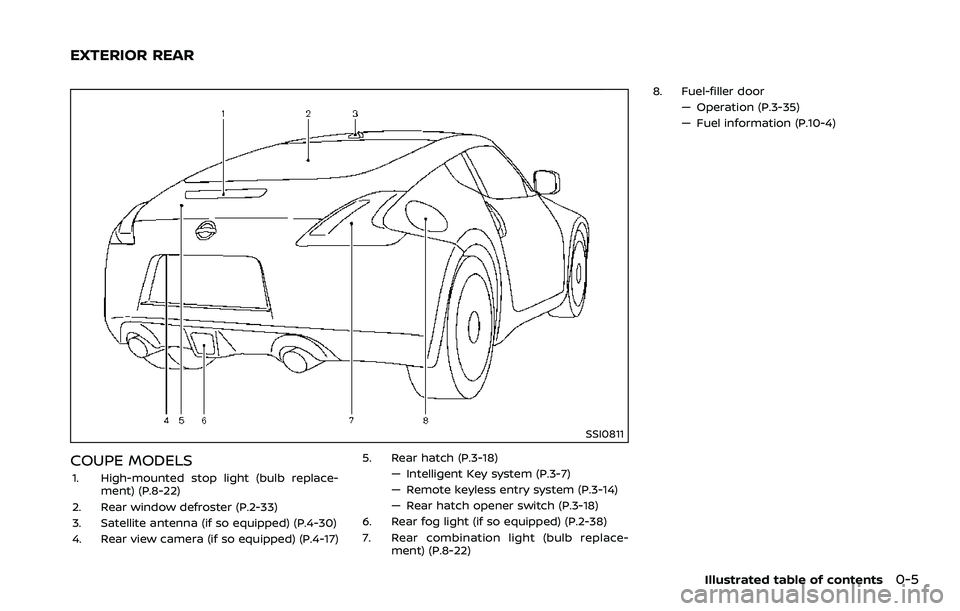

COUPE MODELS
1. High-mounted stop light (bulb replace-ment) (P.8-22)
2. Rear window defroster (P.2-33)
3. Satellite antenna (if so equipped) (P.4-30)
4. Rear view camera (if so equipped) (P.4-17) 5. Rear hatch (P.3-18)
— Intelligent Key system (P.3-7)
— Remote keyless entry system (P.3-14)
— Rear hatch opener switch (P.3-18)
6. Rear fog light (if so equipped) (P.2-38)
7. Rear combination light (bulb replace- ment) (P.8-22) 8. Fuel-filler door
— Operation (P.3-35)
— Fuel information (P.10-4)
Illustrated table of contents0-5
EXTERIOR REAR
Page 16 of 453
0-6Illustrated table of contents
SSI0812

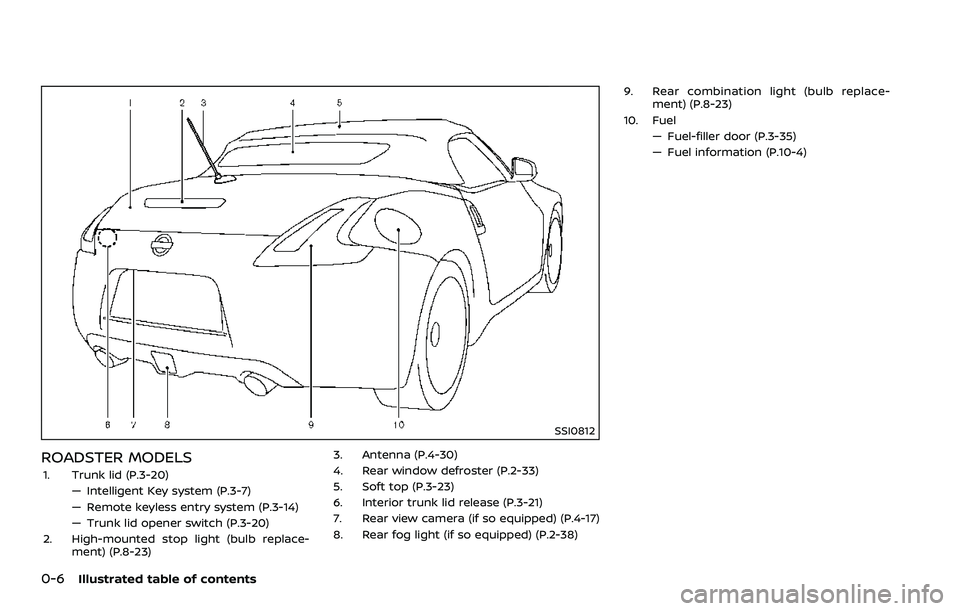

ROADSTER MODELS
1. Trunk lid (P.3-20)— Intelligent Key system (P.3-7)
— Remote keyless entry system (P.3-14)
— Trunk lid opener switch (P.3-20)
2. High-mounted stop light (bulb replace- ment) (P.8-23) 3. Antenna (P.4-30)
4. Rear window defroster (P.2-33)
5. Soft top (P.3-23)
6. Interior trunk lid release (P.3-21)
7. Rear view camera (if so equipped) (P.4-17)
8. Rear fog light (if so equipped) (P.2-38) 9. Rear combination light (bulb replace-
ment) (P.8-23)
10. Fuel — Fuel-filler door (P.3-35)
— Fuel information (P.10-4)
Page 17 of 453
JVC0674X
For NISMO models, the vehicle parts listed
below require special care or caution for
treating. Refer to the additional informa-
tion in each section.
1. Performance dampers (P.5-32)
2. Front bumper with an aerodynamic split-ter (P.3-34, P.6-22)
3. Daytime running light (P.2-34, P.8-22)
4. Side sill extensions (P.3-34)
5. Rear spoiler (P.3-19, P.7-3)
6. Exhaust pipes (P.3-34, P.6-22)
7. Rear bumper with an aerodynamic diffu- ser (P.3-34, P.6-22)
Illustrated table of contents0-7
EXTERIOR (NISMO models)
Page 18 of 453
0-8Illustrated table of contents
SSI0650

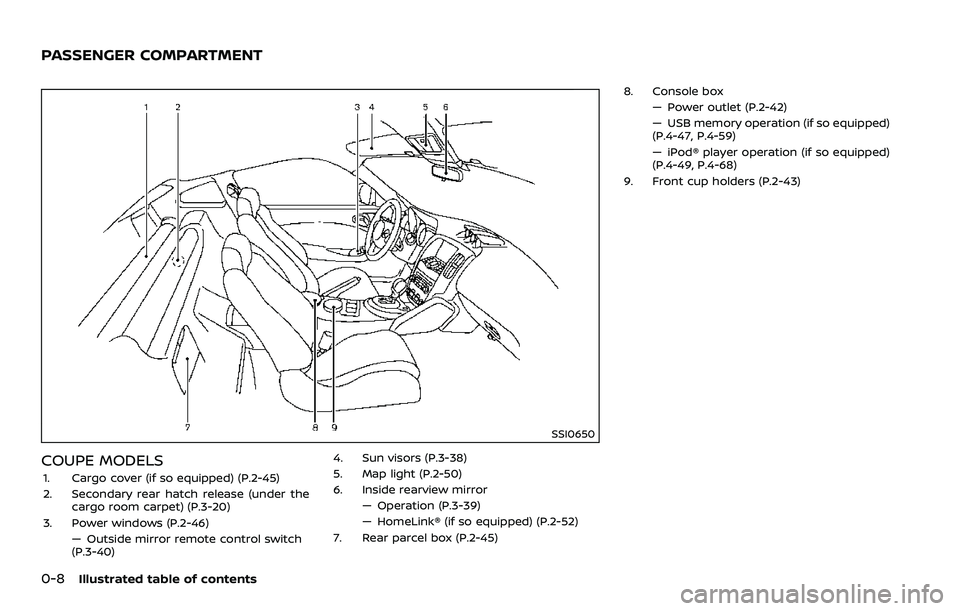

COUPE MODELS
1. Cargo cover (if so equipped) (P.2-45)
2. Secondary rear hatch release (under thecargo room carpet) (P.3-20)
3. Power windows (P.2-46) — Outside mirror remote control switch
(P.3-40) 4. Sun visors (P.3-38)
5. Map light (P.2-50)
6. Inside rearview mirror
— Operation (P.3-39)
— HomeLink® (if so equipped) (P.2-52)
7. Rear parcel box (P.2-45) 8. Console box
— Power outlet (P.2-42)
— USB memory operation (if so equipped)
(P.4-47, P.4-59)
— iPod® player operation (if so equipped)
(P.4-49, P.4-68)
9. Front cup holders (P.2-43)
PASSENGER COMPARTMENT
Page 19 of 453
JVC0679X

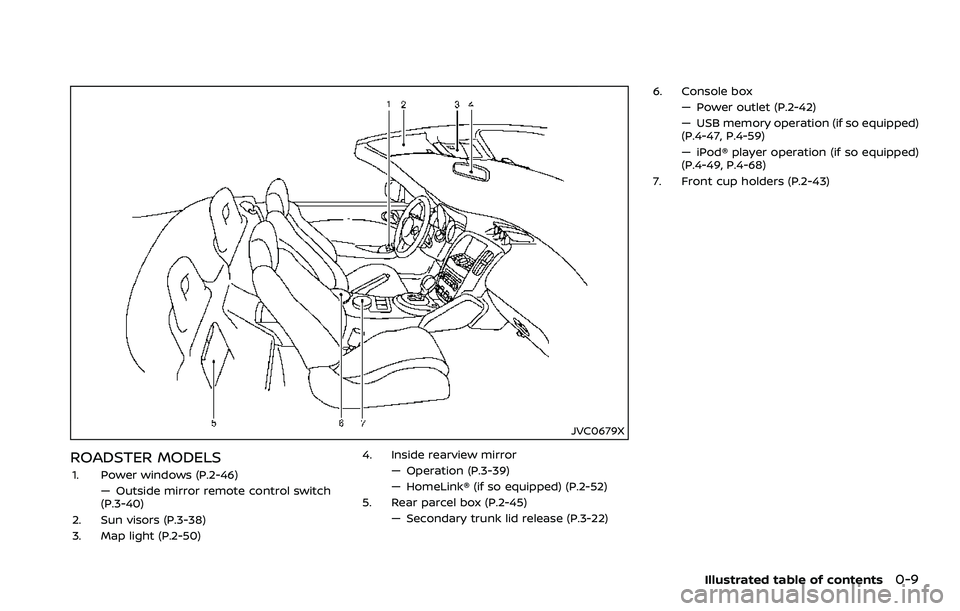

ROADSTER MODELS
1. Power windows (P.2-46)— Outside mirror remote control switch
(P.3-40)
2. Sun visors (P.3-38)
3. Map light (P.2-50) 4. Inside rearview mirror
— Operation (P.3-39)
— HomeLink® (if so equipped) (P.2-52)
5. Rear parcel box (P.2-45)
— Secondary trunk lid release (P.3-22) 6. Console box
— Power outlet (P.2-42)
— USB memory operation (if so equipped)
(P.4-47, P.4-59)
— iPod® player operation (if so equipped)
(P.4-49, P.4-68)
7. Front cup holders (P.2-43)
Illustrated table of contents0-9
Page 20 of 453
0-10Illustrated table of contents
SSI0652

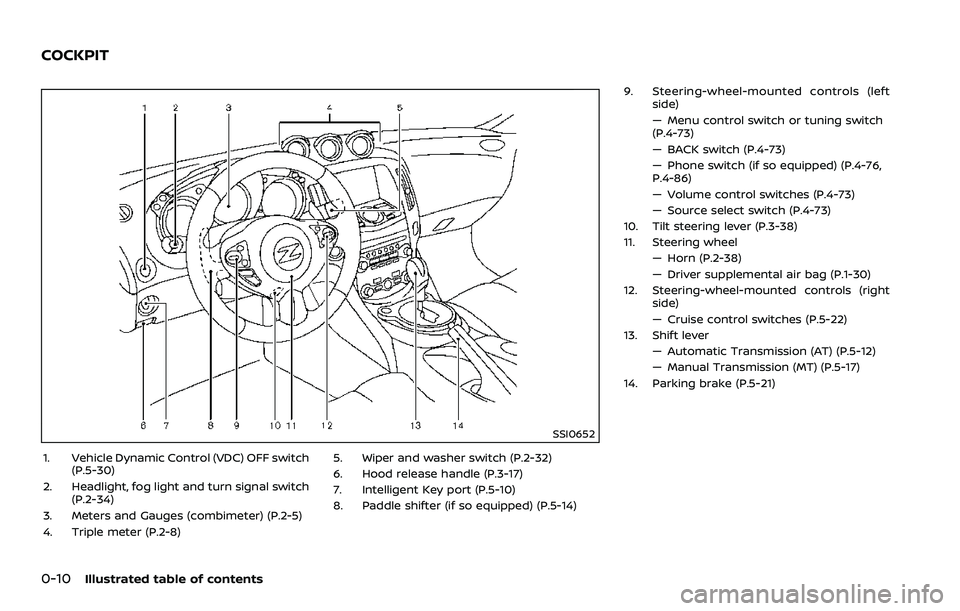

1. Vehicle Dynamic Control (VDC) OFF switch(P.5-30)
2. Headlight, fog light and turn signal switch (P.2-34)
3. Meters and Gauges (combimeter) (P.2-5)
4. Triple meter (P.2-8) 5. Wiper and washer switch (P.2-32)
6. Hood release handle (P.3-17)
7. Intelligent Key port (P.5-10)
8. Paddle shifter (if so equipped) (P.5-14)9. Steering-wheel-mounted controls (left
side)
— Menu control switch or tuning switch
(P.4-73)
— BACK switch (P.4-73)
— Phone switch (if so equipped) (P.4-76,
P.4-86)
— Volume control switches (P.4-73)
— Source select switch (P.4-73)
10. Tilt steering lever (P.3-38)
11. Steering wheel
— Horn (P.2-38)
— Driver supplemental air bag (P.1-30)
12. Steering-wheel-mounted controls (right side)
— Cruise control switches (P.5-22)
13. Shift lever
— Automatic Transmission (AT) (P.5-12)
— Manual Transmission (MT) (P.5-17)
14. Parking brake (P.5-21)
COCKPIT
