Page 401 of 467

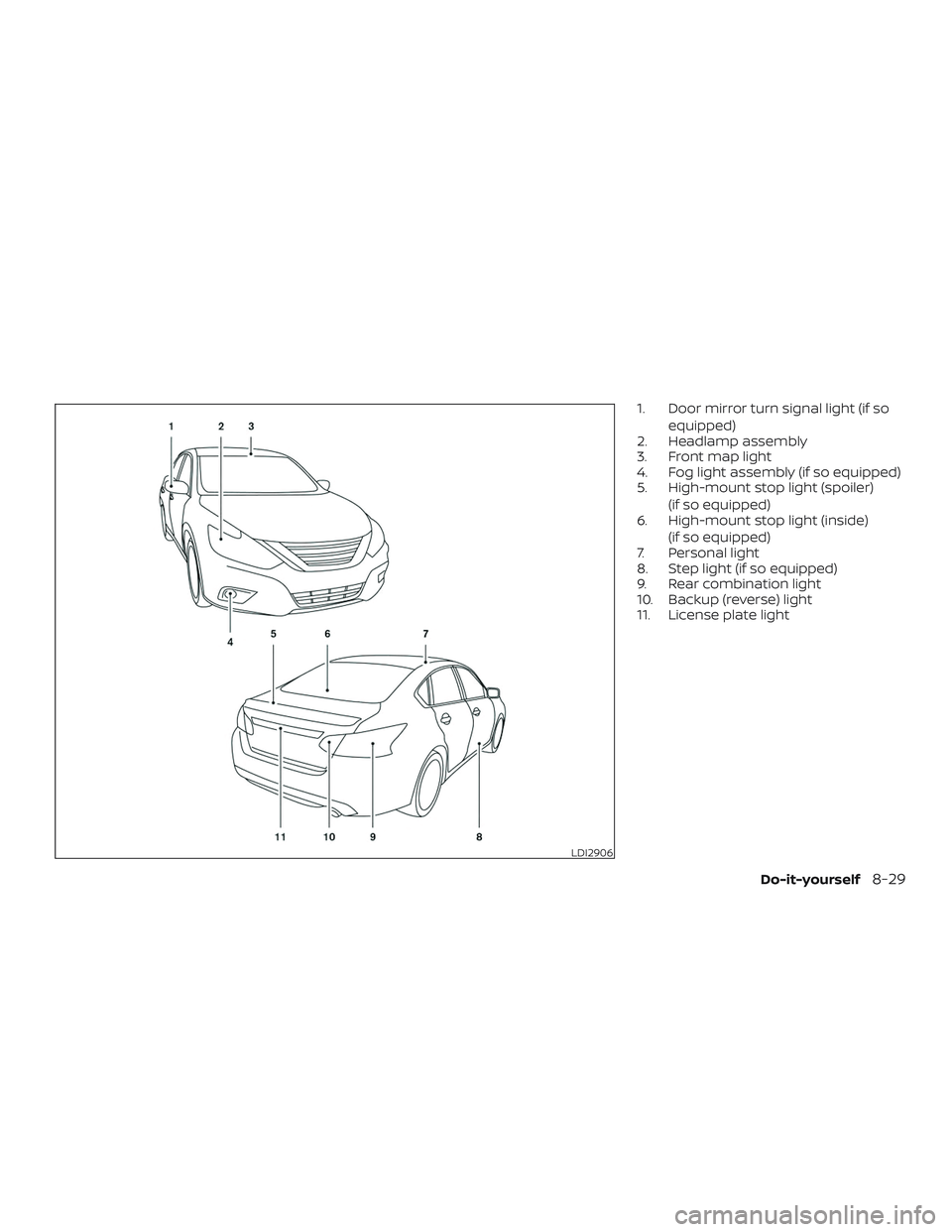

NISSAN ALTIMA 2018  Owner´s Manual 1. Door mirror turn signal light (if soequipped)
2. Headlamp assembly
3. Front map light
4. Fog light assembly (if so equipped)
5. High-mount stop light (spoiler)
(if so equipped)
6. High-mount stop l

Page 402 of 467

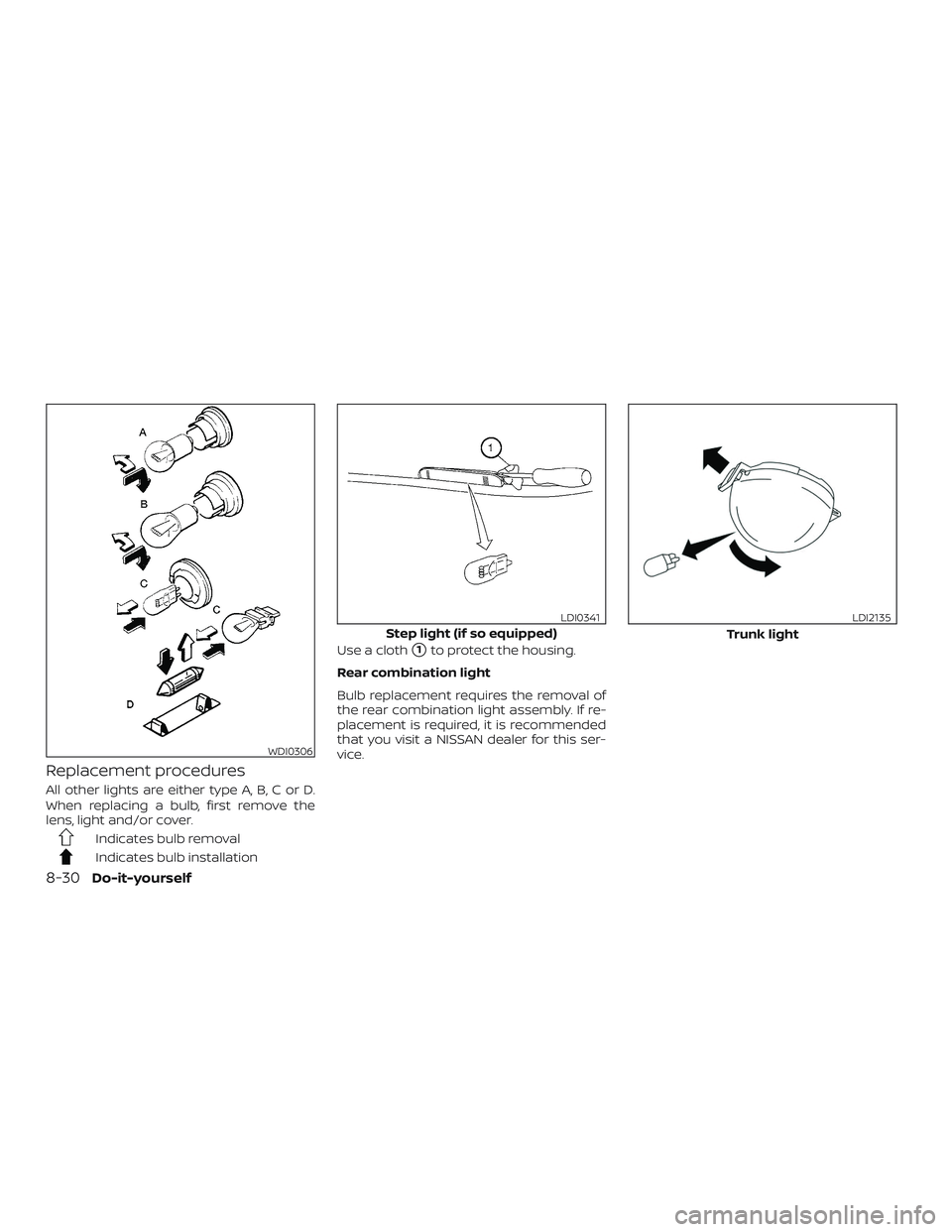

NISSAN ALTIMA 2018  Owner´s Manual Replacement procedures
All other lights are either type A, B, C or D.
When replacing a bulb, first remove the
lens, light and/or cover.
Indicates bulb removal
Indicates bulb installationUse a cloth
1

Page 403 of 467

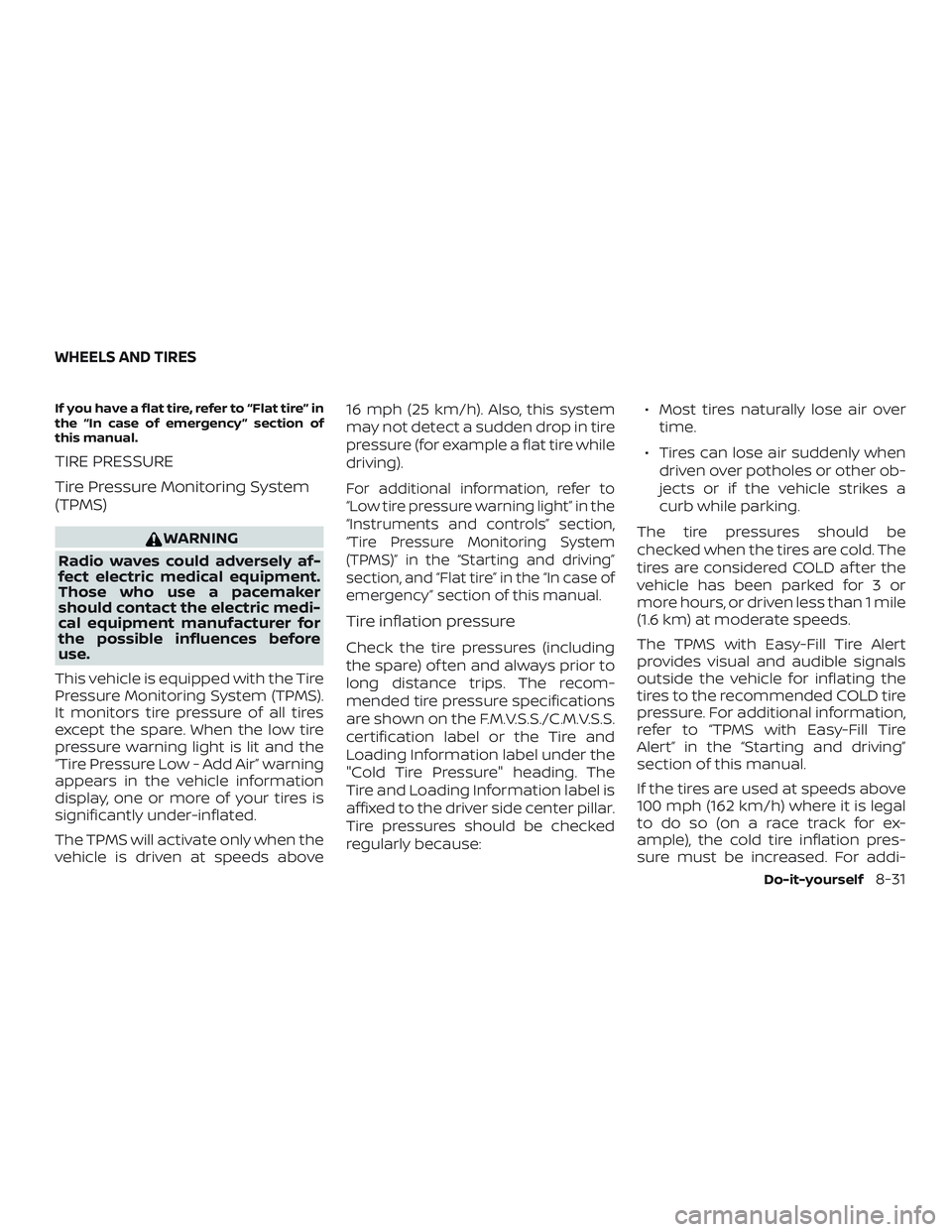

NISSAN ALTIMA 2018  Owner´s Manual If you have a flat tire, refer to “Flat tire” in
the “In case of emergency ” section of
this manual.
TIRE PRESSURE
Tire Pressure Monitoring System
(TPMS)
WARNING
Radio waves could adversely af

Page 404 of 467

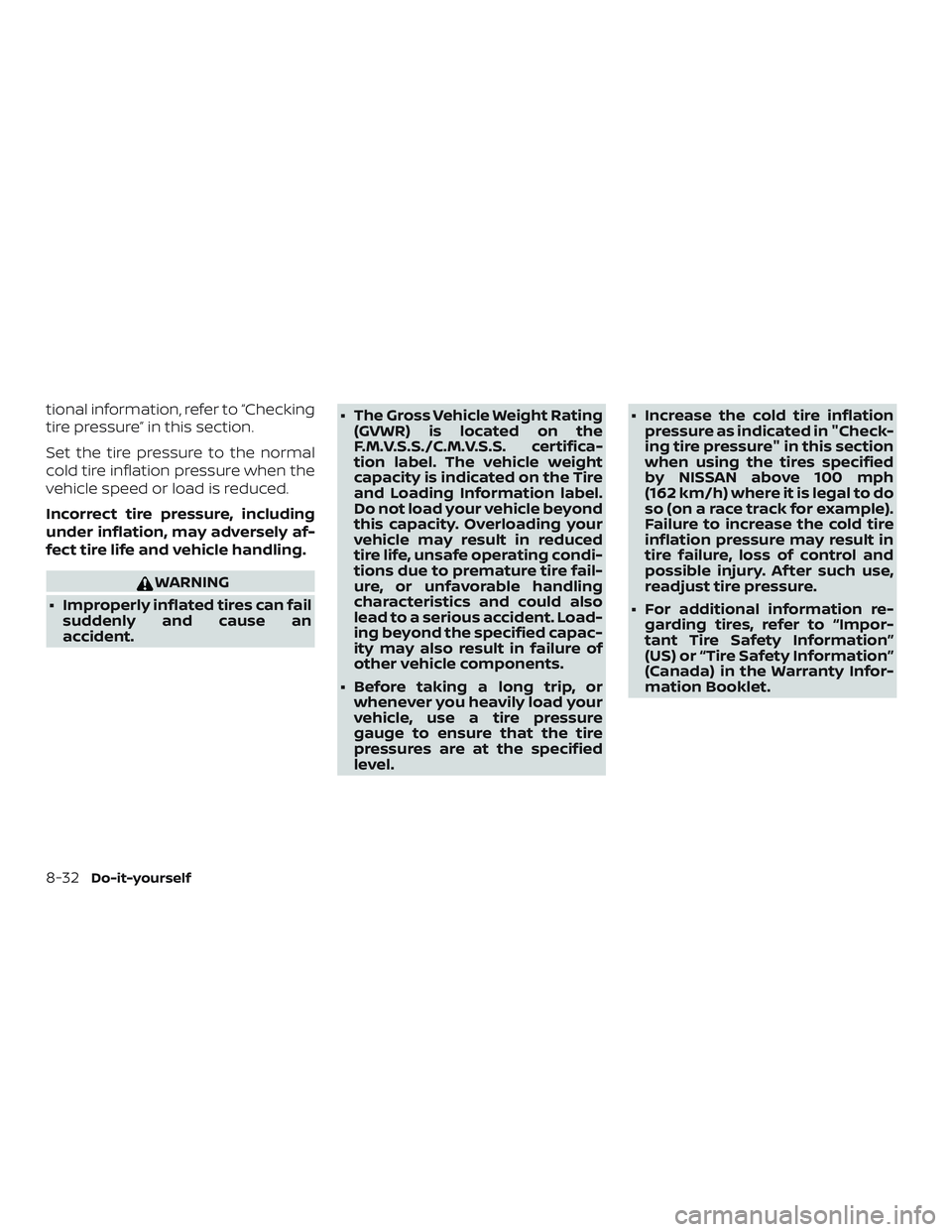

NISSAN ALTIMA 2018  Owner´s Manual tional information, refer to “Checking
tire pressure” in this section.
Set the tire pressure to the normal
cold tire inflation pressure when the
vehicle speed or load is reduced.
Incorrect tire pr

Page 405 of 467

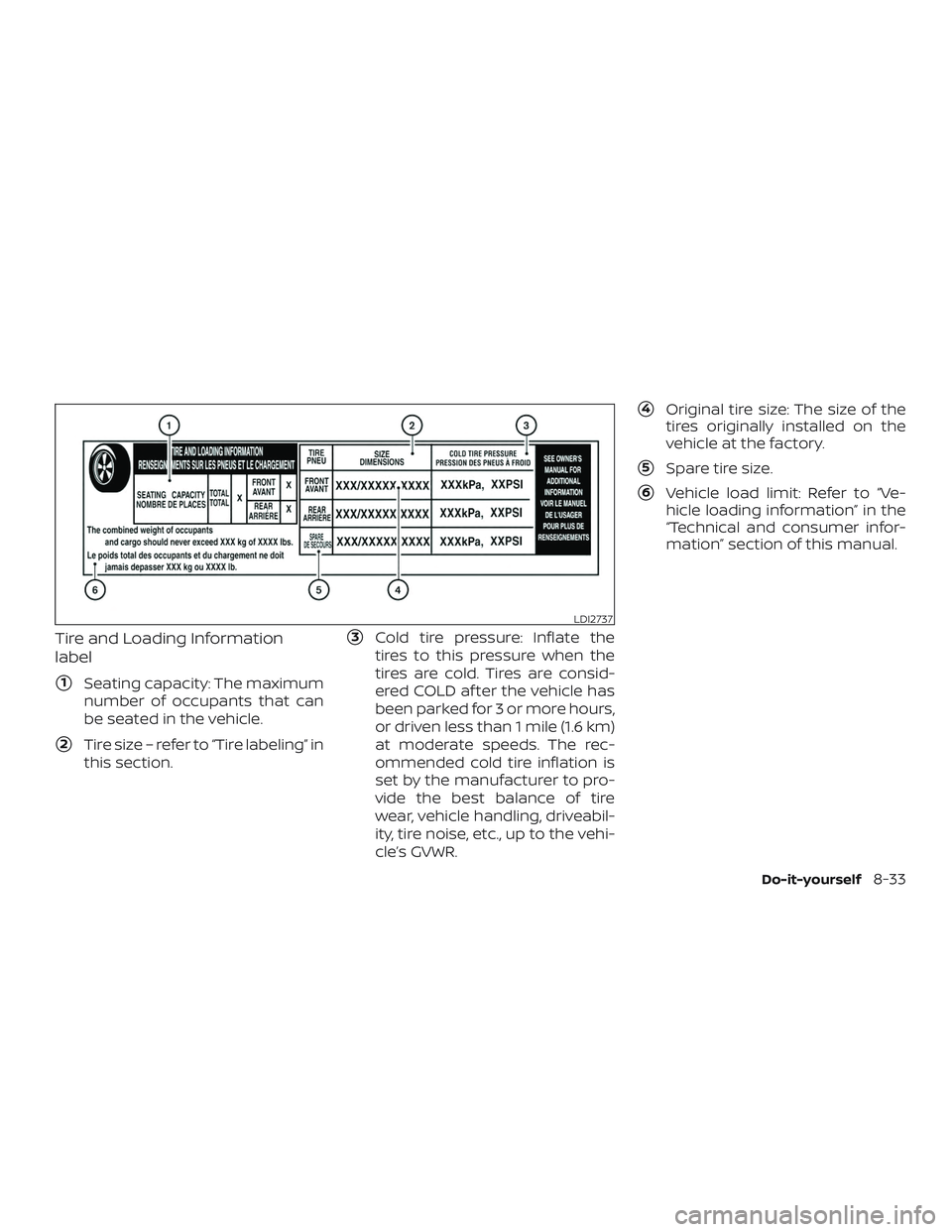

NISSAN ALTIMA 2018  Owner´s Manual Tire and Loading Information
label
1Seating capacity: The maximum
number of occupants that can
be seated in the vehicle.
2Tire size – refer to “Tire labeling” in
this section.
3Cold tire pres

Page 406 of 467

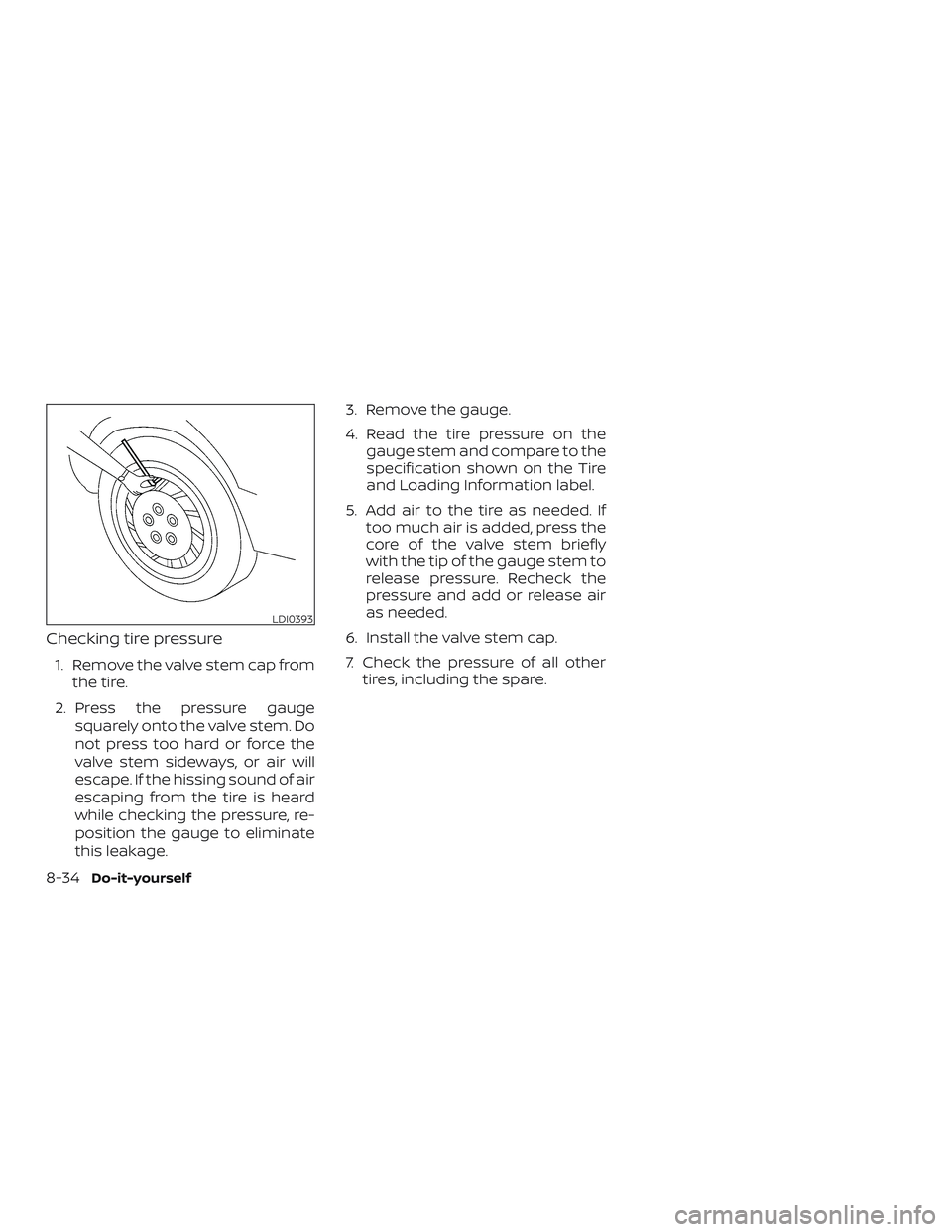

NISSAN ALTIMA 2018  Owner´s Manual Checking tire pressure
1. Remove the valve stem cap fromthe tire.
2. Press the pressure gauge squarely onto the valve stem. Do
not press too hard or force the
valve stem sideways, or air will
escape.

Page 407 of 467

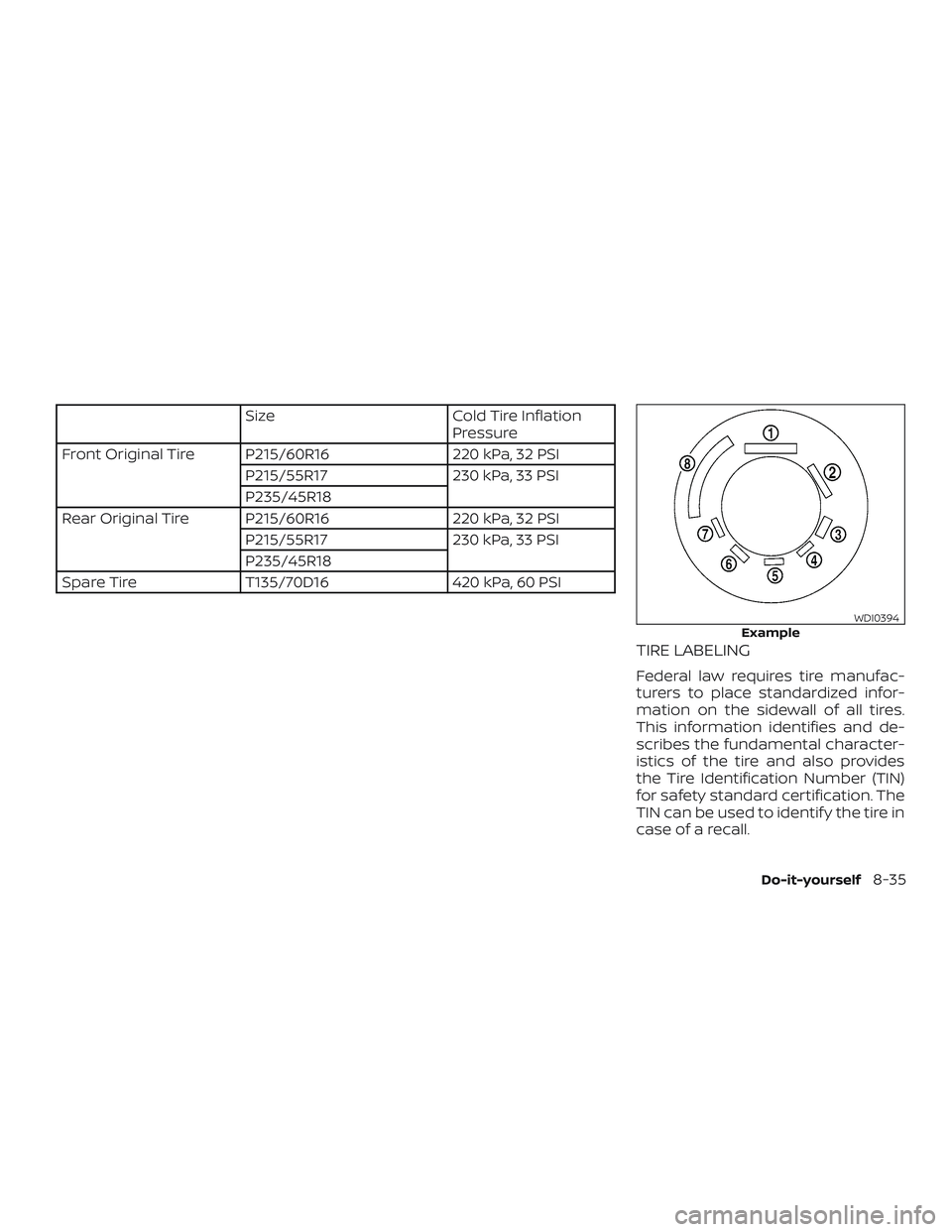

NISSAN ALTIMA 2018  Owner´s Manual SizeCold Tire Inflation
Pressure
Front Original Tire P215/60R16 220 kPa, 32 PSI
P215/55R17 230 kPa, 33 PSI
P235/45R18
Rear Original Tire P215/60R16 220 kPa, 32 PSI
P215/55R17 230 kPa, 33 PSI
P235/45R1

Page 408 of 467

NISSAN ALTIMA 2018  Owner´s Manual 1Tire size (example: P215/65R15
95H)
1. P: The “P” indicates the tire is de- signed for passenger vehicles
(not all tires have this informa-
tion).
2. Three-digit number (215): This number gives

Page 409 of 467

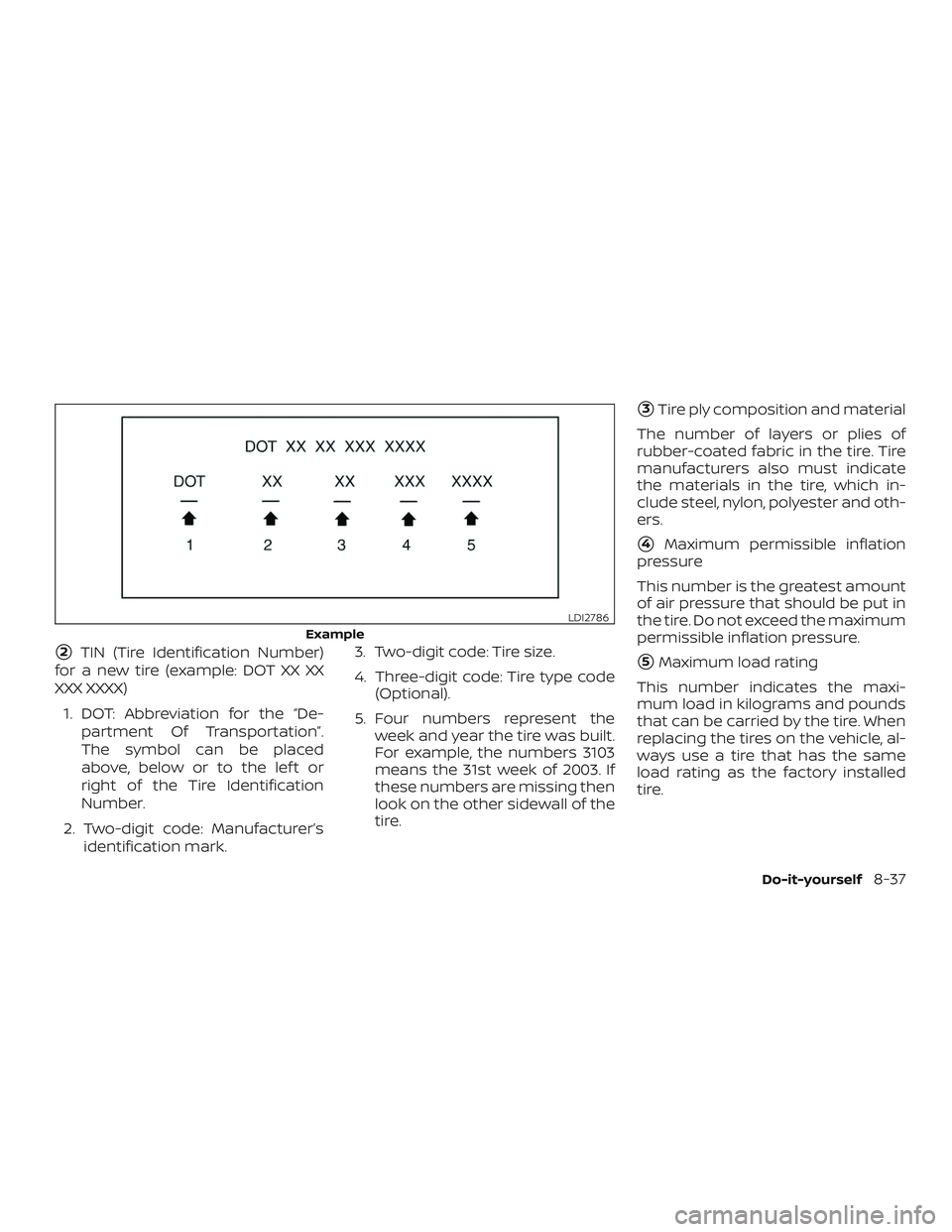

NISSAN ALTIMA 2018  Owner´s Manual 2TIN (Tire Identification Number)
for a new tire (example: DOT XX XX
XXX XXXX)
1. DOT: Abbreviation for the “De- partment Of Transportation”.
The symbol can be placed
above, below or to the lef t

Page 410 of 467

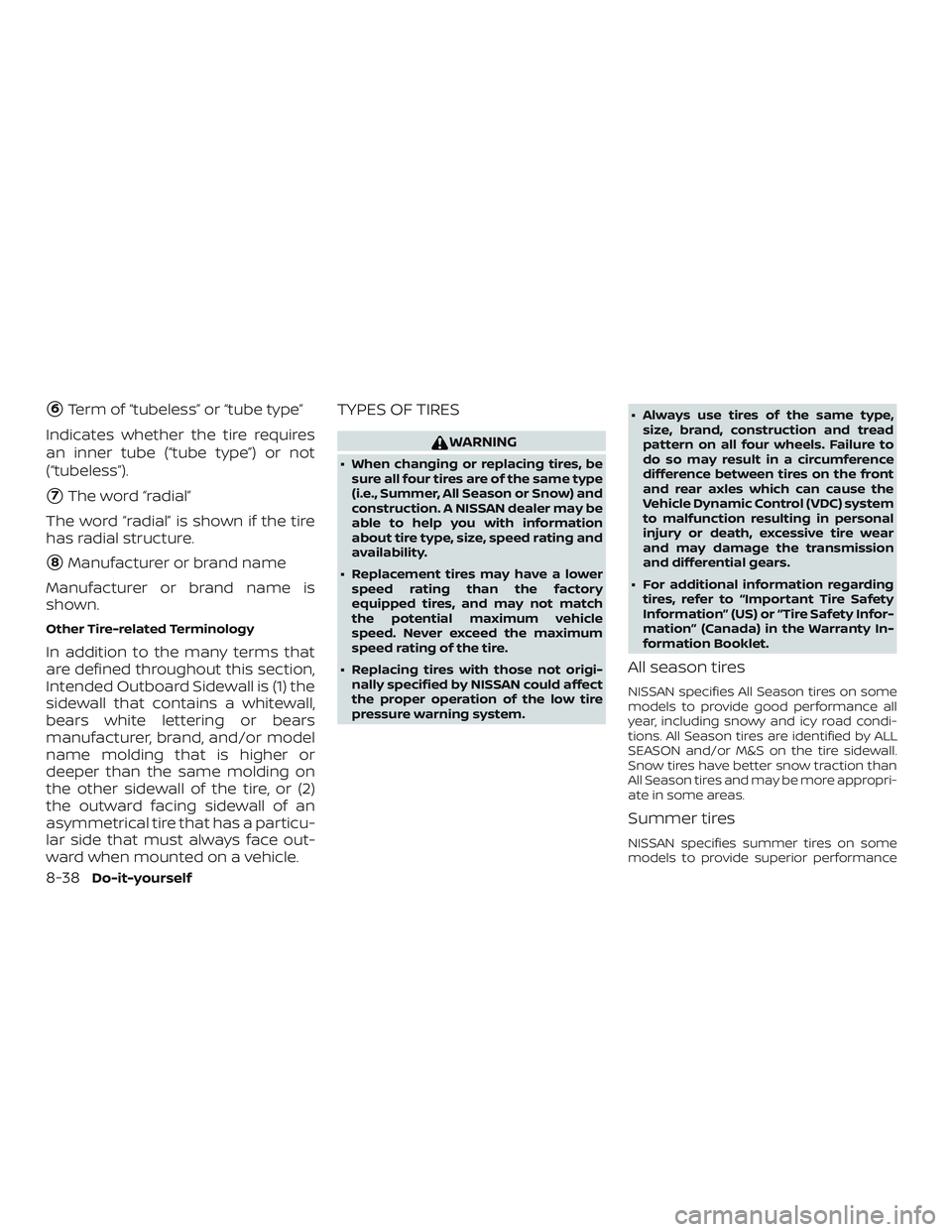

NISSAN ALTIMA 2018  Owner´s Manual 6Term of “tubeless” or “tube type”
Indicates whether the tire requires
an inner tube (“tube type”) or not
(“tubeless”).
7The word “radial”
The word “radial” is shown if the t
