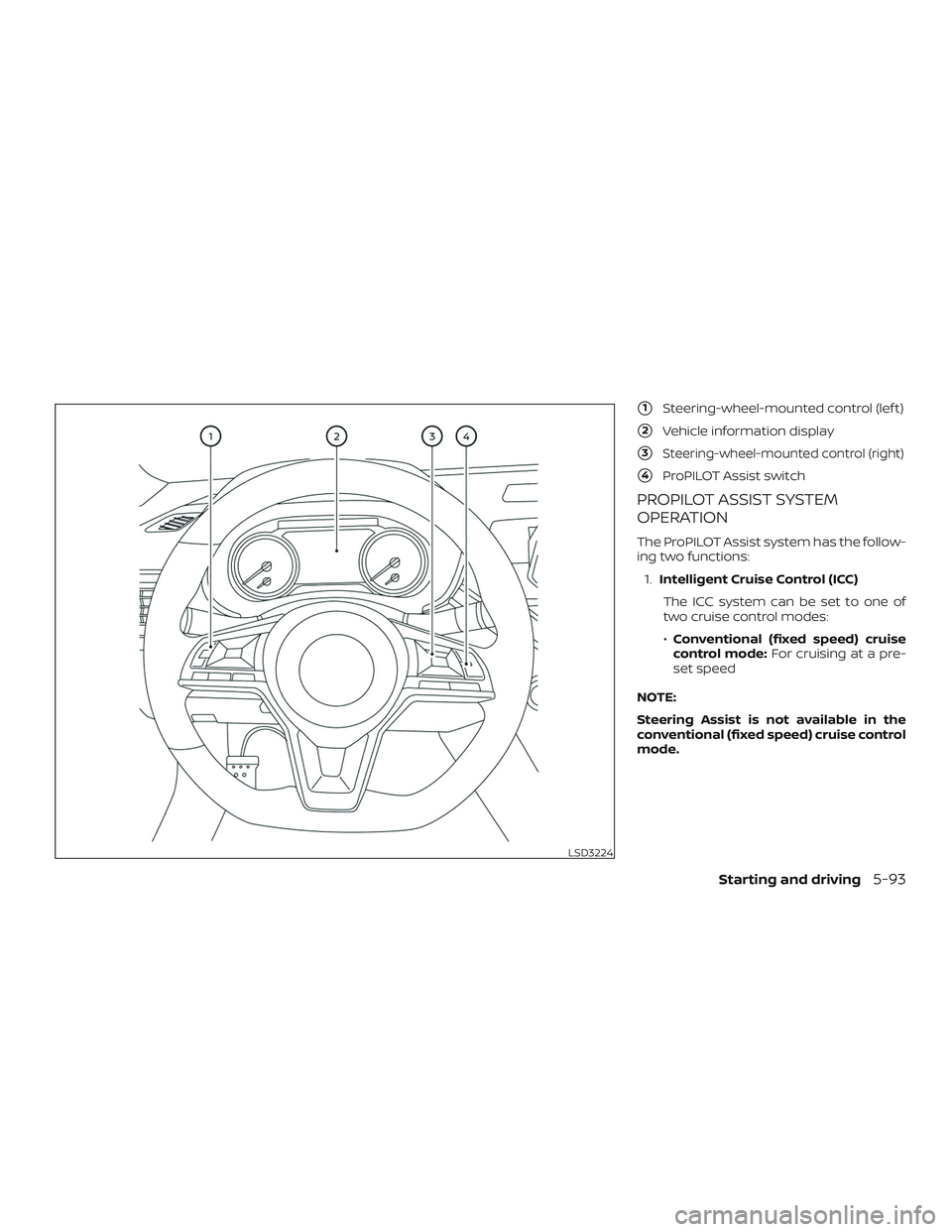

NISSAN ALTIMA 2019 Owner´s Manual

1Steering-wheel-mounted control (lef t)
2Vehicle information display
3Steering-wheel-mounted control (right)
4ProPILOT Assist switch
PROPILOT ASSIST SYSTEM
OPERATION
The ProPILOT Assist system has the follow-
ing two functions:1. Intelligent Cruise Control (ICC)
The ICC system can be set to one of
two cruise control modes:
∙ Conventional (fixed speed) cruise
control mode: For cruising at a pre-
set speed
NOTE:
Steering Assist is not available in the
conventional (fixed speed) cruise control
mode.
LSD3224
Starting and driving5-93

∙Vehicle-to-vehicle distance control
mode: The ICC system maintains a
selected distance from the vehicle in
front of you within the speed range of
0 to 90 mph (0 to 144 km/h) up to the
set speed. The set speed can be se-
lected by the driver between 20 to
90 mph (32 to 144 km/h). When the
vehicle ahead slows to a stop, your
vehicle gradually decelerates to a
standstill. When the vehicle is
stopped, the ICC system maintains
braking force to keep your vehicle
stopped.
NOTE:
When your vehicle is stopped for less
than 3 seconds and the vehicle ahead
begins to move, your vehicle will start
moving again automatically. – When your vehicle is at a standstillfor more than 3 seconds and the
vehicle ahead begins to accelerate,
push the RES+ switch or lightly de-
press the accelerator pedal. The ICC
system starts to follow the vehicle
ahead. – When no vehicle is detected ahead
within the driver selected distance,
the vehicle travels at the speed set
by the driver. The speed must be
above 20 mph (32 km/h) to use this
function.
NOTE:
Even if the Automatic Emergency Brak-
ing (AEB) setting is turned off by the
driver using the “Settings” menu in the
vehicle information display, AEB will be
automatically turned on when ICC is
used. 2. Steering Assist
The Steering Assist function controls
the steering system to help keep your
vehicle within the traveling lane.
When there is no vehicle ahead, Steer-
ing Assist is not available at speeds
under 37 mph (60 km/h).

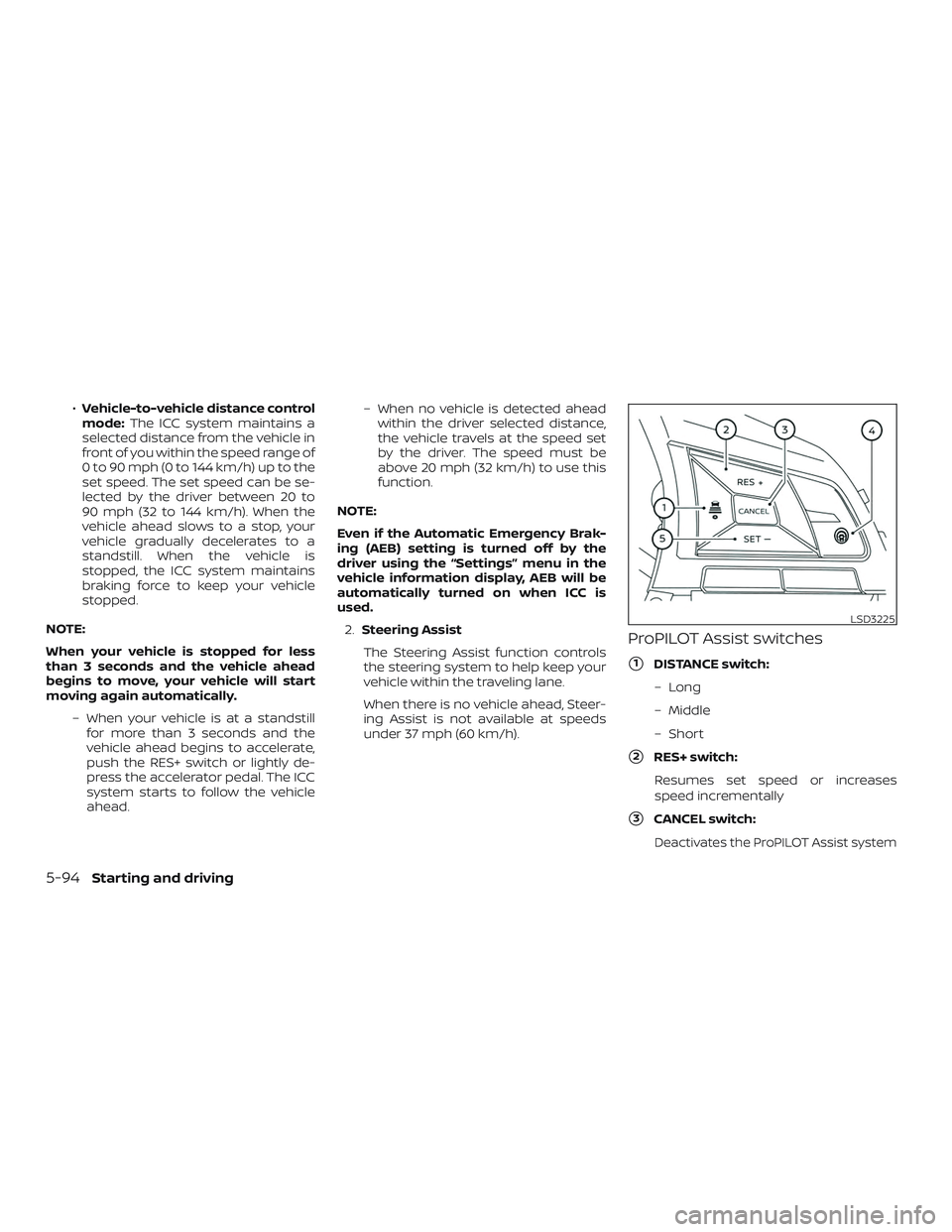

ProPILOT Assist switches
1DISTANCE switch:
– Long
– Middle
– Short
2RES+ switch:Resumes set speed or increases
speed incrementally
3CANCEL switch:
Deactivates the ProPILOT Assist system
LSD3225
5-94Starting and driving

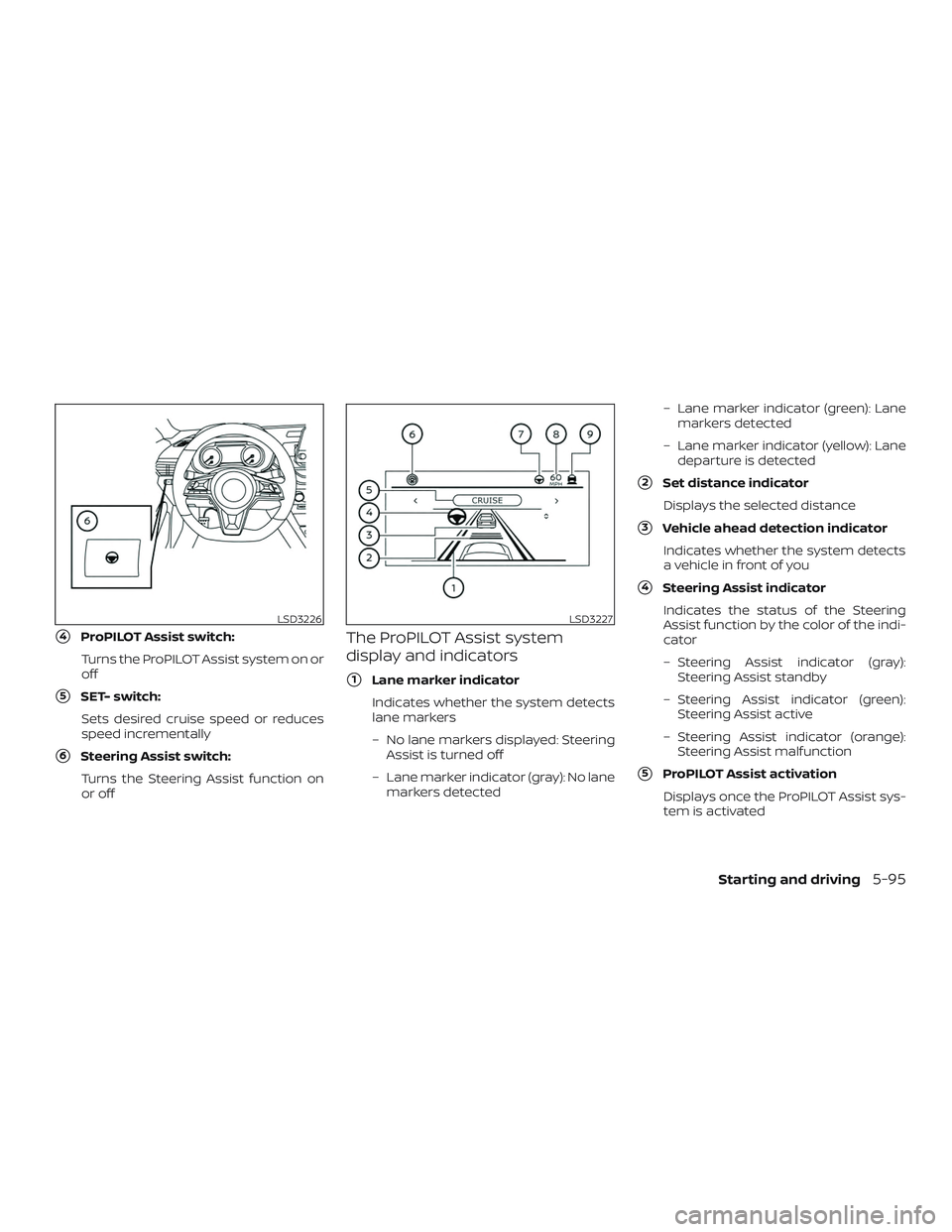

4ProPILOT Assist switch:Turns the ProPILOT Assist system on or
off
5SET- switch:Sets desired cruise speed or reduces
speed incrementally
6Steering Assist switch:Turns the Steering Assist function on
or off
The ProPILOT Assist system
display and indicators
1Lane marker indicatorIndicates whether the system detects
lane markers
– No lane markers displayed: Steering Assist is turned off
– Lane marker indicator (gray): No lane markers detected – Lane marker indicator (green): Lane
markers detected
– Lane marker indicator (yellow): Lane departure is detected
2Set distance indicator
Displays the selected distance
3Vehicle ahead detection indicatorIndicates whether the system detects
a vehicle in front of you
4Steering Assist indicator Indicates the status of the Steering
Assist function by the color of the indi-
cator
– Steering Assist indicator (gray): Steering Assist standby
– Steering Assist indicator (green): Steering Assist active
– Steering Assist indicator (orange): Steering Assist malfunction
5ProPILOT Assist activation
Displays once the ProPILOT Assist sys-
tem is activated
LSD3226LSD3227
Starting and driving5-95

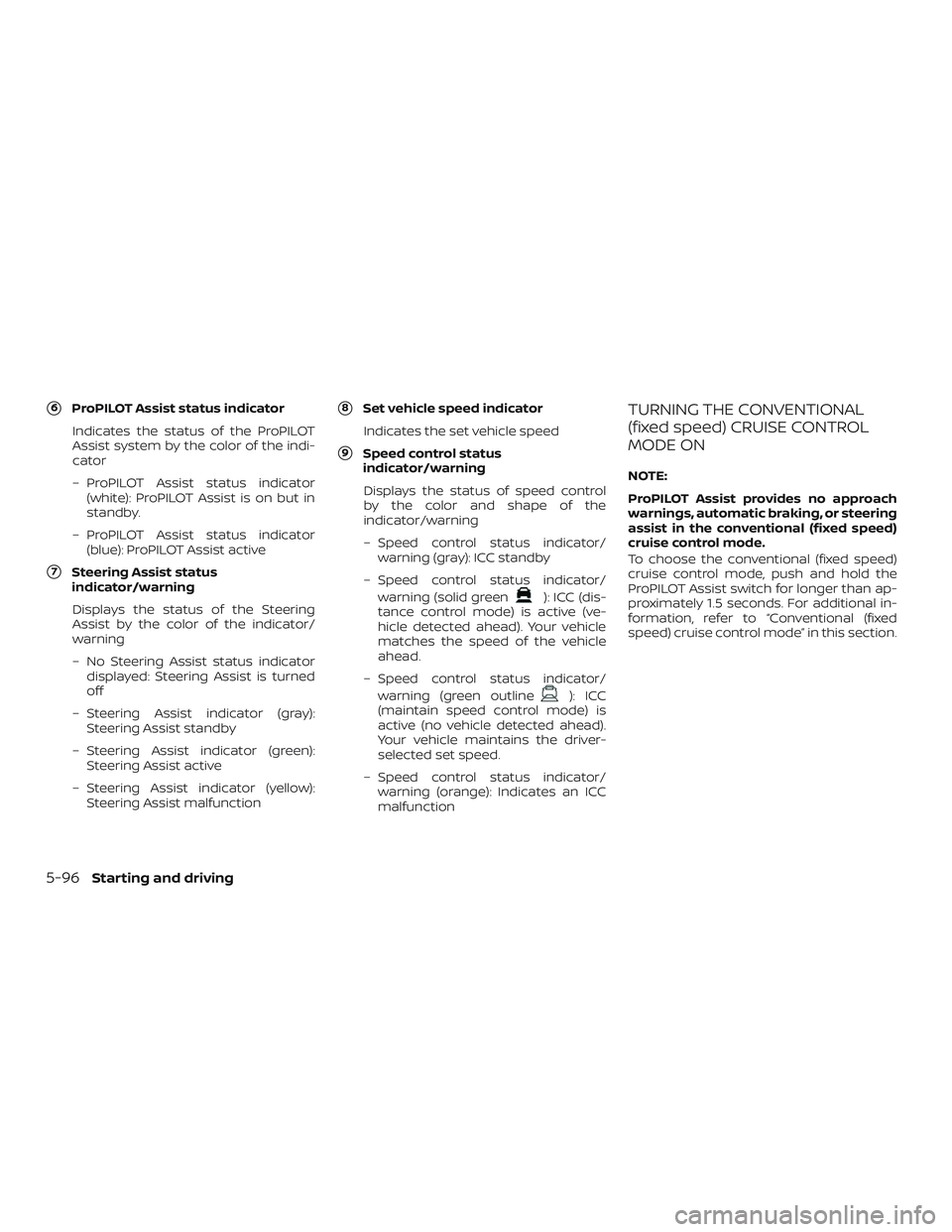

6ProPILOT Assist status indicatorIndicates the status of the ProPILOT
Assist system by the color of the indi-
cator
– ProPILOT Assist status indicator (white): ProPILOT Assist is on but in
standby.
– ProPILOT Assist status indicator (blue): ProPILOT Assist active
7Steering Assist status
indicator/warning
Displays the status of the Steering
Assist by the color of the indicator/
warning
– No Steering Assist status indicator displayed: Steering Assist is turned
off
– Steering Assist indicator (gray): Steering Assist standby
– Steering Assist indicator (green): Steering Assist active
– Steering Assist indicator (yellow): Steering Assist malfunction
8Set vehicle speed indicator
Indicates the set vehicle speed
9Speed control status
indicator/warning
Displays the status of speed control
by the color and shape of the
indicator/warning
– Speed control status indicator/ warning (gray): ICC standby
– Speed control status indicator/ warning (solid green
): ICC (dis-
tance control mode) is active (ve-
hicle detected ahead). Your vehicle
matches the speed of the vehicle
ahead.
– Speed control status indicator/ warning (green outline
): ICC
(maintain speed control mode) is
active (no vehicle detected ahead).
Your vehicle maintains the driver-
selected set speed.
– Speed control status indicator/ warning (orange): Indicates an ICC
malfunction
TURNING THE CONVENTIONAL
(fixed speed) CRUISE CONTROL
MODE ON
NOTE:
ProPILOT Assist provides no approach
warnings, automatic braking, or steering
assist in the conventional (fixed speed)
cruise control mode.
To choose the conventional (fixed speed)
cruise control mode, push and hold the
ProPILOT Assist switch for longer than ap-
proximately 1.5 seconds. For additional in-
formation, refer to “Conventional (fixed
speed) cruise control mode” in this section.
5-96Starting and driving

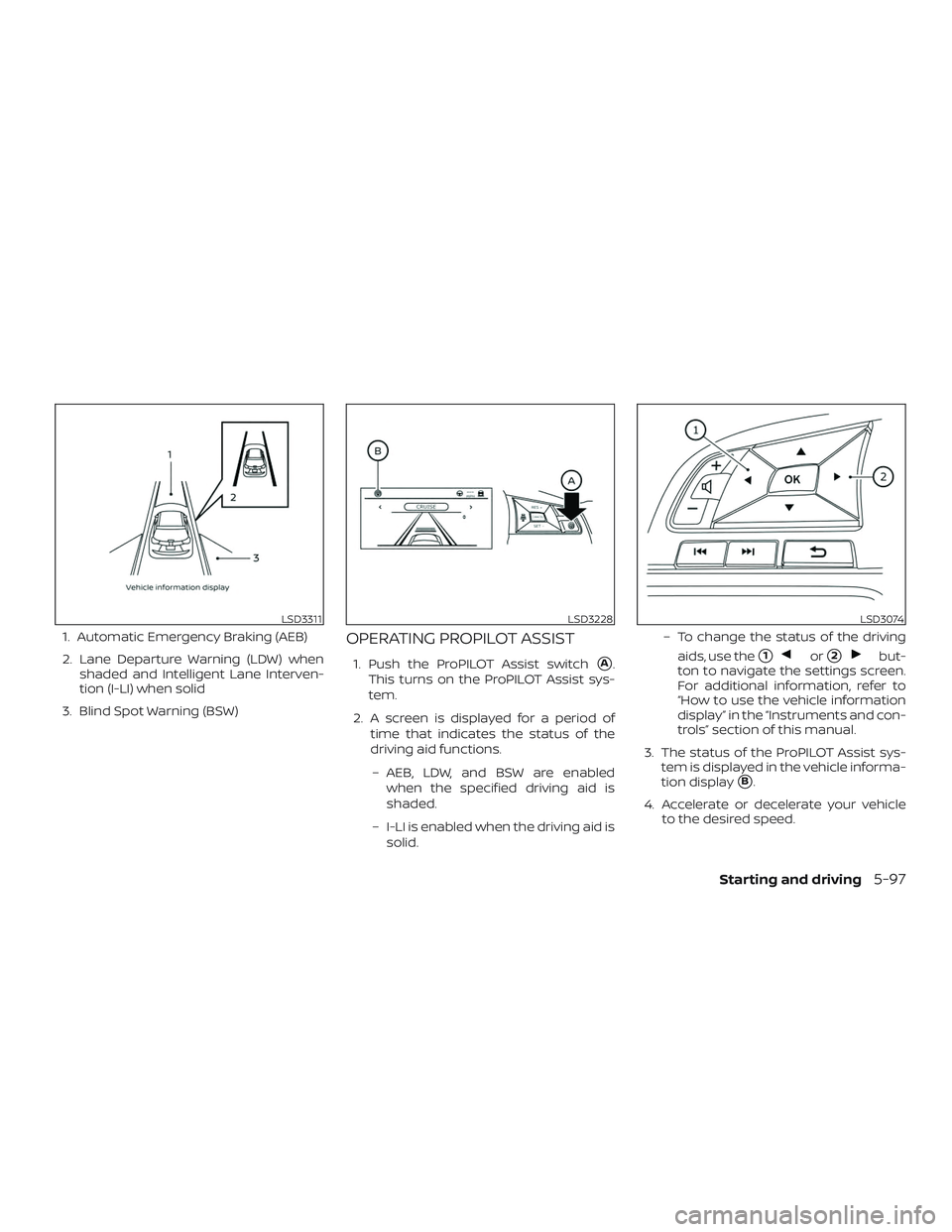

1. Automatic Emergency Braking (AEB)
2. Lane Departure Warning (LDW) whenshaded and Intelligent Lane Interven-
tion (I-LI) when solid
3. Blind Spot Warning (BSW)OPERATING PROPILOT ASSIST
1. Push the ProPILOT Assist switchA.
This turns on the ProPILOT Assist sys-
tem.
2. A screen is displayed for a period of time that indicates the status of the
driving aid functions.
– AEB, LDW, and BSW are enabled when the specified driving aid is
shaded.
– I-LI is enabled when the driving aid is solid. – To change the status of the driving
aids, use the1or2but-
ton to navigate the settings screen.
For additional information, refer to
“How to use the vehicle information
display” in the “Instruments and con-
trols” section of this manual.
3. The status of the ProPILOT Assist sys- tem is displayed in the vehicle informa-
tion display
B.
4. Accelerate or decelerate your vehicle to the desired speed.
LSD3311LSD3228LSD3074
Starting and driving5-97

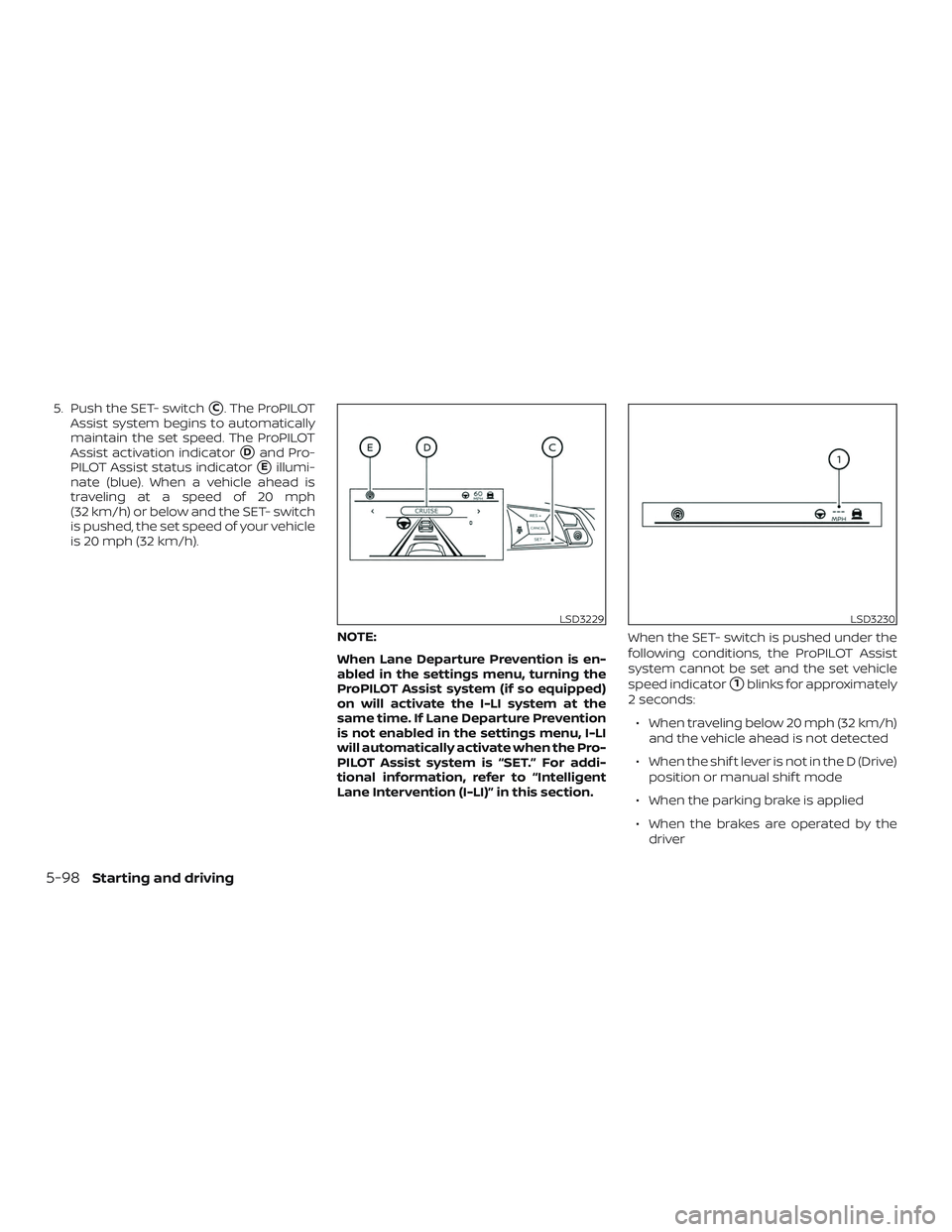

5. Push the SET- switchC. The ProPILOT
Assist system begins to automatically
maintain the set speed. The ProPILOT
Assist activation indicator
Dand Pro-
PILOT Assist status indicator
Eillumi-
nate (blue). When a vehicle ahead is
traveling at a speed of 20 mph
(32 km/h) or below and the SET- switch
is pushed, the set speed of your vehicle
is 20 mph (32 km/h).
NOTE:
When Lane Departure Prevention is en-
abled in the settings menu, turning the
ProPILOT Assist system (if so equipped)
on will activate the I-LI system at the
same time. If Lane Departure Prevention
is not enabled in the settings menu, I-LI
will automatically activate when the Pro-
PILOT Assist system is “SET.” For addi-
tional information, refer to “Intelligent
Lane Intervention (I-LI)” in this section. When the SET- switch is pushed under the
following conditions, the ProPILOT Assist
system cannot be set and the set vehicle
speed indicator
1blinks for approximately
2 seconds:
∙ When traveling below 20 mph (32 km/h) and the vehicle ahead is not detected
∙ When the shif t lever is not in the D (Drive) position or manual shif t mode
∙ When the parking brake is applied
∙ When the brakes are operated by the driver
LSD3229LSD3230
5-98Starting and driving

∙ When the VDC system is off. For addi-tional information, refer to “Vehicle Dy-
namic Control (VDC) system” in this sec-
tion.
∙ When the VDC system (including the traction control system) is operating
∙ When a wheel is slipping
∙ When any door is open
∙ When the driver’s seat belt is not fas- tened

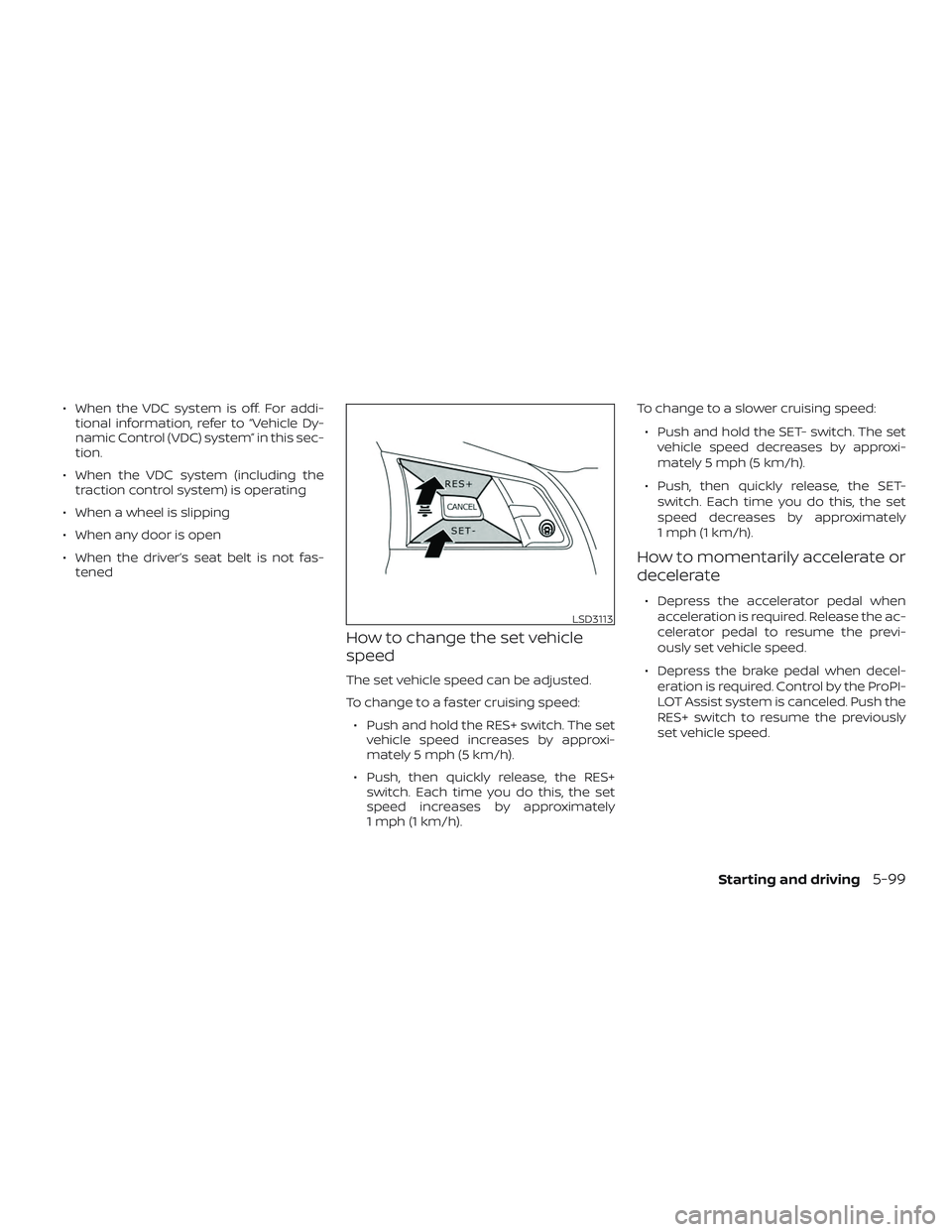

How to change the set vehicle
speed
The set vehicle speed can be adjusted.
To change to a faster cruising speed:
∙ Push and hold the RES+ switch. The set vehicle speed increases by approxi-
mately 5 mph (5 km/h).
∙ Push, then quickly release, the RES+ switch. Each time you do this, the set
speed increases by approximately
1 mph (1 km/h). To change to a slower cruising speed:
∙ Push and hold the SET- switch. The set vehicle speed decreases by approxi-
mately 5 mph (5 km/h).
∙ Push, then quickly release, the SET- switch. Each time you do this, the set
speed decreases by approximately
1 mph (1 km/h).
How to momentarily accelerate or
decelerate
∙ Depress the accelerator pedal whenacceleration is required. Release the ac-
celerator pedal to resume the previ-
ously set vehicle speed.
∙ Depress the brake pedal when decel- eration is required. Control by the ProPI-
LOT Assist system is canceled. Push the
RES+ switch to resume the previously
set vehicle speed.
LSD3113
Starting and driving5-99

WARNING
When the accelerator pedal is de-
pressed and you are approaching the
vehicle ahead, the ICC system will nei-
ther control the brake nor warn the
driver with the chime and display. The
driver must manually control the ve-
hicle speed to maintain a safe distance
to the vehicle ahead. Failure to do so
could result in severe personal injury or
death.
NOTE:
When you accelerate by depressing the
accelerator pedal or decelerate by push-
ing the SET- switch and the vehicle trav-
els faster than the speed set by the
driver, the set speed vehicle indicator will
blink.

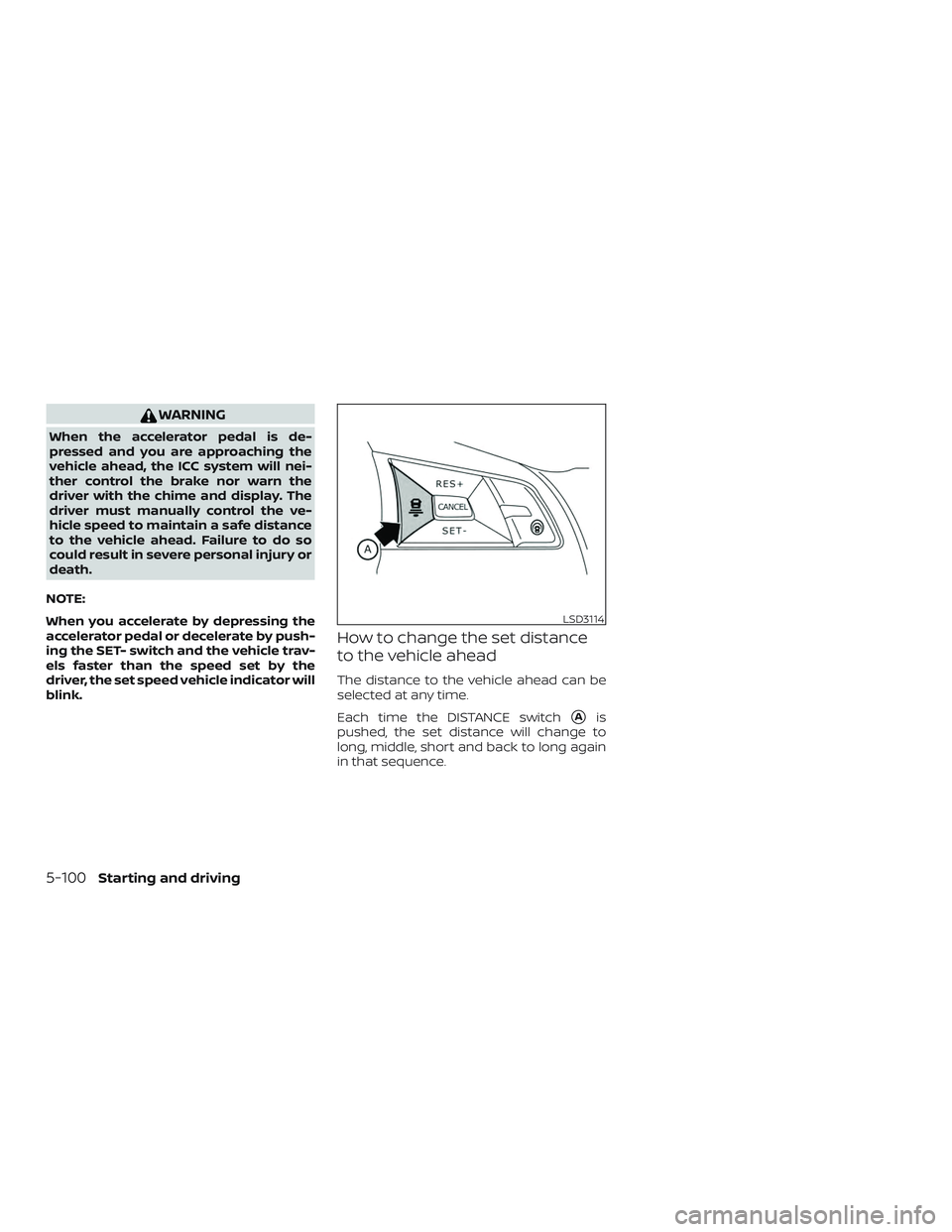

How to change the set distance
to the vehicle ahead
The distance to the vehicle ahead can be
selected at any time.
Each time the DISTANCE switch
Ais
pushed, the set distance will change to
long, middle, short and back to long again
in that sequence.
LSD3114
5-100Starting and driving

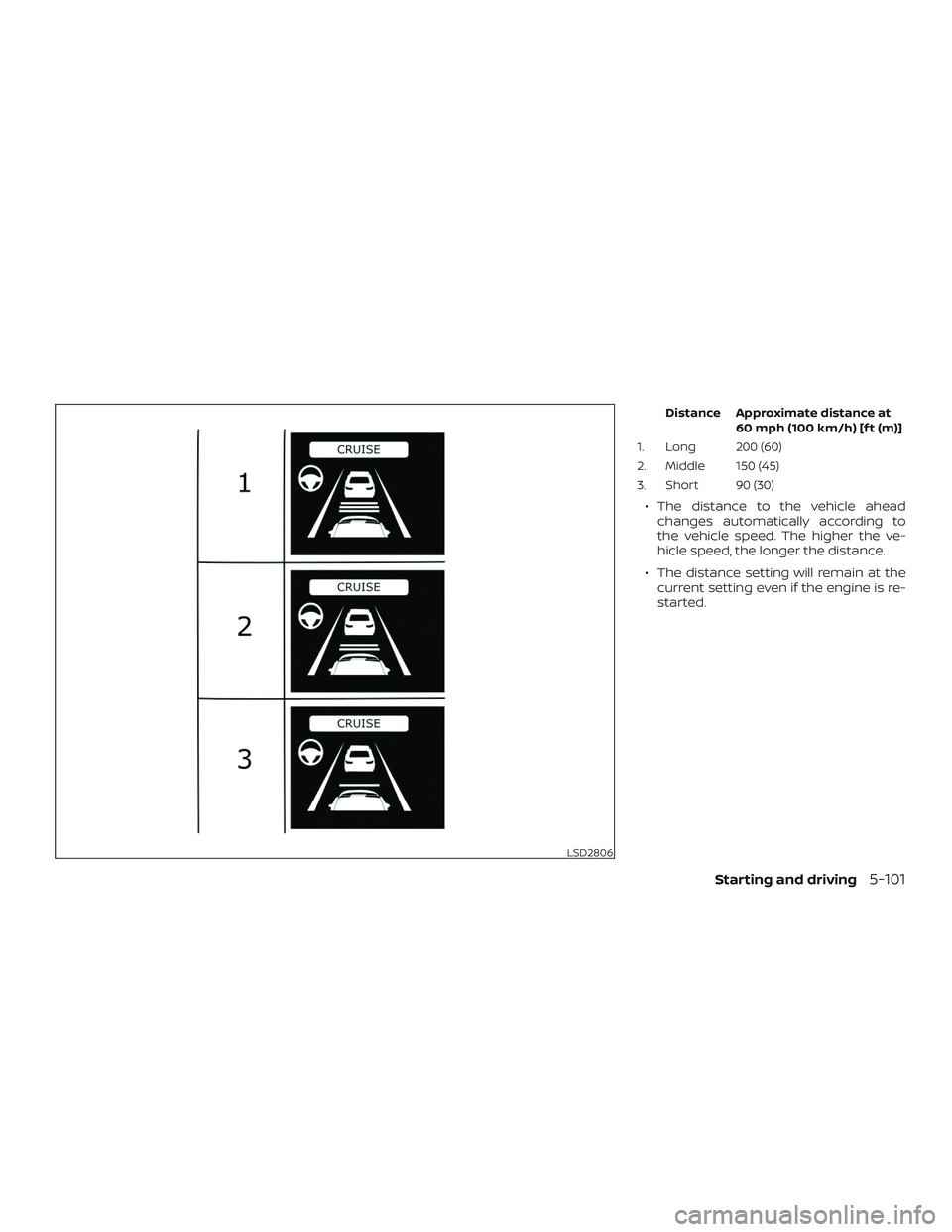

Distance Approximate distance at60 mph (100 km/h) [f t (m)]
1. Long 200 (60)
2. Middle 150 (45)
3. Short 90 (30)
∙ The distance to the vehicle ahead changes automatically according to
the vehicle speed. The higher the ve-
hicle speed, the longer the distance.
∙ The distance setting will remain at the current setting even if the engine is re-
started.
LSD2806
Starting and driving5-101

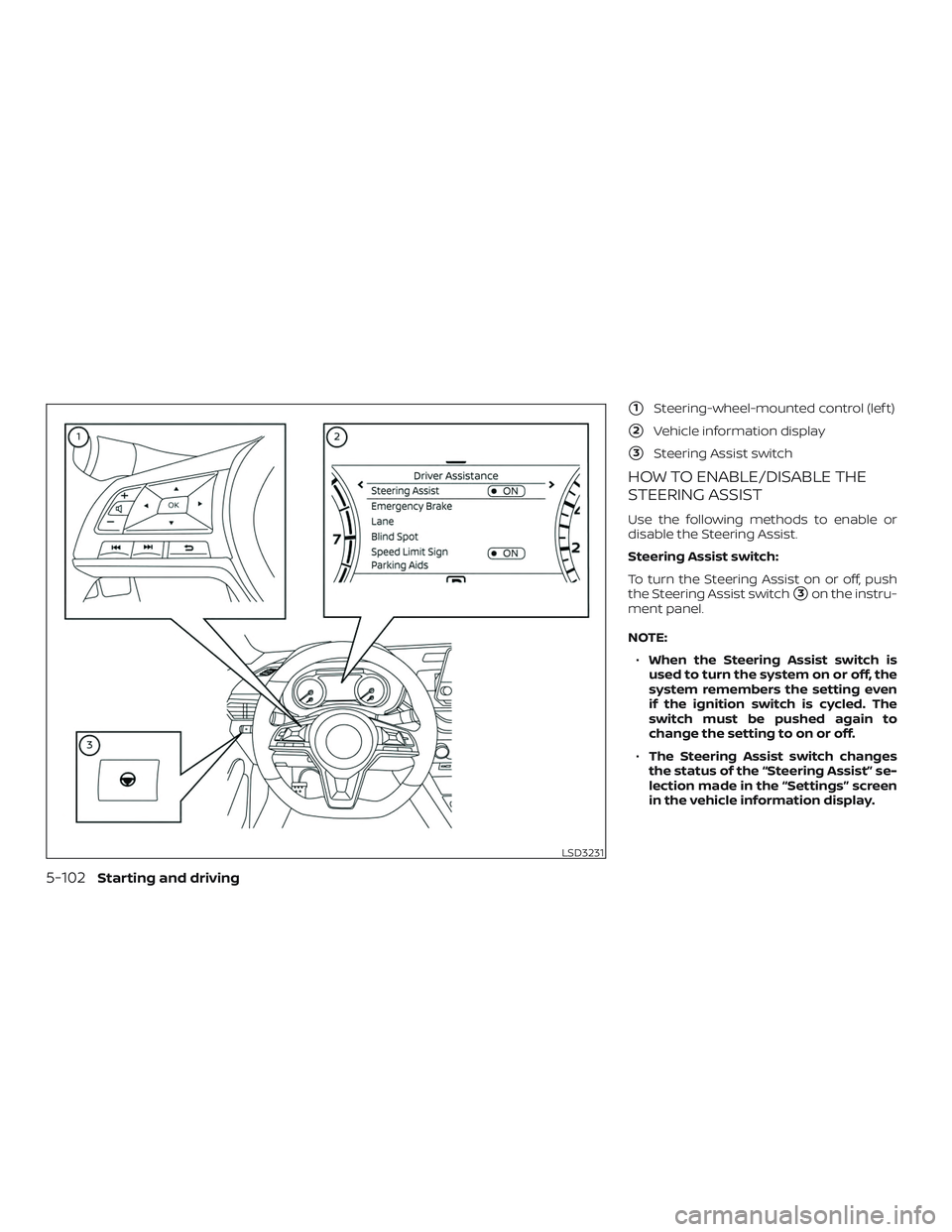

1Steering-wheel-mounted control (lef t)
2Vehicle information display
3Steering Assist switch
HOW TO ENABLE/DISABLE THE
STEERING ASSIST
Use the following methods to enable or
disable the Steering Assist.
Steering Assist switch:
To turn the Steering Assist on or off, push
the Steering Assist switch
3on the instru-
ment panel.
NOTE:
∙ When the Steering Assist switch is
used to turn the system on or off, the
system remembers the setting even
if the ignition switch is cycled. The
switch must be pushed again to
change the setting to on or off.
∙ The Steering Assist switch changes
the status of the “Steering Assist” se-
lection made in the “Settings” screen
in the vehicle information display.
LSD3231
