NISSAN ALTIMA COUPE 2010 D32 / 4.G Owners Manual
Page 111 of 440

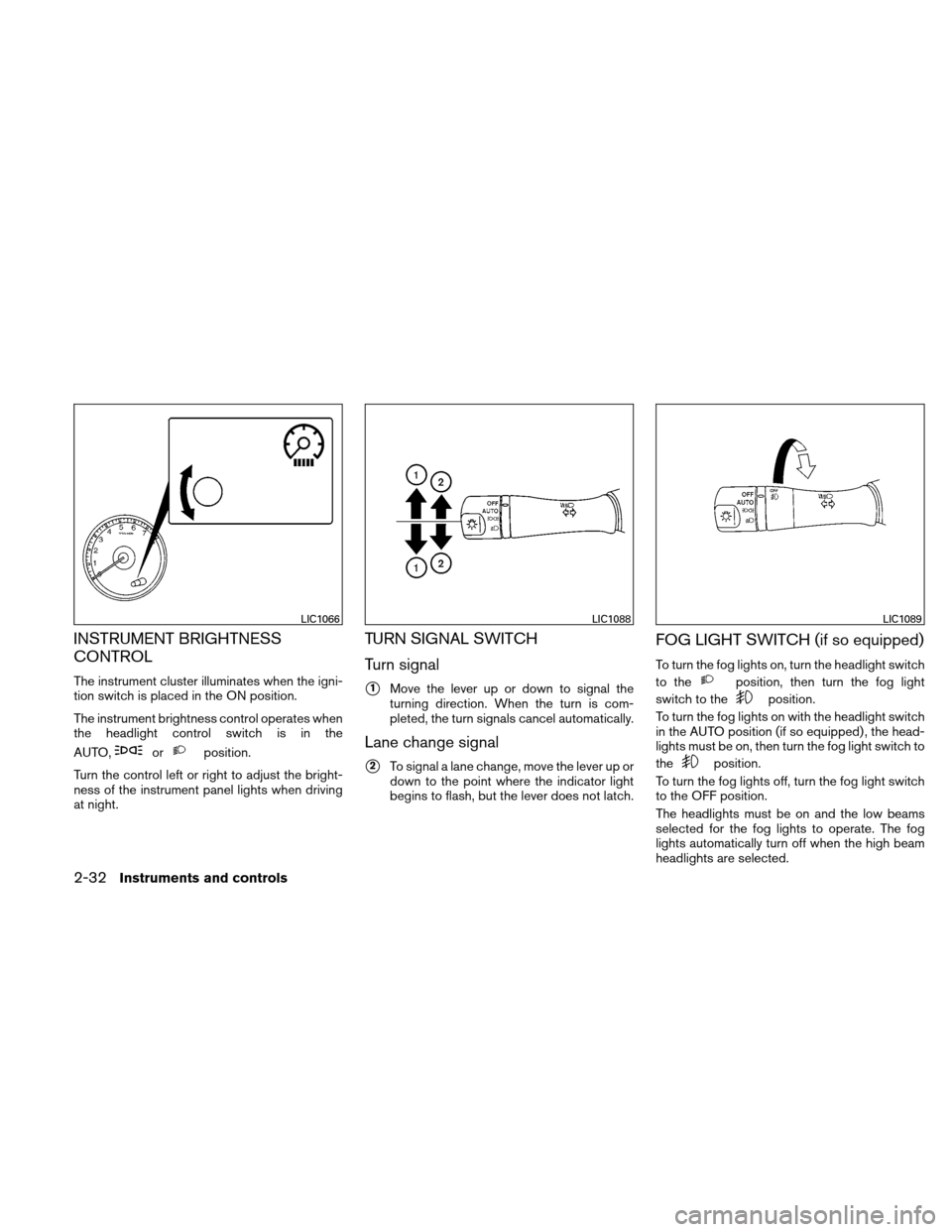

The instrument cluster illuminates when the igni-
tion switch is placed in the ON position.
The instrument brightness control operates when
the headlight control switch is in the
Turn the control left or right to adjust the bright-
ness of the instrument panel lights when driving
TURN SIGNAL SWITCH
1Move the lever up or down to signal the
turning direction. When the turn is com-
pleted, the turn signals cancel automatically.
Lane change signal
2To signal a lane change, move the lever up or
down to the point where the indicator light
begins to flash, but the lever does not latch.
FOG LIGHT SWITCH (if so equipped)
To turn the fog lights on, turn the headlight switch
position, then turn the fog light
switch to the
To turn the fog lights on with the headlight switch
in the AUTO position (if so equipped) , the head-
lights must be on, then turn the fog light switch to
To turn the fog lights off, turn the fog light switch
to the OFF position.
The headlights must be on and the low beams
selected for the fog lights to operate. The fog
lights automatically turn off when the high beam
headlights are selected.
2-32Instruments and controls
Page 112 of 440

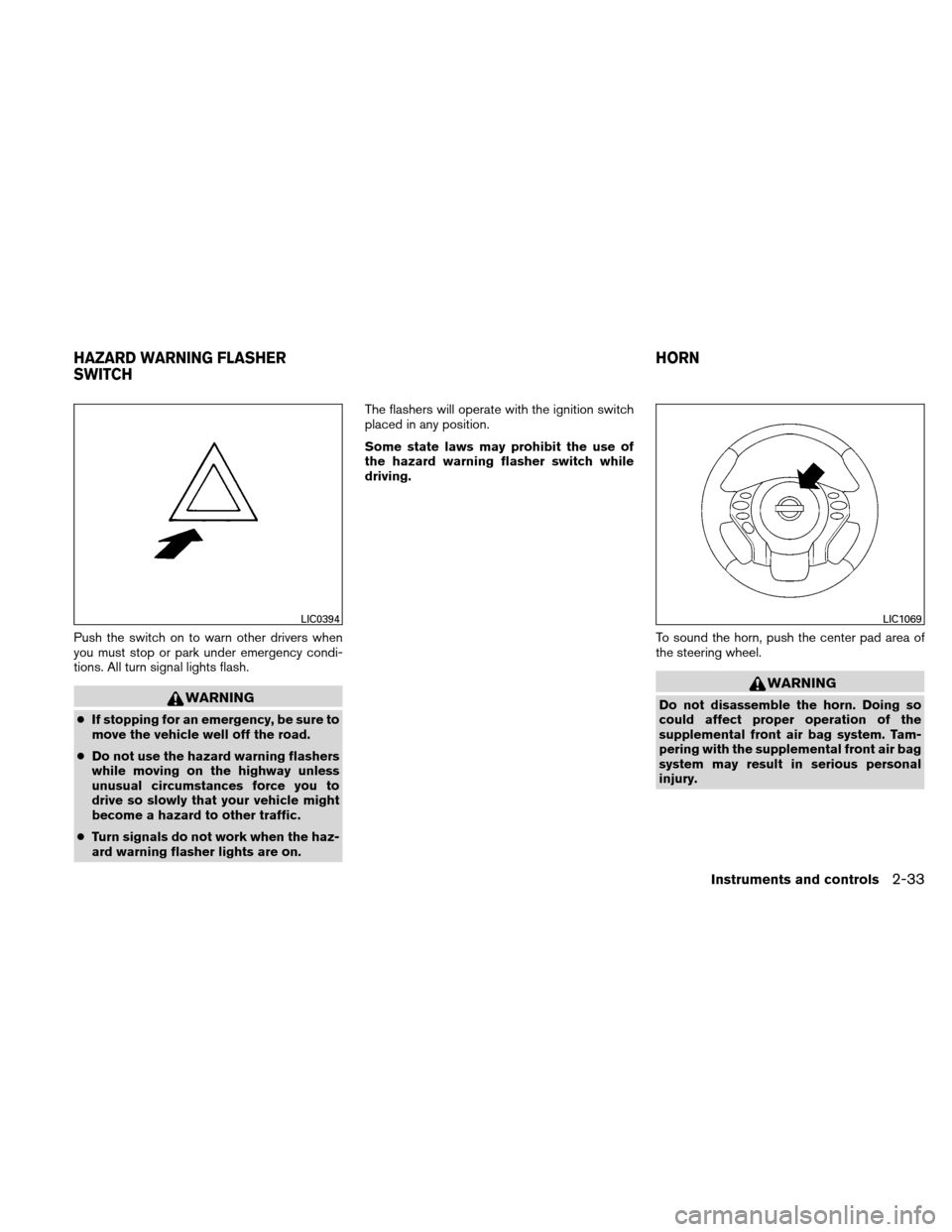

Push the switch on to warn other drivers when
you must stop or park under emergency condi-
tions. All turn signal lights flash.
●If stopping for an emergency, be sure to
move the vehicle well off the road.
● Do not use the hazard warning flashers
while moving on the highway unless
unusual circumstances force you to
drive so slowly that your vehicle might
become a hazard to other traffic.
● Turn signals do not work when the haz-
ard warning flasher lights are on. The flashers will operate with the ignition switch
placed in any position.
Some state laws may prohibit the use of
the hazard warning flasher switch while
To sound the horn, push the center pad area of
the steering wheel.
Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system. Tam-
pering with the supplemental front air bag
system may result in serious personal
HAZARD WARNING FLASHER
Instruments and controls2-33
Page 113 of 440

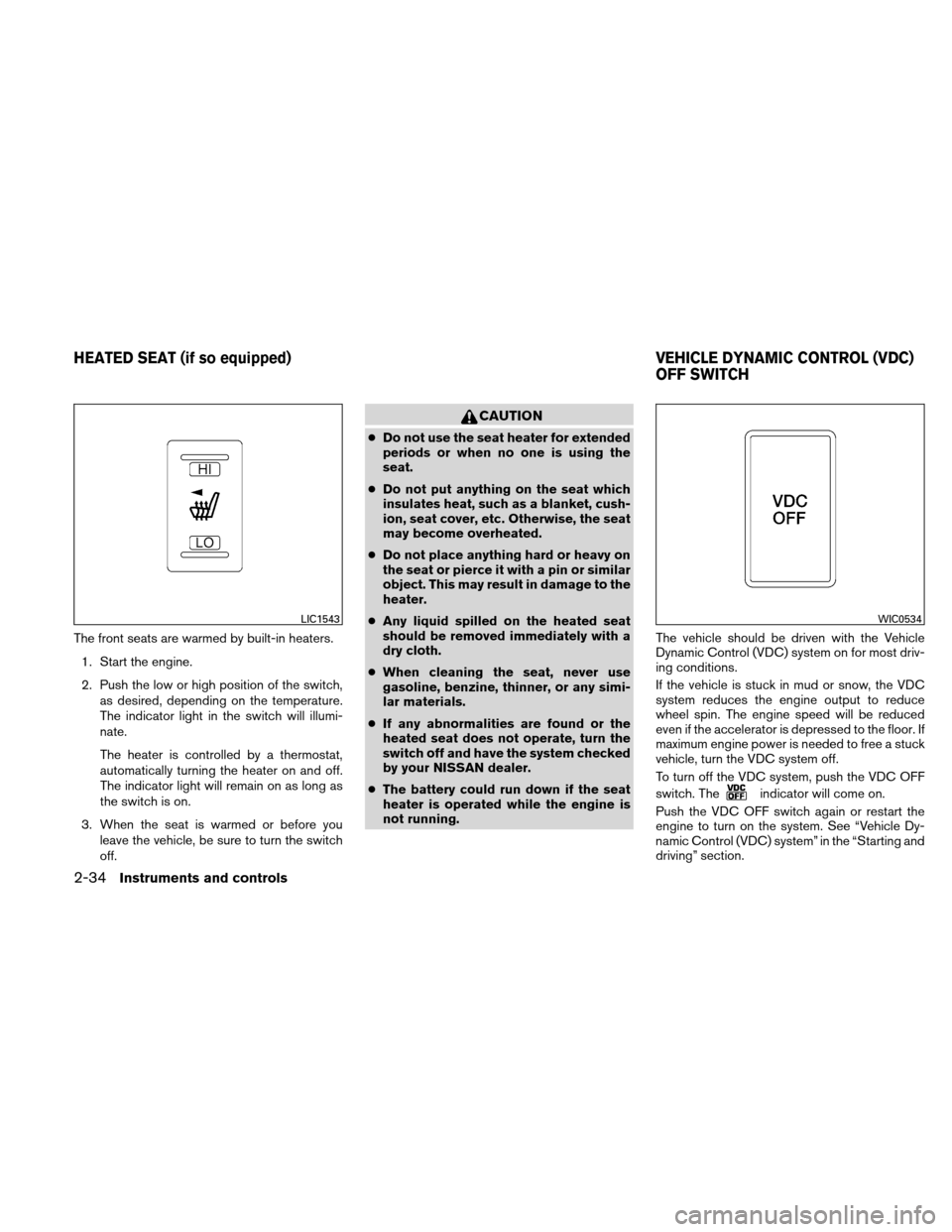

The front seats are warmed by built-in heaters.1. Start the engine.
2. Push the low or high position of the switch, as desired, depending on the temperature.
The indicator light in the switch will illumi-
The heater is controlled by a thermostat,
automatically turning the heater on and off.
The indicator light will remain on as long as
the switch is on.
3. When the seat is warmed or before you leave the vehicle, be sure to turn the switch
●Do not use the seat heater for extended
periods or when no one is using the
● Do not put anything on the seat which
insulates heat, such as a blanket, cush-
ion, seat cover, etc. Otherwise, the seat
may become overheated.
● Do not place anything hard or heavy on
the seat or pierce it with a pin or similar
object. This may result in damage to the
● Any liquid spilled on the heated seat
should be removed immediately with a
● When cleaning the seat, never use
gasoline, benzine, thinner, or any simi-
● If any abnormalities are found or the
heated seat does not operate, turn the
switch off and have the system checked
by your NISSAN dealer.
● The battery could run down if the seat
heater is operated while the engine is
not running. The vehicle should be driven with the Vehicle
Dynamic Control (VDC) system on for most driv-
If the vehicle is stuck in mud or snow, the VDC
system reduces the engine output to reduce
wheel spin. The engine speed will be reduced
even if the accelerator is depressed to the floor. If
maximum engine power is needed to free a stuck
vehicle, turn the VDC system off.
To turn off the VDC system, push the VDC OFF
indicator will come on.
Push the VDC OFF switch again or restart the
engine to turn on the system. See “Vehicle Dy-
namic Control (VDC) system” in the “Starting and
HEATED SEAT (if so equipped) VEHICLE DYNAMIC CONTROL (VDC)
2-34Instruments and controls
Page 114 of 440

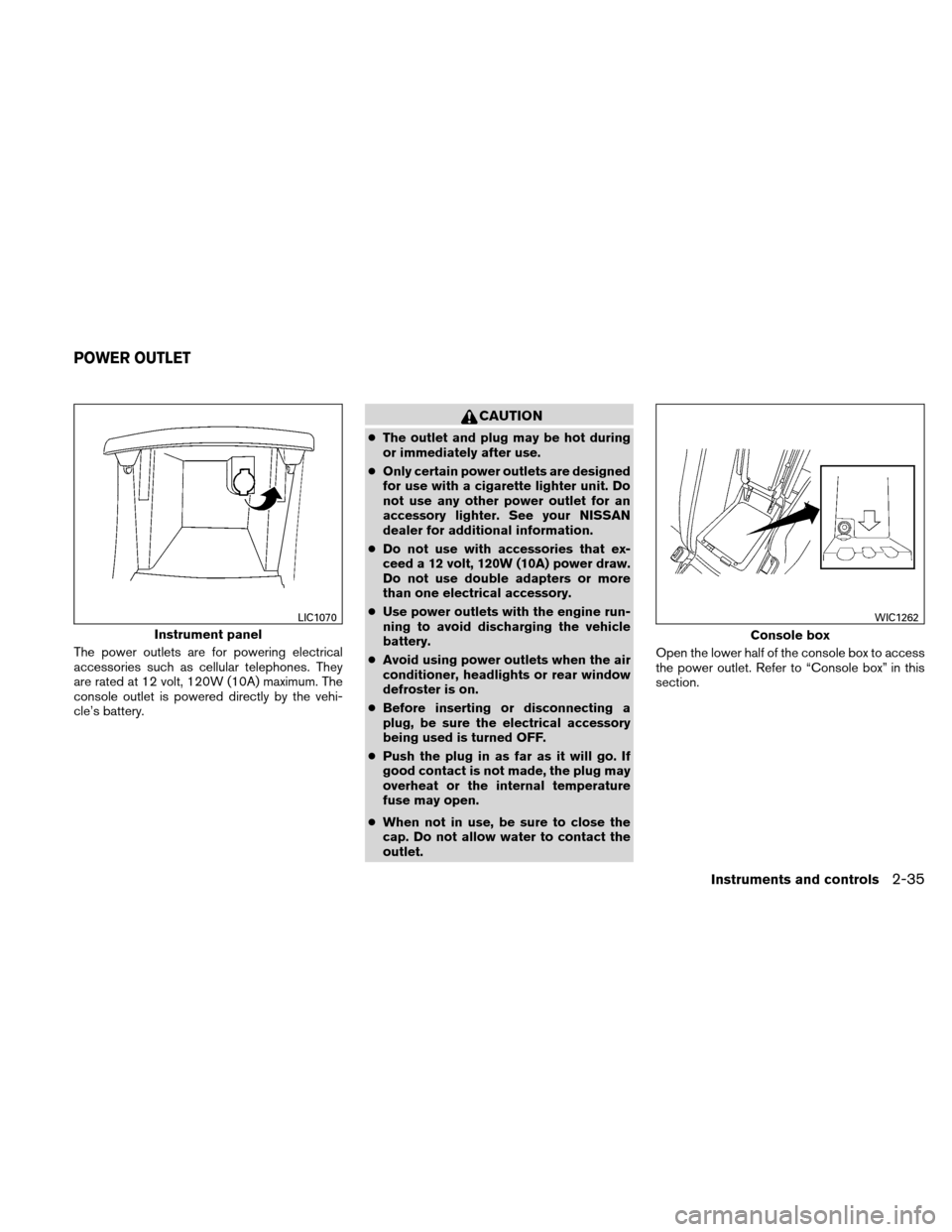

The power outlets are for powering electrical
accessories such as cellular telephones. They
are rated at 12 volt, 120W (10A) maximum. The
console outlet is powered directly by the vehi-
●The outlet and plug may be hot during
or immediately after use.
● Only certain power outlets are designed
for use with a cigarette lighter unit. Do
not use any other power outlet for an
accessory lighter. See your NISSAN
dealer for additional information.
● Do not use with accessories that ex-
ceed a 12 volt, 120W (10A) power draw.
Do not use double adapters or more
than one electrical accessory.
● Use power outlets with the engine run-
ning to avoid discharging the vehicle
● Avoid using power outlets when the air
conditioner, headlights or rear window
defroster is on.
● Before inserting or disconnecting a
plug, be sure the electrical accessory
being used is turned OFF.
● Push the plug in as far as it will go. If
good contact is not made, the plug may
overheat or the internal temperature
fuse may open.
● When not in use, be sure to close the
cap. Do not allow water to contact the
outlet. Open the lower half of the console box to access
the power outlet. Refer to “Console box” in this
Instruments and controls2-35
Page 115 of 440

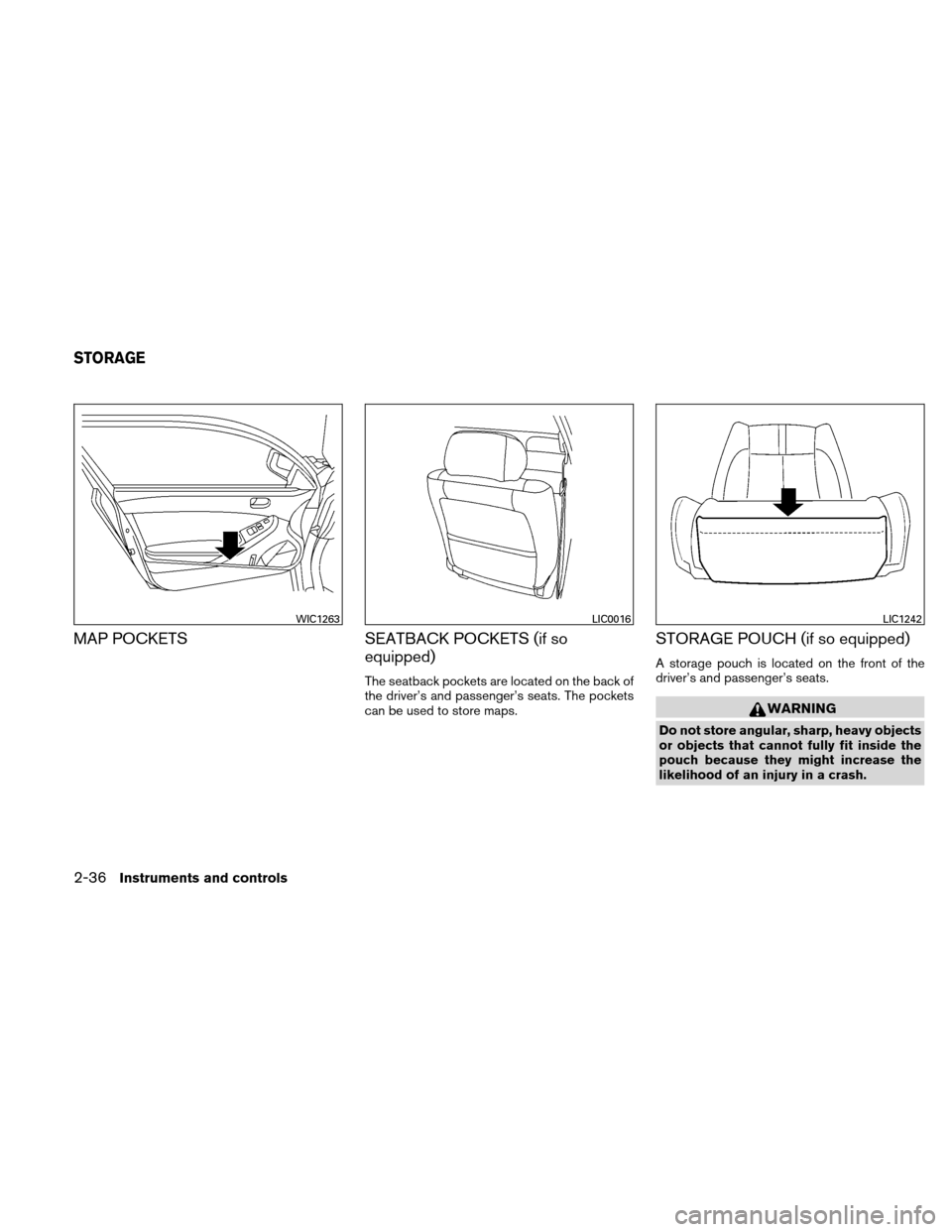

MAP POCKETSSEATBACK POCKETS (if so
The seatback pockets are located on the back of
the driver’s and passenger’s seats. The pockets
can be used to store maps.
STORAGE POUCH (if so equipped)
A storage pouch is located on the front of the
driver’s and passenger’s seats.
Do not store angular, sharp, heavy objects
or objects that cannot fully fit inside the
pouch because they might increase the
likelihood of an injury in a crash.
2-36Instruments and controls
Page 116 of 440

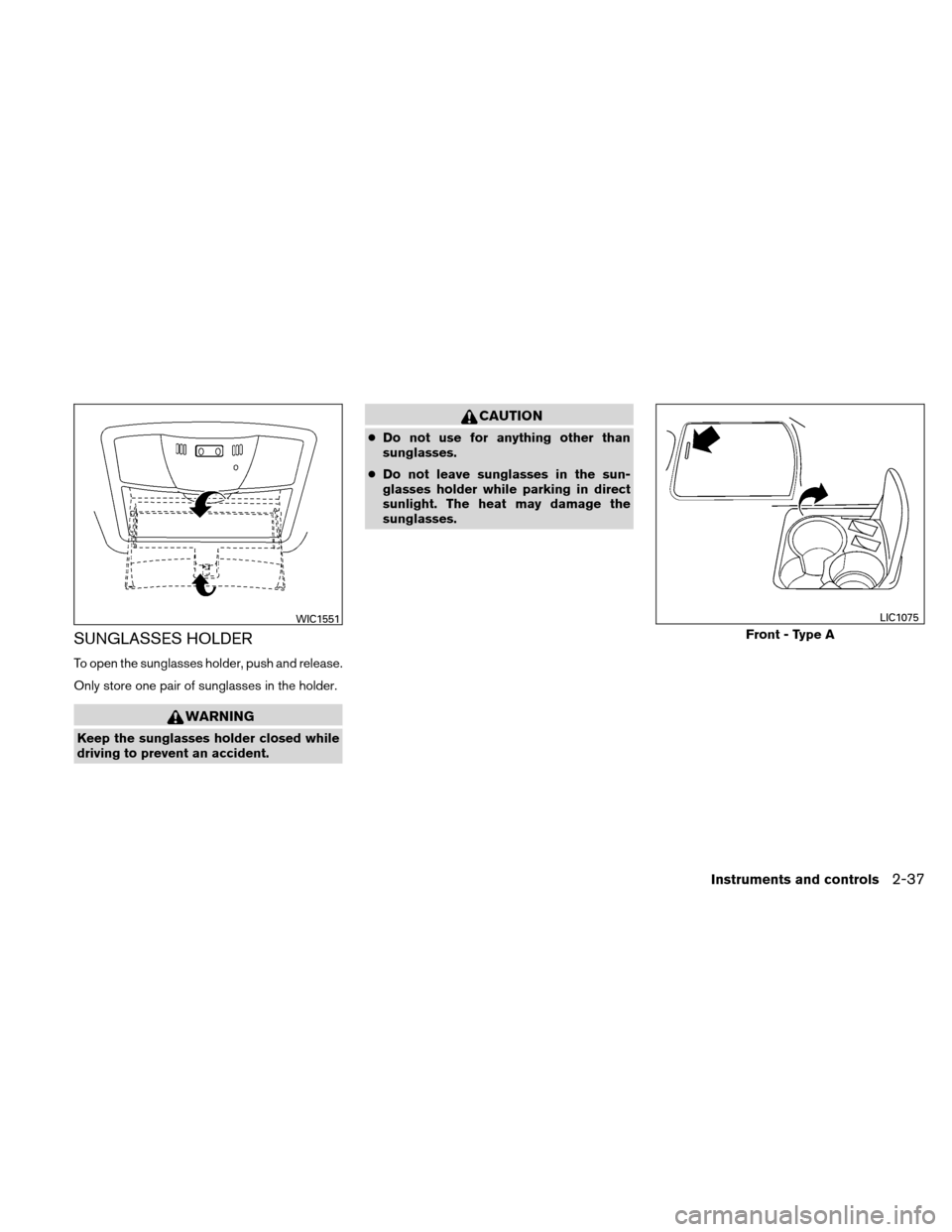

To open the sunglasses holder, push and release.
Only store one pair of sunglasses in the holder.
Keep the sunglasses holder closed while
driving to prevent an accident.
●Do not use for anything other than
● Do not leave sunglasses in the sun-
glasses holder while parking in direct
sunlight. The heat may damage the
Front - Type A
Instruments and controls2-37
Page 117 of 440

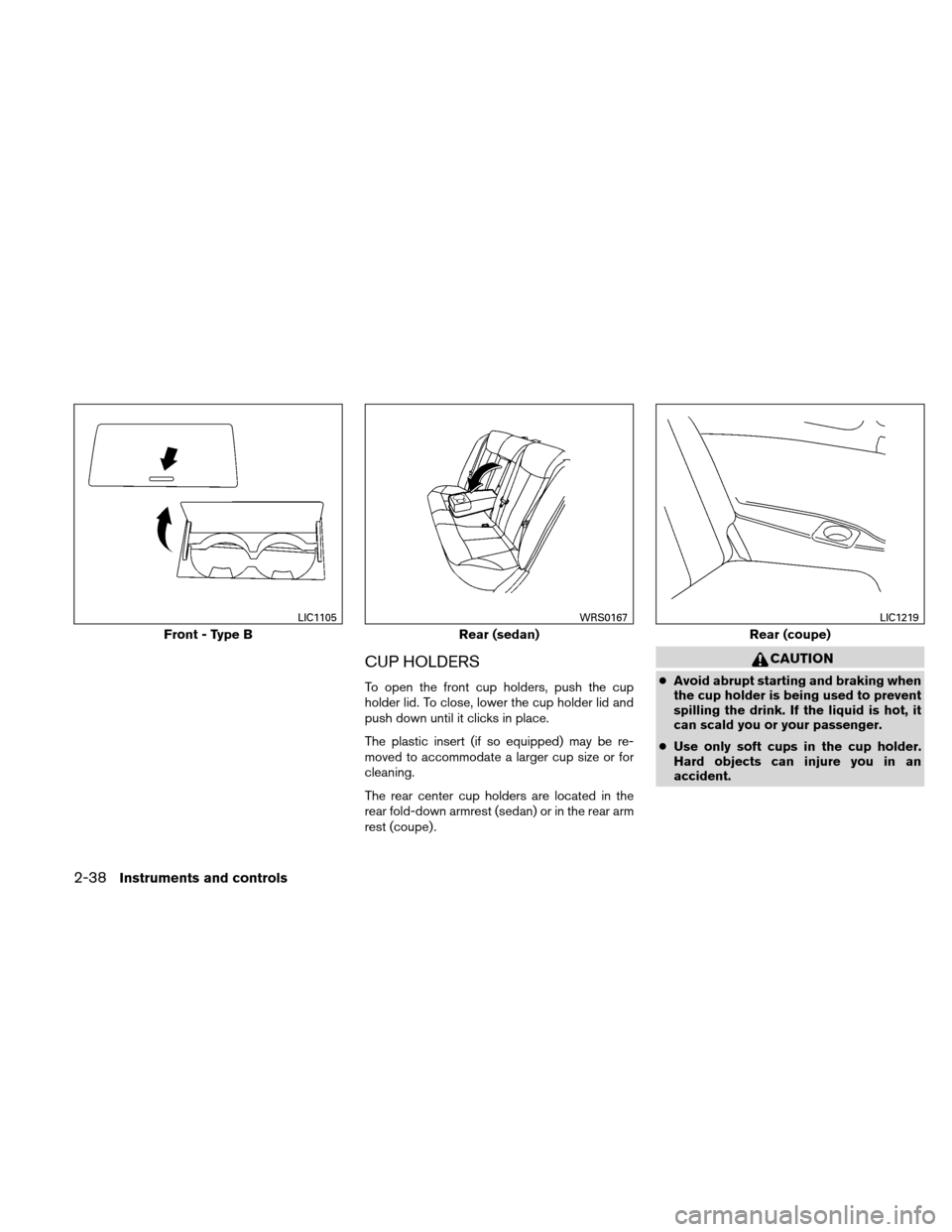

To open the front cup holders, push the cup
holder lid. To close, lower the cup holder lid and
push down until it clicks in place.
The plastic insert (if so equipped) may be re-
moved to accommodate a larger cup size or for
The rear center cup holders are located in the
rear fold-down armrest (sedan) or in the rear arm
rest (coupe) .
●Avoid abrupt starting and braking when
the cup holder is being used to prevent
spilling the drink. If the liquid is hot, it
can scald you or your passenger.
● Use only soft cups in the cup holder.
Hard objects can injure you in an
Front - Type B
2-38Instruments and controls
Page 118 of 440

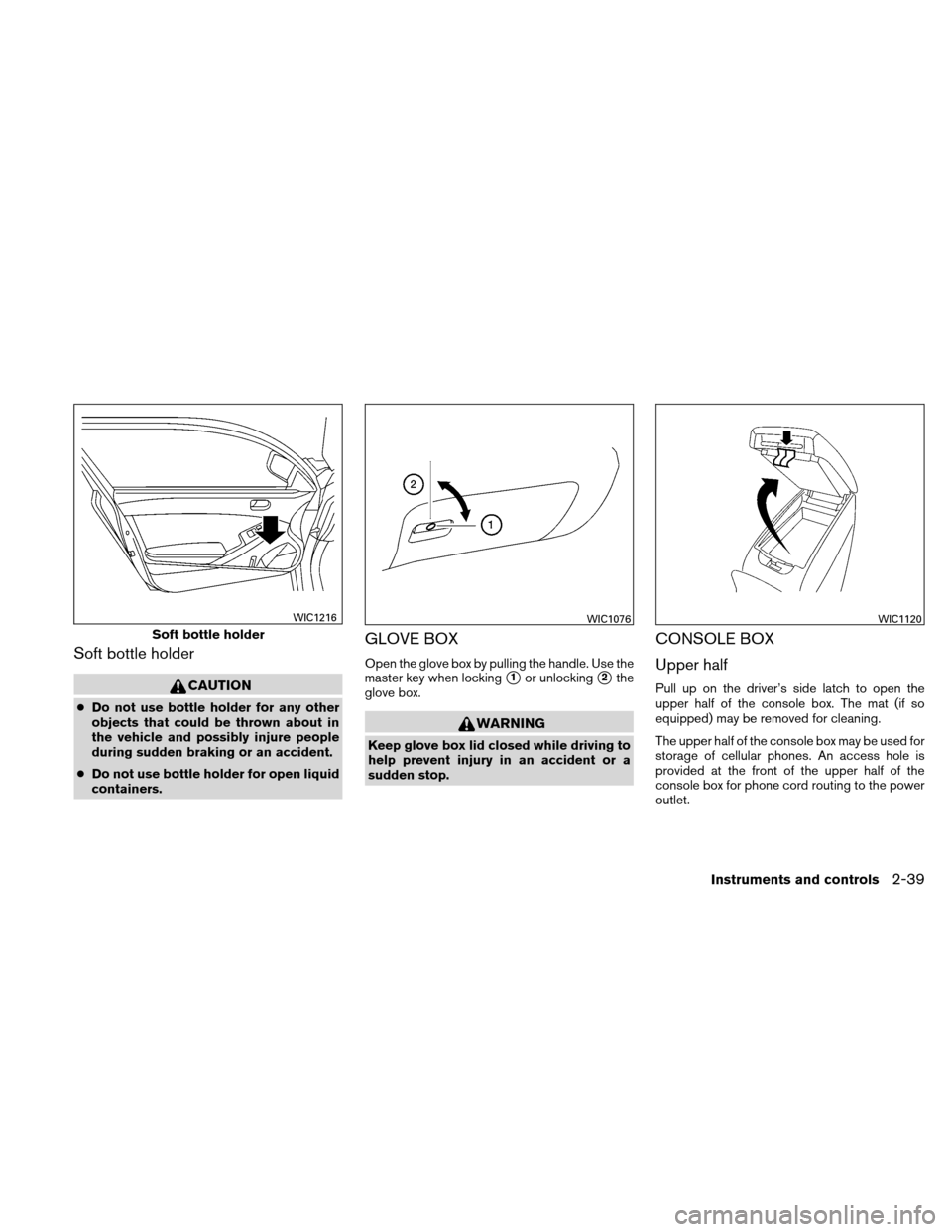

Soft bottle holder
●Do not use bottle holder for any other
objects that could be thrown about in
the vehicle and possibly injure people
during sudden braking or an accident.
● Do not use bottle holder for open liquid
Open the glove box by pulling the handle. Use the
master key when locking
Keep glove box lid closed while driving to
help prevent injury in an accident or a
Pull up on the driver’s side latch to open the
upper half of the console box. The mat (if so
equipped) may be removed for cleaning.
The upper half of the console box may be used for
storage of cellular phones. An access hole is
provided at the front of the upper half of the
console box for phone cord routing to the power
Soft bottle holder
Instruments and controls2-39
Page 119 of 440

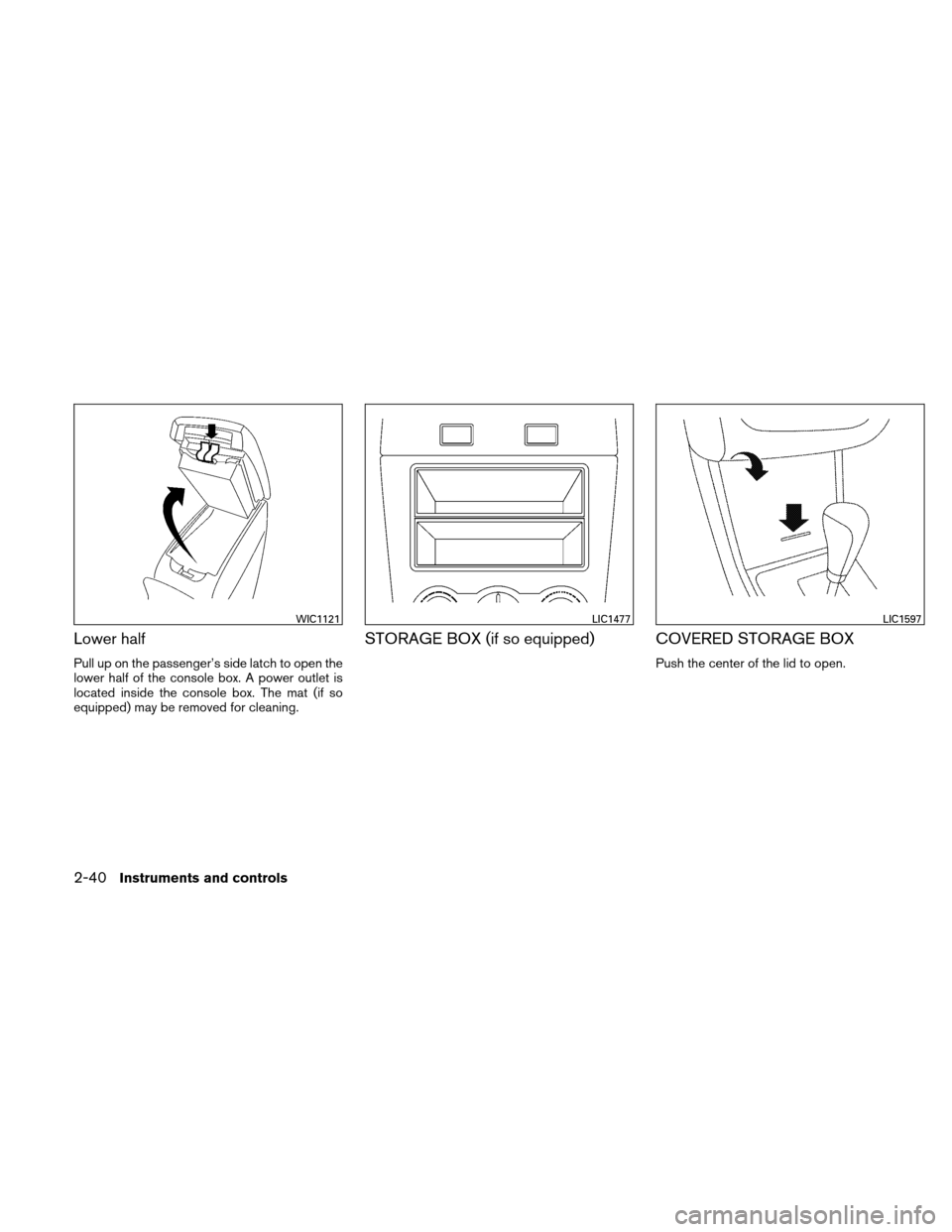

Pull up on the passenger’s side latch to open the
lower half of the console box. A power outlet is
located inside the console box. The mat (if so
equipped) may be removed for cleaning.
STORAGE BOX (if so equipped) COVERED STORAGE BOX
Push the center of the lid to open.
2-40Instruments and controls
Page 120 of 440

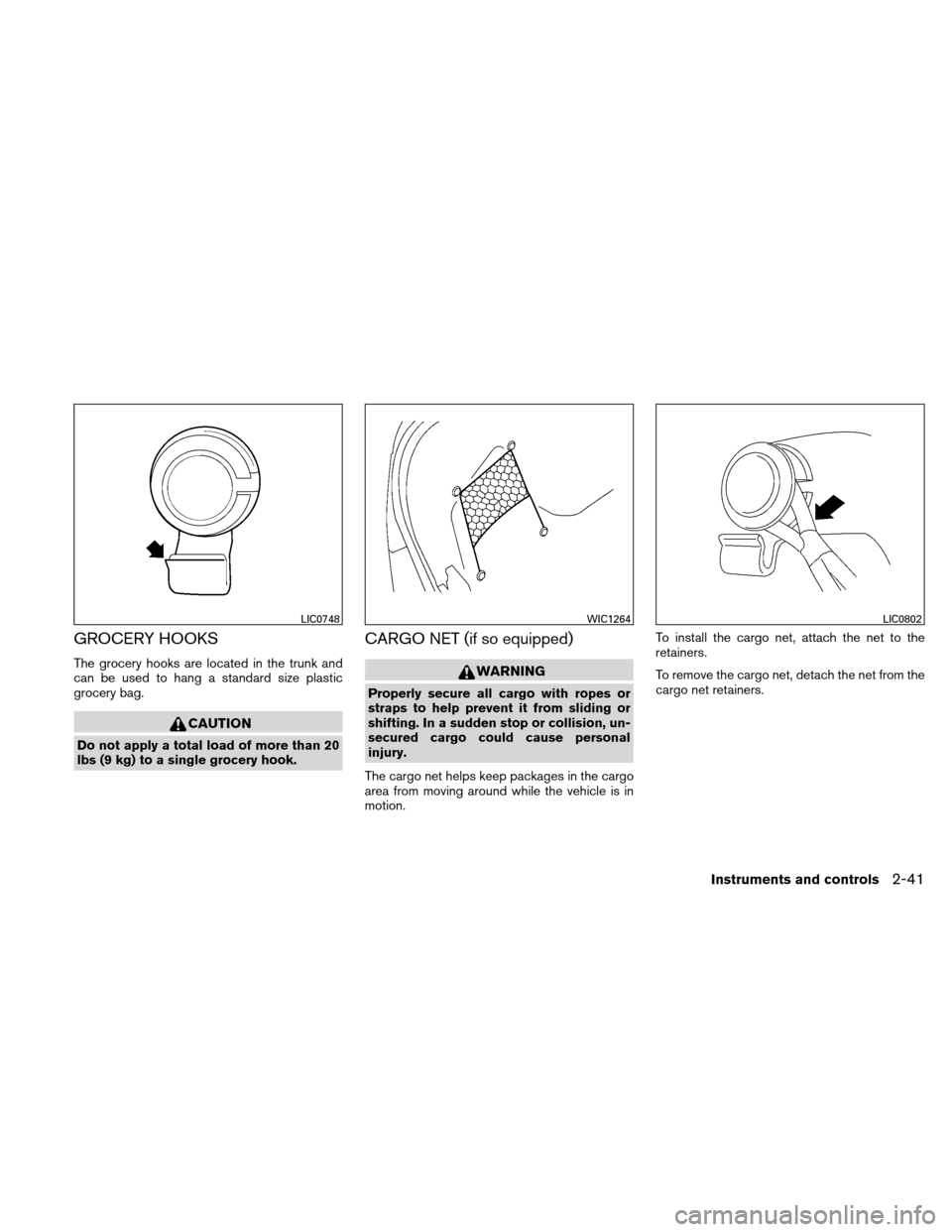

The grocery hooks are located in the trunk and
can be used to hang a standard size plastic
Do not apply a total load of more than 20
lbs (9 kg) to a single grocery hook.
CARGO NET (if so equipped)
Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. In a sudden stop or collision, un-
secured cargo could cause personal
The cargo net helps keep packages in the cargo
area from moving around while the vehicle is in
motion. To install the cargo net, attach the net to the
To remove the cargo net, detach the net from the
cargo net retainers.
Instruments and controls2-41
