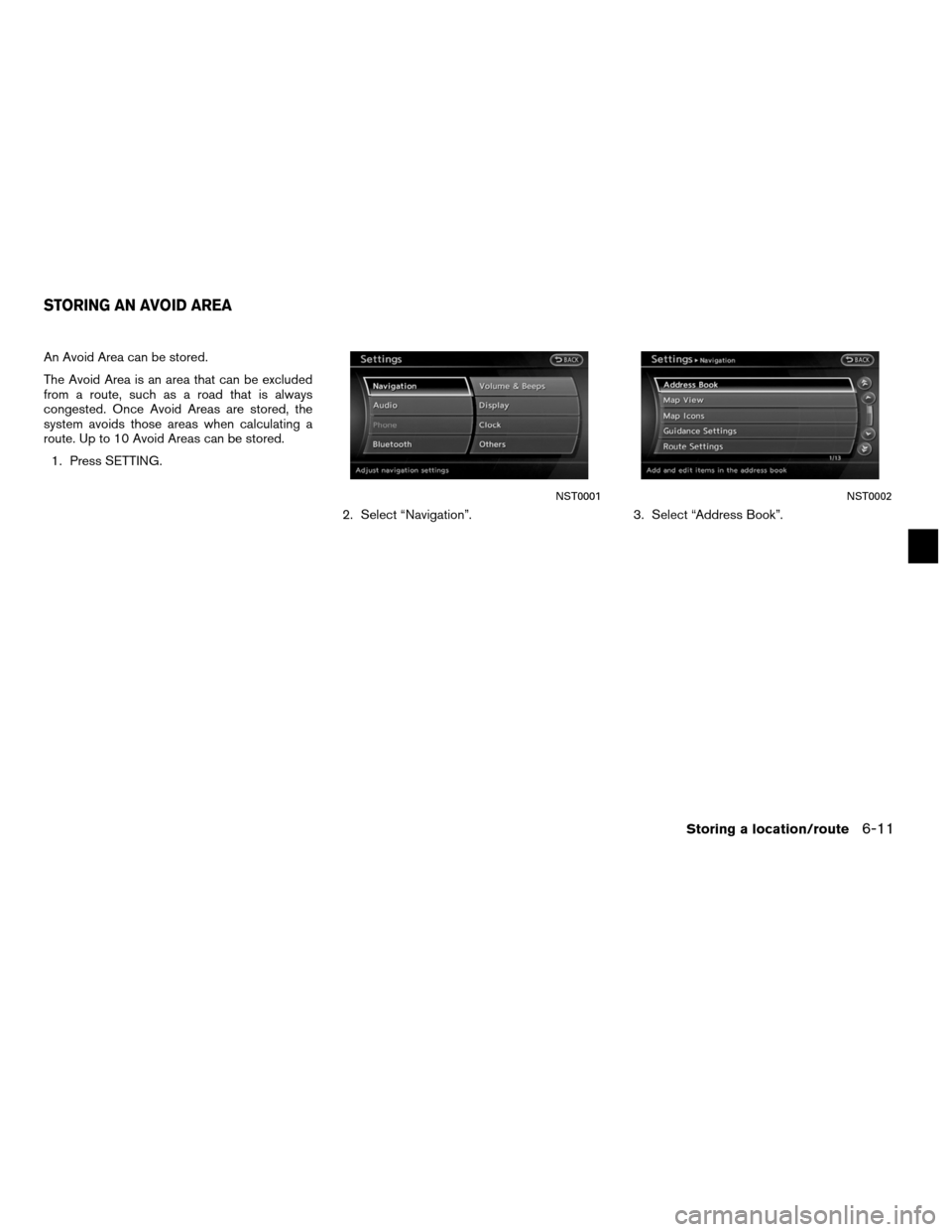

An Avoid Area can be stored.
The Avoid Area is an area that can be excluded
from a route, such as a road that is always
congested. Once Avoid Areas are stored, the
system avoids those areas when calculating a
route. Up to 10 Avoid Areas can be stored.1. Press SETTING.
2. Select “Navigation”. 3. Select “Address Book”.
NST0001NST0002
STORING AN AVOID AREA
Storing a location/route6-11

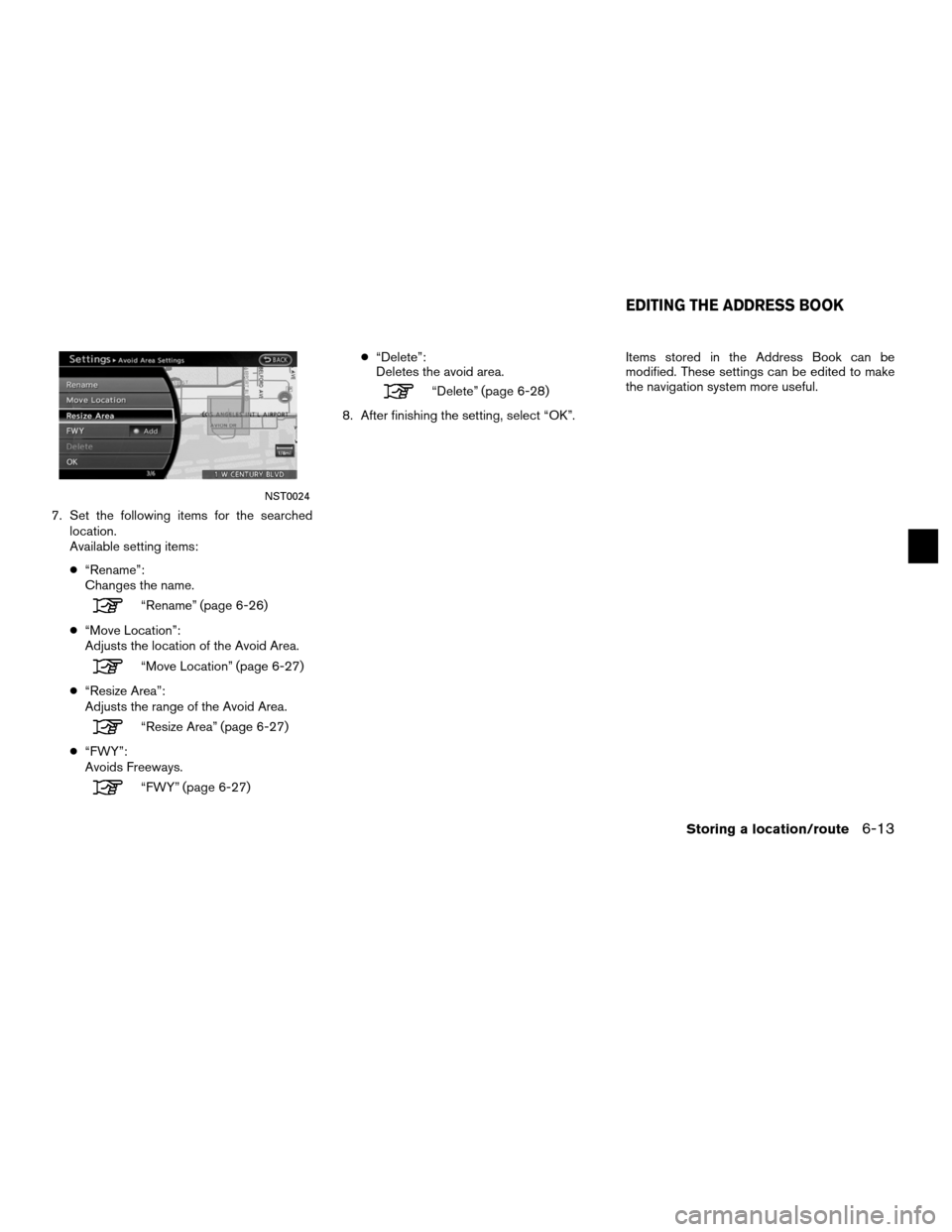

7. Set the following items for the searchedlocation.
Available setting items:
● “Rename”:
Changes the name.
“Rename” (page 6-26)
● “Move Location”:
Adjusts the location of the Avoid Area.
“Move Location” (page 6-27)
● “Resize Area”:
Adjusts the range of the Avoid Area.
“Resize Area” (page 6-27)
● “FWY”:
Avoids Freeways.
“FWY” (page 6-27) ●
“Delete”:
Deletes the avoid area.
“Delete” (page 6-28)
8. After finishing the setting, select “OK”. Items stored in the Address Book can be
modified. These settings can be edited to make
the navigation system more useful.
NST0024
EDITING THE ADDRESS BOOK
Storing a location/route6-13

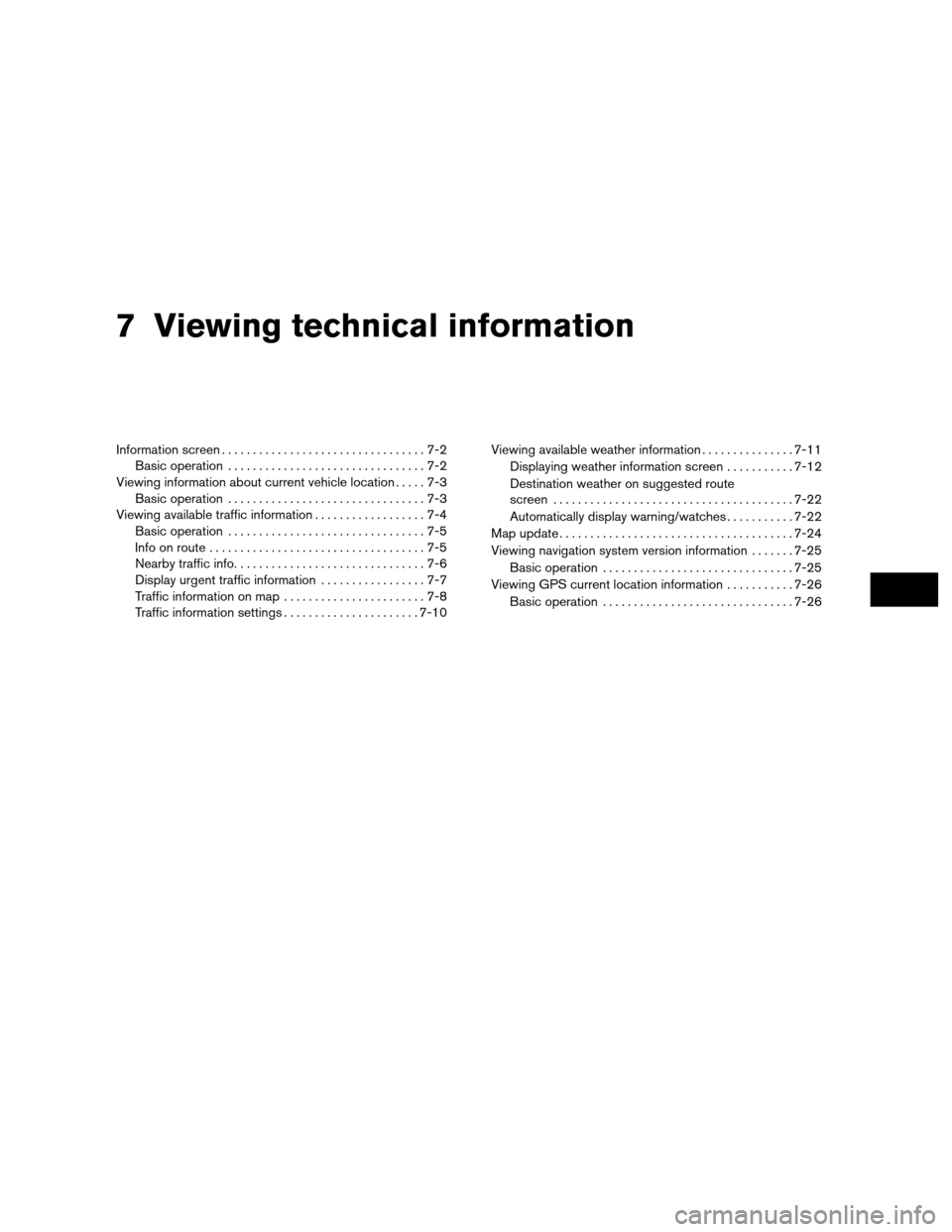

7 Viewing technical information
Information screen.................................7-2
Basic operation ................................7-2
Viewing information about current vehicle location .....7-3
Basic operation ................................7-3
Viewing available traffic information ..................7-4
Basic operation ................................7-5
Info on route ...................................7-5
Nearby traffic info. ..............................7-6
Display urgent traffic information .................7-7
Traffic information on map .......................7-8
Traffic information settings ......................7-10Viewing available weather information
...............7-11
Displaying weather information screen ...........7-12
Destination weather on suggested route
screen ....................................... 7-22
Automatically display warning/watches ...........7-22
Map update ...................................... 7-24
Viewing navigation system version information .......7-25
Basic operation ............................... 7-25
Viewing GPS current location information ...........7-26
Basic operation ............................... 7-26

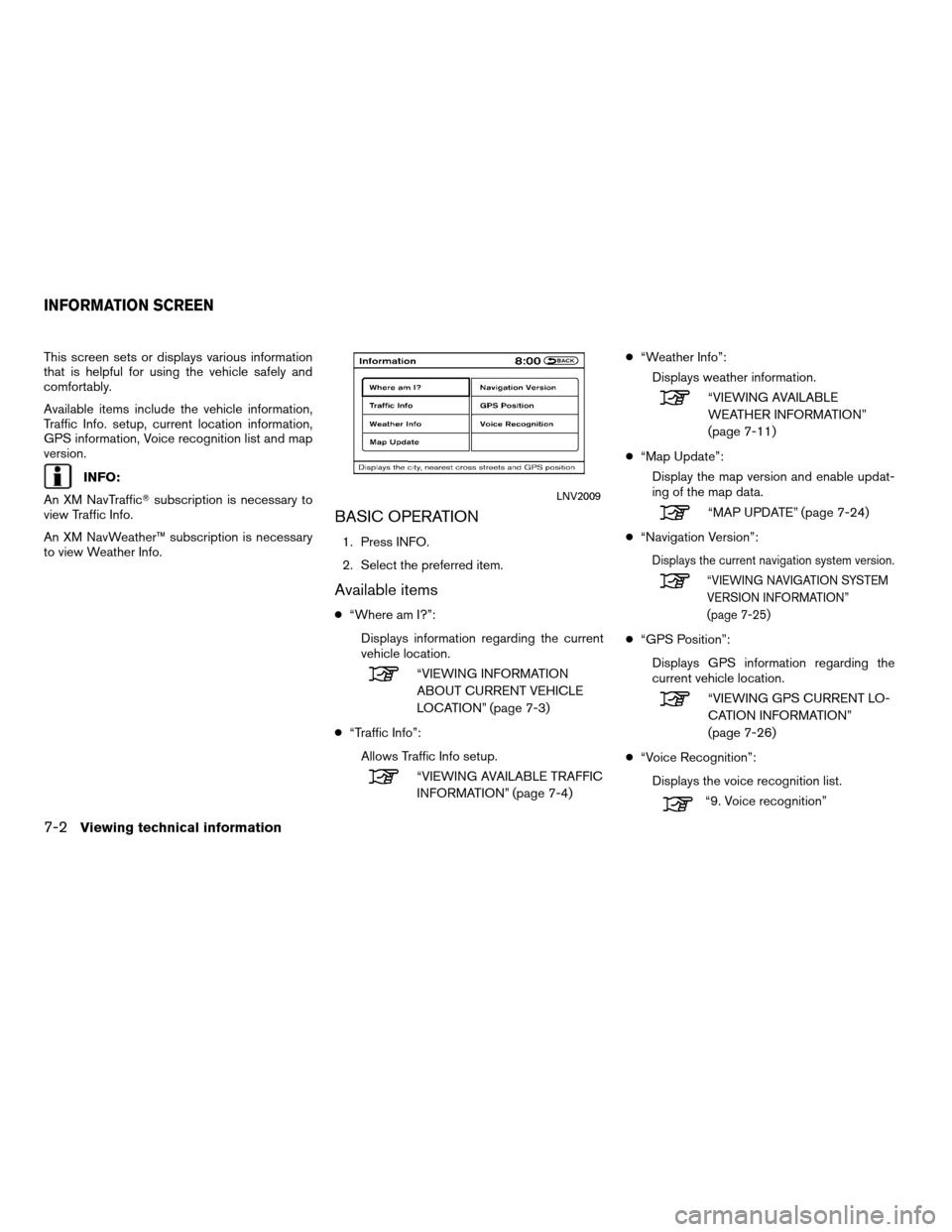

This screen sets or displays various information
that is helpful for using the vehicle safely and
comfortably.
Available items include the vehicle information,
Traffic Info. setup, current location information,
GPS information, Voice recognition list and map
version.
INFO:
An XM NavTraffic subscription is necessary to
view Traffic Info.
An XM NavWeather™ subscription is necessary
to view Weather Info.
BASIC OPERATION
1. Press INFO.
2. Select the preferred item.
Available items
● “Where am I?”:
Displays information regarding the current
vehicle location.
“VIEWING INFORMATION
ABOUT CURRENT VEHICLE
LOCATION” (page 7-3)
● “Traffic Info”:
Allows Traffic Info setup.
“VIEWING AVAILABLE TRAFFIC
INFORMATION” (page 7-4) ●
“Weather Info”:
Displays weather information.
“VIEWING AVAILABLE
WEATHER INFORMATION”
(page 7-11)
● “Map Update”:
Display the map version and enable updat-
ing of the map data.
“MAP UPDATE” (page 7-24)
● “Navigation Version”:
Displays the current navigation system version.
“VIEWING NAVIGATION SYSTEM
VERSION INFORMATION”
(page 7-25)
●“GPS Position”:
Displays GPS information regarding the
current vehicle location.
“VIEWING GPS CURRENT LO-
CATION INFORMATION”
(page 7-26)
● “Voice Recognition”:
Displays the voice recognition list.
“9. Voice recognition”
LNV2009
INFORMATION SCREEN
7-2Viewing technical information

Contents of vehicle location informa-
tion
1Next Street:Displays the next street on the route.
2Current Street:Displays the current street on the route.
3Previous Street:Displays the previous street on the route.
4Displays the distance to the next intersec-
tion on the route.
5Displays the distance traveled from the pre-
vious intersection on the route. XM NavTraffic
information is a subscription ser-
vice offered by XM Satellite Radio.
This service provides real-time information re-
garding traffic flow, accidents, road construction
and other incidents, where available.
XM NavTraffic combines information from com-
mercial and public traffic data providers includ-
ing government departments of transportation,
police, emergency services, road sensors, cam-
eras and aircraft reports. The traffic information
is broadcast to the vehicle by the XM satellites.
Available traffic information on the route the
driver selected is shown on the navigation
screen so traffic conditions between you and the
destination are known. Three types of real-time
traffic information for major roadways are shown
on the navigation system:
● Unscheduled traffic data for example, acci-
dents and disabled vehicles.
● Scheduled traffic data, for example road con-
struction and road closures.
● Traffic flow information (rate of speed data) .
WARNING
XM NavTraffic information is not a
substitute for attentive driving. Traffic
conditions change constantly and
emergency situations can arise without
warning. Relying only on XM NavTraf-
fic information may lead to a collision
and could result in serious personal
injury.
NOTE:
Flow information is provided only for
roads equipped with traffic sensors and is
not available in all markets covered by the
service. Flow data may not be available on
portions of a road that is under
construction.
XM NavTraffic information is available in limited
markets. To subscribe or to check if this service
is available in the area:
call 1-800-XM-RADIO (1-800-967-2346) or
see www.xmradio.com/navtraffic
NIN0054
VIEWING AVAILABLE TRAFFIC IN-
FORMATION
7-4Viewing technical information

4. Select the preferred setting. The indicatorfor the selected setting illuminates.
Available setting items
●Use Traffic Info.:
Enables all traffic information related
functions.
● Show Incidents on Map:
Displays the traffic incidents (e.g., accident)
on the map screen.
● Show Traffic Flow on Map:
Displays the traffic flow with an arrow on the
map screen.
● Blink Red Traffic Flow:
Blinks the red traffic flow lines that repre-
sent congestions. ●
Traffic Announcements:
Announces the traffic information event on
the route.
INFO:
● Even when “Show Traffic Flow On Map” and
“Show Incidents on Map” are set to off, the list
display of “Info On Route” and “Nearby Traffic
Info” will not be affected.
● Even when “Traffic Announcements” is set to
off, the route guidance will not be affected.
Also, the announcement of emergency infor-
mation and weather information will not be
turned off.
Voice command
1. Press
located on the steering wheel
switch.
2. After the tone sounds, speak a command. To turn on or off the traffic information sys-
tem: “Information” “Traffic Information”
(Standard mode)
“Traffic Information” (Alternate command
mode) XM NavWeather™ information is a subscription
service offered by XM
Satellite Radio.
This service provides real-time information re-
garding current weather, temperature, warnings,
road conditions and forecasts where available.
The weather information is broadcast to the ve-
hicle by the XM satellites.
The service enables you to view the following in-
formation on the navigation system.
*Current weather information icon of the destina-
tion on the screen of suggested route
*Detailed weather information and forecasts of
an area of interest
*Countrywide and local maps with the current
weather, temperature, warnings and road condi-
tion information
*List of warning/watches events detected
around the current location
*Pop-up messages on the navigation screen
with voice announcements when warnings and
watches are detected around the current loca-
tion
NIN0038
VIEWING AVAILABLE WEATHER IN-
FORMATION
Viewing technical information7-11

The message includes the weather icon and text
describing the event.
INFO:
● The pop-up messages and announcements
can be set to on or off.
● If multiple warning/watch events are detected,
they will be displayed in order starting with the
one having the shortest linear distance from
the vehicle.
Weather information settings
The settings can be confirmed and changed for
the urgent weather information related functions. 1. Press SETTING.
2. Select “Navigation”.
3. Select “Weather Info Settings”.
4. Select the preferred setting. The indicator
for the setting illuminates.
Available setting items:
● Display an Alert for Weather Warnings:
Displays a message screen automatically
when the system detects urgent warning
information.
● Display an Alert for Weather Watches:
Displays a message screen automatically
when the system detects urgent watch
information.
● Voice Announcements:
Provides urgent information announcements
for warnings and watches around the current
location.
Types of warnings/watches
Category Warnings/Watches
Tornado Tornado Watch, Tornado
Hurricane Inland Hurricane Wind, Hurricane Force Wind, Hurricane, Typhoon
Storm Severe Thunderstorm Watch, Se-
vere Thunderstorm, Storm, Tropical
Storm, Inland Tropical Storm, Dust
Storm
Flood Flood Watch, Flash Flood, Coastal
Flood, Lakeshore Flood, High Surf,
Flood
Winter Winter Watch, Heavy Snow, Heavy
Sleet, Lake Effect Snow, Freeze,
Heavy Freezing Spray, Blizzard, Ice
Storm, Winter Storm
Wind Wind Watch, High Wind, Wind
Chill, Gale
Extremes Excessive Heat
Other Red Flag, Tsunami, Avalanche, Spe-
cial Marine, Earthquake, Law
Enforcement, Hazardous Materials,
Nuclear Power Plant, Radiological
Hazard, Civil Danger, Fire, Shelter in
Place, Volcano, Other Watches,
Other Warnings
NIN0033NIN0053
Viewing technical information7-23

●Do not put on any sticker or write anything on
either surface.
● If you need to clean it, do so with a soft cloth
by wiping from the centre outward.
● Do not use a DVD Laser Lens Cleaners as
they may cause the DVD player to
malfunction.
This displays the map version information.BASIC OPERATION
1. Press INFO.
2. Select “Navigation Version”.
3. Press BACK to return to the previousscreen. Press MAP to return to the current
location map screen.
NIN0034
VIEWING NAVIGATION SYSTEM VER-
SION INFORMATION
Viewing technical information7-25

The navigation system can be customized to
make it easier for you to use.
BASIC OPERATION
1. Press SETTING.
2. Select the preferred setting item.
Available setting items
● “Navigation”:
Adjust various settings of the navigation
system.
“Navigation setting” (page 8-7)
● “Audio”:
Refer to the vehicle Owner’s Manual.
● “Phone”:
Refer to the vehicle Owner’s Manual.
● “Bluetooth”:
Set Bluetooth Audio and Phone. Refer to the
vehicle Owner’s Manual. ●
“Volume and Beeps”:
”Volume adjustment” (page 8-17)
● “Display”:
“Display settings” (page 8-3)
● “Clock”:
“Clock settings” (page 8-18)
● “Others”:
– “Comfort”:
This item is displayed when the ignition
switch is in the ON position.
Refer to the vehicle Owner’s Manual.
– “Language & Units”:
“LANGUAGE AND UNIT
SETTINGS” (page 8-19)
– “Voice Recognition”:
“System feedback announce-
ment modes” (page 9-27)
INFO:
The displayed items vary depending on the
equipped options.
NSE0001
SETTINGS SCREEN
8-2Other settings

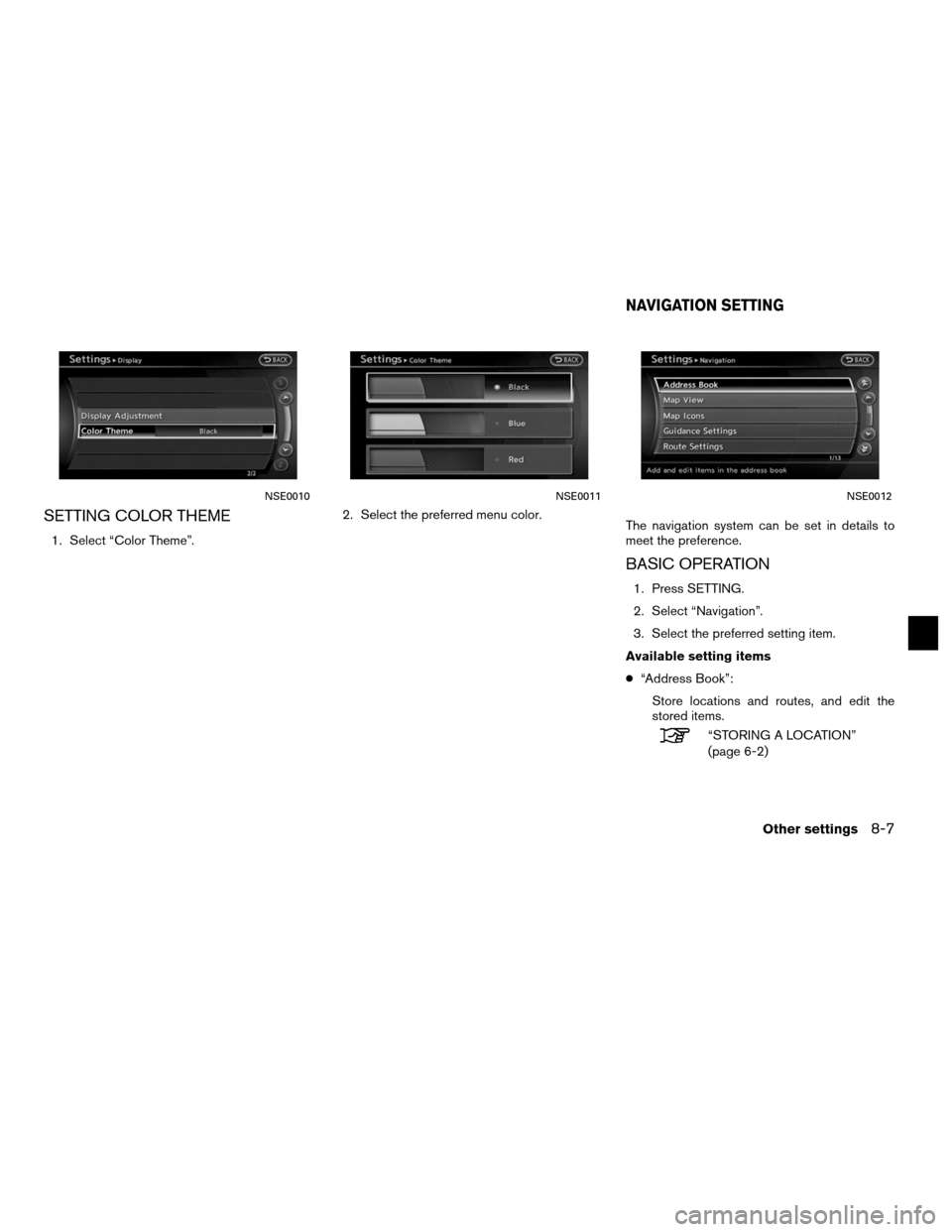

SETTING COLOR THEME
1. Select “Color Theme”.2. Select the preferred menu color.
The navigation system can be set in details to
meet the preference.
BASIC OPERATION
1. Press SETTING.
2. Select “Navigation”.
3. Select the preferred setting item.
Available setting items
● “Address Book”:
Store locations and routes, and edit the
stored items.
“STORING A LOCATION”
(page 6-2)
NSE0010NSE0011NSE0012
NAVIGATION SETTING
Other settings8-7
