NISSAN ALTIMA COUPE 2012 D32 / 4.G Navigation Manual
Page 21 of 313
2. Select “Delete” to delete the last numberentered.
Touch and hold “Delete” to delete all the
numbers entered. 3. After finishing the entry, select “List”.
● When “Back” is touched on the screen, the
screen returns to the previous screen even
when numbers have been entered. Select the map menu key while the current loca-
tion map screen or a scrolled map screen is dis-
played to display the menu corresponding to that
This menu can be used to access helpful func-
tions quickly, such as setting a destination and
searching for points of interest nearby.
“MENU SCREEN TYPES AND HOW
TO OPERATE” (page 2-6)
MAP MENU SCREEN
Page 22 of 313

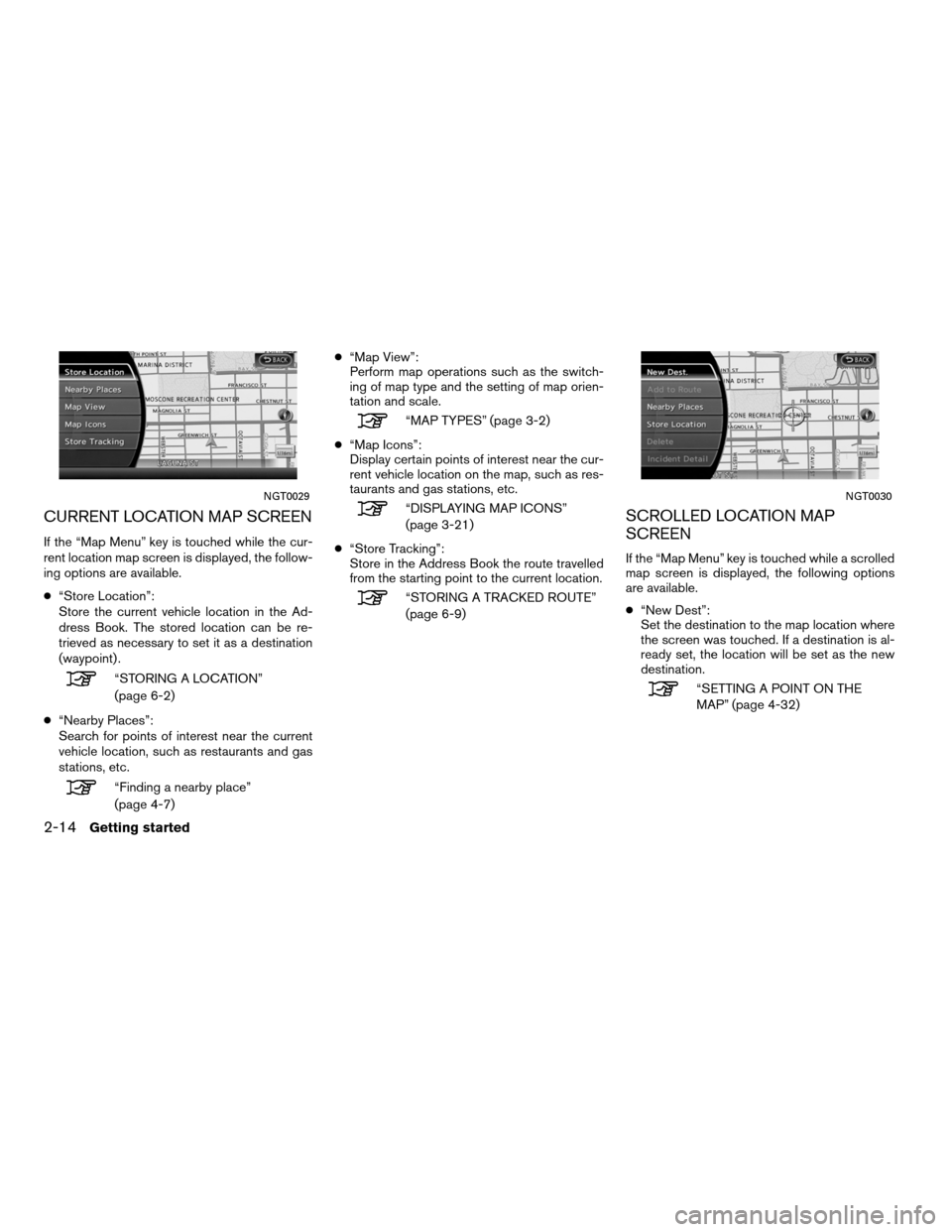

CURRENT LOCATION MAP SCREEN
If the “Map Menu” key is touched while the cur-
rent location map screen is displayed, the follow-
ing options are available.
Store the current vehicle location in the Ad-
dress Book. The stored location can be re-
trieved as necessary to set it as a destination
“STORING A LOCATION”
● “Nearby Places”:
Search for points of interest near the current
vehicle location, such as restaurants and gas
“Finding a nearby place”
(page 4-7) ●
Perform map operations such as the switch-
ing of map type and the setting of map orien-
tation and scale.
“MAP TYPES” (page 3-2)
● “Map Icons”:
Display certain points of interest near the cur-
rent vehicle location on the map, such as res-
taurants and gas stations, etc.
“DISPLAYING MAP ICONS”
● “Store Tracking”:
Store in the Address Book the route travelled
from the starting point to the current location.
“STORING A TRACKED ROUTE”
SCROLLED LOCATION MAP
If the “Map Menu” key is touched while a scrolled
map screen is displayed, the following options
● “New Dest”:
Set the destination to the map location where
the screen was touched. If a destination is al-
ready set, the location will be set as the new
“SETTING A POINT ON THE
MAP” (page 4-32)
Page 23 of 313
●“Add to Route”:
Set the map location where the screen was
touched to set a destination or a waypoint.
This is available only when the suggested
route is already set.
“Setting a destination or waypoint”
● “Nearby Places”:
Search for points of interest near the map lo-
cation where the screen was touched and set
them as a destination or waypoint.
Use the same search method as the one for
FINDING A NEARBY PLACE”
● “Store Location”:
Store in the address book the map location
where the screen was touched. The stored lo-
cation can be retrieved to set it as a destina-
tion or waypoint.
STORING A LOCATION”
Delete a stored location, destination or
waypoint. To delete it, place the cross pointer
over the corresponding icon. ●
Display the details of the traffic information
This function can be selected only when the
traffic information icon is displayed.
Place the cross pointer over the icon you want
Please note that incident details are a feature of
Traffic Information, and that an XM NavTraffic
subscription is required in order to receive Traffic
HOW TO STORE HOME LOCATION
If a home location is already stored in the Ad-
dress Book, it can be easily retrieved to set the
route to the stored home location.
The procedure to store the home location is the
same as for storing any other location.
“4. Setting a destination”
As an example, the procedure for storing the
home location by searching for a destination by
address is described here.
STORING YOUR HOME
Page 24 of 313

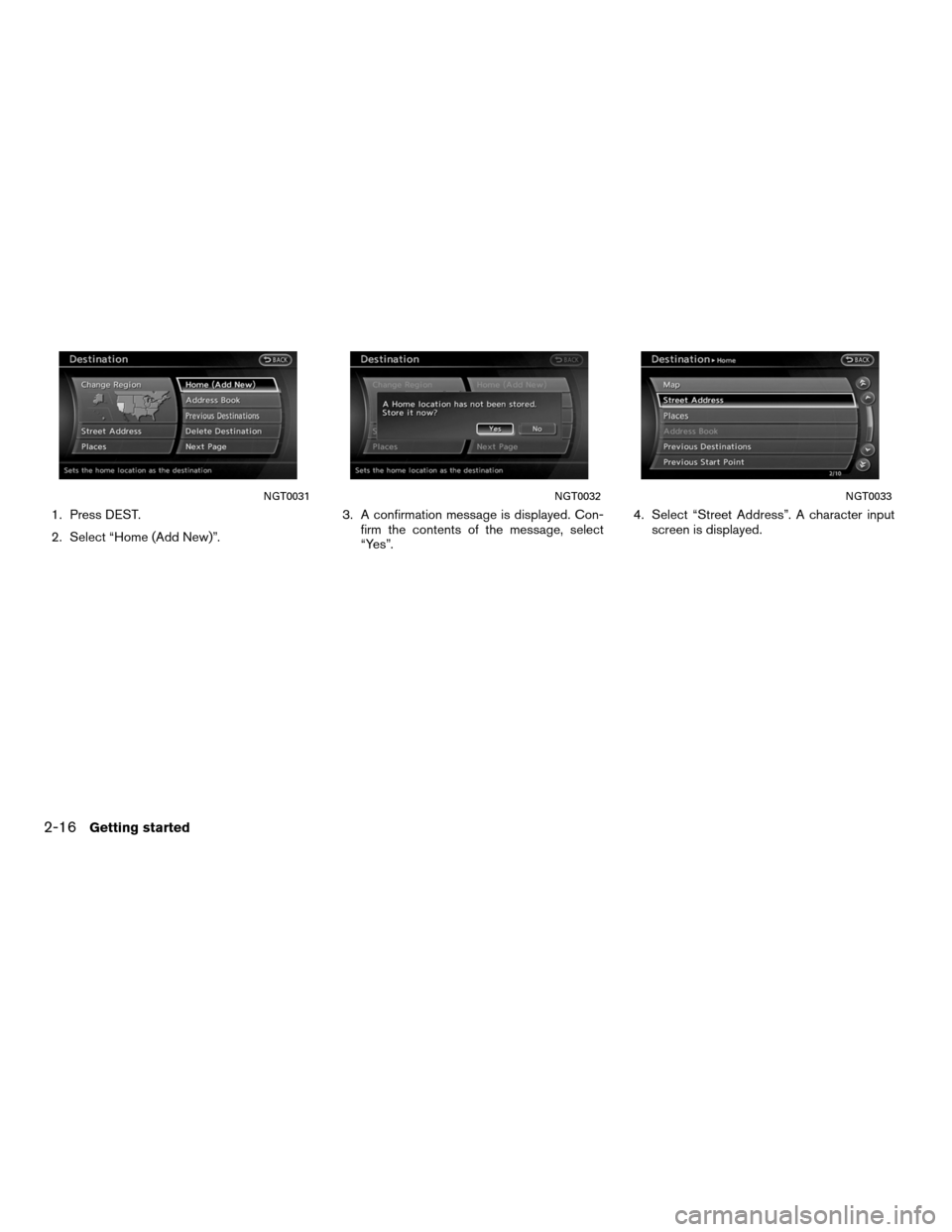

1. Press DEST.
2. Select “Home (Add New)”.3. A confirmation message is displayed. Con-
firm the contents of the message, select
“Yes”. 4. Select “Street Address”. A character input
screen is displayed.
Page 25 of 313

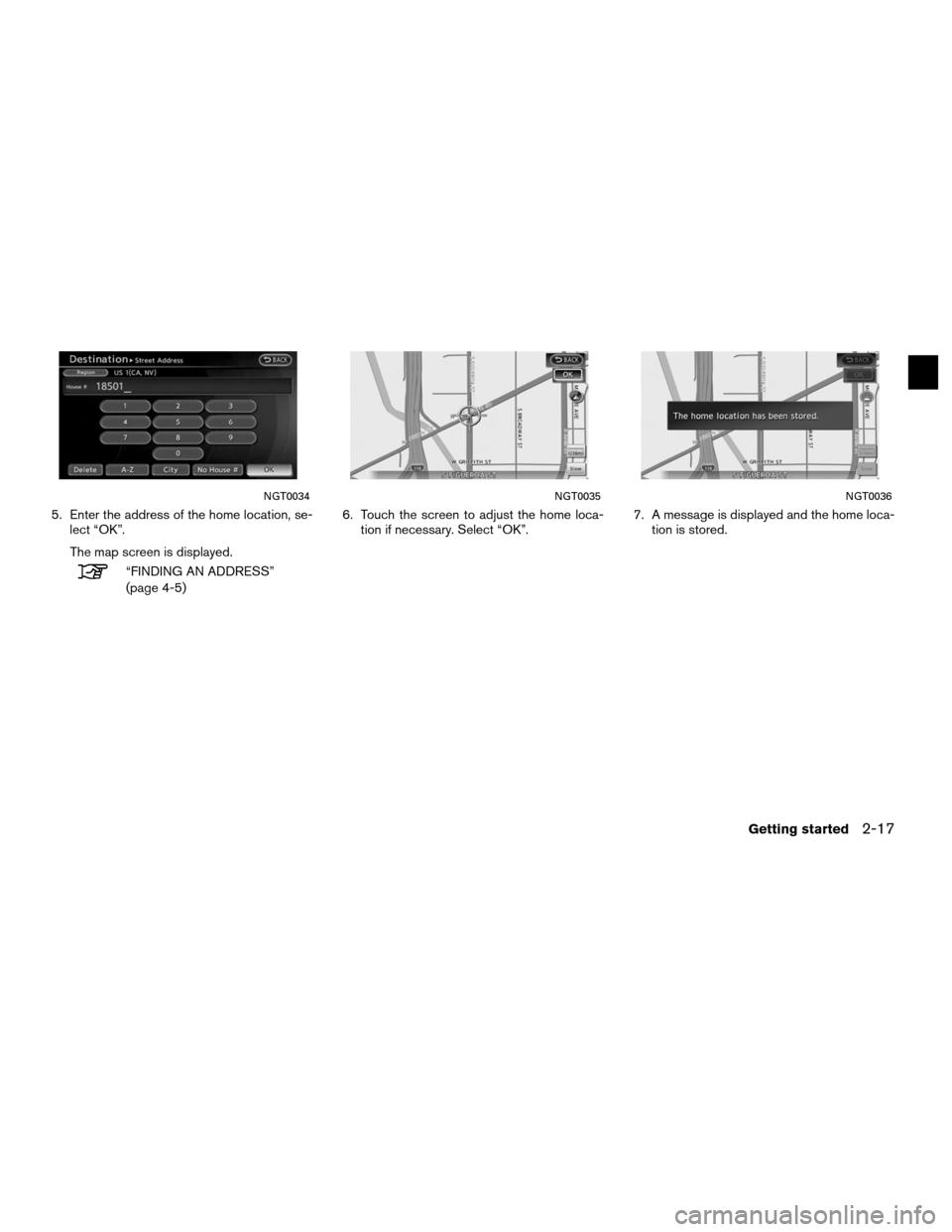

5. Enter the address of the home location, se-lect “OK”.
The map screen is displayed.
“FINDING AN ADDRESS”
(page 4-5) 6. Touch the screen to adjust the home loca-
tion if necessary. Select “OK”. 7. A message is displayed and the home loca-
tion is stored.
Page 26 of 313

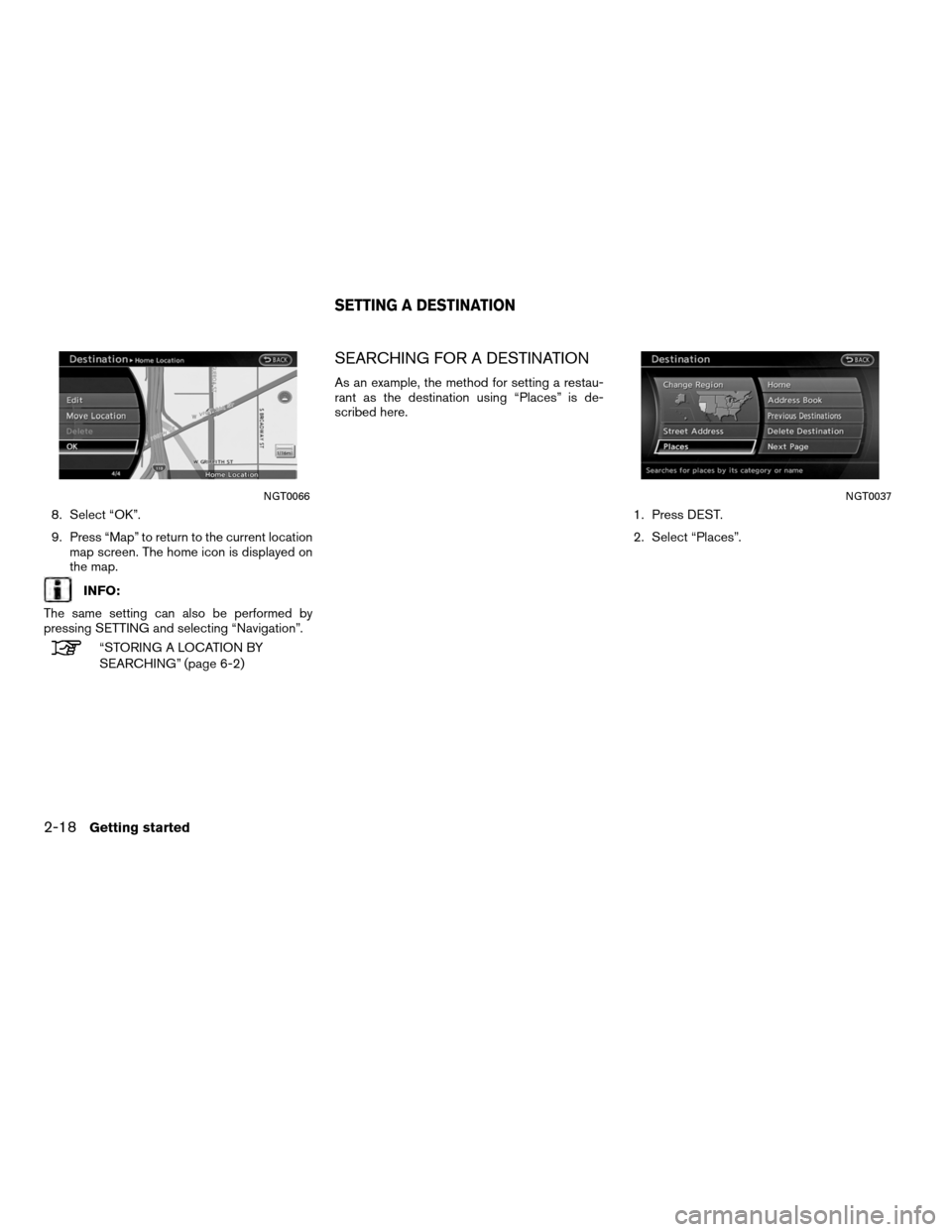

8. Select “OK”.
9. Press “Map” to return to the current locationmap screen. The home icon is displayed on
The same setting can also be performed by
pressing SETTING and selecting “Navigation”.
“STORING A LOCATION BY
SEARCHING” (page 6-2)
SEARCHING FOR A DESTINATION
As an example, the method for setting a restau-
rant as the destination using “Places” is de-
1. Press DEST.
2. Select “Places”.
SETTING A DESTINATION
Page 27 of 313
3. Select “Nearby RESTAURANT”.
The search can be narrowed down by selecting
“All Categories or Name” or “ZAGAT” on this
By selecting “All Categories or Name”, the area,
name of facility, etc. can be further specified. By
selecting “ZAGAT”, restaurants registered in the
ZAGAT database can be searched and sorted
by its rating regarding food, decor, cost, and
service. 4. Select the preferred restaurant from the list.INFO:
● The position of the selected location is dis-
played in the preview on the right side of the
● If there is a route already in progress, only
places along the current route will be listed.
Turn off “Show Along Route” at the top of list
to display all nearby places. 5. The entire route is shown on the map. Se-
lect “Start” after confirming the location of
the displayed destination.
● The system sets the destination to the se-
lected location and starts calculating a route.
● Even after setting a destination, the location of
the destination can be adjusted, the route can
be stored, etc. if necessary.
“PROCEDURES AFTER SETTING
A DESTINATION” (page 5-2)
STARTING ROUTE GUIDANCE
After setting the destination and performing
route calculation, the suggested route is
Page 28 of 313

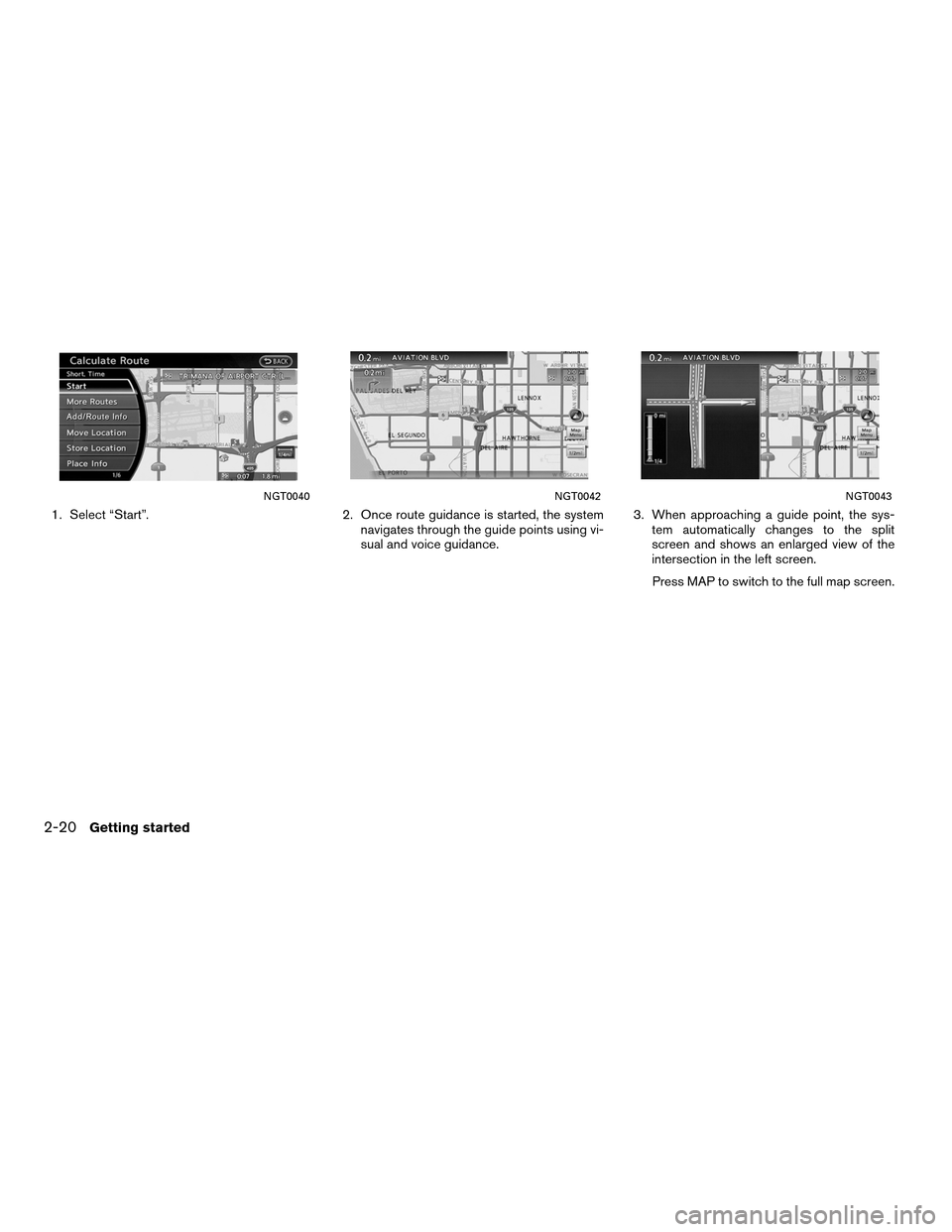

1. Select “Start”.2. Once route guidance is started, the system
navigates through the guide points using vi-
sual and voice guidance. 3. When approaching a guide point, the sys-
tem automatically changes to the split
screen and shows an enlarged view of the
intersection in the left screen.
Press MAP to switch to the full map screen.
Page 29 of 313

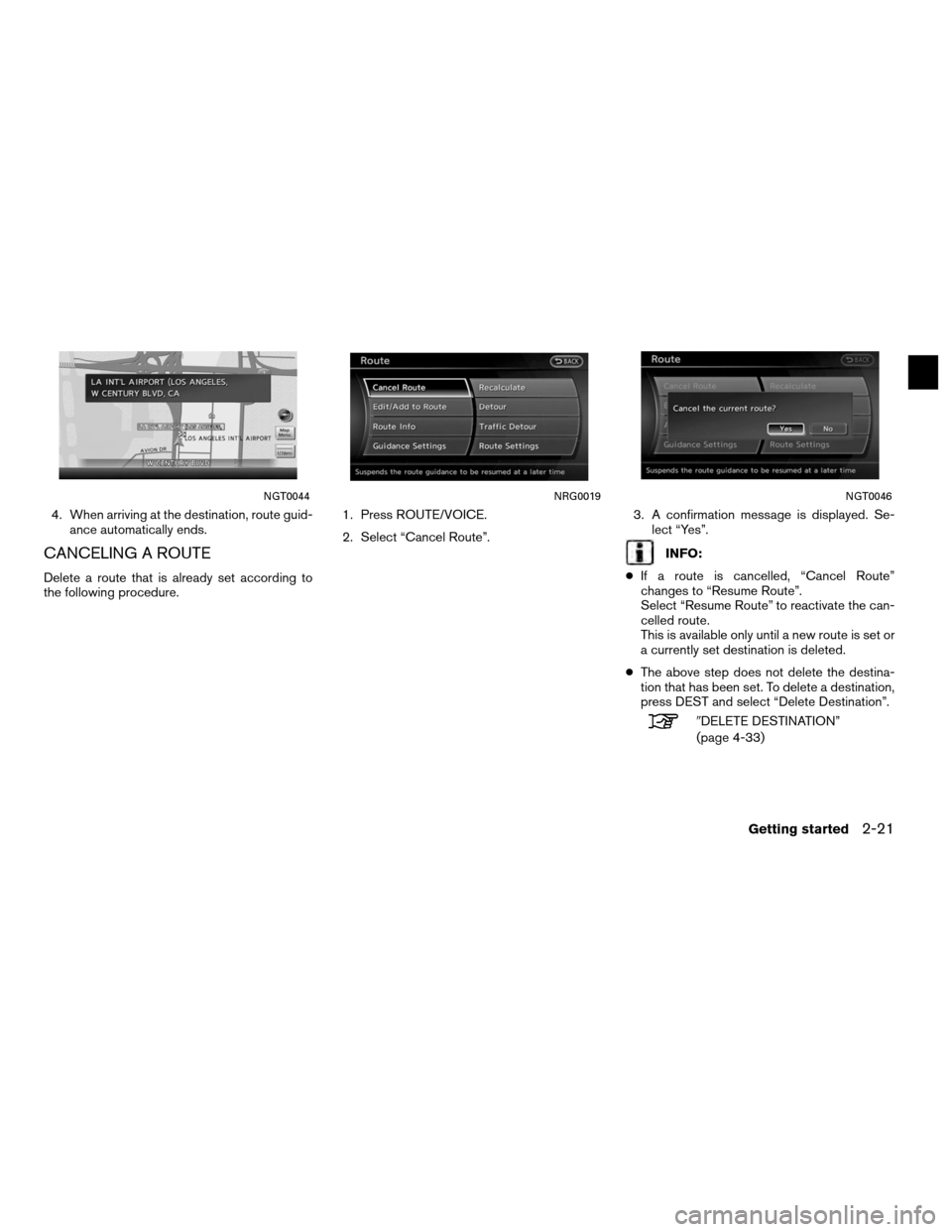

4. When arriving at the destination, route guid-ance automatically ends.
CANCELING A ROUTE
Delete a route that is already set according to
the following procedure. 1. Press ROUTE/VOICE.
2. Select “Cancel Route”.
3. A confirmation message is displayed. Se-
● If a route is cancelled, “Cancel Route”
changes to “Resume Route”.
Select “Resume Route” to reactivate the can-
This is available only until a new route is set or
a currently set destination is deleted.
● The above step does not delete the destina-
tion that has been set. To delete a destination,
press DEST and select “Delete Destination”.
Page 30 of 313
HOW TO VIEW MAP SCREEN
The navigation system displays various informa-
tion on the map screen.
Indicates the current vehicle location and
the direction of travel.
Displays the vehicle location, with which the
route is set, as the starting point.
Indicates a guide point on the route.
Displays locations between the starting
point and the destination. A maximum of 5
waypoints can be set.
Indicates the destination location of the
When you reach your destination, the ad-
dress will be displayed on the map screen.
Appears in bold yellow during route
7Map menu icon:
Touch the icon to display the Map Menu
“MAP MENU SCREEN”
Indicates the setting of the map: north al-
ways pointing up or the vehicle’s direction
always pointing up on the display. Touch the
icon to change this setting.
Indicates the scale of the map.
Touch the icon to display the scale bar. This
allows the map scale to be adjusted.
“OPERATING WITH THE
10Street name: Displays the name of the street that the ve-
hicle is currently driving on.
