navigation system NISSAN ALTIMA COUPE 2012 D32 / 4.G Navigation Manual

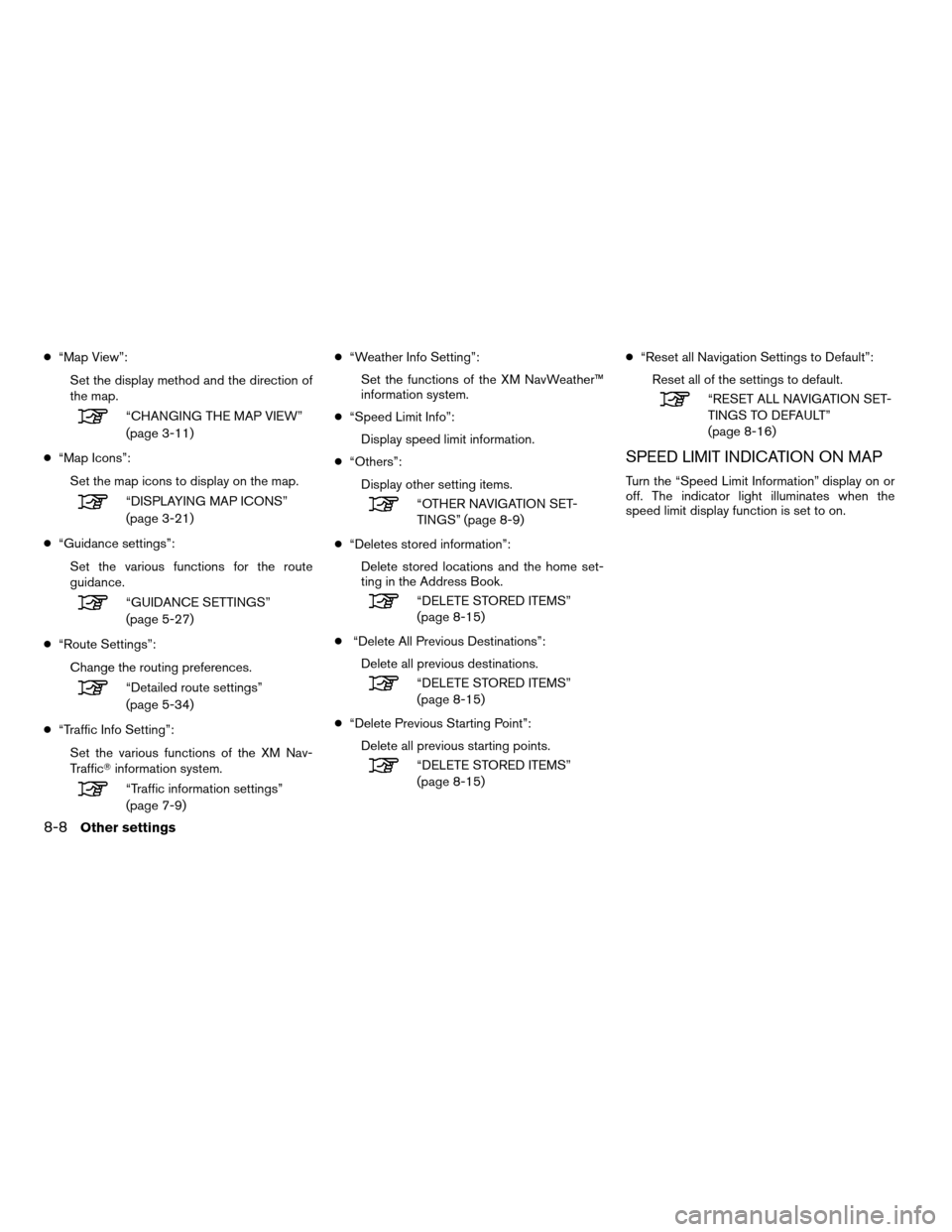

●“Map View”:
Set the display method and the direction of
the map.
“CHANGING THE MAP VIEW”
(page 3-11)
● “Map Icons”:
Set the map icons to display on the map.
“DISPLAYING MAP ICONS”
(page 3-21)
● “Guidance settings”:
Set the various functions for the route
guidance.
“GUIDANCE SETTINGS”
(page 5-27)
● “Route Settings”:
Change the routing preferences.
“Detailed route settings”
(page 5-34)
● “Traffic Info Setting”:
Set the various functions of the XM Nav-
Traffic information system.
“Traffic information settings”
(page 7-9) ●
“Weather Info Setting”:
Set the functions of the XM NavWeather™
information system.
● “Speed Limit Info”:
Display speed limit information.
● “Others”:
Display other setting items.
“OTHER NAVIGATION SET-
TINGS” (page 8-9)
● “Deletes stored information”:
Delete stored locations and the home set-
ting in the Address Book.
“DELETE STORED ITEMS”
(page 8-15)
● “Delete All Previous Destinations”:
Delete all previous destinations.
“DELETE STORED ITEMS”
(page 8-15)
● “Delete Previous Starting Point”:
Delete all previous starting points.
“DELETE STORED ITEMS”
(page 8-15) ●
“Reset all Navigation Settings to Default”:
Reset all of the settings to default.
“RESET ALL NAVIGATION SET-
TINGS TO DEFAULT”
(page 8-16)
SPEED LIMIT INDICATION ON MAP
Turn the “Speed Limit Information” display on or
off. The indicator light illuminates when the
speed limit display function is set to on.
8-8Other settings

NISSAN Voice Recognition allows hands-free
operation of the navigation system and other
systems equipped on this vehicle, in one of two
modes, Standard Mode or Alternate Command
Mode. Standard Mode allows the operation of
Navigation, Phone, Audio, Information and Help.
The commands that are available are always
shown on the display and announced by the
system. To perform operations, simply follow the
prompts given by the system. In Standard Mode,
hands-free operation of Change map view,
Route selection and Bluetooth Audio, etc. is not
available through Voice Recognition.
Alternate Command Mode allows advanced
operations. When this mode is active, an ex-
panded list of commands can be spoken after
pressing
, and the voice command menu
prompts are turned off. Note that in this mode
the recognition success rate may be affected
because the number of available commands and
ways of speaking each command are increased.
Otherwise, it is recommended that Alternate
Command Mode be turned OFF and Standard
Mode be used for the best recognition
performance.
“ALTERNATE COMMAND MODE”
(page 9-16)
INFO:
● To improve recognition success when Alter-
nate Command Mode is active, try using the
Speaker Adaptation function available in that
mode.
“SPEAKER ADAPTATION”
(page 9-28)
Otherwise, it is recommended that Alter-
nate Command Mode be turned OFF and
Standard Mode be used for the best recog-
nition performance.
● For the voice commands for the audio, phone
and other systems, refer to the vehicle Own-
er’s Manual. The following sections refer only
to the navigation, phone and information
systems.
MANUAL CONTROL
While using the voice recognition system for
certain Phone and Navigation features, you can
switch to using manual controls (touch screen,
steering wheel controls) and the information you
have already entered by voice control will be
retained. To switch to manual controls, touch the
“Manual Controls” key on the display when it
appears. The system will respond by speaking
“Changing to manual operation. Please use
manual controls to continue.”
CONFIRMING HOW TO USE VOICE
COMMANDS
When operating the voice recognition system for
the first time or if help is preferred to use the
system, the User Guide can be displayed.
It is possible to confirm how to use voice com-
mands by accessing a simplified User Guide,
which contains basic instructions and tutorials
for several voice commands.
NISSAN VOICE RECOGNITION STANDARD MODE
9-2Voice recognition

BEFORE STARTING
To get the best recognition performance from
Voice Recognition, observe the following items.
●The interior of the vehicle should be as quiet
as possible. Close the windows to eliminate
the surrounding noises (traffic noise and vi-
bration sounds, etc.) , which may prevent the
system from correctly recognizing the voice
commands.
● Wait until the tone sounds before speaking a
command.
● Speak in a natural conversational voice with-
out pausing between words.
GIVING VOICE COMMANDS
1. Presslocated on the steering wheel
switch. 2. A list of commands appears on the screen,
and the system provides the voice menu
prompt “Would you like to access Phone,
Navigation, Information, Audio or Help?”.
3. After the tone sounds and the icon on the screen changes fromto,
speak a command.
4. Continue to follow the voice menu prompts and speak after the tone sounds until the
preferred operation is completed.
Operating tips
●Speak a command after the tone.
● Commands that are available are always
shown on the display and spoken through
voice menu prompts. Commands other than
those that are displayed are not accepted.
Follow the prompts given by the system. ●
If the command is not accepted, the system
announces, “Please say again”. Repeat the
command in a clear voice.
● Press “Back” once to return to the previous
screen.
● To cancel the command, press and
hold
. The message, “Voice cancelled”
will be announced.
● Press
to stop the voice prompt and
give the command at once. Remember to wait
for the tone before speaking.
● To adjust the volume of the system feedback,
push the volume control buttons “+” or “”on
the steering wheel switch or use the audio
system volume knob while the system is mak-
ing an announcement.
How to speak numbers
NISSAN Voice Recognition requires a certain
way to speak numbers when giving voice
commands. Refer to the following examples.
General rule:
Only single digits 0 (zero) to 9 can be used. For
example, if speaking 500, “five zero zero” can be
used, but “five hundred” cannot.
NVR0006
Voice recognition9-5

Command list
Category Command:
COMMANDACTION
Navigation Operates Navigation function.
Phone Operates Phone function.
Information Displays Vehicle Information function.
Audio Operates Audio function.
Help Displays User Guide.
Navigation Command:
COMMANDACTION
Destination Home Sets a route to the home location that is stored in the Address book.
Address (if so equipped) Searches for a location by the street address specified, and sets a route (for continental US only) .
Places Sets a route to a facility near the current vehicle location.
Address Book Searches for information stored in the Address Book.
Previous Destinations Sets a route to a previous destination.
Information Command:
COMMANDACTION
Fuel Economy Displays fuel economy information.
Trip Computer Displays trip information.
Maintenance Displays maintenance information.
Traffic Information Turns the traffic information system on and off.
Where am I? Displays current vehicle location.
Voice recognition9-7

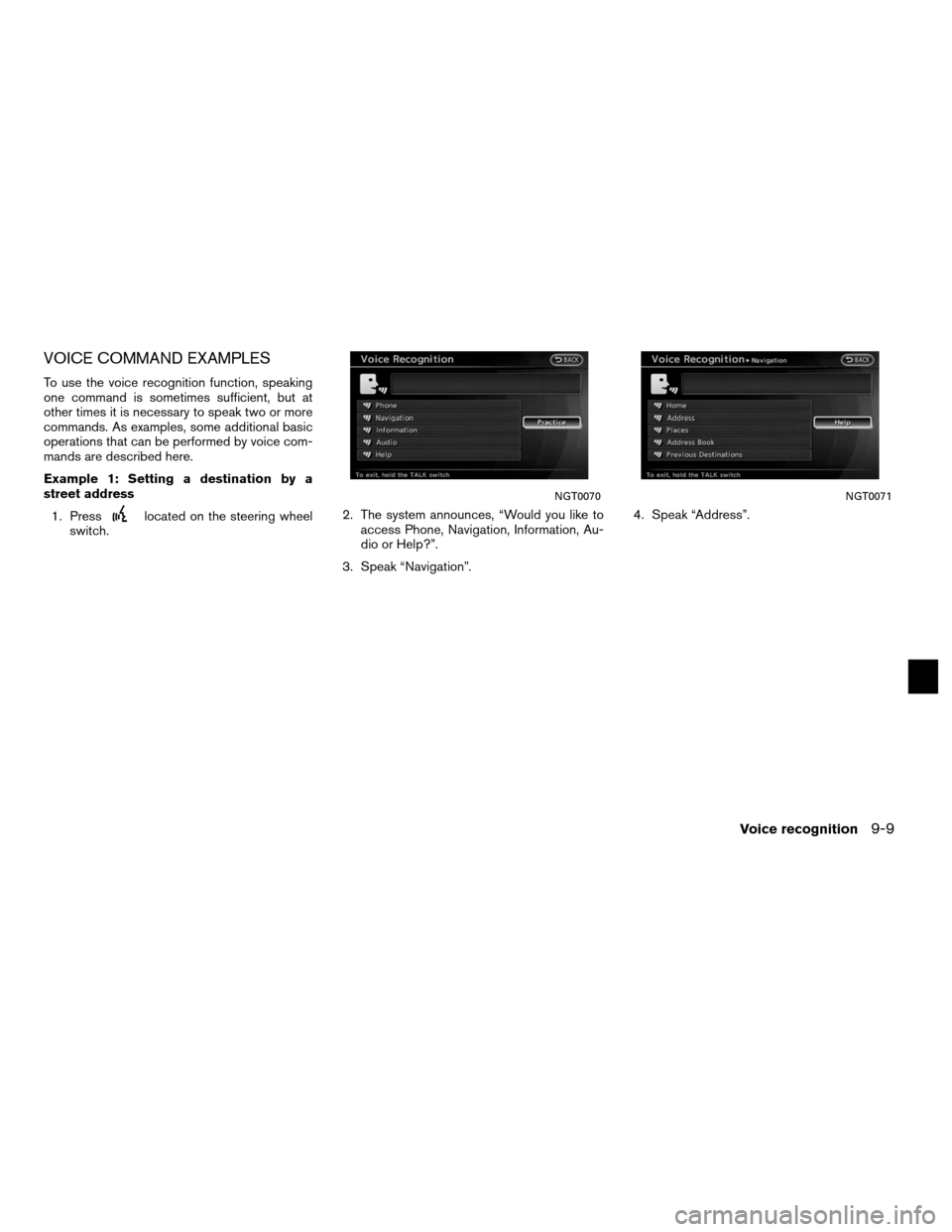

VOICE COMMAND EXAMPLES
To use the voice recognition function, speaking
one command is sometimes sufficient, but at
other times it is necessary to speak two or more
commands. As examples, some additional basic
operations that can be performed by voice com-
mands are described here.
Example 1: Setting a destination by a
street address1. Press
located on the steering wheel
switch. 2. The system announces, “Would you like to
access Phone, Navigation, Information, Au-
dio or Help?”.
3. Speak “Navigation”. 4. Speak “Address”.
NGT0070NGT0071
Voice recognition9-9

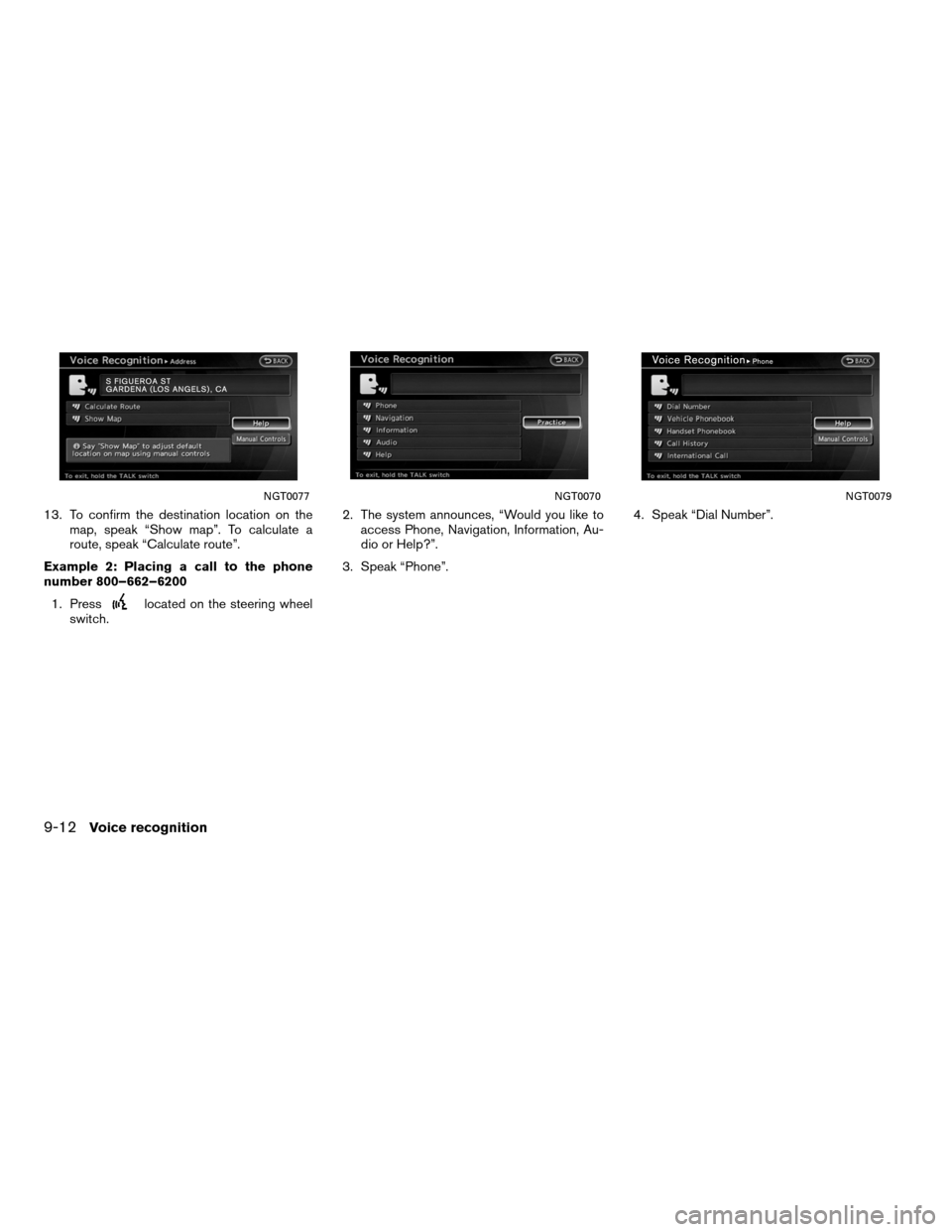

13. To confirm the destination location on themap, speak “Show map”. To calculate a
route, speak “Calculate route”.
Example 2: Placing a call to the phone
number 800–662–6200 1. Press
located on the steering wheel
switch. 2. The system announces, “Would you like to
access Phone, Navigation, Information, Au-
dio or Help?”.
3. Speak “Phone”. 4. Speak “Dial Number”.
NGT0077NGT0070NGT0079
9-12Voice recognition

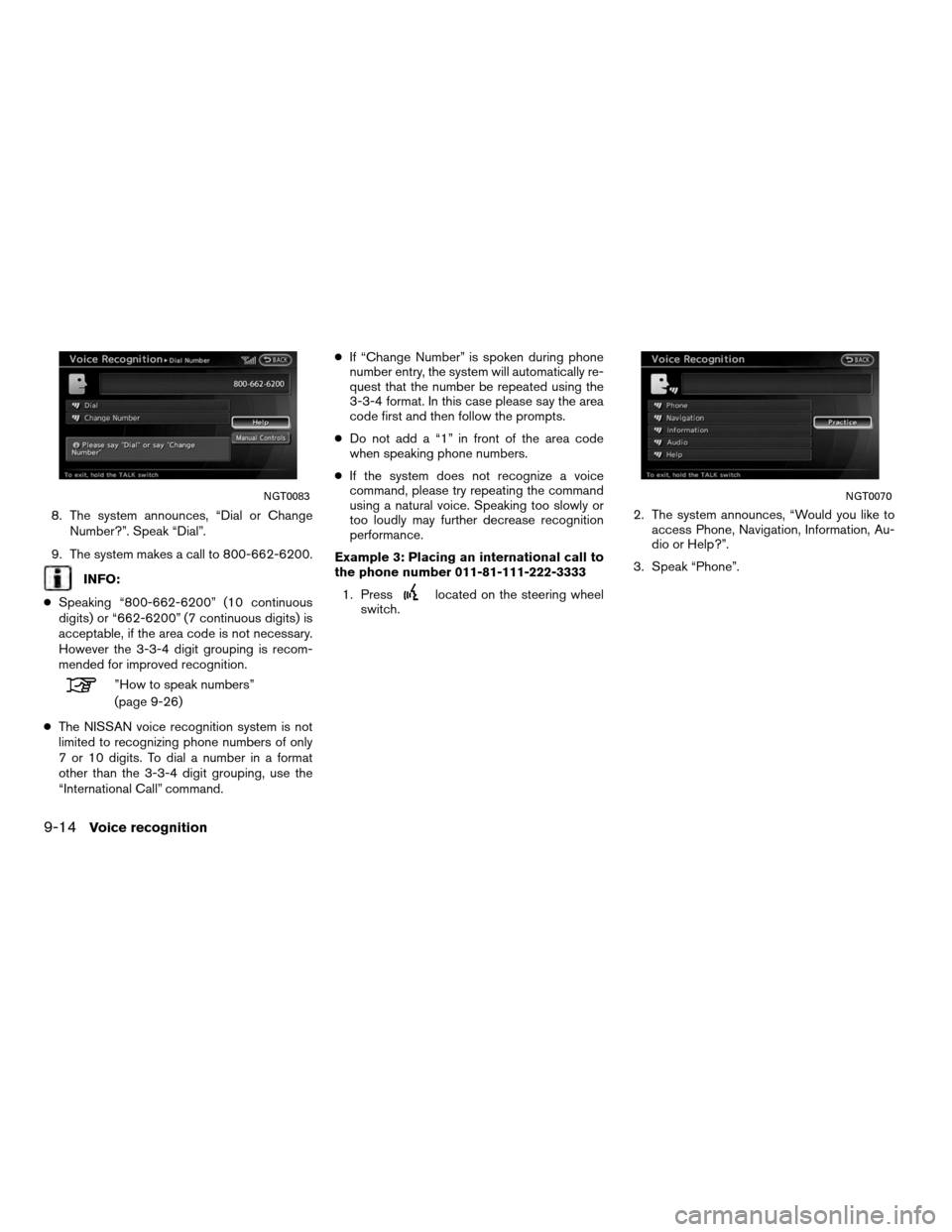

8. The system announces, “Dial or ChangeNumber?”. Speak “Dial”.
9. The system makes a call to 800-662-6200.
INFO:
● Speaking “800-662-6200” (10 continuous
digits) or “662-6200” (7 continuous digits) is
acceptable, if the area code is not necessary.
However the 3-3-4 digit grouping is recom-
mended for improved recognition.
”How to speak numbers”
(page 9-26)
● The NISSAN voice recognition system is not
limited to recognizing phone numbers of only
7 or 10 digits. To dial a number in a format
other than the 3-3-4 digit grouping, use the
“International Call” command. ●
If “Change Number” is spoken during phone
number entry, the system will automatically re-
quest that the number be repeated using the
3-3-4 format. In this case please say the area
code first and then follow the prompts.
● Do not add a “1” in front of the area code
when speaking phone numbers.
● If the system does not recognize a voice
command, please try repeating the command
using a natural voice. Speaking too slowly or
too loudly may further decrease recognition
performance.
Example 3: Placing an international call to
the phone number 011-81-111-222-3333 1. Press
located on the steering wheel
switch. 2. The system announces, “Would you like to
access Phone, Navigation, Information, Au-
dio or Help?”.
3. Speak “Phone”.
NGT0083NGT0070
9-14Voice recognition

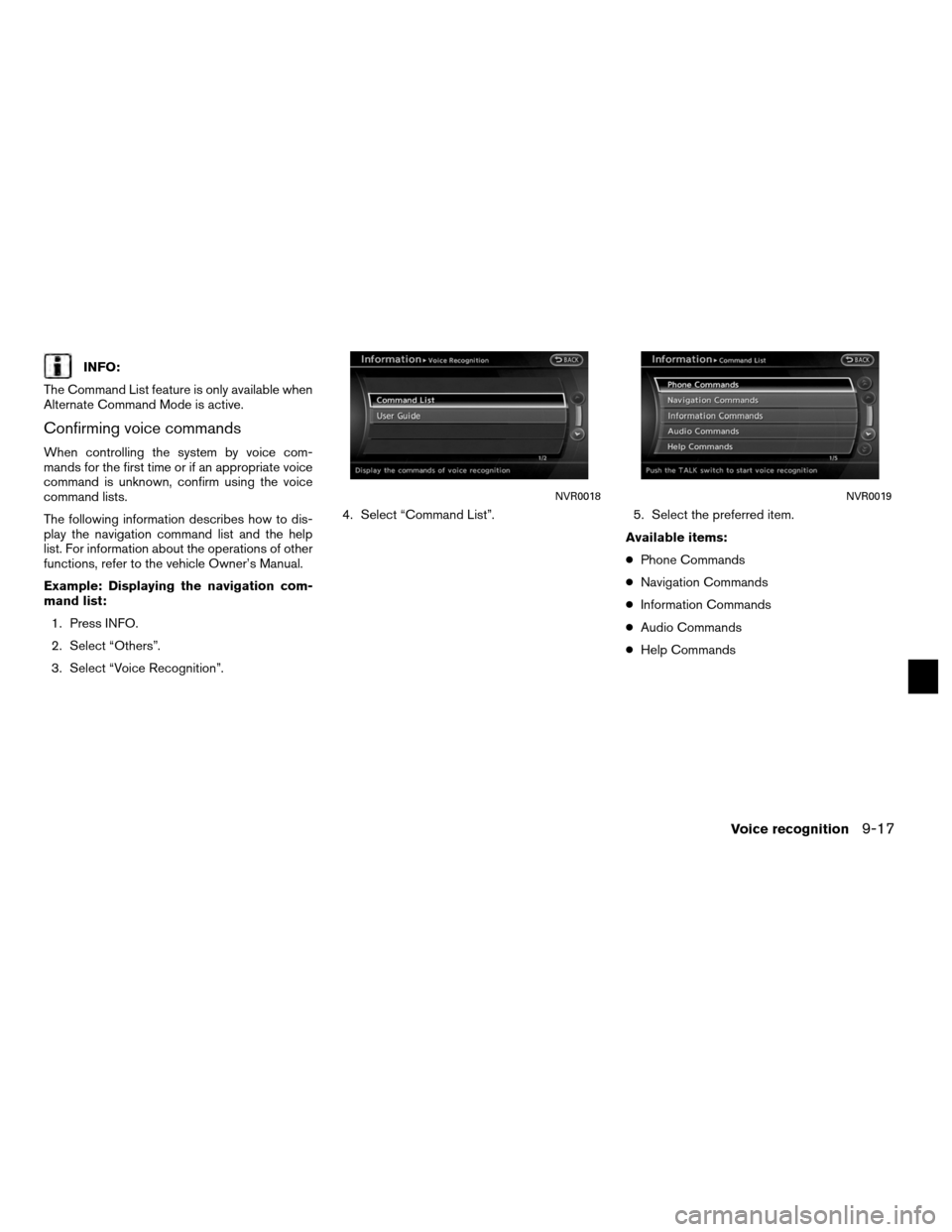

INFO:
The Command List feature is only available when
Alternate Command Mode is active.
Confirming voice commands
When controlling the system by voice com-
mands for the first time or if an appropriate voice
command is unknown, confirm using the voice
command lists.
The following information describes how to dis-
play the navigation command list and the help
list. For information about the operations of other
functions, refer to the vehicle Owner’s Manual.
Example: Displaying the navigation com-
mand list: 1. Press INFO.
2. Select “Others”.
3. Select “Voice Recognition”. 4. Select “Command List”. 5. Select the preferred item.
Available items:
●Phone Commands
● Navigation Commands
● Information Commands
● Audio Commands
● Help Commands
NVR0018NVR0019
Voice recognition9-17

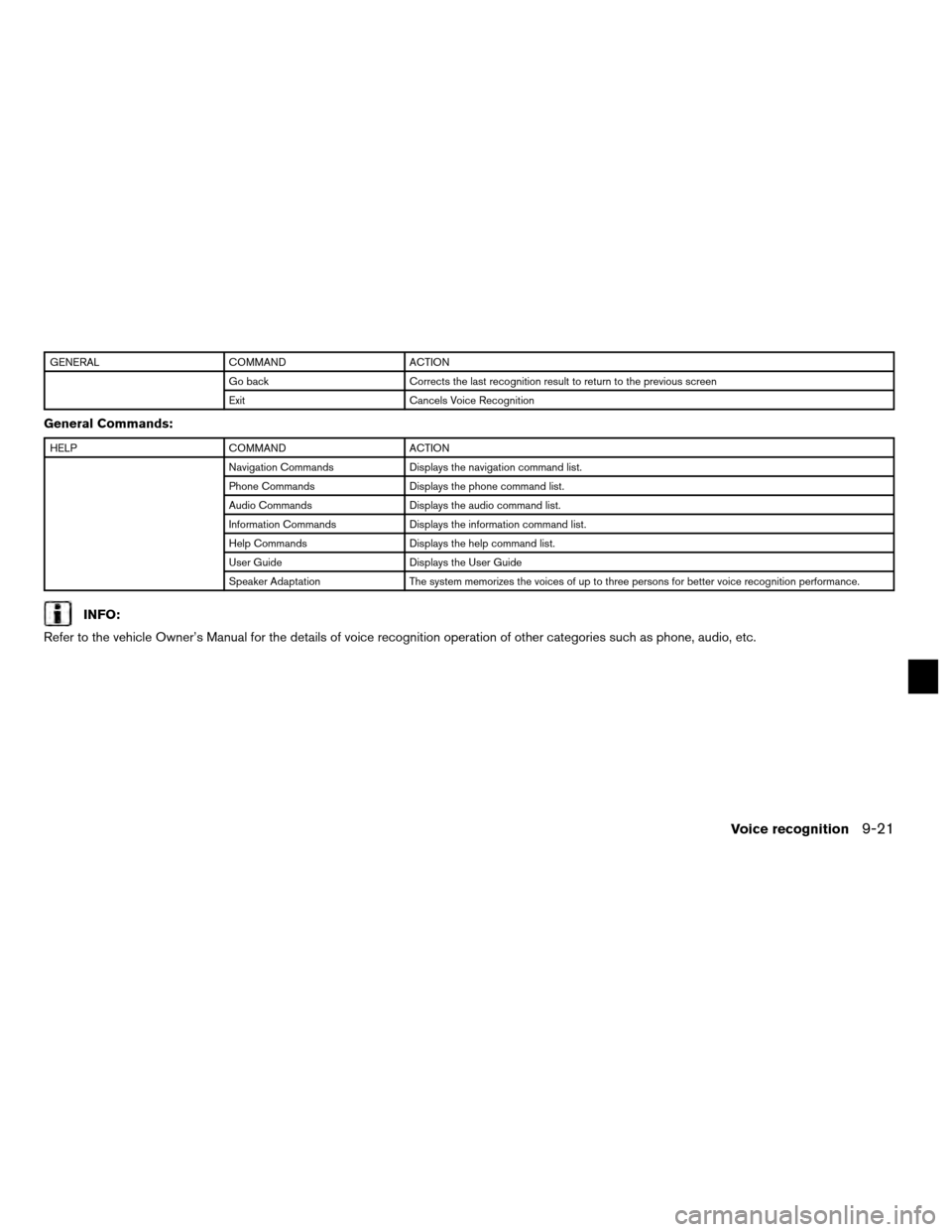

GENERALCOMMAND ACTION
Go back Corrects the last recognition result to return to the previous screen
Exit Cancels Voice Recognition
General Commands:
HELPCOMMAND ACTION
Navigation Commands Displays the navigation command list.
Phone Commands Displays the phone command list.
Audio Commands Displays the audio command list.
Information Commands Displays the information command list.
Help Commands Displays the help command list.
User Guide Displays the User Guide
Speaker Adaptation The system memorizes the voices of up to three persons for better voice recognition performance.
INFO:
Refer to the vehicle Owner’s Manual for the details of voice recognition operation of other categories such as phone, audio, etc.
Voice recognition9-21

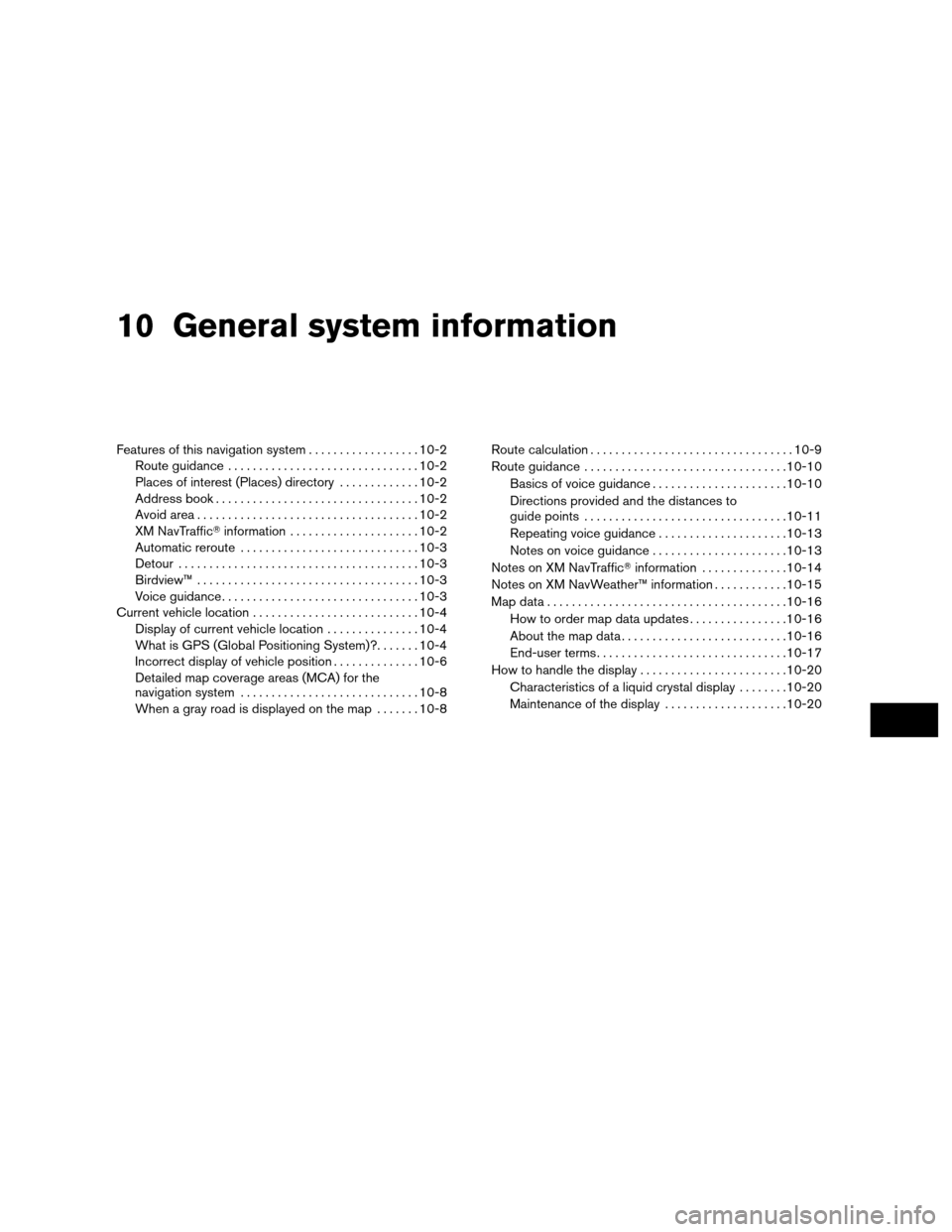

10 General system information
Features of this navigation system..................10-2
Route guidance ............................... 10-2
Places of interest (Places) directory .............10-2
Address book ................................. 10-2
Avoid area . . . ................................. 10-2
XM NavTraffic information..................... 10-2
Automatic reroute ............................. 10-3
Detour ....................................... 10-3
Birdview™ . . . ................................. 10-3
Voice guidance ................................ 10-3
Current vehicle location ........................... 10-4
Display of current vehicle location ...............10-4
What is GPS (Global Positioning System)? .......10-4
Incorrect display of vehicle position ..............10-6
Detailed map coverage areas (MCA) for the
navigation system ............................. 10-8
When a gray road is displayed on the map .......10-8 Route calculation
................................. 10-9
Route guidance ................................. 10-10
Basics of voice guidance ......................10-10
Directions provided and the distances to
guide points ................................. 10-11
Repeating voice guidance .....................10-13
Notes on voice guidance . . . ...................10-13
Notes on XM NavTraffic information.............. 10-14
Notes on XM NavWeather™ information ............10-15
Map data ....................................... 10-16
How to order map data updates ................10-16
About the map data ........................... 10-16
End-user terms ............................... 10-17
How to handle the display ........................10-20
Characteristics of a liquid crystal display ........10-20
Maintenance of the display ....................10-20
