navigation system NISSAN ALTIMA HYBRID 2009 L32A / 4.G Navigation Manual

2. Touch the “Move Dest.” key to modify the
location.
“ADJUSTING THE LOCATION OF
THE DESTINATION” (page 4-38)3. Touch the “Delete” key to delete the
location.4. A confirmation message is displayed. Con-
firm the contents of the message, then
touch the “Yes” key.
The destination or waypoint is deleted from
the route.
INFO:
If the destination is deleted, the final waypoint of
the route becomes the destination.
Changing route calculation conditions
Each section of the route between waypoints
can have different route calculation conditions.
After setting these conditions, you can recalcu-
late the entire route.
LNV0276LNV0277LNV0278
Route guidance5-17
REVIEW COPY—2009 Altima(alt)
Navigation System OM—USA_English(nna)
05/22/08—debbie


1. Touch the preferred section key of the route
to the destination or waypoint.2. Touch the preferred condition key.
Available conditions:
: Fastest Route
: Minimize Freeway
: Shortest Route3. The system automatically recalculates a
route according to the conditions set. The
screen will automatically return to the “Edit
Route” screen after route calculation.
LNV0279LNV0280LNV0281
5-18Route guidance
REVIEW COPY—2009 Altima(alt)
Navigation System OM—USA_English(nna)
05/22/08—debbie


4. The icon corresponding to the set route
condition is displayed. Press the MAP but-
ton to return to the current location map
screen.
INFO:
●The recalculated route may not be the short-
est route because the system prioritizes easy-
to-drive roads for safety reasons.
●If you set the route conditions from the “Route
Priority” key, all sections in the route are sub-
ject to the same route conditions even though
you have set different route conditions for dif-
ferent sections in the “Edit Route” key.When a traffic restriction event occurs on the
route, a detour route to avoid the event is
searched for from the vehicle location to the
destination.
NOTE:
This feature requires a subscription to
XMNavTraffic™ service.
1. Touch the “Traffic Detour” key.
LNV0282LNV0264
TRAFFIC DETOUR INFORMATION
Route guidance5-19
REVIEW COPY—2009 Altima(alt)
Navigation System OM—USA_English(nna)
05/22/08—debbie


2. When the detour search is successful, de-
tailed information about the detour route
(left screen) and the comparison screen of
the two routes (right screen) are displayed.
●Yellow: Original route
●Pink: Detour route
INFO:
If the entire message is not displayed; you can
scroll the message up or down by touching
the
or thekey.
3. When you desire to set the detour route as
the suggested route, touch the “Yes” key.
INFO:
●If a traffic restriction event has not occurred,
this function cannot be operated.●When “Auto Reroute” and “Use Traffic Info.”
keys are turned on, a message will automati-
cally pop up when a traffic restriction event
occurs, and a detour route will be searched
for.
●When “Traffic Announcement” key is turned
on, you will hear the voice guidance and at the
same time the message will appear on the
screen.
●If you do not select the detour route and pro-
vide no further action, the detour route will be
automatically cancelled.
●The distance to avoid is automatically se-
lected based on the distance to the event.
●The XMNavTraffic™ information may not
match the actual conditions. You are then re-
quired to follow the actual traffic regulations.
●The traffic information system may provide
event information that has already passed.
This is not a malfunction, and it is due to the
fluctuation of traffic conditions.When the suggested route is displayed after
calculation, you can confirm the route
information.
LNV0507
CONFIRMING A ROUTE
5-20Route guidance
REVIEW COPY—2009 Altima(alt)
Navigation System OM—USA_English(nna)
05/22/08—debbie

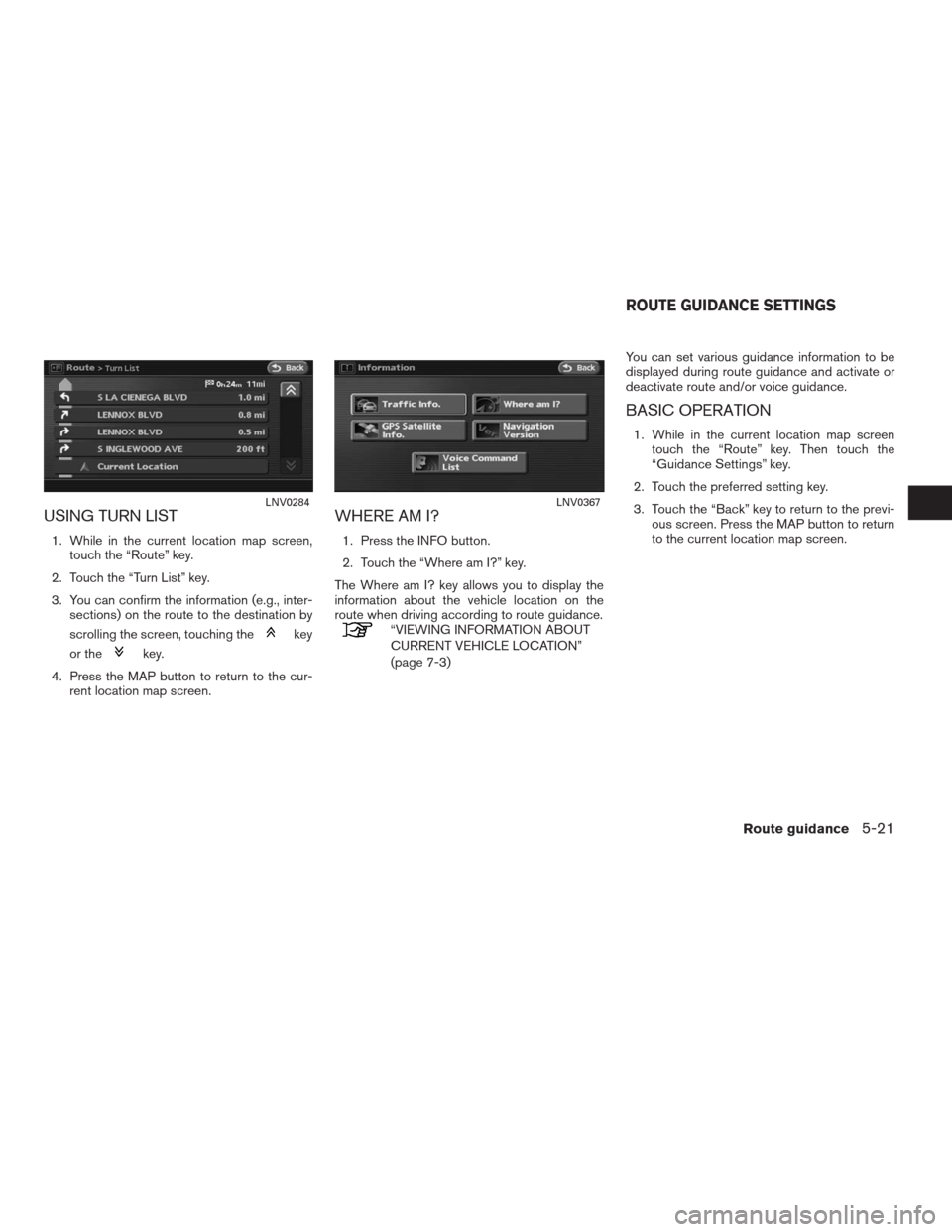

USING TURN LIST
1. While in the current location map screen,
touch the “Route” key.
2. Touch the “Turn List” key.
3. You can confirm the information (e.g., inter-
sections) on the route to the destination by
scrolling the screen, touching the
key
or the
key.
4. Press the MAP button to return to the cur-
rent location map screen.
WHERE AM I?
1. Press the INFO button.
2. Touch the “Where am I?” key.
The Where am I? key allows you to display the
information about the vehicle location on the
route when driving according to route guidance.
“VIEWING INFORMATION ABOUT
CURRENT VEHICLE LOCATION”
(page 7-3)You can set various guidance information to be
displayed during route guidance and activate or
deactivate route and/or voice guidance.
BASIC OPERATION
1. While in the current location map screen
touch the “Route” key. Then touch the
“Guidance Settings” key.
2. Touch the preferred setting key.
3. Touch the “Back” key to return to the previ-
ous screen. Press the MAP button to return
to the current location map screen.
LNV0284LNV0367
ROUTE GUIDANCE SETTINGS
Route guidance5-21
REVIEW COPY—2009 Altima(alt)
Navigation System OM—USA_English(nna)
05/22/08—debbie

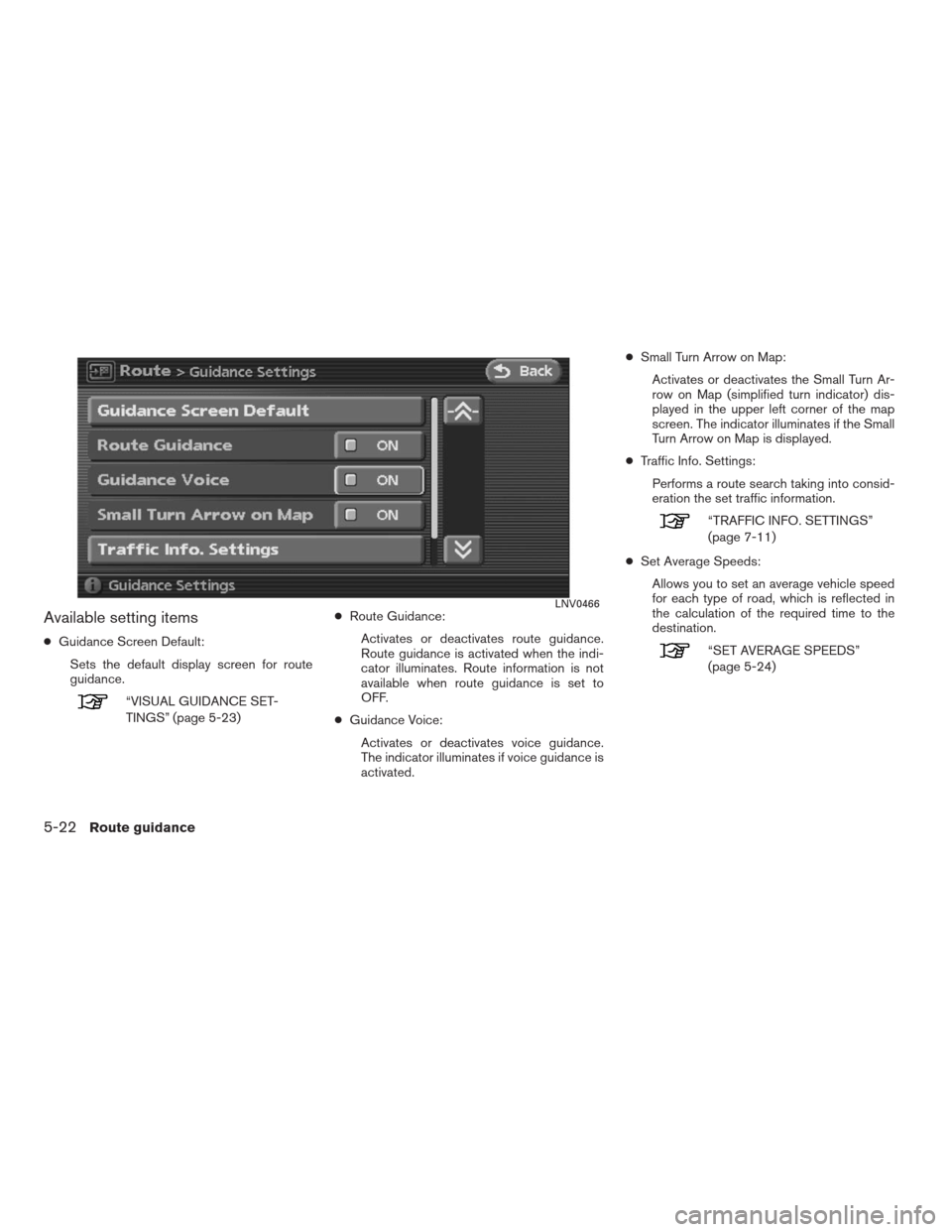

Available setting items
●Guidance Screen Default:
Sets the default display screen for route
guidance.
“VISUAL GUIDANCE SET-
TINGS” (page 5-23)●Route Guidance:
Activates or deactivates route guidance.
Route guidance is activated when the indi-
cator illuminates. Route information is not
available when route guidance is set to
OFF.
●Guidance Voice:
Activates or deactivates voice guidance.
The indicator illuminates if voice guidance is
activated.●Small Turn Arrow on Map:
Activates or deactivates the Small Turn Ar-
row on Map (simplified turn indicator) dis-
played in the upper left corner of the map
screen. The indicator illuminates if the Small
Turn Arrow on Map is displayed.
●Traffic Info. Settings:
Performs a route search taking into consid-
eration the set traffic information.
“TRAFFIC INFO. SETTINGS”
(page 7-11)
●Set Average Speeds:
Allows you to set an average vehicle speed
for each type of road, which is reflected in
the calculation of the required time to the
destination.
“SET AVERAGE SPEEDS”
(page 5-24)
LNV0466
5-22Route guidance
REVIEW COPY—2009 Altima(alt)
Navigation System OM—USA_English(nna)
06/10/08—debbie


VISUAL GUIDANCE SETTINGS
1. Touch the “Guidance Screen Default” key.
2. The indicator of the selected type of guid-
ance illuminates.Intersection Map: Enlarged intersection viewINFO:
Press the MAP button to switch to the full map
screen.Turn list: Right/Left turn listINFO:
●Turn list can be scrolled by touching
the
key or thekey.
●Pressing the MAP button toggles between
the full map screen and the enlarged intersec-
tion view.
LNV0286LNV0287LNV0288
Route guidance5-23
REVIEW COPY—2009 Altima(alt)
Navigation System OM—USA_English(nna)
05/22/08—debbie


Regular Map: Default location map view
SET AVERAGE SPEEDS
You can calculate the required time to the desti-
nation based on the set vehicle speeds.
Basic operation
1. Touch the “Set Average Speeds” key.
2. Touch the preferred item key.
3. To adjust the speed touch the “–” key or the
“+” key. The speed can be
increased/decreased by 5 MPH (5 km/h)
intervals.
4. After finishing the setting, touch the “Back”
key to accept the settings.5. Touch the “Back” key to return to the previ-
ous screen. Press the MAP button to return
to the current location map screen.
LNV0289
5-24Route guidance
REVIEW COPY—2009 Altima(alt)
Navigation System OM—USA_English(nna)
05/22/08—debbie


Available setting items
●Auto:
If set to ON, the system automatically calcu-
lates the required time to the destination,
the indicator illuminates and the speed set-
tings cannot be changed.
●Freeway:
Allows you to adjust the average vehicle
speed on a freeway; touch the “–” key or the
“+” key to adjust.●Main Road:
Allows you to adjust the average vehicle
speed on a main road; touch the “–” key or
the “+” key to adjust.
●Town Road:
Allows you to adjust the average vehicle
speed on a town road; touch the “–” key or
the “+” key to adjust.●Residential Road:
Allows you to adjust the average vehicle
speed in a residential area; touch the “–”
key or the “+” key to adjust.
●Reset:
Sets the average vehicle speeds to the de-
fault values.
LNV0467
Route guidance5-25
REVIEW COPY—2009 Altima(alt)
Navigation System OM—USA_English(nna)
05/22/08—debbie


You can delete a route already set at any time. If
you delete a route, the destination and waypoints
are also deleted.
It is also possible to reactivate the route that you
deleted.
DELETING A ROUTE
1. Touch the “Cancel Route Guidance” key.2. A confirmation message is displayed. touch
the “Yes” key.
The route is deleted along with the destina-
tion and waypoints.
LNV0291LNV0292
DELETING/REACTIVATING A ROUTE
5-26Route guidance
REVIEW COPY—2009 Altima(alt)
Navigation System OM—USA_English(nna)
05/22/08—debbie
