navigation system NISSAN ALTIMA HYBRID 2009 L32A / 4.G Navigation Manual

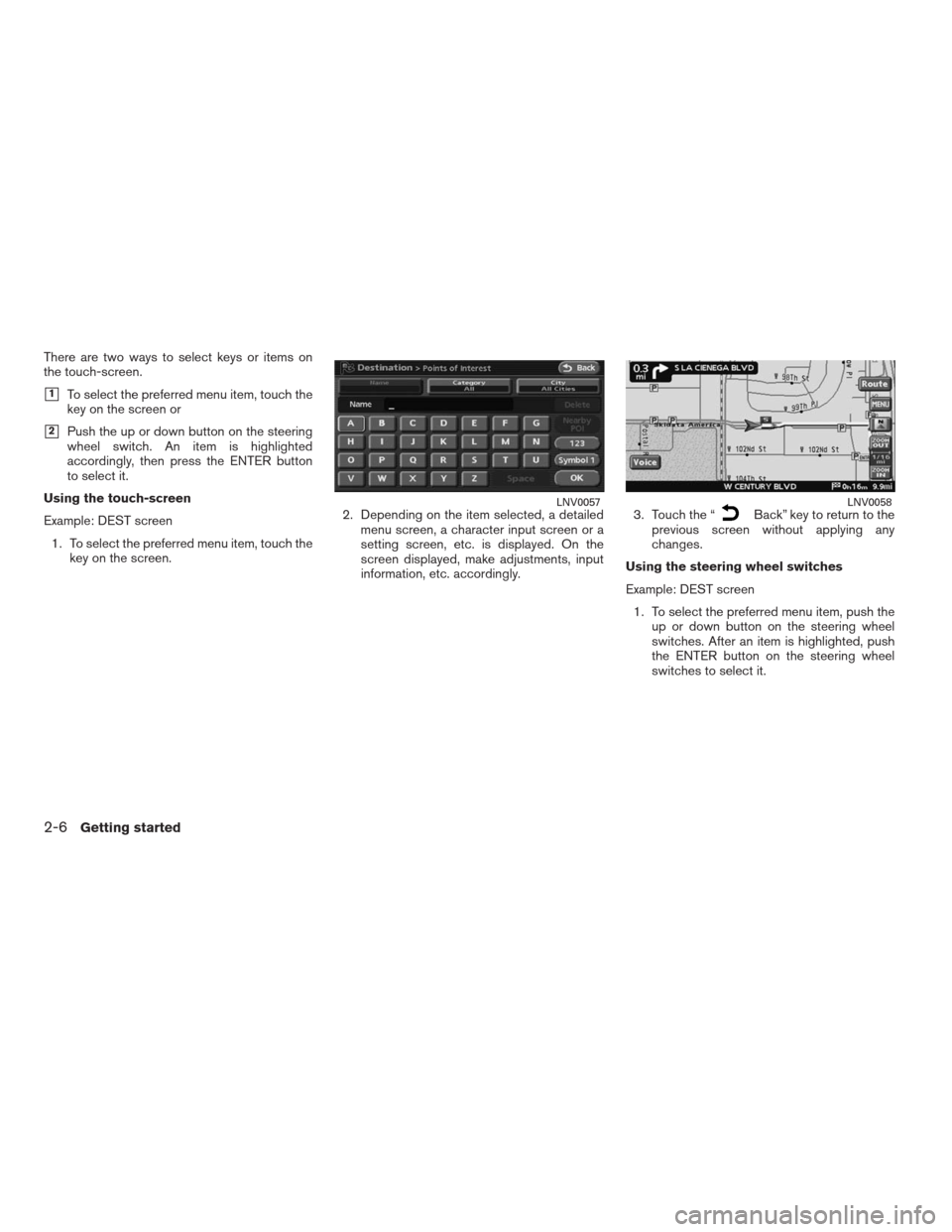

There are two ways to select keys or items on
the touch-screen.
1To select the preferred menu item, touch the
key on the screen or
2Push the up or down button on the steering
wheel switch. An item is highlighted
accordingly, then press the ENTER button
to select it.
Using the touch-screen
Example: DEST screen
1. To select the preferred menu item, touch the
key on the screen.2. Depending on the item selected, a detailed
menu screen, a character input screen or a
setting screen, etc. is displayed. On the
screen displayed, make adjustments, input
information, etc. accordingly.3. Touch the “
Back” key to return to the
previous screen without applying any
changes.
Using the steering wheel switches
Example: DEST screen
1. To select the preferred menu item, push the
up or down button on the steering wheel
switches. After an item is highlighted, push
the ENTER button on the steering wheel
switches to select it.LNV0057LNV0058
2-6Getting started
REVIEW COPY—2009 Altima(alt)
Navigation System OM—USA_English(nna)
05/22/08—debbie


2. Depending on the item selected, a detailed
menu screen, a character input screen or a
setting screen, etc. is displayed. On the
screen displayed, make adjustments, and
input information, etc. accordingly.3. Press thebutton on the steering
wheel switches to return to the previous
screen without applying any changes.LNV0057LNV0058
Getting started2-7
REVIEW COPY—2009 Altima(alt)
Navigation System OM—USA_English(nna)
05/22/08—debbie


USING CONTROLS TO ADJUST
VALUES, LEVELS, ETC.
Touch the keys on the screen or use the steering
wheel switches to adjust the volume of the guid-
ance volume, phone ringer vol., etc.
How to adjust
1Touch the “–” or “+” key on the screen. The
bars of the corresponding adjustment item
changes.
2Use the steering wheel switches by pushing
up or down to select/highlight the item and
then pressing the ENTER button. The value
or bar indicating levels increases or de-
creases accordingly.
Touch the “Back” key on the touch-screen or
the
button on the steering wheel switches
to apply the setting.
WNV0548
2-8Getting started
REVIEW COPY—2009 Altima(alt)
Navigation System OM—USA_English(nna)
05/22/08—debbie


MAP MENU SCREEN
Touch the “MENU” key while the current location
map screen or a scrolled map screen is
displayed, to display the menu corresponding to
that screen.
This menu allows you to quickly use helpful
functions, such as storing a location easily and
searching for nearby facilities.
To select a menu item, use the method de-
scribed in “Menu screen types and how to oper-
ate” earlier in this section.
Current location map screen
If the “MENU” key is touched while the current
location map screen is displayed, the following
options are available.
●Store Location:
Allows you to store the current vehicle loca-
tion in the Address Book. The stored loca-
tion can be retrieved as necessary to set it
as a destination (waypoint) .
“STORING A LOCATION”
(page 6-2)●Nearby Places:
Allows you to search for facilities near the
current vehicle location, such as restaurants
and gas stations, etc.
“SETTING A NEARBY PLACE”
(page 4-35)
●Map View:
Switches the map type. It is used to switch
between the 2D Plan View and the 3D
Birdview™.
“SWITCHING THE MAP VIEW”
(page 3-4)
●Landmark Icons:
Allows you to display facility icons near the
current vehicle location on the map, such as
restaurants and gas stations, etc.
“DISPLAY LANDMARK ICONS”
(page 3-16)
LNV0426
Getting started2-9
REVIEW COPY—2009 Altima(alt)
Navigation System OM—USA_English(nna)
06/12/08—tbrooks


Scrolled location map screen
If the “MENU” key is touched while a scrolled
map screen is displayed, the following options
are available.
●New Dest:
Allows you to scroll through the map and
use the cursor location to set a destination.
If a destination is already set, the old desti-
nation will be deleted and the new location
will be set as the destination.
“SETTING FROM MAP”
(page 4-13)
●Add to Route:
Allows you to set the cursor location as the
destination or a waypoint.
This is available only when the suggested
route is already set.
“SETTING A DESTINATION OR
WAYPOINT” (page 5-15)●Nearby Places:
Allows you to search for a facility near the
location where you scrolled to and set it as
a destination or waypoint. Use the same
search method as the one for Points Of In-
terest (POI) .
“SETTING A NEARBY PLACE”
(page 4-35)
●Store Location:
Allows you to store the location where you
scrolled to in the Address Book. The stored
location can be retrieved to set it as a desti-
nation or waypoint.
“STORING A LOCATION”
(page 6-2)
●Delete:
Allows you to delete a stored location, des-
tination or waypoint. To delete it, place the
cross pointer over the corresponding icon.LNV0427
2-10Getting started
REVIEW COPY—2009 Altima(alt)
Navigation System OM—USA_English(nna)
05/22/08—debbie


START MENU
The start menu can be displayed using the steer-
ing wheel switch.
1. Press the ENTER button on the steering
wheel switch.
2. Touch the key on the screen or highlight the
preferred item and press the ENTER button.
INFO:
The ENTER button on the steering wheel switch
can be used to display the start menu only when
the map screen is displayed.
Available items
●Home:
Displays the current home location map
screen if it has been set and calculates a
route home.
“4. Setting a destination”
●Address Book:
Displays the address book screen. It is the
same screen that appears when the DEST
button is pressed and the “Address Book”
key is selected.
“4. Setting a destination”
●Nearby Places:
Displays the nearby places screen. It is the
same screen that appears when the DEST
button is pressed and the “Nearby Places”
key is selected.
“4. Setting a destination”
LNV0428
Getting started2-11
REVIEW COPY—2009 Altima(alt)
Navigation System OM—USA_English(nna)
05/22/08—debbie


●Previous Destinations:
Displays the previous destinations screen. It
is the same screen that appears when the
DEST button is pressed and the “Previous
Destinations” key is selected.
“4. Setting a destination”
●Cancel Route Guidance:
Cancels the current guided route.
Not all features can be manually operated while
the vehicle is in motion. The text for these re-
stricted features turn from white to gray and can-not be selected. Alternatively, the voice recogni-
tion system may have a related command that
can be used at any time.
LNV0540
FUNCTIONS DISABLED WHILE DRIV-
ING
2-12Getting started
REVIEW COPY—2009 Altima(alt)
Navigation System OM—USA_English(nna)
05/22/08—debbie


In some cases, certain text will not be displayed
on the screen.
Park the vehicle in a safe location and then oper-
ate the navigation system.
HOW TO VIEW A MAP SCREEN
The navigation system displays various informa-
tion on the map screen.
Screen information
1Arrow and distance:
Appears on the upper left corner of the
screen when the suggested route is set.
Indicates the distance to the next guide
point and the turning direction at that guide
point. The system can be set to not display
this item.
2Vehicle icon:
Indicates the current vehicle location and
the direction of travel.
3Guide point:
Indicates a guide point on the route.
4Route:
Touch this key to access the route settings.
5Menu:
Touch this key to access the map menu or
the map scroll menu.
LNV0431
OPERATING MAPS
Getting started2-13
REVIEW COPY—2009 Altima(alt)
Navigation System OM—USA_English(nna)
05/22/08—debbie


6/Direction indicator:
Indicates the direction of the map. Touch
this key to switch the orientation of the map.
7Scale indicator:
Indicates the scale of the map.
8Remaining time and distance to
the destination:
Indicates the remaining time and distance
to the destination.
9Suggested route:
Appears in bold yellow during route
guidance.
10Voice:
Touch this key to repeat the voice guidance.
INFO:
●Roads with a width of 10 ft (3 m) or less may
not be displayed on the map.
●The system may require a long time for
positioning. This is not a malfunction.
MAP SCREEN TYPES
Two types of map views are available: 2D Plan
View and 3D Birdview™.
Plan View
Plan View displays the map in a 2-dimensional
environment similar to a road map.
LNV0069
2-14Getting started
REVIEW COPY—2009 Altima(alt)
Navigation System OM—USA_English(nna)
05/22/08—debbie


Birdview™
Birdview™ displays the view from an elevated
perspective. In Birdview™, it is easy to recognize
an image of the route because it provides a pan-
oramic view over a long distance.
SWITCHING MAP VIEW
1. Touch the “MENU” key while the current lo-
cation map screen is displayed.2. Touch the “Map View” key.
LNV0070LNV0069LNV0071
