Page 421 of 489

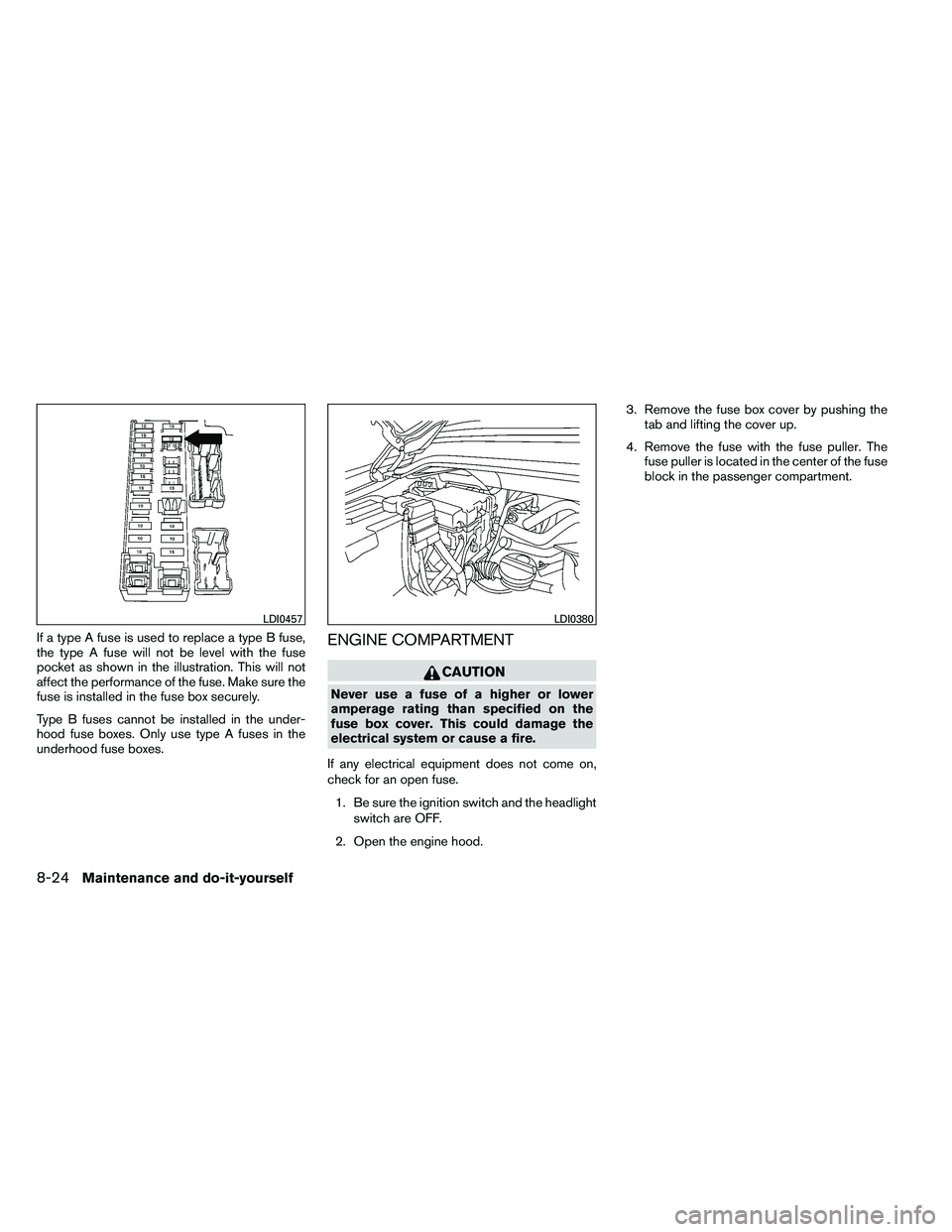

NISSAN ARMADA 2011  Owners Manual If a type A fuse is used to replace a type B fuse,
the type A fuse will not be level with the fuse
pocket as shown in the illustration. This will not
affect the performance of the fuse. Make sure the

Page 422 of 489

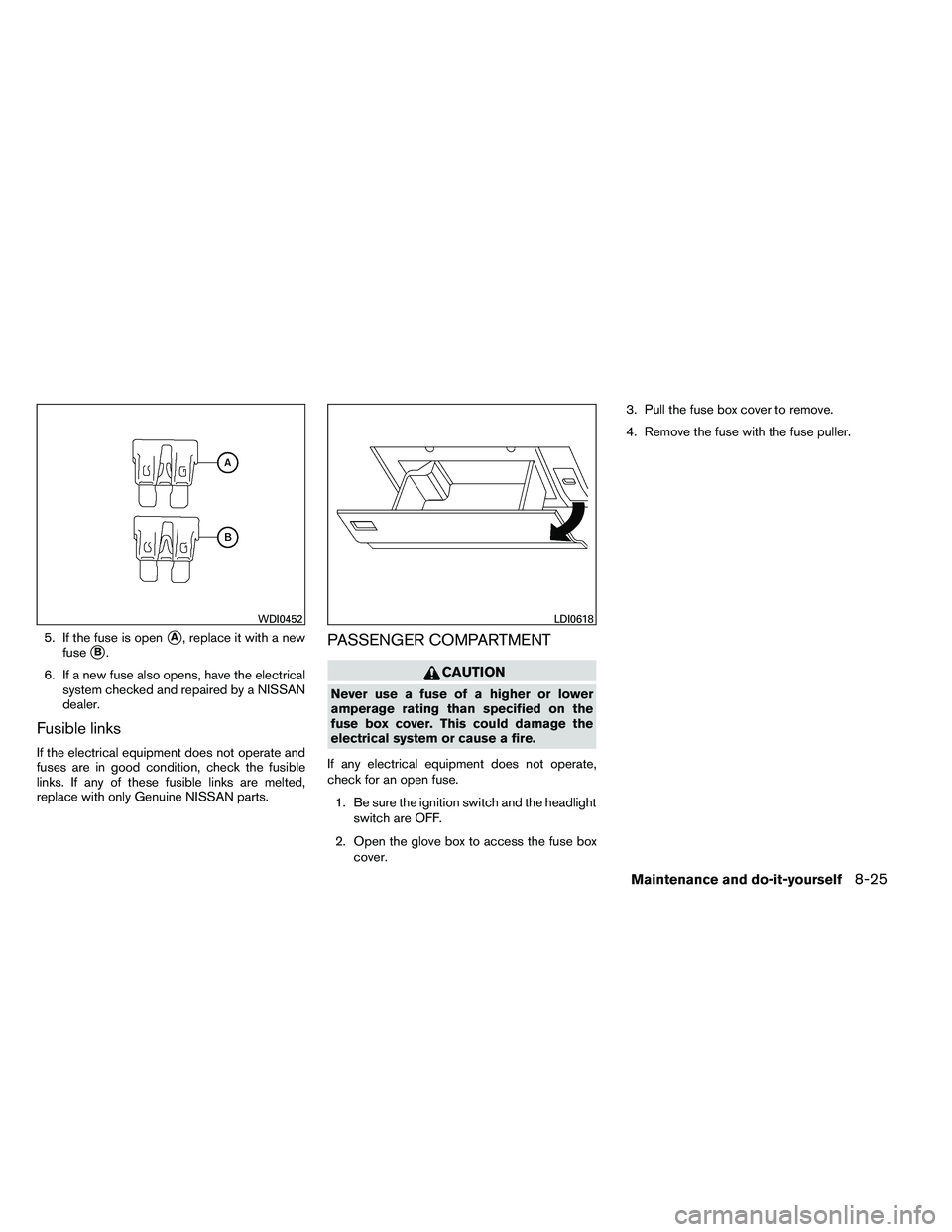

NISSAN ARMADA 2011  Owners Manual 5. If the fuse is openA, replace it with a new
fuse
B.
6. If a new fuse also opens, have the electrical system checked and repaired by a NISSAN
dealer.
Fusible links
If the electrical equipment does

Page 423 of 489

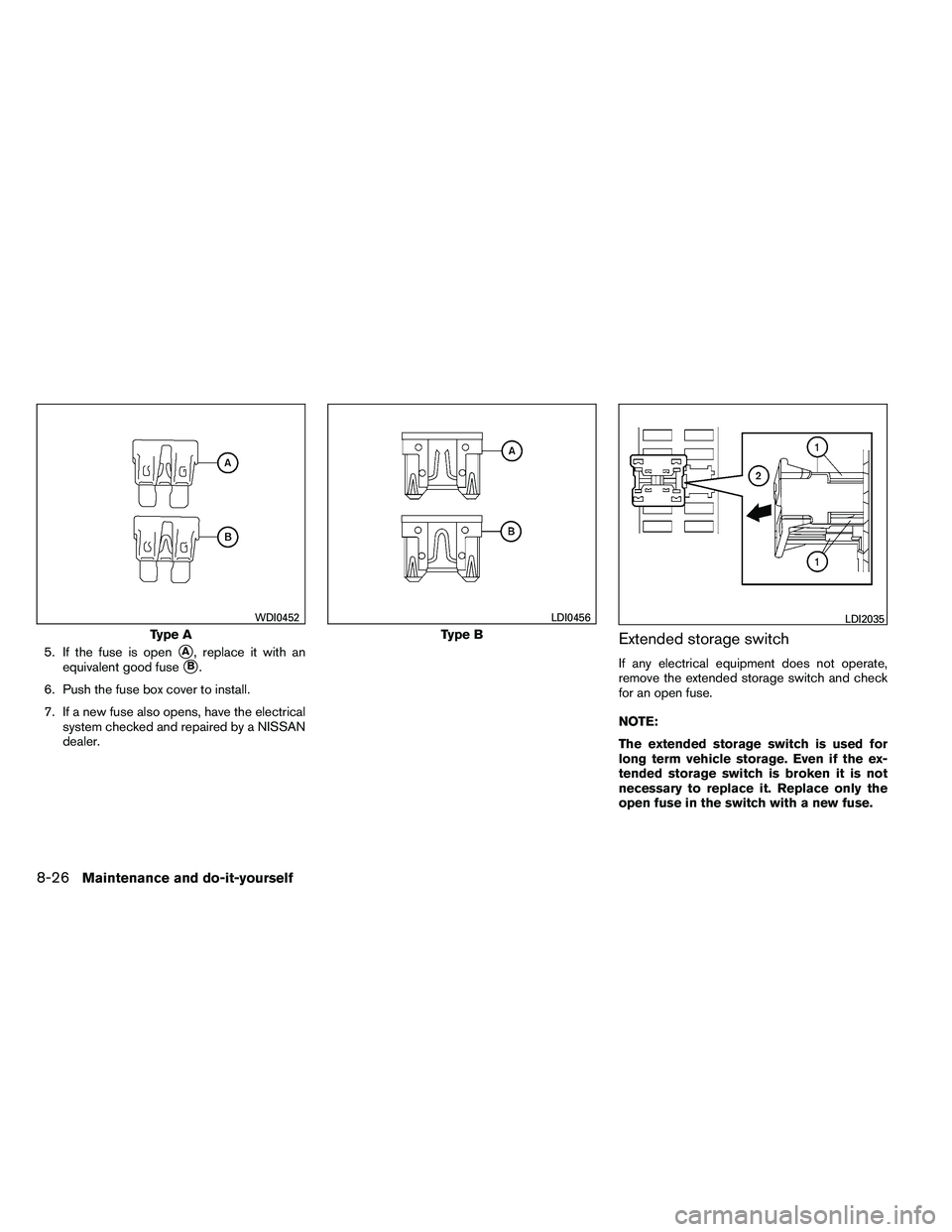

NISSAN ARMADA 2011  Owners Manual 5. If the fuse is openA, replace it with an
equivalent good fuse
B.
6. Push the fuse box cover to install.
7. If a new fuse also opens, have the electrical system checked and repaired by a NISSAN
de

Page 424 of 489

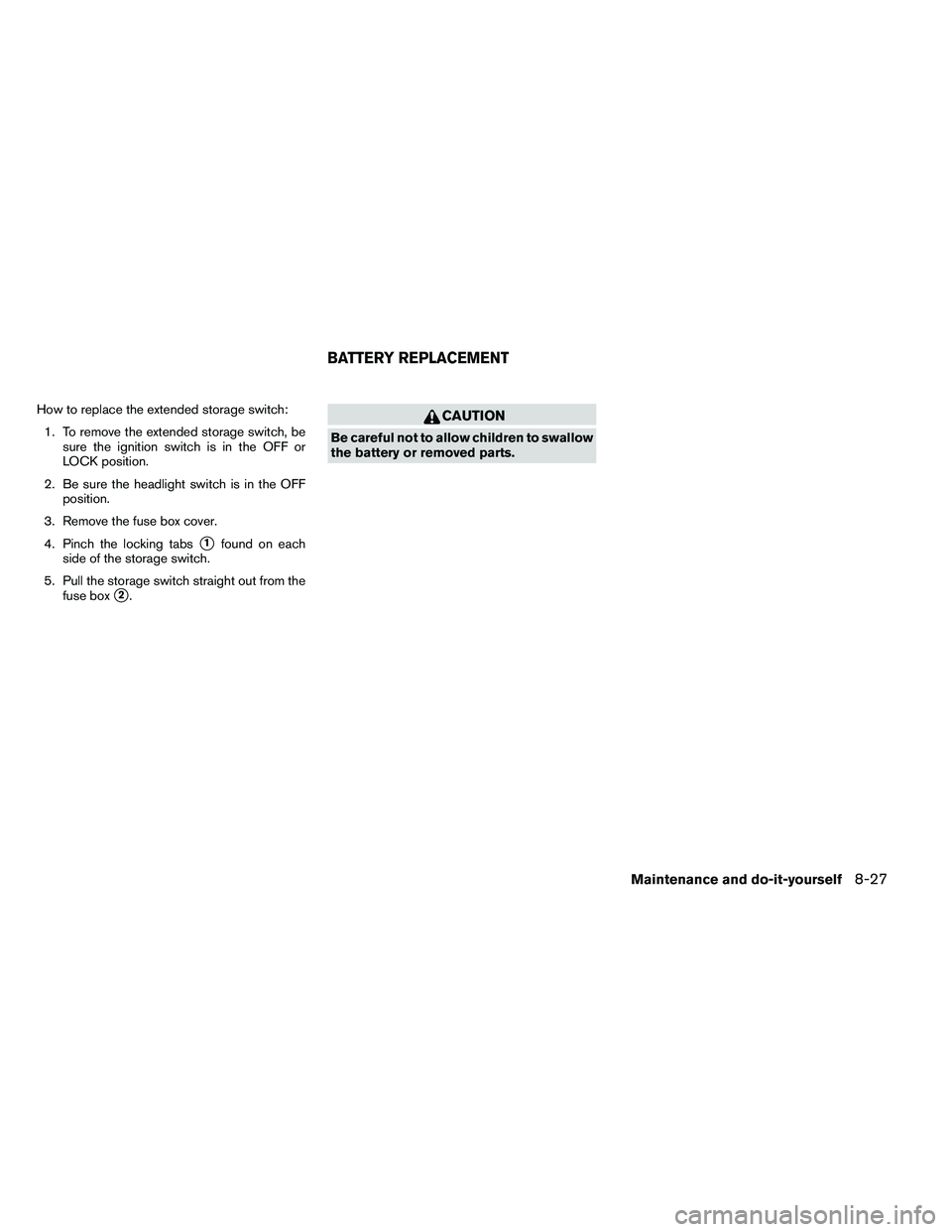

NISSAN ARMADA 2011  Owners Manual How to replace the extended storage switch:1. To remove the extended storage switch, be sure the ignition switch is in the OFF or
LOCK position.
2. Be sure the headlight switch is in the OFF position.

Page 425 of 489

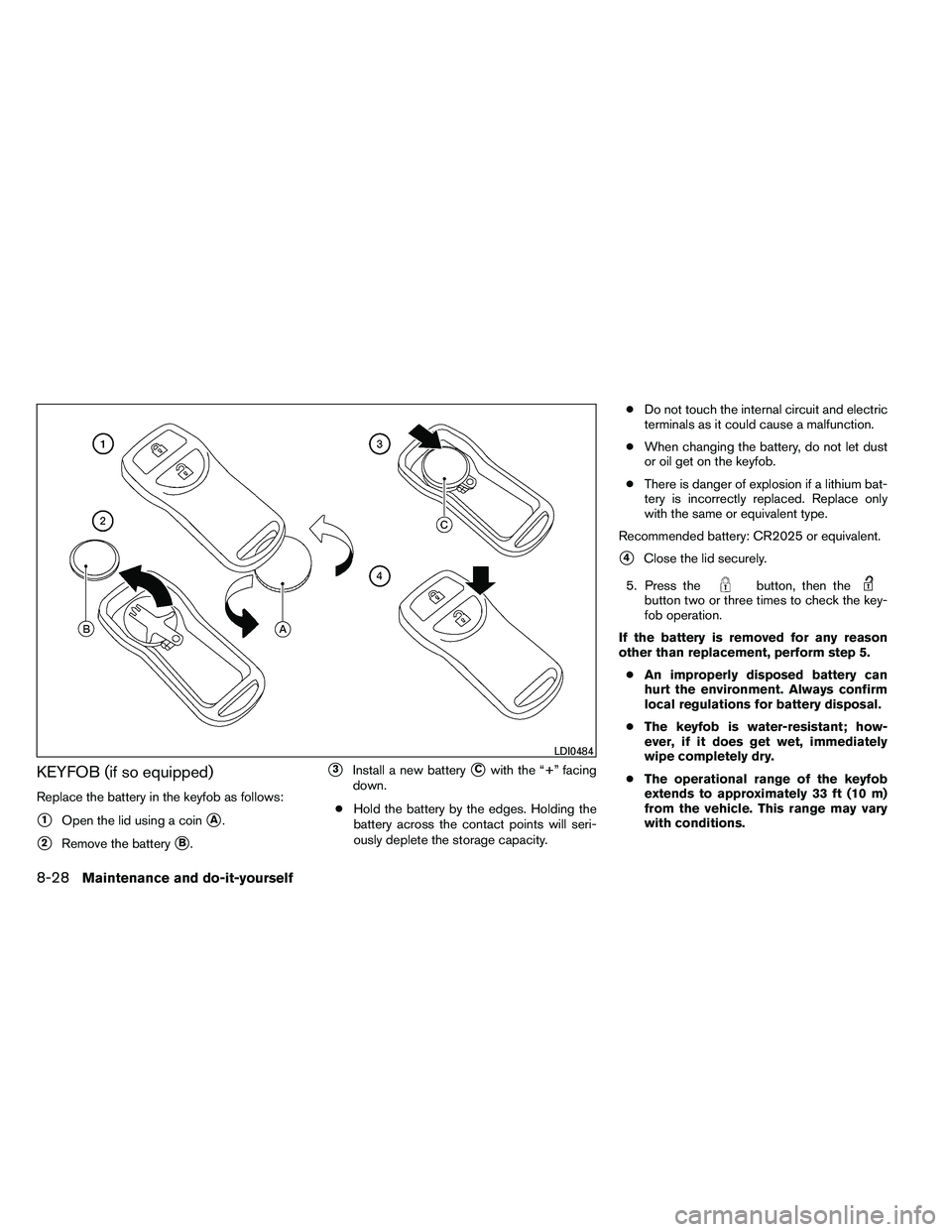

NISSAN ARMADA 2011  Owners Manual KEYFOB (if so equipped)
Replace the battery in the keyfob as follows:
1Open the lid using a coinA.
2Remove the batteryB.
3Install a new batteryCwith the “+” facing
down.
● Hold the battery

Page 426 of 489

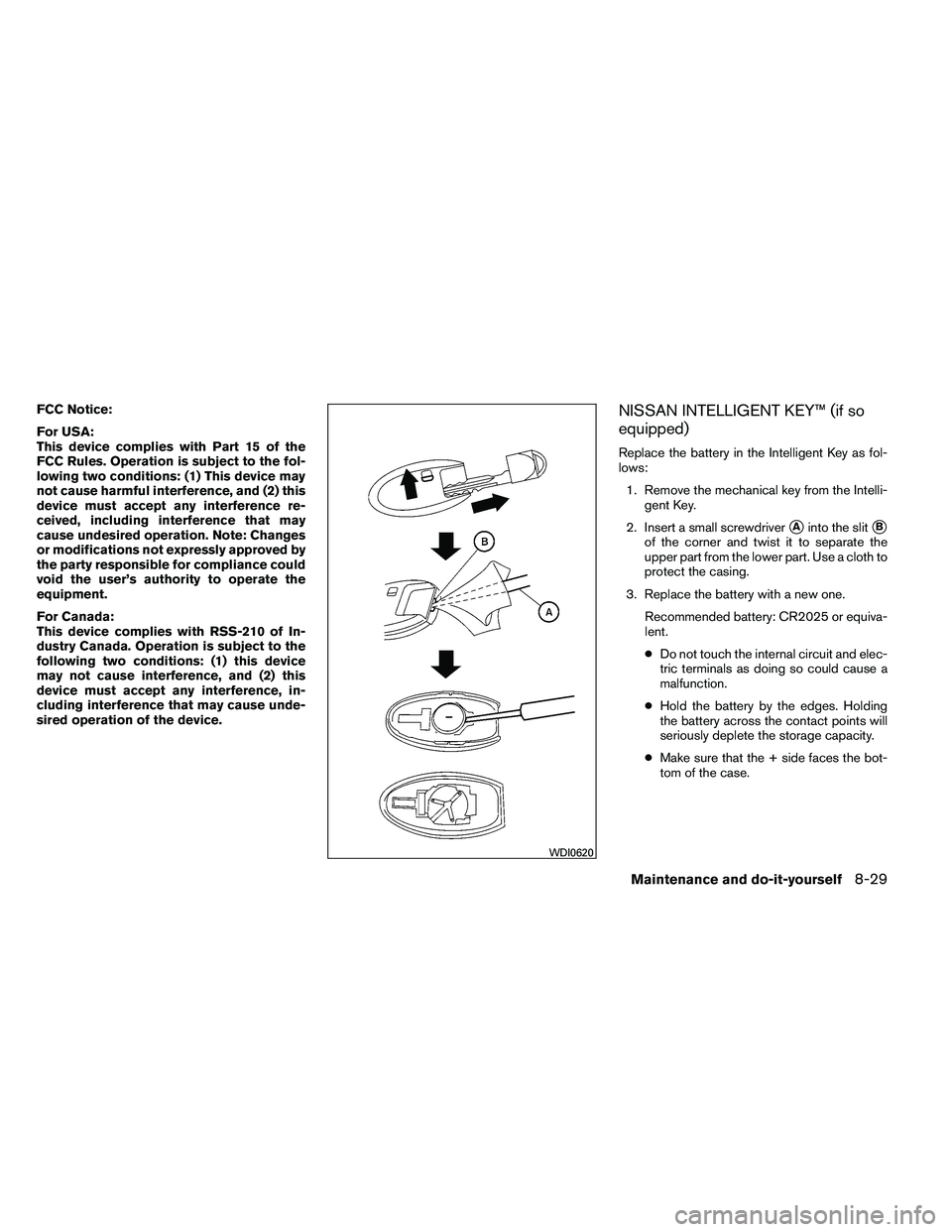

NISSAN ARMADA 2011  Owners Manual FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause harmful interference, and (2) this
device

Page 427 of 489

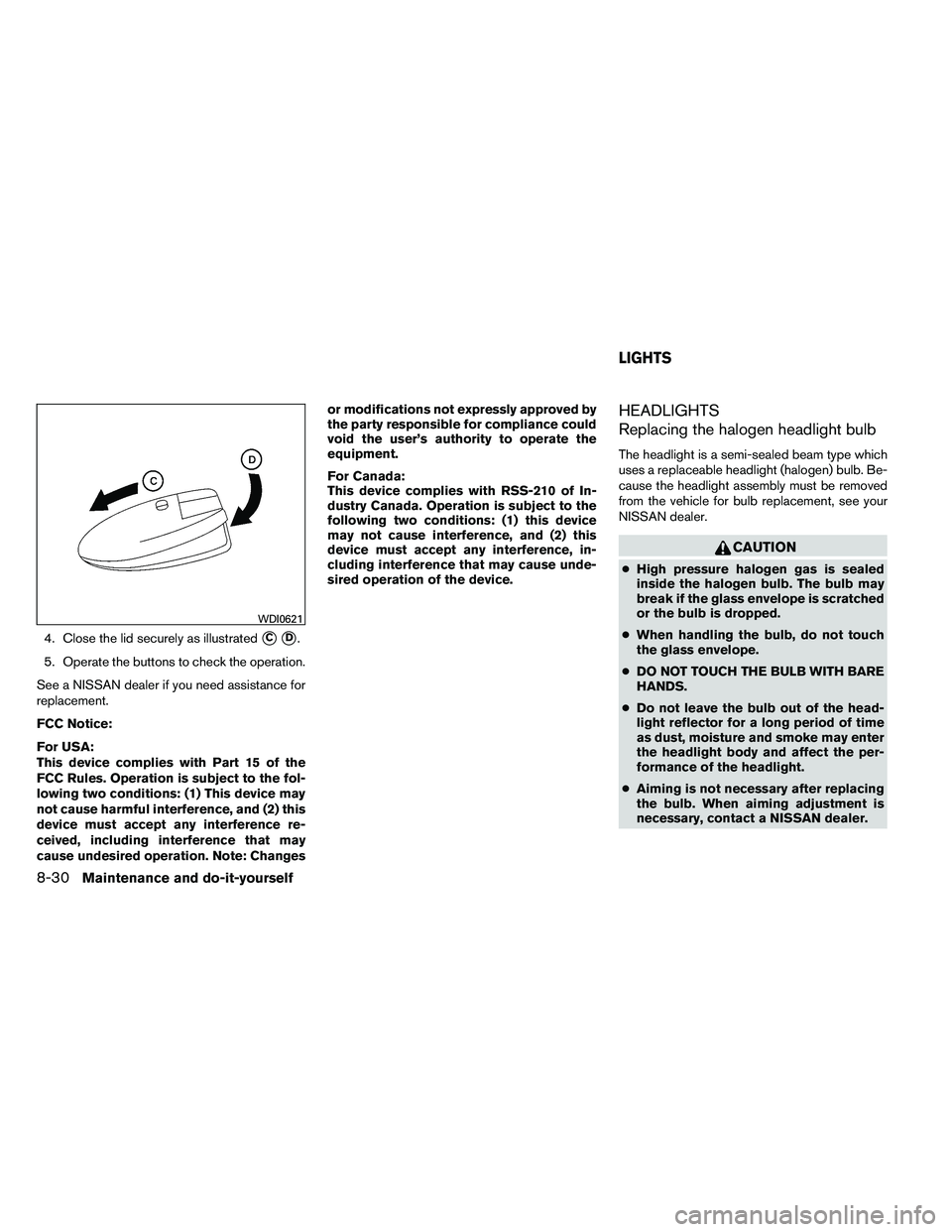

NISSAN ARMADA 2011  Owners Manual 4. Close the lid securely as illustratedCD.
5. Operate the buttons to check the operation.
See a NISSAN dealer if you need assistance for
replacement.
FCC Notice:
For USA:
This device complies with

Page 428 of 489

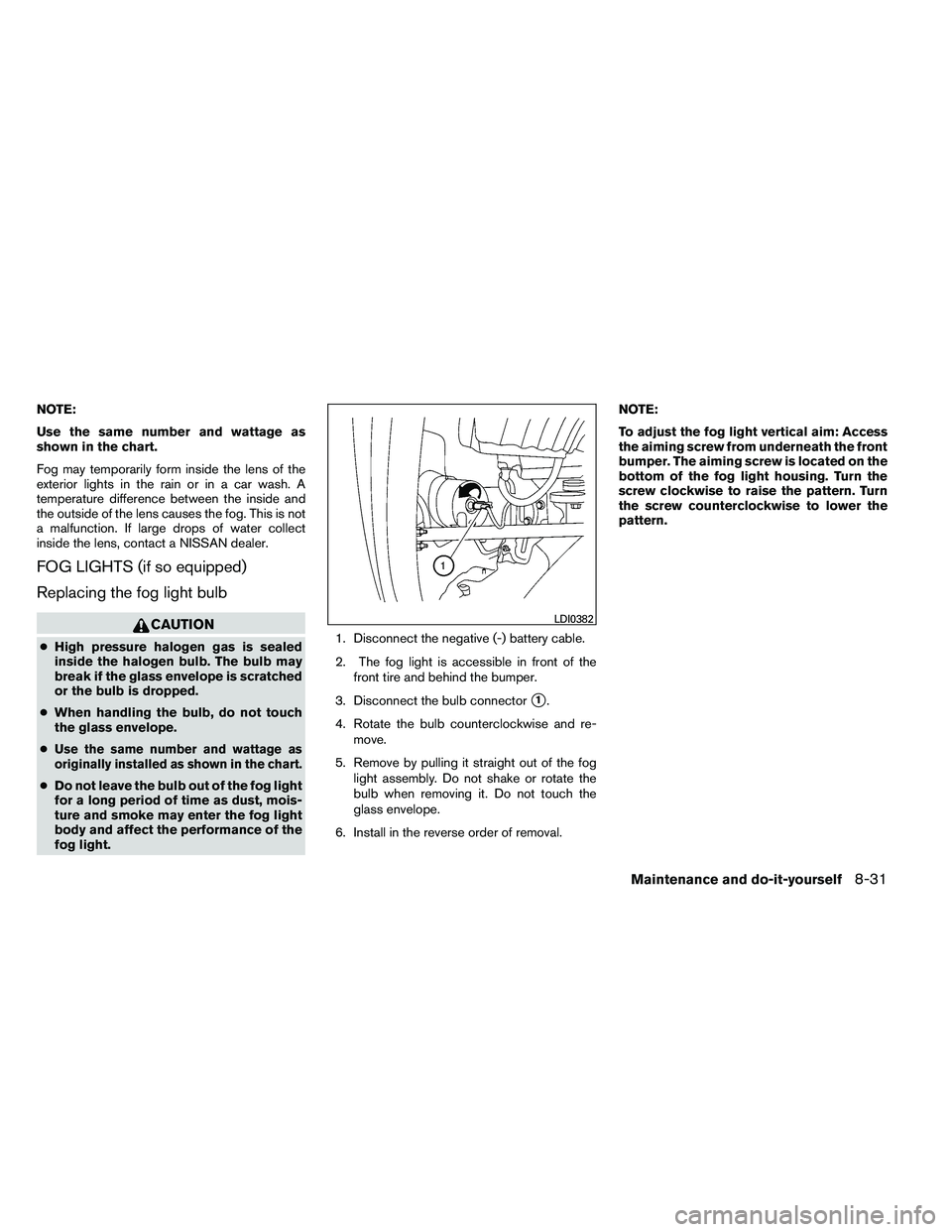

NISSAN ARMADA 2011  Owners Manual NOTE:
Use the same number and wattage as
shown in the chart.
Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside a

Page 429 of 489

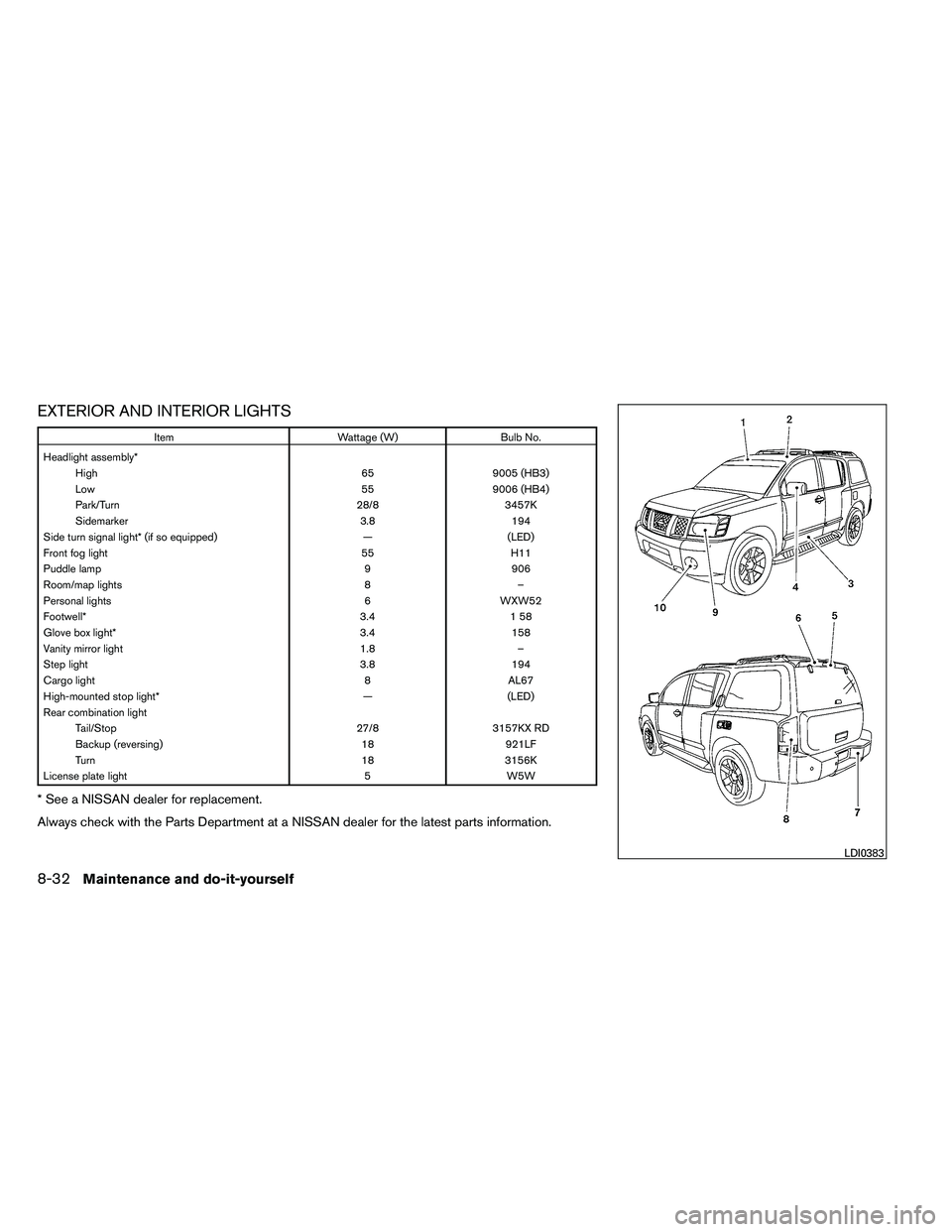

NISSAN ARMADA 2011  Owners Manual EXTERIOR AND INTERIOR LIGHTS

Page 430 of 489

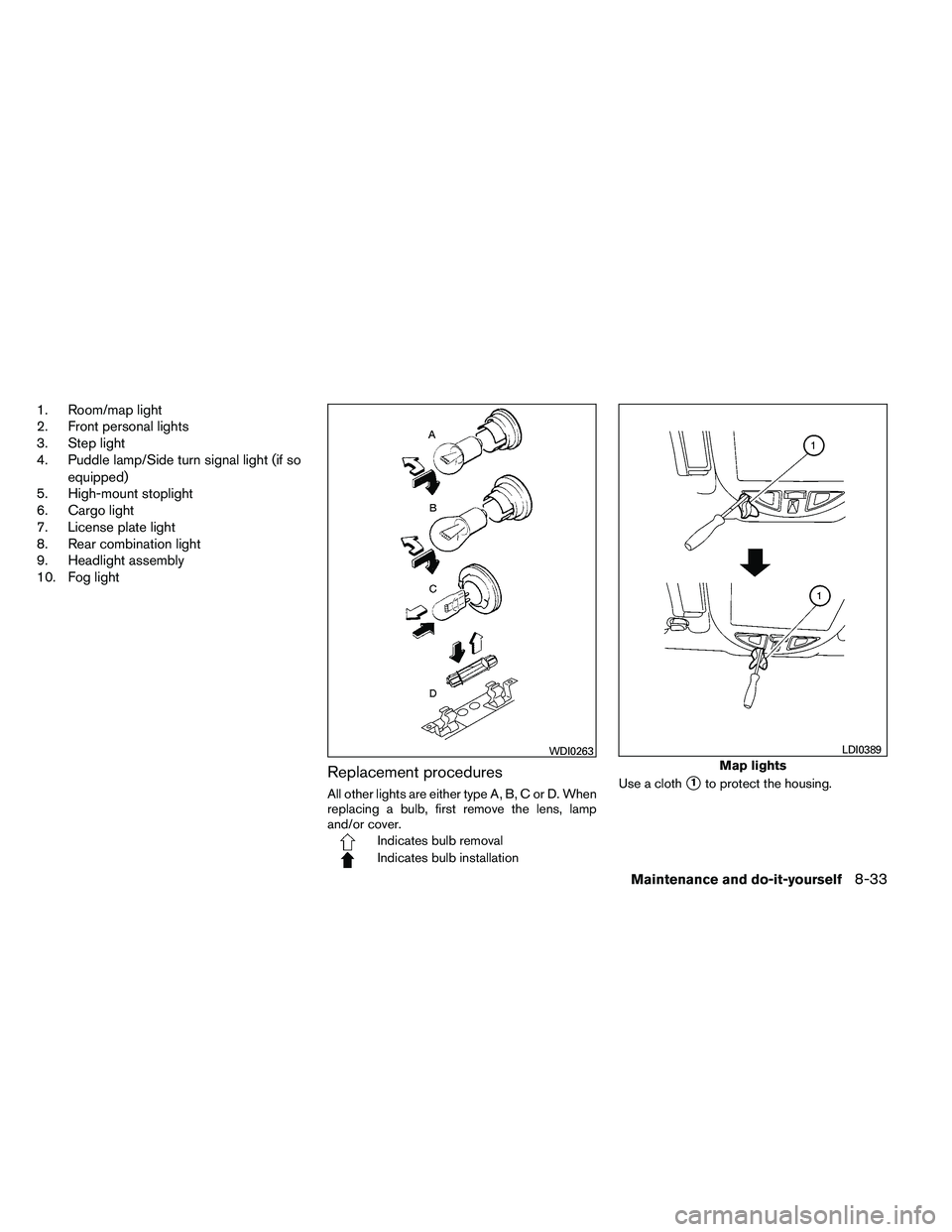

NISSAN ARMADA 2011  Owners Manual 1. Room/map light
2. Front personal lights
3. Step light
4. Puddle lamp/Side turn signal light (if soequipped)
5. High-mount stoplight
6. Cargo light
7. License plate light
8. Rear combination light
9
