Page 431 of 489

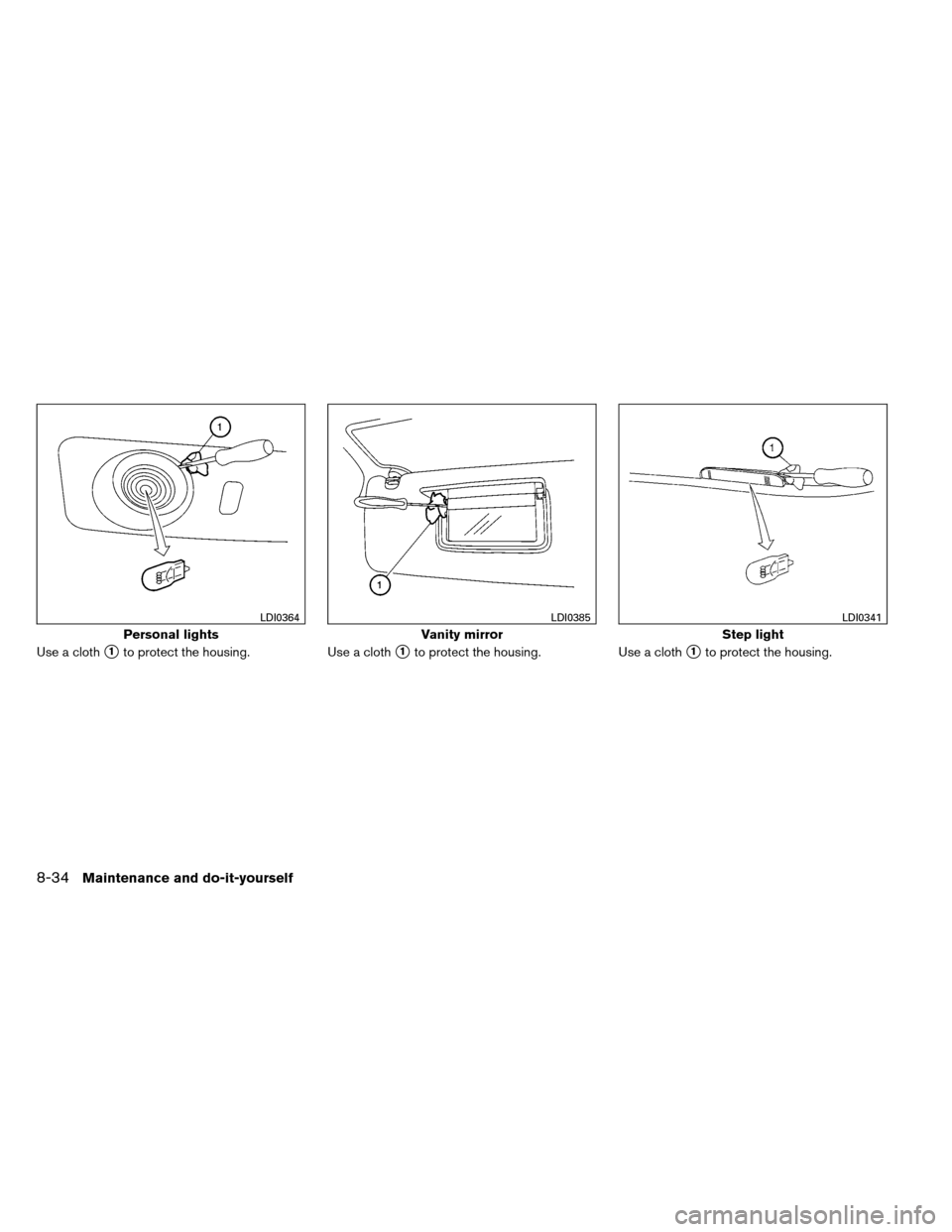

NISSAN ARMADA 2012 1.G Owners Manual Use a cloth1to protect the housing.Use a cloth1to protect the housing.Use a cloth1to protect the housing.
Personal lights
LDI0364
Vanity mirror
LDI0385
Step light
LDI0341
8-34Maintenance and do-it-

Page 432 of 489

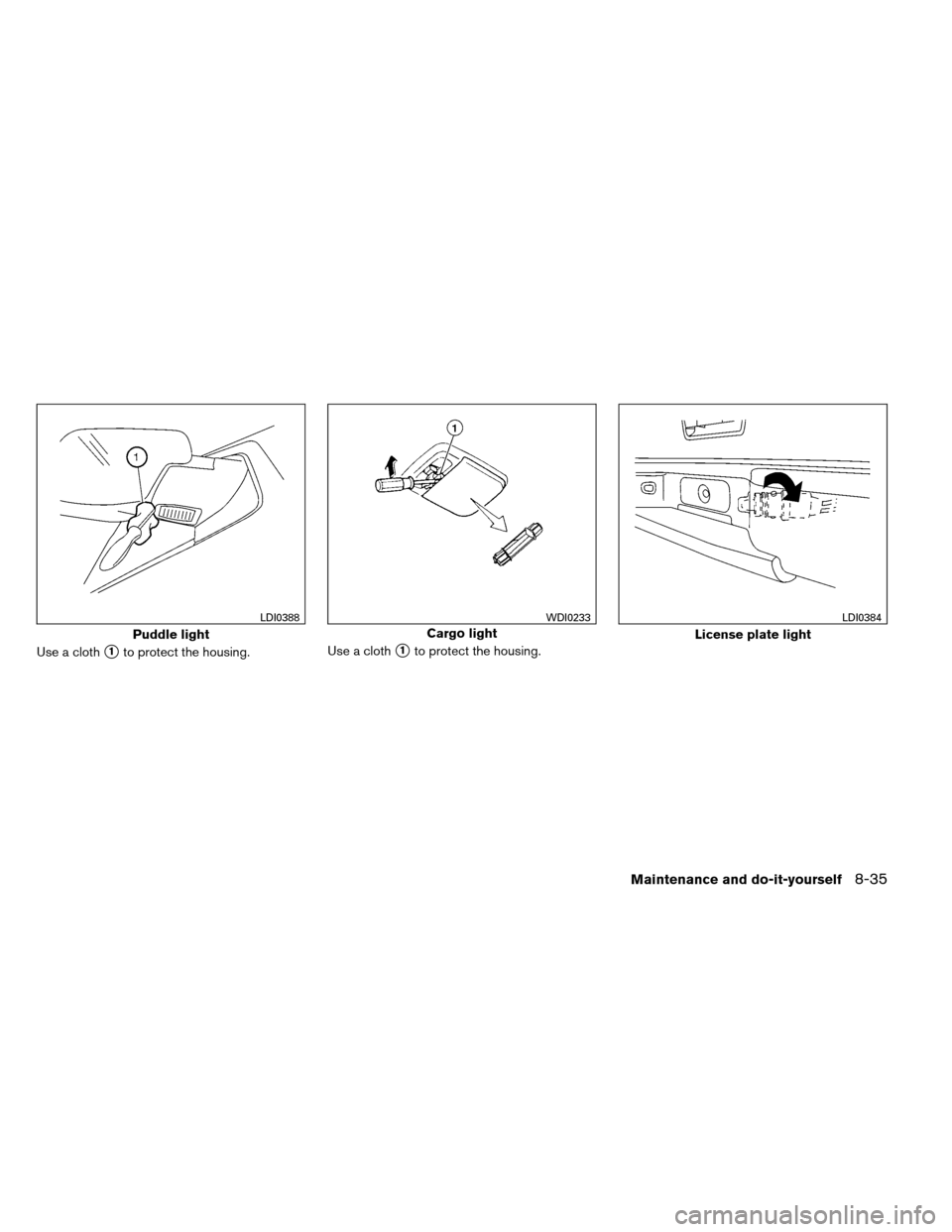

NISSAN ARMADA 2012 1.G Owners Manual Use a cloth1to protect the housing.Use a cloth1to protect the housing.
Puddle light
LDI0388
Cargo light
WDI0233
License plate light
LDI0384
Maintenance and do-it-yourself8-35

Page 433 of 489

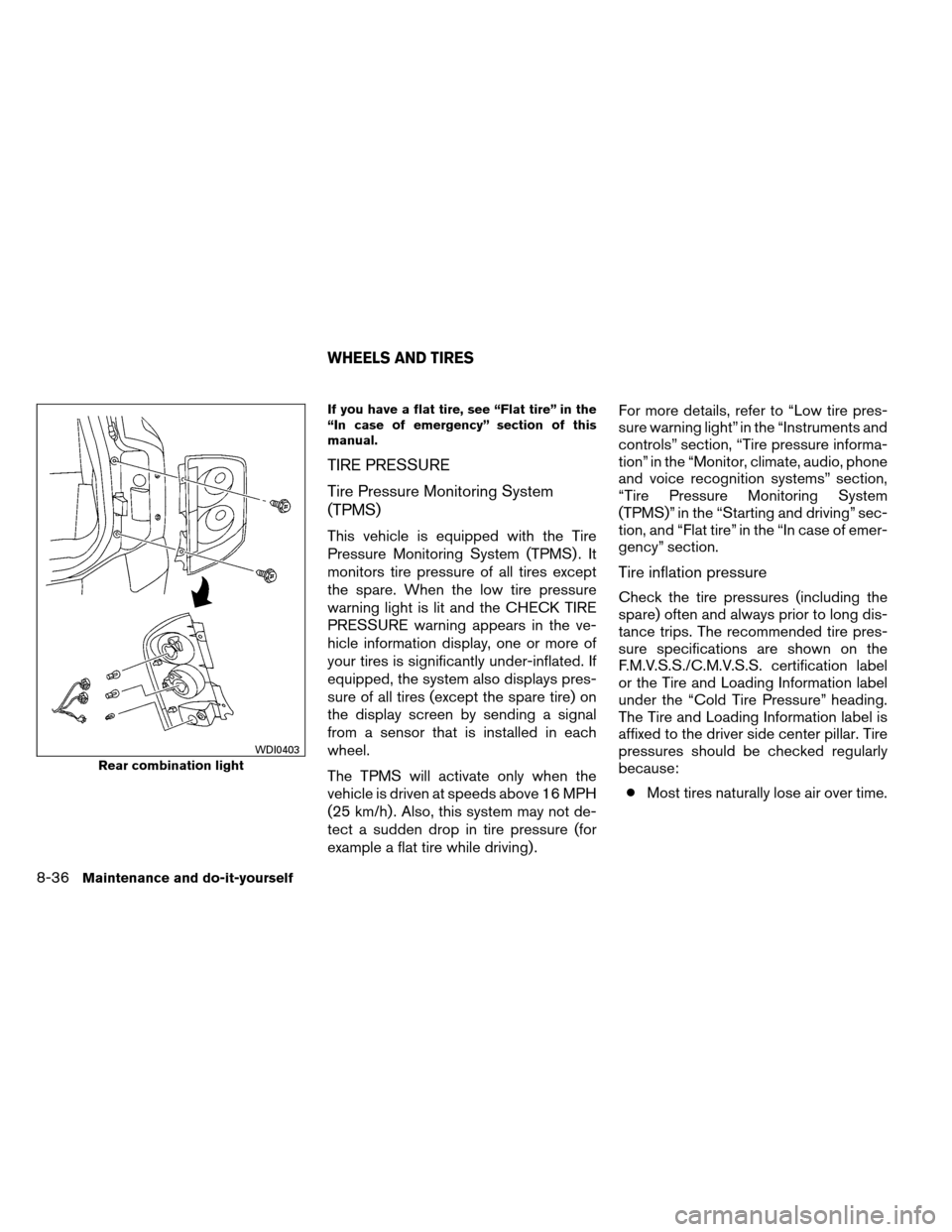

NISSAN ARMADA 2012 1.G Owners Manual If you have a flat tire, see “Flat tire” in the
“In case of emergency” section of this
manual.
TIRE PRESSURE
Tire Pressure Monitoring System
(TPMS)
This vehicle is equipped with the Tire
Press

Page 434 of 489

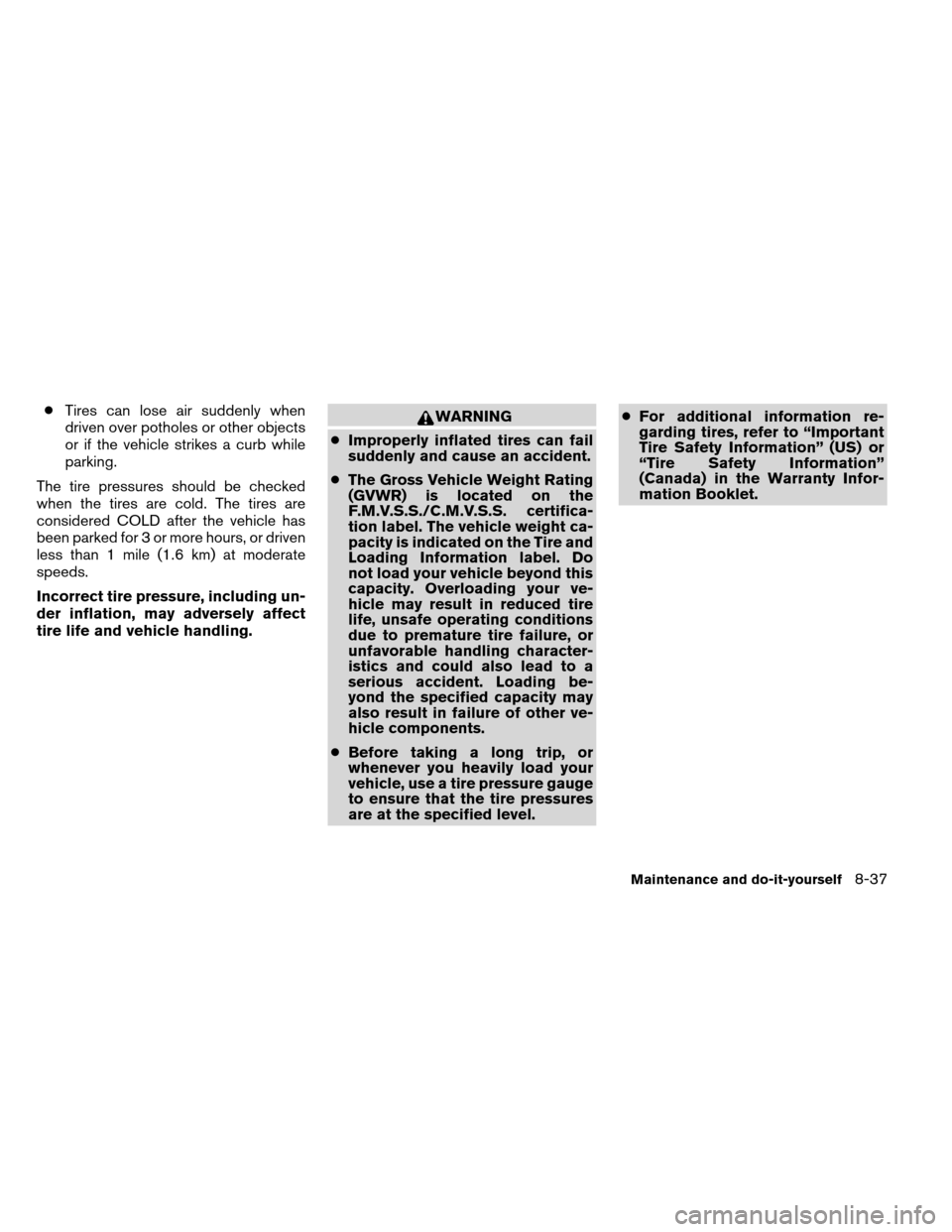

NISSAN ARMADA 2012 1.G Owners Manual ●Tires can lose air suddenly when
driven over potholes or other objects
or if the vehicle strikes a curb while
parking.
The tire pressures should be checked
when the tires are cold. The tires are
co

Page 435 of 489

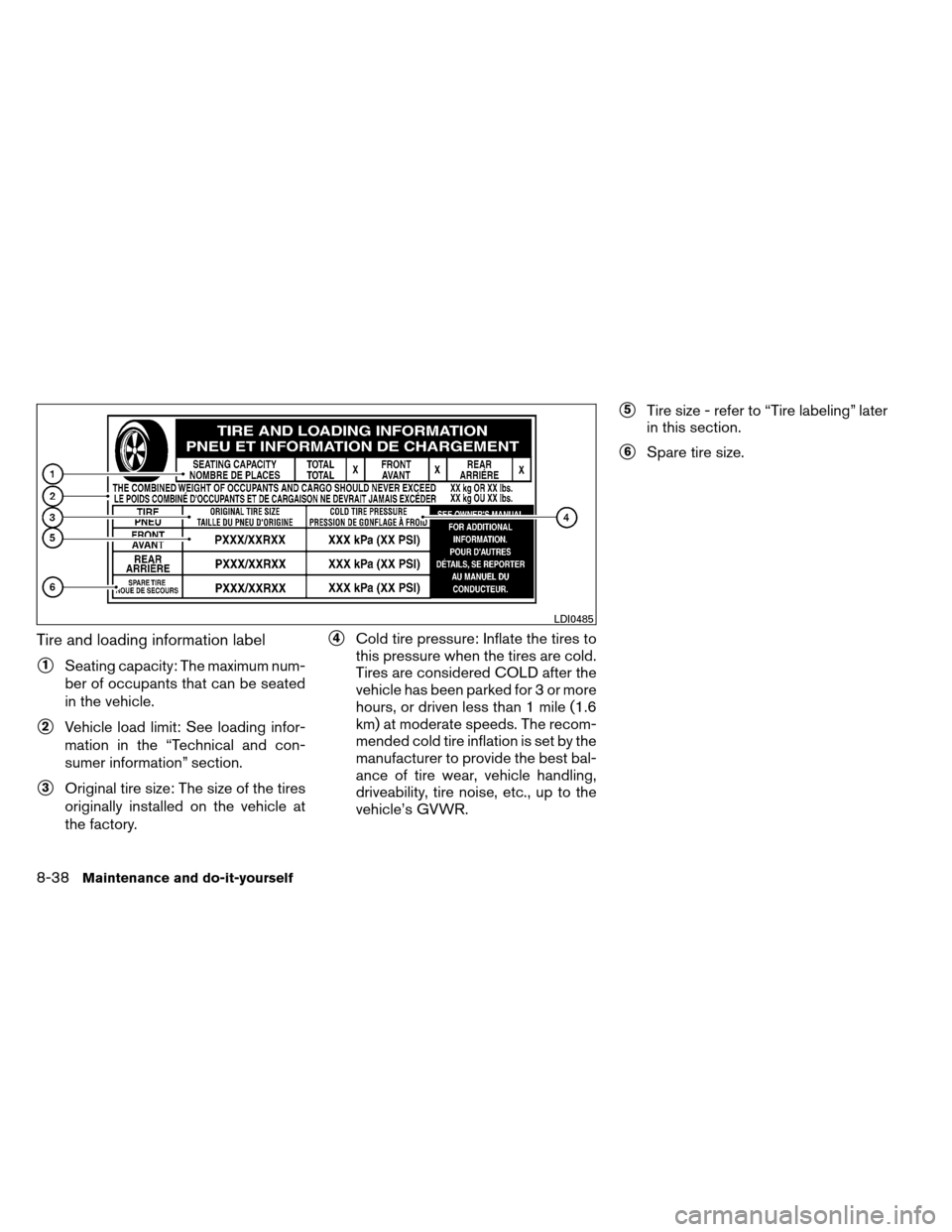

NISSAN ARMADA 2012 1.G Owners Manual Tire and loading information label
1Seating capacity: The maximum num-
ber of occupants that can be seated
in the vehicle.
2Vehicle load limit: See loading infor-
mation in the “Technical and con-

Page 436 of 489

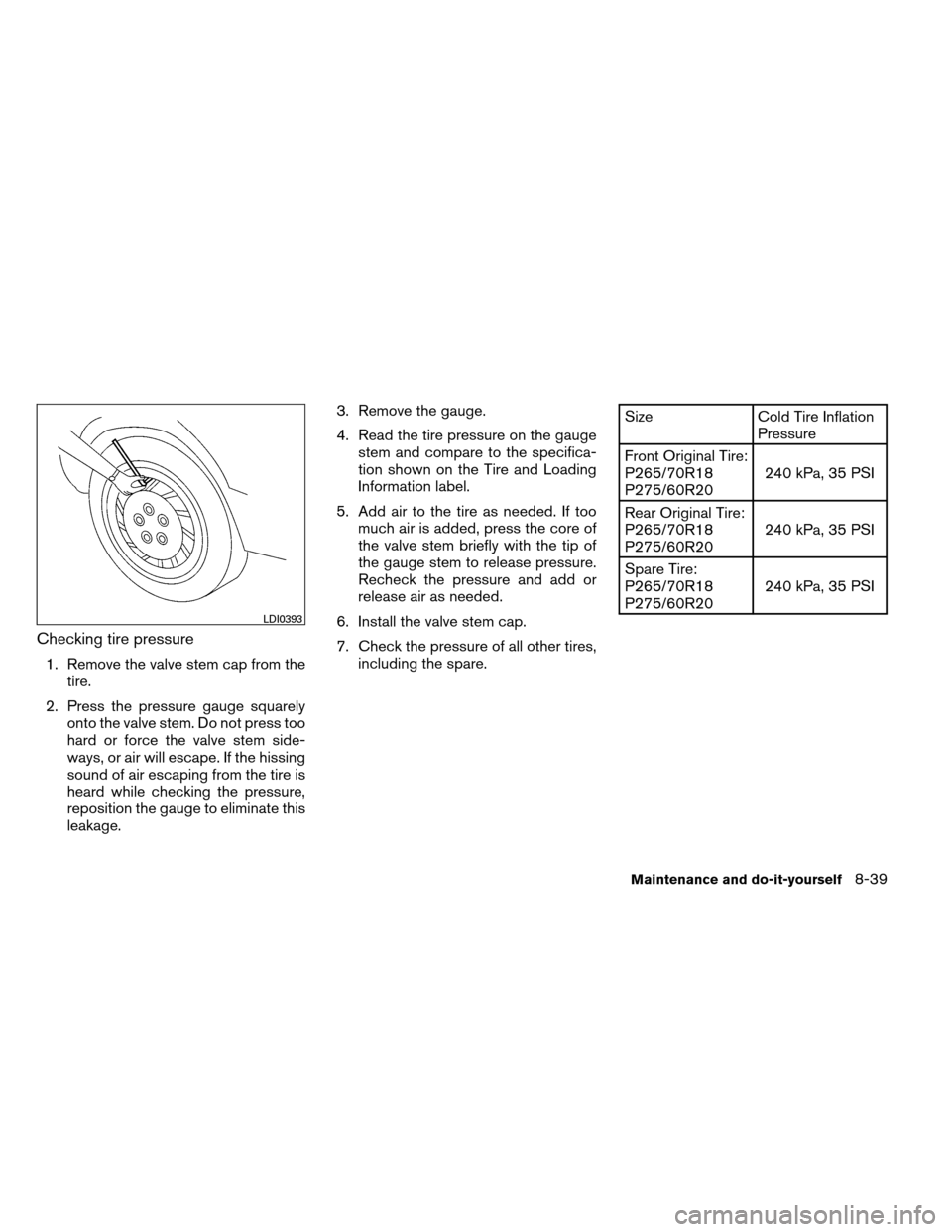

NISSAN ARMADA 2012 1.G Owners Manual Checking tire pressure
1. Remove the valve stem cap from thetire.
2. Press the pressure gauge squarely onto the valve stem. Do not press too
hard or force the valve stem side-
ways, or air will escape

Page 437 of 489

NISSAN ARMADA 2012 1.G Owners Manual TIRE LABELING
Federal law requires tire manufacturers to
place standardized information on the
sidewall of all tires. This information iden-
tifies and describes the fundamental
characteristics of the

Page 438 of 489

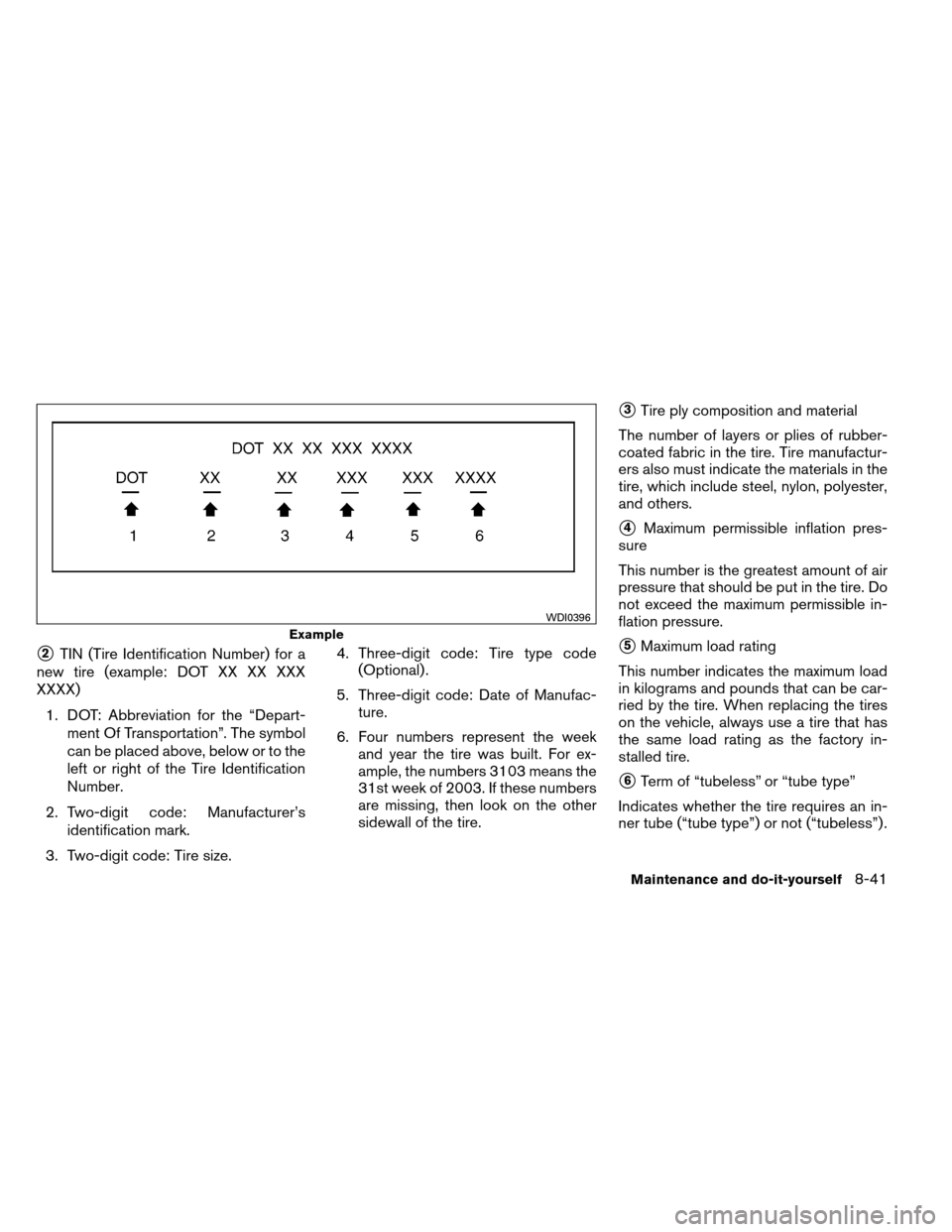

NISSAN ARMADA 2012 1.G Owners Manual 2TIN (Tire Identification Number) for a
new tire (example: DOT XX XX XXX
XXXX)
1. DOT: Abbreviation for the “Depart- ment Of Transportation”. The symbol
can be placed above, below or to the
left

Page 439 of 489

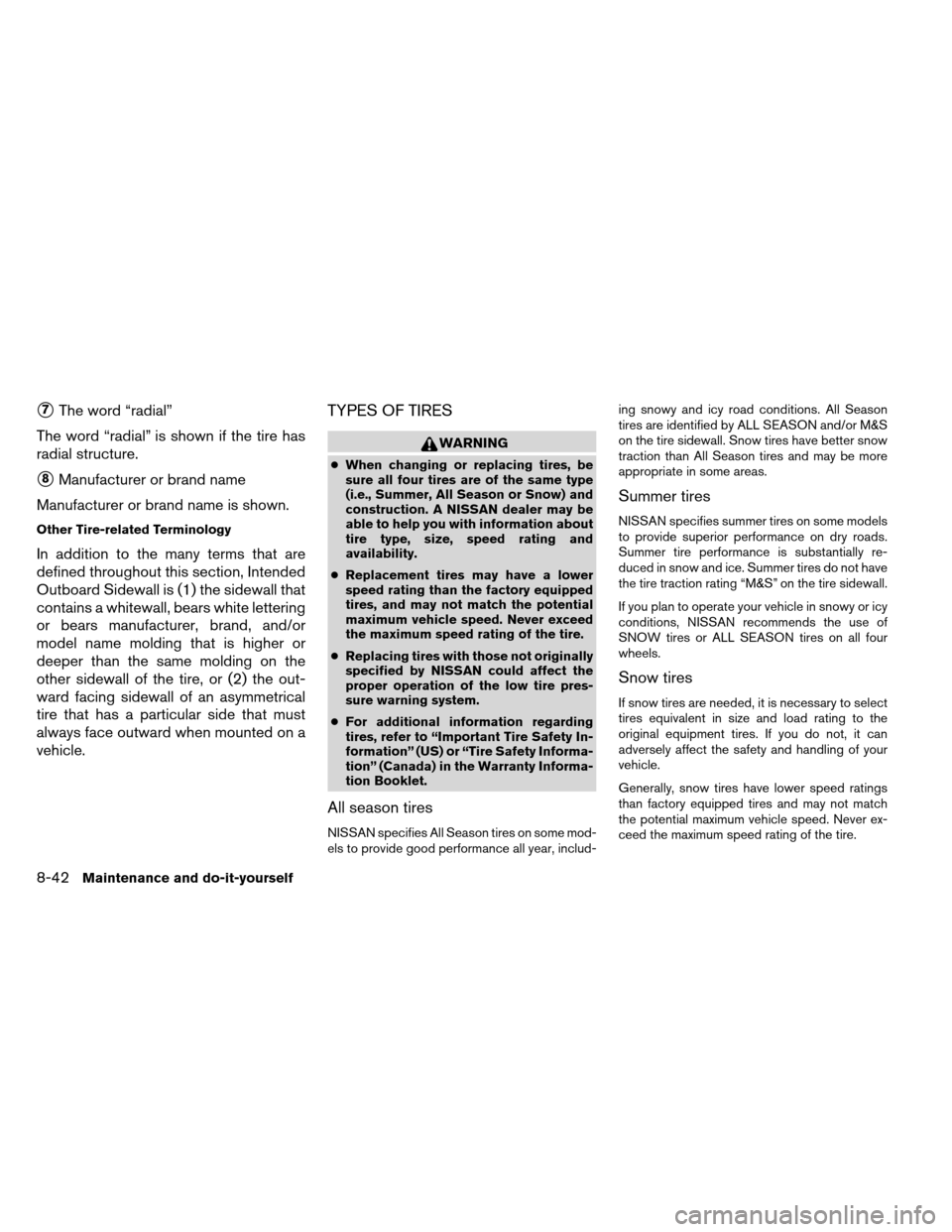

NISSAN ARMADA 2012 1.G Owners Manual 7The word “radial”
The word “radial” is shown if the tire has
radial structure.
8Manufacturer or brand name
Manufacturer or brand name is shown.
Other Tire-related Terminology
In addition to

Page 440 of 489

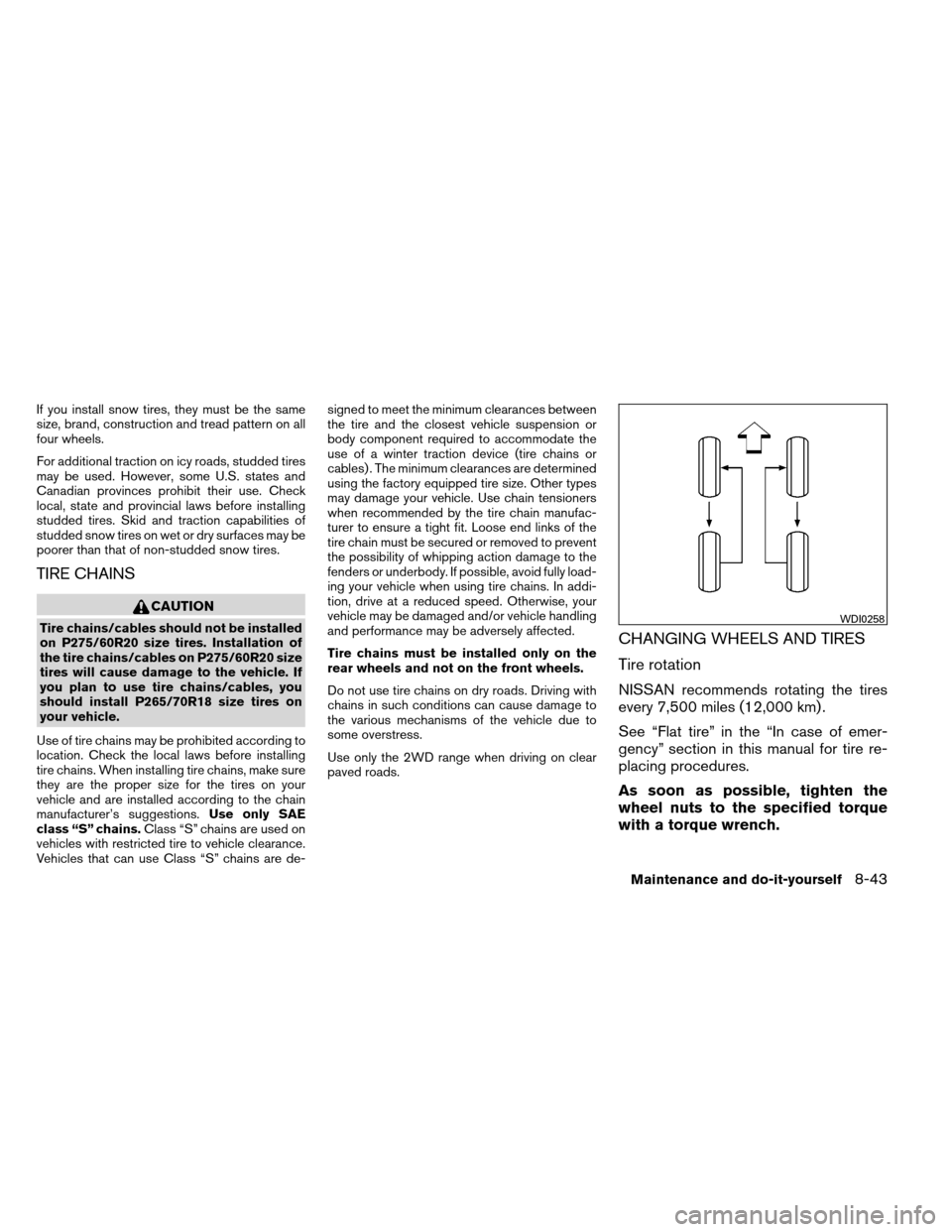

NISSAN ARMADA 2012 1.G Owners Manual If you install snow tires, they must be the same
size, brand, construction and tread pattern on all
four wheels.
For additional traction on icy roads, studded tires
may be used. However, some U.S. sta
