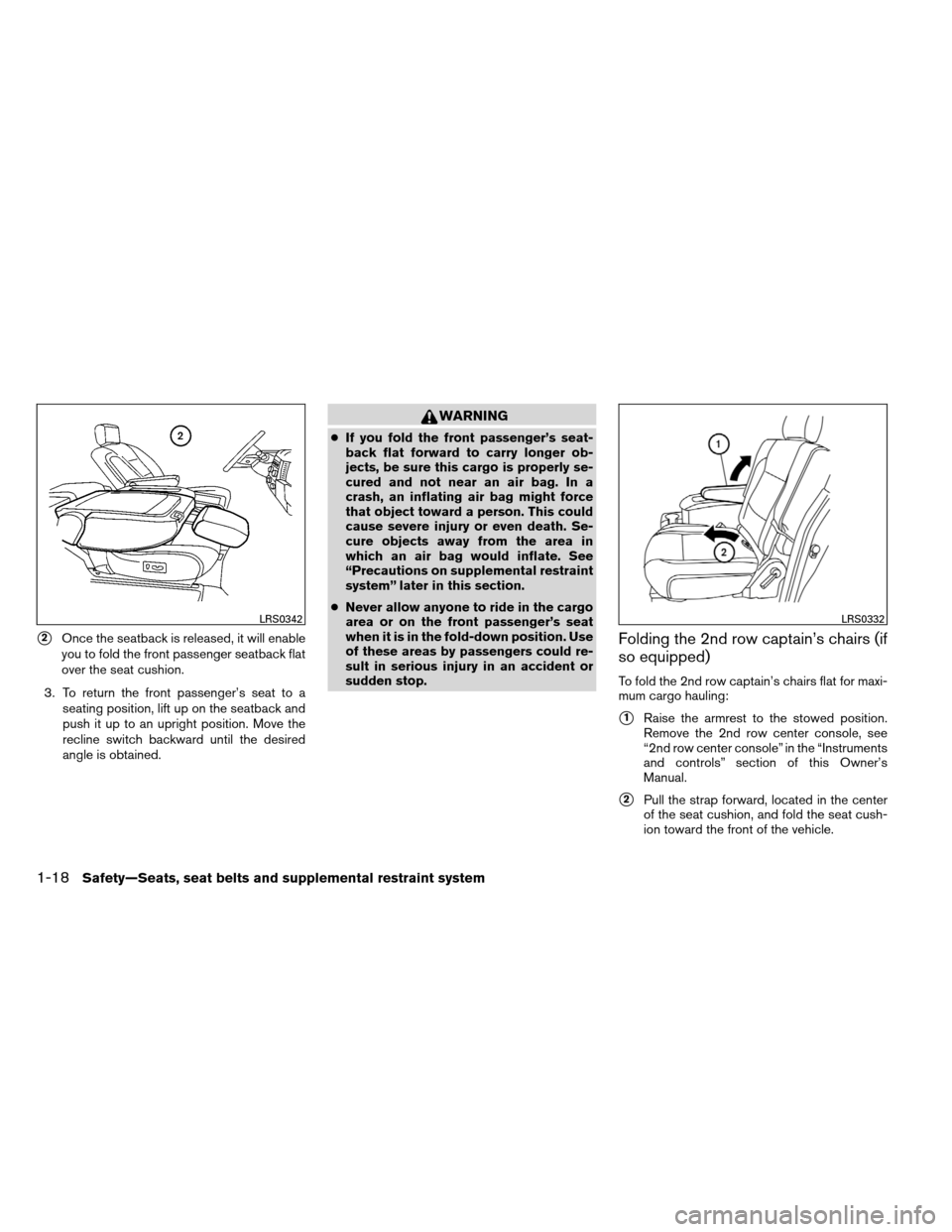

2Once the seatback is released, it will enable
you to fold the front passenger seatback flat
over the seat cushion.
3. To return the front passenger’s seat to a seating position, lift up on the seatback and
push it up to an upright position. Move the
recline switch backward until the desired
angle is obtained.
WARNING
●If you fold the front passenger’s seat-
back flat forward to carry longer ob-
jects, be sure this cargo is properly se-
cured and not near an air bag. In a
crash, an inflating air bag might force
that object toward a person. This could
cause severe injury or even death. Se-
cure objects away from the area in
which an air bag would inflate. See
“Precautions on supplemental restraint
system” later in this section.
● Never allow anyone to ride in the cargo
area or on the front passenger’s seat
when it is in the fold-down position. Use
of these areas by passengers could re-
sult in serious injury in an accident or
sudden stop.
Folding the 2nd row captain’s chairs (if
so equipped)
To fold the 2nd row captain’s chairs flat for maxi-
mum cargo hauling:
1Raise the armrest to the stowed position.
Remove the 2nd row center console, see
“2nd row center console” in the “Instruments
and controls” section of this Owner’s
Manual.
2Pull the strap forward, located in the center
of the seat cushion, and fold the seat cush-
ion toward the front of the vehicle.
LRS0342LRS0332
1-18Safety—Seats, seat belts and supplemental restraint system

To return the 3rd row split bench seat to a seating
position, unfold the seatback and push it back
until it latches into position.
WARNING
●When returning the seatbacks, be sure
to attach the rear center seat belt
connector.
● Do not unfasten the rear center seat
belt connector except when folding
down the rear seat.
● When attaching the rear center seat
belt connector, be certain that the seat-
backs are completely secured in the
latched position and the rear center
seat belt connector is completely
secured.
● If the rear center seat belt connector
and the seatbacks are not secured in
the correct position, serious personal
injury may result in an accident or sud-
den stop.
3RD ROW POWER FOLDING
SEATS (if so equipped)
The 3rd row power folding seat controls are
located behind the 2nd row seat (passenger’s
side) on the 3rd row cup holder console
1.
There are also controls located on the rear quar-
ter trim panel behind the 3rd row seats (passen-
ger’s side)
2.
Before operating the 3rd row seats: ● Make sure the 2nd row seatback isn’t re-
clined.
● Lower the 3rd row headrest to the full down
position. ●
Disconnect and secure the center seat belt
and tongues into the retractor base. See
“Stowing the 3rd row center seat belt” later
in this section.
– Always reconnect the center seat belt when the seat is returned to the upright
position.
● Make sure that there are no objects on the
seatback cushion.
CAUTION
Make sure the seat(s) is returned to the
full upright position before a passenger
sits in the seat(s) .
When folding or returning the seat(s) to
the upright position, to avoid injury to
yourself and others:
● Make sure that the seat path is clear
before moving the seat.
● Be careful not to allow hands or feet to
get caught or pinched in the seat.
LRS0792
Safety—Seats, seat belts and supplemental restraint system1-23

Sunglasses holder............................. 2-42
Map pockets .................................. 2-43
Seatback pocket .............................. 2-43
Overhead console ............................. 2-43
Cup holders .................................. 2-44
2nd row center console (if so equipped) .........2-47
Cargo area storage bin ......................... 2-48
Luggage hooks ................................ 2-48
Roof rack ..................................... 2-50
Windows ........................................ 2-51
Power windows ............................... 2-51
Power vent windows (if so equipped) ............2-54
Manual vent windows (if so equipped) ...........2-54
Moonroof (if so equipped) ......................... 2-55
Automatic moonroof ........................... 2-55Interior light
...................................... 2-56
Console light .................................. 2-57
Personal lights ................................... 2-58
Map lights ....................................... 2-58
Cargo light ...................................... 2-58
HomeLink universal transceiver (if so equipped) .....2-59
Programming HomeLink .......................2-59
Programming HomeLink for Canadian
customers .................................... 2-60
Operating the HomeLink universal
transceiver .................................... 2-61
Programming trouble-diagnosis .................2-61
Clearing the programmed information ............2-61
Reprogramming a single HomeLink button......2-61
If your vehicle is stolen ......................... 2-61

Position the arm on the adjustable cup holder so
that the cup is held securely.To open the 2nd row cup holders (rear of the front
console) , lower the lid. To close, raise the lid.
Adjustable
LIC1373
2nd row (rear of front console)
LIC0554
2nd row center console (if so equipped)
LIC0555
Instruments and controls2-45

2ND ROW CENTER CONSOLE (if so
equipped)
Pull up on the lever to open the console box lid.
Removing the 2nd row center console
box
To remove the 2nd row center console box:
1Lift out the cup holder tray.
2Pull up on the handle to tilt the console box
up.
3Move the console box toward the front of the
vehicle and lift it out. To reinstall the 2nd row center console box:
1. Slide the console box over the base toward the rear of the vehicle.
2. Push down to lock the console box in place.
3. Replace the cup holder tray.
LIC0576LIC0577
Instruments and controls2-47

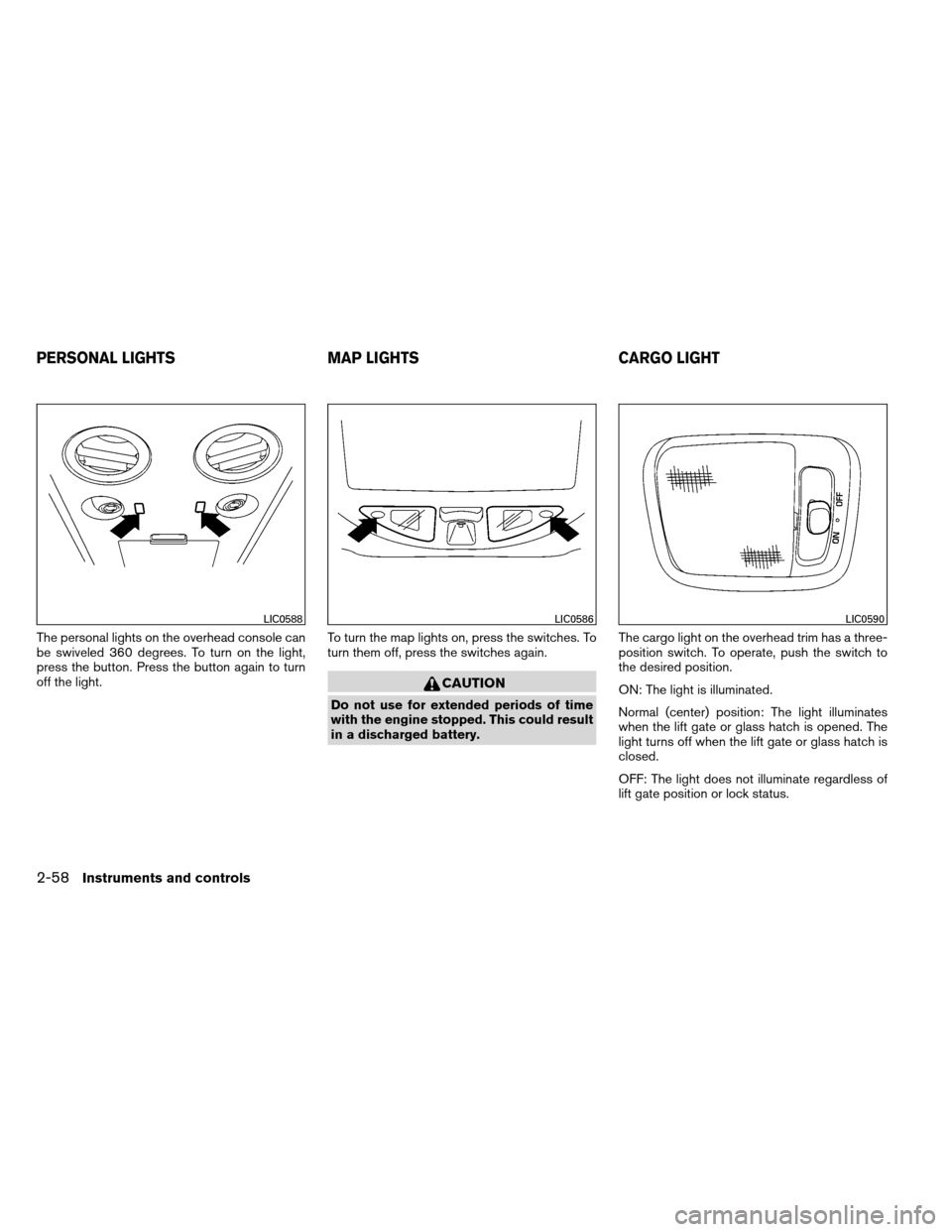

The personal lights on the overhead console can
be swiveled 360 degrees. To turn on the light,
press the button. Press the button again to turn
off the light.To turn the map lights on, press the switches. To
turn them off, press the switches again.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery.The cargo light on the overhead trim has a three-
position switch. To operate, push the switch to
the desired position.
ON: The light is illuminated.
Normal (center) position: The light illuminates
when the lift gate or glass hatch is opened. The
light turns off when the lift gate or glass hatch is
closed.
OFF: The light does not illuminate regardless of
lift gate position or lock status.
LIC0588LIC0586LIC0590
PERSONAL LIGHTS
MAP LIGHTSCARGO LIGHT
2-58Instruments and controls
