CHANGING ENGINE OIL
1. Park the vehicle on a level surface and applythe parking brake.
2. Start the engine and let it idle until it reaches operating temperature, then turn it off.
3. Remove the oil filler cap
Aby turning it
counterclockwise.
4. Place a large drain pan under the drain plug
B.
5. Remove the drain plug
Bwith a wrench by
turning it counterclockwise and completely
drain the oil. If the oil filter is to be changed, remove and
replace it at this time. See “Changing engine
oil filter” in this section.
● Waste oil must be disposed of prop-
erly.
● Check your local regulations.
WARNING
●Prolonged and repeated contact with
used engine oil may cause skin cancer.
● Try to avoid direct skin contact with
used oil. If skin contact is made, wash
thoroughly with soap or hand cleaner
as soon as possible.
● Keep used engine oil out of reach of
children.
CAUTION
Be careful not to burn yourself. The engine
oil may be hot.
6. Clean and reinstall the drain plug and a new washer. Securely tighten the drain plug with
a wrench. Do not use excessive force.
Drain plug tightening torque: 22 - 29 ft-lb (29 - 39 N·m) 7. Refill engine with recommended oil through
the oil filler opening, then install the oil filler
cap securely.
See “Capacities and recommended
fuel/lubricants” in the “Technical and con-
sumer information” section of this manual for
drain and refill capacity.
The drain and refill capacity depends on the
oil temperature and drain time. Use these
specifications for reference only. Always use
the dipstick to determine when the proper
amount of oil is in the engine.
8. Start the engine. Check for leakage around the drain plug and oil filter. Correct as re-
quired.
9. Turn the engine off and wait more than 10 minutes. Check the oil level with the dipstick.
Add engine oil if necessary.
WDI0504
8-10Maintenance and do-it-yourself
Page 444 of 489
9 Technical and consumer information
Capacities and recommended fuel/lubricants.........9-2
Fuel recommendation
(without Flexible Fuel Vehicle option). .............9-4
Flexible fuel vehicle (FFV) fuel
recommendation (if so equipped) .................9-5
Engine oil and oil filter recommendations ..........9-7
Air conditioner system refrigerant and oil
recommendations ..............................9-8
Specifications .....................................9-9
Engine ........................................9-9
Wheels and tires .............................. 9-10
Dimensions and weights .......................9-10
When traveling or registering your vehicle in
another country .................................. 9-11
Vehicle identification .............................. 9-11
Vehicle identification number (VIN) plate .........9-11
Vehicle identification number
(chassis number) .............................. 9-11
Engine serial number ........................... 9-12
F.M.V.S.S./C.M.V.S.S. certification label ..........9-12
Emission control information label ...............9-12Tire and loading information label
................9-13
Air conditioner specification label ................9-13
Installing front license plate ........................9-13
Vehicle loading information ........................9-14
Terms ........................................ 9-14
Vehicle load capacity .......................... 9-15
Securing the load .............................. 9-17
Loading tips . . . ............................... 9-18
Measurement of weights .......................9-18
Towing a trailer ................................... 9-19
Maximum load limits ........................... 9-19
Towing load/specification .......................9-22
Towing safety ................................. 9-23
Flat towing .................................... 9-31
Snow plow ...................................... 9-31
Uniform tire quality grading ........................9-32
Emission control system warranty ..................9-33
Reporting safety defects .......................... 9-33
Readiness for inspection/maintenance (I/M) test .....9-34
Event
Data Recorders (EDR) ....................... 9-34
Owner’s Manual/Service Manual order information . . . 9-35
Page 445 of 489
The following are approximate capacities. The actual refill capacities may be slightly different. When refilling, follow the procedure
described in the “Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (Approximate)Recommended Fluids and Lubricants
US measure Imp measure Liter
Fuel 28 gal23-1/4 gal 105.8 See “ Fuel recommendations” later in this section.*1
Engine oil *8 Drain and RefillWith oil filter change 6-7/8 qt 5-3/4 qt 6.5 Engine oil with API Certification Mark *2
Viscosity SAE 5W-30
Without oil filter change 6-1/2 qt 5-1/2 qt 6.2
Cooling system With reservoir 3-3/4 gal 3-1/8 gal 14.4 Pre-diluted Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent
Automatic transmission fluid Refill to the proper level according to the instructions in
the “Maintenance and do-it-yourself” section. Genuine NISSAN Matic S ATF *3
Power steering fluid (PSF) Genuine NISSAN PSF or equivalent.*4
Brake fluid Genuine NISSAN Super Heavy Duty Brake Fluid *5 or equivalent DOT 3
Multi-purpose grease ———NLGI No. 2 (Lithium Soap base)
Air conditioning system refrigerant — ——HFC-134a (R-134a) *6
Air conditioning system oil ———Genuine NISSAN A/C System Oil Type S or equivalent *6
Transfer fluid 3-1/8 qt 2-5/8 qt 3.0 Genuine NISSAN Matic D ATF recommended *7
Front differential gear oil 3-3/8 pt 2-7/8 pt 1.6 Genuine NISSAN Differential Oil Hypoid Super GL-5 80W-90 or API GL-5, Vis-
cosity SAE 80W-90 *9
Rear differential gear oil 3-3/4 pt 3-1/8 pt 1.75 API GL-5 synthetic gear oil, Viscosity SAE 75W-90*10
Windshield-washer fluid (shared between
front and rear wipers) 1-1/4 gal 1 gal
4.5Genuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze or
equivalent
*1: For further details, see “Fuel recommendation” in this section.
*2: For further details, see “Engine oil and oil filter recommendations” in this section.
*3: If Genuine NISSAN Matic S ATF is not available, Genuine NISSAN Matic J ATF may also be used. Using automatic transmission fluid other than Genuine NISSAN Matic S ATF or Genuine NISSAN Matic J ATF will cause deterioration in driveability and automatic transmission durability, and may damage the automatic transmission, which is not covered by the
NISSAN new vehicle limited warranty.
CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS
9-2Technical and consumer information
Page 450 of 489
ENGINE OIL AND OIL FILTER
RECOMMENDATIONS
Selecting the correct oil
It is essential to choose the correct grade, quality
and viscosity engine oil to ensure satisfactory
engine life and performance. See “Capacities
and recommended fuel/lubricants” earlier in this
section. NISSAN recommends the use of an
energy conserving oil in order to improve fuel
economy.
Select only engine oils that meet the American
Petroleum Institute (API) certification or Interna-
tional Lubricant Standardization and ApprovalCommittee (ILSAC) certification and SAE vis-
cosity standard. These oils have the API certifica-
tion mark on the front of the container. Oils which
do not have the specified quality label should not
be used as they could cause engine damage.Oil additives
NISSAN does not recommend the use of oil
additives. The use of an oil additive is not neces-
sary when the proper oil type is used and main-
tenance intervals are followed.
Oil which may contain foreign matter or has been
previously used should not be used.
Oil viscosity
The engine oil viscosity or thickness changes
with temperature. Because of this, it is important
to select the engine oil viscosity based on the
temperatures at which the vehicle will be oper-
ated before the next oil change. Choosing an oil
viscosity other than that recommended could
cause serious engine damage.
Selecting the correct oil filter
Your new NISSAN vehicle is equipped with a
high-quality genuine NISSAN oil filter. When re-
placing, use a genuine NISSAN oil filter or its
equivalent for the reason described in “Change
intervals.”
Change intervals
The oil and oil filter change intervals for your
engine are based on the use of the specified
quality oils and filters. Using engine oil and filters
that are not of the specified quality, or exceeding
recommended oil and filter change intervals
could reduce engine life. Damage to the engine
caused by improper maintenance or use of incor-
rect oil and filter quality and/or viscosity is not
covered by the NISSAN new vehicle limited war-
ranty.
WTI0183
Technical and consumer information9-7
Page 481 of 489
C
Capacities and recommended fuel/lubricants . .9-2
Captain’s chair adjustment (2nd row) ......1-5
Cargo light ....................2-58
Cargo (See vehicle loading information) . . . .9-14
Car phone or CB radio .............4-91
CD care and cleaning ..............4-72
CD changer (See audio system) ........4-51
CD player (See audio system) .........4-59
Check tire pressure ...............2-25
Child restraints .......1-35, 1-35, 1-36, 1-38
Precautions on child restraints . . .1-36, 1-44, 1-49, 1-54
Top tether strap anchor point locations . .1-42
Child restraint with top tether strap .......1-41
Child safety rear door lock ............3-7
Chimes, audible reminders ...........2-20
Cleaning exterior and interior ...........7-2
Clock ...................4-49, 4-57
(models with navigation system) . . .4-11, 4-27
Clock set .................4-11, 4-27
C.M.V.S.S. certification label ..........9-12
Cold weather driving ..............5-37
Compact disc (CD) player ...........4-59
CompactFlash (CF) player ...........4-61
Console box ................2-41, 2-47
Control panel buttons ..............4-16
Brightness/contrast button ......4-16, 4-32
Enter button ...............4-2, 4-16
Setting button .............4-9, 4-25
Startup screen ................4-19
Without navigation system ..........4-2
Controls Audio controls (steering wheel) .......4-74Heater and air conditioner controls
.....4-36
Rear audio controls .............4-76
Rear seat air conditioner ..........4-38
Coolant Capacities and recommended
fuel/lubricants .................9-2
Changing engine coolant ...........8-8
Checking
engine coolant level ........8-8
Engine coolant temperature gauge .....2-6
Corrosion protection ...............7-5
Cruise control ..................5-20
Cup holders ...................2-44
Curtain side-impact and rollover air bag . . . .1-69
D
Daytime running light system (Canada only) . .2-32
Defroster switch Rear window and outside mirror defroster
switch .....................2-30
Digital video disc DVD ..............4-77
Dimensions and weights ............9-10
Dimmer switch for instrument panel ......2-33
Display controls
(see control panel buttons) ........4-2, 4-16
Distance to empty .............4-5, 4-21
Door locks .....................3-5
Drive belt .....................8-16
Drive positioner, Automatic ...........3-36
Driving Cold weather driving ............5-37
Driving with automatic transmission . . . .5-15
Precautions when starting and driving . . . .5-2 E
Economy - fuel ..................5-22
Emission control information label .......9-12
Emission control system warranty .......9-33
Engine Before starting the engine ..........5-13
Block heater .................5-38
Capacities and recommended
fuel/lubricants .................9-2
Changing engine coolant ...........8-8
Changing engine oil .............8-10
Changing engine oil filter ..........8-11
Checking engine coolant level ........8-8
Checking engine oil level ...........8-9
Engine compartment check locations . . . .8-6
Engine coolant temperature gauge .....2-6
Engine cooling system ............8-7
Engine oil ...................8-9
Engine
oil and oil filter recommendation . . .9-7
Engine oil viscosity ..............9-7
Engine serial number ............9-12
Engine specifications .............9-9
Starting the engine .............5-13
Engine oil pressure gauge ............2-7
Engine oil pressure low/engine coolant
temperature high warning light .........2-15
Enter button .................4-2, 4-16
Event data recorders ..............9-34
Exhaust gas (Carbon monoxide) .........5-2
Extended storage switch ............8-26
Eyeglass case ..................2-42
10-2
Page 482 of 489
F
Flashers
(See hazard warning flasher switch) ......2-34
Flat tire .......................6-2
Floor mat positioning aid .............7-5
Fluid Brake fluid ..................8-12
Capacities and recommended
fuel/lubricants .................9-2
Engine coolant .................8-7
Engine oil ...................8-9
Power steering fluid .............8-12
Windshield-washer fluid ...........8-13
F.M.V.S.S. certification label ...........9-12
Fog light switch .................2-34
Front air bag system
(See supplemental restraint system) ......1-64
Front seats .....................1-2
Front sonar system ...............5-36
Fuel Capacities and recommended
fuel/lubricants .................9-2
Fuel economy ................5-22
Fuel-filler door and cap ...........3-28
Fuel gauge ...................2-7
Fuel octane rating ...............9-5
Fuel recommendation .............9-4
Loose fuel cap warning ........2-25, 3-28
Fuses .......................8-23
Fusible links ...................8-25 G
Garage door opener, HomeLink Universal
Transceiver ....................2-59
Gascap .....................3-28
Gauge Automatic transmission fluid temperature
gauge .....................2-8
Engine coolant temperature gauge .....2-6
Engine oil pressure gauge ..........2-7
Fuel gauge ...................2-7
Odometer ...................2-5
Speedometer .................2-5
Tachometer ..................2-6
T
rip odometer .................2-5
Voltmeter ....................2-8
General maintenance ...............8-2
Glass hatch ...................3-28
Glove box .....................2-42
Glove box lock ..................2-42
H
Hands-free phone system, Bluetooth . . . .4-92,
4-107
Hazard warning flasher switch .........2-34
Headlight and turn signal switch ........2-30
Headlight control switch ............2-30
Headlights ....................8-30
Headphones (See NISSAN mobile
entertainment system) ..............4-80
Heated seats ...................2-35
Heated steering wheel .............2-36
Heater Heater and air conditioner controls
.....4-36
Heater operation ...............4-37
Rear seat air conditioner ..........4-38
HomeLink Universal Transceiver ........2-59
Hood release ...................3-23
Hook Luggage hook ................2-48
Horn .......................2-35
I
Ignition switch ...................5-9
Immobilizer system .........2-27, 3-4, 5-13
Important vehicle information label .......9-12
In-cabin microfilter ................8-18
Increasing fuel economy .............5-22
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders) ....................2-13
Inside automatic anti-glare mirror ........3-32
Inside mirror ...................3-32
Instrument brightness control ..........2-33
Instrument panel ...............0-6,
2-2
Instrument panel dimmer switch ........2-33
Intelligent Key system Key operating range .............3-14
Key operation ................3-15
Mechanical key ................3-3
Remote keyless entry operation .......3-17
Troubleshooting guide ............3-22
Warning signals ...............3-22
Interior light ....................2-56
ISOFIX child restraints .............1-38
10-3
Page 484 of 489
N
NISSAN Intelligent Key™ ..........3-2, 3-12
NISSAN mobile entertainment system
(MES) .......................4-77
NISSAN vehicle immobilizer system . . .2-27, 3-4, 5-13
NISSAN voice recognition system ......4-118
O
Octane rating (See fuel octane rating) ......9-5
Odometer .....................2-5
Oil Capacities and recommended
fuel/lubricants .................9-2
Changing engine oil .............8-10
Changing engine oil filter ..........8-11
Checking engine oil level ...........8-9
Engine oil ...................8-9
Engine oil and oil filter recommendation . . .9-7
Engine oil pressure low/engine coolant
temperature high warning light .......2-15
Engine oil viscosity ..............9-7
Outside mirror control ..............3-34
Outside mirrors .................3-34
Overheat If your vehicle overheats ...........6-10
Owner’s manual order form ...........9-35
Owner’s manual/service manual order
information ....................9-35 P
Parking Parking brake operation ...........5-19
Parking/parking on hills ...........5-30
Pedal position adjustment ............3-30
Personal lights ..................2-58
Phone, Bluetooth hands-free
system ..................4-92, 4-107
Power Power door locks ...............3-6
Power outlet .................2-39
Power rear windows .............2-53
Power steering fluid .............8-12
Power steering system ...........5-31
Power vent windows .............2-54
Power windows ...............2-51
Rear power windows ............2-53
Precautions Maintenance
precautions ...........8-5
On-pavement and off-road driving
precautions ..................5-3
Precautions on child restraints . . .1-36, 1-44,
1-49, 1-54
Precautions on seat belt usage .......1-25
Precautions on supplemental restraint
system ....................1-57
Precautions when starting and driving . . . .5-2
Pre-tensioner seat belt system .........1-70
Programmable features ..........4-9, 4-25
Push starting ...................6-10 R
Radio Car phone or CB radio ...........4-91
Compact Disc (CD) changer ........4-51
FM/AM/SAT radio with compact disc (CD)
changer ....................4-48
FM/AM/SAT radio with compact disc (CD)
player .....................4-56
Rear audio controls .............4-76
Steering wheel audio control switch . . . .4-74
Readiness for inspection maintenance (I/M)
test ........................9-34
Rear audio controls ...............4-76
Rear center seat belt ..............1-31
Rear power windows ..............2-53
Rear seat air conditioner ............4-38
Rear sonar system ................5-35
Rear sonar system off switch ..........2-37
RearView Monitor ................4-33
Rear window and outside mirror defroster
switch .......................2-30
Rear window wiper and washer switches . . .2-29
Recorders Event data ..................9-34
Refrigerant recommendation ...........9-8
Registering your vehicle in another country . .9-11
Remote controller (See NISSAN mobile
entertainment system) ..............4-79
Remote keyless entry system ...........3-7
Reporting safety defects (US only) .......9-33
Resetting the fuel economy ........4-5, 4-21
Roof rack .....................2-50
10-5
Page 488 of 489

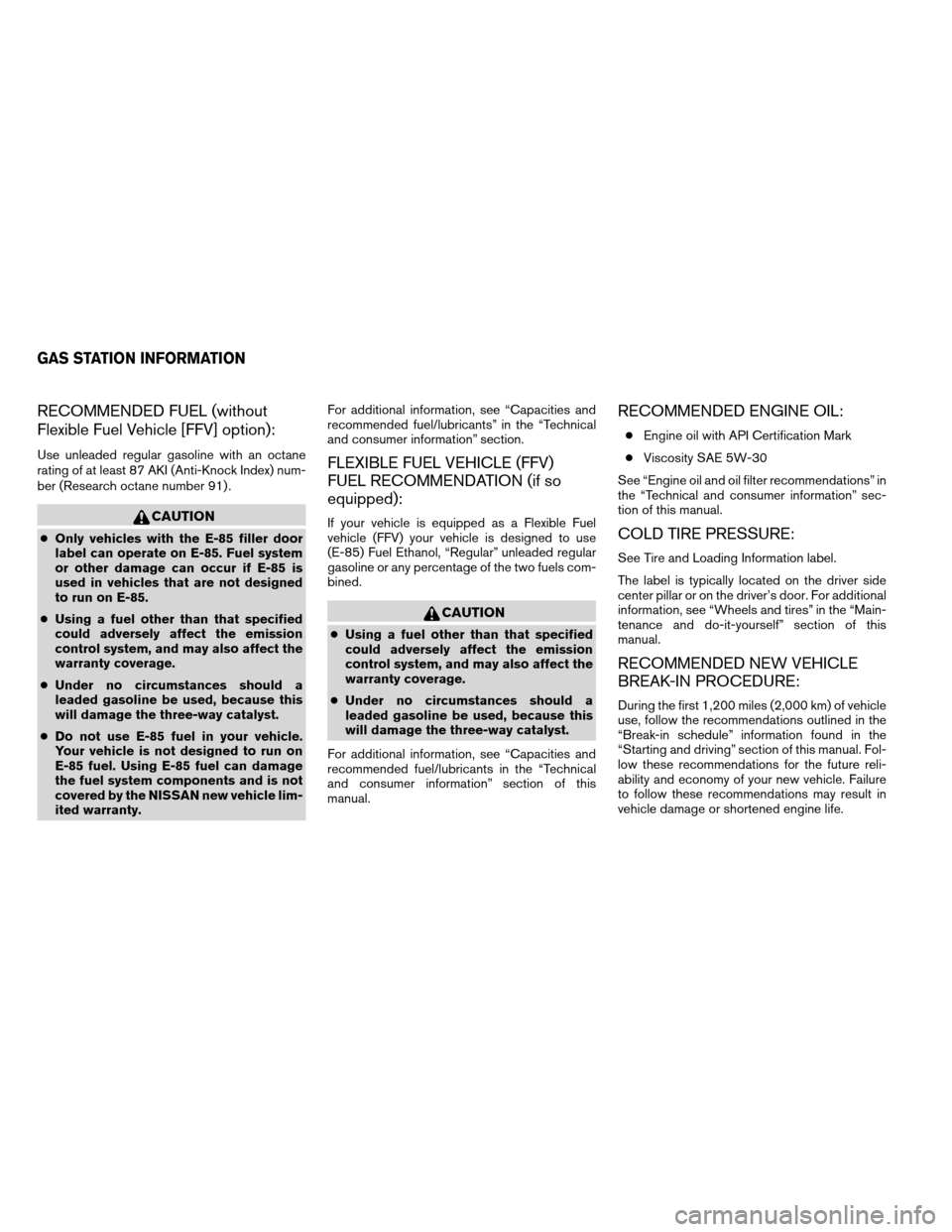

RECOMMENDED FUEL (without
Flexible Fuel Vehicle [FFV] option):
Use unleaded regular gasoline with an octane
rating of at least 87 AKI (Anti-Knock Index) num-
ber (Research octane number 91) .
CAUTION
●Only vehicles with the E-85 filler door
label can operate on E-85. Fuel system
or other damage can occur if E-85 is
used in vehicles that are not designed
to run on E-85.
● Using a fuel other than that specified
could adversely affect the emission
control system, and may also affect the
warranty coverage.
● Under no circumstances should a
leaded gasoline be used, because this
will damage the three-way catalyst.
● Do not use E-85 fuel in your vehicle.
Your vehicle is not designed to run on
E-85 fuel. Using E-85 fuel can damage
the fuel system components and is not
covered by the NISSAN new vehicle lim-
ited warranty. For additional information, see “Capacities and
recommended fuel/lubricants” in the “Technical
and consumer information” section.
FLEXIBLE FUEL VEHICLE (FFV)
FUEL RECOMMENDATION (if so
equipped):
If your vehicle is equipped as a Flexible Fuel
vehicle (FFV) your vehicle is designed to use
(E-85) Fuel Ethanol, “Regular” unleaded regular
gasoline or any percentage of the two fuels com-
bined.
CAUTION
●
Using a fuel other than that specified
could adversely affect the emission
control system, and may also affect the
warranty coverage.
● Under no circumstances should a
leaded gasoline be used, because this
will damage the three-way catalyst.
For additional information, see “Capacities and
recommended fuel/lubricants in the “Technical
and consumer information” section of this
manual.
RECOMMENDED ENGINE OIL:
● Engine oil with API Certification Mark
● Viscosity SAE 5W-30
See “Engine oil and oil filter recommendations” in
the “Technical and consumer information” sec-
tion of this manual.
COLD TIRE PRESSURE:
See Tire and Loading Information label.
The label is typically located on the driver side
center pillar or on the driver’s door. For additional
information, see “Wheels and tires” in the “Main-
tenance and do-it-yourself” section of this
manual.
RECOMMENDED NEW VEHICLE
BREAK-IN PROCEDURE:
During the first 1,200 miles (2,000 km) of vehicle
use, follow the recommendations outlined in the
“Break-in schedule” information found in the
“Starting and driving” section of this manual. Fol-
low these recommendations for the future reli-
ability and economy of your new vehicle. Failure
to follow these recommendations may result in
vehicle damage or shortened engine life.
GAS STATION INFORMATION
