NISSAN ARMADA 2013 1.G Owners Manual

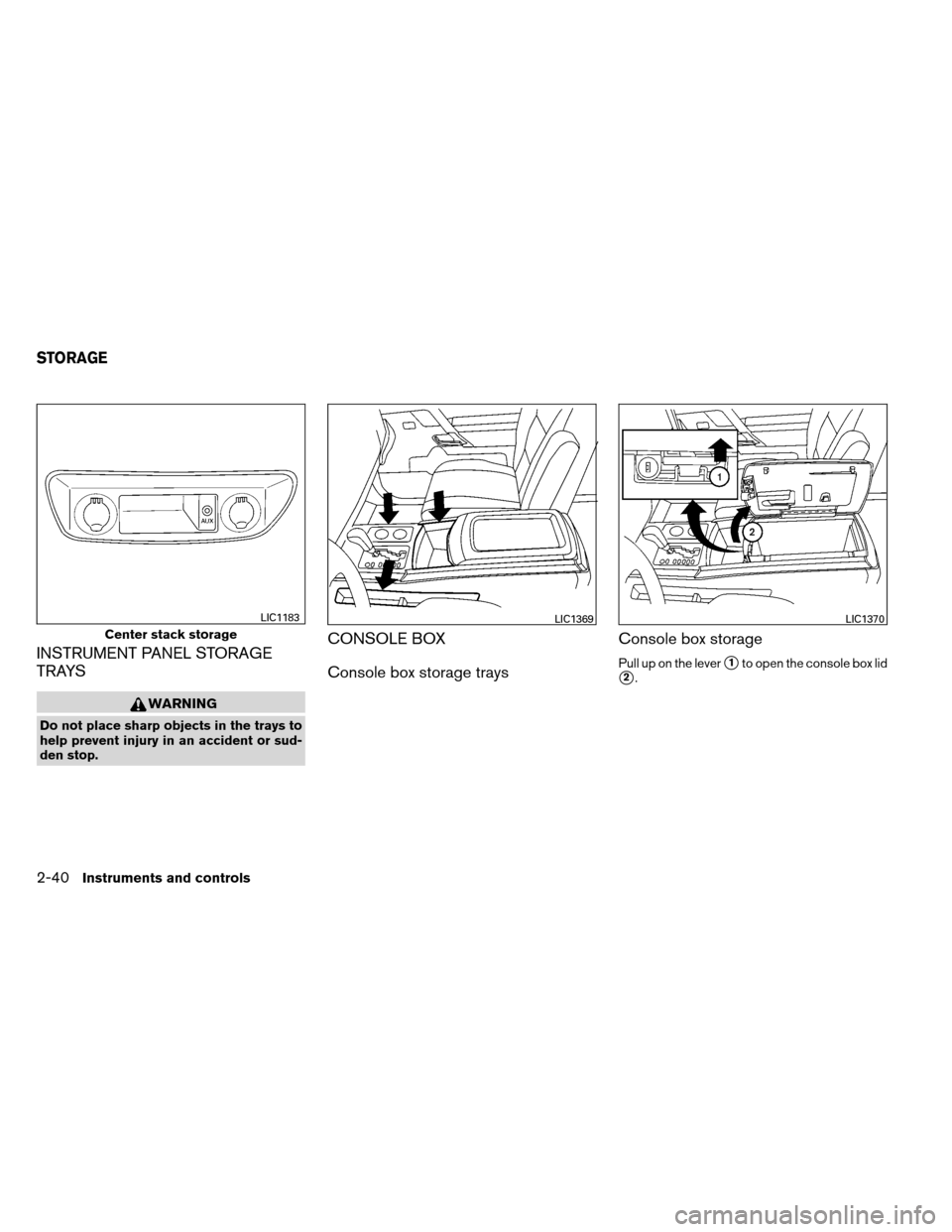

INSTRUMENT PANEL STORAGE
TRAYS
WARNING
Do not place sharp objects in the trays to
help prevent injury in an accident or sud-
den stop.
CONSOLE BOX
Console box storage traysConsole box storage
Pull up on the lever1to open the console box lid
2.
Center stack storage
LIC1183LIC1369LIC1370
STORAGE
2-40Instruments and controls

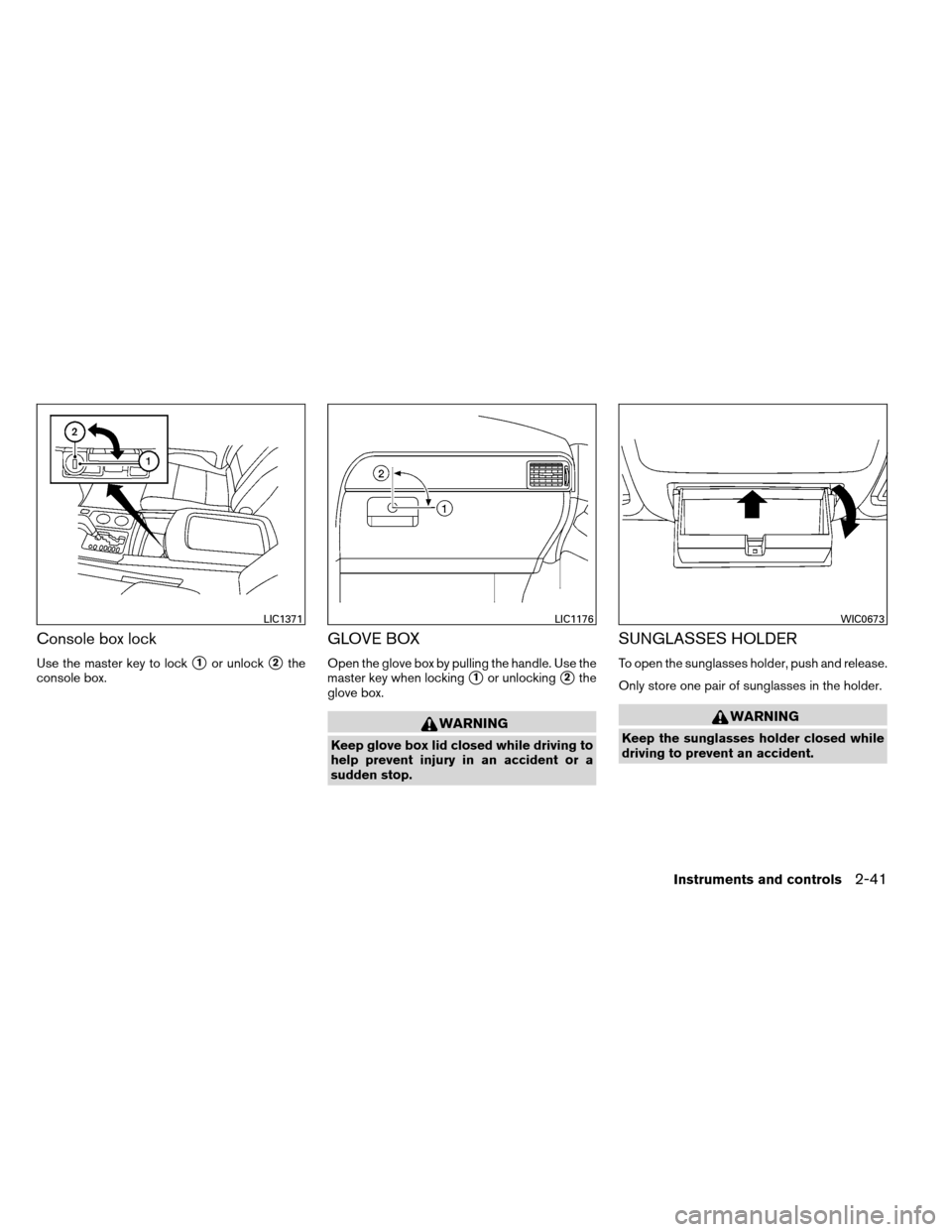

Console box lock
Use the master key to lock1or unlock2the
console box.
GLOVE BOX
Open the glove box by pulling the handle. Use the
master key when locking
1or unlocking2the
glove box.
WARNING
Keep glove box lid closed while driving to
help prevent injury in an accident or a
sudden stop.
SUNGLASSES HOLDER
To open the sunglasses holder, push and release.
Only store one pair of sunglasses in the holder.
WARNING
Keep the sunglasses holder closed while
driving to prevent an accident.
LIC1371LIC1176WIC0673
Instruments and controls2-41

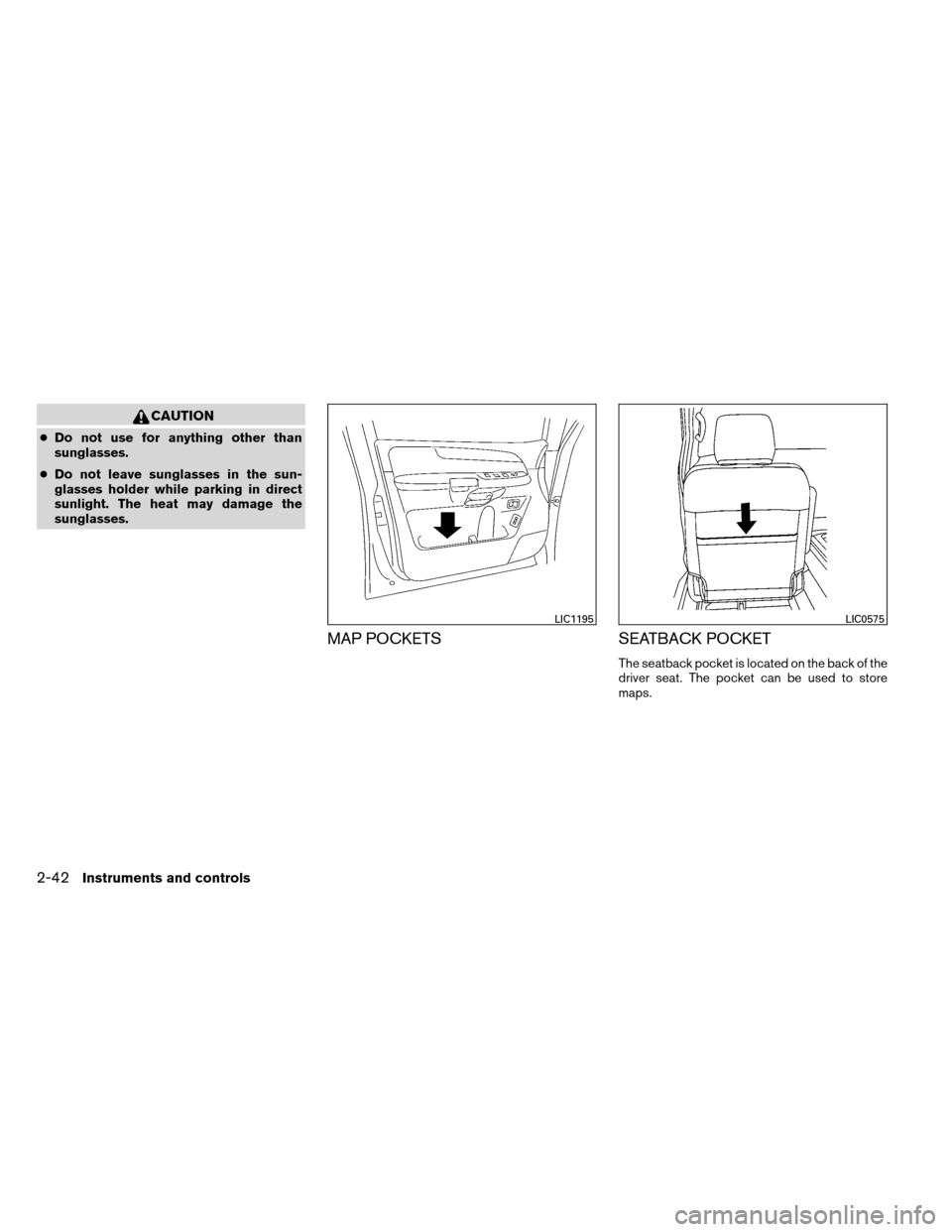

CAUTION
●Do not use for anything other than
sunglasses.
● Do not leave sunglasses in the sun-
glasses holder while parking in direct
sunlight. The heat may damage the
sunglasses.
MAP POCKETS SEATBACK POCKET
The seatback pocket is located on the back of the
driver seat. The pocket can be used to store
maps.
LIC1195LIC0575
2-42Instruments and controls

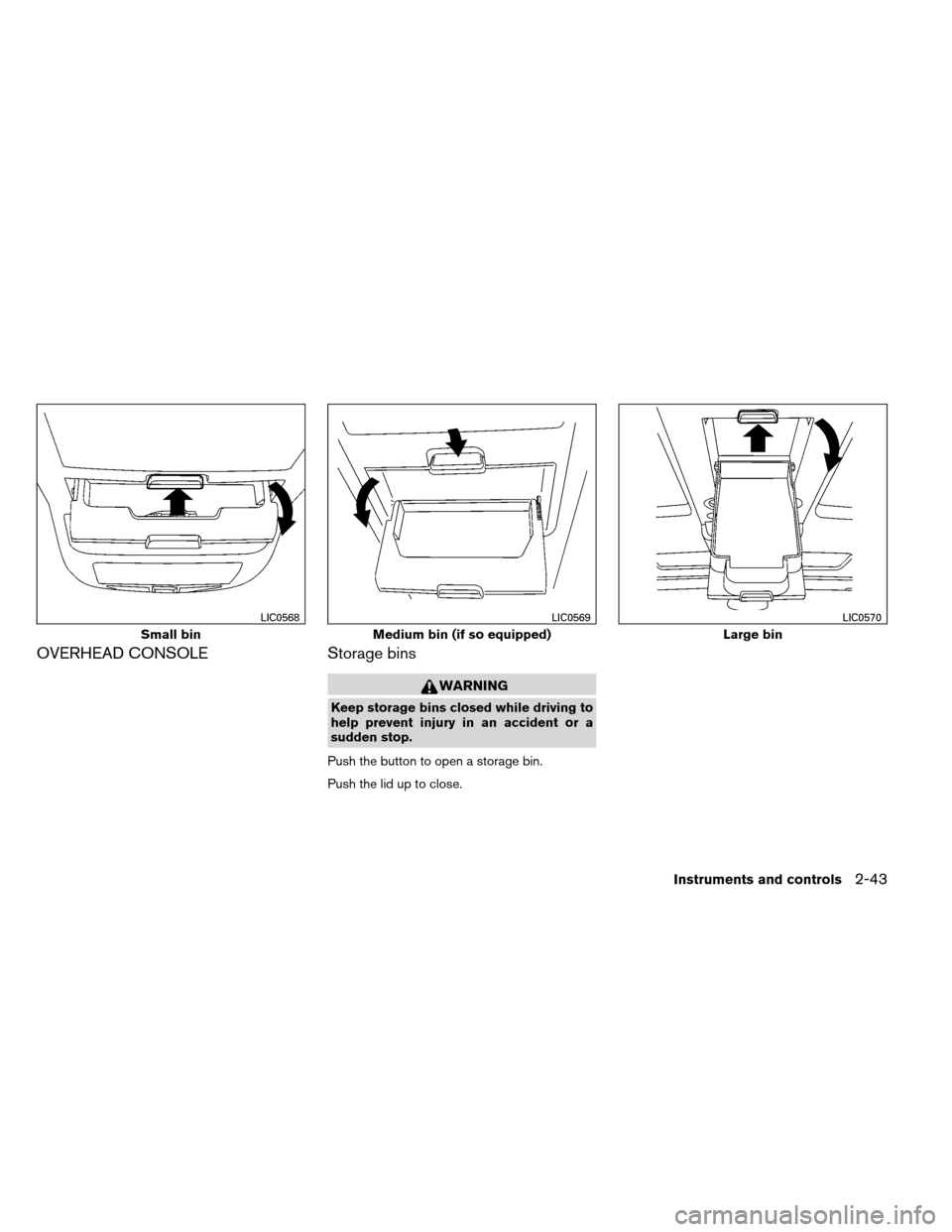

OVERHEAD CONSOLEStorage bins
WARNING
Keep storage bins closed while driving to
help prevent injury in an accident or a
sudden stop.
Push the button to open a storage bin.
Push the lid up to close.
Small bin
LIC0568
Medium bin (if so equipped)
LIC0569
Large bin
LIC0570
Instruments and controls2-43

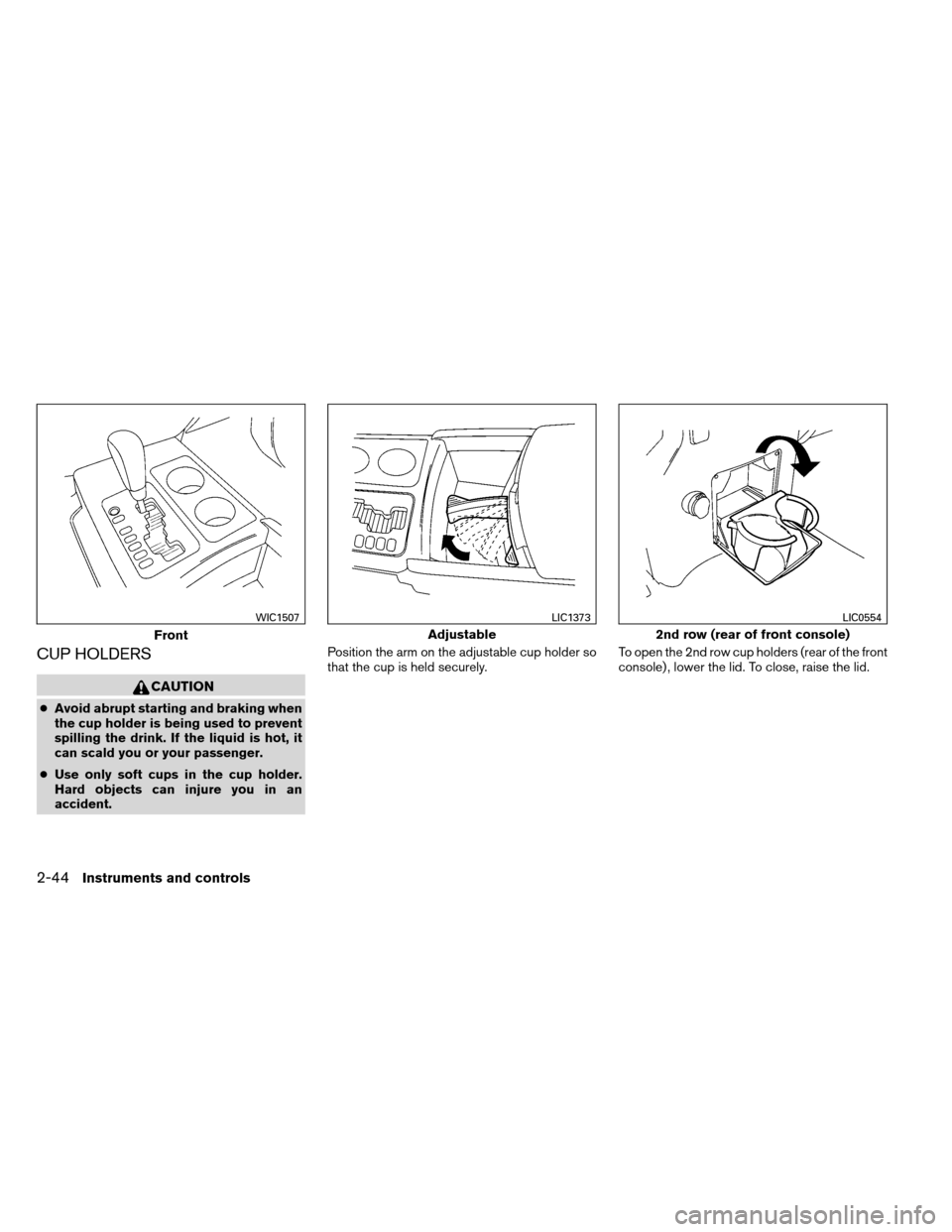

CUP HOLDERS
CAUTION
●Avoid abrupt starting and braking when
the cup holder is being used to prevent
spilling the drink. If the liquid is hot, it
can scald you or your passenger.
● Use only soft cups in the cup holder.
Hard objects can injure you in an
accident. Position the arm on the adjustable cup holder so
that the cup is held securely.
To open the 2nd row cup holders (rear of the front
console) , lower the lid. To close, raise the lid.
Front
WIC1507
Adjustable
LIC1373
2nd row (rear of front console)
LIC0554
2-44Instruments and controls

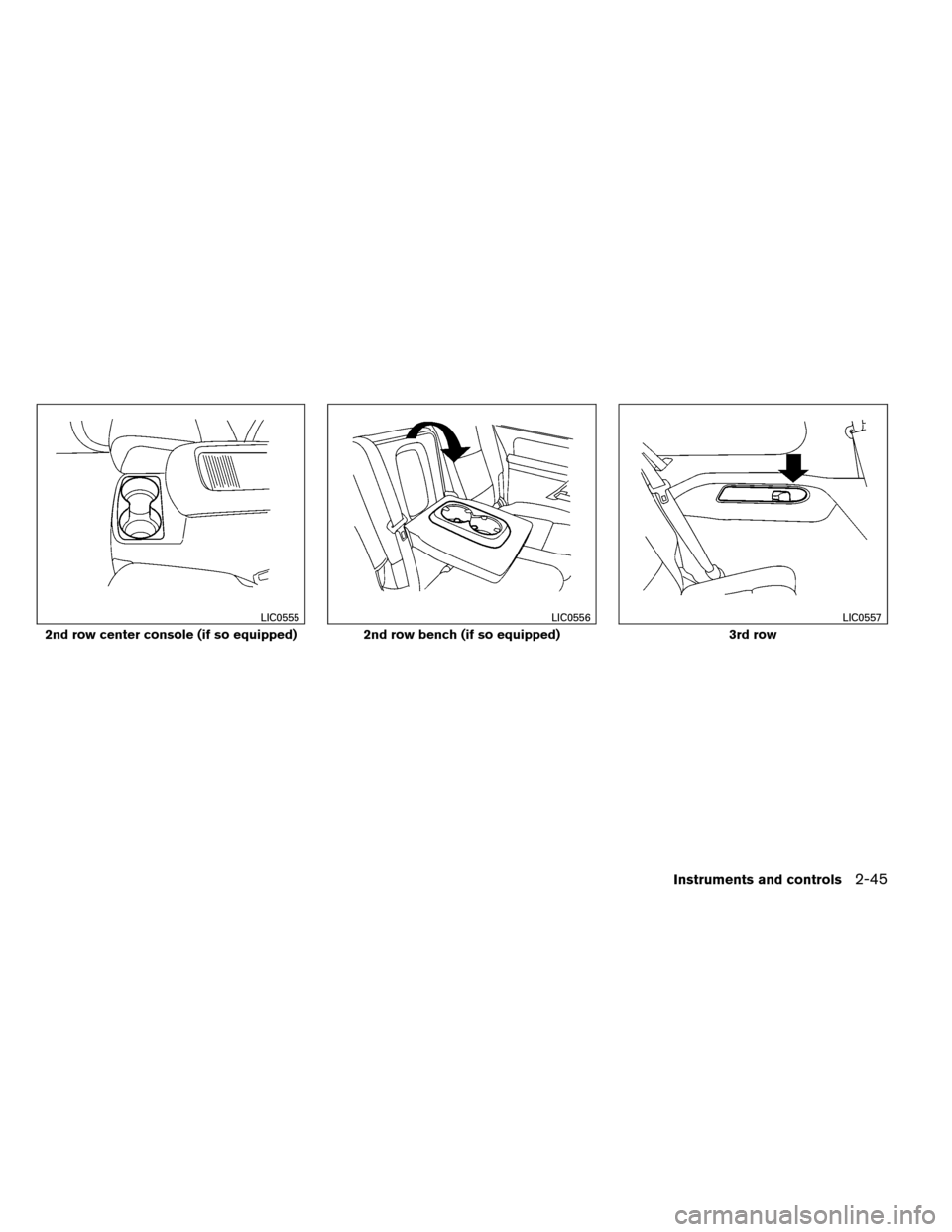

2nd row center console (if so equipped)
LIC0555
2nd row bench (if so equipped)
LIC0556
3rd row
LIC0557
Instruments and controls2-45

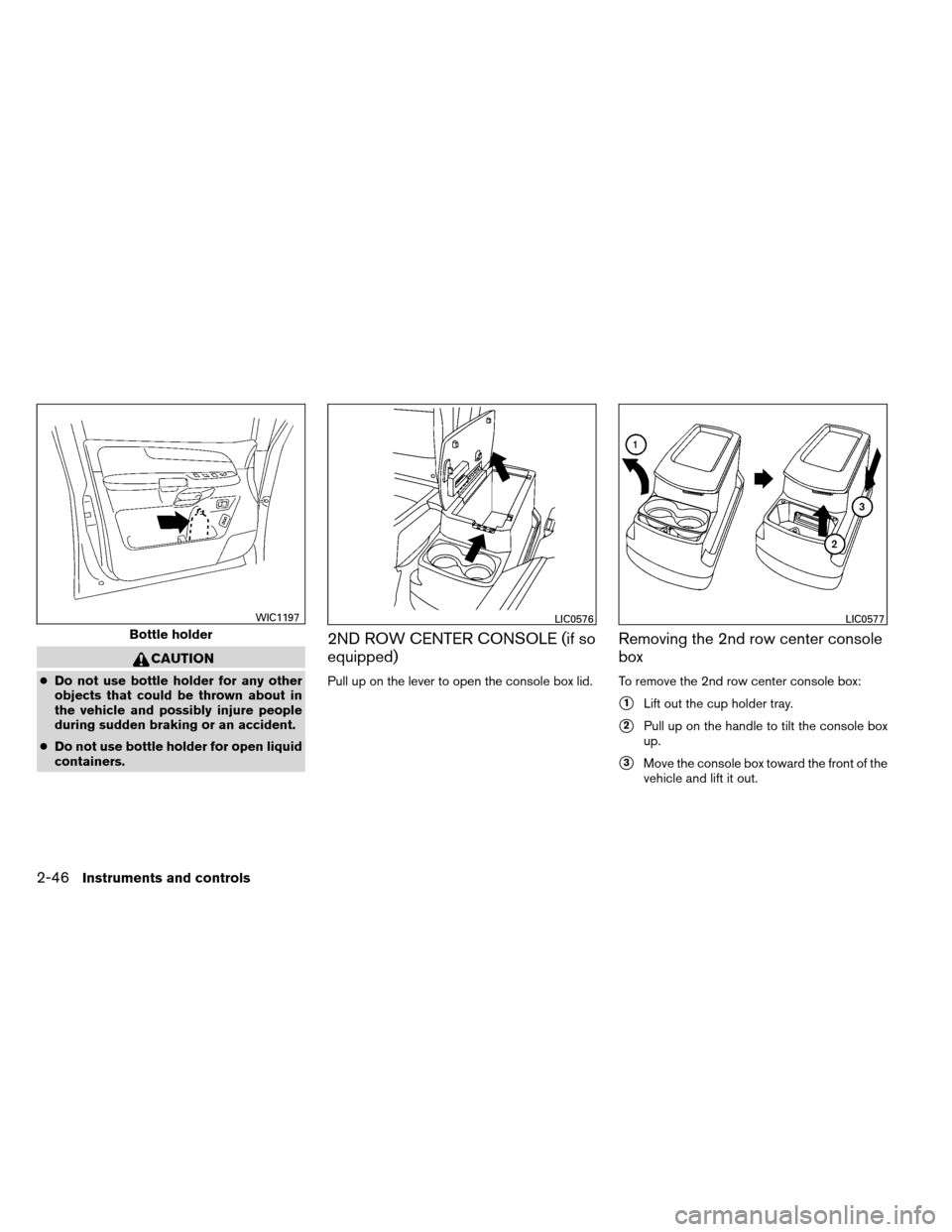

CAUTION
●Do not use bottle holder for any other
objects that could be thrown about in
the vehicle and possibly injure people
during sudden braking or an accident.
● Do not use bottle holder for open liquid
containers.
2ND ROW CENTER CONSOLE (if so
equipped)
Pull up on the lever to open the console box lid.
Removing the 2nd row center console
box
To remove the 2nd row center console box:
1Lift out the cup holder tray.
2Pull up on the handle to tilt the console box
up.
3Move the console box toward the front of the
vehicle and lift it out.
Bottle holder
WIC1197LIC0576LIC0577
2-46Instruments and controls

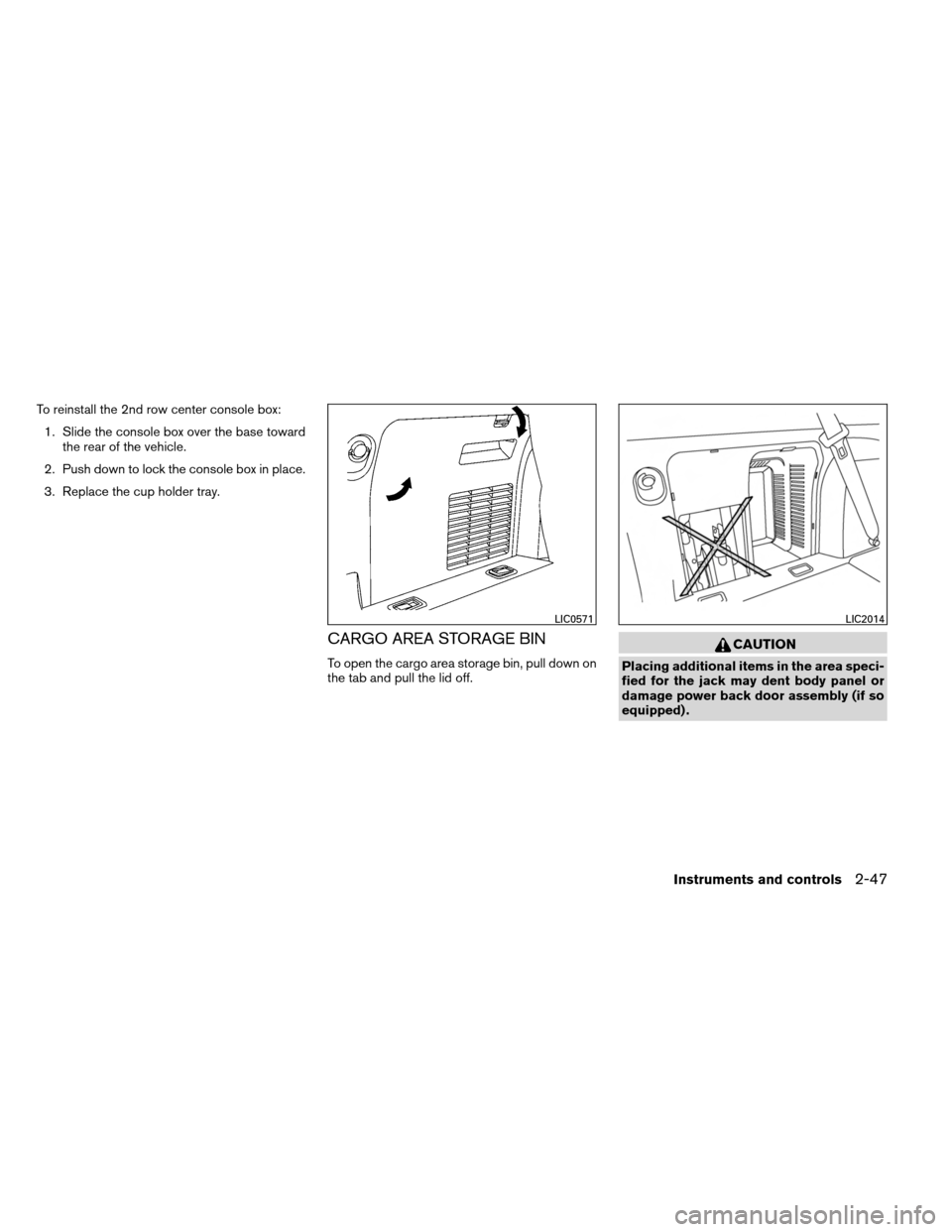

To reinstall the 2nd row center console box:1. Slide the console box over the base toward the rear of the vehicle.
2. Push down to lock the console box in place.
3. Replace the cup holder tray.
CARGO AREA STORAGE BIN
To open the cargo area storage bin, pull down on
the tab and pull the lid off.
CAUTION
Placing additional items in the area speci-
fied for the jack may dent body panel or
damage power back door assembly (if so
equipped) .
LIC0571LIC2014
Instruments and controls2-47

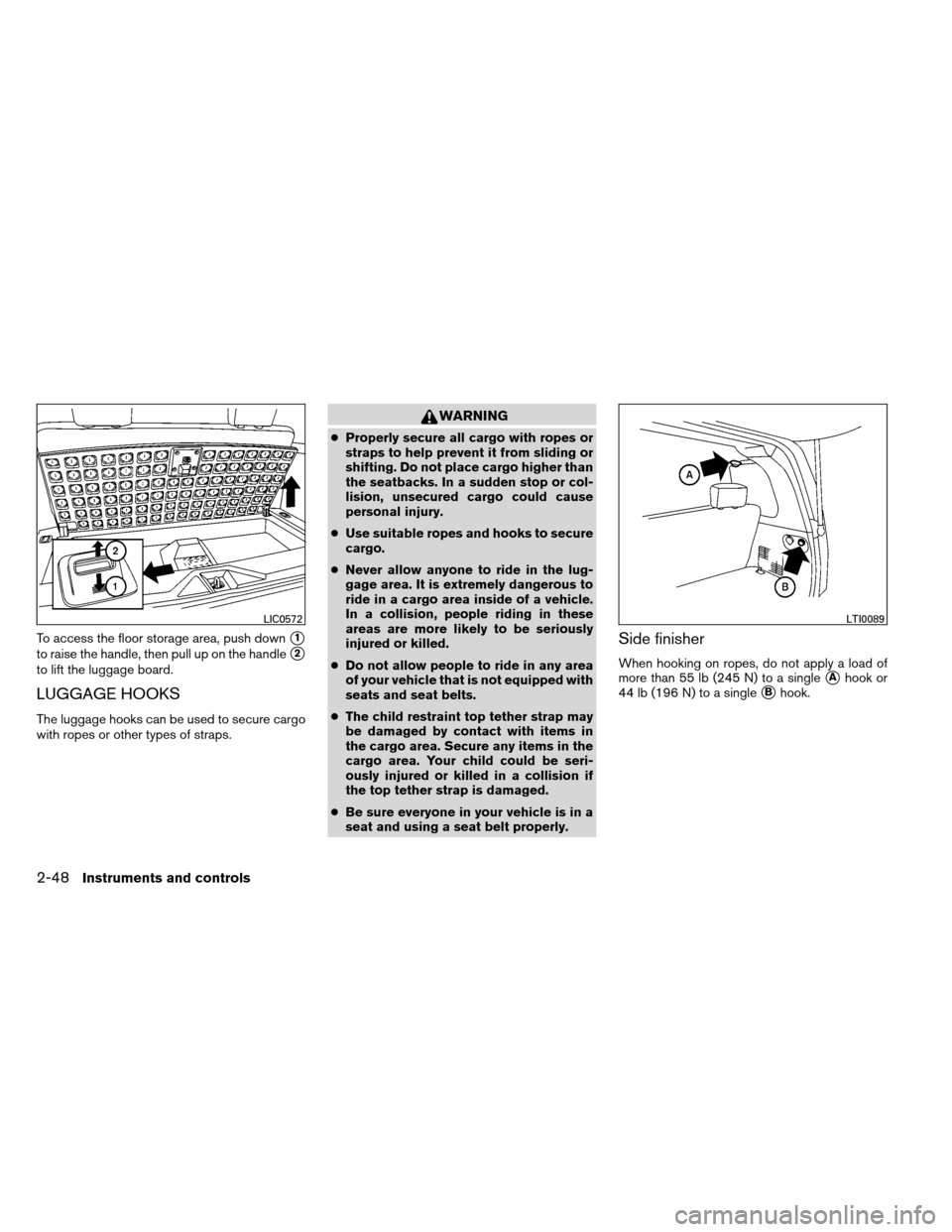

To access the floor storage area, push down1
to raise the handle, then pull up on the handle2
to lift the luggage board.
LUGGAGE HOOKS
The luggage hooks can be used to secure cargo
with ropes or other types of straps.
WARNING
●Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. Do not place cargo higher than
the seatbacks. In a sudden stop or col-
lision, unsecured cargo could cause
personal injury.
● Use suitable ropes and hooks to secure
cargo.
● Never allow anyone to ride in the lug-
gage area. It is extremely dangerous to
ride in a cargo area inside of a vehicle.
In a collision, people riding in these
areas are more likely to be seriously
injured or killed.
● Do not allow people to ride in any area
of your vehicle that is not equipped with
seats and seat belts.
● The child restraint top tether strap may
be damaged by contact with items in
the cargo area. Secure any items in the
cargo area. Your child could be seri-
ously injured or killed in a collision if
the top tether strap is damaged.
● Be sure everyone in your vehicle is in a
seat and using a seat belt properly.
Side finisher
When hooking on ropes, do not apply a load of
more than 55 lb (245 N) to a single
Ahook or
44 lb (196 N) to a single
Bhook.
LIC0572LTI0089
2-48Instruments and controls

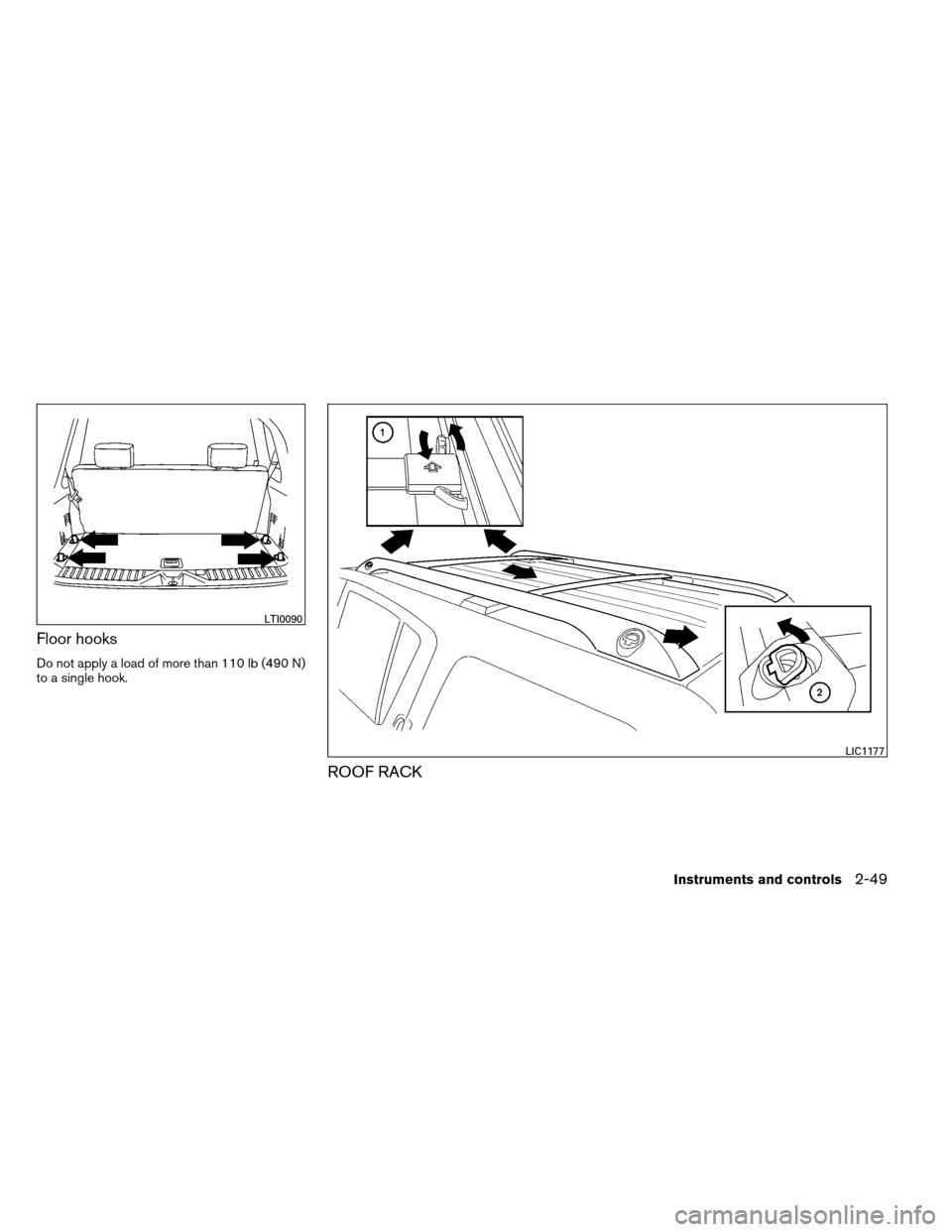

Floor hooks
Do not apply a load of more than 110 lb (490 N)
to a single hook.
ROOF RACK
LTI0090
LIC1177
Instruments and controls2-49
