NISSAN ARMADA 2022 Owner´s Manual

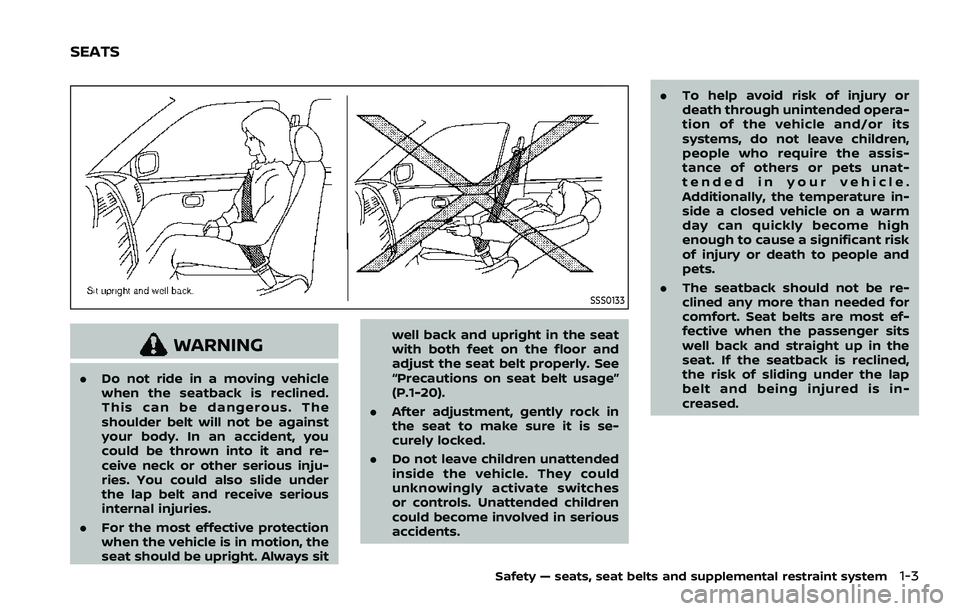

SSS0133
WARNING
.Do not ride in a moving vehicle
when the seatback is reclined.
This can be dangerous. The
shoulder belt will not be against
your body. In an accident, you
could be thrown into it and re-
ceive neck or other serious inju-
ries. You could also slide under
the lap belt and receive serious
internal injuries.
. For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit well back and upright in the seat
with both feet on the floor and
adjust the seat belt properly. See
“Precautions on seat belt usage”
(P.1-20).
. After adjustment, gently rock in
the seat to make sure it is se-
curely locked.
. Do not leave children unattended
inside the vehicle. They could
unknowingly activate switches
or controls. Unattended children
could become involved in serious
accidents. .
To help avoid risk of injury or
death through unintended opera-
tion of the vehicle and/or its
systems, do not leave children,
people who require the assis-
tance of others or pets unat-
tended in your vehicle.
Additionally, the temperature in-
side a closed vehicle on a warm
day can quickly become high
enough to cause a significant risk
of injury or death to people and
pets.
. The seatback should not be re-
clined any more than needed for
comfort. Seat belts are most ef-
fective when the passenger sits
well back and straight up in the
seat. If the seatback is reclined,
the risk of sliding under the lap
belt and being injured is in-
creased.
Safety — seats, seat belts and supplemental restraint system1-3
SEATS

1-4Safety — seats, seat belts and supplemental restraint system

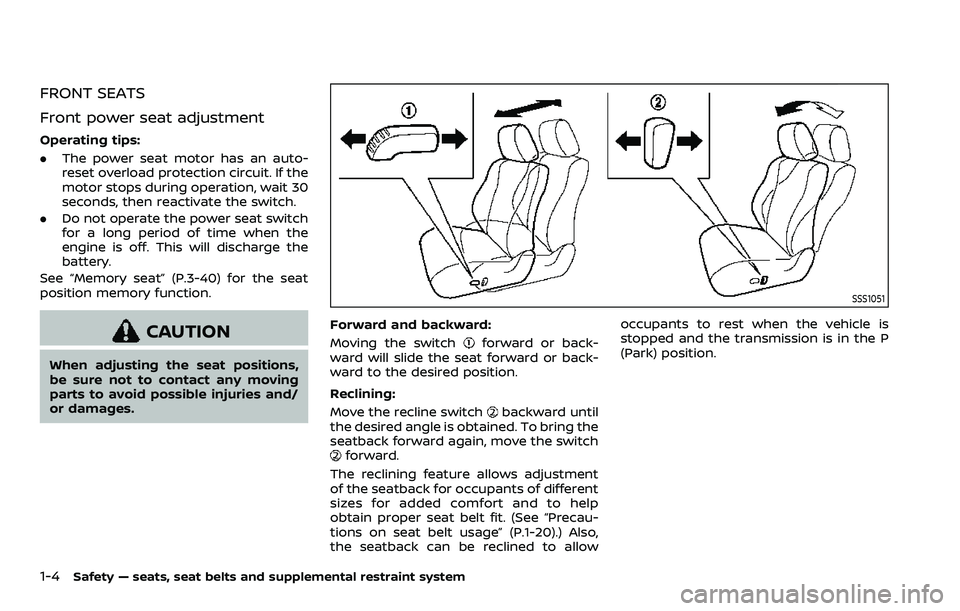

FRONT SEATS
Front power seat adjustment
Operating tips:
.The power seat motor has an auto-
reset overload protection circuit. If the
motor stops during operation, wait 30
seconds, then reactivate the switch.
. Do not operate the power seat switch
for a long period of time when the
engine is off. This will discharge the
battery.
See “Memory seat” (P.3-40) for the seat
position memory function.
CAUTION
When adjusting the seat positions,
be sure not to contact any moving
parts to avoid possible injuries and/
or damages.
SSS1051
Forward and backward:
Moving the switch
forward or back-
ward will slide the seat forward or back-
ward to the desired position.
Reclining:
Move the recline switch
backward until
the desired angle is obtained. To bring the
seatback forward again, move the switch
forward.
The reclining feature allows adjustment
of the seatback for occupants of different
sizes for added comfort and to help
obtain proper seat belt fit. (See “Precau-
tions on seat belt usage” (P.1-20).) Also,
the seatback can be reclined to allow occupants to rest when the vehicle is
stopped and the transmission is in the P
(Park) position.

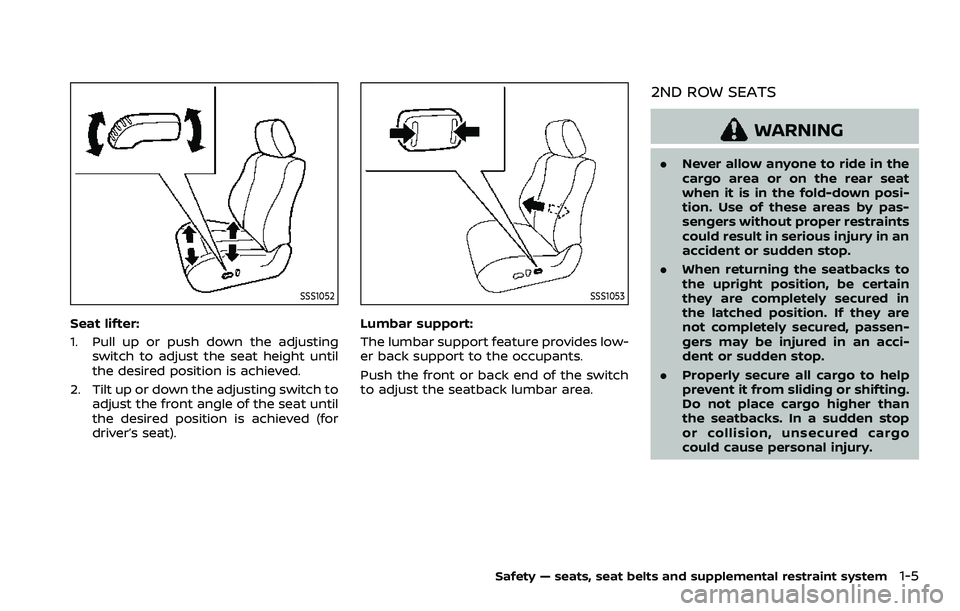

SSS1052
Seat lifter:
1. Pull up or push down the adjustingswitch to adjust the seat height until
the desired position is achieved.
2. Tilt up or down the adjusting switch to adjust the front angle of the seat until
the desired position is achieved (for
driver’s seat).
SSS1053
Lumbar support:
The lumbar support feature provides low-
er back support to the occupants.
Push the front or back end of the switch
to adjust the seatback lumbar area.
2ND ROW SEATS
WARNING
.Never allow anyone to ride in the
cargo area or on the rear seat
when it is in the fold-down posi-
tion. Use of these areas by pas-
sengers without proper restraints
could result in serious injury in an
accident or sudden stop.
. When returning the seatbacks to
the upright position, be certain
they are completely secured in
the latched position. If they are
not completely secured, passen-
gers may be injured in an acci-
dent or sudden stop.
. Properly secure all cargo to help
prevent it from sliding or shifting.
Do not place cargo higher than
the seatbacks. In a sudden stop
or collision, unsecured cargo
could cause personal injury.
Safety — seats, seat belts and supplemental restraint system1-5

1-6Safety — seats, seat belts and supplemental restraint system

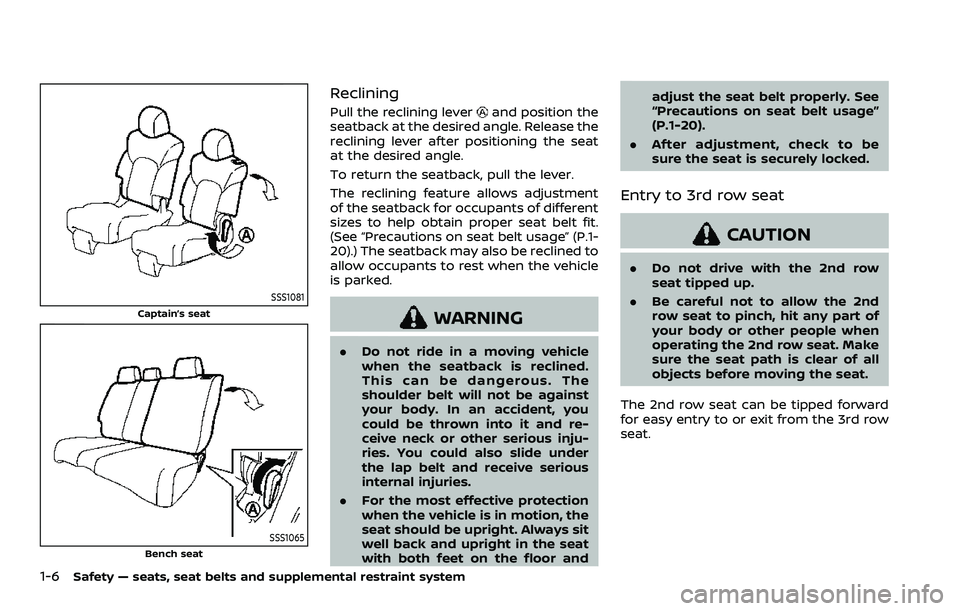

SSS1081
Captain’s seat
SSS1065Bench seat
Reclining
Pull the reclining leverand position the
seatback at the desired angle. Release the
reclining lever after positioning the seat
at the desired angle.
To return the seatback, pull the lever.
The reclining feature allows adjustment
of the seatback for occupants of different
sizes to help obtain proper seat belt fit.
(See “Precautions on seat belt usage” (P.1-
20).) The seatback may also be reclined to
allow occupants to rest when the vehicle
is parked.
WARNING
. Do not ride in a moving vehicle
when the seatback is reclined.
This can be dangerous. The
shoulder belt will not be against
your body. In an accident, you
could be thrown into it and re-
ceive neck or other serious inju-
ries. You could also slide under
the lap belt and receive serious
internal injuries.
. For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit
well back and upright in the seat
with both feet on the floor and adjust the seat belt properly. See
“Precautions on seat belt usage”
(P.1-20).
. After adjustment, check to be
sure the seat is securely locked.
Entry to 3rd row seat
CAUTION
.Do not drive with the 2nd row
seat tipped up.
. Be careful not to allow the 2nd
row seat to pinch, hit any part of
your body or other people when
operating the 2nd row seat. Make
sure the seat path is clear of all
objects before moving the seat.
The 2nd row seat can be tipped forward
for easy entry to or exit from the 3rd row
seat.

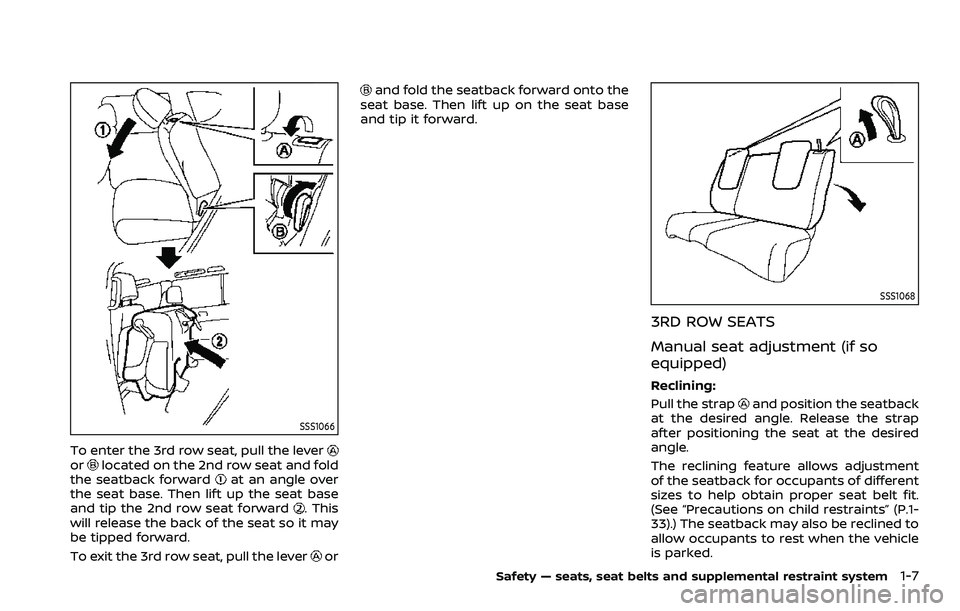

SSS1066
To enter the 3rd row seat, pull the leverorlocated on the 2nd row seat and fold
the seatback forwardat an angle over
the seat base. Then lift up the seat base
and tip the 2nd row seat forward
. This
will release the back of the seat so it may
be tipped forward.
To exit the 3rd row seat, pull the lever
or
and fold the seatback forward onto the
seat base. Then lift up on the seat base
and tip it forward.
SSS1068
3RD ROW SEATS
Manual seat adjustment (if so
equipped)
Reclining:
Pull the strap
and position the seatback
at the desired angle. Release the strap
after positioning the seat at the desired
angle.
The reclining feature allows adjustment
of the seatback for occupants of different
sizes to help obtain proper seat belt fit.
(See “Precautions on child restraints” (P.1-
33).) The seatback may also be reclined to
allow occupants to rest when the vehicle
is parked.
Safety — seats, seat belts and supplemental restraint system1-7

1-8Safety — seats, seat belts and supplemental restraint system
WARNING
.Do not ride in a moving vehicle
when the seatback is reclined.
This can be dangerous. The
shoulder belt will not be against
your body. In an accident, you
could be thrown into it and re-
ceive neck or other serious inju-
ries. You could also slide under
the lap belt and receive serious
internal injuries.
. For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit
well back and upright in the seat
with both feet on the floor and
adjust the seat belt properly. See
“Precautions on seat belt usage”
(P.1-20).
. After adjustment, check to be
sure the seat is securely locked.

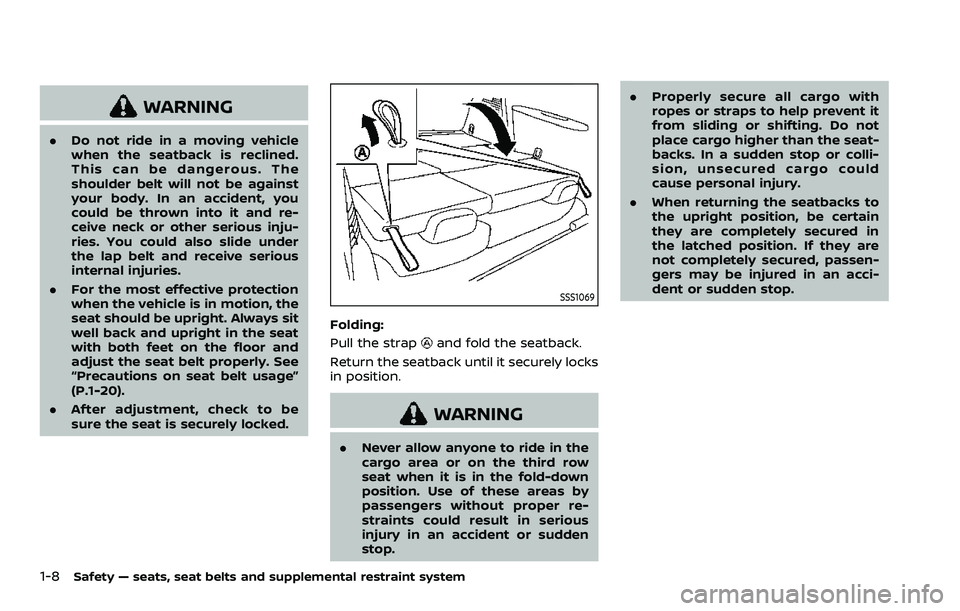

SSS1069
Folding:
Pull the strap
and fold the seatback.
Return the seatback until it securely locks
in position.
WARNING
. Never allow anyone to ride in the
cargo area or on the third row
seat when it is in the fold-down
position. Use of these areas by
passengers without proper re-
straints could result in serious
injury in an accident or sudden
stop. .
Properly secure all cargo with
ropes or straps to help prevent it
from sliding or shifting. Do not
place cargo higher than the seat-
backs. In a sudden stop or colli-
sion, unsecured cargo could
cause personal injury.
. When returning the seatbacks to
the upright position, be certain
they are completely secured in
the latched position. If they are
not completely secured, passen-
gers may be injured in an acci-
dent or sudden stop.

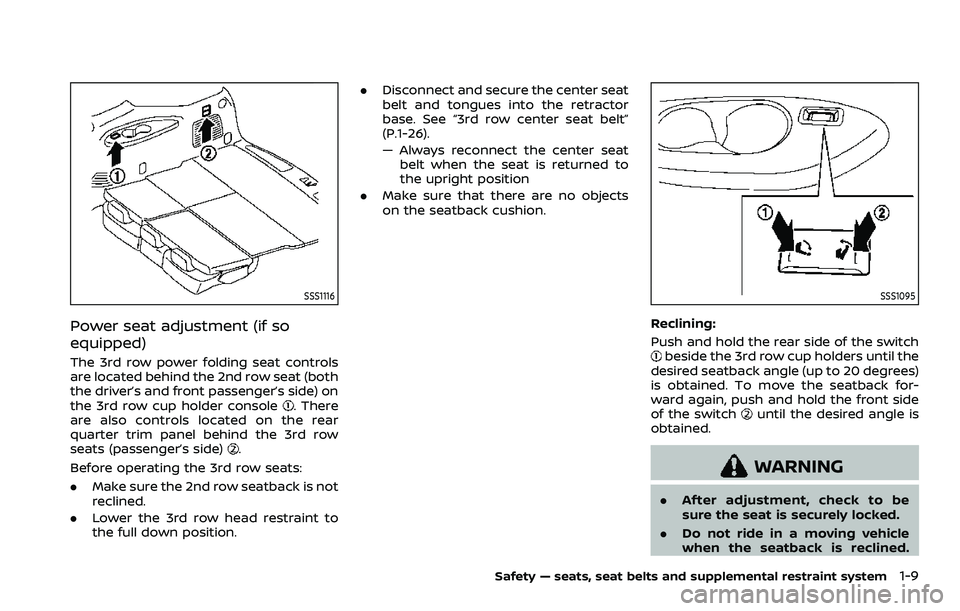

SSS1116
Power seat adjustment (if so
equipped)
The 3rd row power folding seat controls
are located behind the 2nd row seat (both
the driver’s and front passenger’s side) on
the 3rd row cup holder console
. There
are also controls located on the rear
quarter trim panel behind the 3rd row
seats (passenger’s side)
.
Before operating the 3rd row seats:
. Make sure the 2nd row seatback is not
reclined.
. Lower the 3rd row head restraint to
the full down position. .
Disconnect and secure the center seat
belt and tongues into the retractor
base. See “3rd row center seat belt”
(P.1-26).
— Always reconnect the center seat
belt when the seat is returned to
the upright position
. Make sure that there are no objects
on the seatback cushion.
SSS1095
Reclining:
Push and hold the rear side of the switch
beside the 3rd row cup holders until the
desired seatback angle (up to 20 degrees)
is obtained. To move the seatback for-
ward again, push and hold the front side
of the switch
until the desired angle is
obtained.
WARNING
. After adjustment, check to be
sure the seat is securely locked.
. Do not ride in a moving vehicle
when the seatback is reclined.
Safety — seats, seat belts and supplemental restraint system1-9

1-10Safety — seats, seat belts and supplemental restraint system
This can be dangerous. The
shoulder belt will not be against
your body. In an accident, you
could be thrown into it and re-
ceive neck or other serious inju-
ries. You could also slide under
the lap belt and receive serious
internal injuries.
. For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit
well back and upright in the seat
with both feet on the floor and
adjust the seat belt properly. See
“Precautions on seat belt usage”
(P.1-20).

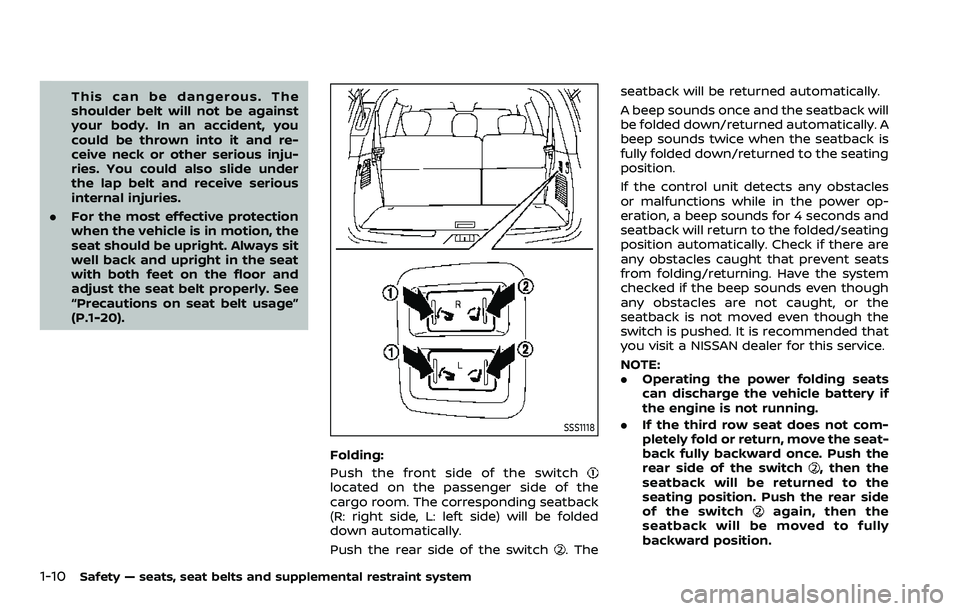

SSS1118
Folding:
Push the front side of the switch
located on the passenger side of the
cargo room. The corresponding seatback
(R: right side, L: left side) will be folded
down automatically.
Push the rear side of the switch
. The seatback will be returned automatically.
A beep sounds once and the seatback will
be folded down/returned automatically. A
beep sounds twice when the seatback is
fully folded down/returned to the seating
position.
If the control unit detects any obstacles
or malfunctions while in the power op-
eration, a beep sounds for 4 seconds and
seatback will return to the folded/seating
position automatically. Check if there are
any obstacles caught that prevent seats
from folding/returning. Have the system
checked if the beep sounds even though
any obstacles are not caught, or the
seatback is not moved even though the
switch is pushed. It is recommended that
you visit a NISSAN dealer for this service.
NOTE:
.
Operating the power folding seats
can discharge the vehicle battery if
the engine is not running.
. If the third row seat does not com-
pletely fold or return, move the seat-
back fully backward once. Push the
rear side of the switch
, then the
seatback will be returned to the
seating position. Push the rear side
of the switch
again, then the
seatback will be moved to fully
backward position.

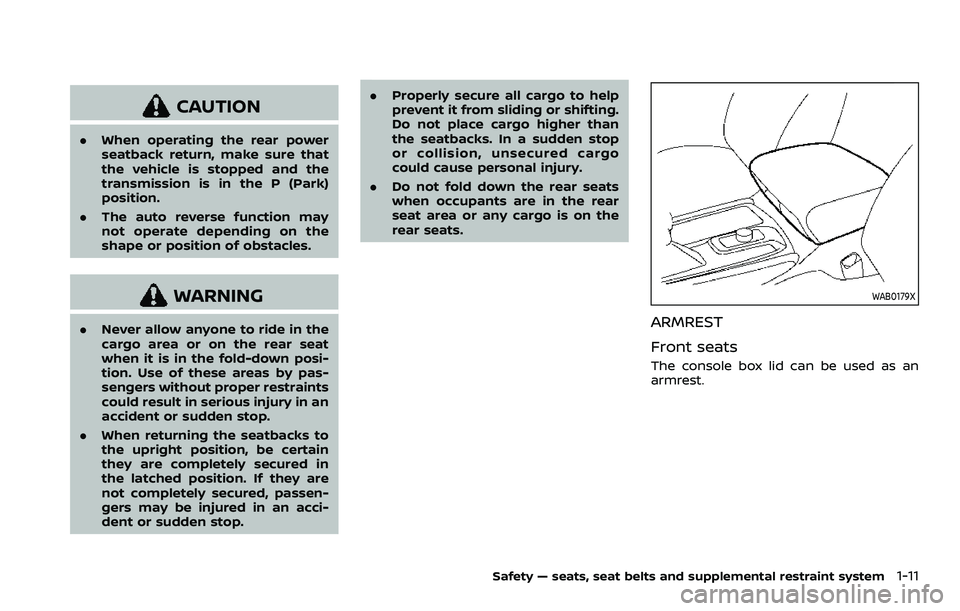

CAUTION
.When operating the rear power
seatback return, make sure that
the vehicle is stopped and the
transmission is in the P (Park)
position.
. The auto reverse function may
not operate depending on the
shape or position of obstacles.
WARNING
.Never allow anyone to ride in the
cargo area or on the rear seat
when it is in the fold-down posi-
tion. Use of these areas by pas-
sengers without proper restraints
could result in serious injury in an
accident or sudden stop.
. When returning the seatbacks to
the upright position, be certain
they are completely secured in
the latched position. If they are
not completely secured, passen-
gers may be injured in an acci-
dent or sudden stop. .
Properly secure all cargo to help
prevent it from sliding or shifting.
Do not place cargo higher than
the seatbacks. In a sudden stop
or collision, unsecured cargo
could cause personal injury.
. Do not fold down the rear seats
when occupants are in the rear
seat area or any cargo is on the
rear seats.
WAB0179X
ARMREST
Front seats
The console box lid can be used as an
armrest.
Safety — seats, seat belts and supplemental restraint system1-11

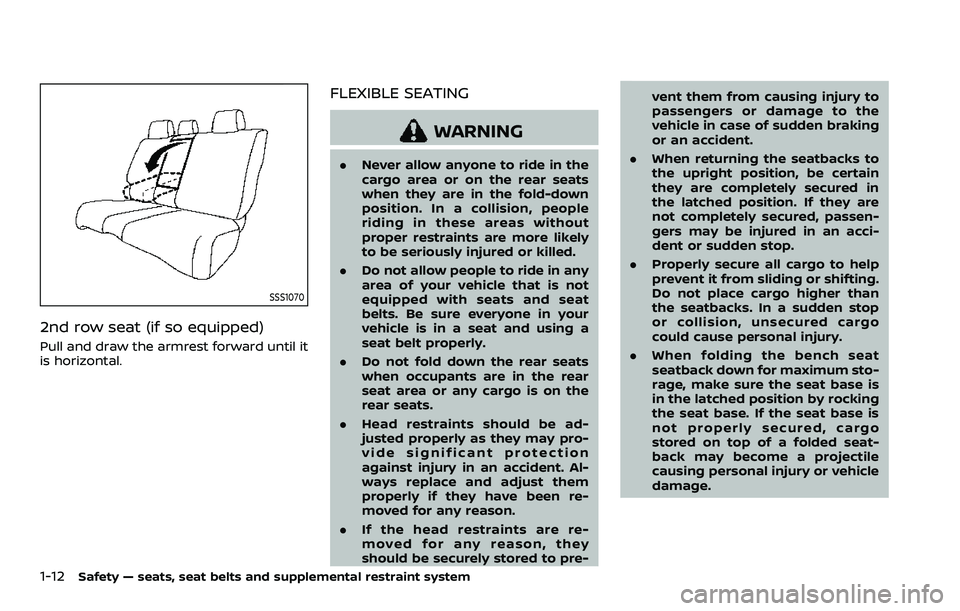

1-12Safety — seats, seat belts and supplemental restraint system
SSS1070
2nd row seat (if so equipped)
Pull and draw the armrest forward until it
is horizontal.
FLEXIBLE SEATING
WARNING
.Never allow anyone to ride in the
cargo area or on the rear seats
when they are in the fold-down
position. In a collision, people
riding in these areas without
proper restraints are more likely
to be seriously injured or killed.
. Do not allow people to ride in any
area of your vehicle that is not
equipped with seats and seat
belts. Be sure everyone in your
vehicle is in a seat and using a
seat belt properly.
. Do not fold down the rear seats
when occupants are in the rear
seat area or any cargo is on the
rear seats.
. Head restraints should be ad-
justed properly as they may pro-
vide significant protection
against injury in an accident. Al-
ways replace and adjust them
properly if they have been re-
moved for any reason.
. If the head restraints are re-
moved for any reason, they
should be securely stored to pre- vent them from causing injury to
passengers or damage to the
vehicle in case of sudden braking
or an accident.
. When returning the seatbacks to
the upright position, be certain
they are completely secured in
the latched position. If they are
not completely secured, passen-
gers may be injured in an acci-
dent or sudden stop.
. Properly secure all cargo to help
prevent it from sliding or shifting.
Do not place cargo higher than
the seatbacks. In a sudden stop
or collision, unsecured cargo
could cause personal injury.
. When folding the bench seat
seatback down for maximum sto-
rage, make sure the seat base is
in the latched position by rocking
the seat base. If the seat base is
not properly secured, cargo
stored on top of a folded seat-
back may become a projectile
causing personal injury or vehicle
damage.
