NISSAN CUBE 2009 User Guide

Black plate (7,1)
Model "Z12-D" EDITED: 2009/ 1/ 28

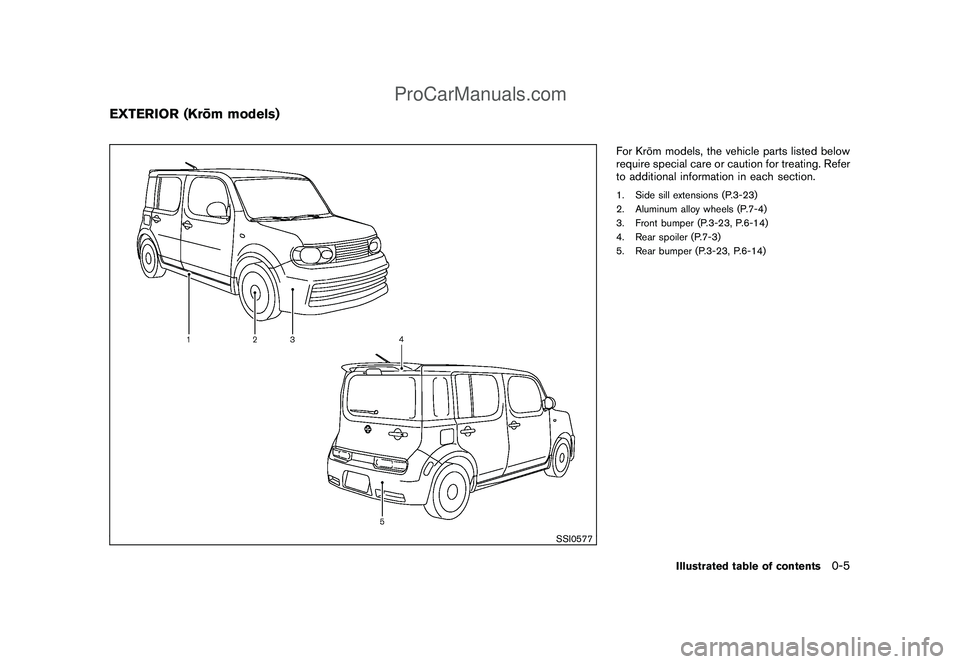

SSI0577
For Kro¯
m models, the vehicle parts listed below
require special care or caution for treating. Refer
to additional information in each section.1. Side sill extensions (P.3-23)
2. Aluminum alloy wheels (P.7-4)
3. Front bumper (P.3-23, P.6-14)
4. Rear spoiler (P.7-3)
5. Rear bumper (P.3-23, P.6-14)
EXTERIOR (Kro¯
m models)
Illustrated table of contents
0-5
ProCarManuals.com

Black plate (8,1)
Model "Z12-D" EDITED: 2009/ 1/ 28
SSI0561
1. Rear pillar pocket (P.2-33)
2. Soft bottle holders (P.2-32)
3. Ceiling light (P.2-40)
4. Utility hooks* (P.2-36)
5. Jack and tools (P.6-3)6. Door armrest
— Power window switch (P.2-36)
— Power door lock switch (P.3-5)
7. Microphone*
— Bluetooth
®Hands-Free Phone System*
(P.4-31)
8. Sun visors (P.3-26)9. Map lights* (P.2-39)
10. Inside rearview mirror (P.3-26)
11. Cargo cover* (P.2-34)
12. Cargo area
— Luggage hooks (P.2-35)
— Cargo light* (P.2-41)
13. Rear cup holders* (P.2-31)
14. Front cup holders (P.2-31)
*: if so equipped
PASSENGER COMPARTMENT0-6
Illustrated table of contents
ProCarManuals.com

Black plate (9,1)
Model "Z12-D" EDITED: 2009/ 1/ 28
SSI0563
1. Front cup holders (P.2-31)
2. Headlight, fog light and turn signal switch
— Headlight (P.2-23)
— Turn signal (P.2-26)
— Fog light* (P.2-27)3. Steering wheel
— Electric power steering system (P.5-26)
— Horn (P.2-28)
— Driver’s supplemental front-impact air bag
(P.1-40)
4. Wiper and washer switch (P.2-20)
5. Fuse box cover (P.8-21)6. Outside mirror remote control switch (P.3-27)
7. Vehicle Dynamic Control (VDC) OFF switch
(P.5-29)
8. Tilting steering wheel lever (P.3-25)
9. Steering-wheel-mounted controls (left side)*
— Audio control* (P.4-28)
— Bluetooth
®Hands-Free Phone System control*
(P.4-31)
10. Steering-wheel-mounted controls (right side)*
— Cruise control switches* (P.5-21)
11. Selector lever or Shift lever
— Continuously Variable Transmission (CVT)
(P.5-14)
— Manual Transmission (MT) (P.5-18)
12. Parking brake (P.5-20)
*: if so equipped
COCKPIT
Illustrated table of contents
0-7
ProCarManuals.com

Black plate (10,1)
Model "Z12-D" EDITED: 2009/ 1/ 28

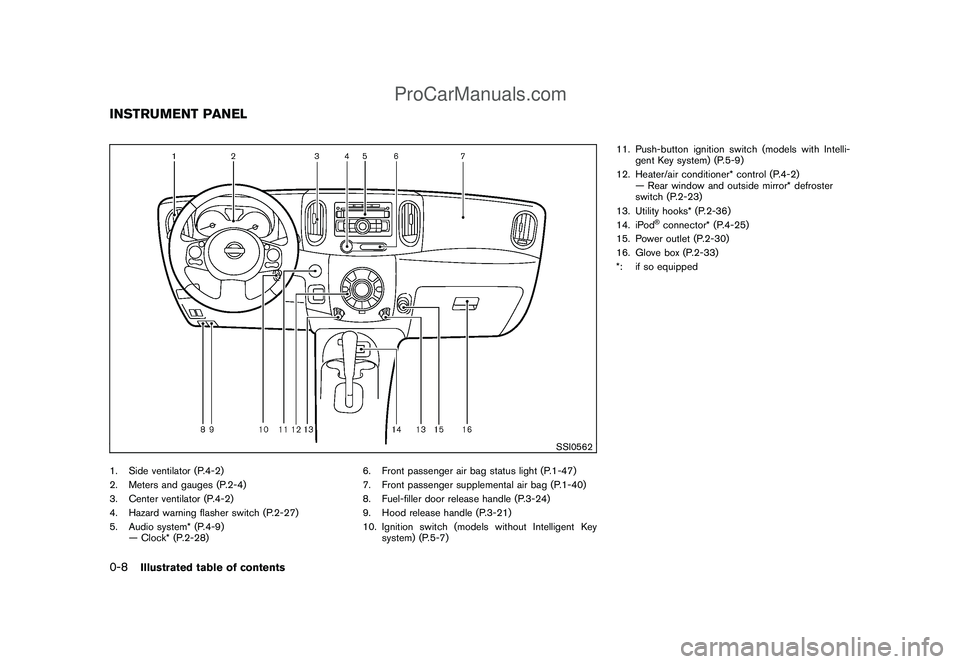

SSI0562
1. Side ventilator (P.4-2)
2. Meters and gauges (P.2-4)
3. Center ventilator (P.4-2)
4. Hazard warning flasher switch (P.2-27)
5. Audio system* (P.4-9)
— Clock* (P.2-28)6. Front passenger air bag status light (P.1-47)
7. Front passenger supplemental air bag (P.1-40)
8. Fuel-filler door release handle (P.3-24)
9. Hood release handle (P.3-21)
10. Ignition switch (models without Intelligent Key
system) (P.5-7)11. Push-button ignition switch (models with Intelli-
gent Key system) (P.5-9)
12. Heater/air conditioner* control (P.4-2)
— Rear window and outside mirror* defroster
switch (P.2-23)
13. Utility hooks* (P.2-36)
14. iPod
®connector* (P.4-25)
15. Power outlet (P.2-30)
16. Glove box (P.2-33)
*: if so equipped
INSTRUMENT PANEL0-8
Illustrated table of contents
ProCarManuals.com

Black plate (11,1)
Model "Z12-D" EDITED: 2009/ 1/ 28
SIC4119
1. Tachometer (P.2-6)
2. Engine coolant temperature gauge (P.2-6)
3. Vehicle information display (P.2-7)
— Odometer/twin trip odometer (P.2-5)
— Trip computer (P.2-8)
— Outside air temperature* (P.2-7)
4. Fuel gauge (P.2-7)5. Speedometer (P.2-5)
6. Warning/indicator lights (P.2-10)
7. Instrument brightness control knob (P.2-26)
8. Continuously Variable Transmission (CVT) posi-
tion indicator* (P.2-8)9. RESET switch for trip odometer (P.2-5)/Trip
computer mode switch (P.2-8)
*: if so equippedMETERS AND GAUGES
Illustrated table of contents
0-9
ProCarManuals.com

Black plate (12,1)
Model "Z12-D" EDITED: 2009/ 1/ 28
SSI0564
MR18DE ENGINE1. Engine oil filler cap (P.8-8)
2. Brake and clutch (*1) fluid reservoir (P.8-11)
3. Air cleaner (P.8-16)
4. Battery (P.8-13)
— Jump starting (P.6-8)5. Window washer fluid reservoir (P.8-12)
6. Engine drive belt location (P.8-15)
7. Engine oil dipstick (P.8-8)
8. Engine coolant reservoir (P.8-8)
9. Radiator filler cap (P.8-7)
— Vehicle overheat (P.6-11)
10. Fuse/fusible link holder (P.8-19)*1: for Manual Transmission (MT) modelsENGINE COMPARTMENT0-10
Illustrated table of contents
ProCarManuals.com

Black plate (4,1)

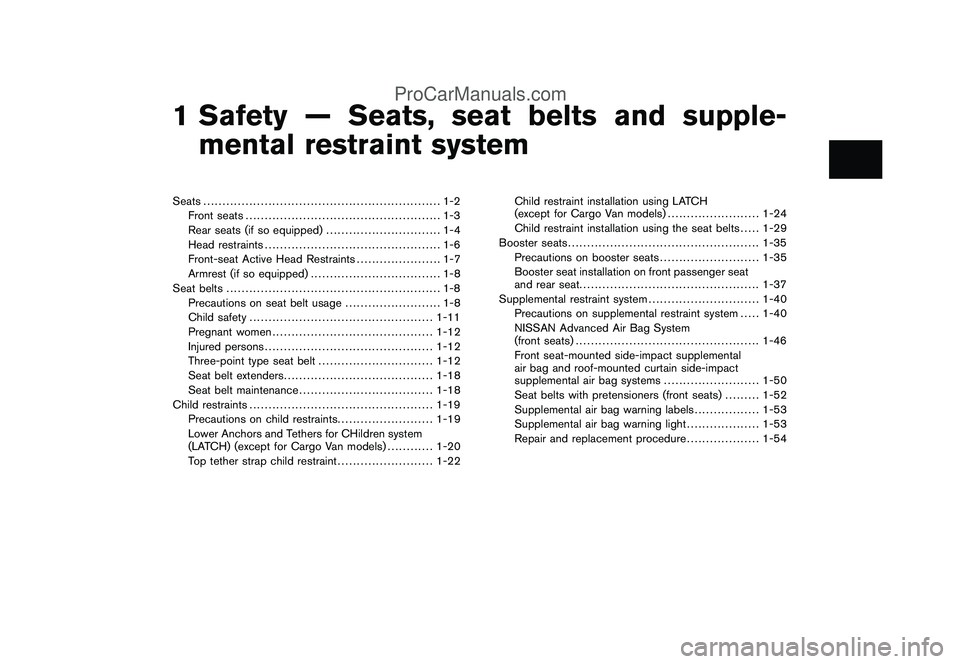

1 Safety — Seats, seat belts and supple-
mental restraint system
Model "Z12-D" EDITED: 2009/ 1/ 28
Seats.............................................................. 1-2
Front seats................................................... 1-3
Rear seats (if so equipped).............................. 1-4
Head restraints.............................................. 1-6
Front-seat Active Head Restraints...................... 1-7
Armrest (if so equipped).................................. 1-8
Seat belts........................................................ 1-8
Precautions on seat belt usage......................... 1-8
Child safety................................................ 1-11
Pregnant women.......................................... 1-12
Injured persons............................................ 1-12
Three-point type seat belt.............................. 1-12
Seat belt extenders....................................... 1-18
Seat belt maintenance................................... 1-18
Child restraints................................................ 1-19
Precautions on child restraints......................... 1-19
Lower Anchors and Tethers for CHildren system
(LATCH) (except for Cargo Van models)............ 1-20
Top tether strap child restraint......................... 1-22Child restraint installation using LATCH
(except for Cargo Van models)........................ 1-24
Child restraint installation using the seat belts ..... 1-29
Booster seats.................................................. 1-35
Precautions on booster seats.......................... 1-35
Booster seat installation on front passenger seat
and rear seat............................................... 1-37
Supplemental restraint system............................. 1-40
Precautions on supplemental restraint system ..... 1-40
NISSAN Advanced Air Bag System
(front seats)................................................ 1-46
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact
supplemental air bag systems......................... 1-50
Seat belts with pretensioners (front seats)......... 1-52
Supplemental air bag warning labels................. 1-53
Supplemental air bag warning light................... 1-53
Repair and replacement procedure................... 1-54
ProCarManuals.com

Black plate (16,1)
Model "Z12-D" EDITED: 2009/ 1/ 28

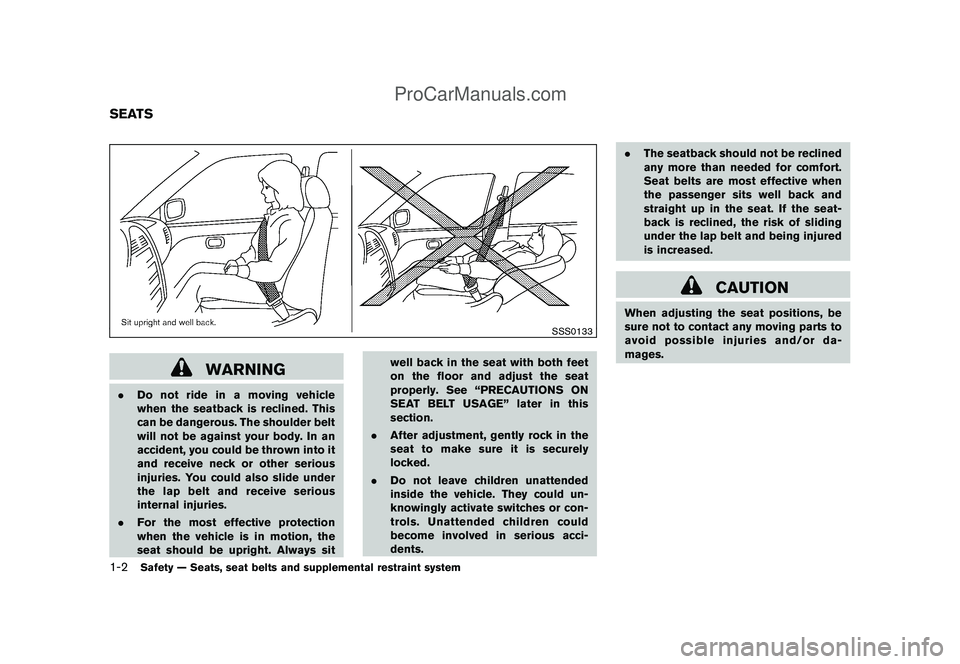

SSS0133
WARNING
.Do not ride in a moving vehicle
when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious
internal injuries.
.For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sitwell back in the seat with both feet
on the floor and adjust the seat
properly. See “PRECAUTIONS ON
SEAT BELT USAGE” later in this
section.
.After adjustment, gently rock in the
seat to make sure it is securely
locked.
.Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents..The seatback should not be reclined
any more than needed for comfort.
Seat belts are most effective when
the passenger sits well back and
straight up in the seat. If the seat-
back is reclined, the risk of sliding
under the lap belt and being injured
is increased.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or da-
mages.
SEATS1-2
Safety — Seats, seat belts and supplemental restraint system
ProCarManuals.com

Black plate (17,1)
Model "Z12-D" EDITED: 2009/ 1/ 28
SSS0792
FRONT SEATS
Front manual seat adjustmentForward and backward:
Pull the lever
*1
up and hold it while you slide
the seat forward or backward to the desired
position. Release the lever to lock the seat in
position.
Reclining:
To recline the seatback, pull the lever
*2
up and
lean back. To bring the seatback forward, pull
the lever up and lean your body forward. Release
the lever to lock the seatback in position.The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “PRECAUTIONS ON SEAT BELT
USAGE” later in this section.) Also, the seatback
can be reclined to allow occupants to rest when
the vehicle is stopped and the transmission is in
the P (Park) position or N (Neutral) position with
the parking brake fully applied.
SSS0793
Seat lifter (for driver’s seat):
Pull up or push down the adjusting lever to
adjust the seat height until the desired position
is achieved.
Safety — Seats, seat belts and supplemental restraint system
1-3
ProCarManuals.com

Black plate (18,1)
Model "Z12-D" EDITED: 2009/ 1/ 28

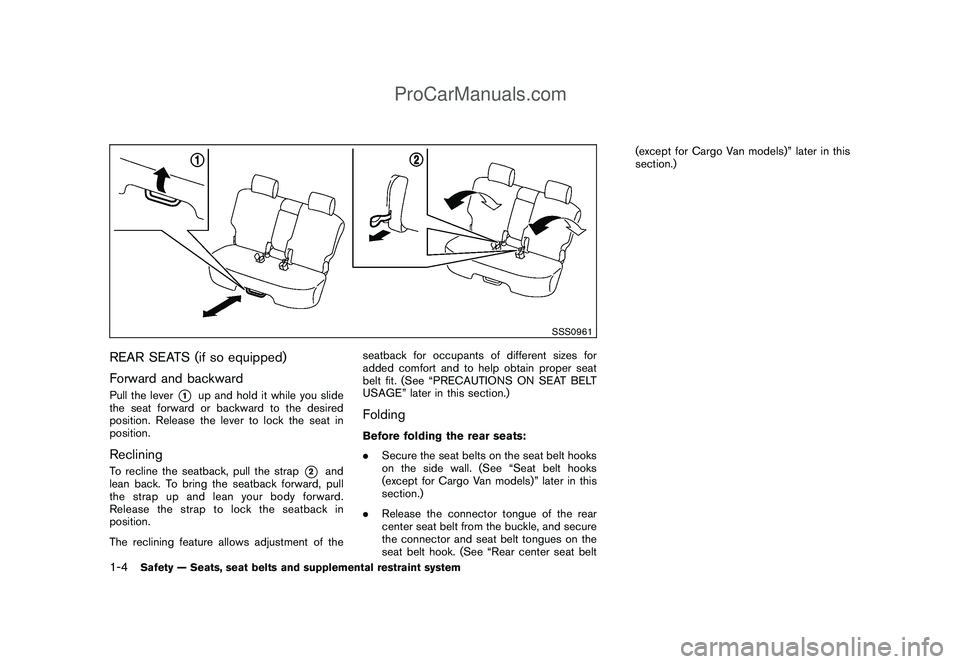

SSS0961
REAR SEATS (if so equipped)
Forward and backwardPull the lever
*1
up and hold it while you slide
the seat forward or backward to the desired
position. Release the lever to lock the seat in
position.
RecliningTo recline the seatback, pull the strap
*2
and
lean back. To bring the seatback forward, pull
the strap up and lean your body forward.
Release the strap to lock the seatback in
position.
The reclining feature allows adjustment of theseatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “PRECAUTIONS ON SEAT BELT
USAGE” later in this section.)
FoldingBefore folding the rear seats:
.Secure the seat belts on the seat belt hooks
on the side wall. (See “Seat belt hooks
(except for Cargo Van models)” later in this
section.)
.Release the connector tongue of the rear
center seat belt from the buckle, and secure
the connector and seat belt tongues on the
seat belt hook. (See “Rear center seat belt(except for Cargo Van models)” later in this
section.)
1-4
