.Waste oil must be disposed of
properly.
. Check your local regulations.
(Perform steps 4 to 8 only when the engine
oil filter change is needed.)
4. Remove the engine under cover under the oil filter location by removing the bolts and
small plastic clips.
5. Loosen the oil filter with an oil filter wrench. Remove the oil filter by turning it by hand.
6. Wipe the engine oil filter mounting surface with a clean rag.
CAUTION
Be sure to remove any old gasket
material remaining on the mounting
surface of the engine. Failure to do so
could lead to engine damage.
7. Coat the gasket on the new filter with clean engine oil.
8. Screw in the oil filter clockwise until a slight resistance is felt, then tighten additionally
more than 2/3 turn.
Oil filter tightening torque:11 to 15 ft-lb
(14.7 to 20.5 N·m) 9. Clean and re-install the drain plug with a
new washer. Securely tighten the drain plug
with a wrench.
Drain plug tightening torque:22 to 29 ft-lb
(29 to 39 N·m)
Do not use excessive force.
10. Refill the engine with the recommended oil through the oil filler opening, and install the
oil filler cap securely.
See “CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS” in the “9. Technical
and consumer information” section for drain
and refill capacity. The drain and refill
capacity depends on the oil temperature
and drain time. Use these specifications for
reference only. Always use the dipstick to
determine the proper amount of oil in the
engine.
11. Start the engine and check for leakage around the drain plug and the oil filter.
Correct as required.
12. Turn the engine off and wait more than 10 minutes. Check the oil level with the dipstick.
Add engine oil if necessary.
After the operation1. Install the engine undercover into position asthe following steps. a. Pull the center of the small plastic clips
out.
b. Hold the engine undercover into posi- tion.
c. Insert the clips through the undercover into the holes in the frame, then push the
center of the clips in to lock the clips in
place.
d. Install the bolts that hold the undercover in place. Be careful not to strip the bolts
or over-tighten them.
2. Lower the vehicle carefully to the ground.
3. Dispose of waste oil and filter properly.
WARNING
. Prolonged and repeated contact
with used engine oil may cause skin
cancer.
. Try to avoid direct skin contact with
used oil. If skin contact is made,
wash thoroughly with soap or hand
cleaner as soon as possible.
. Keep used engine oil out of reach of
children.
8-10
Maintenance and do-it-yourself
ProCarManuals.com

Black plate (260,1)
Model "Z12-D" EDITED: 2009/ 1/ 28
SDI2388
Type A
SDI2429
Type B

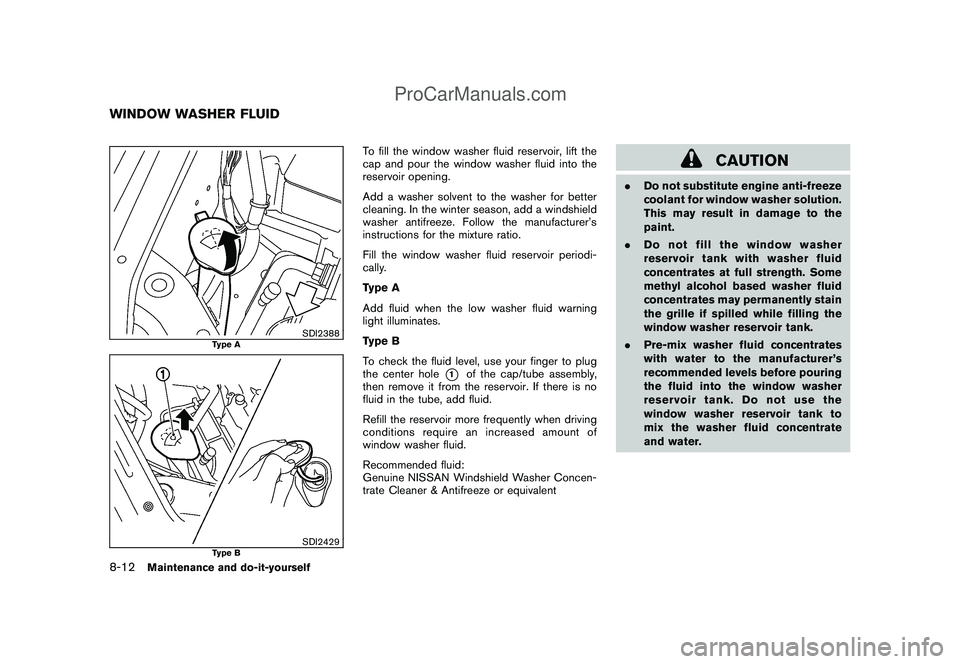

To fill the window washer fluid reservoir, lift the
cap and pour the window washer fluid into the
reservoir opening.
Add a washer solvent to the washer for better
cleaning. In the winter season, add a windshield
washer antifreeze. Follow the manufacturer’s
instructions for the mixture ratio.
Fill the window washer fluid reservoir periodi-
cally.
Type A
Add fluid when the low washer fluid warning
light illuminates.
Type B
To check the fluid level, use your finger to plug
the center hole
*1
of the cap/tube assembly,
then remove it from the reservoir. If there is no
fluid in the tube, add fluid.
Refill the reservoir more frequently when driving
conditions require an increased amount of
window washer fluid.
Recommended fluid:
Genuine NISSAN Windshield Washer Concen-
trate Cleaner & Antifreeze or equivalent
CAUTION
.Do not substitute engine anti-freeze
coolant for window washer solution.
This may result in damage to the
paint.
.Do not fill the window washer
reservoir tank with washer fluid
concentrates at full strength. Some
methyl alcohol based washer fluid
concentrates may permanently stain
the grille if spilled while filling the
window washer reservoir tank.
.Pre-mix washer fluid concentrates
with water to the manufacturer’s
recommended levels before pouring
the fluid into the window washer
reservoir tank. Do not use the
window washer reservoir tank to
mix the washer fluid concentrate
and water.
WINDOW WASHER FLUID8-12
Maintenance and do-it-yourself
ProCarManuals.com

Black plate (267,1)
Model "Z12-D" EDITED: 2009/ 1/ 28
affect the function or performance of the brake
system.
Proper brake inspection intervals should
be followed.For additional information, see the
maintenance log section of your “NISSAN
Service and Maintenance Guide”.
SDI1959
ENGINE COMPARTMENT
CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch and the headlight
switch are turned off.
2. Open the engine hood.3. Remove the resonator. (See “ENGINE
COMPARTMENT CHECK LOCATIONS”
earlier in this section.)
4. Remove the fuse/fusible link holder cover by
pushing the tab
*1
and lifting the cover
from the right side*2, then the left side
*3.
5. Locate the fuse that needs to be replaced.
6. Remove the fuse using the fuse puller
located in the passenger compartment fuse
box.
FUSES
Maintenance and do-it-yourself
8-19
ProCarManuals.com

Black plate (290,1)
Model "Z12-D" EDITED: 2009/ 1/ 28
pumps to be identified by a small, square,
orange and black label with the common
abbreviation or the appropriate percentage for
that region.Aftermarket fuel additivesNISSAN does not recommend the use of any
aftermarket fuel additives (for example, fuel
injector cleaner, octane booster, intake valve
deposit removers, etc.) which are sold commer-
cially. Many of these additives intended for gum,
varnish or deposit removal may contain active
solvent or similar ingredients that can be harmful
to the fuel system and engine.Octane rating tipsUsing unleaded gasoline with an octane
rating lower than recommended can cause
persistent, heavy “spark knock”. (Spark
knock is a metallic rapping noise.) If
severe, this can lead to engine damage. If
you detect a persistent heavy spark knock
even when using gasoline of the stated
octane rating, or if you hear steady spark
knock while holding a steady speed on
level roads, have a NISSAN dealer correct
the condition. Failure to correct the condi-
tion is misuse of the vehicle, for which
NISSAN is not responsible.
Incorrect ignition timing will result in spark
knock, after-run and/or overheating, which may
cause excessive fuel consumption or enginedamage. If any of the above symptoms are
encountered, have your vehicle checked at a
NISSAN dealer.
However, now and then you may notice
light spark knock for a short time while
accelerating or driving up hills. This is not a
cause for concern, because you get the
greatest fuel benefit when there is light
spark knock for a short time under heavy
engine load.
CAUTION
.Your vehicle is not designed to run
on E-85 fuel. Using E-85 fuel in a
vehicle not specifically designed for
E-85 fuel can damage fuel system
components and is not covered by
the NISSAN new vehicle limited
warranty.
.E-85 is a mixture of approximately
85% fuel ethanol and 15% unleaded
gasoline.
.U.S. government regulations require
ethanol dispensing pumps to be
identified by a small, square, orange
and black label with the common
abbreviation or the appropriate per-
centage for that region.
9-4
Technical and consumer information
ProCarManuals.com

Black plate (307,1)
Model "Z12-D" EDITED: 2009/ 1/ 28
Due to legal requirements in some states/areas
or provinces, your vehicle may be required to be
in what is called the “ready condition” for an
Inspection/Maintenance (I/M) test of the emis-
sion control system.
The vehicle is set to the “ready condition” when
it is driven through certain driving patterns.
Usually, the “ready condition” can be obtained
by ordinary usage of the vehicle.
If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready condition”. Before taking
the I/M test, check the vehicle’s inspection/
maintenance test readiness condition. Place the
ignition switch in the ON position without
starting the engine. If the Malfunction Indicator
Light (MIL) comes on steady for 20 seconds and
then blinks for 10 seconds, the I/M test
condition is “not ready”. If the MIL does not
blink after 20 seconds, the I/M test condition is
“ready”.
If the MIL indicates the vehicle is in a “not ready”
condition, drive the vehicle through the following
pattern to set the vehicle to the “ready condi-
tion”. If you cannot or do not want to perform the
driving pattern, a NISSAN dealer can conduct it
for you.
WARNING
Always drive the vehicle in a safe and
prudent manner according to traffic
conditions and obey all traffic laws.
1. Start the engine. Allow the engine to idle
until the engine coolant temperature gauge
needle points between the C and H (normal
operating temperature) .
2. Accelerate the vehicle to 55 MPH (88
km/h) , then quickly release the accelerator
pedal completely and keep it released for at
least 10 seconds.
3. Quickly depress the accelerator pedal for a
moment, then drive the vehicle at a speed of
53 to 60 MPH (86 to 96 km/h) for at least 9
minutes.
4. Stop the vehicle. Leave the engine running.
5. Accelerate the vehicle to 35 MPH (55 km/h)
and maintain the speed for 20 seconds.
6. Repeat steps 4 and 5 at least 10 times.
7. Accelerate the vehicle to 55 MPH (88 km/h)
and maintain the speed for at least 3
minutes.
8. Stop the vehicle. Place the transmission
selector lever in the P (Park) position (forContinuously Variable Transmission models)
or the shift lever in the N (Neutral) position
(for Manual Transmission models) .
9. Turn the engine off.
10. Repeat steps 1 through 8 at least one more
time.
If step 1 through 7 is interrupted, repeat the
preceding step. Any safe driving mode is
acceptable between steps. Do not stop the
engine until step 7 is completed.
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST
Technical and consumer information
9-21
ProCarManuals.com

Black plate (1,1)
10 Index
A
ABS (Anti-lock Braking System).................. 5-28
Advanced air bag system......................... 1-46
Air bag system
Advanced air bag system..................... 1-46
Front passenger air bag and status light.... 1-47
Front-seat mounted side-impact
supplemental air bag system.................. 1-50
Roof-mounted curtain side-impact
supplemental air bag system.................. 1-50
Air bag warning labels............................. 1-53
Air bag warning light....................... 1-53, 2-14
Air cleaner housing filter.......................... 8-16
Air conditioner
Air conditioner operation........................ 4-2
Air conditioner service........................... 4-9
Air conditioner specification label............ 9-10
Air conditioning system refrigerant and
lubricant recommendations............... 4-9, 9-6
In-cabin microfilter............................... 4-8
Alarm, How to stop alarm
(see vehicle security system)..................... 2-19
Alcohol, drugs and driving.......................... 5-6
Antenna............................................. 4-29
Anti-lock Braking System (ABS).................. 5-28
Anti-lock braking system (ABS) warning light . . . 2-10
Appearance care
Exterior appearance care........................ 7-2
Interior appearance care........................ 7-5
Armrest............................................... 1-8
Audible reminders ................................. 2-17
Audio operation precautions........................ 4-9Audio system......................................... 4-9
Steering wheel audio controls................ 4-28
Autolight system................................... 2-24
Automatic
Air conditioner.................................... 4-6
Door locks........................................ 3-5
Average fuel consumption........................... 2-9
Average speed....................................... 2-9
Avoiding collision and rollover...................... 5-5
B
Back door .......................................... 3-22
Battery.............................................. 8-13
Battery replacement, Intelligent Key.......... 8-23
Battery replacement, Keyfob.................. 8-22
Battery saver system.......................... 2-25
Variable voltage control system............... 8-14
Before starting the engine........................ 5-12
Bluetooth
®Hands-Free Phone System.......... 4-31
Booster seats...................................... 1-35
Brake
Anti-lock Braking System (ABS).............. 5-28
Brake and clutch fluid......................... 8-11
Brake system................................... 5-27
Parking brake operation....................... 5-20
Warning light................................... 2-11
Break-in schedule.................................. 5-23
Brightness control, Instrument panel............. 2-26
Bulb check/instrument panel...................... 2-10
Bulb replacement.................................. 8-25C
Cabin air filter........................................ 4-8
Capacities and recommended fuel/lubricants..... 9-2
Car phone or CB radio............................ 4-31
Cargo cover........................................ 2-34
Cargo light......................................... 2-41
Catalytic converter, Three way catalyst............ 5-2
CD care and cleaning............................. 4-27
Ceiling light......................................... 2-40
Child restraints..................................... 1-19
Booster seats .................................. 1-35
Installation using LATCH...................... 1-24
Installation using the seat belts............... 1-29
Precautions on child restraints................ 1-19
Top tether strap................................ 1-22
Child safety......................................... 1-11
Child safety rear door lock.......................... 3-6
Chimes, Audible reminders....................... 2-17
Circuit breaker, Fusible link ....................... 8-20
Cleaning exterior and interior................. 7-2, 7-5
Clock............................................... 2-28
Clutch fluid......................................... 8-11
Cockpit............................................... 2-2
Cold weather driving.............................. 5-30
Command (See Bluetooth
®Hands-Free
Phone System)..................................... 4-37
Compact Disc (CD) player (See audio
system)...................................... 4-18, 4-24
Continuously Variable Transmission (CVT)
fluid................................................. 8-11
Controls, Steering wheel audio controls......... 4-28
Model "MASTER" EDITED: 2009/ 1/ 28
ProCarManuals.com

Black plate (2,1)
10-2Coolant
Capacities and recommended fuel/
lubricants........................................ 9-2
Changing engine coolant........................ 8-8
Checking engine coolant level.................. 8-8
Corrosion protection................................. 7-6
Cover, Cargo cover................................ 2-34
Cruise control...................................... 5-21
Cup holders........................................ 2-31
CVT, Driving with CVT
(Continuously Variable Transmission)........ 5-7, 5-14
D
Daytime running light system..................... 2-25
Defroster switch, Rear window and outside
mirror defroster switch............................ 2-23
Dimensions and weights............................ 9-8
Door open warning light........................... 2-11
Drive belt........................................... 8-15
Driving
Cold weather driving.......................... 5-30
Driving with CVT
(Continuously Variable Transmission).... 5-7, 5-14
Driving with manual transmission........ 5-8, 5-18
Precautions when starting and driving......... 5-2
E
Economy, Fuel ..................................... 5-23
Electric power steering system................... 5-26
Electric power steering warning light............ 2-12
Emission control information label................ 9-10
Emission control system warranty................ 9-20
Engine
Before starting the engine.................... 5-12Break-in schedule.............................. 5-23
Capacities and recommended fuel/
lubricants......................................... 9-2
Changing engine coolant........................ 8-8
Changing engine oil and filter................... 8-9
Checking engine coolant level.................. 8-8
Checking engine oil level........................ 8-8
Coolant temperature gauge..................... 2-6
Engine block heater........................... 5-31
Engine compartment check locations.......... 8-6
Engine cooling system.......................... 8-7
Engine oil......................................... 8-8
Engine oil and oil filter recommendation....... 9-5
Engine oil viscosity.............................. 9-5
Engine serial number............................ 9-9
Engine specifications............................ 9-7
If your vehicle overheats....................... 6-11
Starting the engine............................ 5-12
Event Data Recorders (EDR)..................... 9-22
Exhaust gas (carbon monoxide).................... 5-2
F
F.M.V.S.S./C.M.V.S.S. certification label............ 9-9
Filter
Air cleaner housing filter...................... 8-16
Changing engine oil and filter................... 8-9
Flashers (See hazard warning flasher switch) . . . 2-27
Flat tire................................................ 6-2
Flat towing.......................................... 9-18
Floor mat cleaning................................... 7-5
Fluid
Brake and clutch fluid......................... 8-11
Capacities and recommended fuel/
lubricants......................................... 9-2Continuously Variable Transmission (CVT)
fluid............................................. 8-11
Engine coolant ................................... 8-7
Engine oil......................................... 8-8
Window washer fluid .......................... 8-12
FM-AM radio with Compact Disc (CD)
player............................................... 4-17
FM-AM-SAT radio with Compact Disc (CD)
player............................................... 4-21
Fog light switch.................................... 2-27
Front manual seat adjustment....................... 1-3
Front passenger air bag and status light........ 1-47
Front seat, Front seat adjustment.................. 1-3
Front-seat active head restraints................... 1-7
Fuel
Capacities and recommended fuel/
lubricants......................................... 9-2
Distance to empty............................... 2-8
Fuel economy.................................. 5-23
Fuel octane rating................................ 9-3
Fuel recommendation............................ 9-3
Fuel-filler cap................................... 3-24
Fuel-filler door.................................. 3-24
Gauge ............................................ 2-7
Fuses............................................... 8-19
Fusible links........................................ 8-20
G
Gas cap ............................................ 3-24
Gauge ................................................ 2-4
Engine coolant temperature gauge............. 2-6
Fuel gauge....................................... 2-7
Odometer......................................... 2-5
Speedometer..................................... 2-5
Model "MASTER" EDITED: 2009/ 1/ 28
ProCarManuals.com

Black plate (4,1)
10-4
Maintenance requirements...................... 8-2
Outside the vehicle.............................. 8-2
Seat belt maintenance......................... 1-18
Malfunction indicator light (MIL).................. 2-15
Manual air conditioner............................... 4-3
Manual front seat adjustment....................... 1-3
Map lights .......................................... 2-39
Mechanical key (Intelligent Key system)............ 3-4
Meter, Trip computer................................ 2-8
Meters and gauges.................................. 2-4
Meters and gauges, Instrument brightness
control.............................................. 2-26
Mirror
Inside mirror.................................... 3-26
Outside mirrors................................ 3-27
N
New vehicle break-in.............................. 5-23
NISSAN Vehicle Immobilizer System............. 2-19
O
Odometer............................................. 2-5
Off-road recovery.................................... 5-5
Oil
Capacities and recommended fuel/
lubricants......................................... 9-2
Changing engine oil and filter................... 8-9
Checking engine oil level........................ 8-8
Engine oil......................................... 8-8
Engine oil viscosity.............................. 9-5
Outside air temperature display.................... 2-7
Outside mirrors.................................... 3-27
Overdrive OFF switch............................. 5-16Overheat, If your vehicle overheats............... 6-11
Owner’s Manual/Service Manual order
information.......................................... 9-22
P
Panic alarm.................................... 3-8, 3-18
Parking
Parking brake operation....................... 5-20
Parking on hills................................. 5-25
Phone
Bluetooth
®Hands-Free Phone System...... 4-31
Car phone or CB radio........................ 4-31
Power
Electric power steering system............... 5-26
Power door lock ................................. 3-4
Power outlet.................................... 2-30
Power windows................................ 2-36
Precautions
Audio operation.................................. 4-9
Braking precautions........................... 5-27
Child restraints................................. 1-19
Cruise control.................................. 5-21
Maintenance...................................... 8-5
Seat belt usage.................................. 1-8
Supplemental restraint system................ 1-40
When starting and driving....................... 5-2
Push starting....................................... 6-10
Push-button ignition switch......................... 5-9
R
Radio................................................. 4-9
Car phone or CB radio........................ 4-31FM-AM radio with Compact Disc (CD)
player........................................... 4-17
FM-AM-SAT radio with Compact Disc
(CD) player..................................... 4-21
Steering wheel audio controls ................ 4-28
Rapid air pressure loss.............................. 5-6
Readiness for inspection/maintenance (I/M)
test.................................................. 9-21
Rear center seat belt .............................. 1-16
Rear door lock, Child safety rear door lock........ 3-6
Rear seats............................................ 1-4
Rear window and outside mirror defroster
switch............................................... 2-23
Rear window wiper and washer switch.......... 2-22
Recorders, Event data............................. 9-22
Registering your vehicle in another country........ 9-8
Remote keyless entry function, For Intelligent
Key system......................................... 3-17
Remote keyless entry system....................... 3-7
Reporting safety defects (US only)............... 9-20
Rollover............................................... 5-5
S
Safety
Child seat belts................................ 1-11
Reporting safety defects (US only)........... 9-20
Seat adjustment
Front manual seat adjustment................... 1-3
Front seats ....................................... 1-3
Seat belt(s)
Child safety..................................... 1-11
Infants........................................... 1-11
Injured persons................................. 1-12
Larger children ................................. 1-11
Model "MASTER" EDITED: 2009/ 1/ 28
ProCarManuals.com
