Page 13 of 329
Black plate (9,1)
Model "Z12-D" EDITED: 2009/ 9/ 17
SSI0563
1. Front cup holders (P.2-31)
2. Headlight, fog light and turn signal switch— Headlight (P.2-23)
— Turn signal light (P.2-26)
— Fog light* (P.2-27) 3. Steering wheel
— Electric power steering system (P.5-25)
— Horn (P.2-28)
— Driver’s supplemental air bag (P.1-44)
4. Wiper and washer switch (P.2-20)
5. Fuse box cover (P.8-21)
6. Outside mirror remote control switch (P.3-27) 7. Vehicle Dynamic Control (VDC) OFF switch
(P.5-28)
8. Tilting steering wheel lever (P.3-25)
9. Steering-wheel-mounted controls (left side)* — Audio control* (P.4-41)
— Bluetooth
®Hands-Free Phone System control*
(P.4-44)
10. Steering-wheel-mounted controls (right side)* — Cruise control switches* (P.5-20)
11. Selector lever or Shift lever — Continuously Variable Transmission (CVT)
(P.5-14)
— Manual Transmission (MT) (P.5-18)
12. Parking brake (P.5-20)
*: if so equipped
COCKPIT
Illustrated table of contents
0-7
Page 76 of 329
Black plate (76,1)
Model "Z12-D" EDITED: 2009/ 9/ 17
SSI0563
1. Front cup holders
2. Headlight, fog light and turn signal switch
3. Steering wheel— Horn
— Driver’s supplemental air bag
4. Wiper and washer switch
5. Fuse box cover 6. Outside mirror remote control switch
7. Vehicle Dynamic Control (VDC) OFF switch
8. Tilting steering wheel lever
9. Steering-wheel-mounted controls (left side)*
— Audio control*
— Bluetooth
®Hands-Free Phone System control* 10. Steering-wheel-mounted controls (right side)*
— Cruise control switches*
11. Selector lever or Shift lever — Continuously Variable Transmission (CVT)
— Manual Transmission (MT)
12. Parking brake
*: if so equipped
COCKPIT2-2
Instruments and controls
Page 278 of 329
Black plate (282,1)
Model "Z12-D" EDITED: 2009/ 9/ 17
SDI1959
ENGINE COMPARTMENT
CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch and the headlight switch are turned off.
2. Open the engine hood. 3. Remove the resonator. (See “ENGINE
COMPARTMENT CHECK LOCATIONS”
earlier in this section.)
4. Remove the fuse/fusible link holder cover by pushing the tab
*1
and lifting the cover
from the right side*2, then the left side
*3.
5. Locate the fuse that needs to be replaced.
6. Removethefuseusingthefusepuller located in the passenger compartment fuse
box.
SDI1753
7. If the fuse is open
*A
, replace it with a new
fuse
*B.
8. If a new fuse also opens, have the electrical system checked and repaired by a NISSAN
dealer.
The holder*4
also contains the fuses. For
checking and/or replacing, see a NISSAN
dealer.
FUSES8-20
Maintenance and do-it-yourself

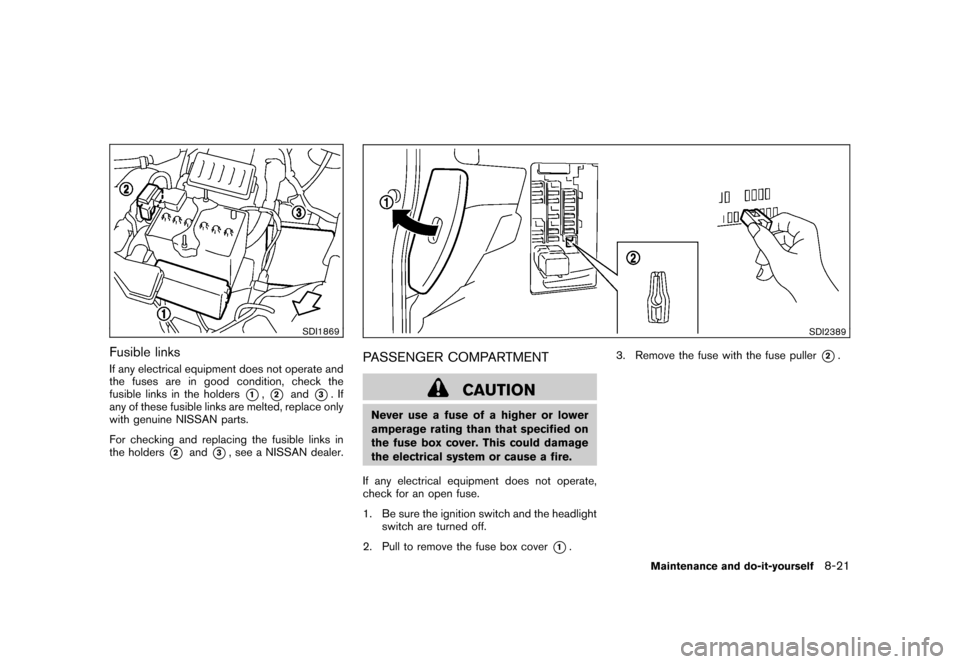

Page 279 of 329
Black plate (283,1)
Model "Z12-D" EDITED: 2009/ 9/ 17
SDI1869
Fusible linksIf any electrical equipment does not operate and
the fuses are in good condition, check the
fusible links in the holders
*1,*2
and
*3.If
any of these fusible links are melted, replace only
with genuine NISSAN parts.
For checking and replacing the fusible links in
the holders
*2
and
*3, see a NISSAN dealer.
SDI2389
PASSENGER COMPARTMENT
CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch and the headlight switch are turned off.
2. Pull to remove the fuse box cover
*1. 3. Remove the fuse with the fuse puller
*2.
Maintenance and do-it-yourself
8-21
