fuel NISSAN CUBE 2013 3.G Owners Manual
[x] Cancel search | Manufacturer: NISSAN, Model Year: 2013, Model line: CUBE, Model: NISSAN CUBE 2013 3.GPages: 331, PDF Size: 2.94 MB
Page 12 of 331
Black plate (10,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
0-4Illustrated table of contents
GUID-36A786BE-7AB6-4EFE-8C20-B66CFEFE674E
SSI0660
1. Rear window wiper and washer— Switch operation (P.2-23)
— Window washer fluid (P.8-12)
2. High-mounted stop light
— Bulb replacement (P.8-28)
3. Antenna (P.4-48) — Satellite radio antenna* (P.4-21) 4. Rear window defroster (P.2-24)
5. Back door (P.3-20)
— Intelligent Key system* (P.3-10)
6. Rear combination lights
— Bulb replacement (P.8-28)
7. Rearview camera* (P.4-9)
8. Spare tire (under the vehicle) (P.6-5) 9. Fuel-filler door
— Operation (P.3-21)
— Fuel recommendation (P.9-3)
*: if so equipped
EXTERIOR REAR
Condition:
Page 15 of 331
Black plate (13,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
GUID-82FC4D0B-6D6C-4BE2-B5E5-2F547E9C8A98
SSI0840
1. Side ventilator (P.4-13)
2. Meters and gauges (P.2-4)
3. Center ventilator (P.4-13)
4. Hazard warning flasher switch (P.6-2)
5. Audio system* (P.4-20) or Navigation system**— Clock* (P.4-6, 4-32)
6. Front passenger air bag status light (P.1-48) 7. Front passenger supplemental air bag (P.1-40)
8. Fuel-filler door release handle (P.3-21)
9. Hood release handle (P.3-19)
10. Ignition switch (models without Intelligent Key
system) (P.5-8)
11. Push-button ignition switch (models with Intel- ligent Key system) (P.5-9) 12. Heater and air conditioner* control (P.4-14)
— Rear window and outside mirror* defroster
switch (P.2-24)
13. Utility hooks (P.2-34)
14. Heated seat switch* (P.2-29)
15. iPod
®connector* (P.4-23)/USB connector*
(P.4-24)
16. Power outlet (P.2-30)
17. Glove box (P.2-33)
*: if so equipped
**: Refer to the separate Navigation System Own- er’s Manual (if so equipped) .
Illustrated table of contents0-7
INSTRUMENT PANEL
Condition:
Page 16 of 331
Black plate (14,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
0-8Illustrated table of contents
GUID-D916FF17-6016-40A6-A399-939CC341EFFC
SIC4119
1. Tachometer (P.2-7)
2. Engine coolant temperature gauge (P.2-7)
3. Vehicle information display (P.2-8)— Odometer/twin trip odometer (P.2-5)
— Trip computer (P.2-9)
— Outside air temperature* (P.2-9)
4. Fuel gauge (P.2-8) 5. Speedometer (P.2-5)
6. Warning/indicator lights (P.2-11)
7. Instrument brightness control knob (P.2-27)
8. Continuously Variable Transmission (CVT) posi-
tion indicator* (P.2-9)
9. RESET switch for trip odometer (P.2-5)/Trip computer mode switch (P.2-9) *: if so equipped
METERS AND GAUGES
Condition:
Page 18 of 331
Black plate (16,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
0-10Illustrated table of contents
GUID-F771716B-DB9A-497C-8014-6B16B29C6DD5
Warninglight Name
Page
Anti-lock Braking System
(ABS) warning light 2-12
Brake warning light
2-12
Charge warning light2-13
Door open warning light 2-13
Electric power steering warning
light 2-13
Engine oil pressure warning
light2-13
Intelligent Key system warning
light*
2-13
Low fuel warning light
2-14
Low tire pressure warning light 2-14
Low washer fluid warning light* 2-15
P position selecting warning
light* 2-15
Seat belt warning light 2-15
Supplemental air bag warning
light2-15
Vehicle Dynamic Control (VDC)
warning light2-16Indicator
light Name Page
Cruise indicator light
2-16
Engine start operation indicator
light* 2-16
Exterior light indicator
2-16
Front passenger air bag status
light 2-16
High beam indicator light 2-17
Malfunction Indicator Light
(MIL)2-17
Overdrive off indicator light* 2-17
Security indicator light 2-17
Turn signal/hazard indicator
lights2-18
Vehicle Dynamic Control (VDC)
off indicator light2-18
*: if so equipped
WARNING AND INDICATOR LIGHTS
Condition:
Page 75 of 331
Black plate (73,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]

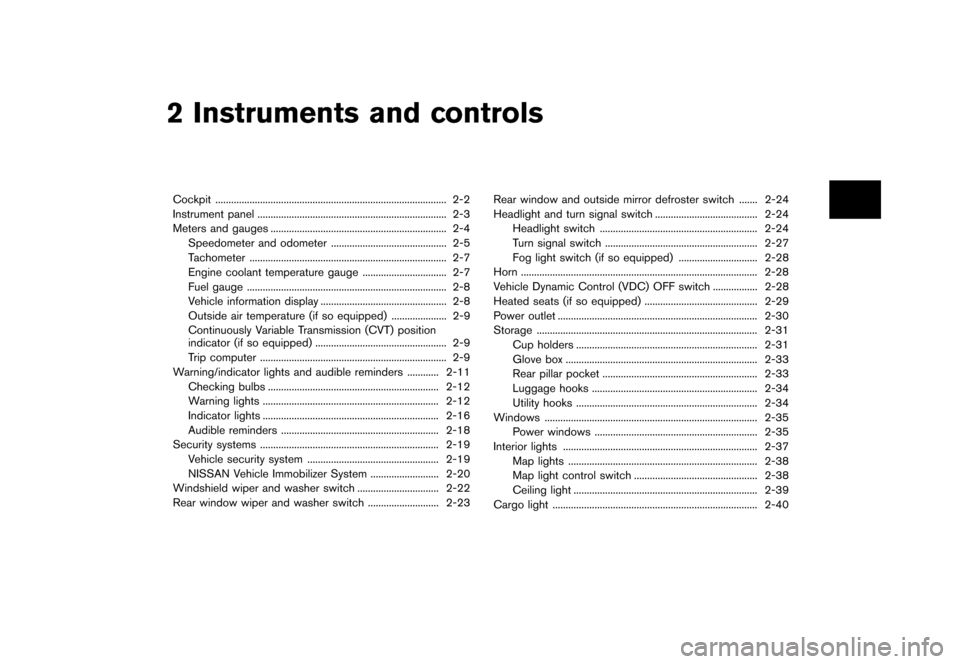

2 Instruments and controls
Cockpit...
........................................................................\
................ 2-2
Instrument panel ...
........................................................................\
2-3
Meters and gauges ...
................................................................... 2-4
Speedometer and odometer ...
............................................ 2-5
Tachometer ...
........................................................................\
... 2-7
Engine coolant temperature gauge ...
................................ 2-7
Fuel gauge ...
........................................................................\
.... 2-8
Vehicle information display ...
................................................ 2-8
Outside air temperature (if so equipped) ...
..................... 2-9
Continuously Variable Transmission (CVT) position
indicator (if so equipped) ...
.................................................. 2-9
Trip computer ...
....................................................................... 2-9
Warning/indicator lights and audible reminders ...
............ 2-11
Checking bulbs ...
................................................................. 2-12
Warning lights ...
................................................................... 2-12
Indicator lights ...
................................................................... 2-16
Audible reminders ...
............................................................ 2-18
Security systems ...
.................................................................... 2-19
Vehicle security system ...
.................................................. 2-19
NISSAN Vehicle Immobilizer System ...
.......................... 2-20
Windshield wiper and washer switch ...
............................... 2-22
Rear window wiper and washer switch ...
........................... 2-23 Rear window and outside mirror defroster switch
...
....... 2-24
Headlight and turn signal switch ...
....................................... 2-24
Headlight switch ...
............................................................ 2-24
Turn signal switch ...
.......................................................... 2-27
Fog light switch (if so equipped) ...
.............................. 2-28
Horn ...
........................................................................\
.................. 2-28
Vehicle Dynamic Control (VDC) OFF switch ...
................. 2-28
Heated seats (if so equipped) ...
........................................... 2-29
Power outlet ...
........................................................................\
.... 2-30
Storage ...
........................................................................\
............ 2-31
Cup holders ...
..................................................................... 2-31
Glove box ...
........................................................................\
. 2-33
Rear pillar pocket ...
........................................................... 2-33
Luggage hooks ...
............................................................... 2-34
Utility hooks ...
..................................................................... 2-34
Windows ...
........................................................................\
......... 2-35
Power windows ...
.............................................................. 2-35
Interior lights ...
........................................................................\
.. 2-37
Map lights ...
........................................................................\
2-38
Map light control switch ...
............................................... 2-38
Ceiling light ...
...................................................................... 2-39
Cargo light ...
........................................................................\
...... 2-40
Condition:
>
Page 77 of 331
Black plate (75,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
GUID-741A14C4-F1A6-472D-9228-7C1146AF8138
SSI0840

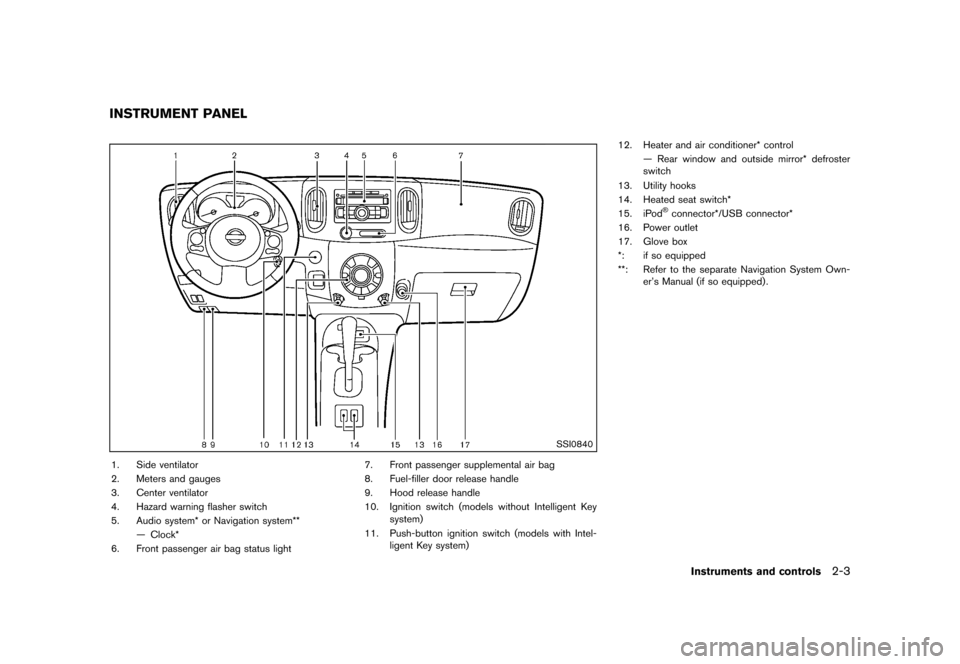

1. Side ventilator
2. Meters and gauges
3. Center ventilator
4. Hazard warning flasher switch
5. Audio system* or Navigation system**— Clock*
6. Front passenger air bag status light 7. Front passenger supplemental air bag
8. Fuel-filler door release handle
9. Hood release handle
10. Ignition switch (models without Intelligent Key
system)
11. Push-button ignition switch (models with Intel- ligent Key system) 12. Heater and air conditioner* control
— Rear window and outside mirror* defroster
switch
13. Utility hooks
14. Heated seat switch*
15. iPod
®connector*/USB connector*
16. Power outlet
17. Glove box
*: if so equipped
**: Refer to the separate Navigation System Own- er’s Manual (if so equipped) .
Instruments and controls2-3
INSTRUMENT PANEL
Condition:
Page 78 of 331
Black plate (76,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
2-4Instruments and controls
GUID-2F413D3E-B2C9-4243-A4AA-637B6452E2FB
SIC4119

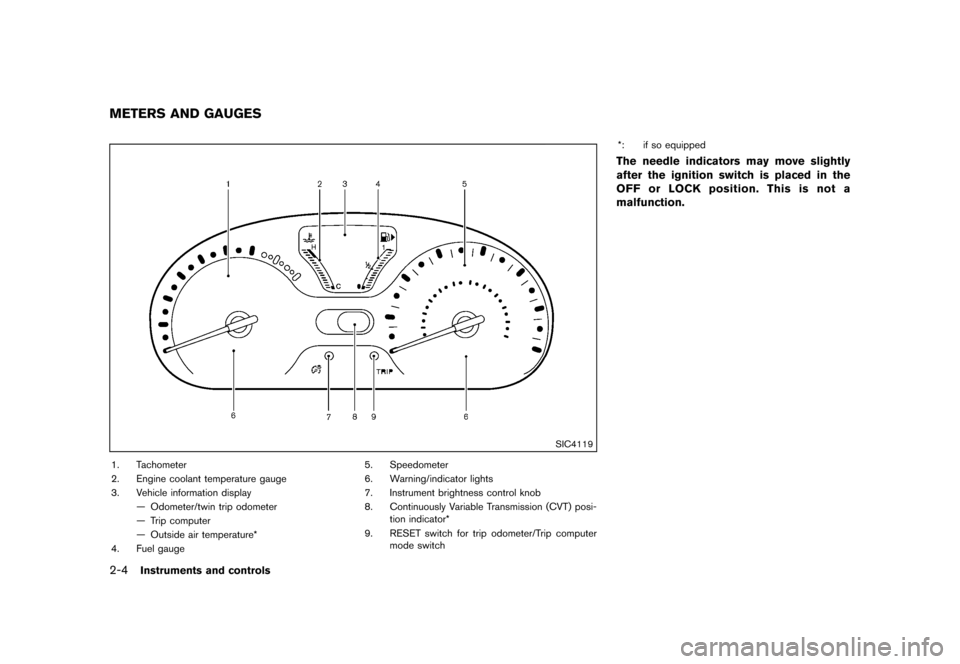

1. Tachometer
2. Engine coolant temperature gauge
3. Vehicle information display— Odometer/twin trip odometer
— Trip computer
— Outside air temperature*
4. Fuel gauge 5. Speedometer
6. Warning/indicator lights
7. Instrument brightness control knob
8. Continuously Variable Transmission (CVT) posi-
tion indicator*
9. RESET switch for trip odometer/Trip computer mode switch *: if so equipped
The needle indicators may move slightly
after the ignition switch is placed in the
OFF or LOCK position. This is not a
malfunction.
METERS AND GAUGES
Condition:
Page 80 of 331
Black plate (78,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
2-6Instruments and controls
SIC4712

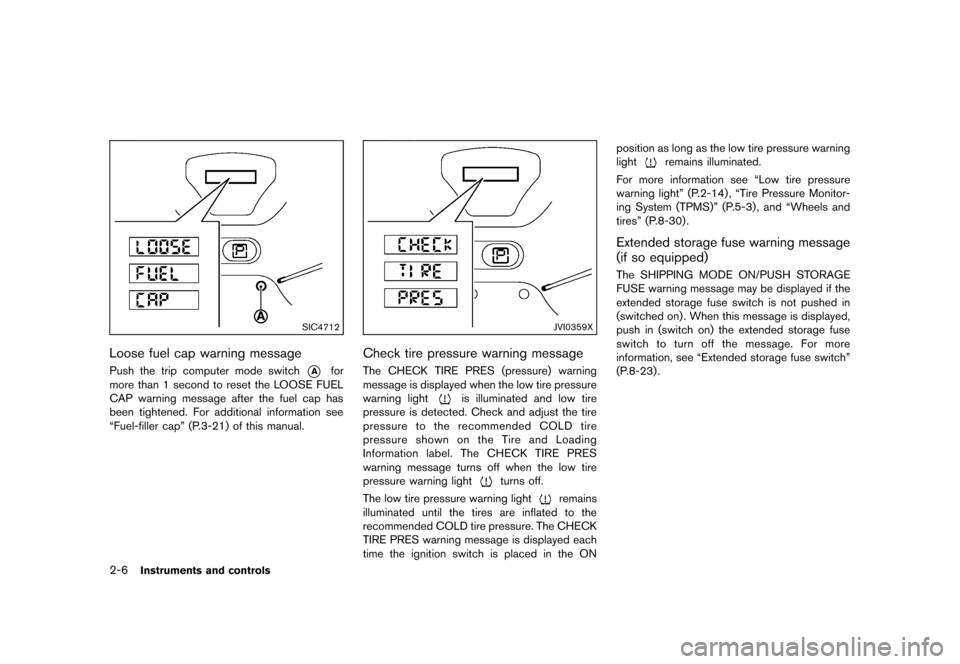

Loose fuel cap warning messageGUID-0A73F916-C2BD-44D0-927C-5C493DB3792BPush the trip computer mode switch*Afor
more than 1 second to reset the LOOSE FUEL
CAP warning message after the fuel cap has
been tightened. For additional information see
“Fuel-filler cap” (P.3-21) of this manual.
JVI0359X
Check tire pressure warning messageGUID-4B7494B7-11DF-4659-A936-5F9073B4EAA0The CHECK TIRE PRES (pressure) warning
message is displayed when the low tire pressure
warning light
is illuminated and low tire
pressure is detected. Check and adjust the tire
pressure to the recommended COLD tire
pressure shown on the Tire and Loading
Information label. The CHECK TIRE PRES
warning message turns off when the low tire
pressure warning light
turns off.
The low tire pressure warning light
remains
illuminated until the tires are inflated to the
recommended COLD tire pressure. The CHECK
TIRE PRES warning message is displayed each
time the ignition switch is placed in the ON position as long as the low tire pressure warning
light
remains illuminated.
For more information see “Low tire pressure
warning light” (P.2-14) , “Tire Pressure Monitor-
ing System (TPMS)” (P.5-3) , and “Wheels and
tires” (P.8-30).
Extended storage fuse warning message
(if so equipped)
GUID-3D458489-C9E3-42F9-BF1F-CA6C8CEC8107The SHIPPING MODE ON/PUSH STORAGE
FUSE warning message may be displayed if the
extended storage fuse switch is not pushed in
(switched on) . When this message is displayed,
push in (switch on) the extended storage fuse
switch to turn off the message. For more
information, see “Extended storage fuse switch”
(P.8-23) .
Condition:
Page 82 of 331
Black plate (80,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
2-8Instruments and controls
SIC4124

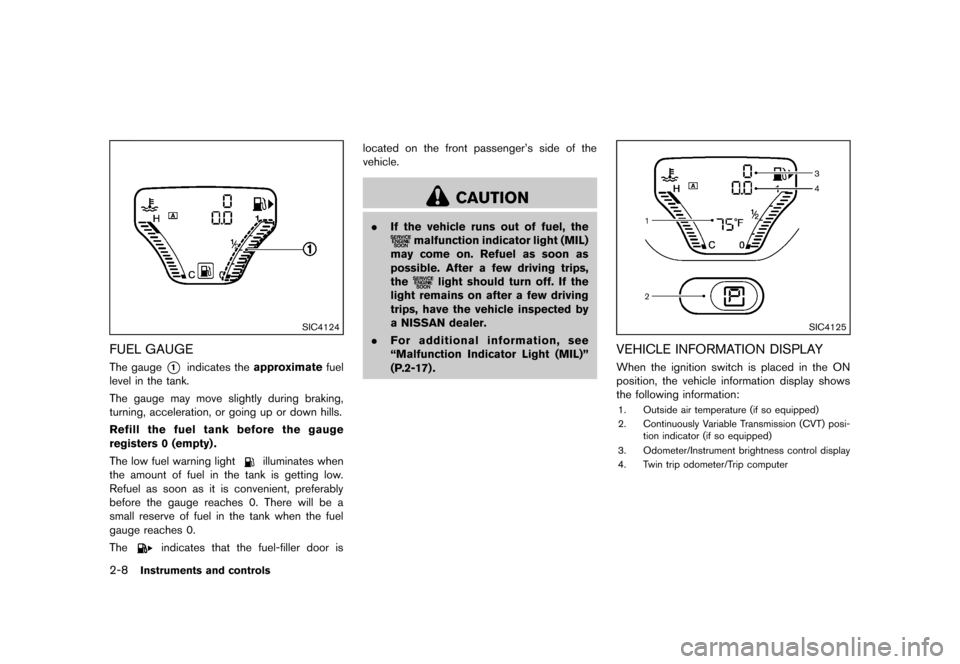

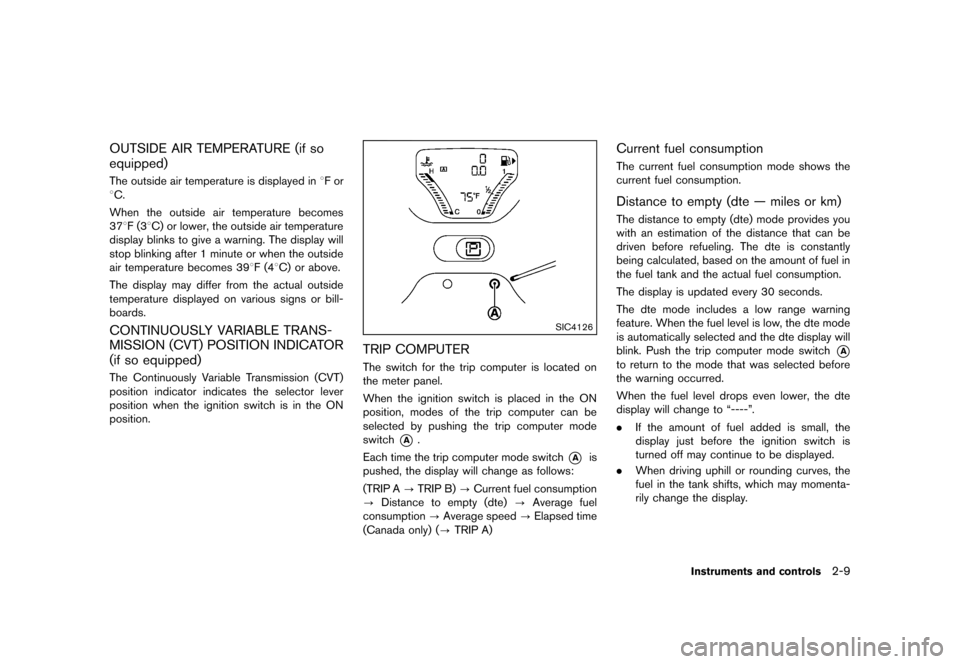

FUEL GAUGEGUID-3C4AB6C4-F548-433E-ADA0-A58D52A02F35The gauge*1indicates theapproximate fuel
level in the tank.
The gauge may move slightly during braking,
turning, acceleration, or going up or down hills.
Refill the fuel tank before the gauge
registers 0 (empty) .
The low fuel warning light
illuminates when
the amount of fuel in the tank is getting low.
Refuel as soon as it is convenient, preferably
before the gauge reaches 0. There will be a
small reserve of fuel in the tank when the fuel
gauge reaches 0.
The
indicates that the fuel-filler door is located on the front passenger’s side of the
vehicle.
CAUTION
.
If the vehicle runs out of fuel, the
malfunction indicator light (MIL)
may come on. Refuel as soon as
possible. After a few driving trips,
the
light should turn off. If the
light remains on after a few driving
trips, have the vehicle inspected by
a NISSAN dealer.
. For additional information, see
“Malfunction Indicator Light (MIL)”
(P.2-17) .
SIC4125
VEHICLE INFORMATION DISPLAYGUID-DEFB9381-FCAC-4BE8-B911-1F04997932C0When the ignition switch is placed in the ON
position, the vehicle information display shows
the following information:
1. Outside air temperature (if so equipped)
2. Continuously Variable Transmission (CVT) posi-
tion indicator (if so equipped)
3. Odometer/Instrument brightness control display
4. Twin trip odometer/Trip computer
Condition:
Page 83 of 331
Black plate (81,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
OUTSIDE AIR TEMPERATURE (if so
equipped)
GUID-607E5C38-DBDD-42FA-9F27-3335A73EFB6DThe outside air temperature is displayed in8F or
8C.
When the outside air temperature becomes
378F (38C) or lower, the outside air temperature
display blinks to give a warning. The display will
stop blinking after 1 minute or when the outside
air temperature becomes 398F (48C) or above.
The display may differ from the actual outside
temperature displayed on various signs or bill-
boards.
CONTINUOUSLY VARIABLE TRANS-
MISSION (CVT) POSITION INDICATOR
(if so equipped)
GUID-A6C1B8B9-03E9-445C-805D-2D6BC49002B8The Continuously Variable Transmission (CVT)
position indicator indicates the selector lever
position when the ignition switch is in the ON
position.
SIC4126
TRIP COMPUTERGUID-99611953-DDE3-4684-AE7D-19CF0203C231The switch for the trip computer is located on
the meter panel.
When the ignition switch is placed in the ON
position, modes of the trip computer can be
selected by pushing the trip computer mode
switch
*A.
Each time the trip computer mode switch
*Ais
pushed, the display will change as follows:
(TRIP A ?TRIP B) ?Current fuel consumption
? Distance to empty (dte) ?Average fuel
consumption ?Average speed ?Elapsed time
(Canada only) (? TRIP A)
Current fuel consumptionGUID-8ED94375-1313-4989-929C-8A720856CEC8The current fuel consumption mode shows the
current fuel consumption.
Distance to empty (dte — miles or km)GUID-82F935B1-0430-4015-A253-553C83607ED1The distance to empty (dte) mode provides you
with an estimation of the distance that can be
driven before refueling. The dte is constantly
being calculated, based on the amount of fuel in
the fuel tank and the actual fuel consumption.
The display is updated every 30 seconds.
The dte mode includes a low range warning
feature. When the fuel level is low, the dte mode
is automatically selected and the dte display will
blink. Push the trip computer mode switch
*A
to return to the mode that was selected before
the warning occurred.
When the fuel level drops even lower, the dte
display will change to “----”.
.If the amount of fuel added is small, the
display just before the ignition switch is
turned off may continue to be displayed.
. When driving uphill or rounding curves, the
fuel in the tank shifts, which may momenta-
rily change the display.
Instruments and controls2-9
Condition:
