jump start NISSAN CUBE 2013 3.G Owners Manual
[x] Cancel search | Manufacturer: NISSAN, Model Year: 2013, Model line: CUBE, Model: NISSAN CUBE 2013 3.GPages: 331, PDF Size: 2.94 MB
Page 17 of 331
![NISSAN CUBE 2013 3.G Owners Manual Black plate (15,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
GUID-C31EA64C-8CAA-4D48-8D97-A3301DF78435
SSI0564
MR18DE ENGINE*GUID-73764065-69F2-48D8-B4B1-235D4A13CAC71. Engine oil filler cap (P.8-9)
2. Brake](/img/5/310/w960_310-16.png "NISSAN CUBE 2013 3.G Owners Manual Black plate (15,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
GUID-C31EA64C-8CAA-4D48-8D97-A3301DF78435
SSI0564
MR18DE ENGINE*GUID-73764065-69F2-48D8-B4B1-235D4A13CAC71. Engine oil filler cap (P.8-9)
2. Brake")
Black plate (15,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
GUID-C31EA64C-8CAA-4D48-8D97-A3301DF78435
SSI0564
MR18DE ENGINE*GUID-73764065-69F2-48D8-B4B1-235D4A13CAC71. Engine oil filler cap (P.8-9)
2. Brake and clutch (*1) fluid reservoir (P.8-12)
3. Air cleaner (P.8-17)
4. Battery (P.8-13)— Jump starting (P.6-10)
5. Window washer fluid reservoir (P.8-12) 6. Engine drive belt location (P.8-15)
7. Engine oil dipstick (P.8-9)
8. Engine coolant reservoir (P.8-8)
9. Radiator filler cap (P.8-7)
— Vehicle overheat (P.6-12)
10. Fuse/fusible link holder (P.8-20)
* Shown with the resonator removed. For removal instructions, see “Engine compartment check
locations” (P.8-6) .
*1: for Manual Transmission (MT) models
Illustrated table of contents0-9
ENGINE COMPARTMENT
Condition:
Page 237 of 331
![NISSAN CUBE 2013 3.G Owners Manual Black plate (235,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
6 In case of emergency
Hazard warning flasher switch...
.............................................. 6-2
Emergency engine shut off (models with](/img/5/310/w960_310-236.png "NISSAN CUBE 2013 3.G Owners Manual Black plate (235,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
6 In case of emergency
Hazard warning flasher switch...
.............................................. 6-2
Emergency engine shut off (models with")

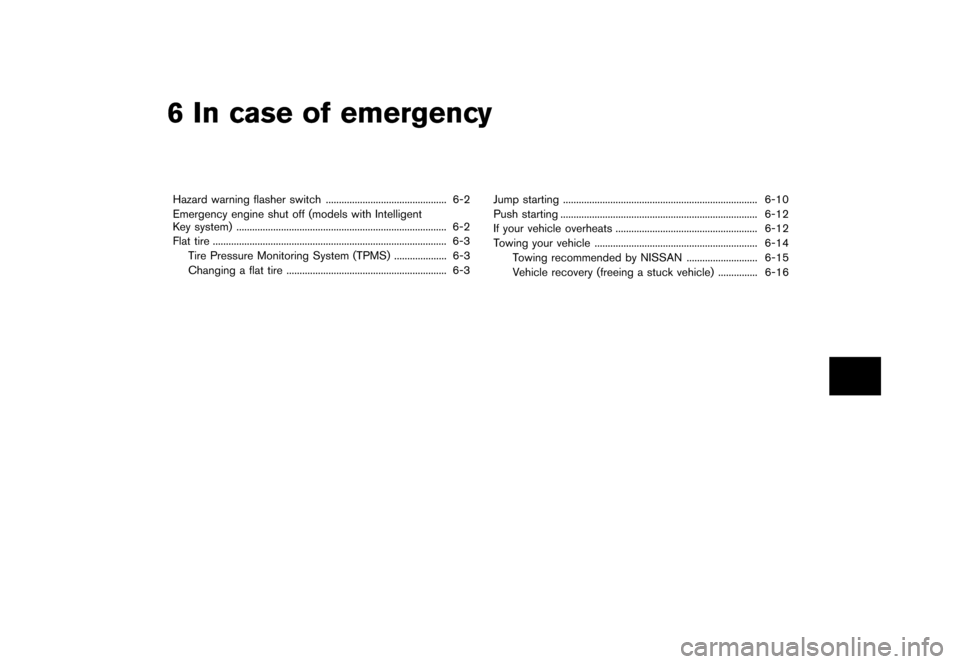

Black plate (235,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
6 In case of emergency
Hazard warning flasher switch...
.............................................. 6-2
Emergency engine shut off (models with Intelligent
Key system) ...
........................................................................\
........ 6-2
Flat tire ...
........................................................................\
................. 6-3
Tire Pressure Monitoring System (TPMS) ...
.................... 6-3
Changing a flat tire ...
............................................................. 6-3 Jump starting
...
........................................................................\
.. 6-10
Push starting ...
........................................................................\
... 6-12
If your vehicle overheats ...
...................................................... 6-12
Towing your vehicle ...
.............................................................. 6-14
Towing recommended by NISSAN ...
........................... 6-15
Vehicle recovery (freeing a stuck vehicle) ...
............... 6-16
Condition:
Page 246 of 331
![NISSAN CUBE 2013 3.G Owners Manual Black plate (244,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
6-10In case of emergency
GUID-F2C9DFCF-F2DD-45C9-B01F-C7C6C383333ETo start your engine with a booster battery, the
instructions and precautions b](/img/5/310/w960_310-245.png "NISSAN CUBE 2013 3.G Owners Manual Black plate (244,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
6-10In case of emergency
GUID-F2C9DFCF-F2DD-45C9-B01F-C7C6C383333ETo start your engine with a booster battery, the
instructions and precautions b")

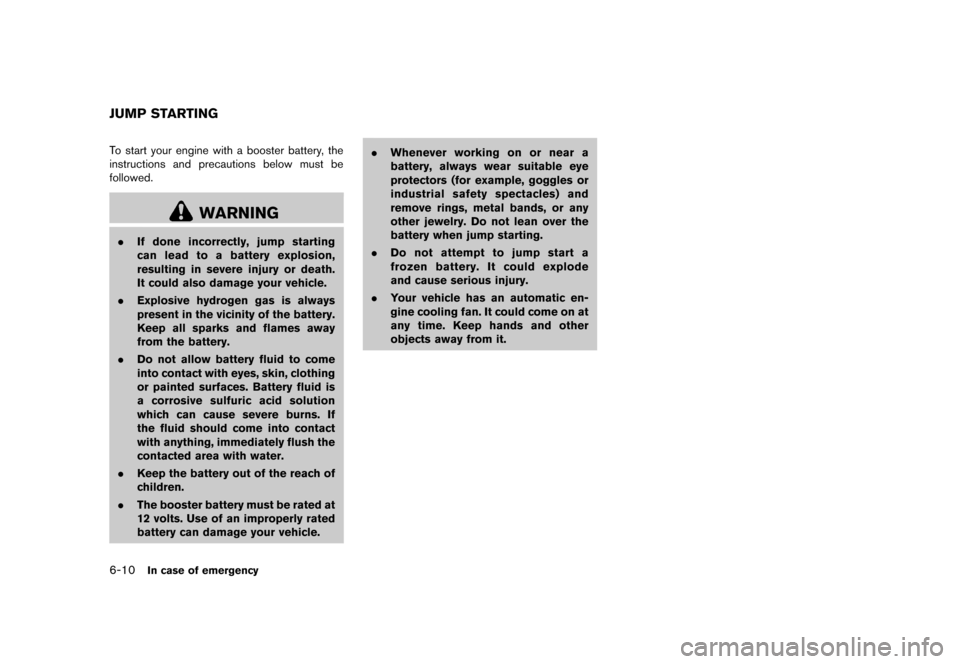

Black plate (244,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
6-10In case of emergency
GUID-F2C9DFCF-F2DD-45C9-B01F-C7C6C383333ETo start your engine with a booster battery, the
instructions and precautions below must be
followed.
WARNING
.If done incorrectly, jump starting
can lead to a battery explosion,
resulting in severe injury or death.
It could also damage your vehicle.
. Explosive hydrogen gas is always
present in the vicinity of the battery.
Keep all sparks and flames away
from the battery.
. Do not allow battery fluid to come
into contact with eyes, skin, clothing
or painted surfaces. Battery fluid is
a corrosive sulfuric acid solution
which can cause severe burns. If
the fluid should come into contact
with anything, immediately flush the
contacted area with water.
. Keep the battery out of the reach of
children.
. The booster battery must be rated at
12 volts. Use of an improperly rated
battery can damage your vehicle. .
Whenever working on or near a
battery, always wear suitable eye
protectors (for example, goggles or
industrial safety spectacles) and
remove rings, metal bands, or any
other jewelry. Do not lean over the
battery when jump starting.
. Do not attempt to jump start a
frozen battery. It could explode
and cause serious injury.
. Your vehicle has an automatic en-
gine cooling fan. It could come on at
any time. Keep hands and other
objects away from it.
JUMP STARTING
Condition:
Page 247 of 331
![NISSAN CUBE 2013 3.G Owners Manual Black plate (245,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
SCE0862
WARNING
Always follow the instructions below.
Failure to do so could result in damage
to the charging system and cause
personal injury.
1](/img/5/310/w960_310-246.png "NISSAN CUBE 2013 3.G Owners Manual Black plate (245,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
SCE0862
WARNING
Always follow the instructions below.
Failure to do so could result in damage
to the charging system and cause
personal injury.
1")

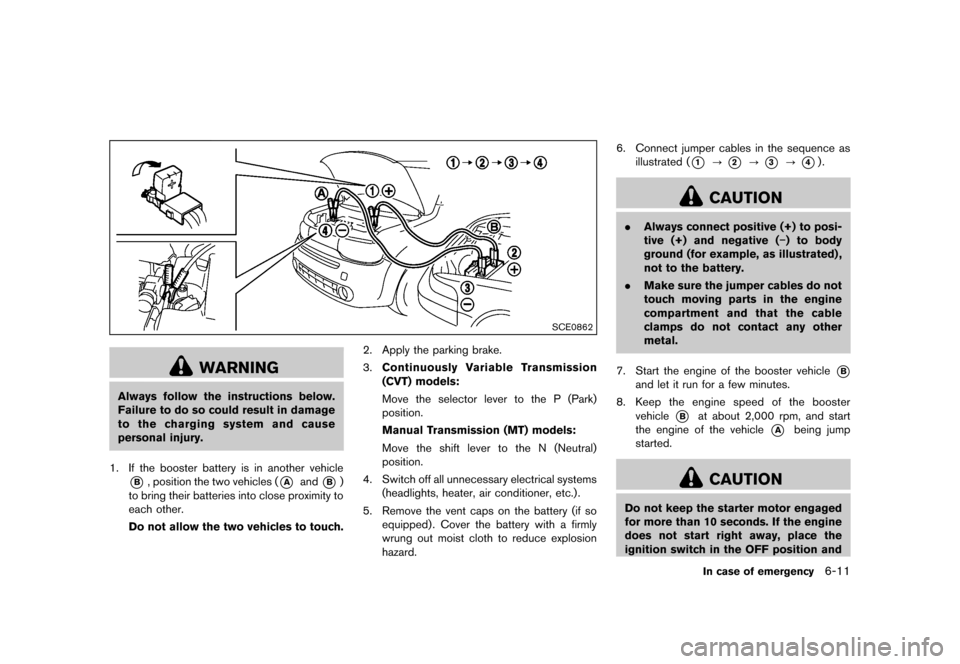

Black plate (245,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
SCE0862
WARNING
Always follow the instructions below.
Failure to do so could result in damage
to the charging system and cause
personal injury.
1. If the booster battery is in another vehicle
*B, position the two vehicles (*Aand*B)
to bring their batteries into close proximity to
each other.
Do not allow the two vehicles to touch. 2. Apply the parking brake.
3.
Continuously Variable Transmission
(CVT) models:
Move the selector lever to the P (Park)
position.
Manual Transmission (MT) models:
Move the shift lever to the N (Neutral)
position.
4. Switch off all unnecessary electrical systems (headlights, heater, air conditioner, etc.).
5. Remove the vent caps on the battery (if so equipped) . Cover the battery with a firmly
wrung out moist cloth to reduce explosion
hazard. 6. Connect jumper cables in the sequence as
illustrated (
*1?*2?*3?*4) .
CAUTION
.Always connect positive (+) to posi-
tive (+) and negative (−) to body
ground (for example, as illustrated) ,
not to the battery.
. Make sure the jumper cables do not
touch moving parts in the engine
compartment and that the cable
clamps do not contact any other
metal.
7. Start the engine of the booster vehicle
*B
and let it run for a few minutes.
8. Keep the engine speed of the booster
vehicle
*Bat about 2,000 rpm, and start
the engine of the vehicle
*Abeing jump
started.
CAUTION
Do not keep the starter motor engaged
for more than 10 seconds. If the engine
does not start right away, place the
ignition switch in the OFF position and
In case of emergency6-11
Condition:
Page 263 of 331
![NISSAN CUBE 2013 3.G Owners Manual Black plate (261,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
8 Maintenance and do-it-yourself
Maintenance requirement...
........................................................ 8-2
Scheduled maintenance ..](/img/5/310/w960_310-262.png "NISSAN CUBE 2013 3.G Owners Manual Black plate (261,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
8 Maintenance and do-it-yourself
Maintenance requirement...
........................................................ 8-2
Scheduled maintenance ..")
Black plate (261,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
8 Maintenance and do-it-yourself
Maintenance requirement...
........................................................ 8-2
Scheduled maintenance ...
.................................................... 8-2
General maintenance ...
......................................................... 8-2
Where to go for service ...
.................................................... 8-2
General maintenance ...
............................................................... 8-2
Explanation of maintenance items ...
................................... 8-2
Maintenance precautions ...
........................................................ 8-5
Engine compartment check locations ...
.................................. 8-6
MR18DE engine ...
.................................................................. 8-6
Engine cooling system ...
............................................................. 8-7
Checking engine coolant level ...
......................................... 8-8
Changing engine coolant ...
.................................................. 8-8
Engine oil ...
........................................................................\
............ 8-9
Checking engine oil level ...
.................................................. 8-9
Changing engine oil and filter ...
.......................................... 8-9
Continuously Variable Transmission (CVT) fluid ...
............ 8-11
Brake and clutch fluid ...
........................................................... 8-12
Window washer fluid ...
............................................................ 8-12
Battery ...
........................................................................\
............... 8-13
Jump starting ...
..................................................................... 8-15
Variable voltage control system (if so equipped) ...
.......... 8-15
Drive belt ...
........................................................................\
.......... 8-15
Spark plugs ...
........................................................................\
..... 8-16
Replacing spark plugs ...
.................................................... 8-16 Air cleaner
...
........................................................................\
....... 8-17
Windshield wiper blades ...
..................................................... 8-18
Cleaning ...
........................................................................\
... 8-18
Replacing ...
........................................................................\
. 8-18
Rear window wiper blade ...
................................................... 8-19
Brakes ...
........................................................................\
.............. 8-19
Self-adjusting brakes ...
.................................................... 8-19
Brake pad wear warning ...
.............................................. 8-19
Fuses ...
........................................................................\
................ 8-20
Engine compartment ...
..................................................... 8-20
Passenger compartment ...
.............................................. 8-22
Key battery replacement ...
...................................................... 8-23
Keyfob ...
........................................................................\
....... 8-24
Intelligent Key ...
.................................................................. 8-25
Lights ...
........................................................................\
................ 8-26
Headlights ...
........................................................................\
8-27
Exterior and interior lights ...
............................................ 8-28
Wheels and tires ...
................................................................... 8-30
Tire pressure ...
................................................................... 8-30
Tire labeling ...
..................................................................... 8-33
Types of tires ...
................................................................... 8-35
Tire chains ...
....................................................................... 8-35
Changing wheels and tires ...
.......................................... 8-36
Condition:
Page 277 of 331
![NISSAN CUBE 2013 3.G Owners Manual Black plate (275,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
JUMP STARTINGGUID-6DECB40F-672A-4F15-A3BC-9F8B373C65A6If jump starting is necessary, see “Jump starting”
(P.6-10) . If the engine does not st](/img/5/310/w960_310-276.png "NISSAN CUBE 2013 3.G Owners Manual Black plate (275,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
JUMP STARTINGGUID-6DECB40F-672A-4F15-A3BC-9F8B373C65A6If jump starting is necessary, see “Jump starting”
(P.6-10) . If the engine does not st")

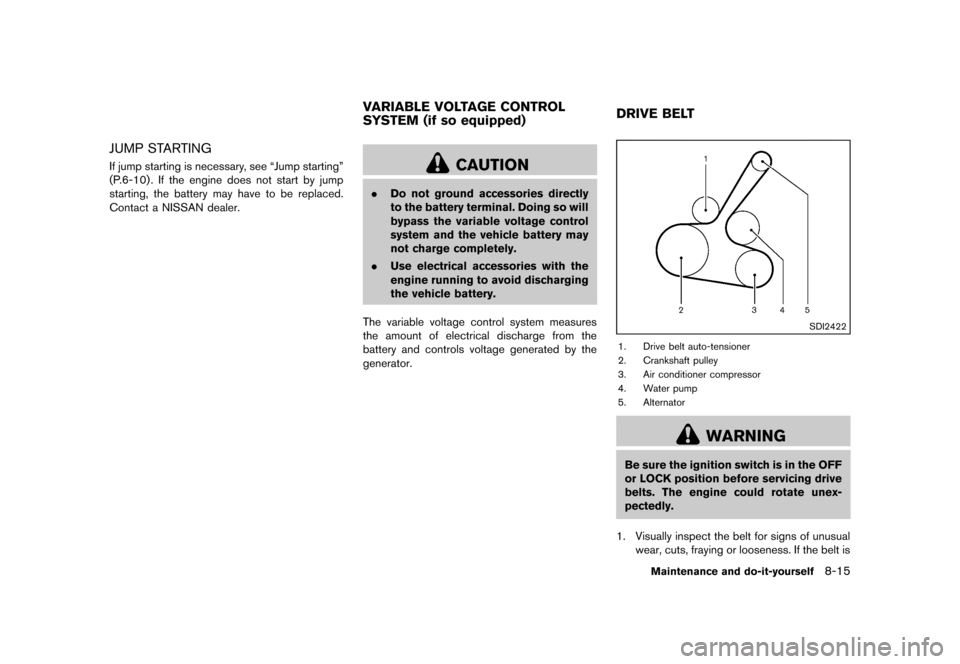

Black plate (275,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
JUMP STARTINGGUID-6DECB40F-672A-4F15-A3BC-9F8B373C65A6If jump starting is necessary, see “Jump starting”
(P.6-10) . If the engine does not start by jump
starting, the battery may have to be replaced.
Contact a NISSAN dealer.
GUID-22009E92-3F27-4956-8128-875A02FA1CA6
CAUTION
.Do not ground accessories directly
to the battery terminal. Doing so will
bypass the variable voltage control
system and the vehicle battery may
not charge completely.
. Use electrical accessories with the
engine running to avoid discharging
the vehicle battery.
The variable voltage control system measures
the amount of electrical discharge from the
battery and controls voltage generated by the
generator.
GUID-901066E3-E05C-4B7A-B1B9-DBD942AAB7CE
SDI2422
1. Drive belt auto-tensioner
2. Crankshaft pulley
3. Air conditioner compressor
4. Water pump
5. Alternator
WARNING
Be sure the ignition switch is in the OFF
or LOCK position before servicing drive
belts. The engine could rotate unex-
pectedly.
1. Visually inspect the belt for signs of unusual wear, cuts, fraying or looseness. If the belt is
Maintenance and do-it-yourself8-15
VARIABLE VOLTAGE CONTROL
SYSTEM (if so equipped) DRIVE BELT
Condition:
Page 325 of 331
![NISSAN CUBE 2013 3.G Owners Manual Black plate (323,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
H
Hands-Free Phone System, Bluetooth®...
............... 4-50
Hazard warning flasher switch ...
................................... 6-2
Head res](/img/5/310/w960_310-324.png "NISSAN CUBE 2013 3.G Owners Manual Black plate (323,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
H
Hands-Free Phone System, Bluetooth®...
............... 4-50
Hazard warning flasher switch ...
................................... 6-2
Head res")

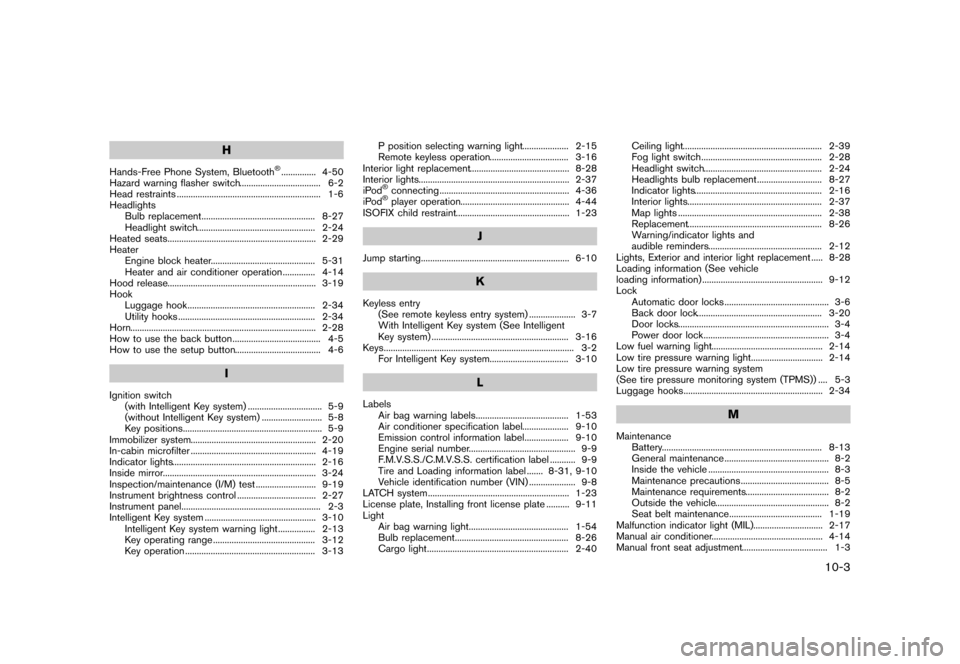

Black plate (323,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
H
Hands-Free Phone System, Bluetooth®...
............... 4-50
Hazard warning flasher switch ...
................................... 6-2
Head restraints ...
.............................................................. 1-6
Headlights Bulb replacement ...
................................................. 8-27
Headlight switch ...
................................................... 2-24
Heated seats ...
................................................................ 2-29
Heater Engine block heater ...
............................................. 5-31
Heater and air conditioner operation ...
.............. 4-14
Hood release ...
................................................................ 3-19
Hook Luggage hook ...
....................................................... 2-34
Utility hooks ...
........................................................... 2-34
Horn ...
................................................................................ 2-28
How to use the back button ...
...................................... 4-5
How to use the setup button ...
..................................... 4-6
I
Ignition switch
(with Intelligent Key system) ...
................................ 5-9
(without Intelligent Key system) ...
.......................... 5-8
Key positions ...
............................................................ 5-9
Immobilizer system ...
...................................................... 2-20
In-cabin microfilter ...
...................................................... 4-19
Indicator lights ...
.............................................................. 2-16
Inside mirror ...
.................................................................. 3-24
Inspection/maintenance (I/M) test ...
.......................... 9-19
Instrument brightness control ...
.................................. 2-27
Instrument panel ...
............................................................ 2-3
Intelligent Key system ...
................................................ 3-10
Intelligent Key system warning light ...
................ 2-13
Key operating range ...
............................................ 3-12
Key operation ...
........................................................ 3-13 P position selecting warning light
...
.................... 2-15
Remote keyless operation ...
.................................. 3-16
Interior light replacement ...
........................................... 8-28
Interior lights ...
................................................................. 2-37
iPod
®connecting ...
........................................................ 4-36
iPod®player operation ...
............................................... 4-44
ISOFIX child restraint ...
................................................. 1-23
J
Jump starting ...
................................................................ 6-10
K
Keyless entry
(See remote keyless entry system) ...
.................... 3-7
With Intelligent Key system (See Intelligent
Key system) ...
........................................................... 3-16
Keys ...
.................................................................................. 3-2
For Intelligent Key system ...
.................................. 3-10
L
Labels
Air bag warning labels ...
........................................ 1-53
Air conditioner specification label ...
.................... 9-10
Emission control information label ...
................... 9-10
Engine serial number ...
.............................................. 9-9
F.M.V.S.S./C.M.V.S.S. certification label ...
........... 9-9
Tire and Loading information label ...
....... 8-31, 9-10
Vehicle identification number (VIN) ...
.................... 9-8
LATCH system ...
............................................................. 1-23
License plate, Installing front license plate ...
.......... 9-11
Light Air bag warning light ...
........................................... 1-54
Bulb replacement ...
................................................. 8-26
Cargo light ...
............................................................. 2-40 Ceiling light
...
............................................................ 2-39
Fog light switch ...
.................................................... 2-28
Headlight switch ...
................................................... 2-24
Headlights bulb replacement ...
............................ 8-27
Indicator lights ...
....................................................... 2-16
Interior lights ...
.......................................................... 2-37
Map lights ...
.............................................................. 2-38
Replacement ...
.......................................................... 8-26
Warning/indicator lights and
audible reminders ...
................................................. 2-12
Lights, Exterior and interior light replacement ...
..... 8-28
Loading information (See vehicle
loading information) ...
.................................................... 9-12
Lock Automatic door locks ...
............................................. 3-6
Back door lock ...
...................................................... 3-20
Door locks ...
................................................................. 3-4
Power door lock ...
...................................................... 3-4
Low fuel warning light ...
................................................ 2-14
Low tire pressure warning light ...
............................... 2-14
Low tire pressure warning system
(See tire pressure monitoring system (TPMS)) ...
.... 5-3
Luggage hooks ...
............................................................ 2-34M
Maintenance
Battery ...
..................................................................... 8-13
General maintenance ...
............................................. 8-2
Inside the vehicle ...
.................................................... 8-3
Maintenance precautions ...
...................................... 8-5
Maintenance requirements ...
.................................... 8-2
Outside the vehicle ...
................................................. 8-2
Seat belt maintenance ...
........................................ 1-19
Malfunction indicator light (MIL) ...
.............................. 2-17
Manual air conditioner ...
................................................ 4-14
Manual front seat adjustment ...
..................................... 1-3
10-3
Condition:
Page 327 of 331
![NISSAN CUBE 2013 3.G Owners Manual Black plate (325,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
Three-point type...
................................................... 1-13
Seat(s) Heated seats ...
...........................................](/img/5/310/w960_310-326.png "NISSAN CUBE 2013 3.G Owners Manual Black plate (325,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
Three-point type...
................................................... 1-13
Seat(s) Heated seats ...
...........................................")
Black plate (325,1)
[ Edit: 2012/ 7/ 19 Model: Z12-D ]
Three-point type...
................................................... 1-13
Seat(s) Heated seats ...
......................................................... 2-29
Seats ...
.......................................................................... 1-2
Security system (NISSAN Vehicle Immobilizer
System) , Engine start ...
................................................. 2-20
Security system, Vehicle security system ...
............. 2-19
Selector lever Shift lock release ...
.................................................. 5-18
Servicing air conditioner ...
............................................ 4-20
Shift lock release Transmission ...
.......................................................... 5-18
Shifting CVT (Continuously
Variable Transmission) ...
............................... 5-8, 5-15
Manual transmission ...
................................... 5-9, 5-19
Shoulder belt height adjustment, For
front seats ...
..................................................................... 1-16
SOURCE select switch ...
............................................. 4-47
Spare tire ...
.............................................................. 8-38, 9-7
Spark plugs ...
.................................................................. 8-16
Speedometer ...
.................................................................. 2-5
Starting Before starting the engine ...
................................. 5-12
Jump starting ...
......................................................... 6-10
Precautions when starting and driving ...
.............. 5-2
Push starting ...
......................................................... 6-12
Starting the engine ...
.............................................. 5-13
Status light, Front passenger air bag ...
.................... 1-48
Steering Electric power steering system ...
........................ 5-26
Steering wheel switch for audio controls ...
...... 4-47
Tilting steering column ...
........................................ 3-23
Storage ...
.......................................................................... 2-31
Sun visors ...
..................................................................... 3-24
Supplemental air bag warning labels ...
..................... 1-53
Supplemental air bag warning light ...
............ 1-54, 2-15 Supplemental restraint system
...
................................. 1-40
Precautions on supplemental
restraint system ...
..................................................... 1-40
Switch Audio control steering wheel switch ...
............... 4-47
Autolight switch ...
.................................................... 2-25
Fog light switch ...
.................................................... 2-28
Hazard warning flasher switch ...
............................. 6-2
Headlight switch ...
................................................... 2-24
Overdrive OFF switch ...
......................................... 5-17
Power door lock switch ...
......................................... 3-5
Rear window and outside mirror
defroster switch ...
.................................................... 2-24
Turn signal switch ...
................................................ 2-27
Vehicle dynamic control (VDC) off switch ...
..... 2-28
System setup ...
................................................................. 4-7
T
Tachometer ...
..................................................................... 2-7
Temperature display ...
...................................................... 2-9
Temperature gauge, Engine coolant
temperature gauge ...
........................................................ 2-7
Theft (NISSAN Vehicle Immobilizer System) ,
Engine start ...
................................................................... 2-20
Three-way catalyst ...
........................................................ 5-3
Tilt steering column ...
.................................................... 3-23
Tire pressure, Low tire pressure warning light ...
.... 2-14
Tires Flat tire ...
....................................................................... 6-3
Low tire pressure warning system ...
...................... 5-3
Tire and Loading information label ...
....... 8-31, 9-10
Tire chains ...
.............................................................. 8-35
Tire dressing ...
............................................................. 7-4
Tire pressure ...
......................................................... 8-30
Tire pressure monitoring
system (TPMS) ...
............................................... 5-3, 6-3 Tire rotation
...
............................................................ 8-36
Types of tires ...
......................................................... 8-35
Uniform tire quality grading ...
............................... 9-16
Wheel/tire size ...
......................................................... 9-7
Wheels and tires ...
.................................................. 8-30
Touch screen ...
.................................................................. 4-3
Towing Flat towing ...
............................................................. 9-16
Tow truck towing ...
.................................................. 6-14
Towing a trailer ...
..................................................... 9-15
TPMS, Tire pressure monitoring system ...
................. 5-3
TPMS, Tire pressure warning system ...
...................... 6-3
Traffic info setup ...
............................................................ 4-9
Trailer towing ...
................................................................ 9-15
Transmission Continuously Variable Transmission
(CVT) fluid ...
.............................................................. 8-11
Driving with CVT (Continuously
Variable Transmission) ...
............................... 5-8, 5-15
Driving with manual transmission ...
............ 5-9, 5-19
Transmission selector lever lock release ...
........ 5-18
Transmitter (See remote keyless entry system) ...
.... 3-7
Transmitter, With Intelligent Key system
(See Intelligent Key system) ...
..................................... 3-16
Traveling or registering your vehicle in
another country ...
.............................................................. 9-8
Trip computer ...
................................................................. 2-9
Turn signal switch ...
....................................................... 2-27
U
Underbody cleaning ...
..................................................... 7-3
Uniform tire quality grading ...
...................................... 9-16
USB memory operation ...
............................................. 4-42
10-5
Condition:
