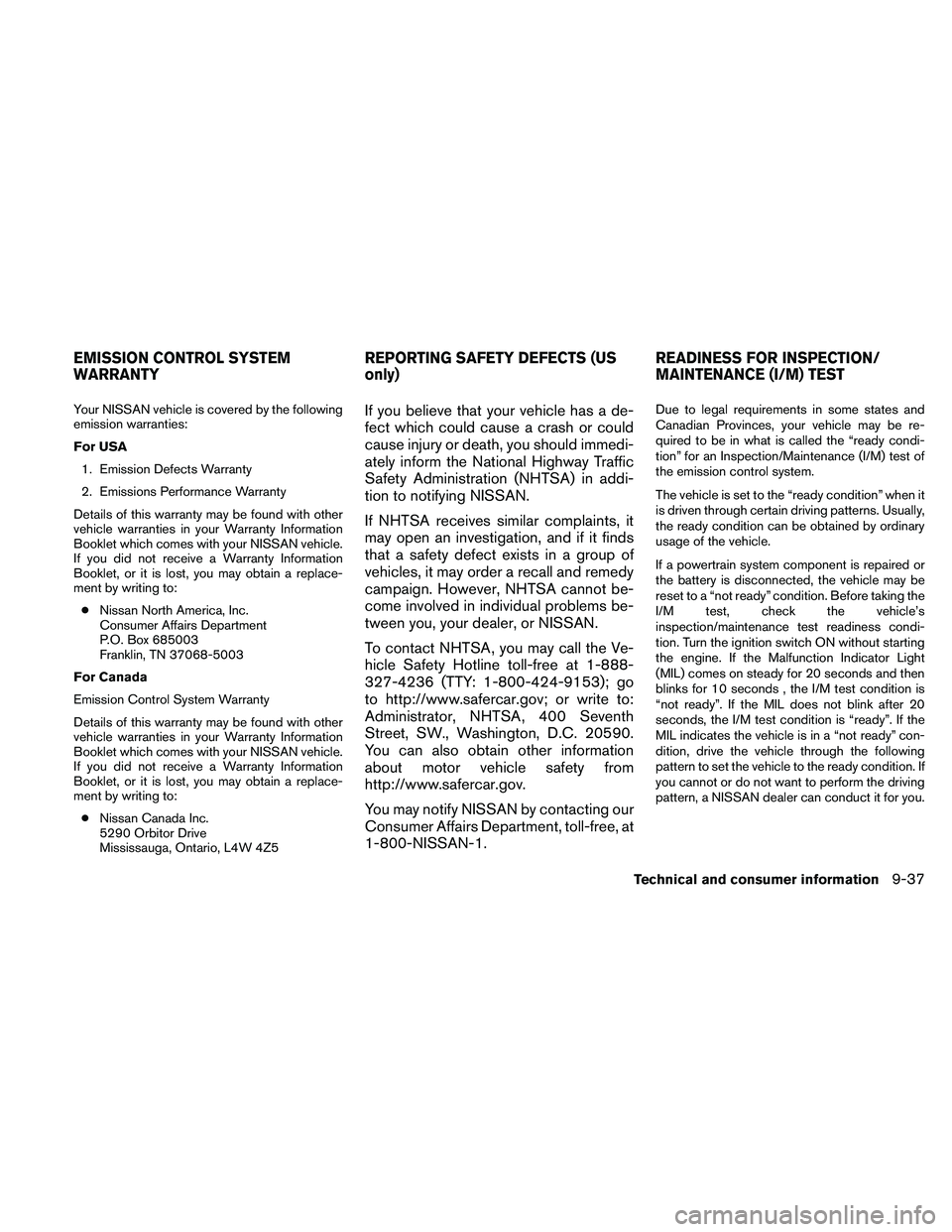

NISSAN FRONTIER 2010 Owner´s Manual

Your NISSAN vehicle is covered by the following
emission warranties:
For USA
1. Emission Defects Warranty
2. Emissions Performance Warranty
Details of this warranty may be found with other
vehicle warranties in your Warranty Information
Booklet which comes with your NISSAN vehicle.
If you did not receive a Warranty Information
Booklet, or it is lost, you may obtain a replace-
ment by writing to:
cNissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
For Canada
Emission Control System Warranty
Details of this warranty may be found with other
vehicle warranties in your Warranty Information
Booklet which comes with your NISSAN vehicle.
If you did not receive a Warranty Information
Booklet, or it is lost, you may obtain a replace-
ment by writing to:
cNissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario, L4W 4Z5If you believe that your vehicle has a de-
fect which could cause a crash or could
cause injury or death, you should immedi-
ately inform the National Highway Traffic
Safety Administration (NHTSA) in addi-
tion to notifying NISSAN.
If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot be-
come involved in individual problems be-
tween you, your dealer, or NISSAN.
To contact NHTSA, you may call the Ve-
hicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153); go
to http://www.safercar.gov; or write to:
Administrator, NHTSA, 400 Seventh
Street, SW., Washington, D.C. 20590.
You can also obtain other information
about motor vehicle safety from
http://www.safercar.gov.
You may notify NISSAN by contacting our
Consumer Affairs Department, toll-free, at
1-800-NISSAN-1.Due to legal requirements in some states and
Canadian Provinces, your vehicle may be re-
quired to be in what is called the “ready condi-
tion” for an Inspection/Maintenance (I/M) test of
the emission control system.
The vehicle is set to the “ready condition” when it
is driven through certain driving patterns. Usually,
the ready condition can be obtained by ordinary
usage of the vehicle.
If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready” condition. Before taking the
I/M test, check the vehicle’s
inspection/maintenance test readiness condi-
tion. Turn the ignition switch ON without starting
the engine. If the Malfunction Indicator Light
(MIL) comes on steady for 20 seconds and then
blinks for 10 seconds , the I/M test condition is
“not ready”. If the MIL does not blink after 20
seconds, the I/M test condition is “ready”. If the
MIL indicates the vehicle is in a “not ready” con-
dition, drive the vehicle through the following
pattern to set the vehicle to the ready condition. If
you cannot or do not want to perform the driving
pattern, a NISSAN dealer can conduct it for you.
EMISSION CONTROL SYSTEM
WARRANTYREPORTING SAFETY DEFECTS (US
only)READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST
Technical and consumer information9-37

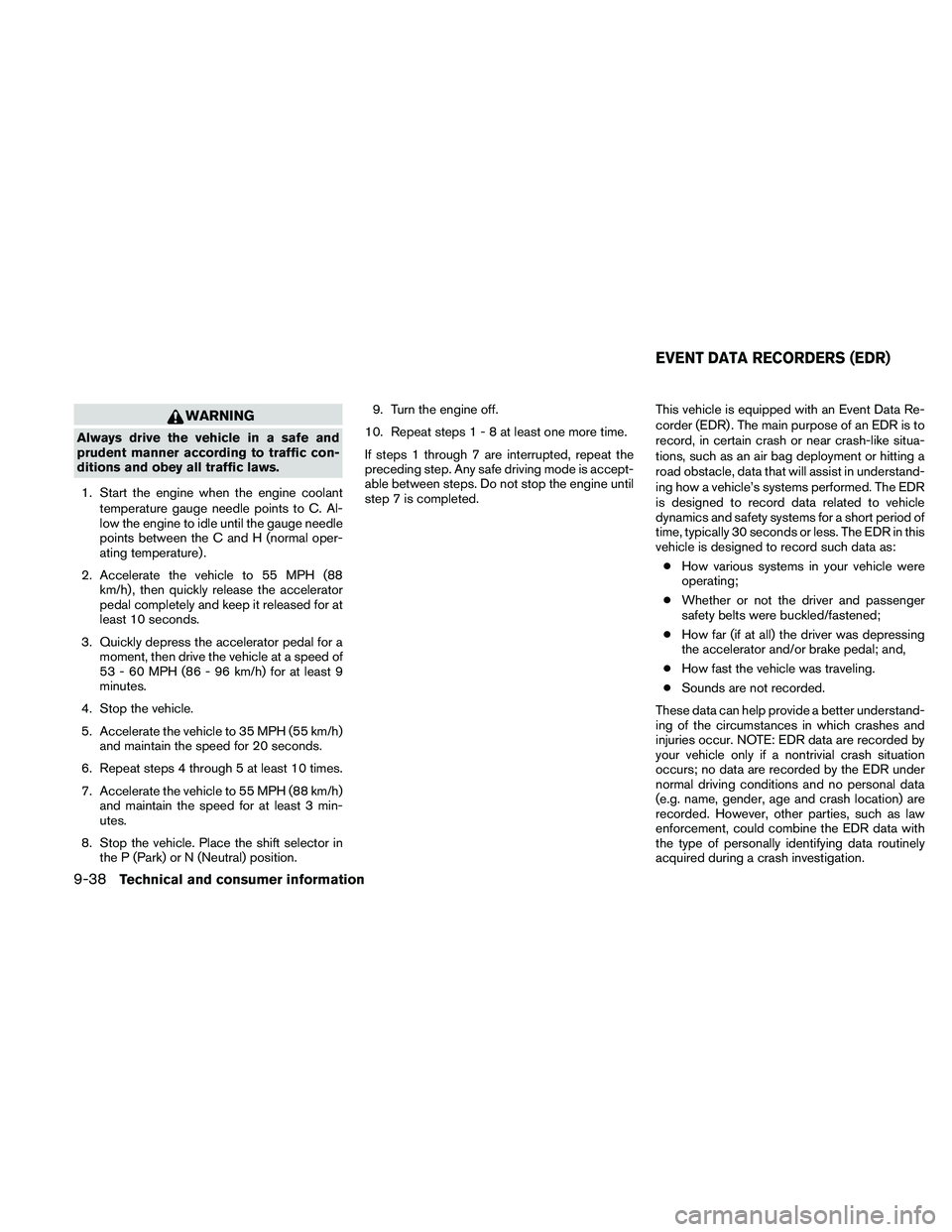

WARNING
Always drive the vehicle in a safe and
prudent manner according to traffic con-
ditions and obey all traffic laws.
1. Start the engine when the engine coolant
temperature gauge needle points to C. Al-
low the engine to idle until the gauge needle
points between the C and H (normal oper-
ating temperature) .
2. Accelerate the vehicle to 55 MPH (88
km/h) , then quickly release the accelerator
pedal completely and keep it released for at
least 10 seconds.
3. Quickly depress the accelerator pedal for a
moment, then drive the vehicle at a speed of
53 - 60 MPH (86 - 96 km/h) for at least 9
minutes.
4. Stop the vehicle.
5. Accelerate the vehicle to 35 MPH (55 km/h)
and maintain the speed for 20 seconds.
6. Repeat steps 4 through 5 at least 10 times.
7. Accelerate the vehicle to 55 MPH (88 km/h)
and maintain the speed for at least 3 min-
utes.
8. Stop the vehicle. Place the shift selector in
the P (Park) or N (Neutral) position.9. Turn the engine off.
10. Repeat steps1-8atleast one more time.
If steps 1 through 7 are interrupted, repeat the
preceding step. Any safe driving mode is accept-
able between steps. Do not stop the engine until
step 7 is completed.This vehicle is equipped with an Event Data Re-
corder (EDR) . The main purpose of an EDR is to
record, in certain crash or near crash-like situa-
tions, such as an air bag deployment or hitting a
road obstacle, data that will assist in understand-
ing how a vehicle’s systems performed. The EDR
is designed to record data related to vehicle
dynamics and safety systems for a short period of
time, typically 30 seconds or less. The EDR in this
vehicle is designed to record such data as:
cHow various systems in your vehicle were
operating;
cWhether or not the driver and passenger
safety belts were buckled/fastened;
cHow far (if at all) the driver was depressing
the accelerator and/or brake pedal; and,
cHow fast the vehicle was traveling.
cSounds are not recorded.
These data can help provide a better understand-
ing of the circumstances in which crashes and
injuries occur. NOTE: EDR data are recorded by
your vehicle only if a nontrivial crash situation
occurs; no data are recorded by the EDR under
normal driving conditions and no personal data
(e.g. name, gender, age and crash location) are
recorded. However, other parties, such as law
enforcement, could combine the EDR data with
the type of personally identifying data routinely
acquired during a crash investigation.
EVENT DATA RECORDERS (EDR)
9-38Technical and consumer information

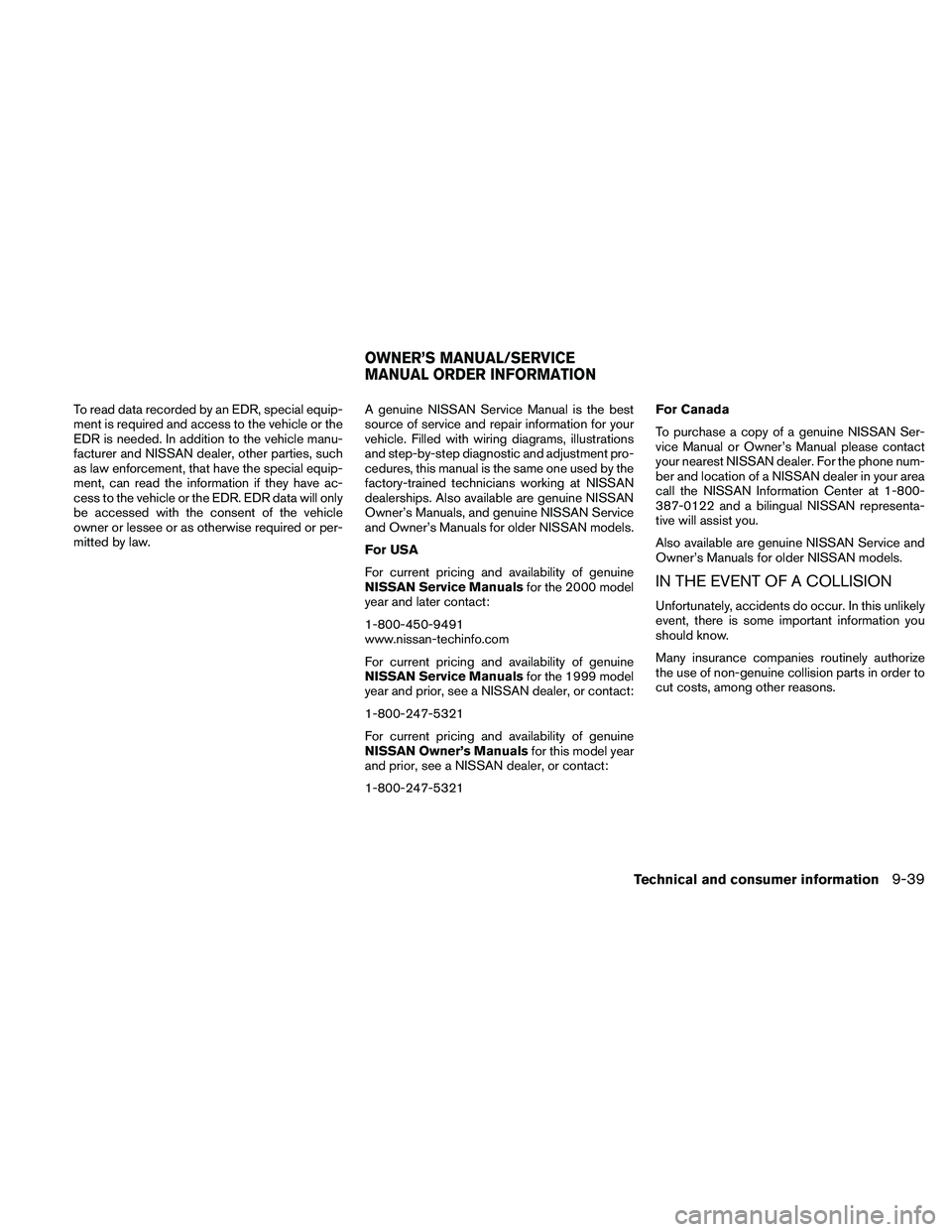

To read data recorded by an EDR, special equip-
ment is required and access to the vehicle or the
EDR is needed. In addition to the vehicle manu-
facturer and NISSAN dealer, other parties, such
as law enforcement, that have the special equip-
ment, can read the information if they have ac-
cess to the vehicle or the EDR. EDR data will only
be accessed with the consent of the vehicle
owner or lessee or as otherwise required or per-
mitted by law.A genuine NISSAN Service Manual is the best
source of service and repair information for your
vehicle. Filled with wiring diagrams, illustrations
and step-by-step diagnostic and adjustment pro-
cedures, this manual is the same one used by the
factory-trained technicians working at NISSAN
dealerships. Also available are genuine NISSAN
Owner’s Manuals, and genuine NISSAN Service
and Owner’s Manuals for older NISSAN models.
For USA
For current pricing and availability of genuine
NISSAN Service Manualsfor the 2000 model
year and later contact:
1-800-450-9491
www.nissan-techinfo.com
For current pricing and availability of genuine
NISSAN Service Manualsfor the 1999 model
year and prior, see a NISSAN dealer, or contact:
1-800-247-5321
For current pricing and availability of genuine
NISSAN Owner’s Manualsfor this model year
and prior, see a NISSAN dealer, or contact:
1-800-247-5321For Canada
To purchase a copy of a genuine NISSAN Ser-
vice Manual or Owner’s Manual please contact
your nearest NISSAN dealer. For the phone num-
ber and location of a NISSAN dealer in your area
call the NISSAN Information Center at 1-800-
387-0122 and a bilingual NISSAN representa-
tive will assist you.
Also available are genuine NISSAN Service and
Owner’s Manuals for older NISSAN models.
IN THE EVENT OF A COLLISION
Unfortunately, accidents do occur. In this unlikely
event, there is some important information you
should know.
Many insurance companies routinely authorize
the use of non-genuine collision parts in order to
cut costs, among other reasons.
OWNER’S MANUAL/SERVICE
MANUAL ORDER INFORMATION
Technical and consumer information9-39

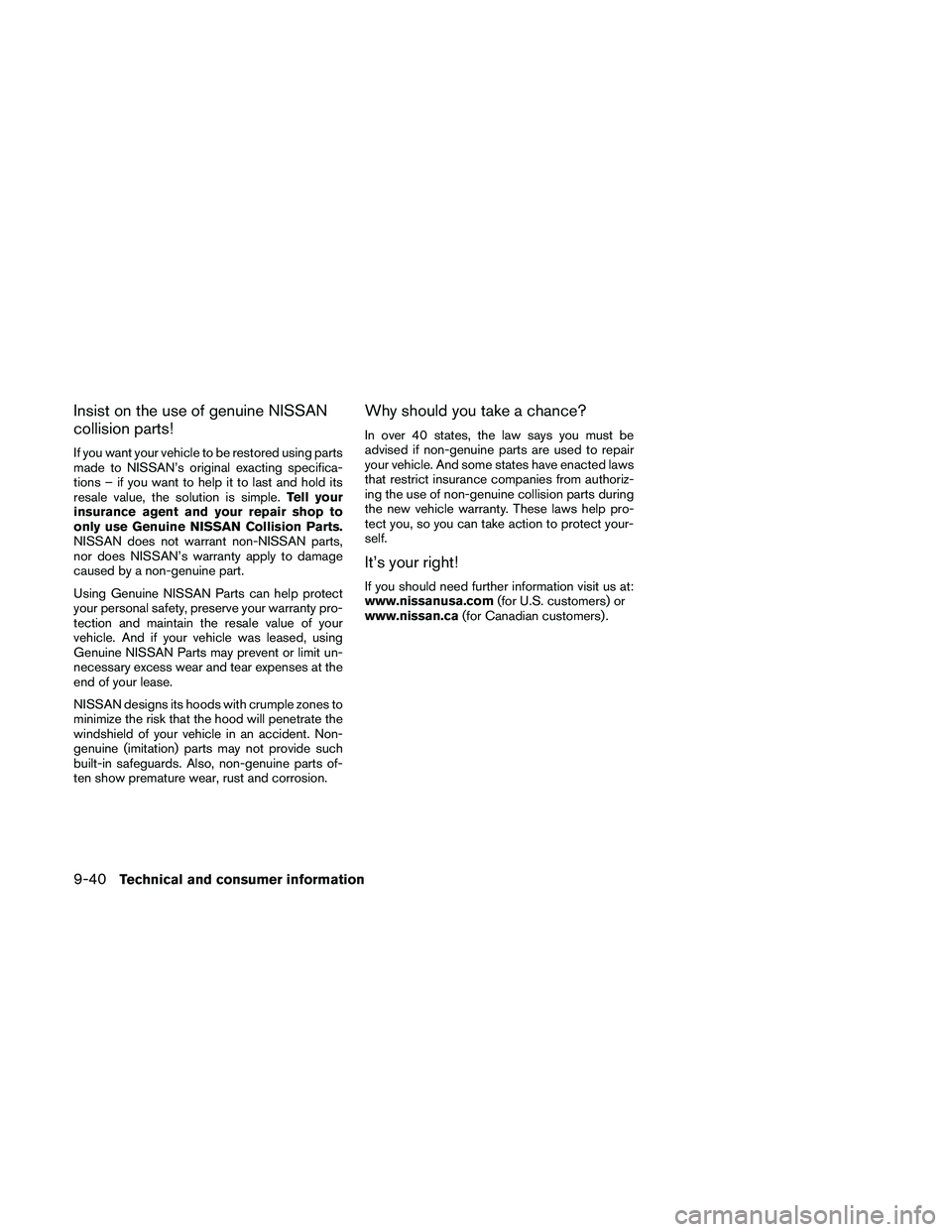

Insist on the use of genuine NISSAN
collision parts!
If you want your vehicle to be restored using parts
made to NISSAN’s original exacting specifica-
tions – if you want to help it to last and hold its
resale value, the solution is simple.Tell your
insurance agent and your repair shop to
only use Genuine NISSAN Collision Parts.
NISSAN does not warrant non-NISSAN parts,
nor does NISSAN’s warranty apply to damage
caused by a non-genuine part.
Using Genuine NISSAN Parts can help protect
your personal safety, preserve your warranty pro-
tection and maintain the resale value of your
vehicle. And if your vehicle was leased, using
Genuine NISSAN Parts may prevent or limit un-
necessary excess wear and tear expenses at the
end of your lease.
NISSAN designs its hoods with crumple zones to
minimize the risk that the hood will penetrate the
windshield of your vehicle in an accident. Non-
genuine (imitation) parts may not provide such
built-in safeguards. Also, non-genuine parts of-
ten show premature wear, rust and corrosion.
Why should you take a chance?
In over 40 states, the law says you must be
advised if non-genuine parts are used to repair
your vehicle. And some states have enacted laws
that restrict insurance companies from authoriz-
ing the use of non-genuine collision parts during
the new vehicle warranty. These laws help pro-
tect you, so you can take action to protect your-
self.
It’s your right!
If you should need further information visit us at:
www.nissanusa.com(for U.S. customers) or
www.nissan.ca(for Canadian customers) .
9-40Technical and consumer information

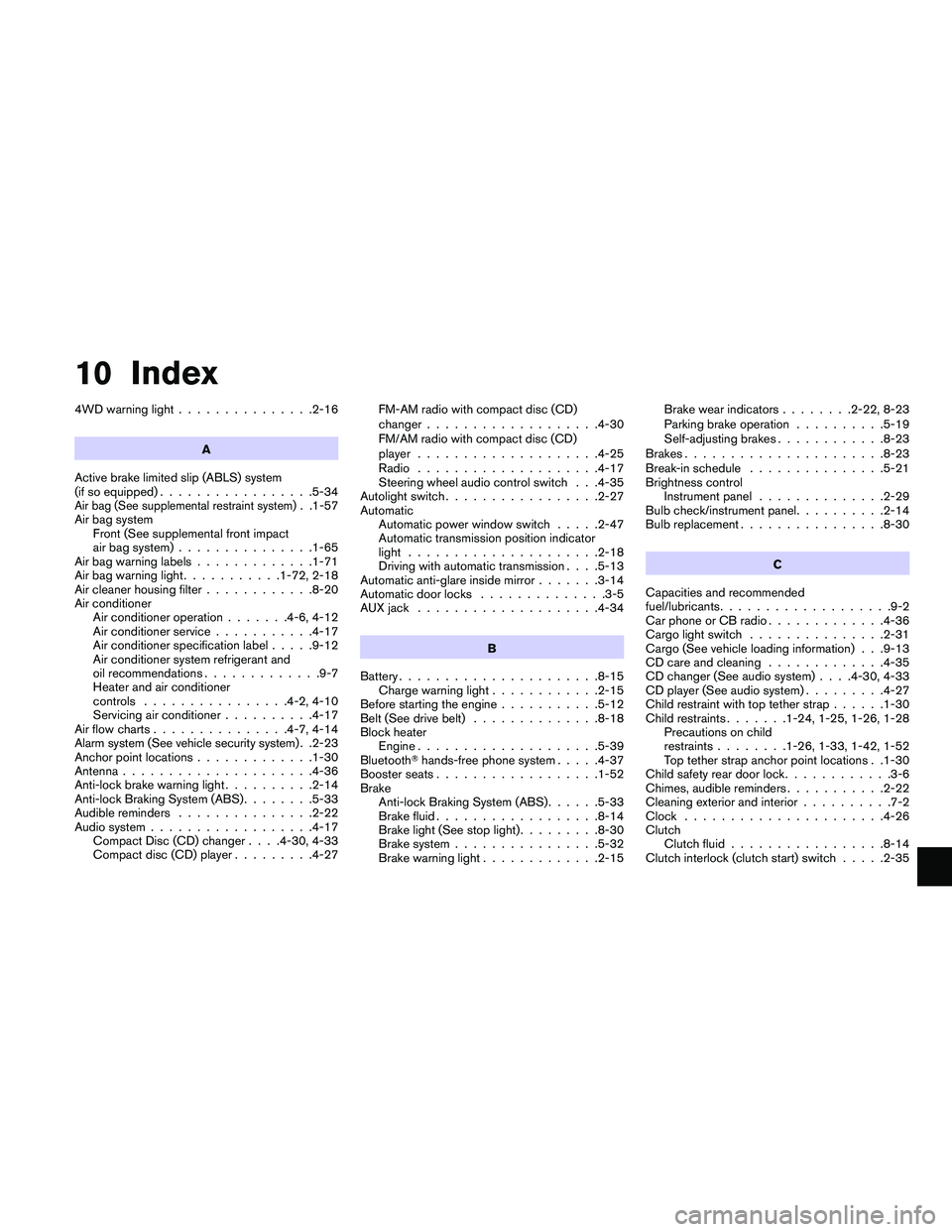

10 Index
4WD warning light...............2-16
A
Active brake limited slip (ABLS) system
(if so equipped).................5-34
Air bag (See supplemental restraint system). .1-57
Air bag system
Front (See supplemental front impact
air bag system)...............1-65
Air bag warning labels.............1-71
Air bag warning light...........1-72, 2-18
Air cleaner housing filter............8-20
Air conditioner
Air conditioner operation.......4-6, 4-12
Air conditioner service...........4-17
Air conditioner specification label.....9-12
Air conditioner system refrigerant and
oil recommendations.............9-7
Heater and air conditioner
controls................4-2, 4-10
Servicing air conditioner..........4-17
Air flow charts...............4-7, 4-14
Alarm system (See vehicle security system). .2-23
Anchor point locations.............1-30
Antenna.....................4-36
Anti-lock brake warning light..........2-14
Anti-lock Braking System (ABS)........5-33
Audible reminders...............2-22
Audio system..................4-17
Compact Disc (CD) changer. . . .4-30, 4-33
Compact disc (CD) player.........4-27FM-AM radio with compact disc (CD)
changer...................4-30
FM/AM radio with compact disc (CD)
player....................4-25
Radio....................4-17
Steering wheel audio control switch . . .4-35
Autolight switch.................2-27
Automatic
Automatic power window switch.....2-47
Automatic transmission position indicator
light.....................2-18
Driving with automatic transmission. . . .5-13
Automatic anti-glare inside mirror.......3-14
Automatic door locks..............3-5
AUX jack....................4-34
B
Battery......................8-15
Charge warning light............2-15
Before starting the engine...........5-12
Belt (See drive belt)..............8-18
Block heater
Engine....................5-39
BluetoothThands-free phone system.....4-37
Booster seats..................1-52
Brake
Anti-lock Braking System (ABS)......5-33
Brake fluid..................8-14
Brake light (See stop light).........8-30
Brake system................5-32
Brake warning light.............2-15Brake wear indicators........2-22, 8-23
Parking brake operation..........5-19
Self-adjusting brakes............8-23
Brakes......................8-23
Break-in schedule...............5-21
Brightness control
Instrument panel..............2-29
Bulb check/instrument panel..........2-14
Bulb replacement................8-30
C
Capacities and recommended
fuel/lubricants...................9-2
Car phone or CB radio.............4-36
Cargo light switch...............2-31
Cargo (See vehicle loading information) . . .9-13
CD care and cleaning.............4-35
CD changer (See audio system). . . .4-30, 4-33
CD player (See audio system).........4-27
Child restraint with top tether strap......1-30
Child restraints.......1-24, 1-25, 1-26, 1-28
Precautions on child
restraints........1-26, 1-33, 1-42, 1-52
Top tether strap anchor point locations . .1-30
Child safety rear door lock............3-6
Chimes, audible reminders...........2-22
Cleaning exterior and interior..........7-2
Clock......................4-26
Clutch
Clutch fluid.................8-14
Clutch interlock (clutch start) switch.....2-35

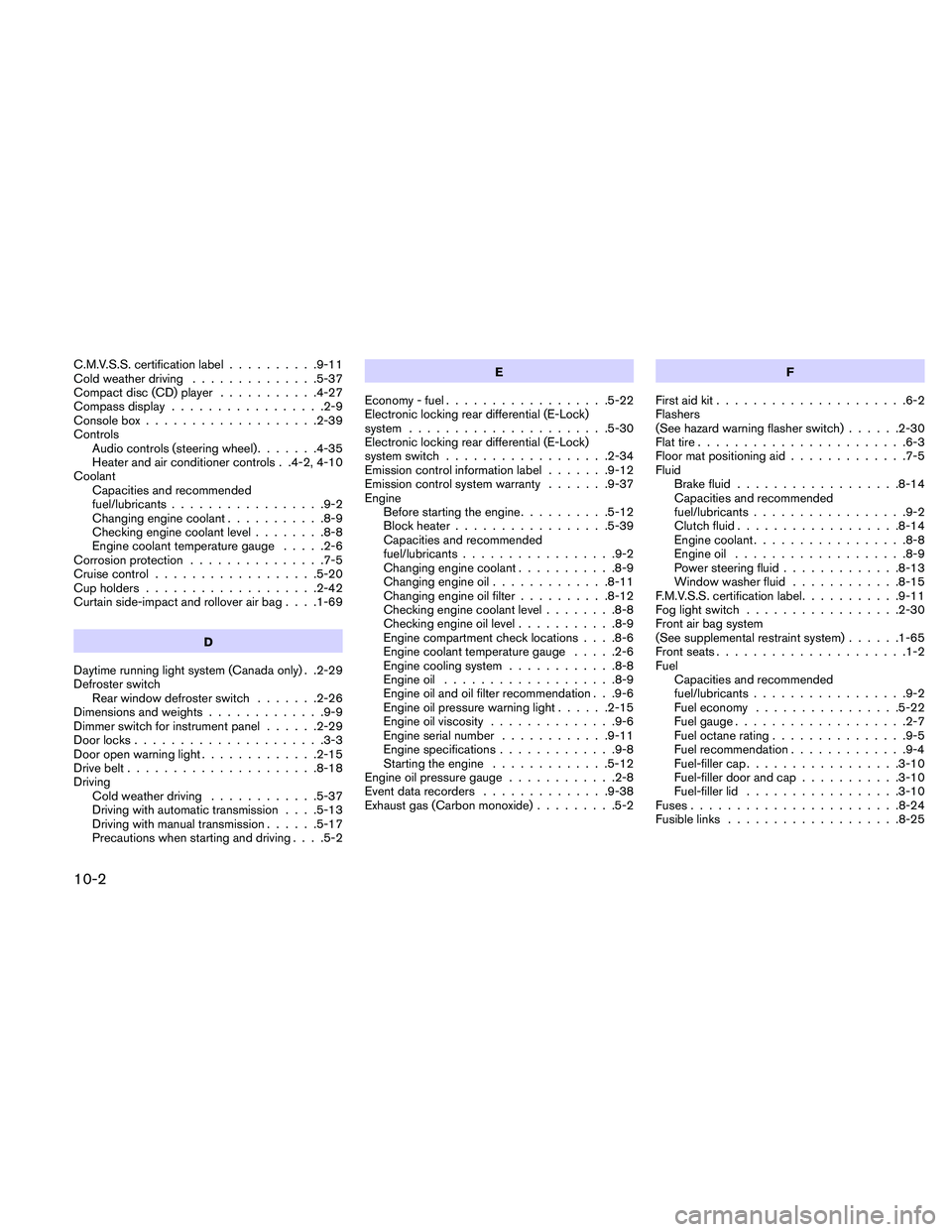

C.M.V.S.S. certification label..........9-11
Cold weather driving..............5-37
Compact disc (CD) player...........4-27
Compass display.................2-9
Console box...................2-39
Controls
Audio controls (steering wheel).......4-35
Heater and air conditioner controls . .4-2, 4-10
Coolant
Capacities and recommended
fuel/lubricants.................9-2
Changing engine coolant...........8-9
Checking engine coolant level........8-8
Engine coolant temperature gauge.....2-6
Corrosion protection...............7-5
Cruise control..................5-20
Cup holders...................2-42
Curtain side-impact and rollover air bag. . . .1-69
D
Daytime running light system (Canada only) . .2-29
Defroster switch
Rear window defroster switch.......2-26
Dimensions and weights.............9-9
Dimmer switch for instrument panel......2-29
Door locks.....................3-3
Door open warning light.............2-15
Drive belt.....................8-18
Driving
Cold weather driving............5-37
Driving with automatic transmission. . . .5-13
Driving with manual transmission......5-17
Precautions when starting and driving. . . .5-2E
Economy - fuel..................5-22
Electronic locking rear differential (E-Lock)
system......................5-30
Electronic locking rear differential (E-Lock)
system switch..................2-34
Emission control information label.......9-12
Emission control system warranty.......9-37
Engine
Before starting the engine..........5-12
Block heater.................5-39
Capacities and recommended
fuel/lubricants.................9-2
Changing engine coolant...........8-9
Changing engine oil.............8-11
Changing engine oil filter..........8-12
Checking engine coolant level........8-8
Checking engine oil level...........8-9
Engine compartment check locations. . . .8-6
Engine coolant temperature gauge.....2-6
Engine cooling system............8-8
Engine oil...................8-9
Engine oil and oil filter recommendation . . .9-6
Engine oil pressure warning light......2-15
Engine oil viscosity..............9-6
Engine serial number............9-11
Engine specifications.............9-8
Starting the engine.............5-12
Engine oil pressure gauge............2-8
Event data recorders..............9-38
Exhaust gas (Carbon monoxide).........5-2F
First aid kit.....................6-2
Flashers
(See hazard warning flasher switch)......2-30
Flat tire.......................6-3
Floor mat positioning aid.............7-5
Fluid
Brake fluid..................8-14
Capacities and recommended
fuel/lubricants.................9-2
Clutch fluid..................8-14
Engine coolant.................8-8
Engine oil...................8-9
Power steering fluid.............8-13
Window washer fluid............8-15
F.M.V.S.S. certification label...........9-11
Fog light switch.................2-30
Front air bag system
(See supplemental restraint system)......1-65
Front seats.....................1-2
Fuel
Capacities and recommended
fuel/lubricants.................9-2
Fuel economy................5-22
Fuel gauge...................2-7
Fuel octane rating...............9-5
Fuel recommendation.............9-4
Fuel-filler cap.................3-10
Fuel-filler door and cap...........3-10
Fuel-filler lid.................3-10
Fuses.......................8-24
Fusible links...................8-25
10-2

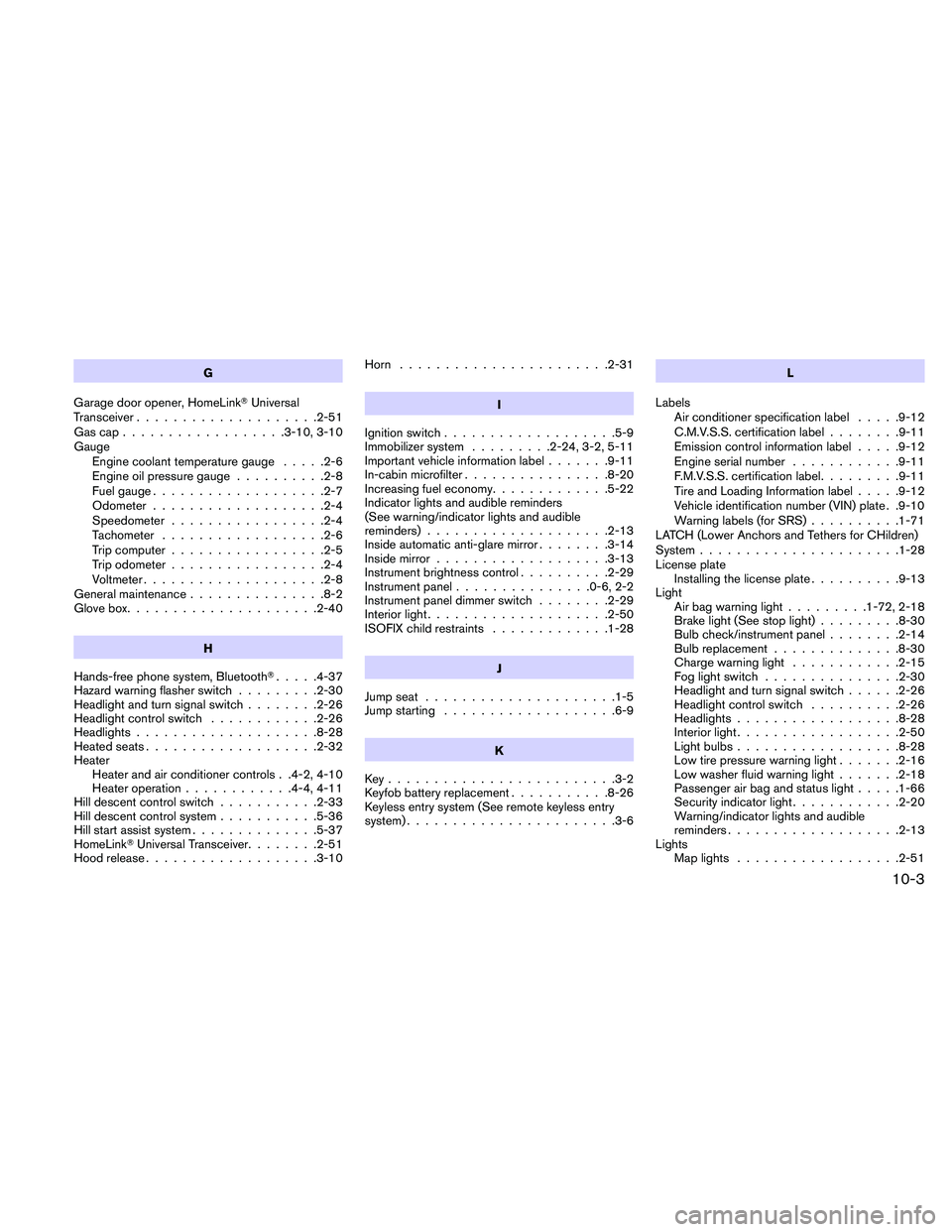

G
Garage door opener, HomeLinkTUniversal
Transceiver....................2-51
Gascap..................3-10, 3-10
Gauge
Engine coolant temperature gauge.....2-6
Engine oil pressure gauge..........2-8
Fuel gauge...................2-7
Odometer...................2-4
Speedometer.................2-4
Tachometer..................2-6
Trip computer.................2-5
Trip odometer.................2-4
Voltmeter....................2-8
General maintenance...............8-2
Glove box.....................2-40
H
Hands-free phone system, BluetoothT.....4-37
Hazard warning flasher switch.........2-30
Headlight and turn signal switch........2-26
Headlight control switch............2-26
Headlights....................8-28
Heated seats...................2-32
Heater
Heater and air conditioner controls . .4-2, 4-10
Heater operation............4-4, 4-11
Hill descent control switch...........2-33
Hill descent control system...........5-36
Hill start assist system..............5-37
HomeLinkTUniversal Transceiver........2-51
Hood release...................3-10Horn.......................2-31
I
Ignition switch...................5-9
Immobilizer system.........2-24, 3-2, 5-11
Important vehicle information label.......9-11
In-cabin microfilter................8-20
Increasing fuel economy.............5-22
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders)....................2-13
Inside automatic anti-glare mirror........3-14
Inside mirror...................3-13
Instrument brightness control..........2-29
Instrument panel...............0-6, 2-2
Instrument panel dimmer switch........2-29
Interior light....................2-50
ISOFIX child restraints.............1-28
J
Jump seat.....................1-5
Jump starting...................6-9
K
Key.........................3-2
Keyfob battery replacement...........8-26
Keyless entry system (See remote keyless entry
system).......................3-6L
Labels
Air conditioner specification label.....9-12
C.M.V.S.S. certification label........9-11
Emission control information label.....9-12
Engine serial number............9-11
F.M.V.S.S. certification label.........9-11
Tire and Loading Information label.....9-12
Vehicle identification number (VIN) plate . .9-10
Warning labels (for SRS)..........1-71
LATCH (Lower Anchors and Tethers for CHildren)
System......................1-28
License plate
Installing the license plate..........9-13
Light
Air bag warning light.........1-72, 2-18
Brake light (See stop light).........8-30
Bulb check/instrument panel........2-14
Bulb replacement..............8-30
Charge warning light............2-15
Fog light switch...............2-30
Headlight and turn signal switch......2-26
Headlight control switch..........2-26
Headlights..................8-28
Interior light..................2-50
Light bulbs..................8-28
Low tire pressure warning light.......2-16
Low washer fluid warning light.......2-18
Passenger air bag and status light.....1-66
Security indicator light............2-20
Warning/indicator lights and audible
reminders...................2-13
Lights
Map lights..................2-51
10-3

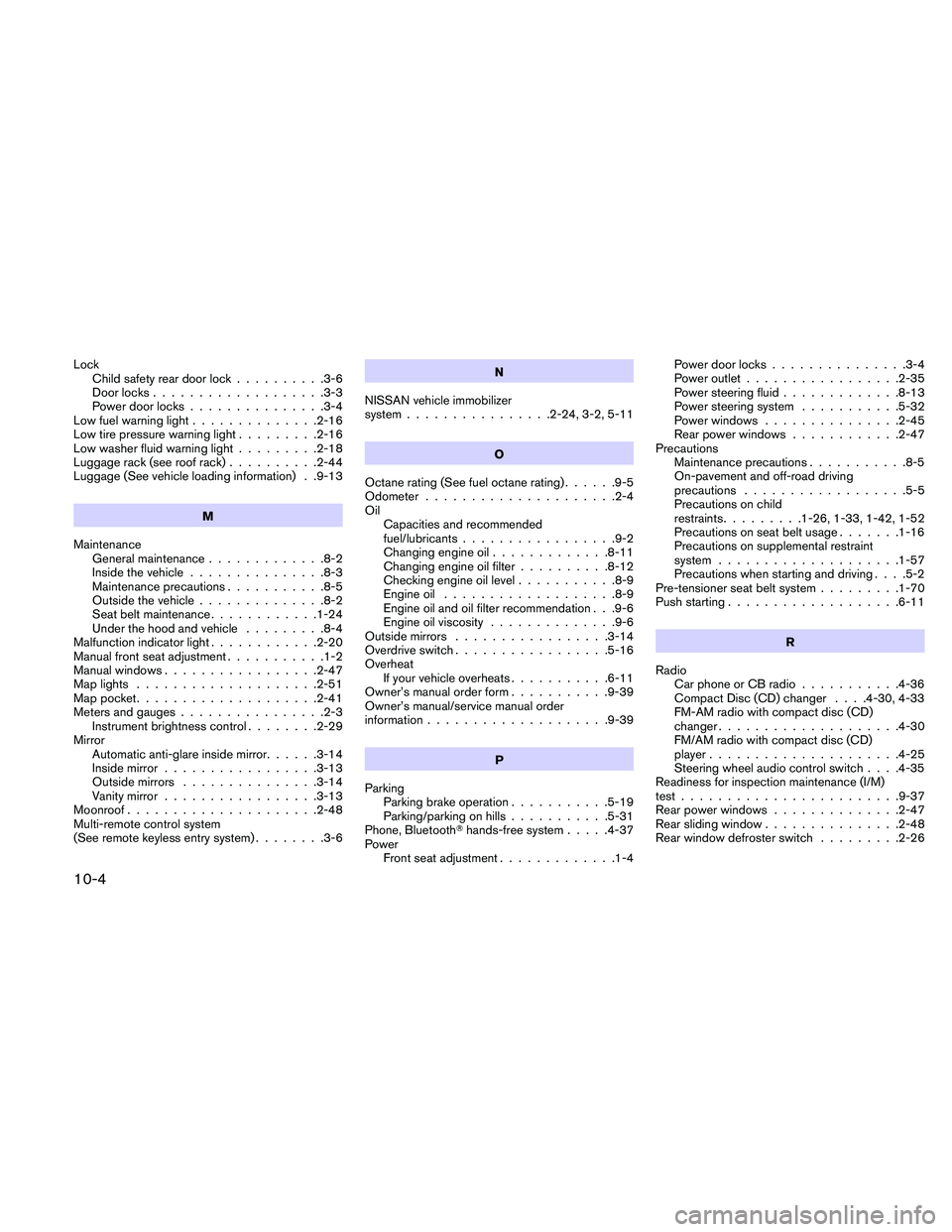

Lock
Child safety rear door lock..........3-6
Door locks...................3-3
Power door locks...............3-4
Low fuel warning light..............2-16
Low tire pressure warning light.........2-16
Low washer fluid warning light.........2-18
Luggage rack (see roof rack)..........2-44
Luggage (See vehicle loading information) . .9-13
M
Maintenance
General maintenance.............8-2
Inside the vehicle...............8-3
Maintenance precautions...........8-5
Outside the vehicle..............8-2
Seat belt maintenance............1-24
Under the hood and vehicle.........8-4
Malfunction indicator light............2-20
Manual front seat adjustment...........1-2
Manual windows.................2-47
Map lights....................2-51
Map pocket....................2-41
Meters and gauges................2-3
Instrument brightness control........2-29
Mirror
Automatic anti-glare inside mirror......3-14
Inside mirror.................3-13
Outside mirrors...............3-14
Vanity mirror.................3-13
Moonroof.....................2-48
Multi-remote control system
(See remote keyless entry system)........3-6N
NISSAN vehicle immobilizer
system................2-24, 3-2, 5-11
O
Octane rating (See fuel octane rating)......9-5
Odometer.....................2-4
Oil
Capacities and recommended
fuel/lubricants.................9-2
Changing engine oil.............8-11
Changing engine oil filter..........8-12
Checking engine oil level...........8-9
Engine oil...................8-9
Engine oil and oil filter recommendation . . .9-6
Engine oil viscosity..............9-6
Outside mirrors.................3-14
Overdrive switch.................5-16
Overheat
If your vehicle overheats...........6-11
Owner’s manual order form...........9-39
Owner’s manual/service manual order
information....................9-39
P
Parking
Parking brake operation...........5-19
Parking/parking on hills...........5-31
Phone, BluetoothThands-free system.....4-37
Power
Front seat adjustment.............1-4Power door locks...............3-4
Power outlet.................2-35
Power steering fluid.............8-13
Power steering system...........5-32
Power windows...............2-45
Rear power windows............2-47
Precautions
Maintenance precautions...........8-5
On-pavement and off-road driving
precautions..................5-5
Precautions on child
restraints.........1-26, 1-33, 1-42, 1-52
Precautions on seat belt usage.......1-16
Precautions on supplemental restraint
system....................1-57
Precautions when starting and driving. . . .5-2
Pre-tensioner seat belt system.........1-70
Push starting...................6-11
R
Radio
Car phone or CB radio...........4-36
Compact Disc (CD) changer. . . .4-30, 4-33
FM-AM radio with compact disc (CD)
changer....................4-30
FM/AM radio with compact disc (CD)
player.....................4-25
Steering wheel audio control switch. . . .4-35
Readiness for inspection maintenance (I/M)
test........................9-37
Rear power windows..............2-47
Rear sliding window...............2-48
Rear window defroster switch.........2-26
10-4

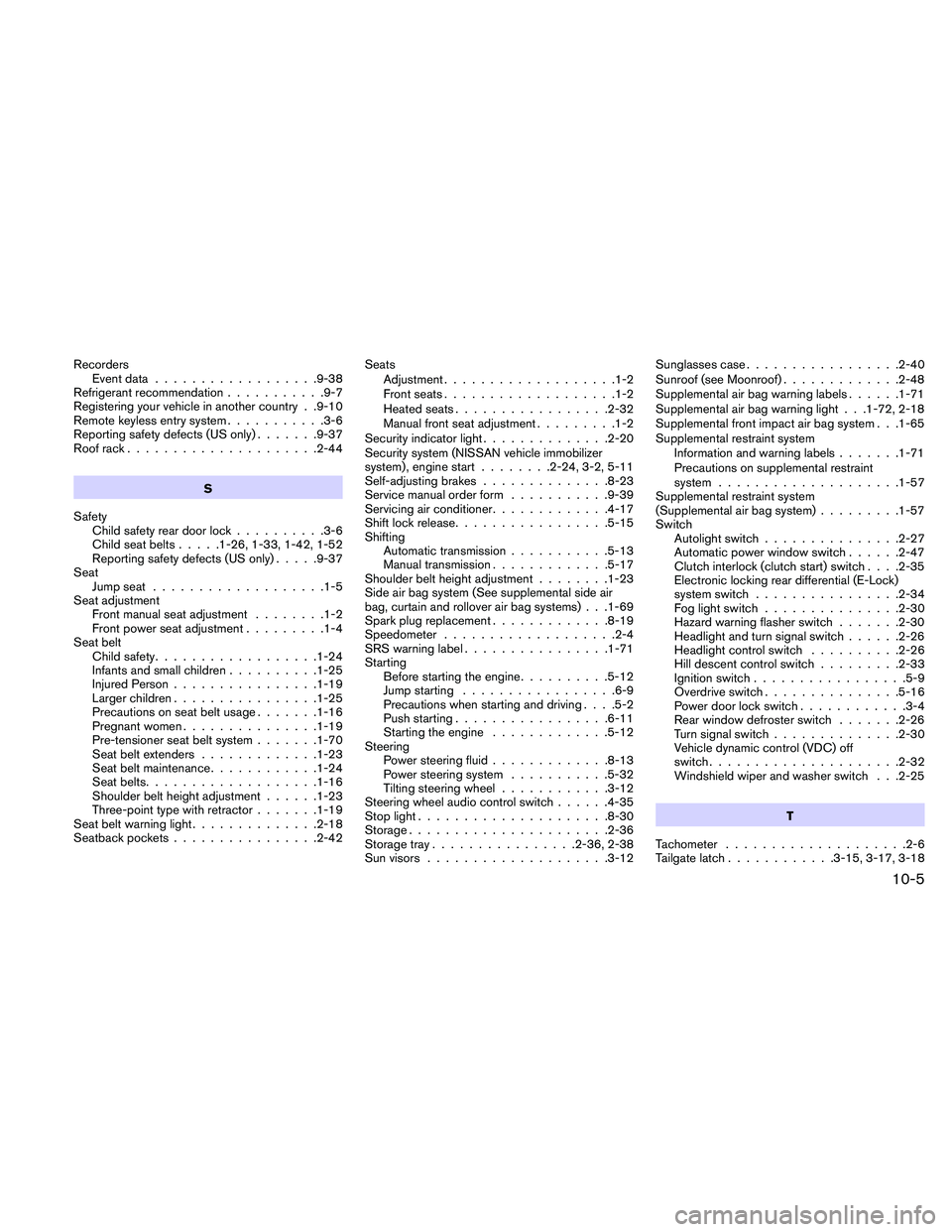

Recorders
Event data..................9-38
Refrigerant recommendation...........9-7
Registering your vehicle in another country . .9-10
Remote keyless entry system...........3-6
Reporting safety defects (US only).......9-37
Roof rack.....................2-44
S
Safety
Child safety rear door lock..........3-6
Child seat belts.....1-26, 1-33, 1-42, 1-52
Reporting safety defects (US only).....9-37
Seat
Jump seat...................1-5
Seat adjustment
Front manual seat adjustment........1-2
Front power seat adjustment.........1-4
Seat belt
Child safety..................1-24
Infants and small children..........1-25
Injured Person................1-19
Larger children................1-25
Precautions on seat belt usage.......1-16
Pregnant women...............1-19
Pre-tensioner seat belt system.......1-70
Seat belt extenders.............1-23
Seat belt maintenance............1-24
Seat belts...................1-16
Shoulder belt height adjustment......1-23
Three-point type with retractor.......1-19
Seat belt warning light..............2-18
Seatback pockets................2-42Seats
Adjustment...................1-2
Front seats...................1-2
Heated seats.................2-32
Manual front seat adjustment.........1-2
Security indicator light..............2-20
Security system (NISSAN vehicle immobilizer
system) , engine start........2-24, 3-2, 5-11
Self-adjusting brakes..............8-23
Service manual order form...........9-39
Servicing air conditioner.............4-17
Shift lock release.................5-15
Shifting
Automatic transmission...........5-13
Manual transmission.............5-17
Shoulder belt height adjustment........1-23
Side air bag system (See supplemental side air
bag, curtain and rollover air bag systems) . . .1-69
Spark plug replacement.............8-19
Speedometer...................2-4
SRS warning label................1-71
Starting
Before starting the engine..........5-12
Jump starting.................6-9
Precautions when starting and driving. . . .5-2
Push starting.................6-11
Starting the engine.............5-12
Steering
Power steering fluid.............8-13
Power steering system...........5-32
Tilting steering wheel............3-12
Steering wheel audio control switch......4-35
Stop light.....................8-30
Storage......................2-36
Storage tray................2-36, 2-38
Sun visors....................3-12Sunglasses case.................2-40
Sunroof (see Moonroof).............2-48
Supplemental air bag warning labels......1-71
Supplemental air bag warning light . . .1-72, 2-18
Supplemental front impact air bag system . . .1-65
Supplemental restraint system
Information and warning labels.......1-71
Precautions on supplemental restraint
system....................1-57
Supplemental restraint system
(Supplemental air bag system).........1-57
Switch
Autolight switch...............2-27
Automatic power window switch......2-47
Clutch interlock (clutch start) switch. . . .2-35
Electronic locking rear differential (E-Lock)
system switch................2-34
Fog light switch...............2-30
Hazard warning flasher switch.......2-30
Headlight and turn signal switch......2-26
Headlight control switch..........2-26
Hill descent control switch.........2-33
Ignition switch.................5-9
Overdrive switch...............5-16
Power door lock switch............3-4
Rear window defroster switch.......2-26
Turn signal switch..............2-30
Vehicle dynamic control (VDC) off
switch.....................2-32
Windshield wiper and washer switch . . .2-25
T
Tachometer....................2-6
Tailgate latch............3-15, 3-17, 3-18
10-5

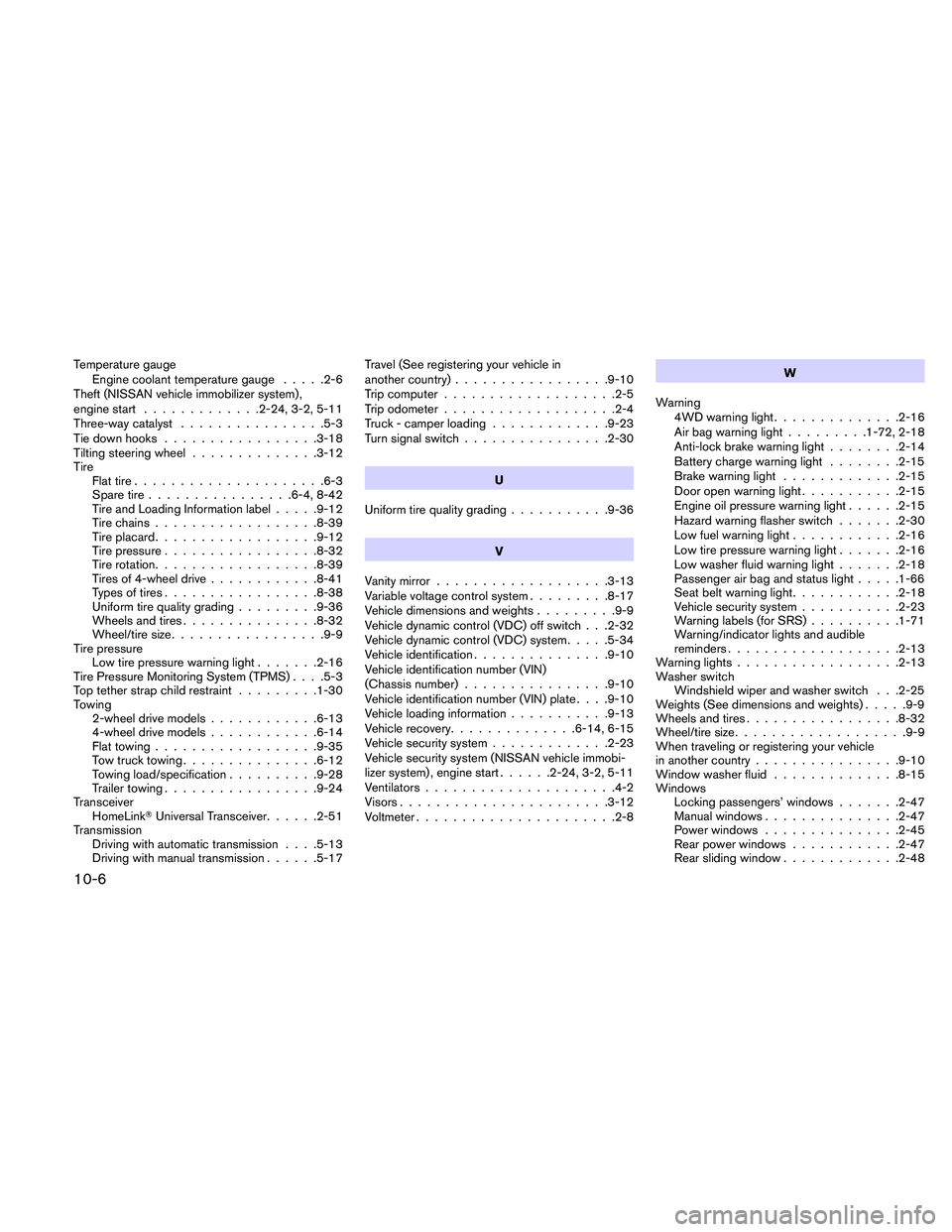

Temperature gauge
Engine coolant temperature gauge.....2-6
Theft (NISSAN vehicle immobilizer system) ,
engine start.............2-24, 3-2, 5-11
Three-way catalyst................5-3
Tie down hooks.................3-18
Tilting steering wheel..............3-12
Tire
Flat tire.....................6-3
Spare tire................6-4, 8-42
Tire and Loading Information label.....9-12
Tire chains..................8-39
Tire placard..................9-12
Tire pressure.................8-32
Tire rotation..................8-39
Tires of 4-wheel drive............8-41
Types of tires.................8-38
Uniform tire quality grading.........9-36
Wheels and tires...............8-32
Wheel/tire size.................9-9
Tire pressure
Low tire pressure warning light.......2-16
Tire Pressure Monitoring System (TPMS). . . .5-3
Top tether strap child restraint.........1-30
Towing
2-wheel drive models............6-13
4-wheel drive models............6-14
Flat towing..................9-35
Tow truck towing...............6-12
Towing load/specification..........9-28
Trailer towing.................9-24
Transceiver
HomeLinkTUniversal Transceiver......2-51
Transmission
Driving with automatic transmission. . . .5-13
Driving with manual transmission......5-17Travel (See registering your vehicle in
another country).................9-10
Trip computer...................2-5
Trip odometer...................2-4
Truck - camper loading.............9-23
Turn signal switch................2-30
U
Uniform tire quality grading...........9-36
V
Vanity mirror...................3-13
Variable voltage control system.........8-17
Vehicle dimensions and weights.........9-9
Vehicle dynamic control (VDC) off switch . . .2-32
Vehicle dynamic control (VDC) system.....5-34
Vehicle identification...............9-10
Vehicle identification number (VIN)
(Chassis number)................9-10
Vehicle identification number (VIN) plate. . . .9-10
Vehicle loading information...........9-13
Vehicle recovery..............6-14, 6-15
Vehicle security system.............2-23
Vehicle security system (NISSAN vehicle immobi-
lizer system) , engine start......2-24, 3-2, 5-11
Ventilators.....................4-2
Visors.......................3-12
Voltmeter......................2-8W
Warning
4WD warning light..............2-16
Air bag warning light.........1-72, 2-18
Anti-lock brake warning light........2-14
Battery charge warning light........2-15
Brake warning light.............2-15
Door open warning light...........2-15
Engine oil pressure warning light......2-15
Hazard warning flasher switch.......2-30
Low fuel warning light............2-16
Low tire pressure warning light.......2-16
Low washer fluid warning light.......2-18
Passenger air bag and status light.....1-66
Seat belt warning light............2-18
Vehicle security system...........2-23
Warning labels (for SRS)..........1-71
Warning/indicator lights and audible
reminders...................2-13
Warning lights..................2-13
Washer switch
Windshield wiper and washer switch . . .2-25
Weights (See dimensions and weights).....9-9
Wheels and tires.................8-32
Wheel/tire size...................9-9
When traveling or registering your vehicle
in another country................9-10
Window washer fluid..............8-15
Windows
Locking passengers’ windows.......2-47
Manual windows...............2-47
Power windows...............2-45
Rear power windows............2-47
Rear sliding window.............2-48
10-6
