Page 211 of 469

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual LHA3164LHA3165
4-20Monitor, climate, audio, phone and voice recognition systems

Page 212 of 469

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual LHA3166
Monitor, climate, audio, phone and voice recognition systems4-21

Page 213 of 469

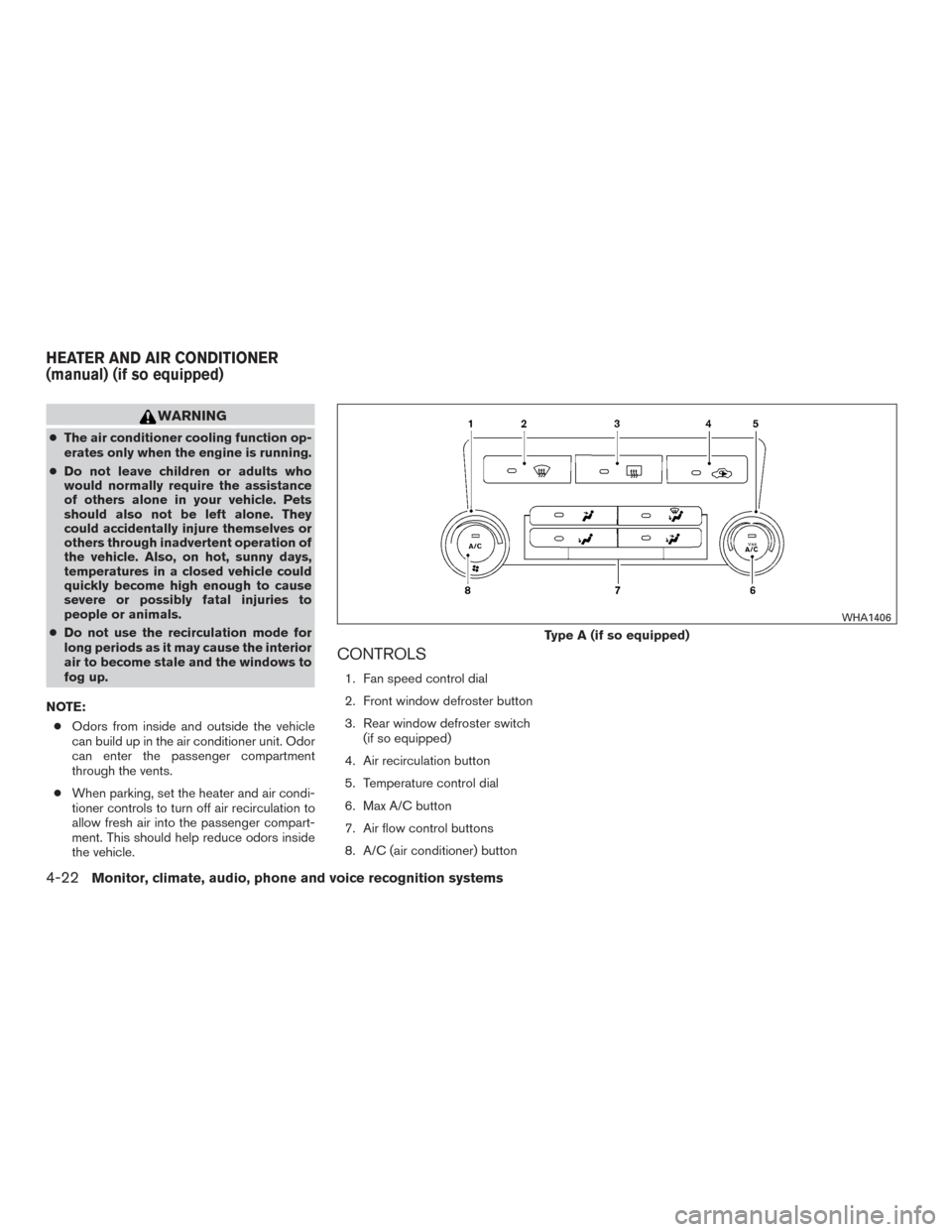

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual WARNING
●The air conditioner cooling function op-
erates only when the engine is running.
● Do not leave children or adults who
would normally require the assistance
of others alone in your vehicl

Page 214 of 469

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual CONTROLS
1. Fan speed control dial
2. Front window defroster button
3. Outside mirror defroster switch (if soequipped)
4. Air recirculation button
5. Temperature control dial
6. Max A/C button
7. Air

Page 215 of 469

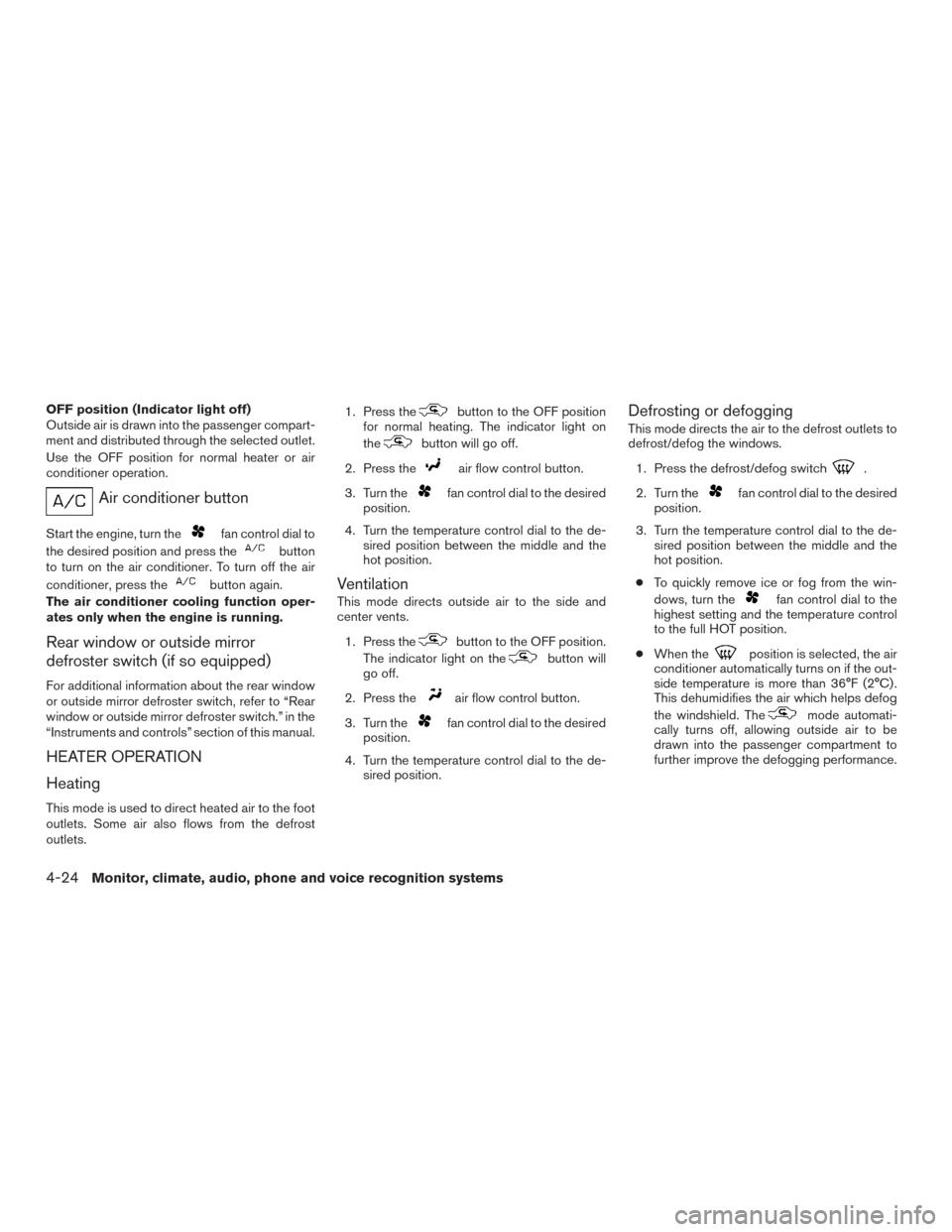

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual OFF position (Indicator light off)
Outside air is drawn into the passenger compart-
ment and distributed through the selected outlet.
Use the OFF position for normal heater or air
conditioner operatio

Page 216 of 469

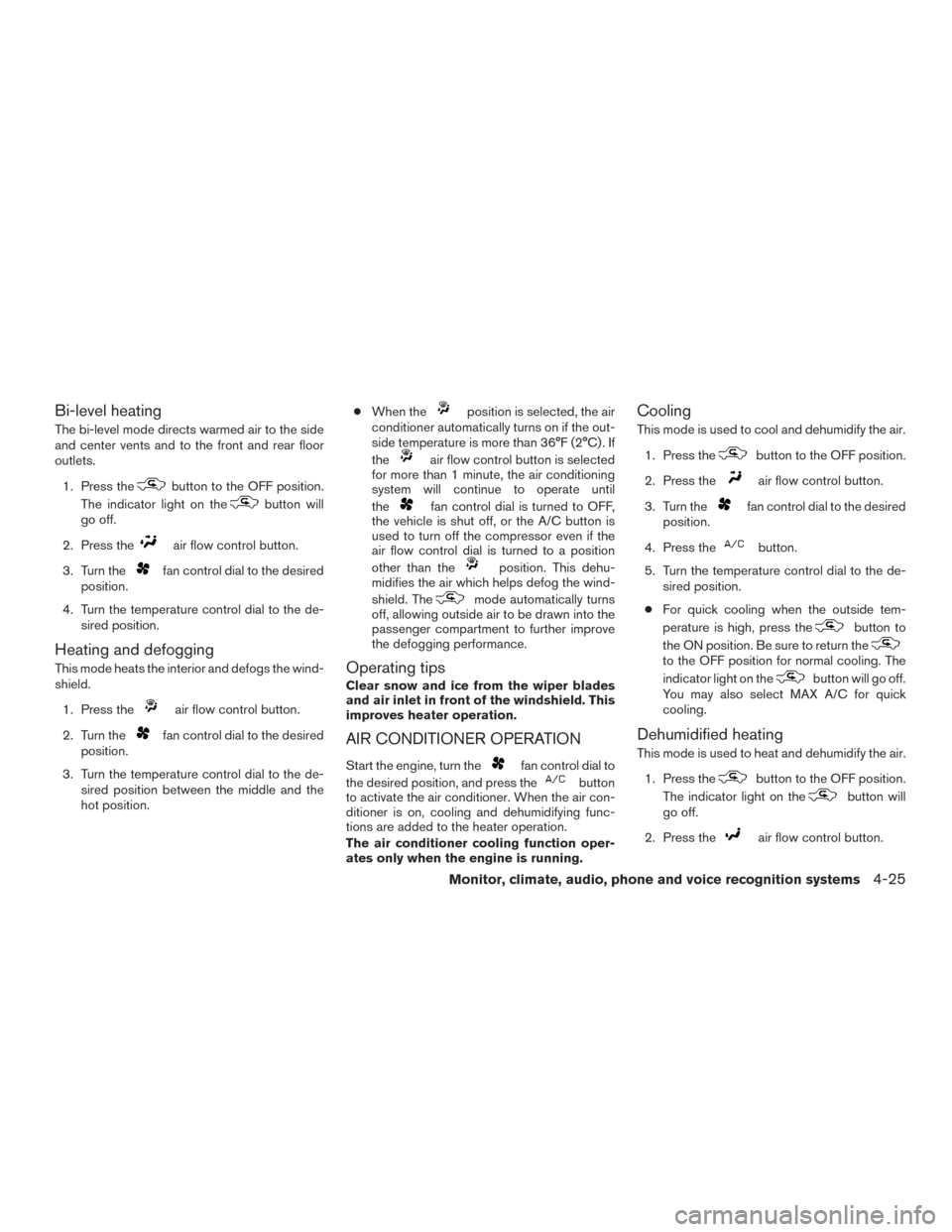

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual Bi-level heating
The bi-level mode directs warmed air to the side
and center vents and to the front and rear floor
outlets.1. Press the
button to the OFF position.
The indicator light on the
button wi

Page 217 of 469

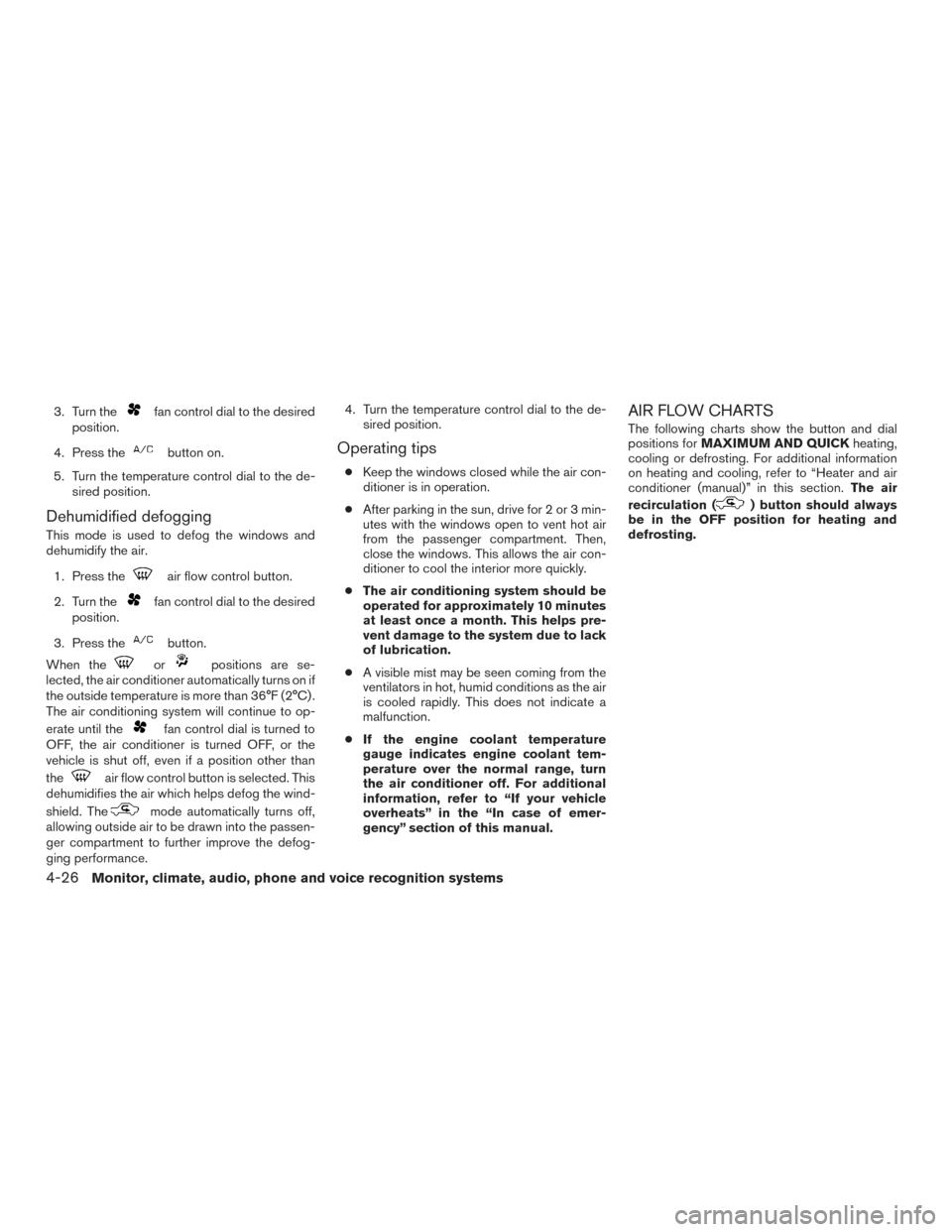

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual 3. Turn thefan control dial to the desired
position.
4. Press the
button on.
5. Turn the temperature control dial to the de- sired position.
Dehumidified defogging
This mode is used to defog the windo

Page 218 of 469

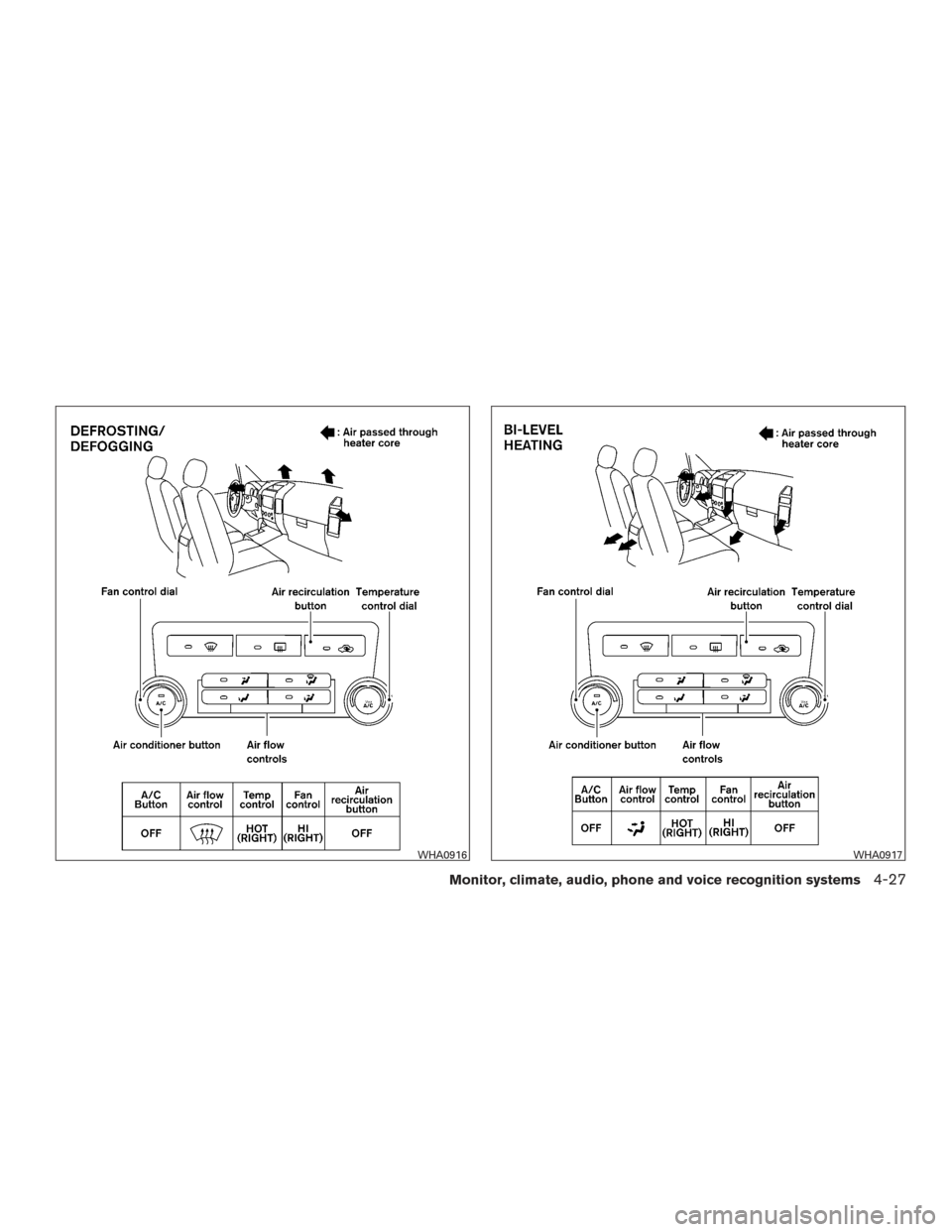

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual WHA0916WHA0917
Monitor, climate, audio, phone and voice recognition systems4-27

Page 219 of 469

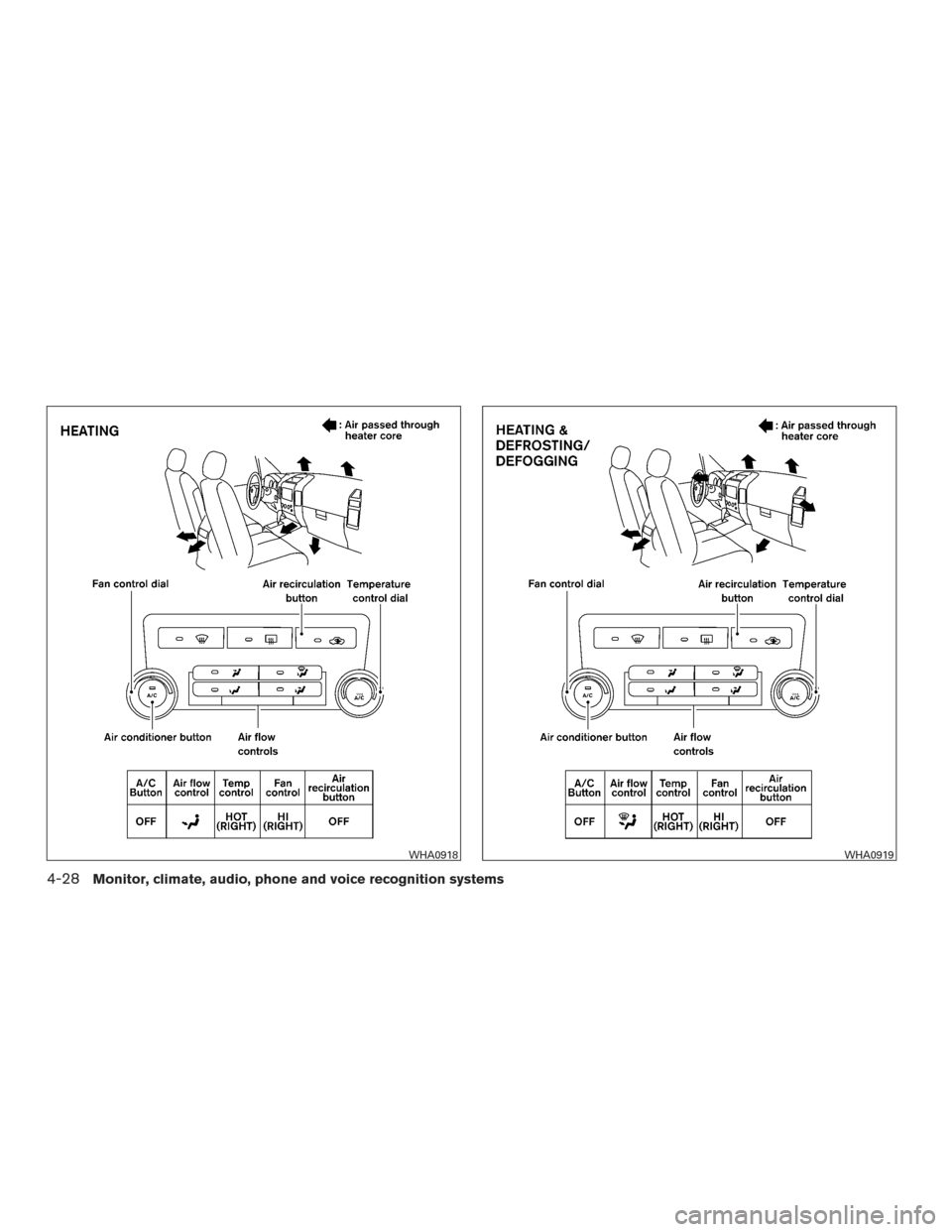

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual WHA0918WHA0919
4-28Monitor, climate, audio, phone and voice recognition systems

Page 220 of 469

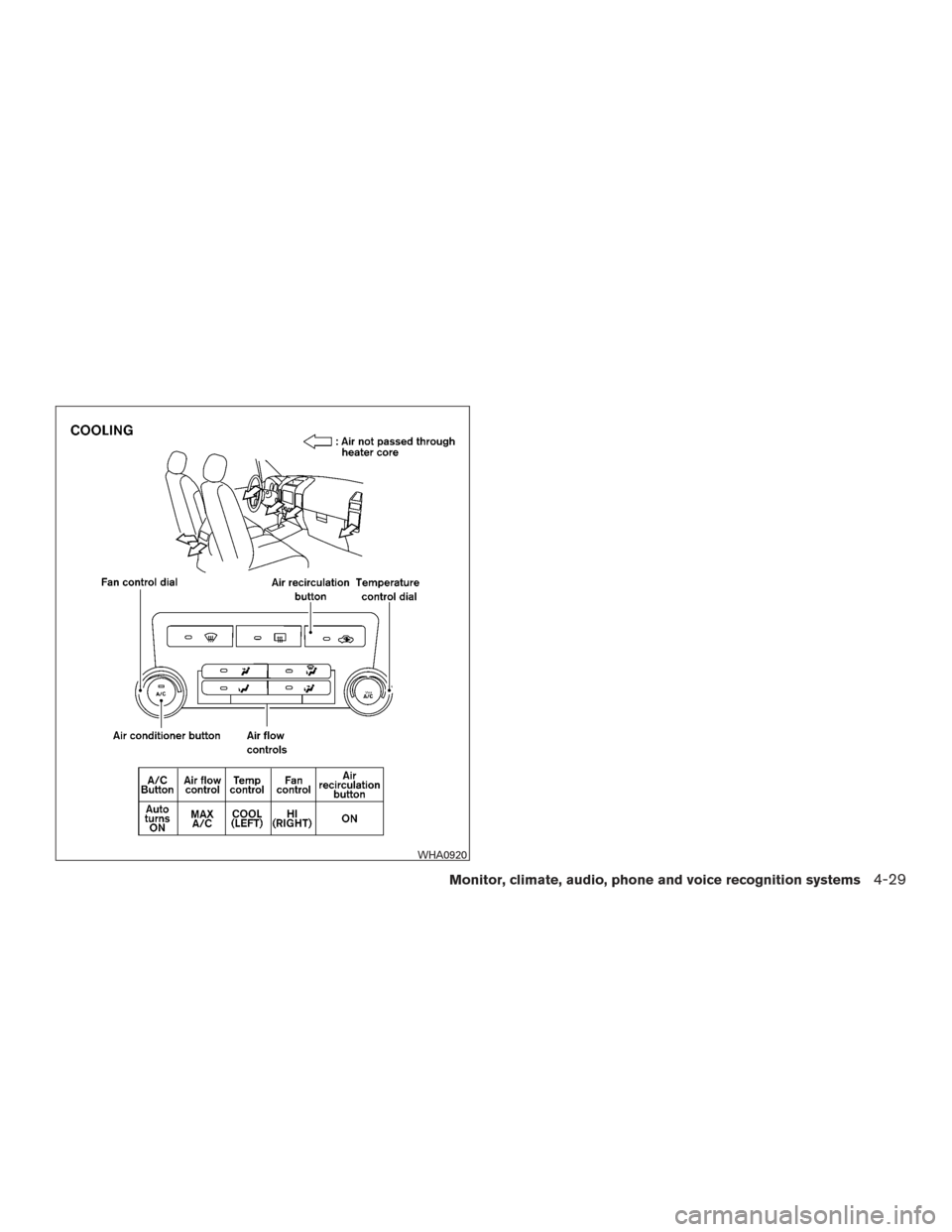

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual WHA0920
Monitor, climate, audio, phone and voice recognition systems4-29
