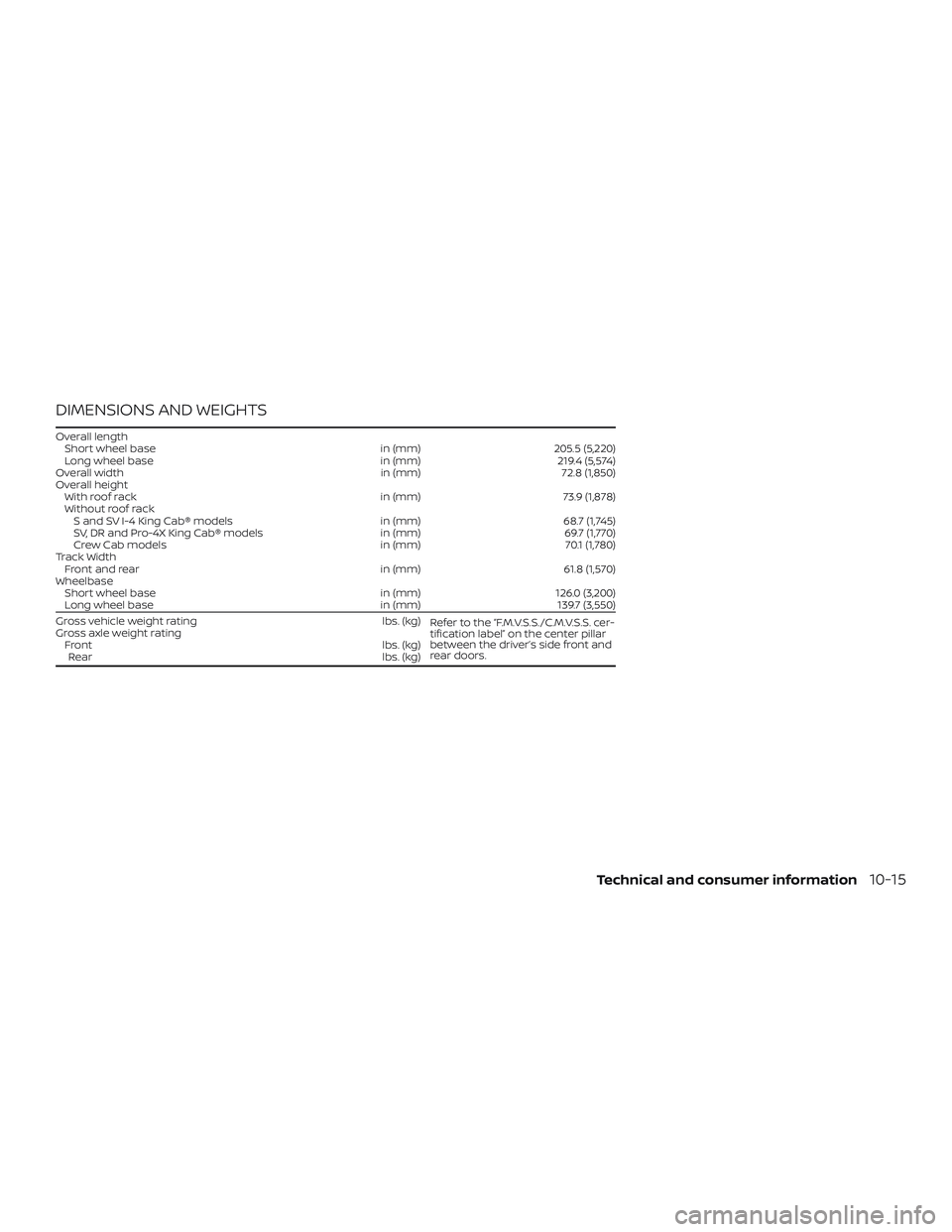

DIMENSIONS AND WEIGHTS
Overall lengthShort wheel base in (mm)205.5 (5,220)
Long wheel base in (mm)219.4 (5,574)
Overall width in (mm)72.8 (1,850)
Overall height With roof rack in (mm)73.9 (1,878)
Without roof rack S and SV I-4 King Cab® models in (mm)68.7 (1,745)
SV, DR and Pro-4X King Cab® models in (mm)69.7 (1,770)
Crew Cab models in (mm)70.1 (1,780)
Track Width Front and rear in (mm)61.8 (1,570)
Wheelbase Short wheel base in (mm)126.0 (3,200)
Long wheel base in (mm)139.7 (3,550)
Gross vehicle weight rating lbs. (kg)
Refer to the “F.M.V.S.S./C.M.V.S.S. cer-
tification label” on the center pillar
between the driver’s side front and
rear doors.
Gross axle weight rating
Front lbs. (kg)
Rear lbs. (kg)
Technical and consumer information10-15
