NISSAN FRONTIER 2019 Owner´s Manual
Manufacturer: NISSAN, Model Year: 2019, Model line: FRONTIER, Model: NISSAN FRONTIER 2019Pages: 516, PDF Size: 5.04 MB

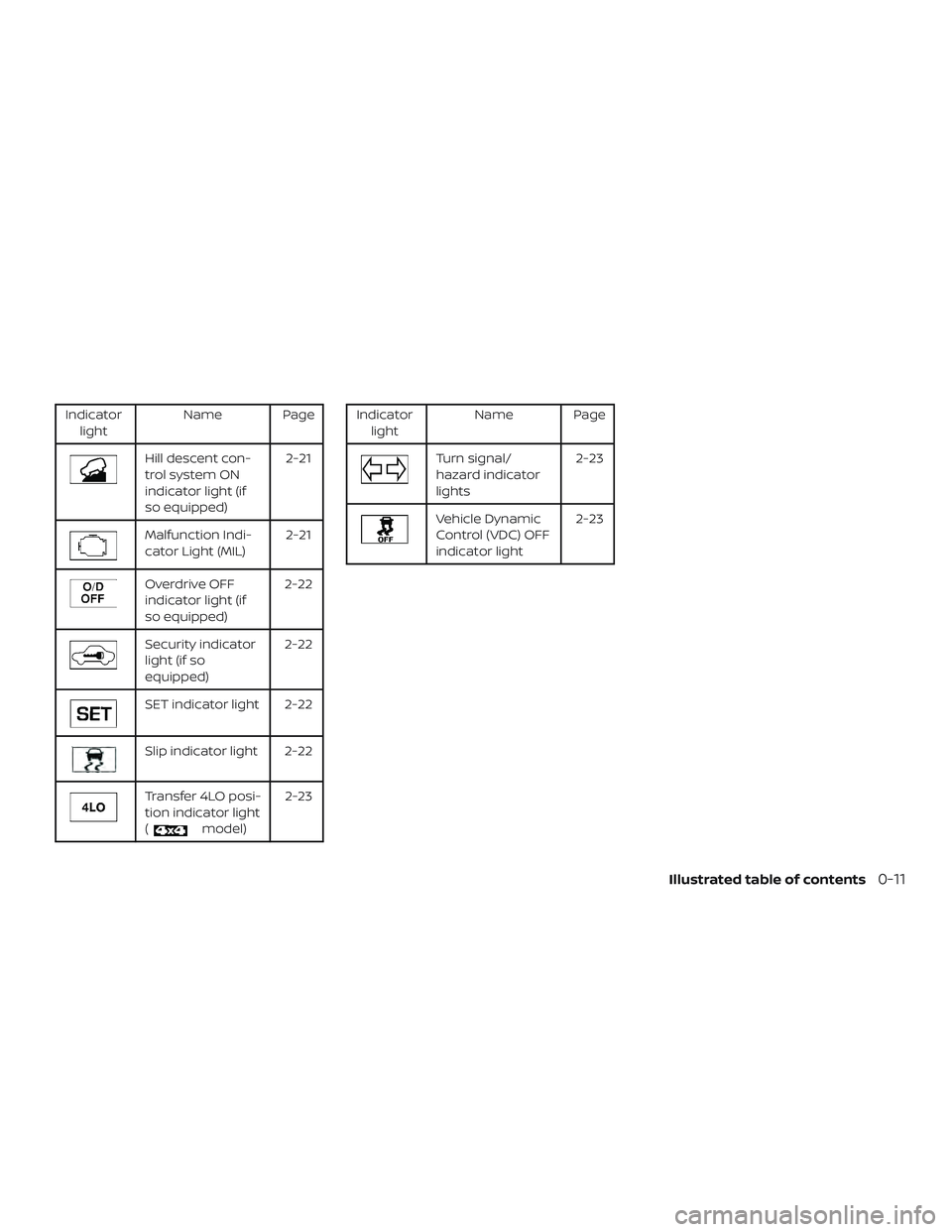

Page 21 of 516

Indicatorlight Name Page
Hill descent con-
trol system ON
indicator light (if
so equipped) 2-21
Malfunction Indi-
cator Light (MIL)
2-21
Overdrive OFF
indicator light (if
so equipped)2-22
Security indicator
light (if so
equipped)2-22
SET indicator light 2-22
Slip indicator light 2-22
Transfer 4LO posi-
tion indicator light
(
model)2-23
Indicator
light Name Page
Turn signal/
hazard indicator
lights 2-23
Vehicle Dynamic
Control (VDC) OFF
indicator light2-23
Illustrated table of contents0-11

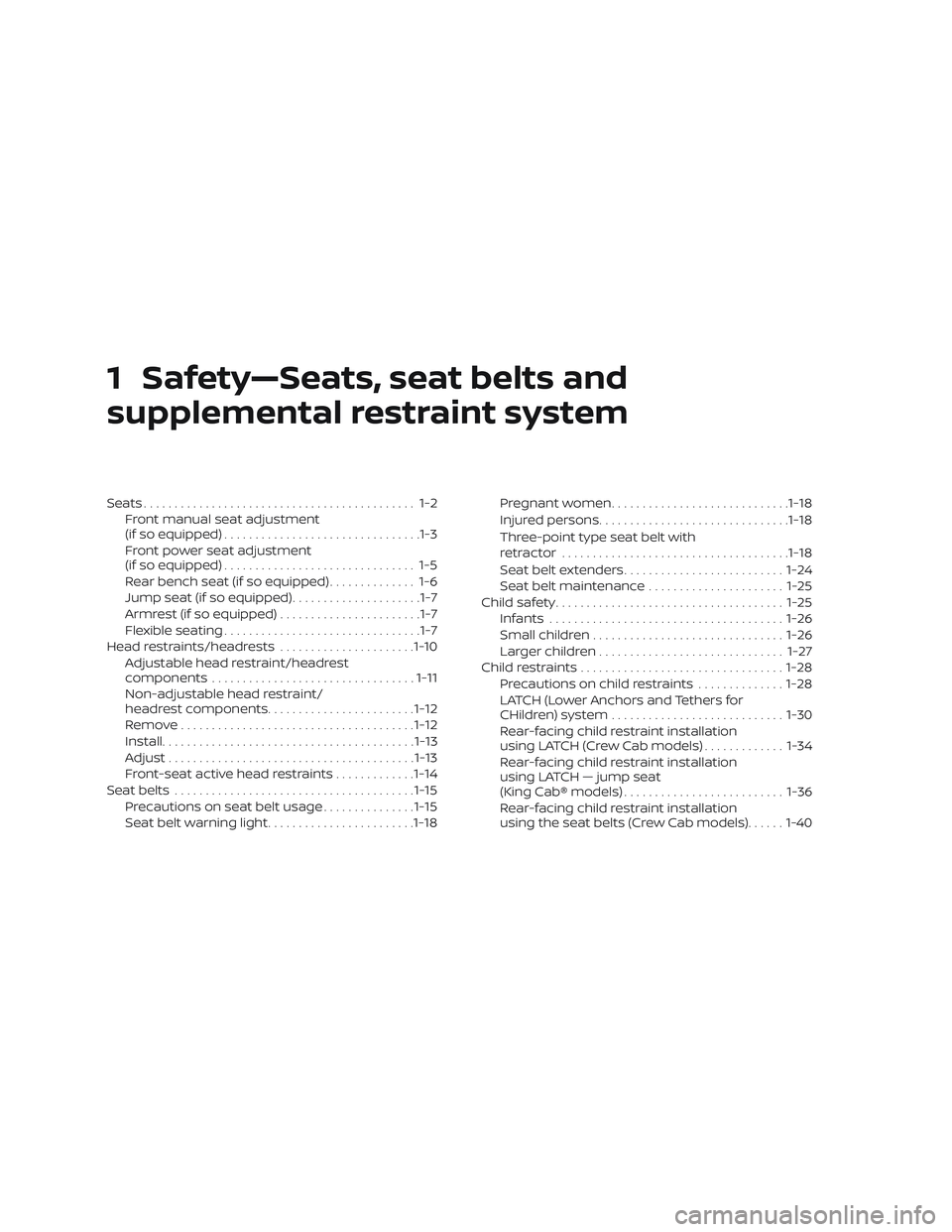

Page 22 of 516

1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................ 1-2Front manual seat adjustment
(if so equipped) ................................1-3
Front power seat adjustment
(if so equipped) ............................... 1-5
Rear bench seat (if so equipped) .............. 1-6
Jump seat (if so equipped) .....................1-7
Armrest (if so equipped) .......................1-7
Flexible seating ................................1-7
Head restraints/headrests ......................1-10
Adjustable head restraint/headrest
components ................................. 1-11
Non-adjustable head restraint/
headrest components ........................ 1-12
Remove...................................... 1-12
Install ......................................... 1-13
Adjust ........................................ 1-13
Front-seat active head restraints .............1-14
Seatbelts ....................................... 1-15
Precautions on seat belt usage ...............1-15
Seat belt warning light ........................ 1-18Pregnant women
............................. 1-18
Injured persons ............................... 1-18
Three-point type seat belt with
retractor ..................................... 1-18
Seat belt extenders .......................... 1-24
Seat belt maintenance ......................1-25
Child safety ..................................... 1-25
Infants ...................................... 1-26
Small children ............................... 1-26
Larger children .............................. 1-27
Child restraints ................................. 1-28
Precautions on child restraints ..............1-28
LATCH (Lower Anchors and Tethers for
CHildren) system ............................ 1-30
Rear-facing child restraint installation
using LATCH (Crew Cab models) .............1-34
Rear-facing child restraint installation
using LATCH — jump seat
(King Cab® models) .......................... 1-36
Rear-facing child restraint installation
using the seat belts (Crew Cab models) ......1-40

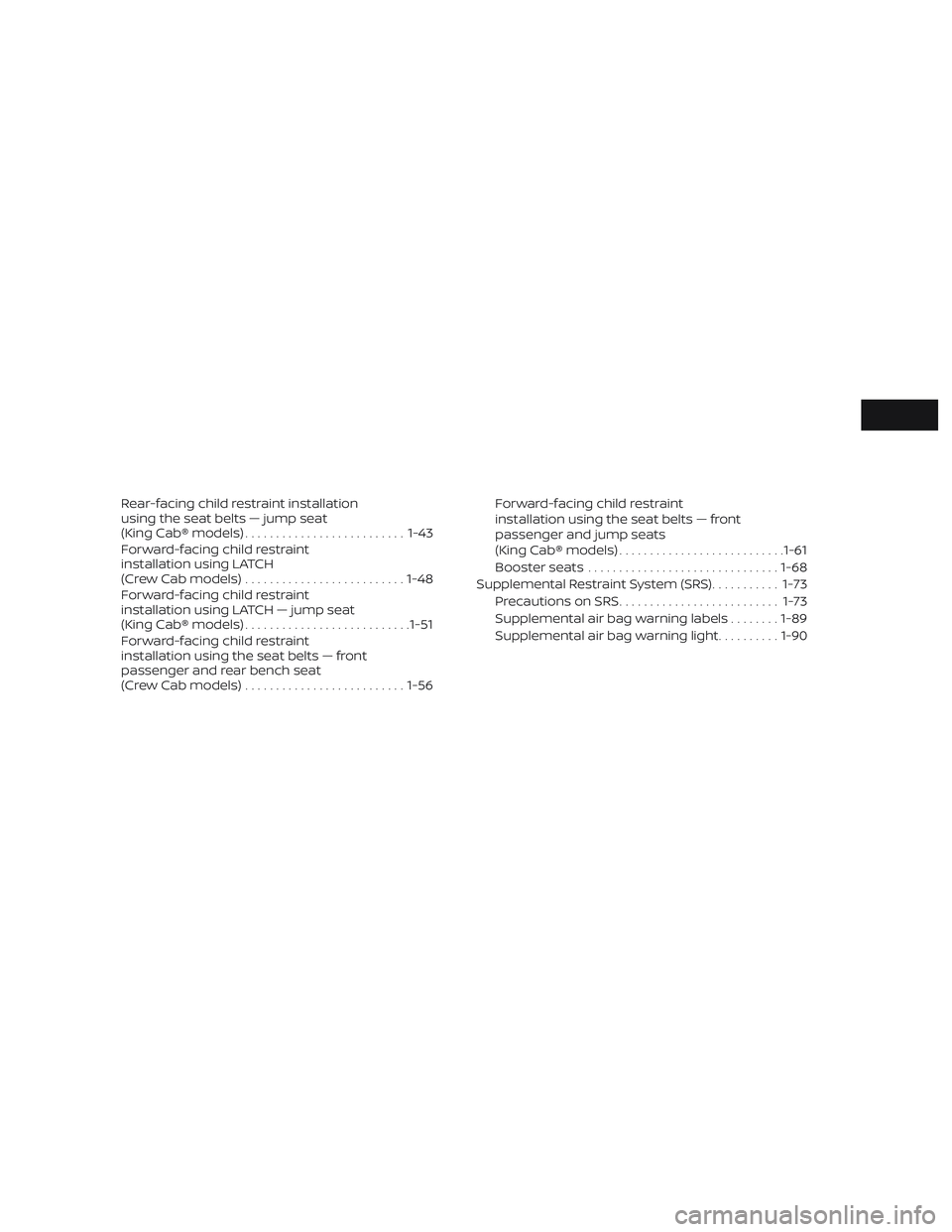

Page 23 of 516

Rear-facing child restraint installation
using the seat belts — jump seat
(King Cab® models).......................... 1-43
Forward-facing child restraint
installation using LATCH
(Crew Cab models) .......................... 1-48
Forward-facing child restraint
installation using LATCH — jump seat
(King Cab® models) ........................... 1-51
Forward-facing child restraint
installation using the seat belts — front
passenger and rear bench seat
(Crew Cab models) .......................... 1-56Forward-facing child restraint
installation using the seat belts — front
passenger and jump seats
(King Cab® models)
........................... 1-61
Booster seats ............................... 1-68
Supplemental Restraint System (SRS) ...........1-73
Precautions on SRS .......................... 1-73
Supplemental air bag warning labels ........1-89
Supplemental air bag warning light ..........1-90

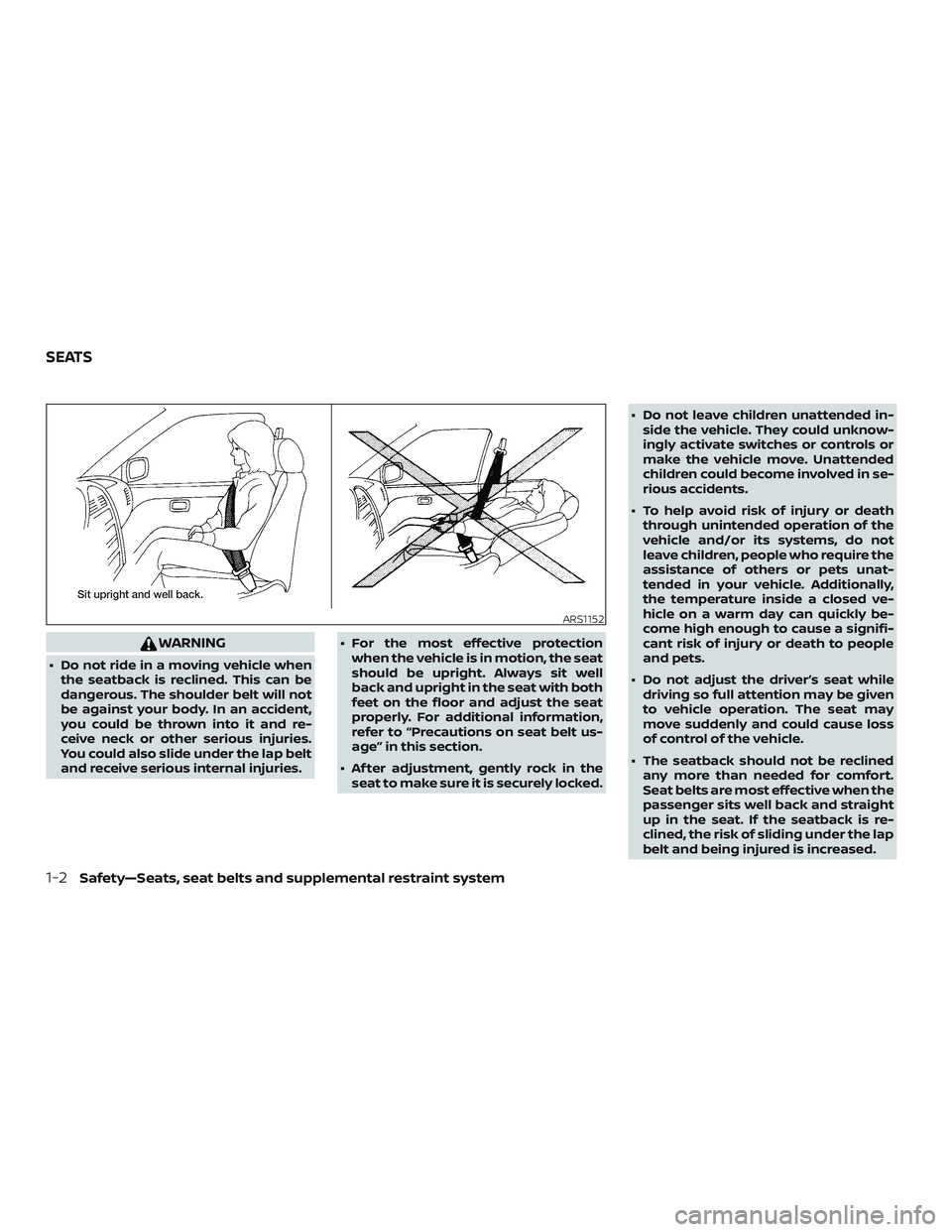

Page 24 of 516

WARNING
∙ Do not ride in a moving vehicle whenthe seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap belt
and receive serious internal injuries. ∙ For the most effective protection
when the vehicle is in motion, the seat
should be upright. Always sit well
back and upright in the seat with both
feet on the floor and adjust the seat
properly. For additional information,
refer to “Precautions on seat belt us-
age” in this section.
∙ Af ter adjustment, gently rock in the seat to make sure it is securely locked. ∙ Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls or
make the vehicle move. Unattended
children could become involved in se-
rious accidents.
∙ To help avoid risk of injury or death through unintended operation of the
vehicle and/or its systems, do not
leave children, people who require the
assistance of others or pets unat-
tended in your vehicle. Additionally,
the temperature inside a closed ve-
hicle on a warm day can quickly be-
come high enough to cause a signifi-
cant risk of injury or death to people
and pets.
∙ Do not adjust the driver’s seat while driving so full attention may be given
to vehicle operation. The seat may
move suddenly and could cause loss
of control of the vehicle.
∙ The seatback should not be reclined any more than needed for comfort.
Seat belts are most effective when the
passenger sits well back and straight
up in the seat. If the seatback is re-
clined, the risk of sliding under the lap
belt and being injured is increased.
ARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system

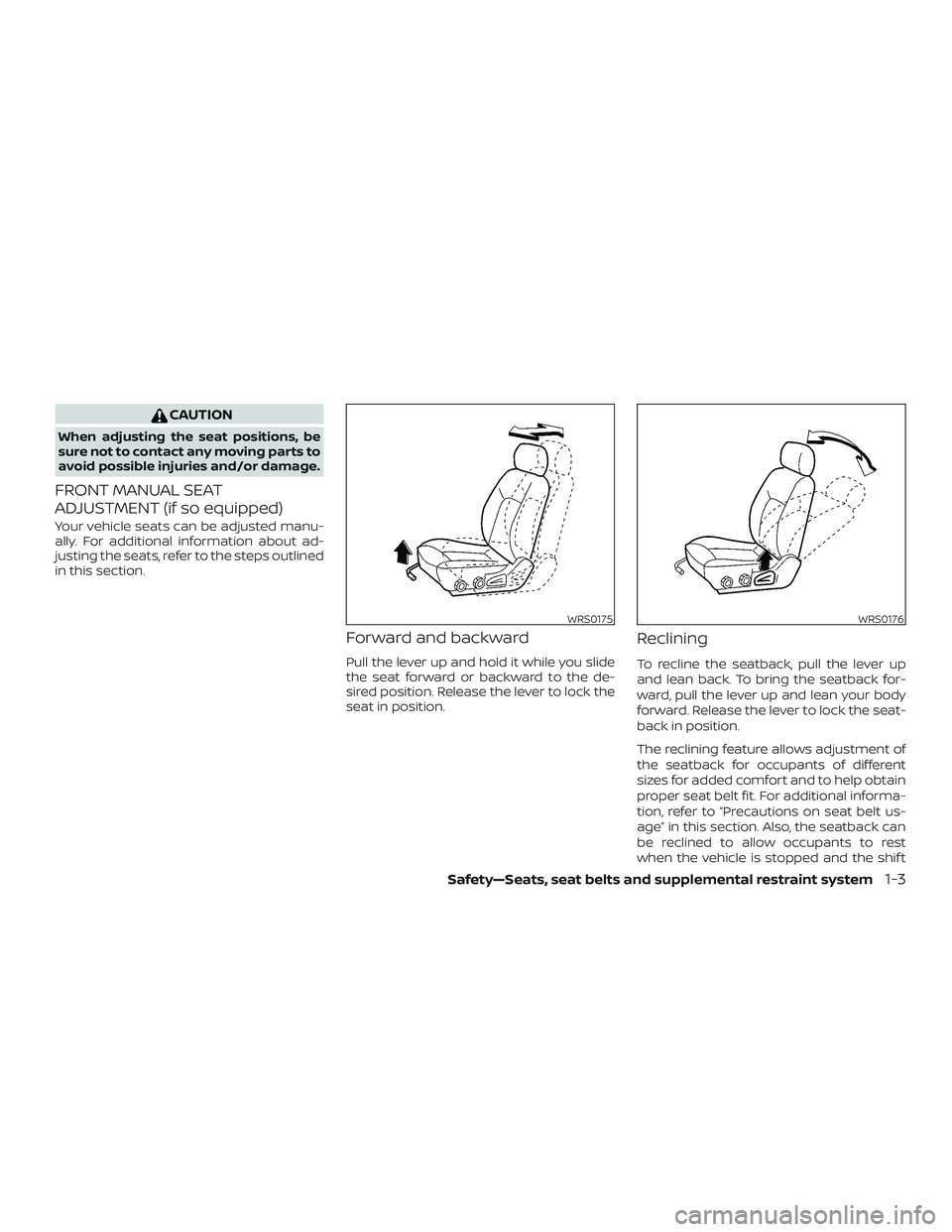

Page 25 of 516

CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
FRONT MANUAL SEAT
ADJUSTMENT (if so equipped)
Your vehicle seats can be adjusted manu-
ally. For additional information about ad-
justing the seats, refer to the steps outlined
in this section.
Forward and backward
Pull the lever up and hold it while you slide
the seat forward or backward to the de-
sired position. Release the lever to lock the
seat in position.
Reclining
To recline the seatback, pull the lever up
and lean back. To bring the seatback for-
ward, pull the lever up and lean your body
forward. Release the lever to lock the seat-
back in position.
The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. For additional informa-
tion, refer to “Precautions on seat belt us-
age” in this section. Also, the seatback can
be reclined to allow occupants to rest
when the vehicle is stopped and the shif t
WRS0175WRS0176
Safety—Seats, seat belts and supplemental restraint system1-3

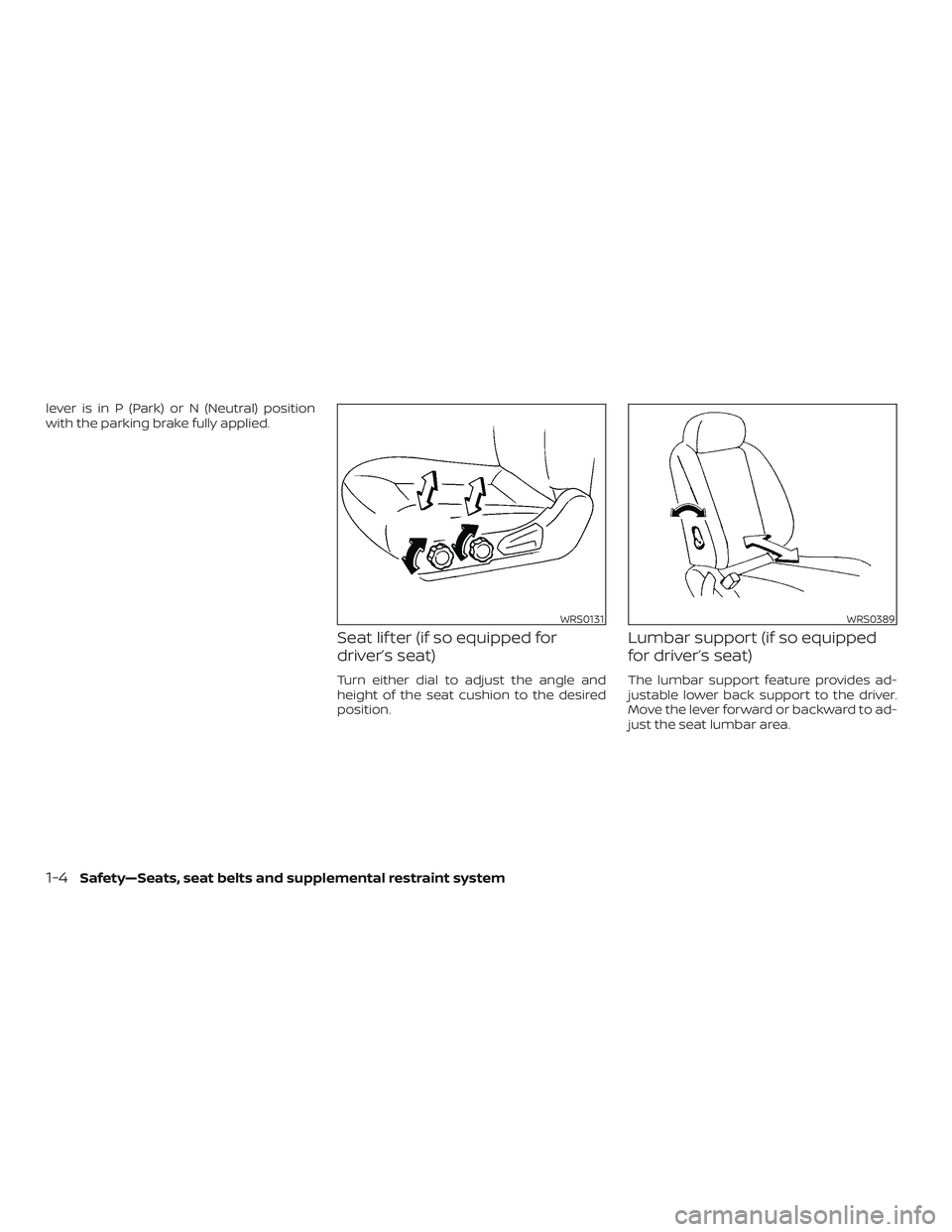

Page 26 of 516

lever is in P (Park) or N (Neutral) position
with the parking brake fully applied.
Seat lif ter (if so equipped for
driver’s seat)
Turn either dial to adjust the angle and
height of the seat cushion to the desired
position.
Lumbar support (if so equipped
for driver’s seat)
The lumbar support feature provides ad-
justable lower back support to the driver.
Move the lever forward or backward to ad-
just the seat lumbar area.
WRS0131WRS0389
1-4Safety—Seats, seat belts and supplemental restraint system

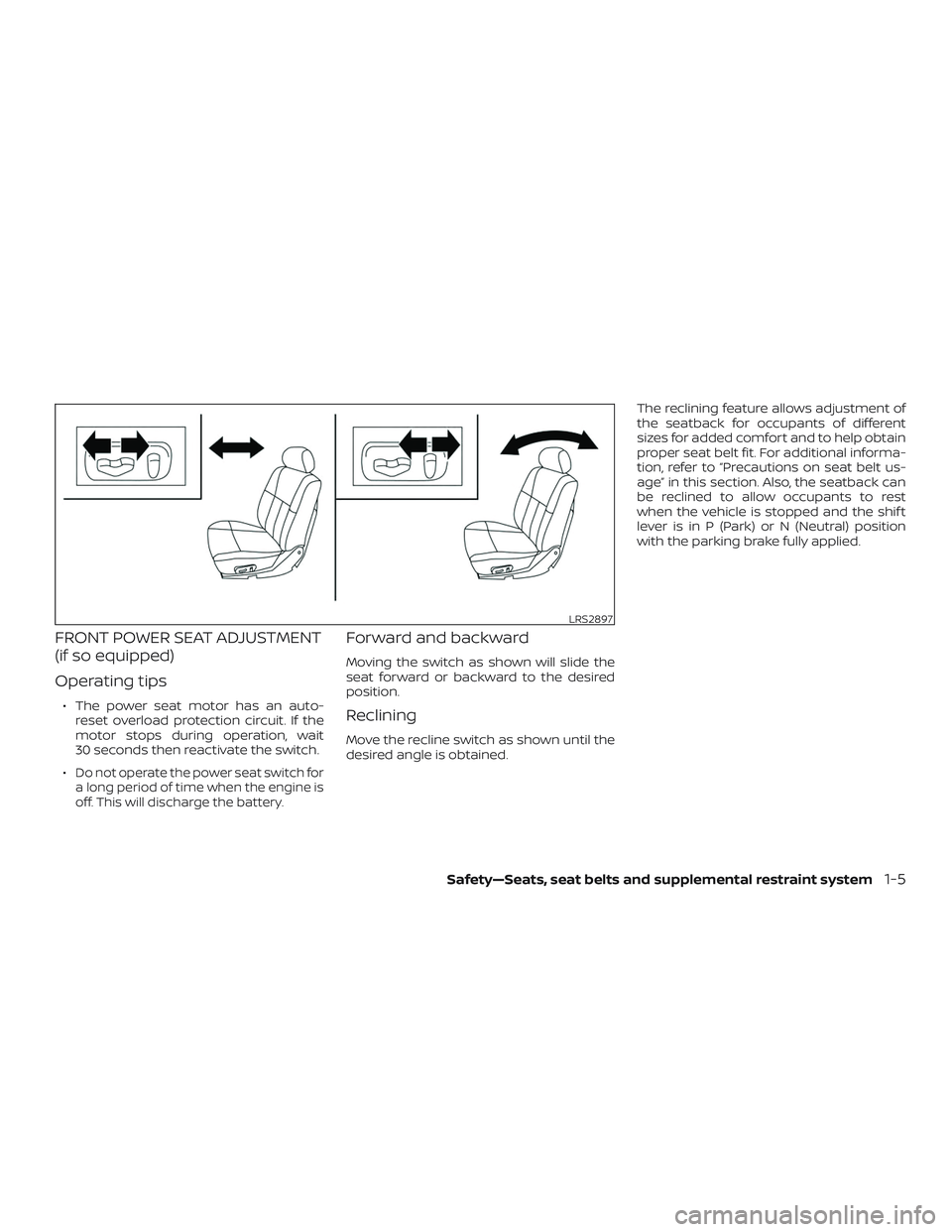

Page 27 of 516

FRONT POWER SEAT ADJUSTMENT
(if so equipped)
Operating tips
∙ The power seat motor has an auto-reset overload protection circuit. If the
motor stops during operation, wait
30 seconds then reactivate the switch.
∙
Do not operate the power seat switch for
a long period of time when the engine is
off. This will discharge the battery.
Forward and backward
Moving the switch as shown will slide the
seat forward or backward to the desired
position.
Reclining
Move the recline switch as shown until the
desired angle is obtained. The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. For additional informa-
tion, refer to “Precautions on seat belt us-
age” in this section. Also, the seatback can
be reclined to allow occupants to rest
when the vehicle is stopped and the shif t
lever is in P (Park) or N (Neutral) position
with the parking brake fully applied.
LRS2897
Safety—Seats, seat belts and supplemental restraint system1-5

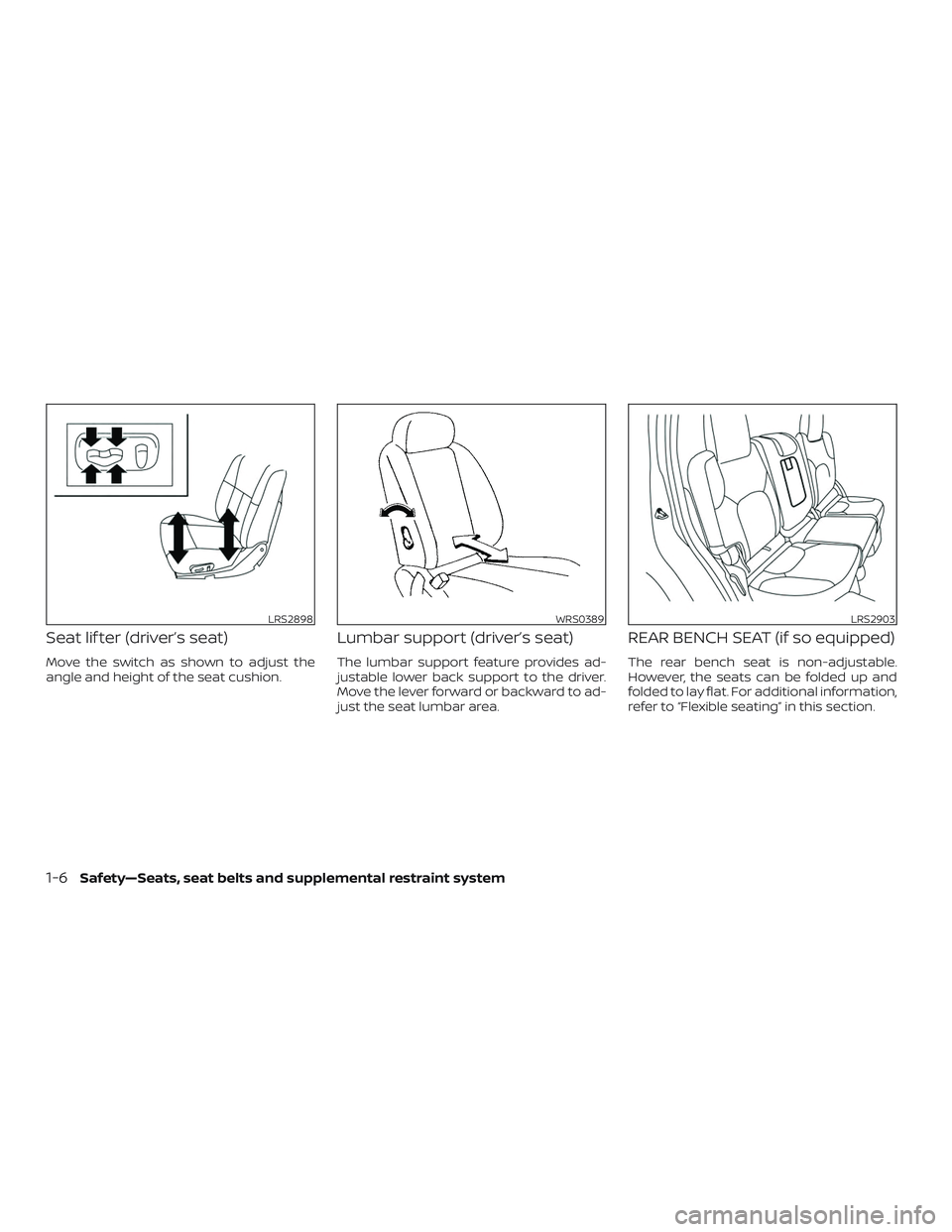

Page 28 of 516

Seat lif ter (driver’s seat)
Move the switch as shown to adjust the
angle and height of the seat cushion.
Lumbar support (driver’s seat)
The lumbar support feature provides ad-
justable lower back support to the driver.
Move the lever forward or backward to ad-
just the seat lumbar area.
REAR BENCH SEAT (if so equipped)
The rear bench seat is non-adjustable.
However, the seats can be folded up and
folded to lay flat. For additional information,
refer to “Flexible seating” in this section.
LRS2898WRS0389LRS2903
1-6Safety—Seats, seat belts and supplemental restraint system

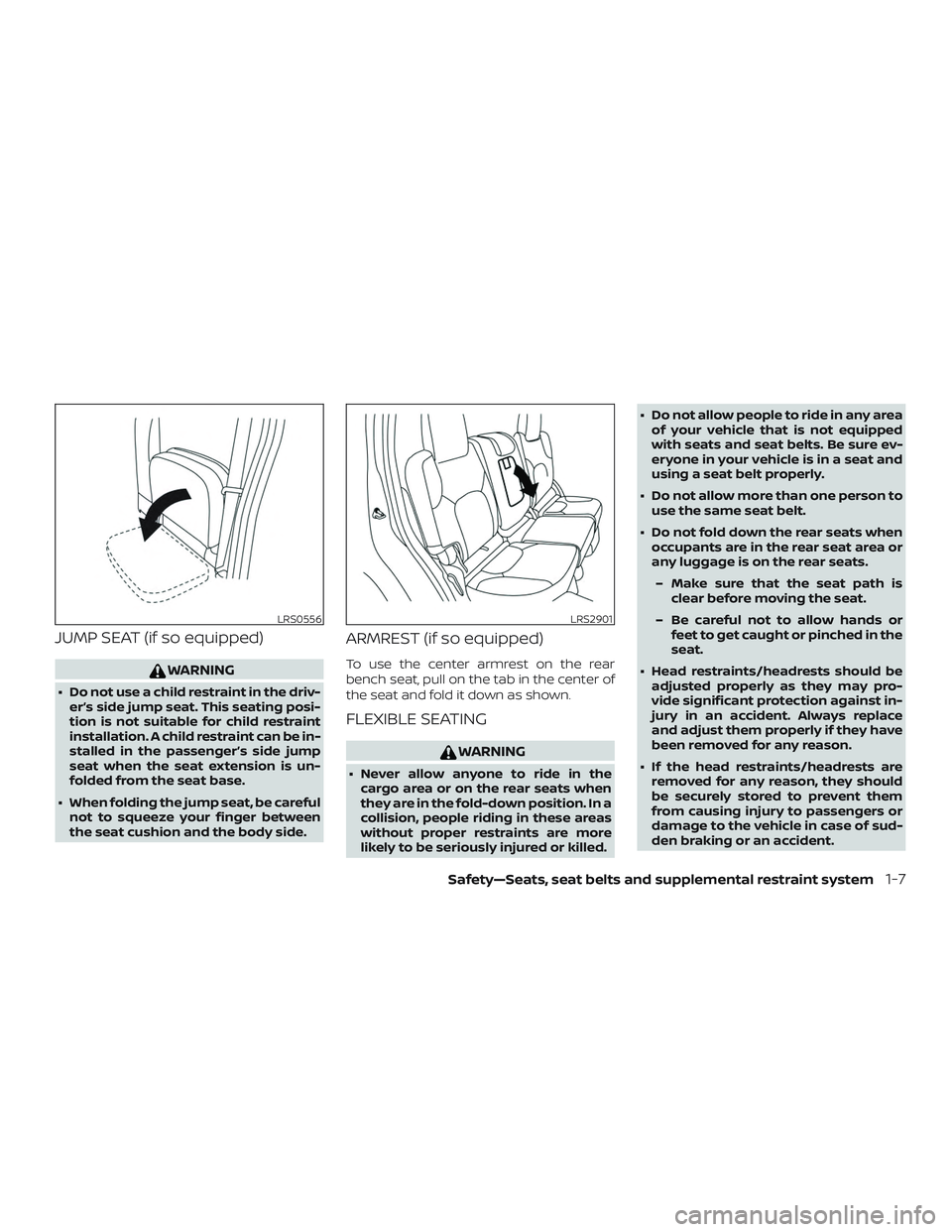

Page 29 of 516

JUMP SEAT (if so equipped)
WARNING
∙ Do not use a child restraint in the driv-er’s side jump seat. This seating posi-
tion is not suitable for child restraint
installation. A child restraint can be in-
stalled in the passenger’s side jump
seat when the seat extension is un-
folded from the seat base.
∙ When folding the jump seat, be careful not to squeeze your finger between
the seat cushion and the body side.
ARMREST (if so equipped)
To use the center armrest on the rear
bench seat, pull on the tab in the center of
the seat and fold it down as shown.
FLEXIBLE SEATING
WARNING
∙ Never allow anyone to ride in thecargo area or on the rear seats when
they are in the fold-down position. In a
collision, people riding in these areas
without proper restraints are more
likely to be seriously injured or killed. ∙ Do not allow people to ride in any area
of your vehicle that is not equipped
with seats and seat belts. Be sure ev-
eryone in your vehicle is in a seat and
using a seat belt properly.
∙ Do not allow more than one person to use the same seat belt.
∙ Do not fold down the rear seats when occupants are in the rear seat area or
any luggage is on the rear seats.
– Make sure that the seat path is clear before moving the seat.
– Be careful not to allow hands or feet to get caught or pinched in the
seat.
∙ Head restraints/headrests should be adjusted properly as they may pro-
vide significant protection against in-
jury in an accident. Always replace
and adjust them properly if they have
been removed for any reason.
∙ If the head restraints/headrests are removed for any reason, they should
be securely stored to prevent them
from causing injury to passengers or
damage to the vehicle in case of sud-
den braking or an accident.
LRS0556LRS2901
Safety—Seats, seat belts and supplemental restraint system1-7

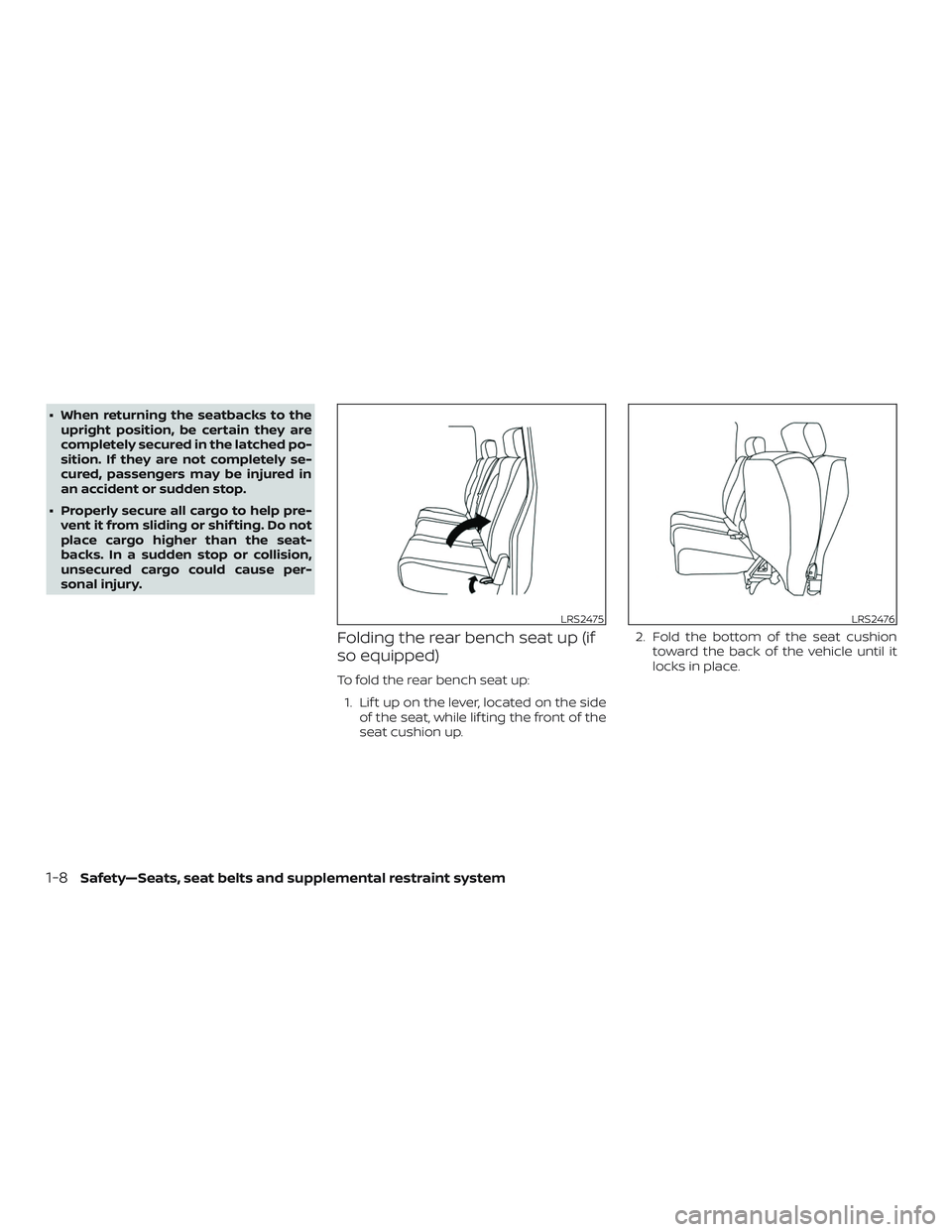

Page 30 of 516

∙ When returning the seatbacks to theupright position, be certain they are
completely secured in the latched po-
sition. If they are not completely se-
cured, passengers may be injured in
an accident or sudden stop.
∙ Properly secure all cargo to help pre- vent it from sliding or shif ting. Do not
place cargo higher than the seat-
backs. In a sudden stop or collision,
unsecured cargo could cause per-
sonal injury.
Folding the rear bench seat up (if
so equipped)
To fold the rear bench seat up:
1. Lif t up on the lever, located on the side of the seat, while lif ting the front of the
seat cushion up. 2. Fold the bottom of the seat cushion
toward the back of the vehicle until it
locks in place.
LRS2475LRS2476
1-8Safety—Seats, seat belts and supplemental restraint system
