Black plate (8,1)
Model "R35-D" EDITED: 2008/ 5/ 20
The following information applies if you engage
in performance driving such as driving your
GT-R for extended periods under the following
conditions.
.Higher-RPM (approaching redline) opera-
tion
. Frequent high pedal force braking from
moderate and higher speeds
. Frequent throttle activation
. Fast revving throughout the RPM range
In such cases, the following additional main-
tenance guidelines apply.
However, you should also carefully read
your 2009 NISSAN GT-R Warranty Informa-
tion Booklet for important information
concerning warranty coverage, limitations
and exclusions.
We recommend that maintenance be performed
at a GT-R certified NISSAN dealer. NISSAN will
only pay for GT-R Performance Optimization
Services performed at a GT-R certified NISSAN
dealer.FLUIDS. Before driving, check the fluid levels and
adjust as necessary using the specified fluid.
. Check the amount of fluid for the power steering.
. Be sure to change the fluids listed below
with the specified fluids every 1,800 miles
(3,000 km) .
ITEMS GT-R SPECIFIED FLUIDS
Engine oil Mobil 1, 0W-40*1
Transmission oil Genuine NISSAN Transmission
Oil R35 Special
Differential oil
(front and rear) Castrol SAF-XJ 75W-140
Brake fluid Genuine NISSAN Brake Fluid
R35 Special DOT4*2
*1: Mobil 1, 0W-40 (100% synthetic) is the factory fill oil. The VR38 engine with its plasma-sprayed
bores was developed using this oil. NISSAN
cannot ensure proper engine operation and dur-
ability if other 0W-40 synthetic oil is used. If Mobil
1, 0W-40 is not available, Mobil 1, 10W-40 (100%
synthetic) may be used; however, some perfor-
mance loss may be noticed.
*2: Genuine NISSAN Brake Fluid R35 Special DOT4 is the factory fill brake fluid. The Vehicle Dynamic
Control (VDC) unit and other related parts were
specially designed for this brake fluid and NISSAN
cannot ensure the best performance and proper
operation of the vehicle if other brake fluid is used.
INSPECTION AND ADJUSTMENTS
OF TIRES, SUSPENSION AND
BRAKES. Measure and adjust the wheel alignment.
. Check the tire pressure and the Tire
Pressure Monitoring System (TPMS) sen-
sor.
. Make tire pressure adjustments only when
the tires are cool. (
“WHEELS AND
TIRES” page 8-29)
. Secure road wheel balance weights with
aluminum tape or equivalent.
. Check the heat deterioration and wear of the
brakes. (As necessary, the brake pad and
the brake disc rotor must be replaced as a
set of four with new ones.)
REPLENISHING COOLANTCheck the coolant level in the pressurized
coolant reservoir. Adjust the level so that the
fluid is between the MAX and MIN markings. For
the coolant, use genuine NISSAN Long Life
coolant. (On delivery of new vehicle, the
reservoir is filled to the MIN level. Be sure to
replenish approximately 0.3 to 0.4 US quart (0.3
to 0.4 liter) of coolant.)
GTR-6
GT-R Overview
ADDITIONAL MAINTENANCE ITEMS
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 77 of 311
Black plate (10,1)
2 Instruments and controls
Model "R35-D" EDITED: 2008/ 5/ 20
Cockpit............................................................ 2-2
Instrument panel ................................................ 2-3
Meters and gauges ............................................. 2-4
Speedometer ................................................ 2-5
Odometer/twin trip odometer ............................ 2-5
Tachometer ................................................... 2-6
Engine coolant temperature gauge ..................... 2-6
Fuel gauge ................................................... 2-7
Transmission position indicator .......................... 2-7
Upshift indicator ............................................. 2-8
Instrument brightness control .......................... 2-10
Vehicle information display .................................. 2-10
Engine oil level display .................................. 2-11
Transmission system check display ................... 2-12
Drive computer ................................................ 2-13
Current fuel consumption ............................... 2-14
Vehicle speed ............................................. 2-14
Cruise control ............................................. 2-14
Average fuel consumption and speed. ............... 2-15
Elapsed time and trip odometer ....................... 2-15
Distance to empty ........................................ 2-16
Outside air temperature ................................. 2-16
Setting (drive computer) ................................ 2-17
Warning (drive computer) ............................... 2-21
Warning/indicator lights and audible reminders ....... 2-23
Checking bulbs ........................................... 2-23 Warning lights
............................................. 2-23
Indicator lights ............................................. 2-28
Audible reminders ........................................ 2-30
Warning display ............................................... 2-31
Engine oil low pressure warning ...................... 2-32
Engine system warning .................................. 2-32
Shift lever position warning ............................. 2-32
Transmission system warning .......................... 2-33
Transmission oil high temperature warning ......... 2-33
Transmission clutch high temperature warning. .... 2-33
Parking brake release warning ......................... 2-34
Low brake fluid warning ................................. 2-34
Anti-lock Braking System (ABS) warning ........... 2-34
Vehicle Dynamic Control (VDC) system
warning ..................................................... 2-35
AWD clutch high temperature warning .............. 2-35
Front/rear tire size discrepancy warning ............. 2-35
AWD system warning .................................... 2-36
Low tire pressure warning .............................. 2-36
Run-flat tire warning ..................................... 2-36
Tire Pressure Monitoring System (TPMS) warning .................................................... 2-37
Cruise control system warning ........................ 2-37
Low fuel warning .......................................... 2-37
Door/trunk open warning. ............................... 2-38
Low washer fluid warning ............................... 2-38
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 226 of 311
Black plate (221,1)
Model "R35-D" EDITED: 2008/ 5/ 20
3. If engine overheating is caused by climbinga long hill on a hot day, run the engine at a
fast idle (approximately 1,500 rpm) until the
temperature gauge indication returns to
normal.
4. Get out of the vehicle. Look and listen for steam or coolant escaping from the radiator
before opening the hood. (If steam or
coolant is escaping, turn off the engine.)
Do not open the hood further until no steam
or coolant can be seen.
5. Open the engine hood.
WARNING
If steam or water is coming from the
engine, stand clear to prevent getting
burned.
6. Visually check drive belts for damage or looseness. Also check if the cooling fan is
running. The radiator hoses and radiator
should not leak water. If coolant is leaking,
the drive belts are missing or loose, or the
cooling fan does not run, stop the engine.
WARNING
Be careful not to allow your hands, hair,
jewelry or clothing to come into contact
with, or get caught in, engine belts or the engine cooling fan. The engine
cooling fan can start at any time.
7. When the coolant temperature gauge goes down to the midpoint, stop the engine and
wait until the gauge goes down further to
“C” (cold) .
8. After the engine cools down, check the coolant level in the reservoir tank. Add
coolant to the reservoir, if necessary, after
opening the coolant reservoir cap with a
heavy cloth covering it. (
“ENGINE
COOLING SYSTEM” page 8-9)
9. Have your vehicle repaired at the nearest GT-R certified NISSAN dealer.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet or
Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada) .
When towing your vehicle, all State (Provincial in
Canada) and local regulations for towing must
be followed. Incorrect towing equipment could
damage your vehicle. Towing instructions are
available from a GT-R certified NISSAN dealer.
Local service operators are familiar with the
applicable laws and procedures for towing. To
assure proper towing and to prevent accidental
damage to your vehicle, NISSAN recommends
that you have a service operator tow your
vehicle. It is advisable to have the service
operator carefully read the following precau-
tions.
WARNING
. Never ride in a vehicle that is being
towed.
. Never get under your vehicle after it
has been lifted by a tow truck.
CAUTION
Always attach safety chains before
towing.
NOTICE
When towing, make sure that the
transmission, axles, steering system
and powertrain are in working condi-
In case of emergency
6-7
TOWING YOUR VEHICLE
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 239 of 311
Black plate (28,1)
8 Maintenance and do-it-yourself
Model "R35-D" EDITED: 2008/ 5/ 20
Maintenance requirement..................................... 8-2
Scheduled maintenance ................................... 8-2
General maintenance ...................................... 8-2
Where to go for service ................................... 8-2
General maintenance .......................................... 8-3
Explanation of maintenance items ....................... 8-3
Maintenance precautions ..................................... 8-5
Engine compartment check locations ...................... 8-7
Removing the cowl top cover ............................ 8-8
Engine cooling system ......................................... 8-9
Checking engine coolant level ......................... 8-11
Changing engine coolant ............................... 8-11
Engine oil ....................................................... 8-12
Checking engine oil level ............................... 8-12
Changing engine oil and filter .......................... 8-12
Transmission oil ............................................... 8-13
Power steering fluid .......................................... 8-13
Brake fluid ...................................................... 8-14
Window washer fluid ........................................ 8-15
Battery .......................................................... 8-15
Precautions ................................................ 8-15
Fluid level check .......................................... 8-16
Jump starting .............................................. 8-17 Drive belts
...................................................... 8-17
Spark plugs .................................................... 8-18
Replacing spark plugs ................................... 8-18
Air cleaner ...................................................... 8-19
Windshield wiper blades .................................... 8-19
Cleaning .................................................... 8-19
Replacing the wiper blades ............................ 8-20
Brakes ........................................................... 8-20
Self-adjusting brakes .................................... 8-20
Brake pad wear indicators .............................. 8-20
High performance brake system ....................... 8-21
Replacing the brake pads .............................. 8-21
Fuses ............................................................ 8-22
Engine compartment ..................................... 8-22
Passenger compartment ................................ 8-23
Intelligent Key battery replacement ....................... 8-23
Lights ............................................................ 8-26
Headlights .................................................. 8-26
Exterior and interior lights ............................... 8-27
Wheels and tires .............................................. 8-29
Tire pressure ............................................... 8-29
Tire and loading information label ..................... 8-31
Checking the tire pressure ............................. 8-32
Tire labeling ................................................ 8-33
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 243 of 311
Black plate (238,1)
Model "R35-D" EDITED: 2008/ 5/ 20
Inside the vehicleThe maintenance items listed here should be
checked on a regular basis, such as when
performing periodic maintenance, cleaning the
vehicle, etc.
Accelerator pedal:Check the pedal for
smooth operation and make sure the pedal
does not catch or require uneven effort. Keep
the floor mat away from the pedal.
Transmission
&Pmechanism: On a fairly steep
hill, check that your vehicle is held securely with
the shift lever in the&Pposition without applying
any brakes.
Brake pedal: Check the pedal for smooth
operation. If the brake pedal suddenly goes
down further than normal, the pedal feels
spongy or the vehicle seems to take longer to
stop, see a GT-R certified NISSAN dealer
immediately. Keep the floor mat away from the
pedal.
Brakes: Check that the brakes do not pull the
vehicle to one side when applied.
Parking brake: Check the parking brake
operation regularly. The vehicle should be
securely held on a fairly steep hill with only the
parking brake applied. If the parking brake needs
to be adjusted, see a GT-R certified NISSAN
dealer. Seat belts:
Check that all parts of the seat belt
system (for example, buckles, anchors, adjuster
and retractors) operate properly and smoothly,
and are installed securely. Check the belt
webbing for cuts, fraying, wear or damage.
Seats: Check seat position controls such as
seat adjusters, seatback recliner, etc. to ensure
they operate smoothly and that all latches lock
securely in every position. Check that the head
restraints move up and down smoothly and that
the locks (if so equipped) hold securely in all
latched positions.
Steering wheel: Check for changes in the
steering conditions, such as excessive free play,
hard steering or strange noises.
Warning lights and chimes: Make sure that
all warning lights and chimes are operating
properly.
Windshield defroster: Check that the air
comes out of the defroster outlets properly and
in sufficient quantity when operating the heater
or air conditioner.
Windshield wiper and washer*: Check that
the wipers and washer operate properly and that
the wipers do not streak.
Under the hood and vehicleThe maintenance items listed here should be
checked periodically (for example, each time you check the engine oil or refuel) .
Battery*:
Check the fluid level in each cell. It
should be between the MAX and MIN lines.
Vehicles operated in high temperatures or under
severe condition require frequent checks of the
battery fluid level.
Brake fluid level*: Make sure that the brake
fluid level is between the MAX and MIN lines on
the reservoir.
Engine coolant level*: Check the coolant level
when the engine is cold.
Engine drive belts*: Make sure that no belt is
frayed, worn, cracked or oily.
Engine oil level*: Check the level after parking
the vehicle on a level spot and turning off the
engine. Wait at least 5 minutes for the oil to
drain back into the oil pan before checking the
oil.
Exhaust system: Make sure there are no loose
supports, cracks or holes. If the sound of the
exhaust seems unusual or there is a smell of
exhaust fumes in the engine compartment,
immediately have the exhaust system inspected
by a GT-R certified NISSAN dealer.
(
“EXHAUST GAS (Carbon monoxide)”
page 5-2)
Fluid leaks: Check under the vehicle for fuel,
oil, water or other fluid leaks after the vehicle has
8-4
Maintenance and do-it-yourself
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 250 of 311
Black plate (245,1)
Model "R35-D" EDITED: 2008/ 5/ 20
CHECKING ENGINE COOLANT LE-
VELCheck the coolant levelin the reservoir when
the engine is cold . If the coolant level is below
the MIN level
*2, open the reservoir cap
(pressure type)
*B
and add coolant up to the
MAX level
*1. If the reservoir is empty, open the
radiator filler cap
*A
and check the coolant
level in the radiator when the engine is cold .If
there is insufficient coolant in the radiator, fill the
radiator with coolant up to the filler opening and
also add it to the reservoir up to the MAX level
*1.
If the cooling system frequently requires
coolant, have it checked by a GT-R certified
NISSAN dealer.
Check that the level of coolant is between MAX
and MIN on the pressurized radiator reservoir. If
the level is below the midpoint, the amount of
coolant circulating may be insufficient for max-
imum vehicle performance, possibly causing
engine overheating or other trouble.
If it is difficult to determine the midpoint between
MAX and MIN, remove the coolant reservoir cap
and look inside through the opening to check
that the coolant level is above the divider
*3
between the top half and bottom half of the
pressurized coolant reservoir.
NOTICE
. The coolant reservoir is equipped
with a pressure type cap, and the
radiator is equipped with a non-
pressure type cap. Do not switch
the radiator filler cap and the cool-
ant reservoir cap. Doing so will
cause substandard cooling perfor-
mance and overheating.
. If you have added only water as the
coolant in an emergency, change it
to a coolant mixture ratio specified
as soon as possible.CHANGING ENGINE COOLANTIf major cooling system repairs are required,
contact a GT-R certified NISSAN dealer. The
service procedures can be found in the appro-
priate NISSAN Service Manual.
Improper servicing can result in reduced
heater performance and engine overheat-
ing.
WARNING
.To avoid the danger of being
scalded, never change the coolant
when the engine is hot. .
Never remove the radiator filler cap
and the coolant reservoir cap when
the engine is hot. Serious burns
could be caused by high pressure
fluid escaping from the radiator and
reservoir.
. Avoid direct skin contact with used
coolant. If skin contact is made,
wash thoroughly with soap or hand
cleaner as soon as possible.
. Keep coolant out of reach of chil-
dren and pets.
Engine coolant must be disposed of properly.
Check your local regulations.
Maintenance and do-it-yourself
8-11
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 254 of 311
Black plate (249,1)
Model "R35-D" EDITED: 2008/ 5/ 20

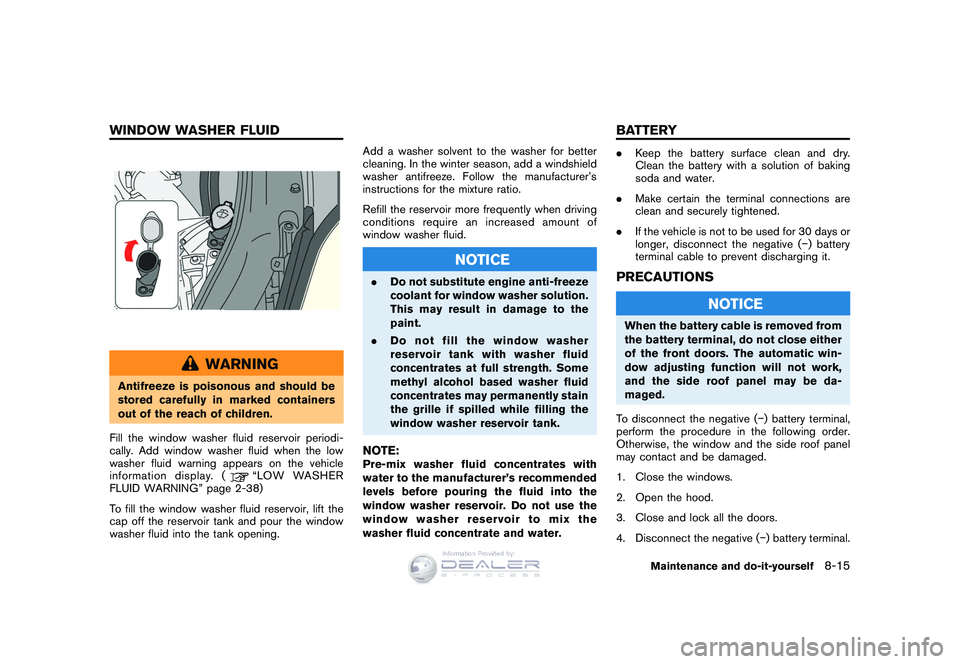

WARNING
Antifreeze is poisonous and should be
stored carefully in marked containers
out of the reach of children.
Fill the window washer fluid reservoir periodi-
cally. Add window washer fluid when the low
washer fluid warning appears on the vehicle
information display. (
“LOW WASHER
FLUID WARNING” page 2-38)
To fill the window washer fluid reservoir, lift the
cap off the reservoir tank and pour the window
washer fluid into the tank opening. Add a washer solvent to the washer for better
cleaning. In the winter season, add a windshield
washer antifreeze. Follow the manufacturer’s
instructions for the mixture ratio.
Refill the reservoir more frequently when driving
conditions require an increased amount of
window washer fluid.
NOTICE
.
Do not substitute engine anti-freeze
coolant for window washer solution.
This may result in damage to the
paint.
. Do not fill the window washer
reservoir tank with washer fluid
concentrates at full strength. Some
methyl alcohol based washer fluid
concentrates may permanently stain
the grille if spilled while filling the
window washer reservoir tank.NOTE:Pre-mix washer fluid concentrates with
water to the manufacturer’s recommended
levels before pouring the fluid into the
window washer reservoir. Do not use the
window washer reservoir to mix the
washer fluid concentrate and water.
.Keep the battery surface clean and dry.
Clean the battery with a solution of baking
soda and water.
. Make certain the terminal connections are
clean and securely tightened.
. If the vehicle is not to be used for 30 days or
longer, disconnect the negative ( ) battery
terminal cable to prevent discharging it.PRECAUTIONS
NOTICE
When the battery cable is removed from
the battery terminal, do not close either
of the front doors. The automatic win-
dow adjusting function will not work,
and the side roof panel may be da-
maged.
To disconnect the negative ( ) battery terminal,
perform the procedure in the following order.
Otherwise, the window and the side roof panel
may contact and be damaged.
1. Close the windows.
2. Open the hood.
3. Close and lock all the doors.
4. Disconnect the negative ( ) battery terminal.
Maintenance and do-it-yourself
8-15
WINDOW WASHER FLUID BATTERY
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 285 of 311
Black plate (280,1)
Model "R35-D" EDITED: 2008/ 5/ 20
The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure
instructed in the “8. Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (Approximate)Recommended specifications
US measure Imp measure Liter
Fuel 19-1/2 gal 16-1/4 gal 73.8 Unleaded gasoline with an octane rating of at least 93 AKI (RON 98)*1
Engine oil*4
Mobil 1, 0W-40*2
Drain and refill
With oil filter change 5-7/8 4-7/8 5.5
Without oil filter change 5-1/4 4-3/8 5.0
Cooling system With reservoir 11-5/8 9-5/8 11.0 Genuine NISSAN Long Life Antifreeze/Coolant or equivalent*7
Reservoir 1-1/2 1-1/4 1.4
Transmission oil — — — Genuine NISSAN Transmission Oil R35 Special*3
Differential oil (front and rear) — — — Castrol SAF-XJ 75W-140*3
Power steering fluid (PSF) Refill to the proper oil level according to the instructions in the “8.
Maintenance and do-it-yourself” section. Genuine NISSAN PSF or equivalent*6
Brake fluid Genuine NISSAN Brake Fluid R35 Special DOT4*8
Multi-purpose grease — — — NLGI No. 2 (Lithium soap base)
Air conditioning system refrigerant — — — HFC-134a (R-134a)*5
Air conditioning system lubricants — — — NISSAN UV Luminous Oil
Type S or exact equivalent
Window washer fluid — — — Genuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze or equivalent
*1: For additional information, see the following section. (
“FUEL RECOMMENDATION” page 9-3)
*2: Mobil 1, 0W-40 (100% synthetic) is the factory fill oil. The VR38 engine with its plasma-sprayed bores was developed using this oil. NISSAN cannot ensure proper engine operation and durability if other 0W-40 synthetic oil is used. If Mobil 1, 0W-40 is not available, Mobil 1, 10W-40 (100% synthetic) may be used; however, some performance loss may be noticed. For additional information, see the following section.
(
“ENGINE OIL AND OIL FILTER RECOMMENDATION” page 9-4)
*3: The use of fluids and lubricants other than the specified may cause vehicle malfunctions and result in non-warranty vehicle repairs.
*4: For additional information, see the following section. (
“ENGINE OIL” page 8-12)
*5: For additional information, see the following section. (“AIR CONDITIONER SPECIFICATION LABEL” page 9-10)
*6: DEXRON
TMVI type ATF or Canada NISSAN Automatic Transmission Fluid may also be used.
*7: For additional information, see the following section. (
“ENGINE COOLING SYSTEM” page 8-9)
*8: Genuine NISSAN Brake Fluid R35 Special DOT4 is the factory fill brake fluid. The Vehicle Dynamic Control (VDC) unit and other related parts were specially designed for this brake fluid and NISSAN cannot ensure the best performance and proper operation of the vehicle if other brake fluid is used.
9-2
Technical and consumer information
CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 304 of 311
Black plate (1,1)
10 Index
A
Additional maintenance items ................... GTR-6
Air cleaner .......................................... 8-19
Air conditioner Air conditioner specification label ............ 9-10
Air conditioning system refrigerant and
lubricant recommendations ......................... 9-5
All-season tires ................................... GTR-5
All-Wheel Drive .................................... 5-34
All-Wheel Drive driving safety precautions ........ 5-7
Aluminum alloy wheels .............................. 7-3
Anti-freeze .......................................... 5-42
Anti-lock Braking System ......................... 5-39
Anti-lock Braking System warning ................ 2-34
Audible reminders ................................. 2-30
Automatic Automatic door lock system .................... 3-5
Average fuel consumption and speed ............ 2-15
Avoiding collision and rollover ...................... 5-5
AWD clutch high temperature warning .......... 2-35
AWD system characteristics ...................... 5-35
AWD system warning ............................. 2-36
AWD warning light ................................ 5-34
B
Battery ....................................... 5-42, 8-15
Intelligent Key battery discharge .............. 5-10
Intelligent Key battery discharge indicator . . . 2-42
Intelligent Key battery replacement ........... 8-23
Before starting the engine ........................ 5-11
Body repair ....................................... GTR-5 Booster seat installation
........................... 1-29
Booster seats ...................................... 1-27
Brake Brake assist .................................... 5-39
Brake dust .................................... GTR-9
Brake fluid ............................. GTR-3, 8-14
Brake pad and disc rotor .................... GTR-3
Brake pad wear indicators .................... 8-20
Brake system ................................... 5-38
Brakes .......................................... 8-20
High performance brake system .............. 8-21
Inspection and adjustments of tires,
suspension and brakes ...................... GTR-6
Low brake fluid warning ....................... 2-34
Parking brake .................................. 5-27
Parking brake break-in ......................... 5-39
Parking brake release warning ................ 2-34
Replacing the brake pads ..................... 8-21
Self-adjusting brakes .......................... 8-20
Braking precautions ............................... 5-38
Break-in schedule .................................. 5-32
C
Capacities and recommended fuel/lubricants ..... 9-2
Changing Changing engine coolant ...................... 8-11
Changing engine oil and filter ................. 8-12
Changing wheels and tires .................... 8-37
Checking Checking bulbs ................................ 2-23
Checking engine coolant level ................ 8-11
Checking engine oil level ...................... 8-12 Checking the tire pressure
.................... 8-32
Child restraint installation using LATCH. ......... 1-17
Child restraint installation using the seat
belts ................................................. 1-21
Child restraints ..................................... 1-13
Child safety ........................................... 1-7
Chrome parts ........................................ 7-3
Cleaning ............................................ 8-19
Cleaning exterior ..................................... 7-2
Cleaning interior ..................................... 7-4
Clearing the programmed information ............ 2-63
Closing the fuel-filler door ........................ 3-24
Closing the hood .................................. 3-18
Coat hooks ......................................... 2-56
Cockpit ............................................... 2-2
Cold weather driving .............................. 5-42
Console box ........................................ 2-56
Cool down ........................................ GTR-7
Coolant Changing engine coolant ...................... 8-11
Checking engine coolant level ................ 8-11
Coolant mixture ratio ......................... GTR-7
Draining of coolant water ..................... 5-42
Engine coolant temperature gauge ............. 2-6
Replenishing coolant ........................ GTR-6
Corrosion protection ................................. 7-5
Cruise control ............................... 2-14, 5-28
Cruise control operations ......................... 5-29
Cruise control system warning .................... 2-37
Cup holders ........................................ 2-53
Current fuel consumption ......................... 2-14
Model "R35-D" EDITED: 2008/ 5/ 20
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 305 of 311
Black plate (2,1)
10-2
D
Differential oil ..................................... GTR-2
Dimensions ........................................... 9-8
Distance to empty ................................. 2-16
Distortion of rear wing ........................... GTR-8
Door pocket ........................................ 2-55
Door/trunk open warning .......................... 2-38
Doors ................................................. 3-4
Draining of coolant water ......................... 5-42
Drinking alcohol/drugs and driving ................. 5-7
Drive belts .......................................... 8-17
Drive computer ..................................... 2-13
Driving All-Wheel Drive driving safety precautions .... 5-7
Cold weather driving .......................... 5-42
Drinking alcohol/drugs and driving ............. 5-7
Driving on SNOW or ice ...................... 5-42
Driving the vehicle ............................. 5-13
Driving tips ..................................... 5-19
Noises are heard while driving .............. GTR-8
Precautions before driving .................. GTR-5
Precautions when starting and driving ......... 5-2
Dual clutch transmission ................. GTR-9, 5-13
E
Elapsed time and trip odometer .................. 2-15
Emergency trunk lid release ....................... 3-21
Emission control information label ................ 9-10
Emission control system warranty ................ 9-15
Engine ................................................ 9-6
Before starting the engine .................... 5-11
Changing engine coolant ...................... 8-11
Changing engine oil and filter ................. 8-12Checking engine coolant level
................ 8-11
Checking engine oil level ...................... 8-12
Engine block heater ........................... 5-43
Engine compartment ........................... 8-22
Engine compartment check locations .......... 8-7
Engine coolant temperature gauge ............. 2-6
Engine cooling system .......................... 8-9
Engine oil .............................. GTR-2, 8-12
Engine oil and oil filter recommendation ....... 9-4
Engine oil level display ........................ 2-11
Engine oil low pressure warning .............. 2-32
Engine serial number ............................ 9-9
Engine settings. .............................. GTR-4
Engine speed is restricted .................. GTR-7
Engine start operation indicator .............. 2-40
Engine system warning ........................ 2-32
Operating range for engine start ............... 5-8
Starting the engine ............................ 5-11
Environmental factors influence the rate of
corrosion. ............................................. 7-5
Event data recorders .............................. 9-17
Exhaust gas .......................................... 5-2
Exhaust muffler ................................... GTR-3
Explanation of maintenance items .................. 8-3
Exterior and interior lights ......................... 8-27
Exterior parts ..................................... GTR-3
F
F.M.V.S.S./C.M.V.S.S. certification label. ........... 9-9
Features of each mode ............................ 5-23
Flat tire ................................................ 6-2
Flat towing .......................................... 9-14
Floor mats ............................................ 7-4 Fluid
Brake fluid ............................. GTR-3, 8-14
Fluid level check ............................... 8-16
Fluids ......................................... GTR-6
Low brake fluid warning ....................... 2-34
Low washer fluid warning ..................... 2-38
Power steering fluid ........................... 8-13
Window washer fluid .......................... 8-15
Freeing a frozen door lock ........................ 5-42
Front seat-mounted side-impact
supplemental air bag and roof-mounted
curtain side-impact
supplemental air bag system ...................... 1-40
Front seats ........................................... 1-2
Front/rear tire size discrepancy warning ......... 2-35
Fuel Average fuel consumption and speed ........ 2-15
Capacities and recommended
fuel/lubricants .................................... 9-2
Closing the fuel-filler door .................... 3-24
Current fuel consumption ..................... 2-14
Fuel gauge ....................................... 2-7
Fuel recommendation ............................ 9-3
Fuel-filler door .................................. 3-22
Increasing fuel economy ....................... 5-33
Low fuel warning ............................... 2-37
Opening the fuel filler door ................... 3-23
Refueling precautions ....................... GTR-7
Refueling stops before the tank is full ...... GTR-7
Fuses ............................................... 8-22
G
Gasoline smell ................................... GTR-7
Model "R35-D" EDITED: 2008/ 5/ 20
, Q I R U P D W L R Q 3 U R Y L G H G E \
