Page 16 of 311
Black plate (11,1)
Model "R35-D" EDITED: 2008/ 5/ 20
BRAKE DUSTThis vehicle is equipped with high performance
brakes, and the characteristics of the brake pad
material may cause more brake dust than other
vehicles. NISSAN recommends a wheel coating
that helps prevent the brake dust from sticking
to the wheels. Contact a GT-R certified NISSAN
dealer for more details.MECHANICAL LIMITED SLIP DIF-
FERENTIAL (LSD) CHARACTERIS-
TICSThe differential oil has a high viscosity and is
very thick when cold. If the vehicle accelerates
from a stop with the steering wheel turned in
cold temperatures, the inner wheel tire may slip
and some noise or vibration may be heard. This
phenomenon is unique to vehicles equipped
with the Limited Slip Differential (LSD). When
the steering wheel is returned to the straight-
ahead position or the differential oil warms up,
the noise and vibration decrease.
The GT-R dual clutch transmission is a newly-
developed system that uses an electronically
controlled multiple-disc wet clutch attached to
the highly efficient manual transmission. This
transmission has two driving modes.
.
&Aposition (Automatic gearshift):
allows automatic shifting of the manual
transmission.
.
&M
position (Manual gearshift):
allows quick shifting of the manual transmis-
sion.
NOTE:.
&M
position driving is recommended
when driving up hills or accelerating
from a stop on a cold morning.
.
&M
position driving is recommended if
you feel shift shocks or jerkiness in the
&Aposition in cold temperatures.
. When starting or driving on a steep
uphill grade, shift to the
&M
position
and operate the paddle shifter to shift
down to 1st gear similar to a manual
transmission vehicle.
The GT-R dual clutch transmission was devel-
oped specifically to maximize vehicle perfor-
mance and driving enjoyment. The GT-R
transmission components were designed using
different engineering standards than typical passenger car transmissions. Because of this,
the GT-R has different operating characteristics,
and various rattle noises may be heard during
some driving conditions because of the follow-
ing items:
.
Gear clearances
. Ultralight flywheel
. Dry sump lubrication
These noises do not indicate that there is a
malfunction.
GT-R Overview
GTR-9
DUAL CLUTCH TRANSMISSION
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 187 of 311
Black plate (182,1)
Model "R35-D" EDITED: 2008/ 5/ 20
1. Check the positions of the accelerator pedal
*1
and brake pedal
*2. Adjust the steering
wheel and seat positions so that the correct
driving posture is achieved. (
“FRONT
SEATS” page 1-2)
2. Check that the parking brake is engaged.
3. Check that the shift lever is in the&Por&N
position. (
&Pis recommended.)
4. Firmly depress the brake pedal. Without depressing the accelerator pedal, press the
ignition switch once to start the engine.
5. To stop the engine, move the shift lever to the
&Pposition, and push the ignition switch
to the OFF position.
NOTE:. If the engine is difficult to start, de-
press the accelerator pedal all the way
to the floor and hold it. Push the
ignition switch with the brake pedal
depressed to start cranking the engine.
After 5 or 6 seconds, stop cranking by
pushing the ignition switch to the OFF
position, and then release the accel-
erator pedal. Then perform steps 1 to 4
to start the engine. If the engine starts,
but fails to run, repeat this procedure.
. Starting and stopping the engine over a
short period of time may make the
vehicle more difficult to start. If this
occurs, wait for more than 3 minutes,
and then press the ignition switch
again to start the engine.
. To maintain high performance over a
long period of time, the engine speed is
limited to 5,000 rpm when the engine is
revved with the shift lever in the
&Nor
&Pposition, and to 4,000 rpm when the
engine oil or coolant temperature is
low or higher than normal.
. If the ignition switch is pressed before
the shift lever is moved to the
&P
position, the ignition switch will not
change to the OFF position. If this occurs, the SHIFT
&P
warning display
appears on the vehicle information
display. When stopping the engine, be
sure to move the shift lever to the
&P
position and then press the ignition
switch. Failure to do so may result in
discharge of the battery. (
“SHIFT
“P” WARNING” page 2-40)
. If the shift lever was in the
&A↔&Mor
&R
position when the engine was stopped,
then be sure to move the shift lever to
the
&P
position before starting the
engine the next time. If the engine is
started with the shift lever in the
&N
position, then it may not be possible to
drive the vehicle even when the shift
lever is moved to the
&A↔&M
or
&R
position. If this occurs, the SHIFT
&P
warning appears on the vehicle infor-
mation display. (
“SHIFT “P”
WARNING” page 2-40)
CAUTION
If the engine was stopped soon when
the engine is hot, the cooling fan may
operate for approximately 2 minutes
after the engine was stopped to cool
the components in the engine compart-
5-12
Starting and driving
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 201 of 311
Black plate (196,1)
Model "R35-D" EDITED: 2008/ 5/ 20
Vehicle Dynamic Control (VDC)
Set up modeFeatures
.
In addition to the normal mode function, this mode adjusts front and rear wheel power
distribution to improve handling.
Normal (light is off)
.
This mode enhances handling by brake control and engine output control when
oversteer or understeer is detected.
.
All VDC functions including Traction Control System (TCS) are deactivated. ABS is
still active.
NOTE:Make sure VDC is on before driving the vehicle. The VDC OFF mode is an emergency
mode to help free a vehicle stuck in mud or snow by temporarily stopping VDC operation
to allow more power to the wheels.
The turbocharger system uses engine oil for
lubrication and cooling of its rotating compo-
nents. The turbocharger turbine turns at extre-
mely high speeds and it can get very hot. It is
essential to maintain a supply of oil flowing
through the turbocharger system. Therefore, a
sudden interruption of oil supply may cause a
malfunction in the turbocharger.
To ensure prolonged life and performance of the
turbocharger, it is essential to perform the
following maintenance procedure:
. Change your engine oil according to the
recommended intervals shown in the sepa-
rate Service and Maintenance Guide. Use
only the recommended engine oil.
. If the engine had been operating at high
engine speed for an extended period of time,
let it idle for a few minutes prior to shut-
down.
. Do not accelerate your engine to high
engine speed immediately after start.
NOTICE
This vehicle includes spark plugs that
are designed for high performance. For
this reason, if the engine is repeatedly
started and stopped over a short time,
the spark plugs may become fouled,
making the engine difficult to start. To
5-26
Starting and driving
TURBOCHARGER SYSTEM
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 208 of 311
Black plate (203,1)
Model "R35-D" EDITED: 2008/ 5/ 20
.Drive with the suspension setup switch in
the COMF mode to allow more suspension
stroke.
.Accelerate slowly and smoothly. Maintain
cruising speeds with a constant accelerator
position.
. Drive at moderate speeds on the highway.
Driving at high speed lowers fuel economy.
. Avoid unnecessary stopping and braking.
Keep a safe distance behind other vehicles.
. Select a gear range suitable to road condi-
tions.
. Avoid unnecessary engine idling.
. Keep your engine tuned up.
. Follow the recommended periodic mainte-
nance schedule.
. Keep the tires inflated to the correct
pressure. Low tire pressure increases tire
wear and lowers fuel economy.
. Keep the wheels in correct alignment.
Improper alignment increases tire wear and
lowers fuel economy.
. Air conditioner operation lowers fuel econ-
omy. Use the air conditioner only when
necessary.
. When cruising at highway speeds, it is more
economical to use the air conditioner and
leave the windows closed to reduce drag. .
Use the recommended viscosity engine oil.
(
“Oil viscosity” page 9-5)
Starting and driving
5-33
INCREASING FUEL ECONOMY
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 210 of 311
Black plate (205,1)
Model "R35-D" EDITED: 2008/ 5/ 20
vehicle checked by a GT-R certified
NISSAN dealer as soon as possible.
. The power train may be damaged if
you continue driving with the warn-
ing light blinking rapidly.
TIGHT CORNER BRAKING PHE-
NOMENONWhen driving on dry pavement in AWD mode, or
immediately after starting the engine in cold
conditions, when the steering wheel is turned all
the way, the vehicle may behave as if the brakes
had been applied. This phenomenon is known
as the “tight corner braking phenomenon”.
This phenomenon is unique to AWD vehicles,
and occurs due to a difference in speeds
between the front and rear wheels while the
vehicle is turning. This does not indicate that
there is a malfunction. If this phenomenon
occurs, more force will be required to operate
the steering wheel.NOTE:.If the tight corner braking phenomenon
occurs, a slipping sound may be heard
from the tires, or a squeaking sound
may be heard from the drive system.
. If excessive operation continues when
a wheel has come off the road or at
other times when the operation causes a large difference in speed between the
front and rear wheels (the wheels are
spinning) , the oil temperature in the
drive system parts will increase.
In this case, to protect the drive system
parts, the AWD warning light blinks
rapidly and the system switches to
RWD mode or low AWD mode. Keep
the vehicle stopped and idling for a
short time. When the warning light
stops blinking, the vehicle returns from
RWD mode to normal driving mode.
. If you feel an unusual vibration in the
vehicle, even if the warning lights are
not illuminated, have the vehicle in-
spected by a GT-R certified NISSAN
dealer.
TIRESThis vehicle is equipped with special tires. When
changing the tires, install the designated special
tires. Replacing tires as a set of four with new
ones is recommended. However, if a tire is
punctured or damaged, it may be possible to
replace only the damaged tire. Determining
whether one tire or a complete set of tires
should be replaced is based on a number of
factors including tire wear and condition. Con-
tact your GT-R certified NISSAN dealer. They
can recommend if an individual tire or a complete set should be replaced.
NOTICE
If tires other than the designated tires,
tires with large differences in wear or
tires of different sizes are installed, the
AWD performance will be degraded and
the drive mechanism may be damaged.AWD SYSTEM CHARACTERISTICSThe AWD system automatically distributes the
optimal torque to the front and rear wheels. This
provides both the superior turning performance
of a front wheel drive vehicle and the traction of
a AWD vehicle.
Electronic control continuously distributes tor-
que to the front and rear wheels in the range
from 0:100 (rear-wheel drive mode) to 50:50
(all-wheel drive mode) to match the driving
conditions and road conditions. This allows the
engine output (torque) to be effectively trans-
mitted to the road surface.
Starting and driving
5-35
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 235 of 311
Black plate (230,1)
Model "R35-D" EDITED: 2008/ 5/ 20
Occasionally remove loose dust from the interior
trim, plastic parts and seats using a vacuum
cleaner or soft bristled brush. Wipe the vinyl and
leather surfaces with a clean, soft cloth dam-
pened in mild soap solution, then wipe clean
with a dry soft cloth.
Regular care and cleaning is required in order to
maintain the appearance of the leather.
Before using any fabric protector, read the
manufacturer’s recommendations. Some fabric
protectors contain chemicals that may stain or
bleach the seat material.
Use a cloth dampened only with water, to clean
the meter and gauge lens.
CAUTION
.Do not use water or acidic cleaners
(hot steam cleaners) on the seat.
This can damage the seat or occu-
pant classification sensor. This can
also affect the operation of the air
bag system and result in serious
personal injury.
. Never use benzine, thinner, or any
similar material.
NOTICE
.Small dirt particles can be abrasive
and damaging to the leather sur-
faces and should be removed
promptly. Do not use saddle soap,
car waxes, polishes, oils, cleaning
fluids, solvents, detergents or am-
monia-based cleaners as they may
damage the leather’s natural finish.
. Never use fabric protectors unless
recommended by the manufacturer.
. Do not use glass or plastic cleaner
on meter or gauge lens covers. It
may damage the lens cover.FLOOR MATSThe use of NISSAN floor mats can extend the
life of your vehicle carpet and make it easier to
clean the interior. No matter what mats are
used, be sure they are fitted for your
vehicle and are properly positioned in the
footwell to prevent interference with pedal
operation. Mats should be maintained with
regular cleaning and replaced if they become
excessively worn.
Floor mat positioning aidThis vehicle includes front floor mat brackets to
act as floor mat positioning aid. NISSAN floor
mats have been specially designed for your
vehicle model. The front floor mats have
grommet holes in them. To install, position the
mat by placing the floor mat bracket hook
through the floor mat grommet hole while
centering the mat in the footwell.
Periodically check to make certain that the mats
are properly positioned.
7-4
Appearance and care
CLEANING INTERIOR
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 251 of 311
Black plate (246,1)
Model "R35-D" EDITED: 2008/ 5/ 20

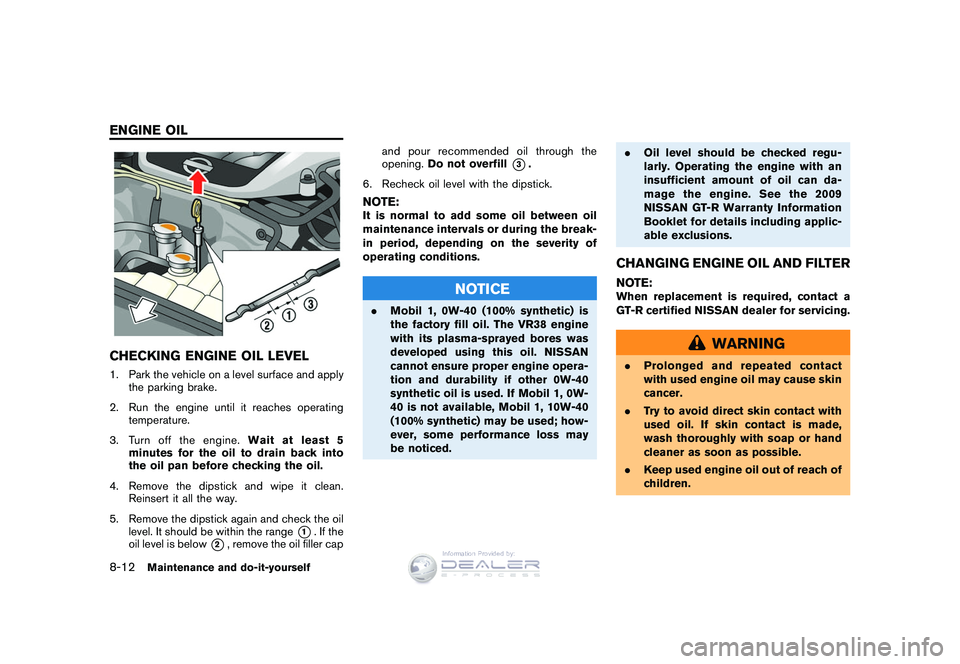

CHECKING ENGINE OIL LEVEL1. Park the vehicle on a level surface and applythe parking brake.
2. Run the engine until it reaches operating temperature.
3. Turn off the engine. Wait at least 5
minutes for the oil to drain back into
the oil pan before checking the oil.
4. Remove the dipstick and wipe it clean. Reinsert it all the way.
5. Remove the dipstick again and check the oil level. It should be within the range
*1. If the
oil level is below
*2, remove the oil filler cap and pour recommended oil through the
opening.
Do not overfill
*3.
6. Recheck oil level with the dipstick.
NOTE:It is normal to add some oil between oil
maintenance intervals or during the break-
in period, depending on the severity of
operating conditions.
NOTICE
. Mobil 1, 0W-40 (100% synthetic) is
the factory fill oil. The VR38 engine
with its plasma-sprayed bores was
developed using this oil. NISSAN
cannot ensure proper engine opera-
tion and durability if other 0W-40
synthetic oil is used. If Mobil 1, 0W-
40 is not available, Mobil 1, 10W-40
(100% synthetic) may be used; how-
ever, some performance loss may
be noticed. .
Oil level should be checked regu-
larly. Operating the engine with an
insufficient amount of oil can da-
mage the engine. See the 2009
NISSAN GT-R Warranty Information
Booklet for details including applic-
able exclusions.
CHANGING ENGINE OIL AND FILTERNOTE:When replacement is required, contact a
GT-R certified NISSAN dealer for servicing.
WARNING
.Prolonged and repeated contact
with used engine oil may cause skin
cancer.
. Try to avoid direct skin contact with
used oil. If skin contact is made,
wash thoroughly with soap or hand
cleaner as soon as possible.
. Keep used engine oil out of reach of
children.
8-12
Maintenance and do-it-yourself
ENGINE OIL
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 282 of 311
Black plate (277,1)
Model "R35-D" EDITED: 2008/ 5/ 20

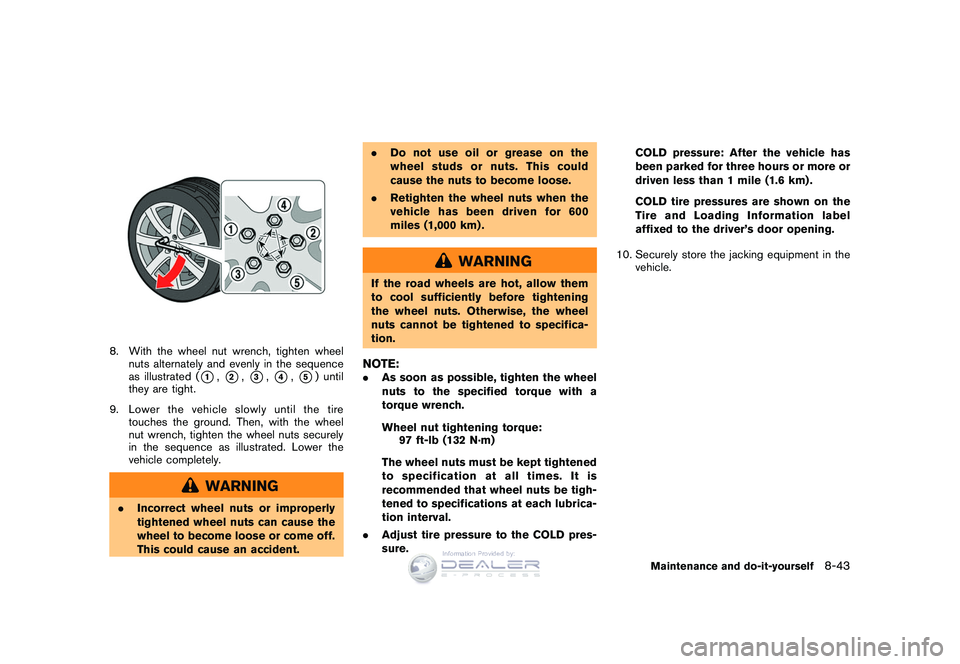

8. With the wheel nut wrench, tighten wheelnuts alternately and evenly in the sequence
as illustrated (
*1,*2,*3,*4,*5) until
they are tight.
9. Lower the vehicle slowly until the tire touches the ground. Then, with the wheel
nut wrench, tighten the wheel nuts securely
in the sequence as illustrated. Lower the
vehicle completely.
WARNING
.Incorrect wheel nuts or improperly
tightened wheel nuts can cause the
wheel to become loose or come off.
This could cause an accident. .
Do not use oil or grease on the
wheel studs or nuts. This could
cause the nuts to become loose.
. Retighten the wheel nuts when the
vehicle has been driven for 600
miles (1,000 km) .
WARNING
If the road wheels are hot, allow them
to cool sufficiently before tightening
the wheel nuts. Otherwise, the wheel
nuts cannot be tightened to specifica-
tion.NOTE:.As soon as possible, tighten the wheel
nuts to the specified torque with a
torque wrench.
Wheel nut tightening torque:
97 ft-lb (132 N·m)
The wheel nuts must be kept tightened
to specification at all times. It is
recommended that wheel nuts be tigh-
tened to specifications at each lubrica-
tion interval.
. Adjust tire pressure to the COLD pres-
sure. COLD pressure: After the vehicle has
been parked for three hours or more or
driven less than 1 mile (1.6 km) .
COLD tire pressures are shown on the
Tire and Loading Information label
affixed to the driver’s door opening.
10. Securely store the jacking equipment in the vehicle.
Maintenance and do-it-yourself
8-43
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 284 of 311
Black plate (31,1)
9 Technical and consumer information
Capacities and recommended fuel/lubricants............ 9-2
Fuel recommendation ...................................... 9-3
Engine oil and oil filter recommendation ............... 9-4
Air conditioning system refrigerant and lubricant
recommendations ........................................... 9-5
Specifications. ................................................... 9-6
Engine ......................................................... 9-6
Wheels and tires ............................................ 9-7
Dimensions ................................................... 9-8
When traveling or registering your vehicle in another
country ............................................................ 9-8
Vehicle identification ........................................... 9-8
Vehicle identification number (VIN) plate .............. 9-8
Vehicle identification number (Chassis number) ..... 9-9
Engine serial number ...................................... 9-9
F.M.V.S.S./C.M.V.S.S. certification label ............... 9-9
Emission control information label .................... 9-10
Tire and loading information label ..................... 9-10
Air conditioner specification label ..................... 9-10
Installing front license plate ................................ 9-11
Vehicle loading information ................................. 9-11 Terms
........................................................ 9-11
Vehicle load capacity .................................... 9-12
Loading tips ................................................ 9-13
Measurement of weights ................................ 9-13
Towing a trailer ................................................ 9-14
Flat towing ..................................................... 9-14
Uniform tire quality grading ................................. 9-14
Treadwear .................................................. 9-14
Traction AA, A, B and C ................................ 9-14
Temperature A, B and C ................................ 9-15
Emission control system warranty ......................... 9-15
Reporting safety defects (US only) ....................... 9-16
Readiness for Inspection/Maintenance (I/M) test
(US only) ....................................................... 9-16
Event data recorders (EDR) ................................ 9-17
Vehicle status data recorder (VSDR) ..................... 9-18
Handling of data .......................................... 9-18
Owner’s Manual/Service Manual order information . . . 9-18 In the event of a collision ............................... 9-19
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 285 of 311
Black plate (280,1)
Model "R35-D" EDITED: 2008/ 5/ 20
The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure
instructed in the “8. Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (Approximate)Recommended specifications
US measure Imp measure Liter
Fuel 19-1/2 gal 16-1/4 gal 73.8 Unleaded gasoline with an octane rating of at least 93 AKI (RON 98)*1
Engine oil*4
Mobil 1, 0W-40*2
Drain and refill
With oil filter change 5-7/8 4-7/8 5.5
Without oil filter change 5-1/4 4-3/8 5.0
Cooling system With reservoir 11-5/8 9-5/8 11.0 Genuine NISSAN Long Life Antifreeze/Coolant or equivalent*7
Reservoir 1-1/2 1-1/4 1.4
Transmission oil — — — Genuine NISSAN Transmission Oil R35 Special*3
Differential oil (front and rear) — — — Castrol SAF-XJ 75W-140*3
Power steering fluid (PSF) Refill to the proper oil level according to the instructions in the “8.
Maintenance and do-it-yourself” section. Genuine NISSAN PSF or equivalent*6
Brake fluid Genuine NISSAN Brake Fluid R35 Special DOT4*8
Multi-purpose grease — — — NLGI No. 2 (Lithium soap base)
Air conditioning system refrigerant — — — HFC-134a (R-134a)*5
Air conditioning system lubricants — — — NISSAN UV Luminous Oil
Type S or exact equivalent
Window washer fluid — — — Genuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze or equivalent
*1: For additional information, see the following section. (
“FUEL RECOMMENDATION” page 9-3)
*2: Mobil 1, 0W-40 (100% synthetic) is the factory fill oil. The VR38 engine with its plasma-sprayed bores was developed using this oil. NISSAN cannot ensure proper engine operation and durability if other 0W-40 synthetic oil is used. If Mobil 1, 0W-40 is not available, Mobil 1, 10W-40 (100% synthetic) may be used; however, some performance loss may be noticed. For additional information, see the following section.
(
“ENGINE OIL AND OIL FILTER RECOMMENDATION” page 9-4)
*3: The use of fluids and lubricants other than the specified may cause vehicle malfunctions and result in non-warranty vehicle repairs.
*4: For additional information, see the following section. (
“ENGINE OIL” page 8-12)
*5: For additional information, see the following section. (“AIR CONDITIONER SPECIFICATION LABEL” page 9-10)
*6: DEXRON
TMVI type ATF or Canada NISSAN Automatic Transmission Fluid may also be used.
*7: For additional information, see the following section. (
“ENGINE COOLING SYSTEM” page 8-9)
*8: Genuine NISSAN Brake Fluid R35 Special DOT4 is the factory fill brake fluid. The Vehicle Dynamic Control (VDC) unit and other related parts were specially designed for this brake fluid and NISSAN cannot ensure the best performance and proper operation of the vehicle if other brake fluid is used.
9-2
Technical and consumer information
CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS
, Q I R U P D W L R Q 3 U R Y L G H G E \
