Page 284 of 311
Black plate (31,1)
9 Technical and consumer information
Capacities and recommended fuel/lubricants............ 9-2
Fuel recommendation ...................................... 9-3
Engine oil and oil filter recommendation ............... 9-4
Air conditioning system refrigerant and lubricant
recommendations ........................................... 9-5
Specifications. ................................................... 9-6
Engine ......................................................... 9-6
Wheels and tires ............................................ 9-7
Dimensions ................................................... 9-8
When traveling or registering your vehicle in another
country ............................................................ 9-8
Vehicle identification ........................................... 9-8
Vehicle identification number (VIN) plate .............. 9-8
Vehicle identification number (Chassis number) ..... 9-9
Engine serial number ...................................... 9-9
F.M.V.S.S./C.M.V.S.S. certification label ............... 9-9
Emission control information label .................... 9-10
Tire and loading information label ..................... 9-10
Air conditioner specification label ..................... 9-10
Installing front license plate ................................ 9-11
Vehicle loading information ................................. 9-11 Terms
........................................................ 9-11
Vehicle load capacity .................................... 9-12
Loading tips ................................................ 9-13
Measurement of weights ................................ 9-13
Towing a trailer ................................................ 9-14
Flat towing ..................................................... 9-14
Uniform tire quality grading ................................. 9-14
Treadwear .................................................. 9-14
Traction AA, A, B and C ................................ 9-14
Temperature A, B and C ................................ 9-15
Emission control system warranty ......................... 9-15
Reporting safety defects (US only) ....................... 9-16
Readiness for Inspection/Maintenance (I/M) test
(US only) ....................................................... 9-16
Event data recorders (EDR) ................................ 9-17
Vehicle status data recorder (VSDR) ..................... 9-18
Handling of data .......................................... 9-18
Owner’s Manual/Service Manual order information . . . 9-18 In the event of a collision ............................... 9-19
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 285 of 311
Black plate (280,1)
Model "R35-D" EDITED: 2008/ 5/ 20
The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure
instructed in the “8. Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (Approximate)Recommended specifications
US measure Imp measure Liter
Fuel 19-1/2 gal 16-1/4 gal 73.8 Unleaded gasoline with an octane rating of at least 93 AKI (RON 98)*1
Engine oil*4
Mobil 1, 0W-40*2
Drain and refill
With oil filter change 5-7/8 4-7/8 5.5
Without oil filter change 5-1/4 4-3/8 5.0
Cooling system With reservoir 11-5/8 9-5/8 11.0 Genuine NISSAN Long Life Antifreeze/Coolant or equivalent*7
Reservoir 1-1/2 1-1/4 1.4
Transmission oil — — — Genuine NISSAN Transmission Oil R35 Special*3
Differential oil (front and rear) — — — Castrol SAF-XJ 75W-140*3
Power steering fluid (PSF) Refill to the proper oil level according to the instructions in the “8.
Maintenance and do-it-yourself” section. Genuine NISSAN PSF or equivalent*6
Brake fluid Genuine NISSAN Brake Fluid R35 Special DOT4*8
Multi-purpose grease — — — NLGI No. 2 (Lithium soap base)
Air conditioning system refrigerant — — — HFC-134a (R-134a)*5
Air conditioning system lubricants — — — NISSAN UV Luminous Oil
Type S or exact equivalent
Window washer fluid — — — Genuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze or equivalent
*1: For additional information, see the following section. (
“FUEL RECOMMENDATION” page 9-3)
*2: Mobil 1, 0W-40 (100% synthetic) is the factory fill oil. The VR38 engine with its plasma-sprayed bores was developed using this oil. NISSAN cannot ensure proper engine operation and durability if other 0W-40 synthetic oil is used. If Mobil 1, 0W-40 is not available, Mobil 1, 10W-40 (100% synthetic) may be used; however, some performance loss may be noticed. For additional information, see the following section.
(
“ENGINE OIL AND OIL FILTER RECOMMENDATION” page 9-4)
*3: The use of fluids and lubricants other than the specified may cause vehicle malfunctions and result in non-warranty vehicle repairs.
*4: For additional information, see the following section. (
“ENGINE OIL” page 8-12)
*5: For additional information, see the following section. (“AIR CONDITIONER SPECIFICATION LABEL” page 9-10)
*6: DEXRON
TMVI type ATF or Canada NISSAN Automatic Transmission Fluid may also be used.
*7: For additional information, see the following section. (
“ENGINE COOLING SYSTEM” page 8-9)
*8: Genuine NISSAN Brake Fluid R35 Special DOT4 is the factory fill brake fluid. The Vehicle Dynamic Control (VDC) unit and other related parts were specially designed for this brake fluid and NISSAN cannot ensure the best performance and proper operation of the vehicle if other brake fluid is used.
9-2
Technical and consumer information
CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 286 of 311
Black plate (281,1)
Model "R35-D" EDITED: 2008/ 5/ 20
FUEL RECOMMENDATION
VR38 engineUse unleaded premium gasoline with an octane
rating of at least 93 AKI (Anti-Knock Index)
number (Research octane number 98) to max-
imize vehicle performance.
If the premium gasoline specified above is not
available, you may use unleaded premium gaso-
line with an octane rating of at least 91 AKI
number (Research octane number 96) , but you
may notice a decrease in performance.
NOTICE
.Using a fuel other than that speci-
fied could adversely affect the emis-
sion control system, and may also
affect warranty coverage.
. Under no circumstances should a
leaded gasoline be used, because
this will damage the three-way cat-
alyst.
. Do not use E-85 fuel in your vehicle.
Your vehicle is not designed to run
on E-85 fuel. Using E-85 fuel can
damage the fuel system compo-
nents. See the 2009 Nissan GT-R
Warranty Information Booklet for
details and exclusions.
Gasoline specificationsNISSAN recommends using gasoline that meets
the World-Wide Fuel Charter (WWFC) speci-
fications where it is available. Many of the
automobile manufacturers developed this spe-
cification to improve emission system and
vehicle performance. Ask your service station
manager if the gasoline meets the World-Wide
Fuel Charter (WWFC) specifications.Reformulated gasolineSome fuel suppliers are now producing refor-
mulated gasolines. These gasolines are specially
designed to reduce vehicle emissions. NISSAN
supports efforts towards cleaner air and sug-
gests that you use reformulated gasoline when
available.Gasoline containing oxygenatesSome fuel suppliers sell gasoline containing
oxygenates such as ethanol, MTBE and metha-
nol with or without advertising their presence.
NISSAN does not recommend the use of fuels
of which the oxygenate content and the fuel
compatibility for your NISSAN cannot be readily
determined. If in doubt, ask your service station
manager.
If you use oxygenate-blend gasoline, please take
the following precautions as the usage of such
fuels may cause vehicle performance problems and/or fuel system damage.
.
The fuel should be unleaded and have
an octane rating no lower than that
recommended for unleaded gasoline.
. If an oxygenate-blend, excepting a
methanol blend, is used, it should
contain no more than 10% oxygenate.
(MTBE may, however, be added up to
15%.)
. If a methanol blend is used, it should
contain no more than 5% methanol
(methyl alcohol and wood alcohol) . It
should also contain a suitable amount
of appropriate cosolvents and corro-
sion inhibitors. If not properly formu-
lated with the appropriate cosolvents
and corrosion inhibitors, such metha-
nol blends may cause fuel system
damage and/or vehicle performance
malfunctions. At this time, sufficient
data is not available to ensure that all
methanol blends are suitable for use in
NISSAN vehicles.
If any undesirable driveability problems such as
engine stalling or hard hot starting are experi-
enced after using oxygenate-blend fuels, im-
mediately change to a non-oxygenate fuel or a
fuel with a low blend of MTBE.
Technical and consumer information
9-3
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 289 of 311
Black plate (284,1)
Model "R35-D" EDITED: 2008/ 5/ 20
ENGINEModelVR38
Type Gasoline, 4-cycle
Cylinder arrangement 6-cylinder, V-slanted at 608
Bore 6Stroke in (mm) 3.76063.480 (95.5 688.4)
Displacement cu in (cm
3) 231.83 (3,799)
Firing order 1-2-3-4-5-6
Idle speed rpm
No adjustment is necessary.
Ignition timing (B.T.D.C.) degree/rpm
Spark plug Standard DILKAR8A8
Spark plug gap (Normal) in (mm) 0.031 (0.8)
Camshaft operation Timing chain
This spark ignition system complies with the Canadian standard ICES-002.
9-6
Technical and consumer information
SPECIFICATIONS
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 291 of 311
Black plate (286,1)
Model "R35-D" EDITED: 2008/ 5/ 20
DIMENSIONS
in (mm)
Overall length 183.1 (4,650)
Overall width 74.9 (1,902)
Overall height 54.0 (1,372)
Front tread 62.6 (1,590)
Rear tread 63.0 (1,600)
Wheelbase 109.4 (2,780)
If you plan to travel in another country, you
should first find out if the fuel available is suitable
for your vehicle’s engine.
Using fuel with too low an octane rating may
cause engine damage. All gasoline vehicles
must be operated with unleaded gasoline.
Therefore, avoid taking your vehicle to areas
where appropriate fuel is not available.
When transferring the registration of your
vehicle to another country, state, province
or district, it may be necessary to modify the
vehicle to meet local laws and regulations.
The laws and regulations for motor vehicle
emission control and safety standards vary
according to the country, state, province or
district; therefore, vehicle specifications may
differ.
When any vehicle is to be taken into
another country, state, province or district
and registered, its modifications, transpor-
tation, and registration are the responsi-
bility of the user. NISSAN is not
responsible for any inconvenience that
may result.
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATEThe vehicle identification number plate is at-
tached as shown. This number is the identifica-
tion for your vehicle and is used in the vehicle
registration.
9-8
Technical and consumer information
WHEN TRAVELING OR
REGISTERING YOUR VEHICLE IN
ANOTHER COUNTRY VEHICLE IDENTIFICATION
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 302 of 311
Black plate (297,1)
Model "R35-D" EDITED: 2008/ 5/ 20

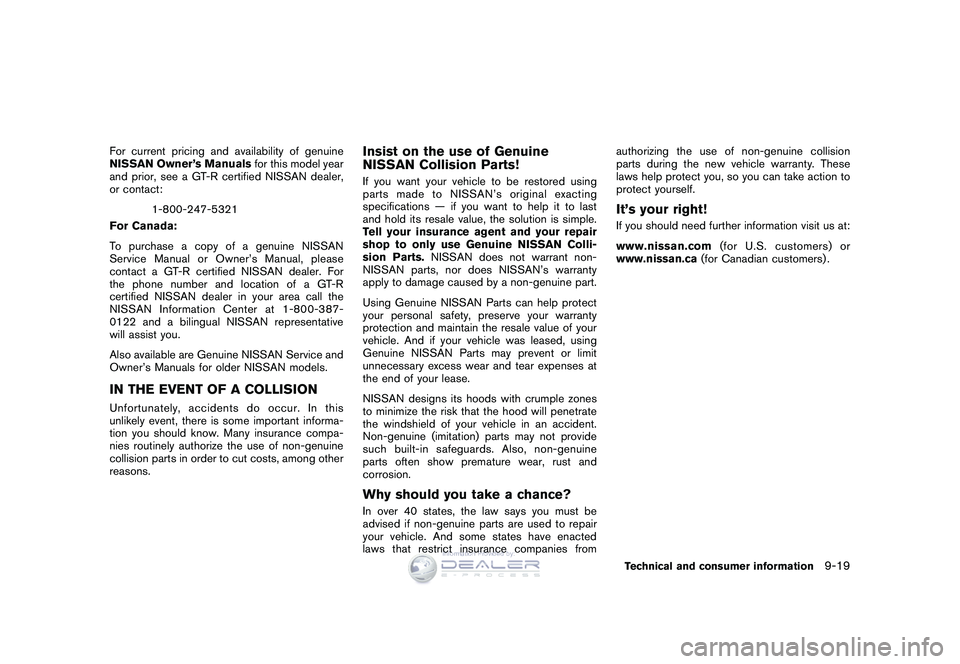

For current pricing and availability of genuine
NISSAN Owner’s Manualsfor this model year
and prior, see a GT-R certified NISSAN dealer,
or contact:
1-800-247-5321
For Canada:
To purchase a copy of a genuine NISSAN
Service Manual or Owner’s Manual, please
contact a GT-R certified NISSAN dealer. For
the phone number and location of a GT-R
certified NISSAN dealer in your area call the
NISSAN Information Center at 1-800-387-
0122 and a bilingual NISSAN representative
will assist you.
Also available are Genuine NISSAN Service and
Owner’s Manuals for older NISSAN models.IN THE EVENT OF A COLLISIONUnfortunately, accidents do occur. In this
unlikely event, there is some important informa-
tion you should know. Many insurance compa-
nies routinely authorize the use of non-genuine
collision parts in order to cut costs, among other
reasons.
Insist on the use of Genuine
NISSAN Collision Parts!If you want your vehicle to be restored using
parts made to NISSAN’s original exacting
specifications — if you want to help it to last
and hold its resale value, the solution is simple.
Tell your insurance agent and your repair
shop to only use Genuine NISSAN Colli-
sion Parts. NISSAN does not warrant non-
NISSAN parts, nor does NISSAN’s warranty
apply to damage caused by a non-genuine part.
Using Genuine NISSAN Parts can help protect
your personal safety, preserve your warranty
protection and maintain the resale value of your
vehicle. And if your vehicle was leased, using
Genuine NISSAN Parts may prevent or limit
unnecessary excess wear and tear expenses at
the end of your lease.
NISSAN designs its hoods with crumple zones
to minimize the risk that the hood will penetrate
the windshield of your vehicle in an accident.
Non-genuine (imitation) parts may not provide
such built-in safeguards. Also, non-genuine
parts often show premature wear, rust and
corrosion.Why should you take a chance?In over 40 states, the law says you must be
advised if non-genuine parts are used to repair
your vehicle. And some states have enacted
laws that restrict insurance companies from authorizing the use of non-genuine collision
parts during the new vehicle warranty. These
laws help protect you, so you can take action to
protect yourself.
It’s your right!If you should need further information visit us at:
www.nissan.com
(for U.S. customers) or
www.nissan.ca (for Canadian customers) .Technical and consumer information
9-19
, Q I R U P D W L R Q 3 U R Y L G H G E \
