The following information applies if you engage
in performance driving such as driving your
GT-R for extended periods under the following
conditions.
.Higher-RPM (approaching redline) opera-
tion
. Frequent high pedal force braking from
moderate and higher speeds
. Frequent throttle activation
. Fast revving throughout the RPM range
In such cases, the following additional main-
tenance guidelines apply.
However, you should also carefully read
your 2009 NISSAN GT-R Warranty Informa-
tion Booklet for important information
concerning warranty coverage, limitations
and exclusions.
We recommend that maintenance be performed
at a GT-R certified NISSAN dealer. NISSAN will
only pay for GT-R Performance Optimization
Services performed at a GT-R certified NISSAN
dealer.FLUIDS. Before driving, check the fluid levels and
adjust as necessary using the specified fluid.
. Check the amount of fluid for the power steering.
. Be sure to change the fluids listed below
with the specified fluids every 1,800 miles
(3,000 km) .
ITEMS GT-R SPECIFIED FLUIDS
Engine oil Mobil 1, 0W-40*1
Transmission oil Genuine NISSAN Transmission
Oil R35 Special
Differential oil
(front and rear) Castrol SAF-XJ 75W-140
Brake fluid Genuine NISSAN Brake Fluid
R35 Special DOT4*2
*1: Mobil 1, 0W-40 (100% synthetic) is the factory fill oil. The VR38 engine with its plasma-sprayed
bores was developed using this oil. NISSAN
cannot ensure proper engine operation and dur-
ability if other 0W-40 synthetic oil is used. If Mobil
1, 0W-40 is not available, Mobil 1, 10W-40 (100%
synthetic) may be used; however, some perfor-
mance loss may be noticed.
*2: Genuine NISSAN Brake Fluid R35 Special DOT4 is the factory fill brake fluid. The Vehicle Dynamic
Control (VDC) unit and other related parts were
specially designed for this brake fluid and NISSAN
cannot ensure the best performance and proper
operation of the vehicle if other brake fluid is used.
INSPECTION AND ADJUSTMENTS
OF TIRES, SUSPENSION AND
BRAKES. Measure and adjust the wheel alignment.
. Check the tire pressure and the Tire
Pressure Monitoring System (TPMS) sen-
sor.
. Make tire pressure adjustments only when
the tires are cool. (
“WHEELS AND
TIRES” page 8-29)
. Secure road wheel balance weights with
aluminum tape or equivalent.
. Check the heat deterioration and wear of the
brakes. (As necessary, the brake pad and
the brake disc rotor must be replaced as a
set of four with new ones.)
REPLENISHING COOLANTCheck the coolant level in the pressurized
coolant reservoir. Adjust the level so that the
fluid is between the MAX and MIN markings. For
the coolant, use genuine NISSAN Long Life
coolant. (On delivery of new vehicle, the
reservoir is filled to the MIN level. Be sure to
replenish approximately 0.3 to 0.4 US quart (0.3
to 0.4 liter) of coolant.)
GTR-6
GT-R Overview
ADDITIONAL MAINTENANCE ITEMS
,QIRUPDWLRQ3URYLGHGE\

Black plate (34,1)
Model "R35-D" EDITED: 2008/ 5/ 20
fit them properly. The shoulder belt may
come too close to the face or neck. The
lap belt may not fit over their small hip
bones. In an accident, an improperly
fitting seat belt could cause serious or
fatal injury. Always use appropriate
child restraints.
All U.S. states and Canadian provinces or
territories require the use of approved child
restraints for infants and small children.
(
“CHILD RESTRAINTS” page 1-13)
Also, there are other types of child restraints
available for larger children for additional pro-
tection.
NISSAN recommends that all pre-teens
and children be restrained in the rear seat.
According to accident statistics, children
are safer when properly restrained in the
rear seat than in the front seat.
This is especially important because your
vehicle has a supplemental restraint sys-
tem (air bag system) for the front passen-
ger. (
“SUPPLEMENTAL RESTRAINT
SYSTEM” page 1-31)
InfantsInfants up to at least one year old should be
placed in a rear facing child restraint. NISSAN
recommends that infants be placed in child
restraints that comply with Federal Motor
Vehicle Safety Standards or Canadian Motor
Vehicle Safety Standards. You should choose a
child restraint which fits your vehicle and always
follow the manufacturer’s instructions for instal-
lation and use.Small childrenChildren that are over one year old and weigh at
least 20 lb (9 kg) can be placed in a forward
facing child restraint. Refer to the manufacturer’s
instructions for minimum and maximum weight
and height recommendations. NISSAN recom-
mends that small children be placed in child
restraints that comply with Federal Motor
Vehicle Safety Standards or Canadian Motor
Vehicle Safety Standards. You should choose a
child restraint that fits your vehicle and always
follow the manufacturer’s instructions for instal-
lation and use.Larger childrenChildren who are too large for child restraints
should be seated and restrained by the seat
belts which are provided. The seat belt may not
fit properly if the child is less than 4 ft 9 in (142.5
cm) tall and weighs between 40 lb (18 kg) and
80 lb (36 kg) . A booster seat should be used to obtain proper seat belt fit.
NISSAN recommends that a child be placed in a
commercially availabl
eboosterseatifthe
shoulder belt in the child’s seating position fits
close to the face or neck or if the lap portion of
the seat belt goes across the abdomen. The
booster seat should raise the child so that the
shoulder belt is properly positioned across the
top, middle portion of the shoulder and the lap
belt is low on the hips. A booster seat can only
be used in seating positions that have a three-
point type seat belt. The booster seat should fit
the vehicle seat and have a label certifying that it
complies with Federal Motor Vehicle Safety
Standards or Canadian Motor Vehicle Safety
Standards. Once the child has grown so the
shoulder belt is no longer on or near the face
and neck, use the shoulder belt without the
booster seat.
WARNING
Never let a child stand or kneel on any
seat and do not allow a child in the
cargo areas while the vehicle is moving.
The child could be seriously injured or
killed in an accident or sudden stop.
1-8
Safety — Seats, seat belts and supplemental restraint system
,QIRUPDWLRQ3URYLGHGE\

Black plate (40,1)
Model "R35-D" EDITED: 2008/ 5/ 20
loads imposed by correctly fitted
child restraints. Under no circum-
stances are they to be used for adult
seat belts or harnesses.
. Adjustable seatbacks should be
positioned to fit the child restraint,
but as upright as possible.
. After attaching the child restraint,
test it before you place the child in
it. Push it from side to side while
holding the seat near the LATCH
attachment or by the seat belt path.
The child restraint should not move
more than 1 inch (25 mm) from side
to side. Try to tug it forward and
check to see if the belt holds the
restraint in place. If the restraint is
not secure, tighten the belt as
necessary, or put the restraint in
another seat and test it again. You
may need to try a different child
restraint. Not all child restraints fit
in all types of vehicles.
. When your child restraint is not in
use, keep it secured with the LATCH
System or a seat belt to prevent it
from being thrown around in case of
a sudden stop or accident.
CAUTION
Remember that a child restraint left in a
closed vehicle can become very hot.
Check the seating surface and buckles
before placing your child in the child
restraint.
This vehicle is equipped with a universal child
restraint lower anchor system, referred to as the
Lower Anchors and Tethers for CHildren System
or LATCH. Some child restraints include two
rigid or webbing-mounted attachments that can
be connected to these lower anchors.
(
“CHILD RESTRAINT INSTALLATION
USING LATCH” page 1-17)
If you do not have a LATCH compatible child
restraint, the vehicle seat belts can be used. In
general, child restraints are also designed to be
installed with the lap portion of a lap/shoulder
seat belt. (
“CHILD RESTRAINT INSTAL-
LATION USING THE SEAT BELTS” page 1-21)
Several manufacturers offer child restraints for
infants and small children of various sizes. When
selecting any child restraint, keep the following
points in mind:
. Choose only a restraint with a label certifying
that it complies with Federal Motor Vehicle
Safety Standard 213 or Canadian Motor
Vehicle Safety Standard 213. .
Check the child restraint in your vehicle to
be sure it is compatible with the vehicle’s
seat and seat belt system.
. If the child restraint is compatible with your
vehicle, place your child in the child restraint
and check the various adjustments to be
sure the child restraint is compatible with
your child. Choose a child restraint that is
designed for your child’s height and weight.
Always follow all recommended procedures.
All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated. Canadian law requires the
top tether strap on front-facing child
restraints be secured to the designated
anchor point on the vehicle.
1-14
Safety — Seats, seat belts and supplemental restraint system
,QIRUPDWLRQ3URYLGHGE\

Black plate (264,1)
Model "R35-D" EDITED: 2008/ 5/ 20
WARNING
.
Improperly inflated tires can fail
suddenly and cause an accident.
.
The Gross Vehicle Weight rating
(GVWR) is located on the F.M.V.
S.S./C.M.V.S.S. certification la-
bel. The vehicle weight capacity
is indicated on the Tire and
Loading Information label (if so
equipped) . Do not load your
vehicle beyond this capacity.
Overloading your vehicle may
result in reduced tire life, unsafe
operating conditions due to pre-
mature tire failure, or unfavor-
able handling characteristics
and could also lead to a serious
accident. Loading beyond the
specified capacity may also re-
sult in failure of other vehicle
components.
.
Before taking a long trip, or
when ever you heavily load your
vehicle, use a tire pressure
gauge to ensure that the tire
pressures are at the specified
level.
.
For additional information re-
garding tires, refer to “Important
Tire Safety Information” (US) or
“Tire Safety Information” (Cana-
da) in the Warranty Information
Booklet.
NOTE:.Use only genuine GT-R tires and road
wheels or an equivalent. Proper use of
NISSAN recommended tires provides
the greatest potential for maximum
performance.
— Genuine GT-R tires and road
wheels or an equivalent help
achieve maximum cornering perfor-
mance.
— Genuine GT-R tires and road wheels or an equivalent help pro-
vide road holding in the event of
decreased tire pressure and punc-
tures.
— Genuine GT-R tires and road wheels or an equivalent help pre-
vent the decrease of straight-run-
ning stability caused by uneven tire
wear due to highly rigid wheels and
wide tires.
. Do not reuse the tires that were once removed from the road wheels. Be-
cause the tires used with this vehicle
are more rigid than ordinary tires, they
may be damaged when they are re-
moved. Even if there is no visible
damage, reusing these tires is not safe
and may cause an accident. In addition,
the tires may be cut when they are
removed from the road wheels in order
to prevent scratches to the road
wheels.
8-30
Maintenance and do-it-yourself
,QIRUPDWLRQ3URYLGHGE\

Black plate (267,1)
Model "R35-D" EDITED: 2008/ 5/ 20
Example

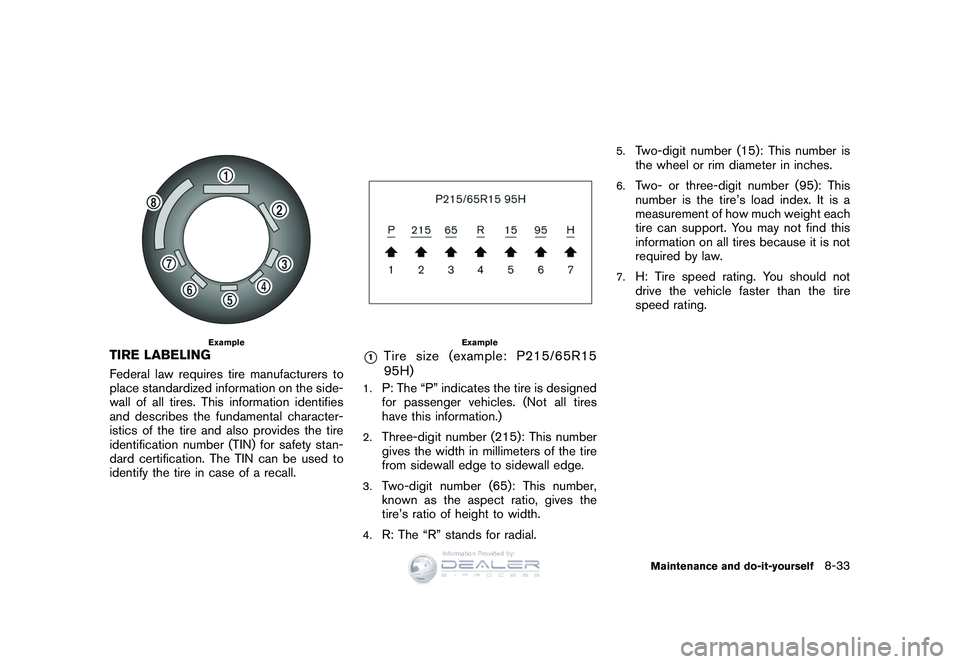

TIRE LABELINGFederal law requires tire manufacturers to
place standardized information on the side-
wall of all tires. This information identifies
and describes the fundamental character-
istics of the tire and also provides the tire
identification number (TIN) for safety stan-
dard certification. The TIN can be used to
identify the tire in case of a recall.
Example
*1
Tire size (example: P215/65R15
95H)
1.
P: The “P” indicates the tire is designed
for passenger vehicles. (Not all tires
have this information.)
2.
Three-digit number (215): This number
gives the width in millimeters of the tire
from sidewall edge to sidewall edge.
3.
Two-digit number (65): This number,
known as the aspect ratio, gives the
tire’s ratio of height to width.
4.
R: The “R” stands for radial.
5.
Two-digit number (15): This number is
the wheel or rim diameter in inches.
6.
Two- or three-digit number (95): This
number is the tire’s load index. It is a
measurement of how much weight each
tire can support. You may not find this
information on all tires because it is not
required by law.
7.
H: Tire speed rating. You should not
drive the vehicle faster than the tire
speed rating.
Maintenance and do-it-yourself
8-33
,QIRUPDWLRQ3URYLGHGE\

Black plate (31,1)
9 Technical and consumer information
Capacities and recommended fuel/lubricants............ 9-2
Fuel recommendation ...................................... 9-3
Engine oil and oil filter recommendation ............... 9-4
Air conditioning system refrigerant and lubricant
recommendations ........................................... 9-5
Specifications. ................................................... 9-6
Engine ......................................................... 9-6
Wheels and tires ............................................ 9-7
Dimensions ................................................... 9-8
When traveling or registering your vehicle in another
country ............................................................ 9-8
Vehicle identification ........................................... 9-8
Vehicle identification number (VIN) plate .............. 9-8
Vehicle identification number (Chassis number) ..... 9-9
Engine serial number ...................................... 9-9
F.M.V.S.S./C.M.V.S.S. certification label ............... 9-9
Emission control information label .................... 9-10
Tire and loading information label ..................... 9-10
Air conditioner specification label ..................... 9-10
Installing front license plate ................................ 9-11
Vehicle loading information ................................. 9-11 Terms
........................................................ 9-11
Vehicle load capacity .................................... 9-12
Loading tips ................................................ 9-13
Measurement of weights ................................ 9-13
Towing a trailer ................................................ 9-14
Flat towing ..................................................... 9-14
Uniform tire quality grading ................................. 9-14
Treadwear .................................................. 9-14
Traction AA, A, B and C ................................ 9-14
Temperature A, B and C ................................ 9-15
Emission control system warranty ......................... 9-15
Reporting safety defects (US only) ....................... 9-16
Readiness for Inspection/Maintenance (I/M) test
(US only) ....................................................... 9-16
Event data recorders (EDR) ................................ 9-17
Vehicle status data recorder (VSDR) ..................... 9-18
Handling of data .......................................... 9-18
Owner’s Manual/Service Manual order information . . . 9-18 In the event of a collision ............................... 9-19
,QIRUPDWLRQ3URYLGHGE\

Black plate (287,1)
Model "R35-D" EDITED: 2008/ 5/ 20

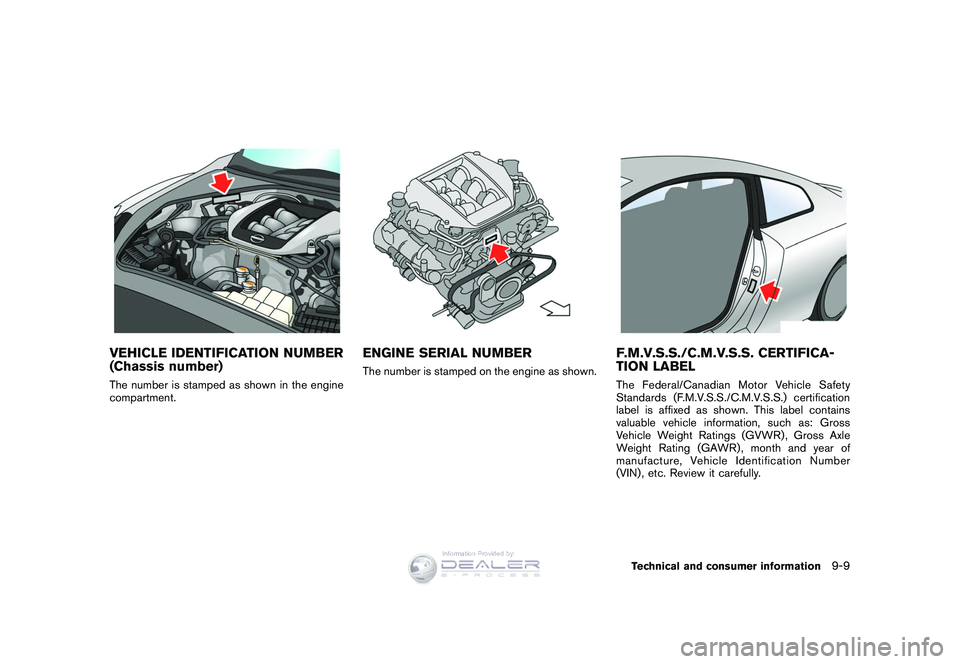

VEHICLE IDENTIFICATION NUMBER
(Chassis number)The number is stamped as shown in the engine
compartment.
ENGINE SERIAL NUMBERThe number is stamped on the engine as shown.
F.M.V.S.S./C.M.V.S.S. CERTIFICA-
TION LABELThe Federal/Canadian Motor Vehicle Safety
Standards (F.M.V.S.S./C.M.V.S.S.) certification
label is affixed as shown. This label contains
valuable vehicle information, such as: Gross
Vehicle Weight Ratings (GVWR) , Gross Axle
Weight Rating (GAWR) , month and year of
manufacture, Vehicle Identification Number
(VIN) , etc. Review it carefully.
Technical and consumer information
9-9
,QIRUPDWLRQ3URYLGHGE\

Black plate (289,1)
Model "R35-D" EDITED: 2008/ 5/ 20

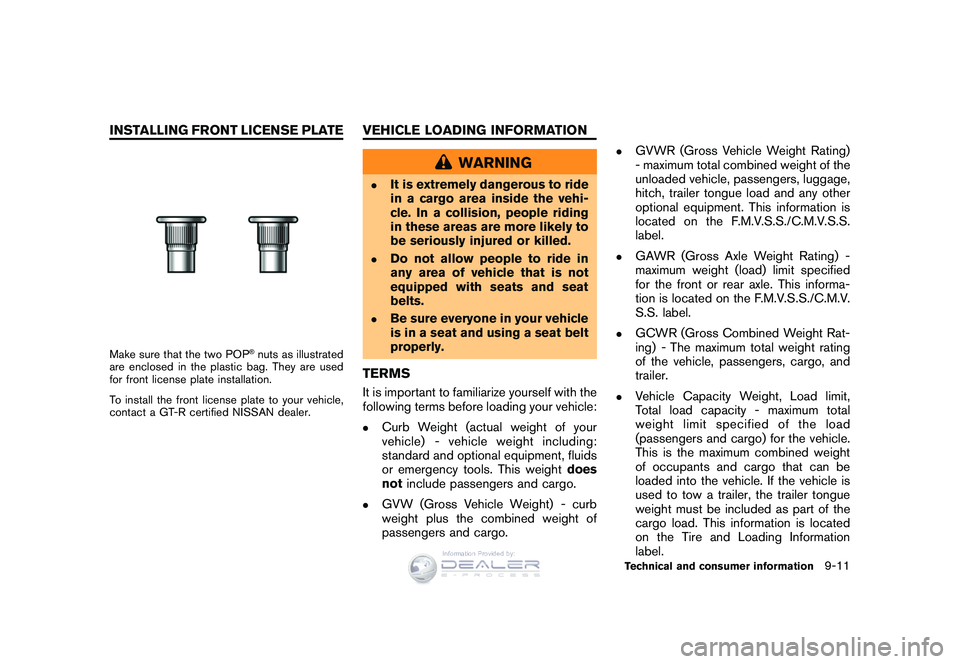

Make sure that the two POP
®nuts as illustrated
are enclosed in the plastic bag. They are used
for front license plate installation.
To install the front license plate to your vehicle,
contact a GT-R certified NISSAN dealer.
WARNING
.
It is extremely dangerous to ride
in a cargo area inside the vehi-
cle. In a collision, people riding
in these areas are more likely to
be seriously injured or killed.
.
Do not allow people to ride in
any area of vehicle that is not
equipped with seats and seat
belts.
.
Be sure everyone in your vehicle
is in a seat and using a seat belt
properly.
TERMSIt is important to familiarize yourself with the
following terms before loading your vehicle:.
Curb Weight (actual weight of your
vehicle) - vehicle weight including:
standard and optional equipment, fluids
or emergency tools. This weight does
not include passengers and cargo.
.
GVW (Gross Vehicle Weight) - curb
weight plus the combined weight of
passengers and cargo.
.
GVWR (Gross Vehicle Weight Rating)
- maximum total combined weight of the
unloaded vehicle, passengers, luggage,
hitch, trailer tongue load and any other
optional equipment. This information is
located on the F.M.V.S.S./C.M.V.S.S.
label.
.
GAWR (Gross Axle Weight Rating) -
maximum weight (load) limit specified
for the front or rear axle. This informa-
tion is located on the F.M.V.S.S./C.M.V.
S.S. label.
.
GCWR (Gross Combined Weight Rat-
ing) - The maximum total weight rating
of the vehicle, passengers, cargo, and
trailer.
.
Vehicle Capacity Weight, Load limit,
Total load capacity - maximum total
weight limit specified of the load
(passengers and cargo) for the vehicle.
This is the maximum combined weight
of occupants and cargo that can be
loaded into the vehicle. If the vehicle is
used to tow a trailer, the trailer tongue
weight must be included as part of the
cargo load. This information is located
on the Tire and Loading Information
label.Technical and consumer information
9-11
INSTALLING FRONT LICENSE PLATE VEHICLE LOADING INFORMATION
,QIRUPDWLRQ3URYLGHGE\

Black plate (290,1)
Model "R35-D" EDITED: 2008/ 5/ 20
.

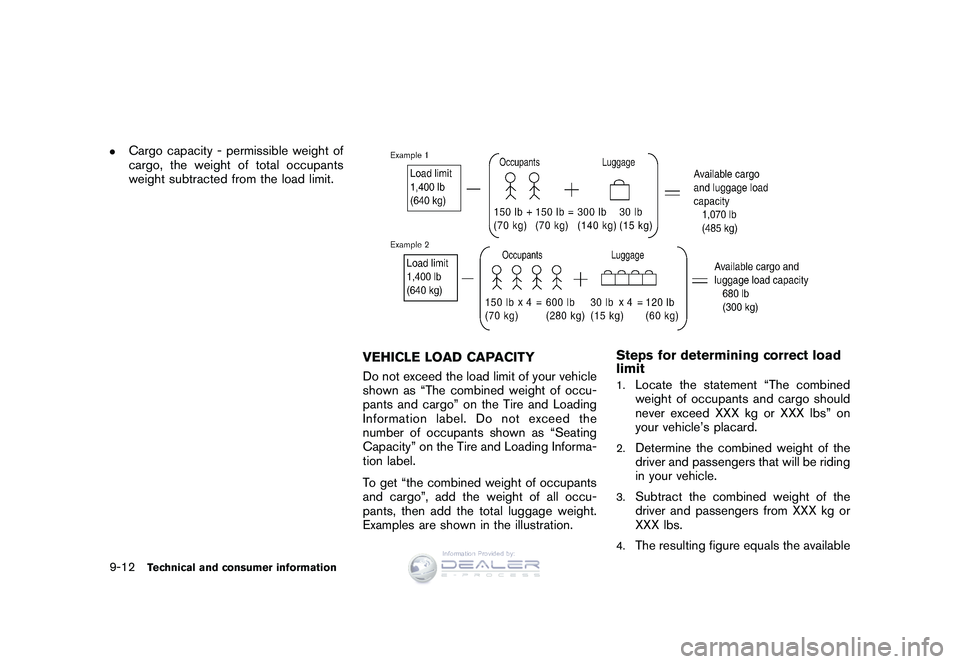

Cargo capacity - permissible weight of
cargo, the weight of total occupants
weight subtracted from the load limit.
VEHICLE LOAD CAPACITYDo not exceed the load limit of your vehicle
shown as “The combined weight of occu-
pants and cargo” on the Tire and Loading
Information label. Do not exceed the
number of occupants shown as “Seating
Capacity” on the Tire and Loading Informa-
tion label.
To get “the combined weight of occupants
and cargo”, add the weight of all occu-
pants, then add the total luggage weight.
Examples are shown in the illustration.
Steps for determining correct load
limit1.
Locate the statement “The combined
weight of occupants and cargo should
never exceed XXX kg or XXX lbs” on
your vehicle’s placard.
2.
Determine the combined weight of the
driver and passengers that will be riding
in your vehicle.
3.
Subtract the combined weight of the
driver and passengers from XXX kg or
XXX lbs.
4.
The resulting figure equals the available
9-12
Technical and consumer information
,QIRUPDWLRQ3URYLGHGE\

Black plate (291,1)
Model "R35-D" EDITED: 2008/ 5/ 20
amount of cargo and luggage load
capacity. For example, if the XXX
amount equals 1400 lbs. and there will
be five 150 lb. passengers in your
vehicle, the amount of available cargo
and luggage load capacity is 650 lbs.
(1400750 (5 x 150) = 650 lbs) or
640 340 (5 x 70) = 300 kg.)
5.
Determine the combined weight of
luggage and cargo being loaded on
the vehicle. That weight may not safely
exceed the available cargo and luggage
load capacity calculated in Step 4.
6.
If your vehicle will be towing a trailer,
load from your trailer will be transferred
to your vehicle. Consult this manual to
determine how this reduces the avail-
able cargo and luggage load capacity
of your vehicle.
Before driving a loaded vehicle, confirm
that you do not exceed the Gross Vehicle
Weight Rating (GVWR) or the Gross Axle
Weight Rating (GAWR) for your vehicle.
(“MEASUREMENT OF WEIGHTS” page
9-13)
Also check tires for proper inflation pres-
sures. See the Tire and Loading Information label.
LOADING TIPS.
The GVW must not exceed GVWR or
GAWR as specified on the F.M.V.S.S./
C.M.V.S.S. certification label.
.
Do not load the front and rear axle to
the GAWR. Doing so will exceed the
GVWR.
WARNING
.
Properly secure all cargo to help
prevent it from sliding or shift-
ing. Do not place cargo higher
than the seatbacks. In a sudden
stop or collision, unsecured car-
go could cause personal injury.
.
Do not load your vehicle any
heavier than the GVWR or the
maximum front and rear
GAWRs. If you do, parts of your
vehicle can break, tire damage
could occur, or it can change the
way your vehicle handles. This
could result in loss of control
and cause personal injury.
.
Overloading could not only
shorten the life of your vehicleand the tires, but also could lead
to hazardous vehicle handling
and long braking distance. This
may cause a premature tire
malfunction, which could result
in a serious accident and perso-
nal injury. Repairs due to over-
loading the vehicle are not
covered by the vehicle’s war-
ranty. (See the 2009 NISSAN
GT-R Warranty Information
Booklet.)
MEASUREMENT OF WEIGHTSSecure loose items to prevent weight shifts
that could affect the balance of your
vehicle. When the vehicle is loaded, drive
to a scale and weigh the front and the rear
wheels separately to determine axle loads.
Individual axle loads should not exceed
either of the gross axle weight ratings
(GAWR) . The total of the axle loads should
not exceed the gross vehicle weight rating
(GVWR) . These ratings are given on the
vehicle certification label. If weight ratings
are exceeded, move or remove items to
bring all weights below the ratings.Technical and consumer information
9-13
,QIRUPDWLRQ3URYLGHGE\
