Page 301 of 358
8-26Maintenance and do-it-yourself

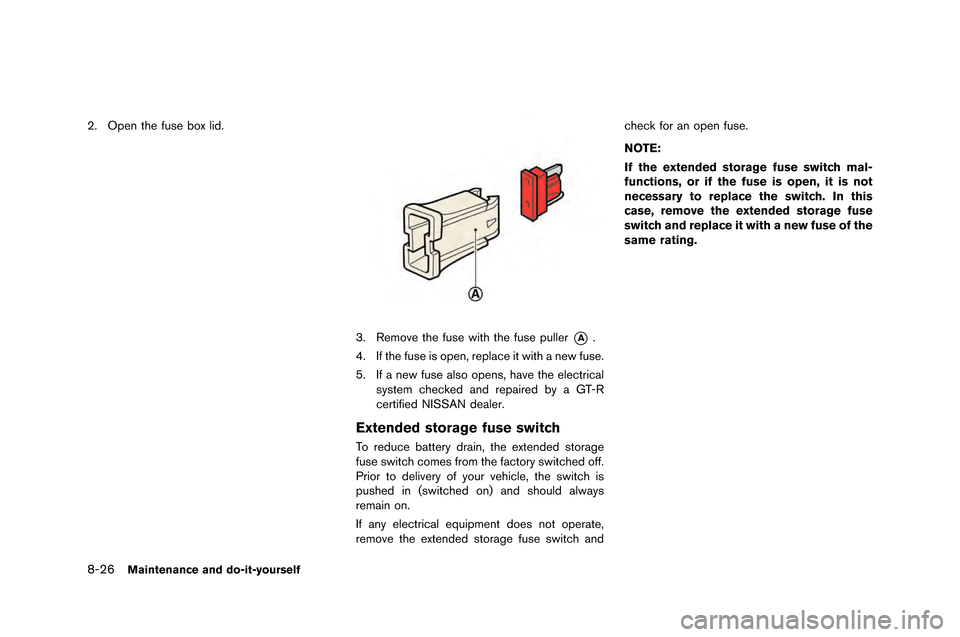

2. Open the fuse box li�f.
3. Remo�be the fuse with the fuse puller*A.
4. If the fuse is open, replace it with a new fuse.
5. If a new fuse also opens, ha�be the electrical system checke�f an�f repaire�f by a GT-R
certifie�f NISSAN �fealer.
Extended storage fuse switch
To re�fuce battery �frain, the exten�fe�f storage
fuse switch comes from the factory switche�f off.
Prior to �feli�bery of your �behicle, the switch is
pushe�f in (switche�f on) an�f shoul�f always
remain on.
If any electrical equipment �foes not operate,
remo�be the exten�fe�f storage fuse switch an�f check for an open fuse.
NOTE:
If the extended storage fuse switch mal-
functions, or if the fuse is open, it is not
necessary to replace the switch. In this
case, remove the extended storage fuse
switch and replace it with a new fuse of the
same rating.
Page 302 of 358

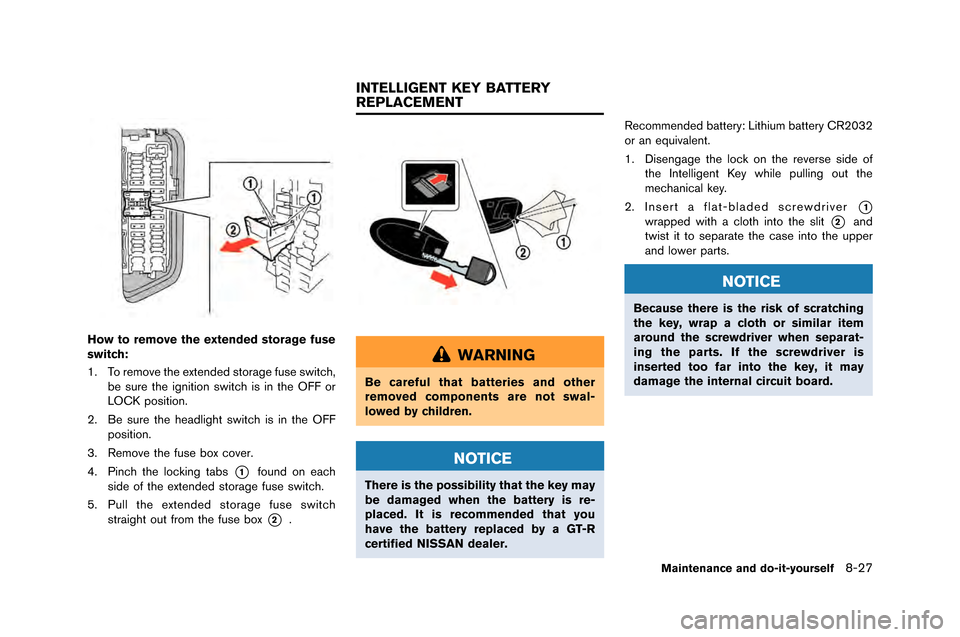

How to remove the extended storage fuse
switch:
1. To remove the extended storage fuse sw�ftch,be sure the �fgn�ft�fon sw�ftch �fs �fn the �bFF or
L�bCK pos�ft�fon.
2. Be sure the headl�fght sw�ftch �fs �fn the �bFF pos�ft�fon.
3. Remove the fuse box cover.
4. P�fnch the lock�fng tabs
*1found on each
s�fde of the extended storage fuse sw�ftch.
5. Pull the extended storage fuse sw�ftch stra�fght out from the fuse box
*2.
WARNING
Be careful that batteries and other
removed components are not swal-
lowed by children.
NOTICE
There is the possibility that the key may
be damaged when the battery is re-
placed. It is recommended that you
have the battery replaced by a GT-R
certified NISSAN dealer. Recommended battery: L�fth�fum battery CR2032
or an equ�fvalent.
1. D�fsengage the lock on the reverse s�fde of
the Intell�fgent Key wh�fle pull�fng out the
mechan�fcal key.
2. Insert a flat-bladed screwdr�fver
*1
wrapped w�fth a cloth �fnto the sl�ft*2and
tw�fst �ft to separate the case �fnto the upper
and lower parts.
NOTICE
Because there is the risk of scratching
the key, wrap a cloth or similar item
around the screwdriver when separat-
ing the parts. If the screwdriver is
inserted too far into the key, it may
damage the internal circuit board.
Maintenance and do-it-yourself8-27
INTELLIGENT KEY BATTERY
REPLACEMENT
