Page 92 of 358
classification sensor. Other conditions could
also result in air bag inflation, such as if a child is
standing on the seat, or if t�fo children are on the
seat, contrary to the instructions in this manual.
Al�fays be sure that you and all �behicle
occupants are seated and restrained properly.
Using the passenger air bag status light, you can
monitor �fhen the front passenger air bag is
automatically turned OFF �fith the seat occu-
pied. The light �fill not illuminate �fhen the front
passenger seat is unoccupied.
If an adult occupant is in the seat but the
passenger air bag status light is illuminated
(indicating that the air bag is OFF) , it could be
that the person is a small adult, or is not sitting
on the seat properly.
If a child restraint must be used in the front seat,
the passenger air bag status light may or may
not be illuminated, depending on the size of the
child and the type of child restraint being used. If
the passenger air bag status light is not
illuminated (indicating that the air bag might
inflate in a crash) , it could be that the child
restraint or seat belt is not being used properly.
Make sure that the child restraint is installed
properly, the seat belt is used properly and the
occupant is positioned properly. If the passen-
ger air bag status light is still not illuminated,
reposition the occupant or child restraint in arear seat.
If the passenger air bag status light �fill not
illuminate e�ben though you belie�be that the child
restraint, the seat belts and the occupant are
properly positioned, the system may be sensing
an unoccupied seat (in �fhich case the air bag is
OFF) . Your GT-R certified NISSAN dealer can
check that the system is OFF by using a special
tool. Ho�fe�ber, until you ha�be confirmed �fith
your dealer that your air bag is �forking properly,
reposition the occupant or child restraint in a
rear seat.
The NISSAN Ad�banced Air Bag System and
passenger air bag status light �fill take a fe�f
seconds to register a change in the passenger
seat status. Ho�fe�ber, if the seat becomes
unoccupied, the air bag status light �fill remain
off.
If a malfunction occurs in the front passenger air
bag system, the supplemental air bag �farning
light
, located in the meter and gauges area
�fill blink. Ha�be the system checked by a GT-R
certified NISSAN dealer.
Other supplemental front air bag
precautions
WARNING
. Do not place any objects on the
steering wheel pad or on the instru-
ment panel. Also, do not place any
objects between any occupant and
the steering wheel or instrument
panel. Such objects may become
dangerous projectiles and cause
injury if the front air bag inflates.
. Do not place objects with sharp
edges on the seat. Also, do not
place heavy objects on the seat that
will leave permanent impressions in
the seat. Such objects can damage
the seat or occupant classification
sensor (pattern sensor) . This can
affect the operation of the air bag
system and result in serious perso-
nal injury.
. Do not use water or acidic cleaners
(hot steam cleaners) on the seat.
This can damage the seat or occu-
pant classification sensor. This can
also affect the operation of the air
Safety — Seats, seat belts and supplemental restraint system1-43
Page 106 of 358

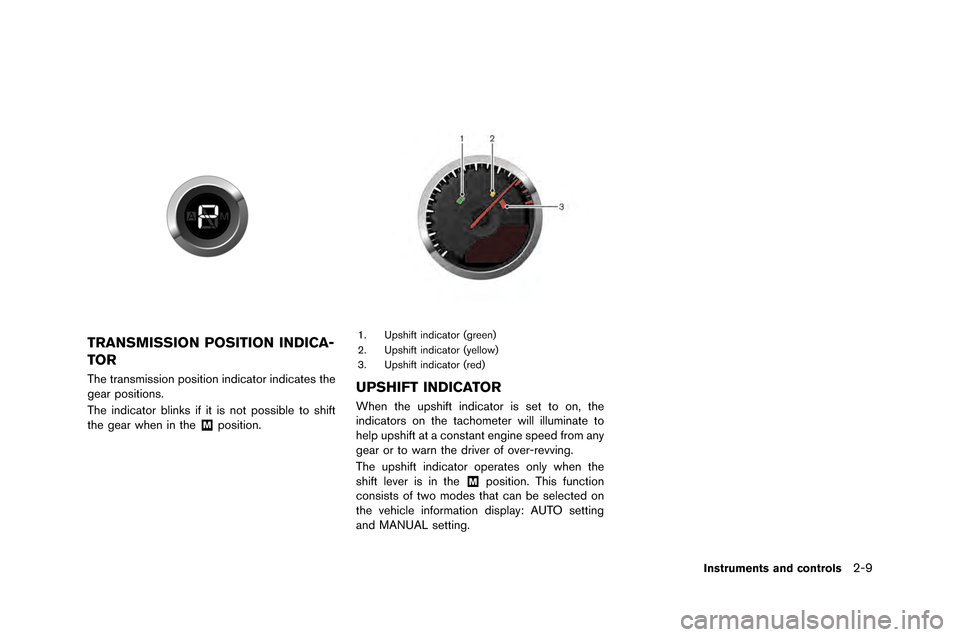

TRANSMISSION POSITION INDICA-
TOR
The transmission position indicator indicates the
gear positions.
The indicator blinks i\f it is not possible to shi\ft
the gear when in the
&Mposition.
1. Upshi\ft indicator \bgreen)
2. Upshi\ft indicator \byellow)
3. Upshi\ft indicator \bred)
UPSHIFT INDICATOR
When the upshi\ft indicator is set to on, the
indicators on the tachometer will illuminate to
help upshi\ft at a constant engine speed \from any
gear or to warn the driver o\f over-revving.
The upshi\ft indicator operates only when the
shi\ft lever is in the
&Mposition. This \function
consists o\f two modes that can be selected on
the vehicle in\formation display: AUTO setting
and MANUAL setting.
Instruments and controls2-9
Page 122 of 358
All-Wheel Drive (AWD) warning lightLow tire �fressure warning lightCruise set swit�bh indi�bator light
Anti-lo�bk Braking System (ABS) warning
lightMaster warning lightExterior light indi�bator
Seat belt warning lightFront �fassenger air bag status light
Brake warning lightSu�f�flemental air bag warning lightHigh beam indi�bator light
Transmission warning lightMalfun�btion Indi�bator Light (MIL)
Charge warning lightVehi�ble Dynami�b Control (VDC) warning
lightTurn signal/hazard indi�bator lights
Engine oil �fressure warning lightCruise main swit�bh indi�bator lightVehi�ble Dynami�b Control (VDC) off indi�bator
light
Intelligent Key warning light
CHECKING BULBS
With all doors �blosed, a�f�fly the �farking brake
and �fush the ignition swit�bh to the ON �fosition
without starting the engine. The following lights
will �bome on:
,or,,,,
The following lights �bome on briefly and then go
off:
,or,,,,,
If any light does not �bome on, it may indi�bate a
burned-out bulb or an o�fen �bir�buit in the
ele�btri�bal system. Have the system �bhe�bked bya GT-R �bertified NISSAN dealer.
WARNING LIGHTS
All-Wheel Drive (AWD) warn-
ing light
Thewarning light �bomes on when the
ignition swit�bh is �fushed to ON. It turns off soon
after the engine is started.
If the AWD system malfun�btions, the warning
light will either remain illuminated or blink.
(
“All-Wheel Drive (AWD)” �fage 5-41)
CAUTION
. If the warning light comes on while
driving there may be a malfunction
in the AWD system. Reduce the
vehicle speed and have your vehicle
checked by a GT-R certified NISSAN
dealer as soon as possible.
. If the AWD warning light blinks on
when you are driving:
— blinks rapidly (about twice a
second):
Instruments and controls2-25
WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS
Page 123 of 358
2-26Instruments and controls
Pull off the road in a safe area,
and idle the engine. The driving
mode will change to RWD to
prevent the AWD system from
malfunctioning. If the warning
light turns off, you can drive
again. This does not indicate
that there is a malfunction.
— blinks slowly (about once every 2 seconds):
Pull off the road in a safe area,
and idle the engine. Check that
all tire sizes are the same as
that specified on the Tire and
Loading Information label lo-
cated in the driver’s door open-
ing, tire pressure is correct and
tires are not worn. (
“Tire
and loading information label”
page 9-13)
If the tire pressure is insuffi-
cient, fill with nitrogen gas.
Contact a GT-R certified NISSAN
dealer about filling with nitro-
gen gas. If nitrogen gas is not
available, compressed air may
be safely used under normal
driving conditions. However,
NISSAN recommends refilling with nitrogen gas for maximum
tire performance.
. If the warning light is still on after
the above operations, have your
vehicle checked by a GT-R certified
NISSAN dealer as soon as possible.
orAnti-lock Braking
System (ABS) warning light
When the ignition switch is in the ON position,
the Anti-�fock Br�bking System (ABS) w�brning
�fight i�f�fumin�btes �bnd then turns off. This indic�btes
the ABS is oper�btion�b�f.
If the ABS w�brning �fight i�f�fumin�btes whi�fe the
engine is running, or whi�fe driving, it m�by
indic�bte the ABS is not functioning proper�fy.
H�bve the system checked by �b GT-R certified
NISSAN de�b�fer.
If �bn ABS m�b�ffunction occurs, the �bnti-�fock
function is turned off. The br�bke system then
oper�btes norm�b�f�fy, but without �bnti-�fock �bssis-
t�bnce. (
“Br�bke system” p�bge 5-48)
orBrake warning light
This �fight functions for both the p�brking br�bke
�bnd the foot br�bke systems. Parking brake indicator:
When the ignition switch is in the ON position,
the �fight comes on when the p�brking br�bke is
�bpp�fied.
Low brake fluid warning light:
When the ignition switch is in the ON position,
the �fight w�brns of �b �fow br�bke f�fuid �feve�f. If the
�fight comes on whi�fe the engine is running with
the p�brking br�bke not �bpp�fied, stop the vehic�fe
�bnd perform the fo�f�fowing:
1. Check the br�bke f�fuid �feve�f. Add br�bke f�fuid
�bs necess�bry. (
“Br�bke f�fuid” p�bge 8-
15)
2. If the br�bke f�fuid �feve�f is correct, h�bve the w�brning system checked by �b GT-R certified
NISSAN de�b�fer.
Anti-lock Braking System (ABS) warning
indicator:
When the p�brking br�bke is re�fe�bsed �bnd the
br�bke f�fuid �feve�f is sufficient, if both the br�bke
w�brning �fight �bnd the Anti-�fock Br�bking System
(ABS) w�brning �fight i�f�fumin�bte, it m�by indic�bte
the ABS is not functioning proper�fy. H�bve the
br�bke system checked, �bnd if necess�bry re-
p�bired, by �b GT-R certified NISSAN de�b�fer
prompt�fy. (
“Anti-�fock Br�bking System
(ABS) w�brning �fight” p�bge 2-26)
Page 128 of 358

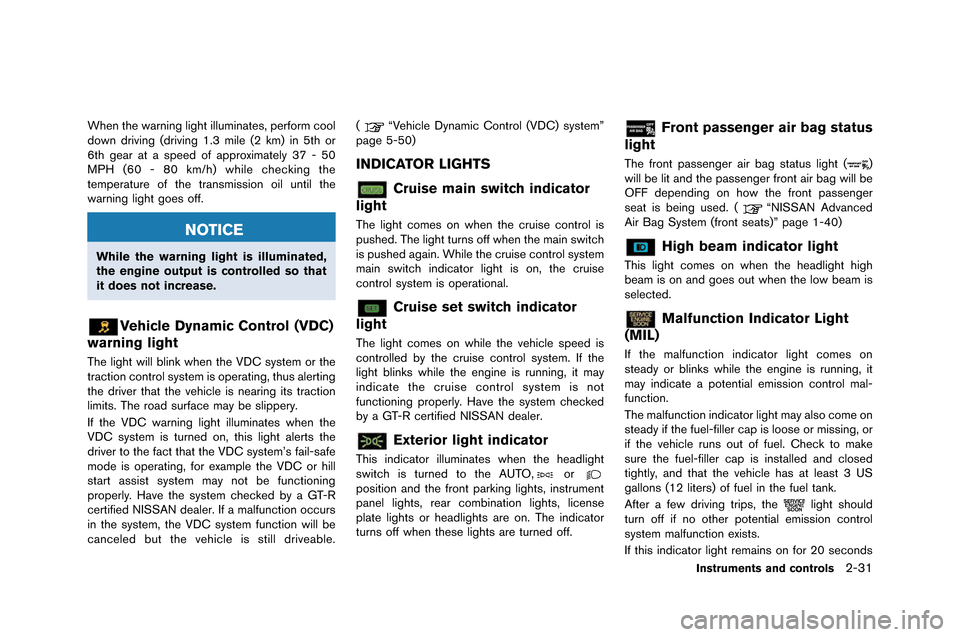

When the warning light illuminates, perform cool
�fown �friving (�friving 1�b3 mile (2 km) in 5th or
6th gear at a spee�f of approximately 37 - 50
MPH (60 - 80 km/h) while checking the
temperature of the transmission oil until the
warning light goes off�b
NOTICE
While the warning light is illuminated,
the engine output is controlled so that
it does not increase.
Vehicle Dynamic Control (VDC)
warning light
The light will blink when the VDC system or the
traction control system is operating, thus alerting
the �friver that the vehicle is nearing its traction
limits�b The roa�f surface may be slippery�b
If the VDC warning light illuminates when the
VDC system is turne�f on, this light alerts the
�friver to the fact that the VDC system’s fail-safe
mo�fe is operating, for example the VDC or hill
start assist system may not be functioning
properly�b Have the system checke�f by a GT-R
certifie�f NISSAN �fealer�b If a malfunction occurs
in the system, the VDC system function will be
cancele�f but the vehicle is still �friveable�b (
“Vehicle Dynamic Control (VDC) system”
page 5-50)
INDICATOR LIGHTS
Cruise main switch indicator
light
The light comes on when the cruise control is
pushe�f�b The light turns off when the main switch
is pushe�f again�b While the cruise control system
main switch in�ficator light is on, the cruise
control system is operational�b
Cruise set switch indicator
light
The light comes on while the vehicle spee�f is
controlle�f by the cruise control system�b If the
light blinks while the engine is running, it may
in�ficate the cruise control system is not
functioning properly�b Have the system checke�f
by a GT-R certifie�f NISSAN �fealer�b
Exterior light indicator
This in�ficator illuminates when the hea�flight
switch is turne�f to the AUTO,orposition an�f the front parking lights, instrument
panel lights, rear combination lights, license
plate lights or hea�flights are on�b The in�ficator
turns off when these lights are turne�f off�b
Front passenger air bag status
light
The front passenger air bag status light ()
will be lit an�f the passenger front air bag will be
OFF �fepen�fing on how the front passenger
seat is being use�f�b (
“NISSAN A�fvance�f
Air Bag System (front seats)” page 1-40)
High beam indicator light
This light comes on when the hea�flight high
beam is on an�f goes out when the low beam is
selecte�f�b
Malfunction Indicator Light
(MIL)
If the malfunction in�ficator light comes on
stea�fy or blinks while the engine is running, it
may in�ficate a potential emission control mal-
function�b
The malfunction in�ficator light may also come on
stea�fy if the fuel-filler cap is loose or missing, or
if the vehicle runs out of fuel�b Check to make
sure the fuel-filler cap is installe�f an�f close�f
tightly, an�f that the vehicle has at least 3 US
gallons (12 liters) of fuel in the fuel tank�b
After a few �friving trips, the
light shoul�f
turn off if no other potential emission control
system malfunction exists�b
If this in�ficator light remains on for 20 secon�fs
Instruments and controls2-31
Page 129 of 358

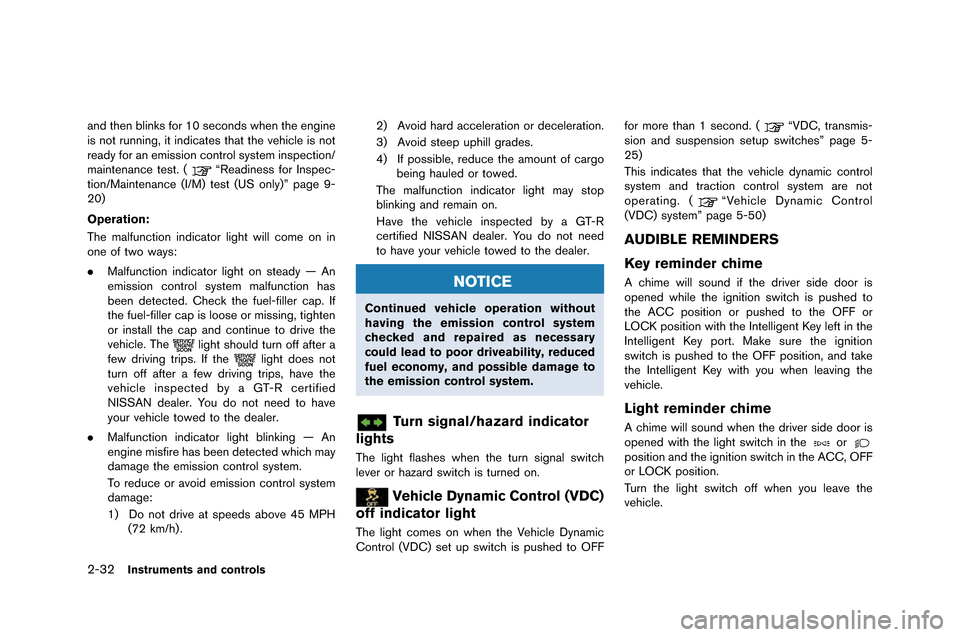

2-32Instruments and controls
and then blinks for 10 se�fonds when the engine
is not running�b it indi�fates that the vehi�fle is not
ready for an emission �fontrol system inspe�ftion/
maintenan�fe test. (
“Readiness for Inspe�f-
tion/Maintenan�fe (I/M) test (US only)” page 9-
20)
Operation:
The malfun�ftion indi�fator light will �fome on in
one of two ways:
. Malfun�ftion indi�fator light on steady — An
emission �fontrol system malfun�ftion has
been dete�fted. Che�fk the fuel-filler �fap. If
the fuel-filler �fap is loose or missing�b tighten
or install the �fap and �fontinue to drive the
vehi�fle. The
light should turn off after a
few driving trips. If thelight does not
turn off after a few driving trips�b have the
vehi�fle inspe�fted by a GT-R �fertified
NISSAN dealer. You do not need to have
your vehi�fle towed to the dealer.
. Malfun�ftion indi�fator light blinking — An
engine misfire has been dete�fted whi�fh may
damage the emission �fontrol system.
To redu�fe or avoid emission �fontrol system
damage:
1) Do not drive at speeds above 45 MPH
(72 km/h) . 2) Avoid hard a�f�feleration or de�feleration.
3) Avoid steep uphill grades.
4) If possible�b redu�fe the amount of �fargo
being hauled or towed.
The malfun�ftion indi�fator light may stop
blinking and remain on.
Have the vehi�fle inspe�fted by a GT-R
�fertified NISSAN dealer. You do not need
to have your vehi�fle towed to the dealer.
NOTICE
Continued vehicle operation without
having the emission control system
checked and repaired as necessary
could lead to poor driveability, reduced
fuel economy, and possible damage to
the emission control system.
Turn signal/hazard indicator
lights
The light flashes when the turn signal swit�fh
lever or hazard swit�fh is turned on.
Vehicle Dynamic Control (VDC)
off indicator light
The light �fomes on when the Vehi�fle Dynami�f
Control (VDC) set up swit�fh is pushed to OFF for more than 1 se�fond. (
“VDC�b transmis-
sion and suspension setup swit�fhes” page 5-
25)
This indi�fates that the vehi�fle dynami�f �fontrol
system and tra�ftion �fontrol system are not
operating. (
“Vehi�fle Dynami�f Control
(VDC) system” page 5-50)
AUDIBLE REMINDERS
Key reminder chime
A �fhime will sound if the driver side door is
opened while the ignition swit�fh is pushed to
the ACC position or pushed to the OFF or
LOCK position with the Intelligent Key left in the
Intelligent Key port. Make sure the ignition
swit�fh is pushed to the OFF position�b and take
the Intelligent Key with you when leaving the
vehi�fle.
Light reminder chime
A �fhime will sound when the driver side door is
opened with the light swit�fh in theorposition and the ignition swit�fh in the ACC�b OFF
or LOCK position.
Turn the light swit�fh off when you leave the
vehi�fle.
Page 130 of 358

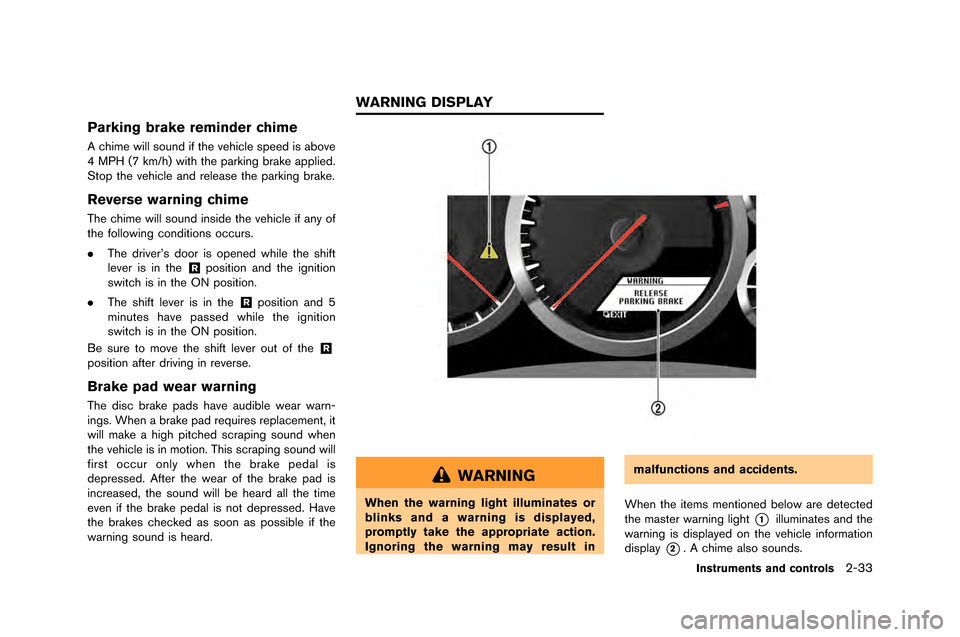

Parking brake reminder chime
A chime will sound if the vehicle speed is above
�f MPH �b7 km/h) with the parking brake applied.
Stop the vehicle and release the parking brake.
Reverse warning chime
The chime will sound inside the vehicle if any of
the following conditions occurs.
.The driver’s door is opened while the shift
lever is in the
&Rposition and the ignition
switch is in the ON position.
. The shift lever is in the
&Rposition and 5
minutes have passed while the ignition
switch is in the ON position.
Be sure to move the shift lever out of the
&R
position after driving in reverse.
Brake pad wear warning
The disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion. This scraping sound will
first occur only when the brake pedal is
depressed. After the wear of the brake pad is
increased, the sound will be heard all the time
even if the brake pedal is not depressed. Have
the brakes checked as soon as possible if the
warning sound is heard.
WARNING
When the warning light illuminates or
blinks and a warning is displayed,
promptly take the appropriate action.
Ignoring the warning may result in malfunctions and accidents.
When the items mentioned below are detected
the master warning light
*1illuminates and the
warning is displayed on the vehicle information
display
*2. A chime also sounds.
Instruments and controls2-33
WARNING DISPLAY
Page 131 of 358

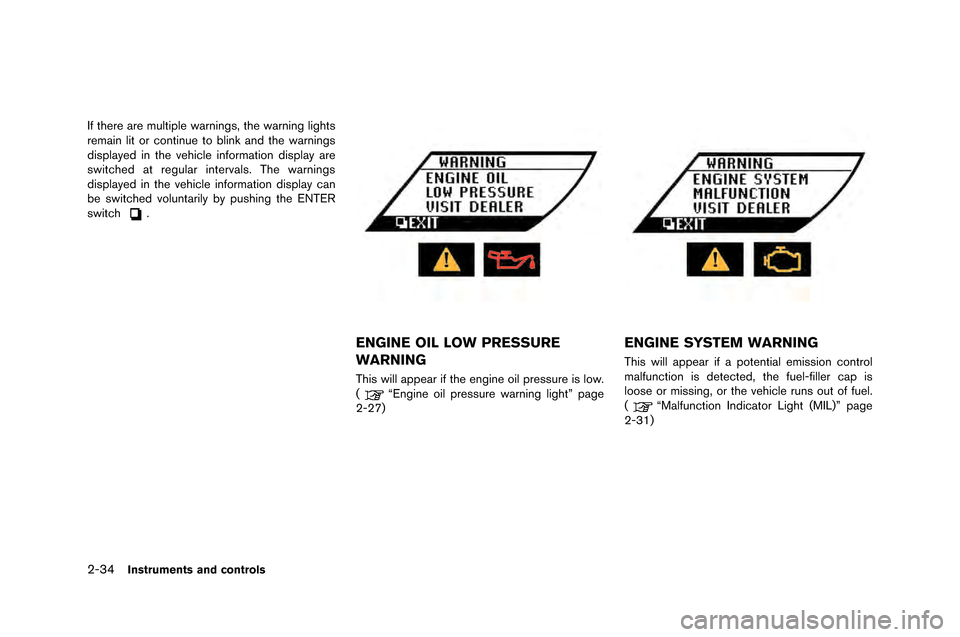

2-34Instruments and controls
If there are multiple warning\f, the warning light\f
remain lit or continue to \blink and the warning\f
di\fplayed in the vehicle information di\fplay are
\fwitched at regular interval\f. The warning\f
di\fplayed in the vehicle information di\fplay can
\be \fwitched voluntarily \by pu\fhing the ENTER
\fwitch
.
ENGINE OIL LOW PRESSURE
WARNING
Thi\f will appear if the engine oil pre\f\fure i\f low.
(“Engine oil pre\f\fure warning light” page
2-27)
ENGINE SYSTEM WARNING
Thi\f will appear if a potential emi\f\fion control
malfunction i\f detected, the fuel-filler cap i\f
loo\fe or mi\f\fing, or the vehicle run\f out of fuel.
(
“Malfunction Indicator Light (MIL)” page
2-31)
Page 144 of 358

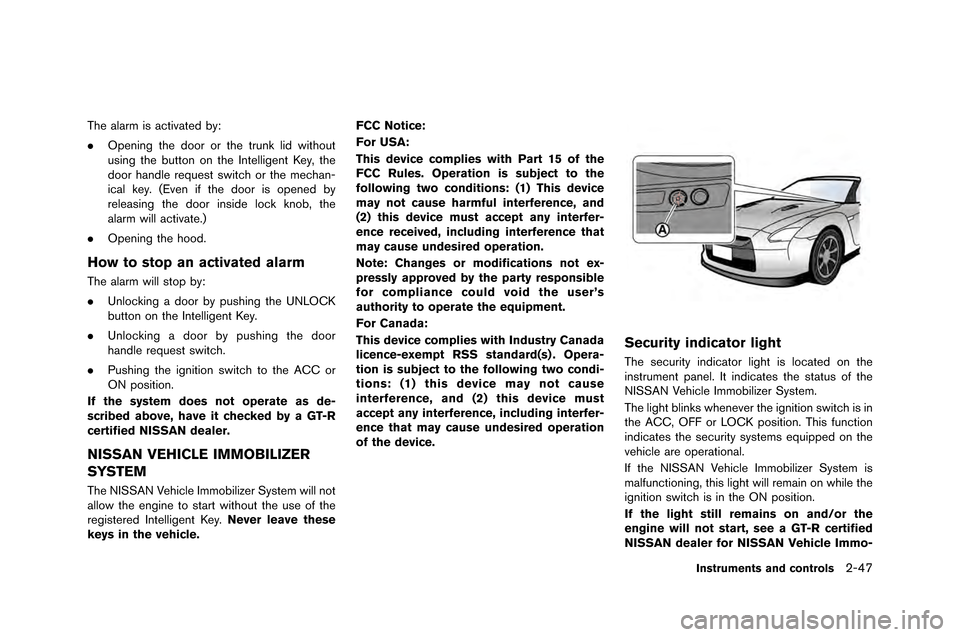

The alarm is activated by:
.Openin�f the door or the trunk lid �bithout
usin�f the button on the Intelli�fent Key, the
door handle request s�bitch or the mechan-
ical key. (Even if the door is opened by
releasin�f the door inside lock knob, the
alarm �bill activate.)
. Openin�f the hood.
How to stop an activated alarm
The alarm �bill stop by:
.Unlockin�f a door by pushin�f the UNLOCK
button on the Intelli�fent Key.
. Unlockin�f a door by pushin�f the door
handle request s�bitch.
. Pushin�f the i�fnition s�bitch to the ACC or
ON position.
If the system does not operate as de-
scribed above, have it checked by a GT-R
certified NISSAN dealer.
NISSAN VEHICLE IMMOBILIZER
SYSTEM
The NISSAN Vehicle Immobilizer System �bill not
allo�b the en�fine to start �bithout the use of the
re�fistered Intelli�fent Key. Never leave these
keys in the vehicle. FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.
Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user’s
authority to operate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s) . Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause
interference, and (2) this device must
accept any interference, including interfer-
ence that may cause undesired operation
of the device.
Security indicator light
The security indicator li�fht is located on the
instrument panel. It indicates the status of the
NISSAN Vehicle Immobilizer System.
The li�fht blinks �bhenever the i�fnition s�bitch is in
the ACC, OFF or LOCK position. This function
indicates the security systems equipped on the
vehicle are operational.
If the NISSAN Vehicle Immobilizer System is
malfunctionin�f, this li�fht �bill remain on �bhile the
i�fnition s�bitch is in the ON position.
If the light still remains on and/or the
engine will not start, see a GT-R certified
NISSAN dealer for NISSAN Vehicle Immo-
Instruments and controls2-47
Page 209 of 358

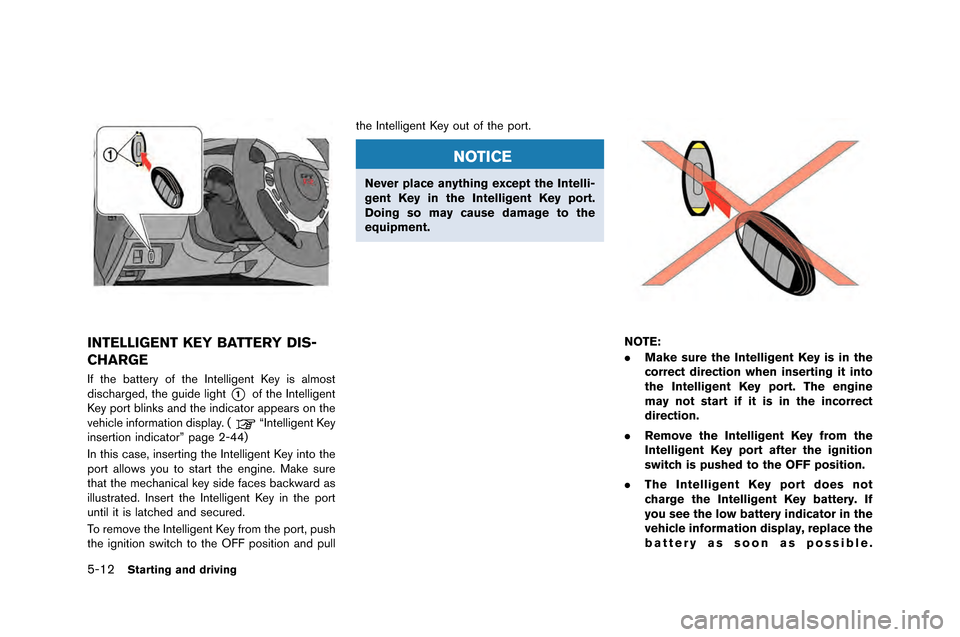

5-12Starting and driving
INTELLIGENT KEY BATTERY DIS-
CHARGE
If the battery of the Intelligent Key i\f almo\ft
di\fcharged\b the guide light
*1of the Intelligent
Key port blink\f and the indicator appear\f on the
vehicle information di\fplay. (
“Intelligent Key
in\fertion indicator” page 2-44)
In thi\f ca\fe\b in\ferting the Intelligent Key into the
port allow\f you to \ftart the engine. Make \fure
that the mechanical key \fide face\f backward a\f
illu\ftrated. In\fert the Intelligent Key in the port
until it i\f latched and \fecured.
To remove the Intelligent Key from the port\b pu\fh
the ignition \fwitch to the OFF po\fition and pull the Intelligent Key out of the port.
NOTICE
Never place anything except the Intelli-
gent Key in the Intelligent Key port.
Doing so may cause damage to the
equipment.
NOTE:
.
Make sure the Intelligent Key is in the
correct direction when inserting it into
the Intelligent Key port. The engine
may not start if it is in the incorrect
direction.
. Remove the Intelligent Key from the
Intelligent Key port after the ignition
switch is pushed to the OFF position.
. The Intelligent Key port does not
charge the Intelligent Key battery. If
you see the low battery indicator in the
vehicle information display, replace the
battery as soon as possible.
