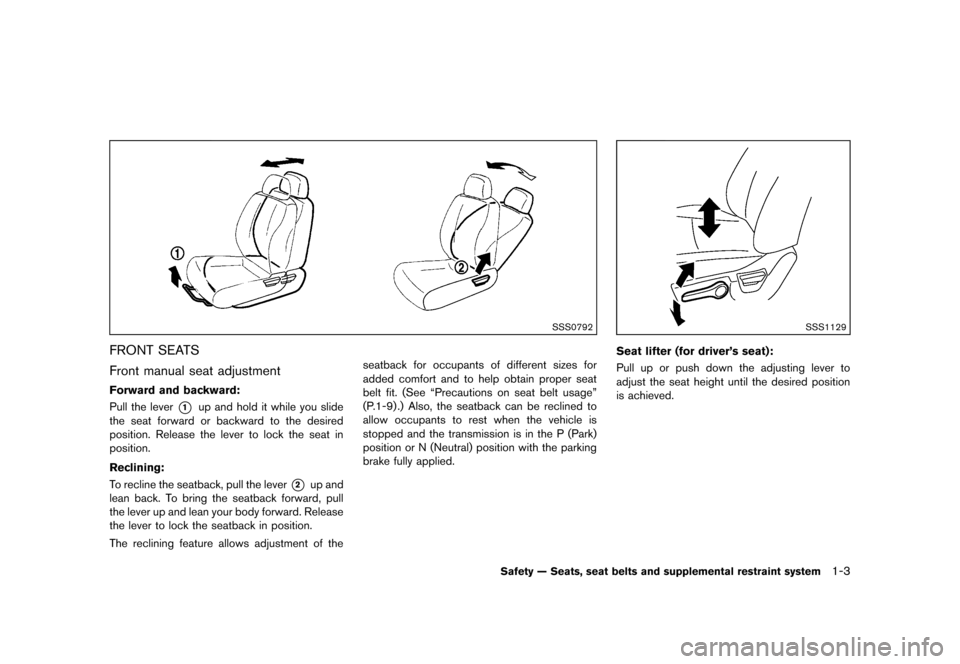

FRONT SEATSGUID-55B40E63-3184-4977-9580-6F5DF10262BF
Front manual seat adjustmentGUID-5F8B59F4-CE83-4388-A330-B31F2E8A1C04
Forward and backward:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Pull the lever*1up and hold it while you slide
the seat forward or backward to the desired
position. Release the lever to lock the seat in
position.
Reclining:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53To recline the seatback, pull the lever*2up and
lean back. To bring the seatback forward, pull
the lever up and lean your body forward. Release
the lever to lock the seatback in position.
The reclining feature allows adjustment of the seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “Precautions on seat belt usage”
(P.1-9) .) Also, the seatback can be reclined to
allow occupants to rest when the vehicle is
stopped and the transmission is in the P (Park)
position or N (Neutral) position with the parking
brake fully applied.
SSS1129
Seat lifter (for driver’s seat):GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Pull up or push down the adjusting lever to
adjust the seat height until the desired position
is achieved.
Safety — Seats, seat belts and supplemental restraint system1-3
Condition:
Page 22 of 347
Black plate (20,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

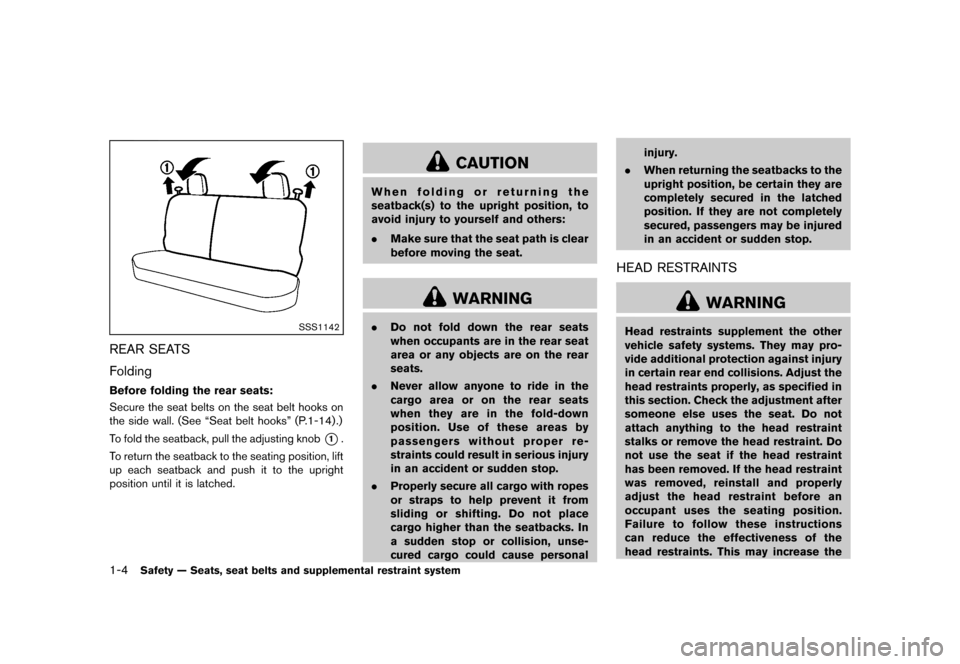

1-4Safety — Seats, seat belts and supplemental restraint system
SSS1142
REAR SEATSGUID-2FD3862E-47A4-488D-87D0-EC77846BDDE4
FoldingGUID-93DCD3BA-E481-4D39-82ED-FEB595DFCE01
Before folding the rear seats:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Secure the seat belts on the seat belt hooks on
the side wall. (See “Seat belt hooks” (P.1-14) .)
To fold the seatback, pull the adjusting knob
*1.
To return the seatback to the seating position, lift
up each seatback and push it to the upright
position until it is latched.
CAUTION
When folding or returning the
seatback(s) to the upright position, to
avoid injury to yourself and others:
. Make sure that the seat path is clear
before moving the seat.
WARNING
.Do not fold down the rear seats
when occupants are in the rear seat
area or any objects are on the rear
seats.
. Never allow anyone to ride in the
cargo area or on the rear seats
when they are in the fold-down
position. Use of these areas by
passengers without proper re-
straints could result in serious injury
in an accident or sudden stop.
. Properly secure all cargo with ropes
or straps to help prevent it from
sliding or shifting. Do not place
cargo higher than the seatbacks. In
a sudden stop or collision, unse-
cured cargo could cause personal injury.
. When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched
position. If they are not completely
secured, passengers may be injured
in an accident or sudden stop.
HEAD RESTRAINTSGUID-8F6B0940-703A-44EA-9F15-263BA73C554F
WARNING
Head restraints supplement the other
vehicle safety systems. They may pro-
vide additional protection against injury
in certain rear end collisions. Adjust the
head restraints properly, as specified in
this section. Check the adjustment after
someone else uses the seat. Do not
attach anything to the head restraint
stalks or remove the head restraint. Do
not use the seat if the head restraint
has been removed. If the head restraint
was removed, reinstall and properly
adjust the head restraint before an
occupant uses the seating position.
Failure to follow these instructions
can reduce the effectiveness of the
head restraints. This may increase the
Condition:
Page 23 of 347
Black plate (21,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

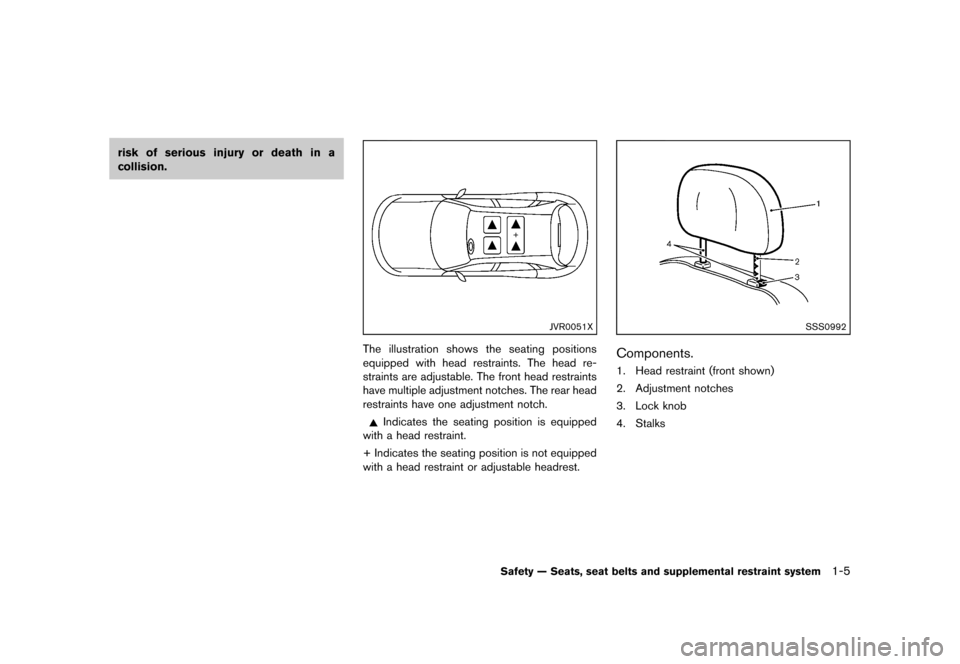

risk of serious injury or death in a
collision.
JVR0051X
The illustration shows the seating positions
equipped with head restraints. The head re-
straints are adjustable. The front head restraints
have multiple adjustment notches. The rear head
restraints have one adjustment notch.
Indicates the seating position is equipped
with a head restraint.
+ Indicates the seating position is not equipped
with a head restraint or adjustable headrest.
SSS0992
Components.GUID-DA49A6E4-F1AC-4350-AD51-CAB31A2EB7021. Head restraint (front shown)
2. Adjustment notches
3. Lock knob
4. Stalks
Safety — Seats, seat belts and supplemental restraint system1-5
Condition:
Page 24 of 347
Black plate (22,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

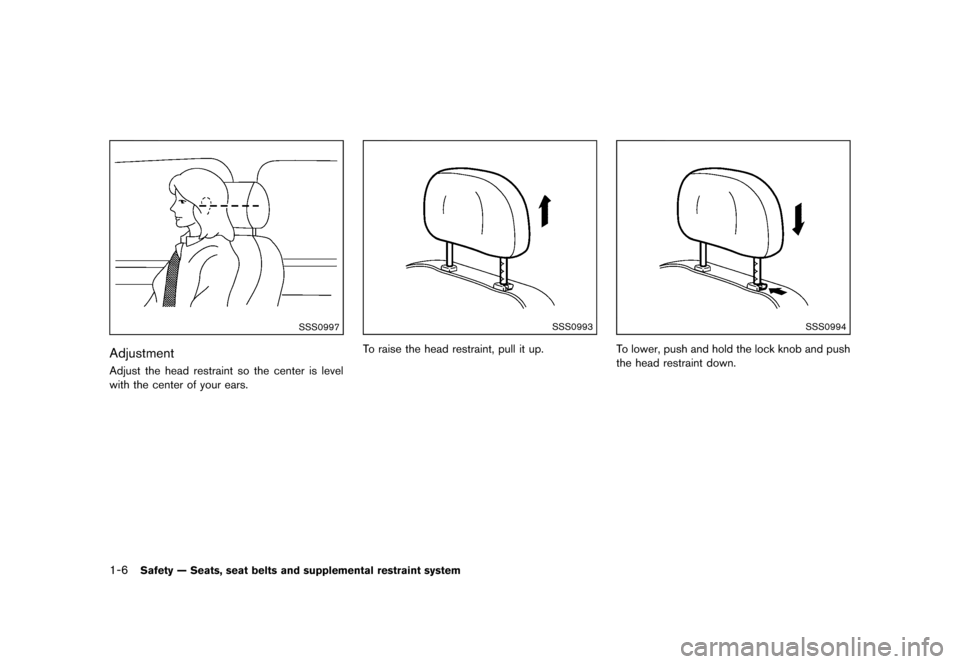

1-6Safety — Seats, seat belts and supplemental restraint system
SSS0997
AdjustmentGUID-EB8890F9-0620-49ED-A2CF-1AABFBA6A9FAAdjust the head restraint so the center is level
with the center of your ears.
SSS0993
To raise the head restraint, pull it up.
SSS0994
To lower, push and hold the lock knob and push
the head restraint down.
Condition:
Page 25 of 347
Black plate (23,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

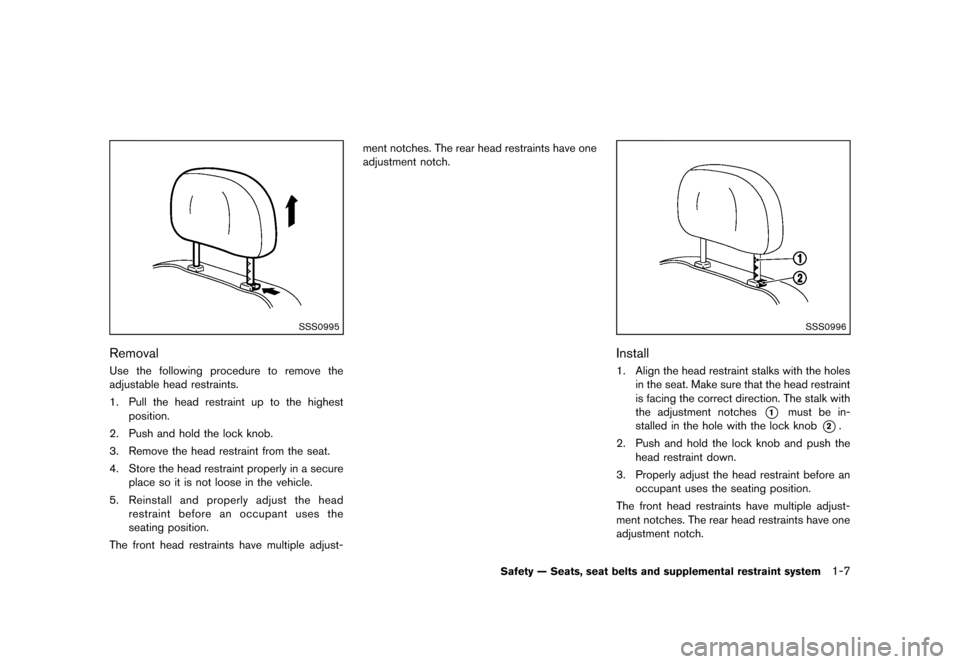

SSS0995
RemovalGUID-DF75CB90-1E53-47F8-83F0-888DDA65151FUse the following procedure to remove the
adjustable head restraints.
1. Pull the head restraint up to the highestposition.
2. Push and hold the lock knob.
3. Remove the head restraint from the seat.
4. Store the head restraint properly in a secure place so it is not loose in the vehicle.
5. Reinstall and properly adjust the head
restraint before an occupant uses the
seating position.
The front head restraints have multiple adjust- ment notches. The rear head restraints have one
adjustment notch.
SSS0996
InstallGUID-C3856631-8898-412D-B440-8420406175F01. Align the head restraint stalks with the holes
in the seat. Make sure that the head restraint
is facing the correct direction. The stalk with
the adjustment notches
*1must be in-
stalled in the hole with the lock knob
*2.
2. Push and hold the lock knob and push the head restraint down.
3. Properly adjust the head restraint before an occupant uses the seating position.
The front head restraints have multiple adjust-
ment notches. The rear head restraints have one
adjustment notch.
Safety — Seats, seat belts and supplemental restraint system1-7
Condition:
Page 26 of 347
Black plate (24,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

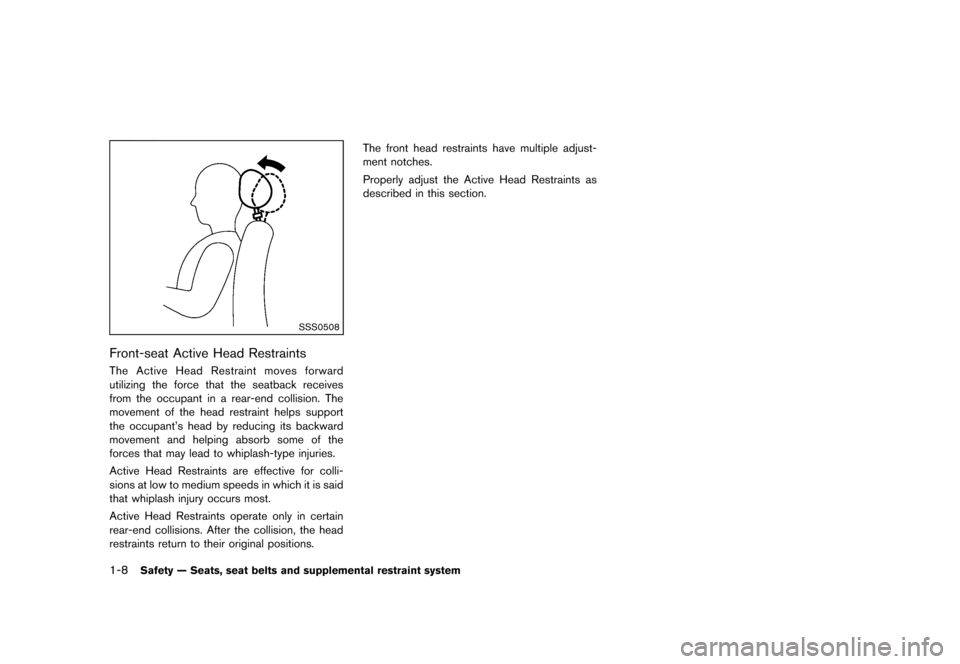

1-8Safety — Seats, seat belts and supplemental restraint system
SSS0508
Front-seat Active Head RestraintsGUID-387F51B4-7CEA-4F79-A0BF-23E93E24350DThe Active Head Restraint moves forward
utilizing the force that the seatback receives
from the occupant in a rear-end collision. The
movement of the head restraint helps support
the occupant’s head by reducing its backward
movement and helping absorb some of the
forces that may lead to whiplash-type injuries.
Active Head Restraints are effective for colli-
sions at low to medium speeds in which it is said
that whiplash injury occurs most.
Active Head Restraints operate only in certain
rear-end collisions. After the collision, the head
restraints return to their original positions.The front head restraints have multiple adjust-
ment notches.
Properly adjust the Active Head Restraints as
described in this section.
Condition:
Page 27 of 347
Black plate (25,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

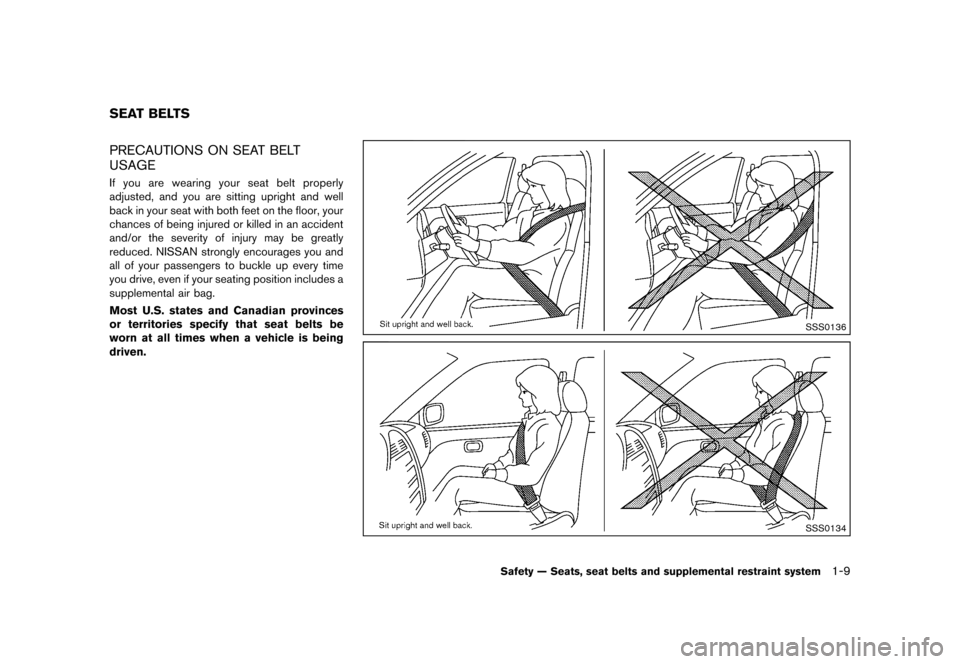

GUID-92182A0D-FB70-4BA9-81E5-FB1DCE59F1D2PRECAUTIONS ON SEAT BELT
USAGE
GUID-E275423E-F1F3-4DC0-BFA1-B05D62DB881DIf you are wearing your seat belt properly
adjusted, and you are sitting upright and well
back in your seat with both feet on the floor, your
chances of being injured or killed in an accident
and/or the severity of injury may be greatly
reduced. NISSAN strongly encourages you and
all of your passengers to buckle up every time
you drive, even if your seating position includes a
supplemental air bag.
Most U.S. states and Canadian provinces
or territories specify that seat belts be
worn at all times when a vehicle is being
driven.
SSS0136
SSS0134
Safety — Seats, seat belts and supplemental restraint system1-9
SEAT BELTS
Condition:
Page 28 of 347
Black plate (26,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
1-10Safety — Seats, seat belts and supplemental restraint system
SSS0016
SSS0014
WARNING
.Every person who drives or rides in
this vehicle should use a seat belt at
all times. Children should be prop-
erly restrained in the rear seat and,
if appropriate, in a child restraint.
. The seat belt should be properly
adjusted to a snug fit. Failure to do
so may reduce the effectiveness of
the entire restraint system and in-
crease the chance or severity of
injury in an accident. Serious injury
or death can occur if the seat belt is
not worn properly.
. Always route the shoulder belt over
your shoulder and across your
chest. Never put the belt behind
your back, under your arm or across
your neck. The belt should be away
from your face and neck, but not
falling off your shoulder.
. Position the lap belt as low and
snug as possible AROUND THE
HIPS, NOT THE WAIST. A lap belt
worn too high could increase the
risk of internal injuries in an acci-
dent. .
Be sure the seat belt tongue is
securely fastened to the proper
buckle.
. Do not wear the seat belt inside out
or twisted. Doing so may reduce its
effectiveness.
. Do not allow more than one person
to use the same seat belt.
. Never carry more people in the
vehicle than there are seat belts.
. If the seat belt warning light glows
continuously while the ignition is
turned ON with all doors closed and
all seat belts fastened, it may in-
dicate a malfunction in the system.
Have the system checked by a
NISSAN dealer.
. No changes should be made to the
seat belt system. For example, do
not modify the seat belt, add mate-
rial, or install devices that may
change the seat belt routing or
tension. Doing so may affect the
operation of the seat belt system.
Modifying or tampering with the
seat belt system may result in
serious personal injury.
Condition:
Page 29 of 347
Black plate (27,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

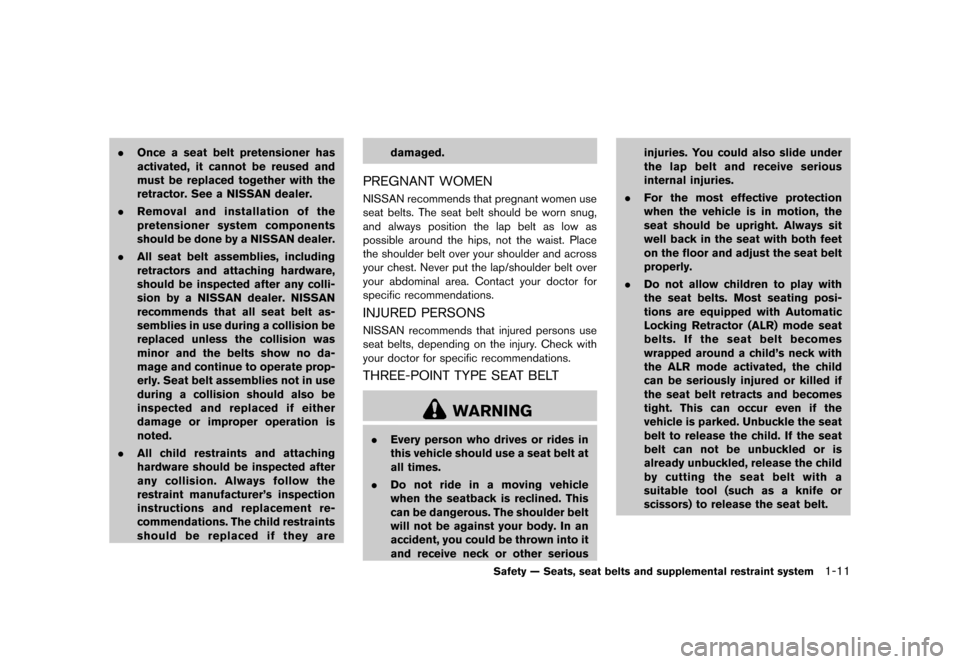

.Once a seat belt pretensioner has
activated, it cannot be reused and
must be replaced together with the
retractor. See a NISSAN dealer.
. Removal and installation of the
pretensioner system components
should be done by a NISSAN dealer.
. All seat belt assemblies, including
retractors and attaching hardware,
should be inspected after any colli-
sion by a NISSAN dealer. NISSAN
recommends that all seat belt as-
semblies in use during a collision be
replaced unless the collision was
minor and the belts show no da-
mage and continue to operate prop-
erly. Seat belt assemblies not in use
during a collision should also be
inspected and replaced if either
damage or improper operation is
noted.
. All child restraints and attaching
hardware should be inspected after
any collision. Always follow the
restraint manufacturer’s inspection
instructions and replacement re-
commendations. The child restraints
should be replaced if they are damaged.
PREGNANT WOMENGUID-DE7C6527-7C0B-46D7-8BFB-6F6024B255C2NISSAN recommends that pregnant women use
seat belts. The seat belt should be worn snug,
and always position the lap belt as low as
possible around the hips, not the waist. Place
the shoulder belt over your shoulder and across
your chest. Never put the lap/shoulder belt over
your abdominal area. Contact your doctor for
specific recommendations.
INJURED PERSONSGUID-466EC31A-8F1E-42C5-9CEC-DA817E973D99NISSAN recommends that injured persons use
seat belts, depending on the injury. Check with
your doctor for specific recommendations.
THREE-POINT TYPE SEAT BELTGUID-944271FB-5AEB-40D3-8EEE-0CE619EC4E2F
WARNING
.
Every person who drives or rides in
this vehicle should use a seat belt at
all times.
. Do not ride in a moving vehicle
when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious injuries. You could also slide under
the lap belt and receive serious
internal injuries.
. For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit
well back in the seat with both feet
on the floor and adjust the seat belt
properly.
. Do not allow children to play with
the seat belts. Most seating posi-
tions are equipped with Automatic
Locking Retractor (ALR) mode seat
belts. If the seat belt becomes
wrapped around a child’s neck with
the ALR mode activated, the child
can be seriously injured or killed if
the seat belt retracts and becomes
tight. This can occur even if the
vehicle is parked. Unbuckle the seat
belt to release the child. If the seat
belt can not be unbuckled or is
already unbuckled, release the child
by cutting the seat belt with a
suitable tool (such as a knife or
scissors) to release the seat belt.
Safety — Seats, seat belts and supplemental restraint system1-11
Condition:
Page 30 of 347
Black plate (28,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

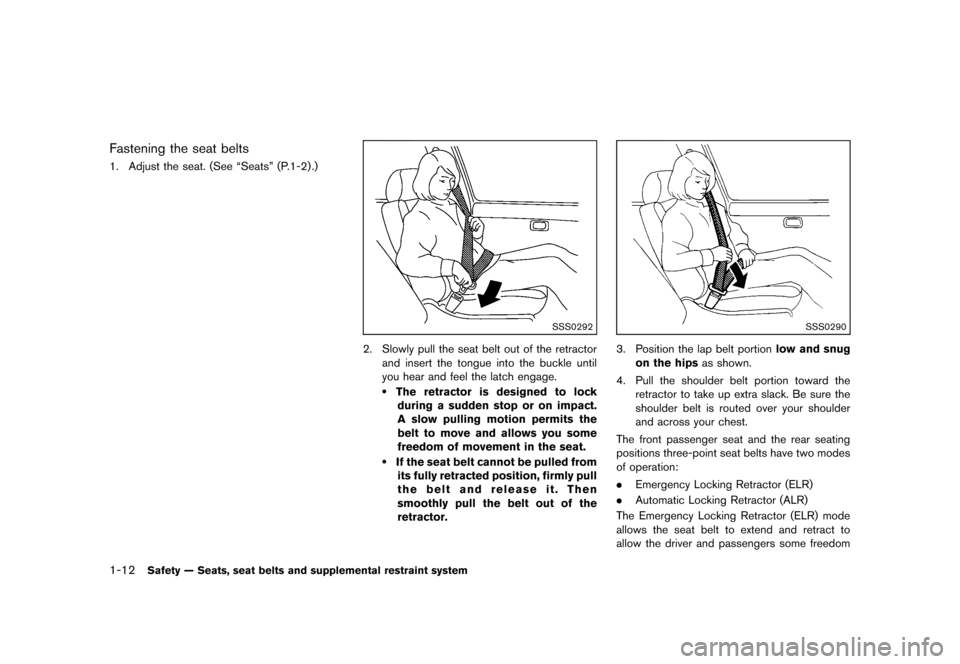

1-12Safety — Seats, seat belts and supplemental restraint system
Fastening the seat beltsGUID-7A8EC8B3-4437-4D52-96D2-2DBE6487FB7F1. Adjust the seat. (See “Seats” (P.1-2) .)
SSS0292
2. Slowly pull the seat belt out of the retractorand insert the tongue into the buckle until
you hear and feel the latch engage.
.The retractor is designed to lockduring a sudden stop or on impact.
A slow pulling motion permits the
belt to move and allows you some
freedom of movement in the seat.
.If the seat belt cannot be pulled from its fully retracted position, firmly pull
the belt and release it. Then
smoothly pull the belt out of the
retractor.
SSS0290
3. Position the lap belt portion low and snug
on the hips as shown.
4. Pull the shoulder belt portion toward the retractor to take up extra slack. Be sure the
shoulder belt is routed over your shoulder
and across your chest.
The front passenger seat and the rear seating
positions three-point seat belts have two modes
of operation:
. Emergency Locking Retractor (ELR)
. Automatic Locking Retractor (ALR)
The Emergency Locking Retractor (ELR) mode
allows the seat belt to extend and retract to
allow the driver and passengers some freedom
Condition:
