Illustrated tableofcontents
GUID-52AF 6180-E2C9 -4318-AF4E- 9DE2FF882 623
JVC0533X
1. Rearhead restraints (Page1-5)
2. Child restraint anchorpoints(fortoptether strap
child restraint) (P.1-30, P.1-34)
3. Front headrestraints (P.1-5)
Ð Front-seat ActiveHeadRestraints* (P.1-9)
4. Roof-mounted curtainside-impact supplemental
air bags (P.1-38) 5.
Seatbelts (P.1-10)
6. Front seats (P.1-3)
7. Supplemental front-impactairbags (P.1-38)
8. LATCH (Lower Anchors andTethers forCHil-
dren) system (P.1-20)
9. Rearseats (P.1-4)
Ð Child restraints (P.1-18) 10.
Front seat-mounted side-impactsupplemental
air bags (P.1-38)
11. Seatbeltwith pretensioners (P.1-50)
12. Occupant classification sensors(weightsen-
sors)
Ð Advanced AirBag System (P.1-44)
13. Front passenger airbag status light(P.1-46)
*: ifso equipped
SEA TS,SEA TBEL TSAND
SUPPLEME NTAL RESTRAIN T
S Y STEM (SRS)
&RQGLWLRQ


> (GLW   0RGHO )'@
1-40
Safety ÐSeats, seatbelts andsupplement alrestraint system
back against theseatback andas
far-away aspractical fromthesteer-
ing wheel orinstrument panel.Al-
ways usetheseat belts.
. The driver andfront passenger seat
belt buckles areequipped with
sensors thatdetect ifthe seat belts
are fastened. TheAdvanced AirBag
System monitors theseverity ofa
collision andseat beltusage then
inflates theairbags. Failure to
properly wearseatbelts canin-
crease therisk orseverity ofinjury
in an accident.
. The front passenger seatis
equipped withoccupant classifica-
tion sensors (weightsensors) that
turn thefront passenger airbag
OFF under someconditions. This
sensor isonly used inthis seat.
Failure tobe properly seatedand
wearing theseat beltcanincrease
the risk orseverity ofinjury inan
accident. SeeªFront passenger air
bag andstatus lightº(P.1-46) .
. Keep hands onthe outside ofthe
steering wheel.Placing theminside
the steering wheelrimcould in-
crease therisk that they areinjured if
the front airbag inflates.
SSS0007
SSS0006
&RQGLWLRQ


> (GLW   0RGHO )'@
1-44
Safety ÐSeats, seatbelts andsupplement alrestraint system
JVR0272X
1. Crash zonesensor
2. Supplemental front-impactairbag modules
3. Front seat-mounted side-impactsupplemental
air bag modules
4. Occupant classification sensors(weightsen-
sors)
5. Occupant classification systemcontrolunit 6.
Roof-mounted curtainside-impact supplemental
air bag inflators
7. Roof-mounted curtainside-impact supplemental
air bags modules
8. Seatbeltwith pretensioners
9. Satellite sensors
10. Airbag Control Unit(ACU)
NISSAN ADVANCED AIRBAG SYS-
TEM (front seats)
GUID-39 9F40E1-D7B8 -4A1F-977C-DC879EC84353
WARNING
T o ensure properoperation ofthe
passenger's advancedairbag system,
please observe thefollowing items.
. Donot allow apassenger inthe rear
seat topush orpull onthe seatback
pocket.
. Do not place heavy loadsheavier
than 9lbs. (4kg) onthe seatback,
head restraint orinthe seatback
pocket.
. Do not store luggage behindthe
seat thatcanpress intotheseat-
back.
. Confirm theoperating condition
with thefront passenger airbag
status light.
. Ifyou notice thatthefront passen-
ger airbag status lightisnot
operating, pleasetakeyour vehicle
to your NISSAN dealertocheck the
occupant classification system.
&RQGLWLRQ


> (GLW   0RGHO )'@
. Until youhave confirmed withyour
dealer thatyour passenger seat
occupant classification systemis
working properly, positiontheoccu-
pants inthe rear seating positions.
This vehicle isequipped withtheNISSAN
Advanced AirBag System forthe driver and
front passenger seats.Thissystem isdesigned
to meet certification requirements underU.S.
regulations. Itis also permitted inCanada. Allof
the information, cautionsandwarnings in
this manual applyandmust befollowed.
The driver supplemental front-impactairbag is
located inthe center ofthe steering wheel.The
passenger supplemental front-impactairbag is
mounted inthe instrument panelabove theglove
box. Thefront airbags aredesigned toinflate in
higher severity frontalcollisions, althoughthey
may inflate ifthe forces inanother typeof
collision aresimilar tothose ofahigher severity
frontal impact. Theymaynotinflate incertain
frontal collisions. Vehicle damage (orlack ofit) is
not always anindication ofproper frontairbag
operation.
The NISSAN Advanced AirBag System has
dual stage airbag inflators. Thesystem monitors
information fromtheAirbag Control Unit(ACU) ,
seat beltbuckle sensors andtheoccupant classification
sensors(weightsensors) .Inflator
operation isbased onthe severity ofacollision
and seat beltusage forthe driver. Forthefront
passenger, theoccupant classification sensors
are also monitored. Basedoninformation from
the sensors, onlyonefront airbag may inflate in
a crash, depending onthe crash severity and
whether thefront occupants arebelted or
unbelted. Additionally ,the front passenger air
bag may beautomatically turnedOFFunder
some conditions, dependingonthe information
provided bythe occupant classification sensors.
If the front passenger airbag isOFF ,the
passenger airbag status lightwillbeilluminated
(if the seat isunoccupied, thelight willnot be
illuminated, buttheairbag willbeoff).(See
ªFront passenger airbag andstatus lightº(P.1-
46) forfurther details.) Onefront airbag inflating
does notindicate improper performance ofthe
system.
If you have anyquestions aboutyourairbag
system, contactNISSAN oraNISSAN dealer.If
you areconsidering modification ofyour vehicle
due toadisability ,you may also contact
NISSAN. Contactinformation iscontained in
the front ofthis Owner's Manual.
When afront airbag inflates, afairly loudnoise
may beheard, followed byrelease ofsmoke.
This smoke isnot harmful anddoes notindicate
a fire. Care should betaken nottoinhale it,as it may
cause irritation andchoking. Thosewitha
history ofabreathing conditionshouldgetfresh
air promptly .
Front airbags, along withtheuse ofseat belts,
help tocushion theimpact forceonthe head
and chest ofthe front occupants. Theycanhelp
save livesandreduce serious injuries. However,
an inflating frontairbag may cause facial
abrasions orother injuries. Frontairbags do
not provide restraint tothe lower body.
Even withNISSAN Advanced AirBags, seat
belts should becorrectly wornandthedriver
and passenger seatedupright asfar aspractical
away fromthesteering wheelorinstrument
panel. Thefront airbags inflate quickly inorder
to help protect thefront occupants. Becauseof
this, theforce ofthe front airbag inflating can
increase therisk ofinjury ifthe occupant istoo
close to,orisagainst, theairbag module during
inflation.
The front airbags deflate quickly afteracollision.
The front airbags operate onlywhen the
ignition switchisin the ONposition.
After theignition isplaced inthe ON
position, thesupplemental airbag warning
light illuminates. Thesupplemental airbag
warning lightwillturn offafter about 7
seconds ifthe system isoperational.
Safety ÐSeats, seatbelts andsupplemental restraintsystem
1-45
&RQGLWLRQ


> (GLW   0RGHO )'@
1-46
Safety ÐSeats, seatbelts andsupplement alrestraint system
SSS1135
Front passenger airbag status light
Front passenger airbag andstatus light
GUID-17 DAF325-D4 5A-49D0-8D0 6-64EE76227885
WARNING
The front passenger airbag isdesigned
to automatically turnOFF under some
conditions. Readthissection carefully
to learn howitoperates. Properuseof
the seat, seatbeltandchild restraints is
necessary formost effective protection.
Failure tofollow allinstructions inthis
manual concerning theuse ofseats,
seat belts andchild restraints can
increase therisk orseverity ofinjury in an
accident.
Status light:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
The front passenger airbag status light
is
located onthe instrument panel.Afterthe
ignition switchisplaced inthe "ON" position,
the front passenger airbag status lightillumi-
nates forabout 7seconds andthen turns offor
illuminates depending onthe front passenger
seat occupied status.Thelight operates as
follows:
. Unoccupied passengerseat:The
light
is OFF andthefront passenger airbag is
OFF andwillnot inflate inacrash.
. Passenger's seatoccupied byasmall adult,
child orchild restraint asoutlined inthis
section: The
light illuminates toindicate
that thefront passenger airbag isOFF and
will notinflate inacrash.
. Occupied passenger seatandthepassen-
ger meets theconditions outlinedinthis
section: The
light isOFF toindicate that
the front passenger airbag isoperational.
Front passenger airbag:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
The front passenger airbag isdesigned to
automatically turnOFF when thevehicle is
operated undersomeconditions asdescribed
below aspermitted byU.S. regulations. Ifthe front
passenger airbag isOFF ,it will notinflate
in acrash. Thedriver airbag andother airbags
in your vehicle arenot part ofthis system.
The purpose ofthe regulation isto help reduce
the risk ofinjury ordeath fromaninflating airbag
to certain frontpassenger seatoccupants, such
as children, byrequiring theairbag tobe
automatically turnedOFF.
The occupant classification sensors(weight
sensors) areonthe seat cushion frameunder
the front passenger seatandaredesigned to
detect anoccupant andobjects onthe seat. For
example, ifa child isin the front passenger seat,
the Advanced AirBag System isdesigned to
turn thepassenger airbag OFF inaccordance
with theregulations. Also,ifa child restraint of
the type specified inthe regulations ison the
seat, theoccupant classification sensorscan
detect itand cause theairbag toturn OFF.
Front passenger seatadult occupants whoare
properly seatedandusing theseat beltas
outlined inthis manual shouldnotcause the
passenger airbag tobe automatically turned
OFF .For small adults itmay beturned OFF,
however, ifthe occupant doesnotsitinthe seat
properly (forexample, bynot sitting upright, by
sitting onanedge ofthe seat, orby otherwise
being outofposition) ,this could cause the
sensors toturn theairbag OFF.Always besure
&RQGLWLRQ


> (GLW   0RGHO )'@
to be seated andwearing theseat beltproperly
for the most effective protection bythe seat belt
and supplemental airbag.
NISSAN recommends thatpre-teens andchil-
dren beproperly restrained inarear seat.
NISSAN alsorecommends thatappropriate
child restraints andbooster seatsbeproperly
installed inarear seat. Ifthis isnot possible, the
occupant classification sensorsaredesigned to
operate asdescribed abovetoturn thefront
passenger airbag OFF forspecified child
restraints. Failingtoproperly securechild
restraints andtouse theAutomatic Locking
Retractor (ALR)mode(childrestraint mode)
may allow therestraint totip ormove inan
accident orsudden stop.Thiscanalso result in
the passenger airbag inflating inacrash instead
of being OFF.(See ªChild restraintsº (P.1-18)
for proper useand installation.)
If the front passenger seatisnot occupied, the
passenger airbag isdesigned nottoinflate ina
crash. However, heavyobjects placedonthe
seat could resultinair bag inflation, because of
the object beingdetected bythe occupant
classification sensors.Otherconditions could
also result inair bag inflation, suchasifa child is
standing onthe seat, oriftwo children areonthe
seat, contrary tothe instructions inthis manual.
Always besure thatyouand allvehicle
occupants areseated andrestrained properly.Using
thepassenger airbag status light,youcan
monitor whenthefront passenger airbag is
automatically turnedOFFwiththeseat occu-
pied. Thelight willnotilluminate whenthefront
passenger seatisunoccupied.
If an adult occupant isin the seat butthe
passenger airbag status lightisilluminated
(indicating thattheairbag isOFF) ,it could be
that theperson isasmall adult, orisnot sitting
on the seat properly .
If achild restraint mustbeused inthe front seat,
the passenger airbag status lightmayormay
not beilluminated, dependingonthe size ofthe
child andthetype ofchild restraint beingused.If
the airbag status lightisnot illuminated
(indicating thattheairbag might inflate ina
crash) ,it could bethat thechild restraint orseat
belt isnot being usedproperly .Make surethat
the child restraint isinstalled properly,the seat
belt isused properly andtheoccupant is
positioned properly.If the airbag status lightis
not illuminated, repositiontheoccupant orchild
restraint inarear seat.
If the passenger airbag status lightwillnot
illuminate eventhough youbelieve thatthechild
restraint, theseat belts andtheoccupant are
properly positioned, thesystem maybesensing
an unoccupied seat(inwhich casetheairbag is
OFF) .Your NISSAN dealercancheck thatthe system
isOFF byusing aspecial tool.However,
until youhave confirmed withyour dealer that
your airbag isworking properly,reposition the
occupant orchild restraint inarear seat.
The airbag system andpassenger airbag status
light willtake afew seconds toregister achange
in the passenger seatstatus. However, ifthe
seat becomes unoccupied, theairbag status
light willremain off.
If amalfunction occursinthe front passenger air
bag system, thesupplemental airbag warning
light
, located inthe meter andgauges area,
will blink. Havethesystem checked bya
NISSAN dealer.
Other supplemental front-impactairbag
precautions
GUID-C22 E4C29-76B 9-4027-AA1 D-96CEE009 338F
WARNING
. Do not place anyobjects onthe
steering wheelpadoron the instru-
ment panel. Also,donot place any
objects between anyoccupant and
the steering wheelorinstrument
panel. Suchobjects maybecome
dangerous projectilesandcause
injury ifthe front airbags inflate.
Safety ÐSeats, seatbelts andsupplemental restraintsystem
1-47
&RQGLWLRQ


> (GLW   0RGHO )'@
1-48
Safety ÐSeats, seatbelts andsupplement alrestraint system
. Do not place objects withsharp
edges onthe seat. Also, donot
place heavy objects onthe seat that
will leave permanent impressions in
the seat. Such objects candamage
the seat oroccupant classification
sensors (weightsensors) .This can
affect theoperation ofthe airbag
system andresult inserious perso-
nal injury.
. Do not use water oracidic cleaners
(hot steam cleaners) onthe seat.
This candamage theseat oroccu-
pant classification sensors.Thiscan
also affect theoperation ofthe air
bag system andresult inserious
personal injury.
. Immediately afterinflation, several
front airbag system components
will behot. Donot touch them; you
may severely burnyourself.
. Nounauthorized changesshouldbe
made toany components orwiring
of the supplemental airbag system.
This isto prevent accidental infla-
tion ofthe supplemental airbag or
damage tothe supplemental airbag
system. .
Do not make unauthorized changes
to your vehicle's electrical system,
suspension systemorfront end
structure. Thiscould affect proper
operation ofthe front airbag sys-
tem.
. Tampering withthefront airbag
system mayresult inserious perso-
nal injury. Tampering includes
changes tothe steering wheeland
the instrument panelassembly by
placing material overthesteering
wheel padand above theinstrument
panel orby installing additional trim
material aroundtheairbag system.
. Removing ormodifying thefront
passenger seatmayaffect thefunc-
tion ofthe airbag system andresult
in serious personal injury.
. Modifying ortampering withthe
front passenger seatmayresult in
serious personal injury.Forexam-
ple, donot change thefront seats by
placing material onthe seat cushion
or by installing additional trimma-
terial, suchasseat covers, onthe
seat thatisnot specifically designed
to assure properairbag operation.
Additionally, donot stow anyob- jects
under thefront passenger seat
or the seat cushion andseatback.
Such objects mayinterfere withthe
proper operation ofthe occupant
classification sensors.
. Nounauthorized changesshouldbe
made toany components orwiring
of the seat beltsystem. Thismay
affect thefront airbag system.
T ampering withtheseat beltsystem
may result inserious personal in-
jury.
. Work onand around thefront air
bag system shouldbedone bya
NISSAN dealer.Installation ofelec-
trical equipment shouldalsobe
done byaNISSAN dealer.The
Supplemental RestraintSystem
(SRS) wiring harnesses* shouldnot
be modified ordisconnected. Un-
authorized electricaltestequipment
and probing devicesshouldnotbe
used onthe airbag system.
. Acracked windshield shouldbe
replaced immediately byaqualified
repair facility. Acracked windshield
could affect thefunction ofthe
supplemental airbag system.
&RQGLWLRQ


> (GLW   0RGHO )'@

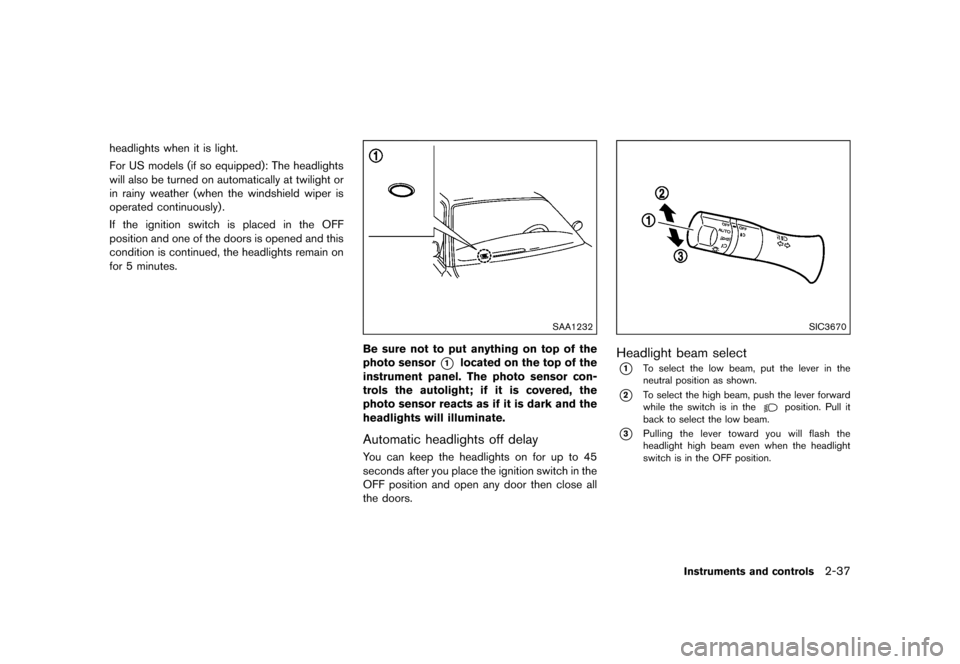

headlights whenitis light.
For USmodels (ifso equipped): Theheadlights
will also beturned onautomatically attwilight or
in rainy weather (whenthewindshield wiperis
operated continuously) .
If the ignition switchisplaced inthe OFF
position andoneofthe doors isopened andthis
condition iscontinued, theheadlights remainon
for 5
minutes.
SAA1232
Be sure nottoput anything ontop ofthe
photo sensor
*
1
located onthe top ofthe
instrument panel.Thephoto sensor con-
trols theautolight ;if it is covered, the
photo sensor reactsasifitis dark andthe
headlights willilluminate.
Automatic headlights offdelay
GUID-CFAAEF09-71A1-4057 -9F7B-96D46980C786
Y ou can keep theheadlights onfor upto45
seconds afteryouplace theignition switchinthe
OFF position andopen anydoor thenclose all
the
doors.
SIC3670
Headlight beamselect
GUID-65 D36B20-DA E3-4840-AD1 0-0068CB054884
*
1
T o select thelow beam, putthelever inthe
neutral position asshown.
*
2
T o select thehigh beam, pushthelever forward
while theswitch isin the
position. Pullit
back toselect thelow beam.
*
3
Pulling thelever toward youwillflash the
headlight highbeam evenwhen theheadlight
switch isin the OFF position.
Instrume ntsand controls
2-37
&RQGLWLRQ


> (GLW   0RGHO )'@
4-32
Heater, airconditione r,audio andphone systems
OPERA TINGTIPS(forautomatic air
conditioner)
GUID-0CAD1 583-372A-44FE-BAC7-174E3DF52F9 6
. When theengine coolant temperature and
outside airtemperature arelow,the airflow
from thefoot outlets maynotoperate. Thisis
not amalfunction. Afterthecoolant tem-
perature warmsup,airwill flow normally
from thefoot outlets.
. The automatic airconditioner isequipped
with sensors asillustrated. Thesensors
*
A
and
*
B
on the instrument panelhelp
maintain aconstant temperature. Donot
put anything onoraround thesesensors.
IN-CABIN MICROFILTER
GUID-C6D 3FA40-DA1E -49EA-83BF -EFD310A3448A
The airconditioning systemisequipped withan
in-cabin microfilter whichcollects dirt,pollen,
dust, etc.To make suretheairconditioner heats,
defogs, andventilates efficiently,replace the
filter according tothe specified maintenance log
shown inthe NISSAN ServiceandMaintenance
Guide. To replace thefilter, contact aNISSAN
dealer.
The filter should bereplaced ifthe airflow
decreases significantly orifwindows fog
up easily whenoperating theheater orair
conditioning system.
SERVICING AIRCONDITIONER
GUID-B5C6 FE62-1A42-48C1-9AE1 -B0167BBB8E1A
The airconditioner systeminyour NISSAN is
charged witharefrigerant designedwiththe
environment inmind. Thisrefrigerant willnot
harm theearth's ozonelayer.Special char-
ging equipment andlubricant arerequired when
servicing yourNISSAN airconditioner. Using
improper refrigerants orlubricants willcause
severe damage toyour airconditioner system.
(See ªCapacities andrecommended fluids/
lubricantsº (P.9-2) forairconditioner system
refrigerant andlubricant recommendations.)
A NISSAN dealerwillbeable toservice your
environmentally friendlyairconditioner system.
WARNING
The system contains refrigerant under
high pressure. To avoid personal injury,
any airconditioner serviceshouldbe
done onlybyan experienced technician
with theproper equipment.
GUID-12 293C34-B52D -459D-8938-1D72052450B5
AUDIO OPERATIONPRECAUTION S
GUID-4E77 1DD8-F559-4 351-AB5E-78EA8C2D203D
Radio
GUID-7E 775105-86 FF-4980-879 3-C9A43E44715A
Place theignition switchinthe ACC orON
position andpush theFM´AM buttontoturn on
the radio. Ifyou listen tothe radio withthe
engine notrunning, theignition switchshould be
placed inthe ACC position.
Radio reception isaffected bystation signal
strength, distancefromradio transmitter, build-
ings, bridges, mountains andother external
influences. Intermittent changesinreception
quality normally arecaused bythese external
influences.
Using acellular phoneinor near the
vehicle mayinfluence radioreception
quality.
Radio reception:
GUID-F 83C168B-173D -4313-B631-F712588C04 63
Y our NISSAN radiosystem isequipped with
state-of-the-art electroniccircuitstoenhance
radio reception. Thesecircuits aredesigned to
extend reception range,andtoenhance the
quality ofthat reception.
However therearesome general characteristics
of both FMand AMradio signals thatcanaffect
radio reception qualityinamoving vehicle, even
when thefinest equipment isused. These
characteristics arecompletely normalinagiven
reception area,anddonot indicate anymal-
AUDIO SY STEM
&RQGLWLRQ


> (GLW   0RGHO )'@
ging aflat tire.)
. When aspare tireismounted ora
wheel isreplaced, theTPMS willnot
function andthelow tirepressure
warning lightwillflash forapproxi-
mately 1minute. Thelight will
remain onafter 1minute. Contact
your NISSAN dealerassoon as
possible fortire replacement and/
or system resetting.
. Replacing tireswiththose notori-
ginally specified byNISSAN could
affect theproper operation ofthe
TPMS.
. Do not inject anytireliquid or
aerosol tiresealant intothetires,
as this may cause amalfunction of
the tire pressure sensors.
CAUTION
. The TPMS maynotfunction properly
when thewheels areequipped with
tire chains orthe wheels areburied
in snow.
. Do not place metalized filmorany
metal parts(antenna, etc.)on the windows.
Thismay cause poorre-
ception ofthe signals fromthetire
pressure sensors,andtheTPMS will
not function properly.
Some devices andtransmitters maytemporarily
interfere withtheoperation ofthe TPMS and
cause thelow tirepressure warninglightto
illuminate. Someexamples are:
. Facilities orelectric devices usingsimilar
radio frequencies arenear thevehicle.
. Ifatransmitter settosimilar frequencies is
being usedinor near thevehicle.
. Ifa computer (orsimilar equipment) oraDC/
AC converter isbeing usedinor near the
vehicle.
FCC Notice:
For USA:
This device complies withPart15ofthe
FCC Rules. Operation issubject tothe
following twoconditions: (1)This device
may notcause harmful interference, and
(2) this device mustaccept anyinterfer-
ence received, including interference that
may cause undesired operation.
Note: Changes ormodifications notex-
pressly approved bythe party responsible
for compliance couldvoidtheuser's authority
tooperate theequipment.
For Canada:
This device complies withIndustry Canada
licence-exempt RSSstandard(s) .Opera-
tion issubject tothe following twocondi-
tions: (1)this device maynotcause
interference, and(2)this device must
accept anyinterference, includinginterfer-
ence thatmay cause undesired operation
of the device.
A VOIDING COLLISION ANDROLL -
OVER
GUID-666 C7BC2-4377 -4277-8619-BA0591C76 DA3
WARNING
Failure tooperate thisvehicle inasafe
and prudent mannermayresult inloss
of control oran accident.
Be alert anddrive defensively atall times. Obey
all traffic regulations. Avoidexcessive speed,
high speed cornering, orsudden steering
maneuvers, becausethesedriving practices
could cause youtolose control ofyour vehicle.
As with anyvehicle, aloss ofcontrol could
result inacollision withother vehicles or
objects, orcause thevehicle torollover,
particularly ifthe loss ofcontrol causesthe
Starting anddriving
5-5
&RQGLWLRQ
