DTC P0868 SECONDARY PRESSURE DOWN
Revision: June 20062007 Versa
6. CHECK DTC
Perform CVT-142, "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> Replace the transaxle assembly. Refer to CVT-207, "
Removal and Installation" .

DTC P1701 TRANSMISSION CONTROL MODULE (POWER SUPPLY)
CVT-145
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
DTC P1701 TRANSMISSION CONTROL MODULE (POWER SUPPLY)PFP:31036
DescriptionUCS0062D
When the power supply to the TCM is cut OFF, for example because the battery is removed, and the self-diag-
nosis memory function stops, malfunction is detected.
NOTE:
Since “P1701 TCM-POWER SUPPLY” will be indicated when replacing TCM, perform diagnosis after
erasing “SELF-DIAG RESULTS”
On Board Diagnosis LogicUCS0062E

This is not an OBD-II self-diagnostic item.

Diagnostic trouble code “P1701 TCM-POWER SUPPLY” with CONSULT-II is detected when TCM does
not receive the voltage signal from the battery power supply.

This is not a malfunction message. (Whenever shutting OFF a power supply to the TCM, this message
appears on the screen.)
Possible CauseUCS0062F
Harness or connectors
(Battery or ignition switch and TCM circuit is open or shorted.)
DTC Confirmation ProcedureUCS0062G
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch OFF and
wait at least 10 seconds before conducting the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode for “TRANSMISSION” with
CONSULT-II.
3. Wait for at least 2 consecutive seconds.
4. If DTC is detected, go to CVT-147, "
Diagnostic Procedure" .
BCIA0031E

CVT-146
DTC P1701 TRANSMISSION CONTROL MODULE (POWER SUPPLY)
Revision: June 20062007 Versa

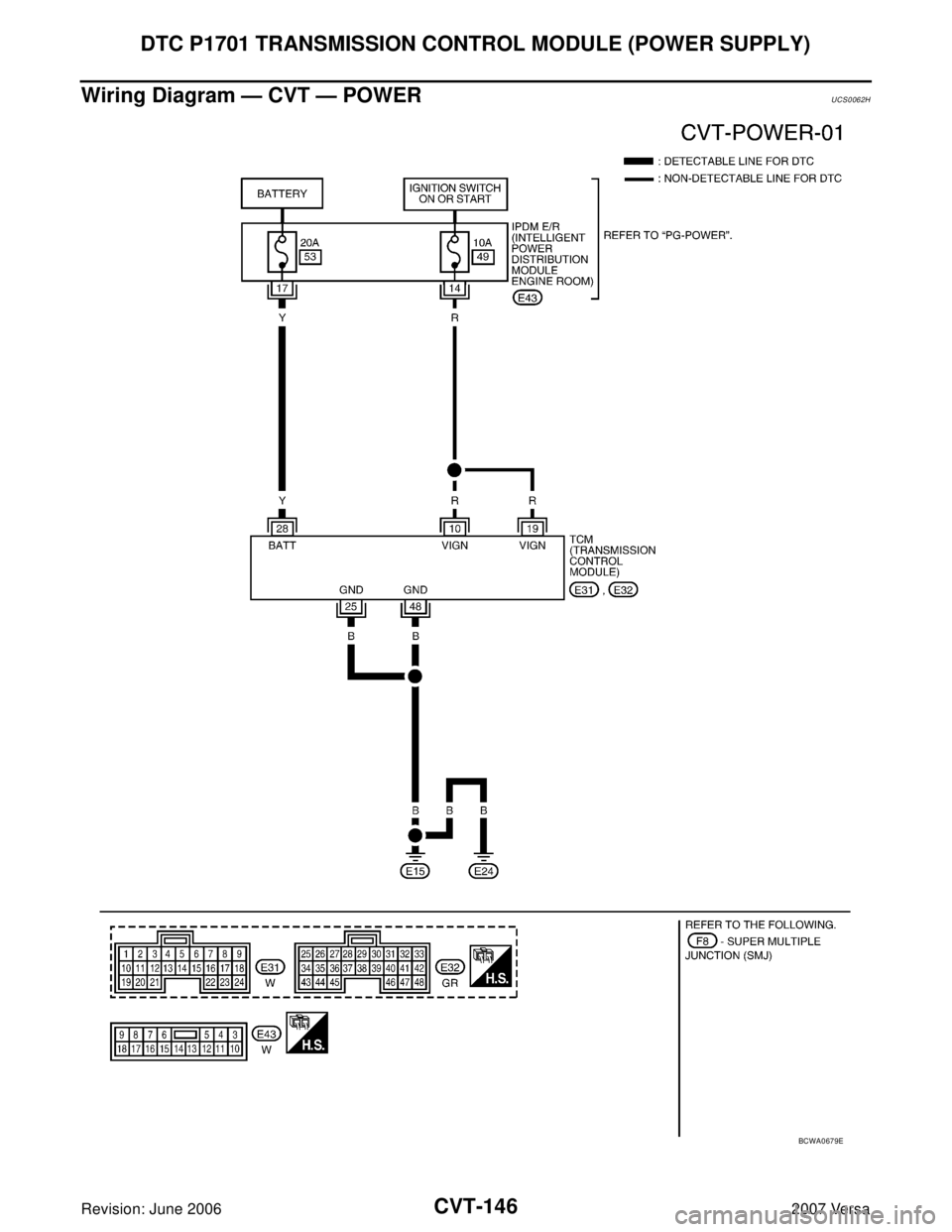

Wiring Diagram — CVT — POWERUCS0062H
BCWA0679E

DTC P1701 TRANSMISSION CONTROL MODULE (POWER SUPPLY)
CVT-147
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
TCM terminals data are reference values, measured between each terminal and ground.
Diagnostic ProcedureUCS0062I
1. CHECK DTC
1. Turn ignition switch ON. (Do not start engine.)
2. Select “SELF-DIAG RESULTS” mode for “TRANSMISSION”
with CONSULT-II.
3. Erase self-diagnostic results. Refer to CVT-32, "
HOW TO
ERASE DTC (WITH CONSULT-II)" .
4. Turn ignition switch OFF, and wait for 5 seconds or more.
5. Start engine.
6. Confirm self-diagnostic results again. Refer to CVT-60, "
SELF-
DIAGNOSTIC RESULT MODE" .
Is the
“P1701 TCM-POWER SUPPLY” displayed?
YES >> GO TO 2.
NO >>INSPECTION END
2. CHECK TCM POWER SOURCE, STEP 1
1. Turn ignition switch OFF.
2. Check voltage between TCM connector terminal and ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 4.
Terminal Wire color Item Condition Data (Approx.)
10 R Power supply— Battery voltage
—0 V
19 R Power supply— Battery voltage
—0 V
25 B Ground Always 0 V
28 YPower supply
(memory back-up)Always Battery voltage
48 B Ground Always 0 V
BCIA0031E
Name Connector Terminal ConditionVoltage
(Approx.)
Power supply
(memory back-
up)E32 28 - Ground AlwaysBattery
voltage
SCIA4783E

CVT-148
DTC P1701 TRANSMISSION CONTROL MODULE (POWER SUPPLY)
Revision: June 20062007 Versa
3. CHECK TCM POWER SOURCE, STEP 2
1. Turn ignition switch ON. (Do not start engine.)
2. Check voltage between TCM connector terminals and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING ITEM
Check the following.

Harness for short or open between battery and TCM connector terminal 28

Harness for short or open between ignition switch and TCM connector terminal 10, 19

10 A fuse (No.49, located in the IPDM E/R)

20 A fuse (No.53, located in the IPDM E/R)

Ignition switch. Refer to PG-4, "POWER SUPPLY ROUTING CIRCUIT" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. CHECK TCM GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect TCM connector.
3. Check continuity between TCM connector terminals and ground.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
Name Connector Terminal ConditionVoltage
(Approx.)
Power supply
E3110 - GroundBattery
voltage
0 V
Power supply 19 - GroundBattery
voltage
0 V
Power supply
(memory
back-up)E32 28 - Ground AlwaysBattery
voltage
SCIA4784E
Name Connector Terminal Continuity
Ground E3225
Ye s
48
SCIA2671E

DTC P1701 TRANSMISSION CONTROL MODULE (POWER SUPPLY)
CVT-149
D
E
F
G
H
I
J
K
L
MA
B
CVT
Revision: June 20062007 Versa
6. CHECK DTC
Perform CVT-145, "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 7.
7. CHECK TCM
1. Check TCM input/output signals. Refer to CVT-54, "
TCM Input/Output Signal Reference Values" .
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
