NISSAN LATIO 2007 Service Repair Manual

TURN SIGNAL AND HAZARD WARNING LAMPS
LT-53
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa

to rear combination lamp LH terminal 1

through grounds B7 and B19,

to rear combination lamp RH terminal 1

through grounds B117, B132 and D402.
The BCM also supplies input to combination meter across the CAN communication lines. This input is pro-
cessed by unified meter control unit in combination meter, which in turn supplies ground to the left and right
turn signal indicator lamps.
With power and input supplied, BCM controls flashing of hazard warning lamps.
REMOTE KEYLESS ENTRY SYSTEM OPERATION
Power is supplied at all times

through 40A fusible link (letter g , located in fuse, fusible link and relay box)

to BCM terminal 70,

through 10A fuse [No. 13, located in fuse block (J/B)]

to combination meter terminal 27.
Ground is supplied

to BCM terminal 67 and

to combination meter terminals 21, 22 and 23

through grounds M57 and M61.
When the remote keyless entry system is triggered by input from the keyfob, the BCM supplies power

through BCM terminal 60

to front combination lamp LH terminal 4 and

to rear combination lamp LH terminal 6,

through BCM terminal 61

to front turn signal lamp RH terminal 4 and

to rear combination lamp RH terminal 6.
Ground is supplied

to front combination lamp LH and RH terminals 5

through grounds E15 and E24,

to rear combination lamp LH terminal 1

through grounds B7 and B19,

to rear combination lamp RH terminal 1

through grounds B117, B132 and D402.
The BCM also supplies input to combination meter via the CAN communication lines. This input is processed
by the unified meter control unit in combination meter, which in turn supplies ground to the left and right turn
signal indicator lamps.
With power and ground supplied, BCM controls flashing of hazard warning lamps when keyfob is used to acti-
vate remote keyless entry system.
COMBINATION SWITCH READING FUNCTION
Refer toBCS-3, "COMBINATION SWITCH READING FUNCTION" .
CAN Communication System DescriptionEKS00HY1
Refer to LAN-4, "CAN Communication System" .

LT-54
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: June 20062007 Versa

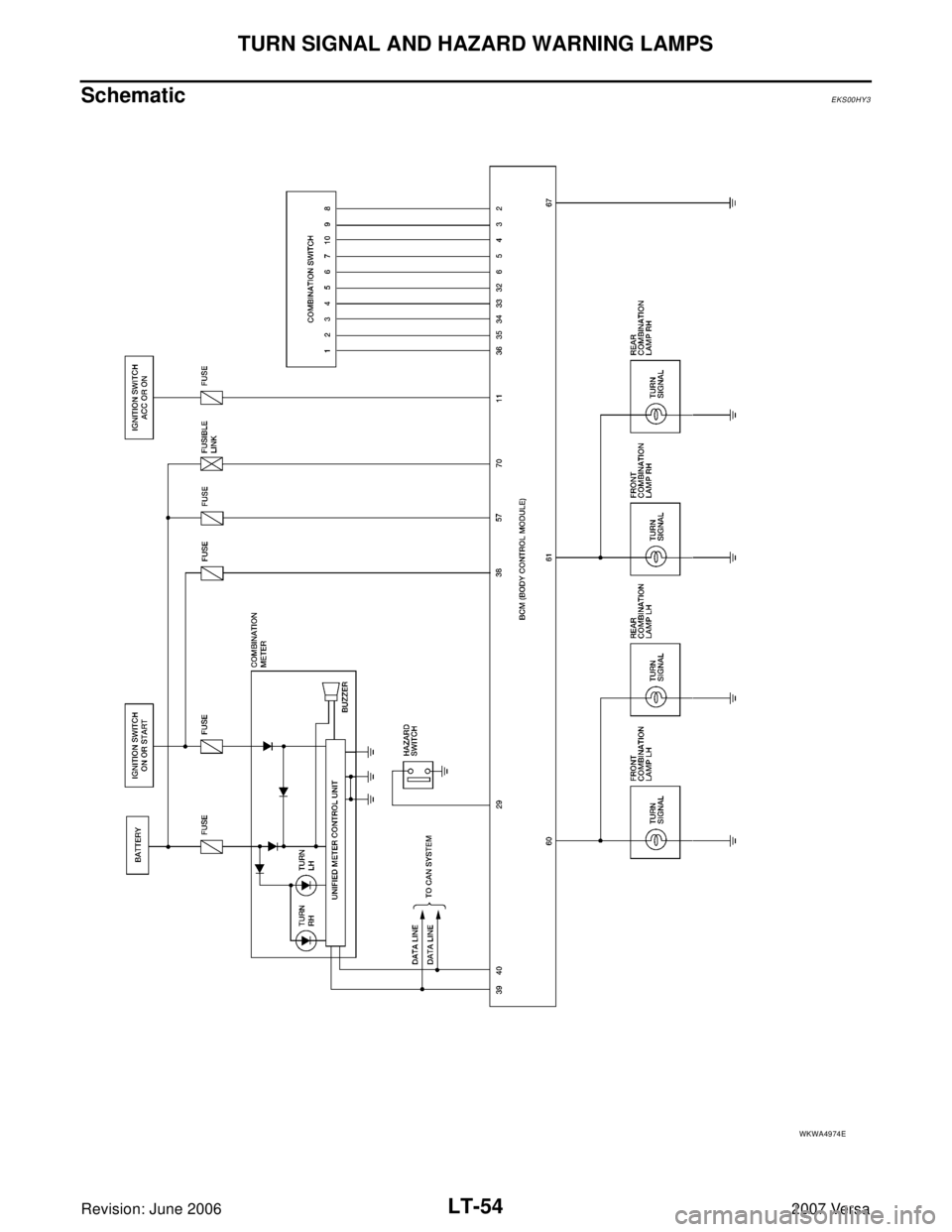

SchematicEKS00HY3
WKWA4974E

TURN SIGNAL AND HAZARD WARNING LAMPS
LT-55
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa

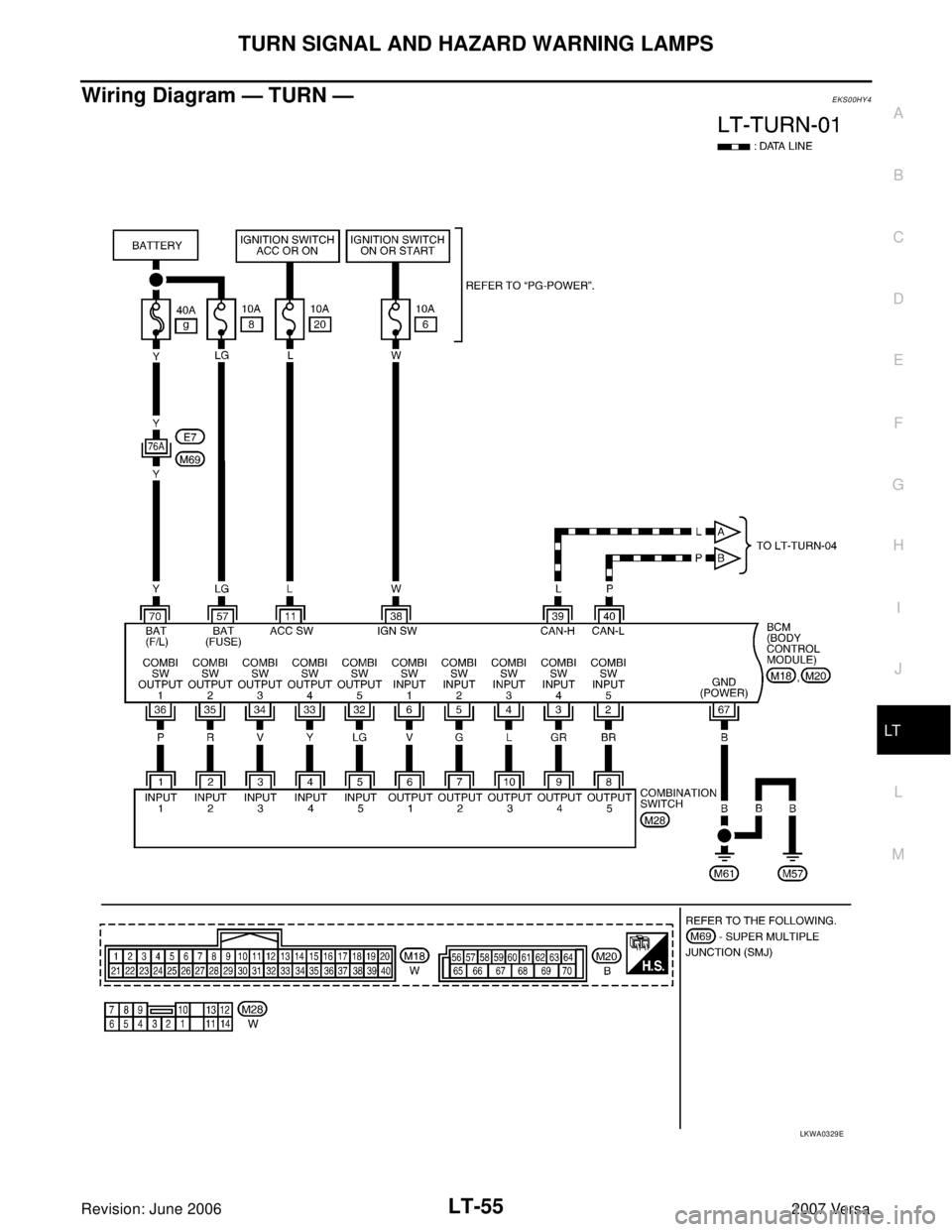

Wiring Diagram — TURN —EKS00HY4
LKWA0329E

LT-56
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: June 20062007 Versa

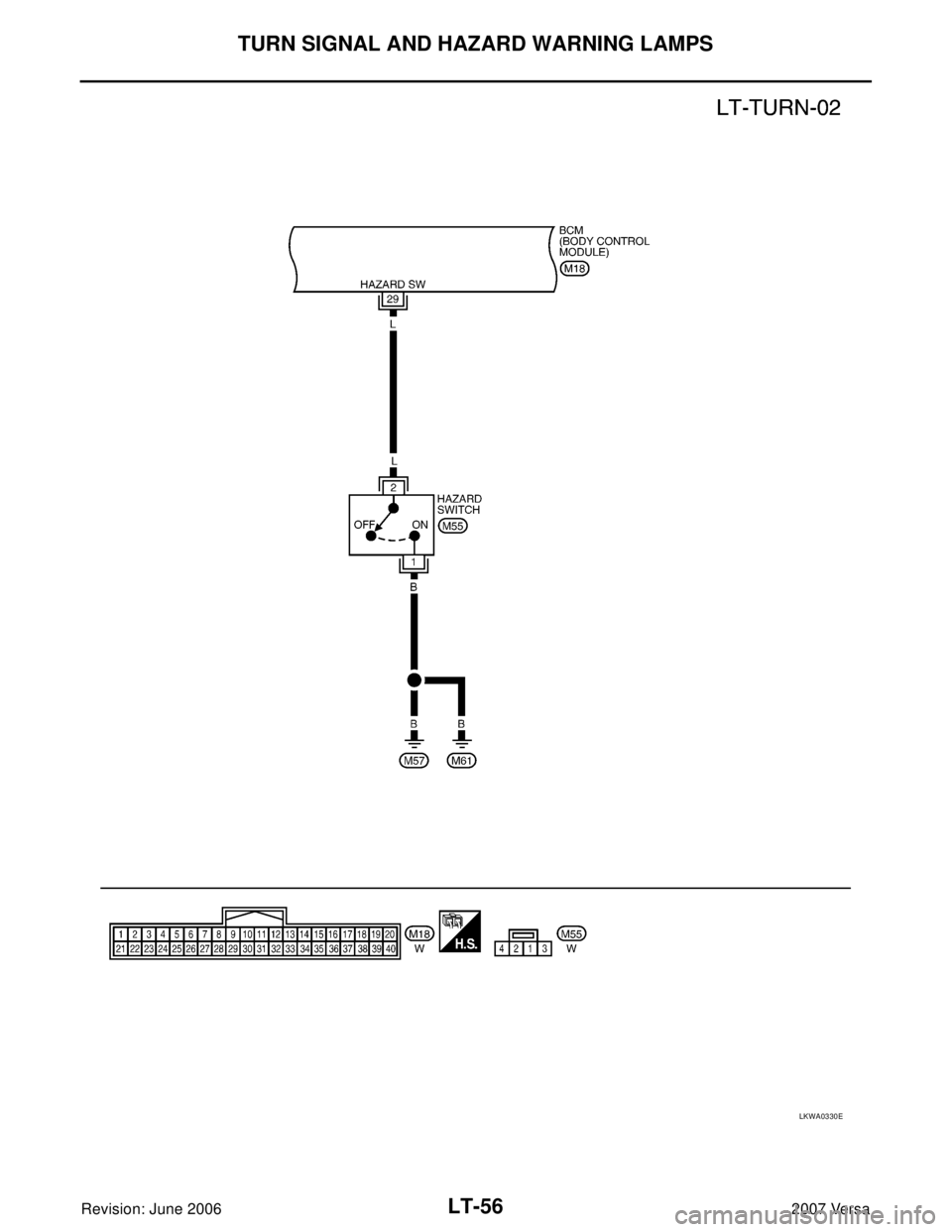

LKWA0330E

TURN SIGNAL AND HAZARD WARNING LAMPS
LT-57
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa

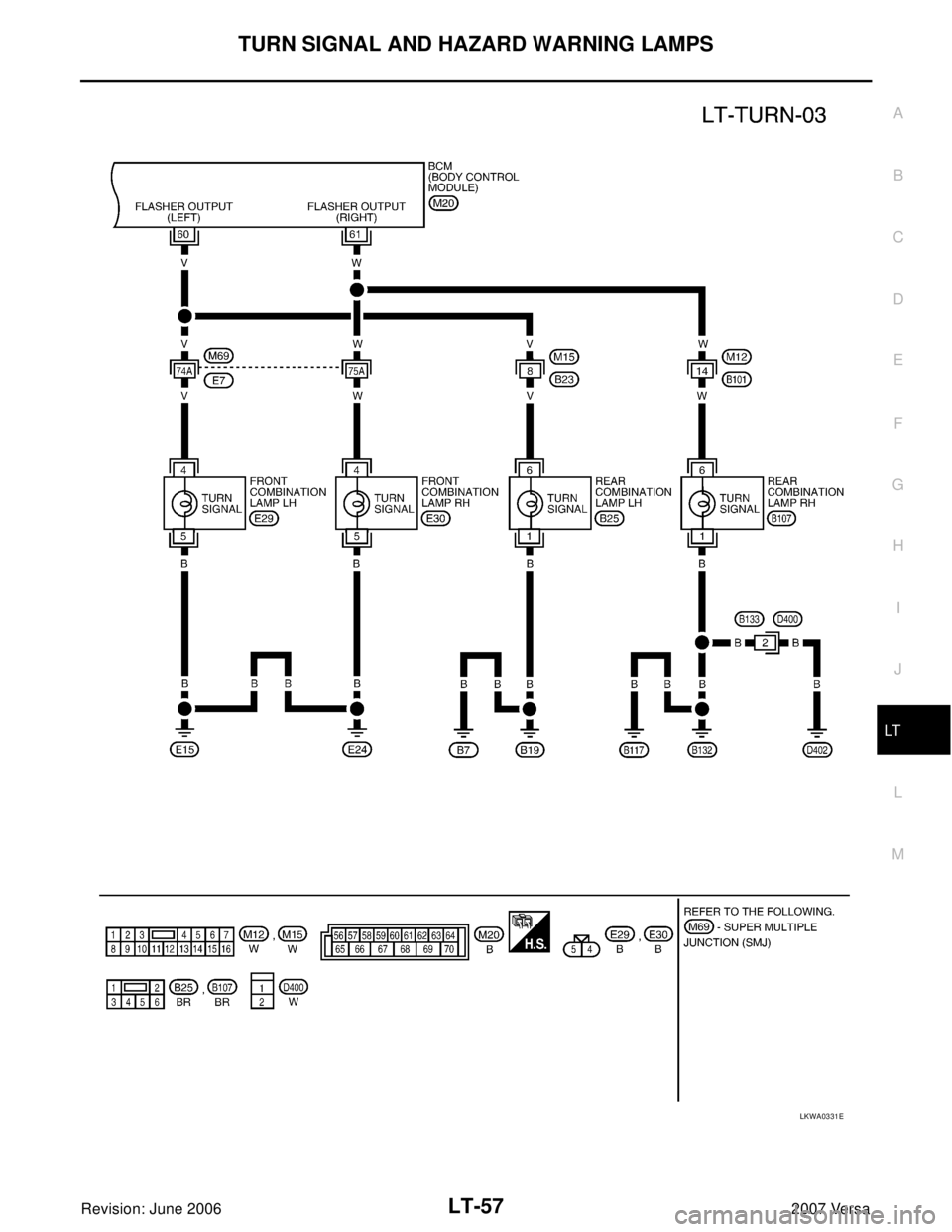

LKWA0331E

LT-58
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: June 20062007 Versa

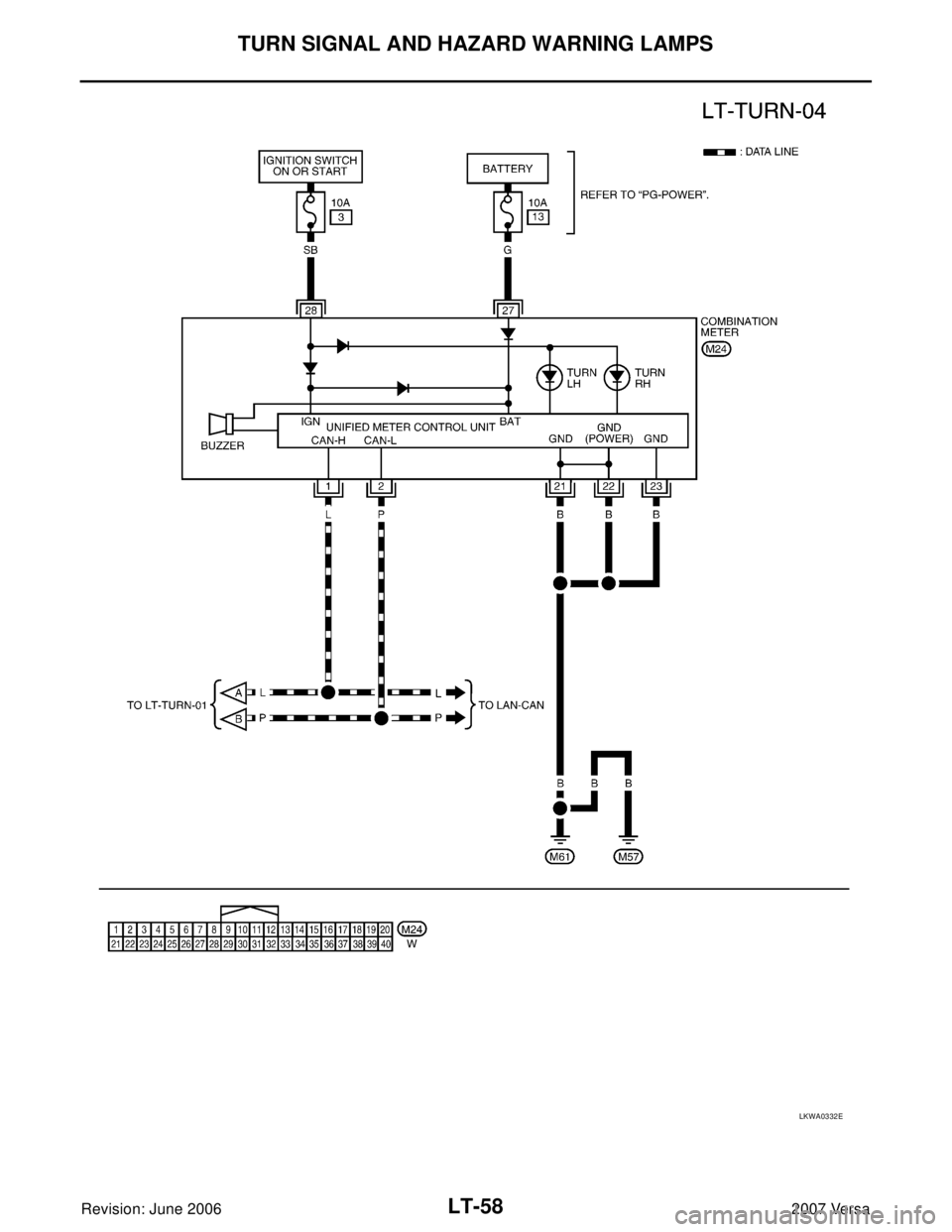

LKWA0332E

TURN SIGNAL AND HAZARD WARNING LAMPS
LT-59
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa
Terminals and Reference Values for BCMEKS00HY5
Refer to BCS-12, "Terminals and Reference Values for BCM" .
How to Proceed With Trouble DiagnosisEKS00HY6
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer to LT- 5 1 , "
System Description" .
3. Perform the preliminary check. Refer to LT-59, "
Preliminary Check" .
4. Check symptom and repair or replace the component.
5. Do turn signal and hazard warning lamps operate normally? If YES, GO TO 6. If NO, GO TO 4.
6. INSPECTION END
Preliminary CheckEKS00HY7
CHECK POWER SUPPLY AND GROUND CIRCUIT FOR BCM
Refer to BCS-16, "BCM Power Supply and Ground Circuit Check" .
CONSULT-II Function (BCM)EKS00HY8
Refer to LT- 1 2 , "CONSULT-II Function (BCM)" .
Turn Signals Do Not OperateEKS00HY9
1. CHECK COMBINATION SWITCH INPUT SIGNAL
With CONSULT-II
1. Select “BCM” on CONSULT-II. Select “FLASHER” on “SELECT
TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen.
Make sure that “TURN SIGNAL R” and “TURN SIGNAL L” turns
ON-OFF linked with operation of lighting switch.
Without CONSULT-II
Refer to LT- 6 8 , "
Combination Switch Inspection" .
OK or NG
OK >> Replace the BCM. BCS-25, "Removal and Installation of BCM"
NG >> Check combination switch (lighting switch). Refer to LT-68, "Combination Switch Inspection" .
Front Turn Signal Lamp Does Not OperateEKS00IXB
1. CHECK BULB
Verify the bulb standard of each turn signal lamp is correct. Refer to LT-116, "
Exterior Lamp" .
OK or NG
OK >> GO TO 2.
NG >> Replace turn signal lamp bulb. Refer to LT- 6 4 , "
Bulb Replacement of Front Turn Signal Lamp" . When turn signal switch is
right position: TURN SIGNAL R ON
When turn signal switch is
left position: TURN SIGNAL L ON
PKIA7600E

LT-60
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: June 20062007 Versa
2. CHECK FRONT TURN SIGNAL LAMP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector and front combination lamp LH or
RH connector.
3. Check continuity between BCM harness connector M20 (A) ter-
minal 60 and front combination lamp LH harness connector E29
(B) terminal 4.
4. Check continuity between BCM harness connector M20 terminal
61 (A) and front combination lamp RH harness connector E30
(B) terminal 4.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK GROUND CIRCUIT
1. Check continuity between front combination lamp LH harness
connector E29 terminal 5 and ground.
2. Check continuity between front combination lamp RH harness
connector E30 terminal 5 and ground.
OK or NG
OK >> Inspect connection at front combination lamp.
NG >> Repair harness.
Rear Turn Signal Lamp Does Not OperateEKS00IXC
1. CHECK BULB
Verify the bulb standard of each turn signal lamp is correct. Refer to LT- 11 6 , "
Exterior Lamp" .
OK or NG
OK >> GO TO 2.
NG >> Replace turn signal lamp bulb. Refer to LT- 6 4 , "
Bulb Replacement of Rear Turn Signal Lamp" . 60 - 4 : Continuity should exist.
61 - 4 : Continuity should exist.
WKIA5612E
5 - Ground : Continuity should exist.
5 - Ground : Continuity should exist.
WKIA5613E

TURN SIGNAL AND HAZARD WARNING LAMPS
LT-61
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa
2. CHECK REAR TURN SIGNAL LAMP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector and rear combination lamp LH or
RH connector.
3. Check continuity between BCM harness connector M20 (A) ter-
minal 60 and rear combination lamp LH harness connector B25
(B) terminal 6.
4. Check continuity between BCM harness connector M20 (A) ter-
minal 61 and rear combination lamp RH harness connector
B107 (B) terminal 6.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK GROUND CIRCUIT
1. Check continuity between rear combination lamp LH harness
connector B25 terminal 1 and ground.
2. Check continuity between rear combination lamp RH harness
connector B107 terminal 1 and ground.
OK or NG
OK >> Check rear combination lamp connector for proper con-
nection. Repair as necessary.
NG >> Repair harness or connector.60 - 6 : Continuity should exist.
61 - 6 : Continuity should exist.
WKIA5614E
1 - Ground : Continuity should exist.
1 - Ground : Continuity should exist.
WKIA5615E

LT-62
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: June 20062007 Versa
Hazard Warning Lamp Does Not Operate But Turn Signal Lamp OperatesEKS00HYA
1. CHECK HAZARD SWITCH INPUT SIGNAL
With CONSULT-II
1. Select “BCM” on CONSULT-II. Select “FLASHER” on “SELECT
TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen.
Make sure that “HAZARD SW” turns ON-OFF linked with opera-
tion of hazard switch.
Without CONSULT-II
Check voltage between BCM harness connector and ground.
OK or NG
OK >> Replace BCM. Refer to BCS-25, "Removal and Installa-
tion of BCM" .
NG >> GO TO 2.
2. CHECK HAZARD SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector and hazard switch connector.
3. Check continuity BCM harness connector M18 (A) and hazard
switch harness connector M55 (B).
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.When hazard switch is in ON posi-
tion : HAZARD SW ON
PKIA7601E
Te r m i n a l
Condition Voltage (+)
(−)
BCM
connectorTe r m i n a l
M18 29 GroundHazard switch is ON 0V
Hazard switch is OFF Battery voltage
PKIC1014E
A B Continuity
Connector Terminal Connector Terminal
Ye s
M18 29 M55 2
PKIC1015E
