7. Insert the tip of an air gun into the end of the cooler outlet hose.
8. Wrap a shop rag around the air gun tip and end of cooler outlet
hose.
9. Blow compressed air regulated to 5 - 9 kg/cm
2 (70 - 130 psi) through the cooler outlet hose for 10 sec-
onds to force out any remaining A/T fluid.
10. Repeat steps 5 through 9 three additional times.
11. Position an oil pan under the banjo bolts that connect the A/T fluid cooler steel lines to the A/T.
12. Remove the banjo bolts.
13. Flush each steel line from the cooler side back toward the A/T by spraying Transmission Cooler Cleaner
in a continuous stream for 5 seconds.
14. Blow compressed air regulated to 5 - 9 kg/cm
2 (70 - 130 psi) through each steel line from the cooler side
back toward the A/T for 10 seconds to force out any remaining A/T fluid.
15. Ensure all debris is removed from the steel cooler lines.
16. Ensure all debris is removed from the banjo bolts and fittings.
17. Perform AT-18, "
A/T FLUID COOLER DIAGNOSIS PROCEDURE" .
A/T FLUID COOLER DIAGNOSIS PROCEDURE
NOTE:
Insufficient cleaning of the cooler inlet hose exterior may lead to inaccurate debris identification.
1. Position an oil pan under the A/T inlet and outlet cooler hoses.
2. Clean the exterior and tip of the cooler inlet hose.
3. Insert the extension adapter hose of a can of Transmission
Cooler Cleaner (Nissan P/N 999MP-AM006) into the cooler out-
let hose.
CAUTION:

Wear safety glasses and rubber gloves when spraying
the Transmission Cooler Cleaner.

Spray Transmission Cooler Cleaner only with adequate
ventilation.

Avoid contact with eyes and skin.

Do not breath vapors or spray mist.
4. Hold the hose and can as high as possible and spray Transmis-
sion Cooler Cleaner in a continuous stream into the cooler outlet hose until A/T fluid flows out of the cooler
inlet hose for 5 seconds.
5. Tie a common white, basket-type coffee filter to the end of the
cooler inlet hose.
SCIA5630E
SCIA5629E
SCIA5631E

A/T FLUID
AT-19
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
6. Insert the tip of an air gun into the end of the cooler outlet hose.
7. Wrap a shop rag around the air gun tip and end of cooler outlet
hose.
8. Blow compressed air regulated to 5 - 9 kg/cm
2 (70 - 130 psi)
through the cooler outlet hose to force any remaining A/T fluid
into the coffee filter.
9. Remove the coffee filter from the end of the cooler inlet hose.
10. Perform AT-19, "
A/T FLUID COOLER INSPECTION PROCE-
DURE" .
A/T FLUID COOLER INSPECTION PROCEDURE

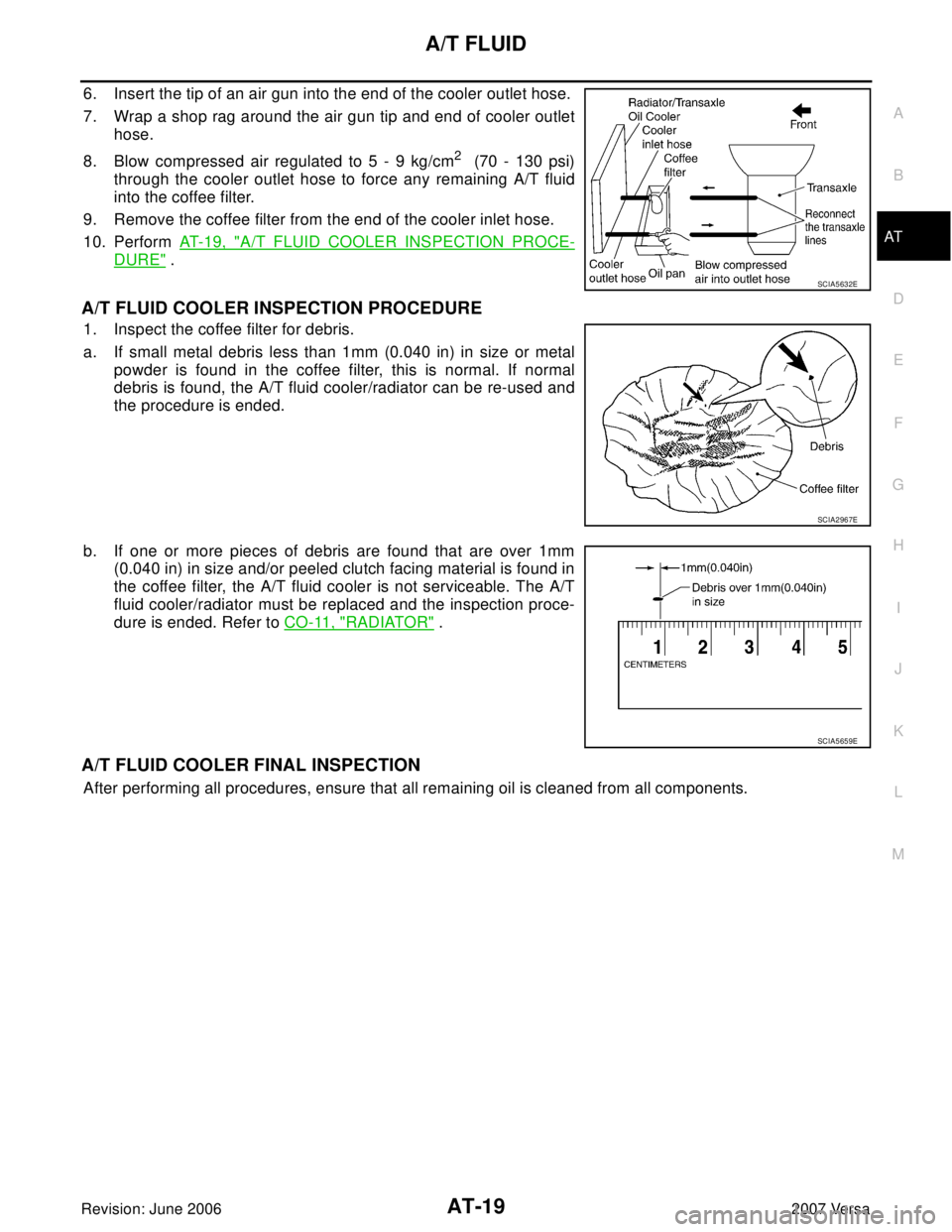

1. Inspect the coffee filter for debris.
a. If small metal debris less than 1mm (0.040 in) in size or metal
powder is found in the coffee filter, this is normal. If normal
debris is found, the A/T fluid cooler/radiator can be re-used and
the procedure is ended.
b. If one or more pieces of debris are found that are over 1mm
(0.040 in) in size and/or peeled clutch facing material is found in
the coffee filter, the A/T fluid cooler is not serviceable. The A/T
fluid cooler/radiator must be replaced and the inspection proce-
dure is ended. Refer to CO-11, "
RADIATOR" .
A/T FLUID COOLER FINAL INSPECTION
After performing all procedures, ensure that all remaining oil is cleaned from all components.
SCIA5632E
SCIA2967E
SCIA5659E

AT-20
A/T CONTROL SYSTEM
Revision: June 20062007 Versa
A/T CONTROL SYSTEMPFP:31036

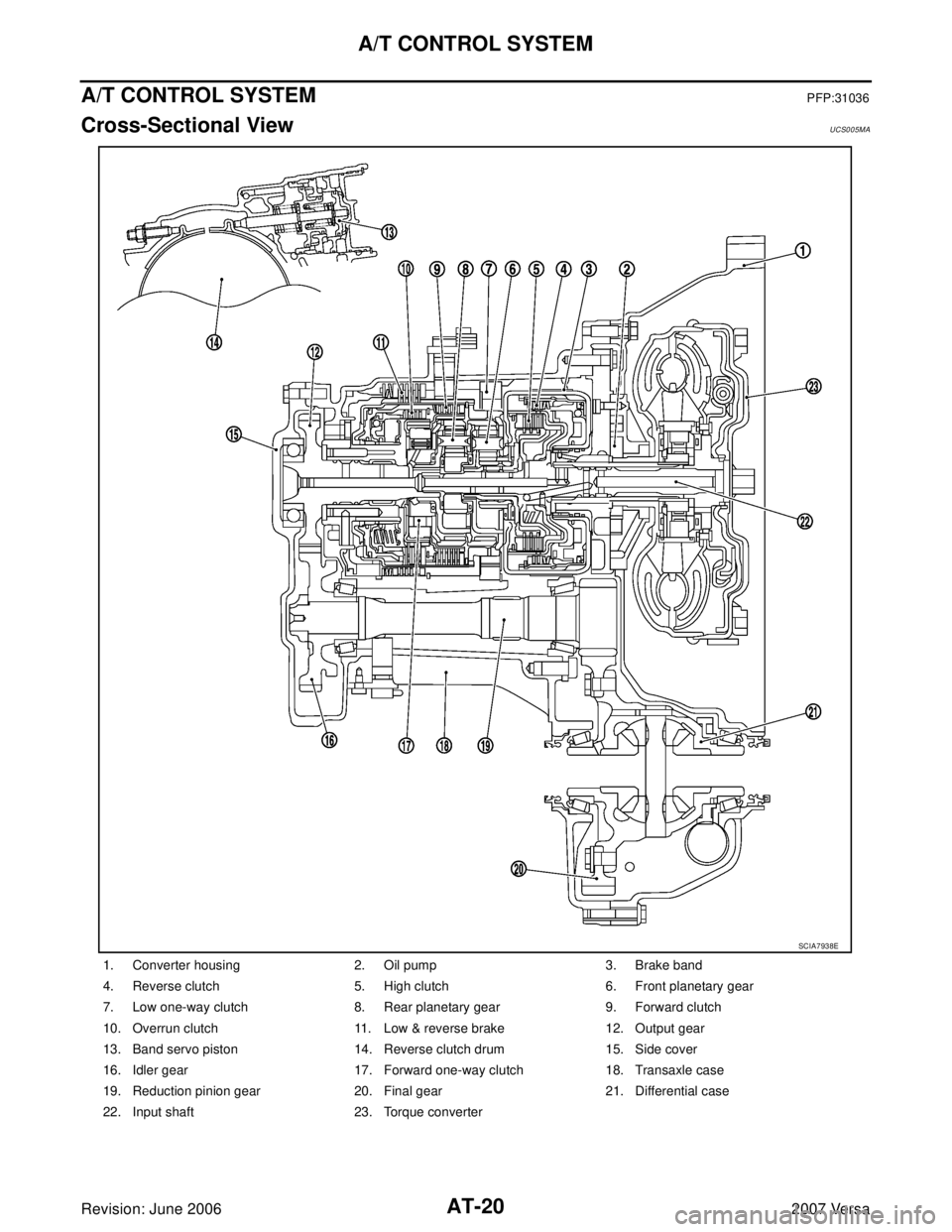

Cross-Sectional View UCS005MA
1. Converter housing 2. Oil pump 3. Brake band
4. Reverse clutch 5. High clutch 6. Front planetary gear
7. Low one-way clutch 8. Rear planetary gear 9. Forward clutch
10. Overrun clutch 11. Low & reverse brake 12. Output gear
13. Band servo piston 14. Reverse clutch drum 15. Side cover
16. Idler gear 17. Forward one-way clutch 18. Transaxle case
19. Reduction pinion gear 20. Final gear 21. Differential case
22. Input shaft 23. Torque converter
SCIA7938E

A/T CONTROL SYSTEM
AT-21
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
Shift MechanismUCS005M B
CONSTRUCTION

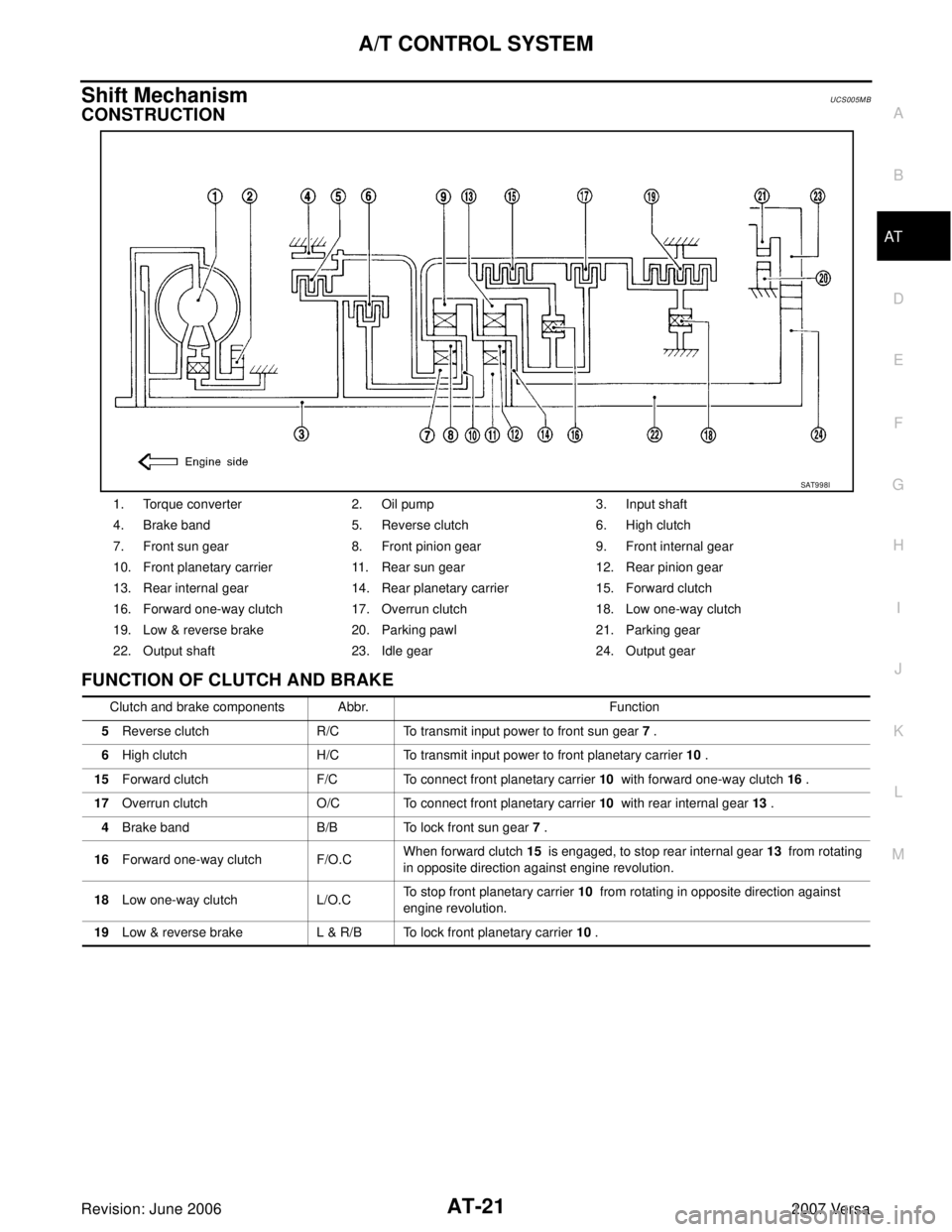

FUNCTION OF CLUTCH AND BRAKE
1. Torque converter 2. Oil pump 3. Input shaft
4. Brake band 5. Reverse clutch 6. High clutch
7. Front sun gear 8. Front pinion gear 9. Front internal gear
10. Front planetary carrier 11. Rear sun gear 12. Rear pinion gear
13. Rear internal gear 14. Rear planetary carrier 15. Forward clutch
16. Forward one-way clutch 17. Overrun clutch 18. Low one-way clutch
19. Low & reverse brake 20. Parking pawl 21. Parking gear
22. Output shaft 23. Idle gear 24. Output gear
SAT9 9 8I
Clutch and brake components Abbr. Function
5Reverse clutch R/C To transmit input power to front sun gear 7 .
6High clutch H/C To transmit input power to front planetary carrier 10 .
15Forward clutch F/C To connect front planetary carrier 10 with forward one-way clutch 16 .
17Overrun clutch O/C To connect front planetary carrier 10 with rear internal gear 13 .
4Brake band B/B To lock front sun gear 7 .
16Forward one-way clutch F/O.CWhen forward clutch 15 is engaged, to stop rear internal gear 13 from rotating
in opposite direction against engine revolution.
18Low one-way clutch L/O.CTo stop front planetary carrier 10 from rotating in opposite direction against
engine revolution.
19Low & reverse brake L & R/B To lock front planetary carrier 10 .

AT-22
A/T CONTROL SYSTEM
Revision: June 20062007 Versa
CLUTCH AND BAND CHART

*1: Operates when OD OFF. (OD OFF indicator lamp is on.)

*2: Oil pressure is applied to both 2nd “apply” side and 3rd “release” side of band servo piston. However, brake band does not con-
tract because oil pressure area on the “release” side is greater than that on the “apply” side.

*3: Oil pressure is applied to 4th “apply” side on condition *2 above, and brake band contracts.

*4: A/T will not shift to 4th when OD OFF. (OD OFF indicator lamp is on.)

: Operates.

A: Operates when throttle opening is less than specification**, activating engine brake.

B: Operates during “progressive” acceleration.

C: Operates but does not affect power transmission.

D: Operates when throttle opening is less than specification**, but does not affect engine brake.
–**: Overrun clutch remains in engaged condition when throttle opening is less than 1/16. Shift posi-
tionR/C
5H/C
6F/C
15O/C
17Band servo
F/O.C
16L/O.C
18L&R/B
19Lock-
upRemarks
2nd
apply3rd
release4th
apply
PPA R K
POSITION
RREVERSE
POSITION
NNEUTRAL
POSITION
D*4 1st *1D B B
2nd *1A BAutomatic
shift
3rd *1A *2C C B
*11 ⇔ 2 ⇔ 3
⇔ 4
4th C *3C C
21stBB
Automatic
shift
1 ⇔ 2 ⇐ 3 2ndB
3rd *2C C B
11stBB
Locks (held
stationary)
in 1st speed
1 ⇐ 2 ⇐ 3 2ndB
3rd *2C C B

A/T CONTROL SYSTEM
AT-23
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa
POWER TRANSMISSION
“N” and “P” Positions

“N” position
Power from the input shaft is not transmitted to the output shaft because the clutches do not operate.

“P” position
Similar to the “N” position, the clutches do not operate. The parking pawl engages with the parking gear to
mechanically hold the output shaft so that the power train is locked.
SAT9 9 1I

AT-24
A/T CONTROL SYSTEM
Revision: June 20062007 Versa

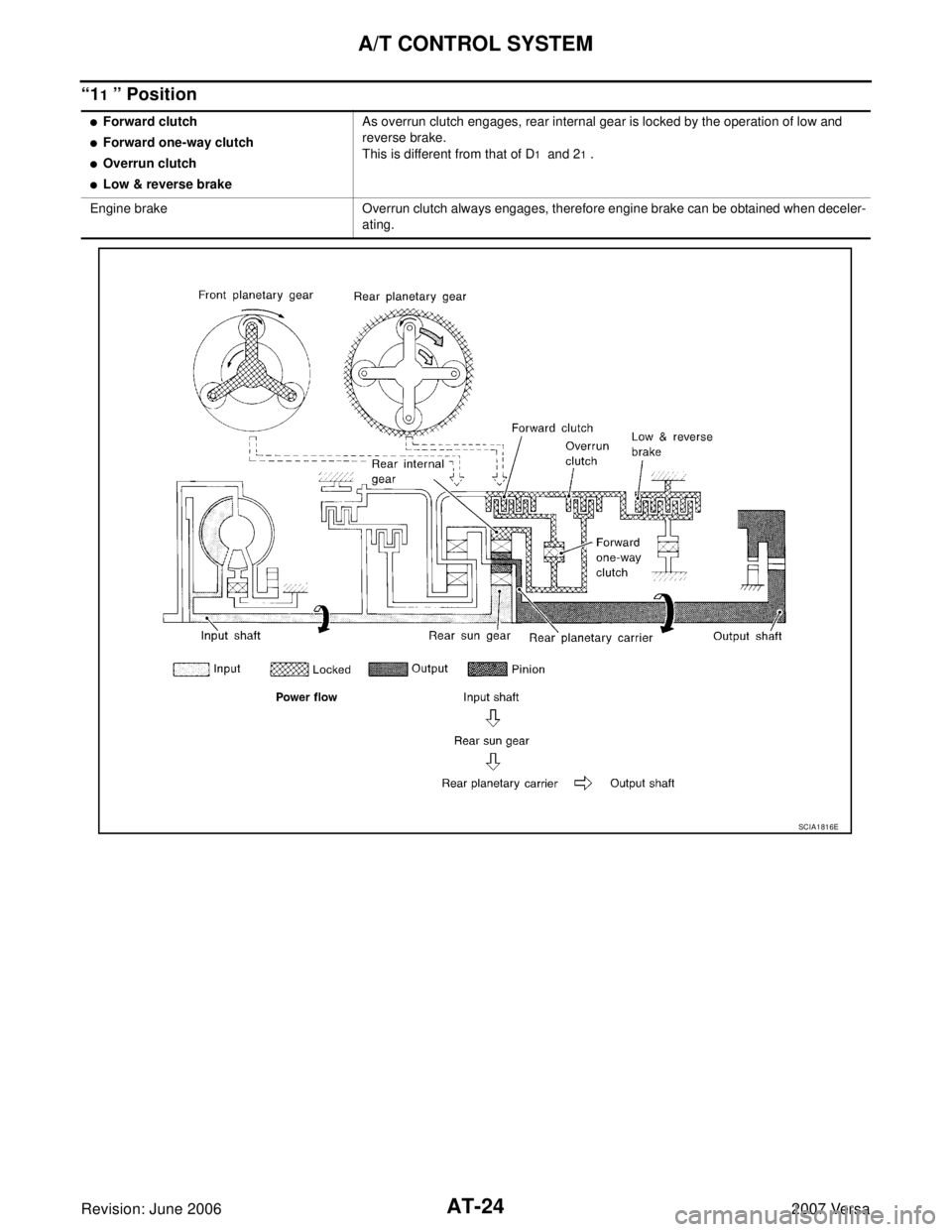

“11 ” Position

Forward clutch

Forward one-way clutch

Overrun clutch

Low & reverse brakeAs overrun clutch engages, rear internal gear is locked by the operation of low and
reverse brake.
This is different from that of D
1 and 21 .
Engine brake Overrun clutch always engages, therefore engine brake can be obtained when deceler-
ating.
SCIA1816E

A/T CONTROL SYSTEM
AT-25
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa

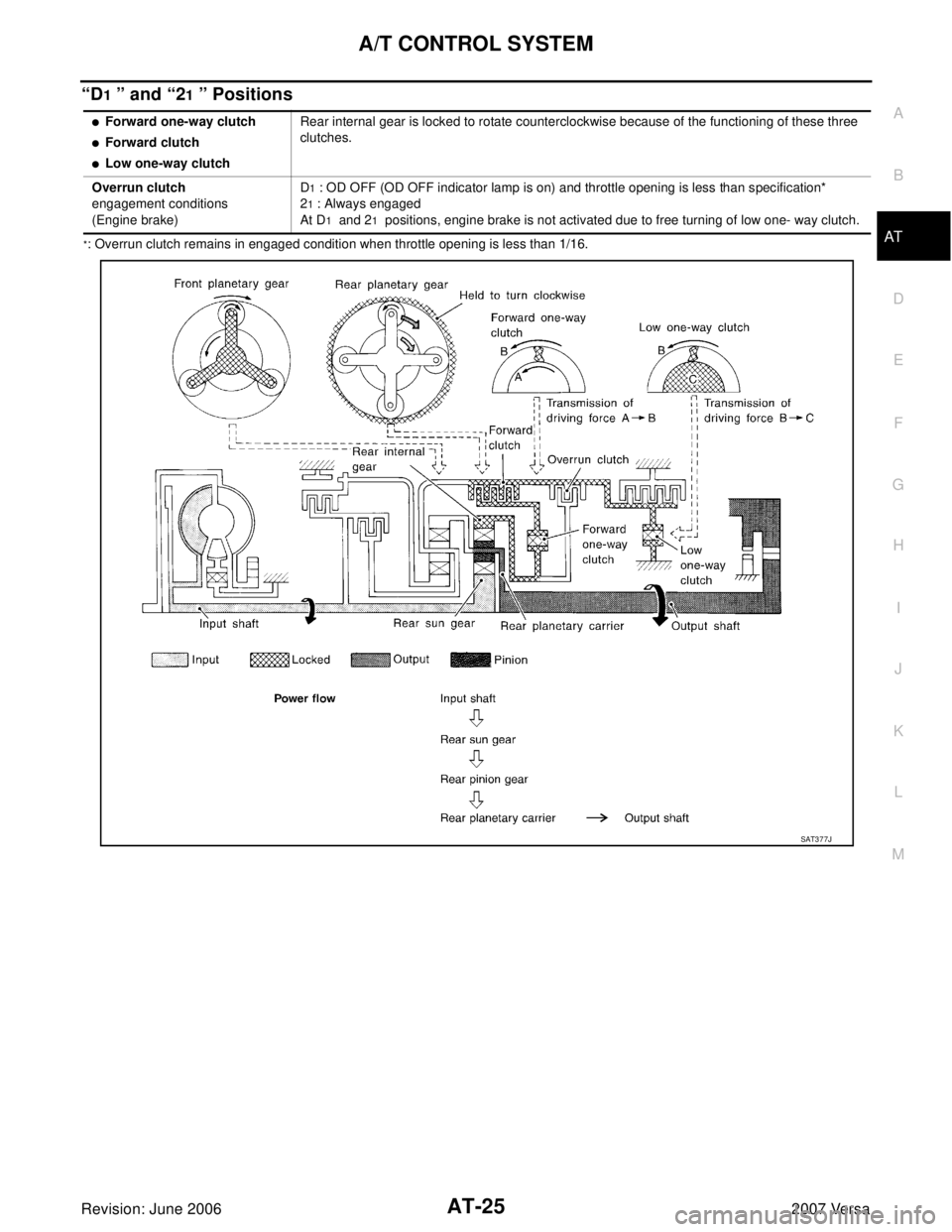

“D1 ” and “21 ” Positions
*: Overrun clutch remains in engaged condition when throttle opening is less than 1/16.

Forward one-way clutch

Forward clutch

Low one-way clutchRear internal gear is locked to rotate counterclockwise because of the functioning of these three
clutches.
Overrun clutch
engagement conditions
(Engine brake)D
1 : OD OFF (OD OFF indicator lamp is on) and throttle opening is less than specification*
2
1 : Always engaged
At D
1 and 21 positions, engine brake is not activated due to free turning of low one- way clutch.
SAT3 7 7J

AT-26
A/T CONTROL SYSTEM
Revision: June 20062007 Versa

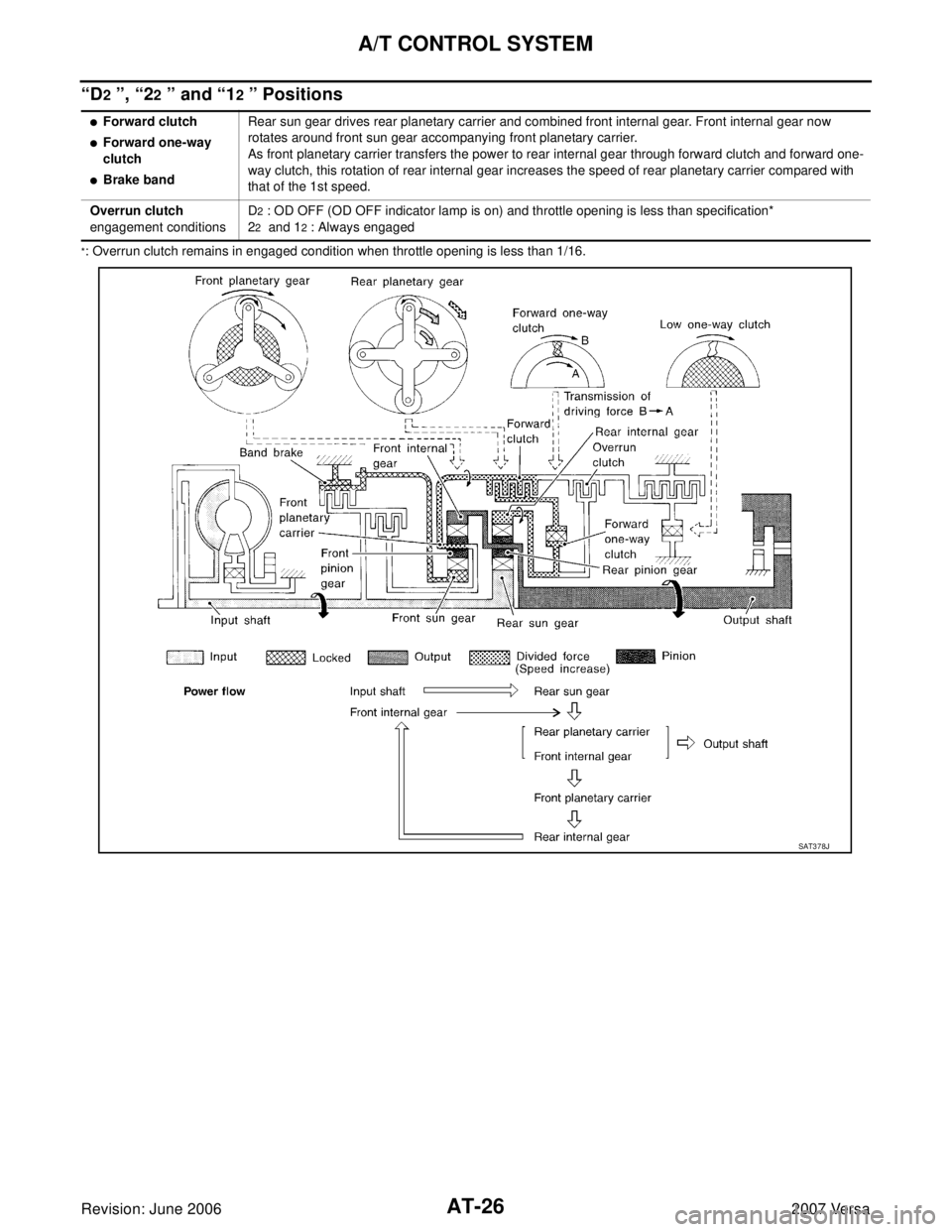

“D2 ”, “22 ” and “12 ” Positions
*: Overrun clutch remains in engaged condition when throttle opening is less than 1/16.

Forward clutch

Forward one-way
clutch

Brake bandRear sun gear drives rear planetary carrier and combined front internal gear. Front internal gear now
rotates around front sun gear accompanying front planetary carrier.
As front planetary carrier transfers the power to rear internal gear through forward clutch and forward one-
way clutch, this rotation of rear internal gear increases the speed of rear planetary carrier compared with
that of the 1st speed.
Overrun clutch
engagement conditionsD
2 : OD OFF (OD OFF indicator lamp is on) and throttle opening is less than specification*
2
2 and 12 : Always engaged
SAT3 7 8J

A/T CONTROL SYSTEM
AT-27
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: June 20062007 Versa

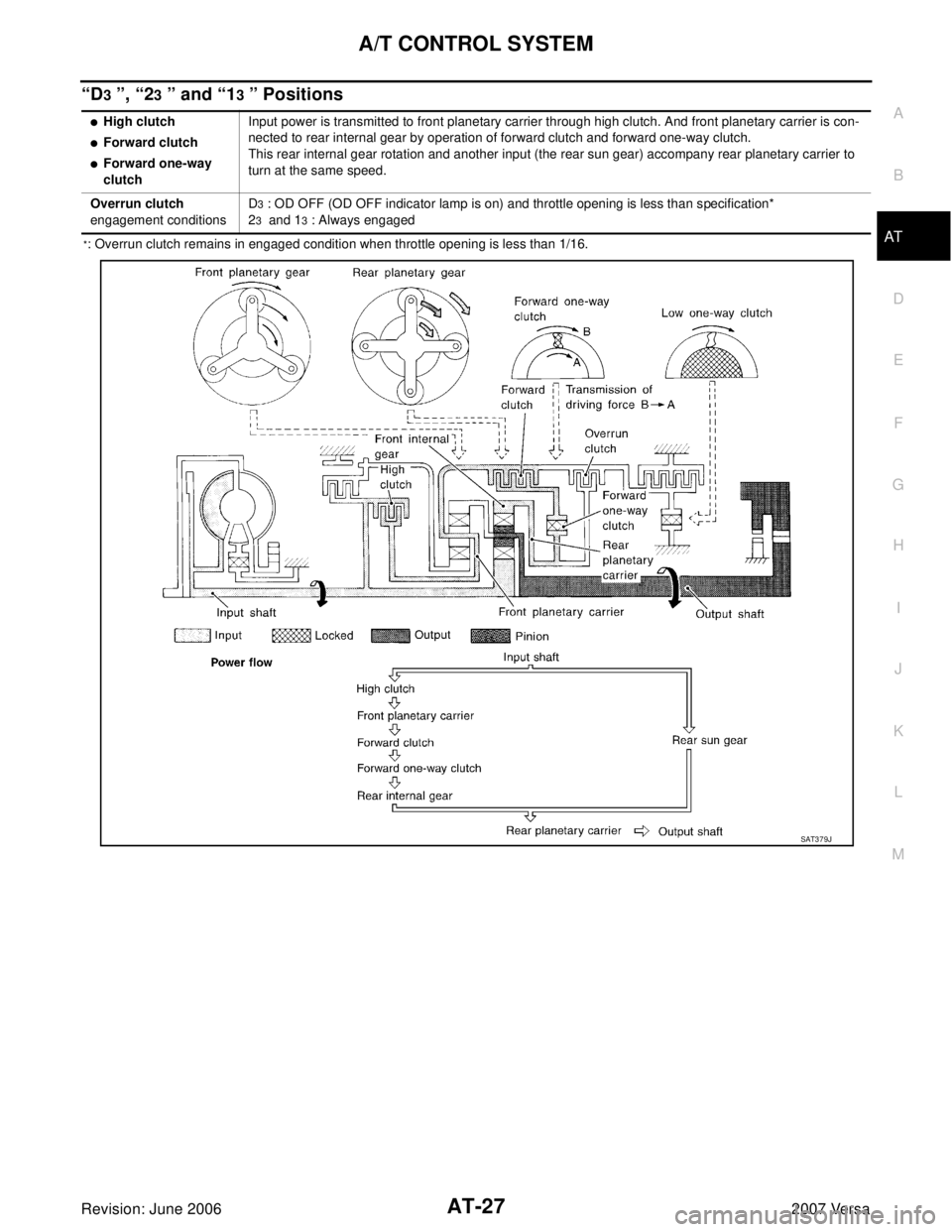

“D3 ”, “23 ” and “13 ” Positions
*: Overrun clutch remains in engaged condition when throttle opening is less than 1/16.

High clutch

Forward clutch

Forward one-way
clutchInput power is transmitted to front planetary carrier through high clutch. And front planetary carrier is con-
nected to rear internal gear by operation of forward clutch and forward one-way clutch.
This rear internal gear rotation and another input (the rear sun gear) accompany rear planetary carrier to
turn at the same speed.
Overrun clutch
engagement conditionsD
3 : OD OFF (OD OFF indicator lamp is on) and throttle opening is less than specification*
2
3 and 13 : Always engaged
SAT3 7 9J
