NISSAN LATIO 2007 Service Repair Manual

BL-272
BODY REPAIR
Revision: June 20062007 Versa
Change Parts

Hoodledge reinforcement assembly
Front strut housing
Fender bracket

Cowl top side upper
Hoodledge upper
Hoodledge connector

BODY REPAIR
BL-273
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa

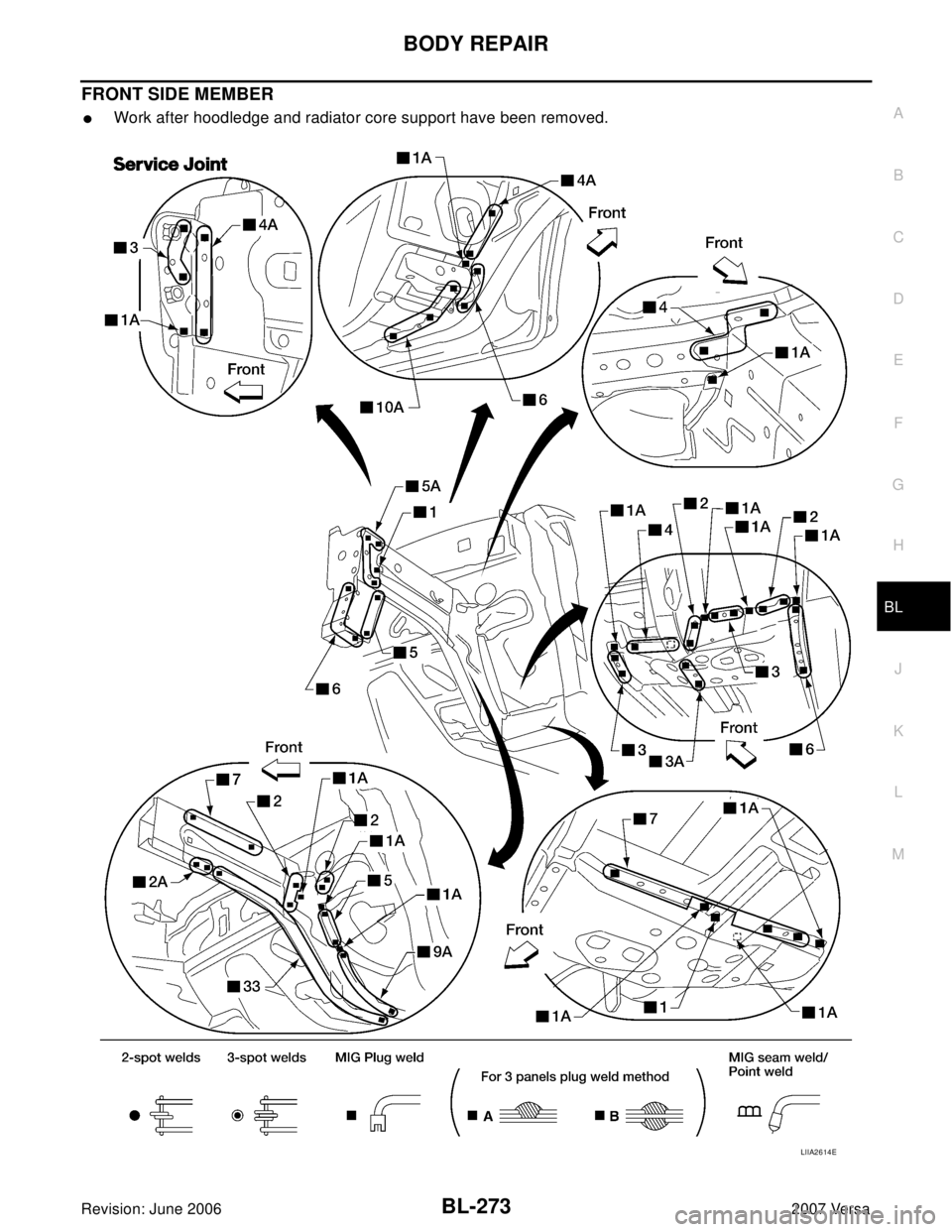

FRONT SIDE MEMBER

Work after hoodledge and radiator core support have been removed.
LIIA2614E

BL-274
BODY REPAIR
Revision: June 20062007 Versa
Change parts

Front side member
Front side member closing plate
Front side member outrigger

Frame bracket outer

BODY REPAIR
BL-275
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa

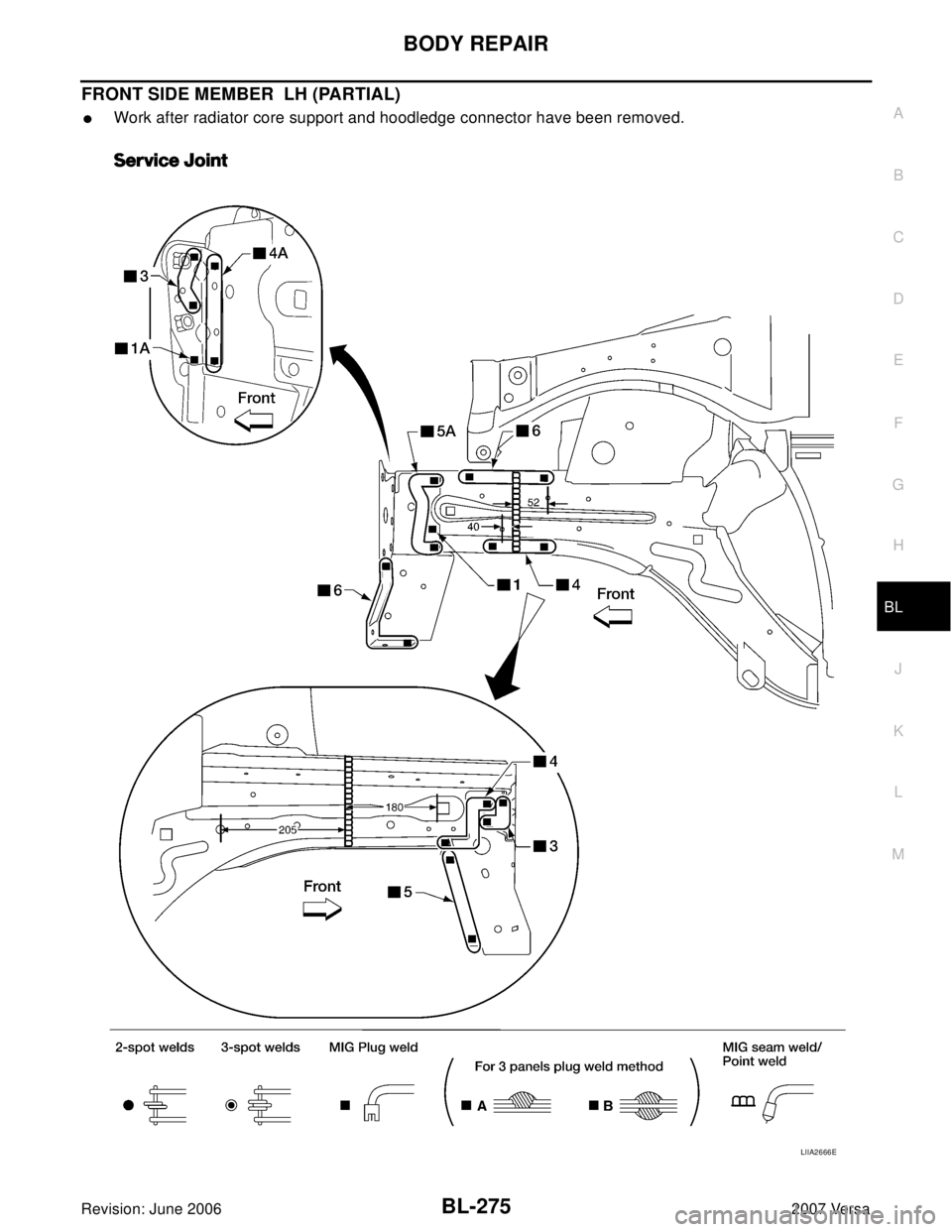

FRONT SIDE MEMBER LH (PARTIAL)

Work after radiator core support and hoodledge connector have been removed.
LIIA2666E

BL-276
BODY REPAIR
Revision: June 20062007 Versa
Change parts

Front side member partial
Front side member closing plate
partial
Frame bracket outer

Frame bracket

BODY REPAIR
BL-277
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa

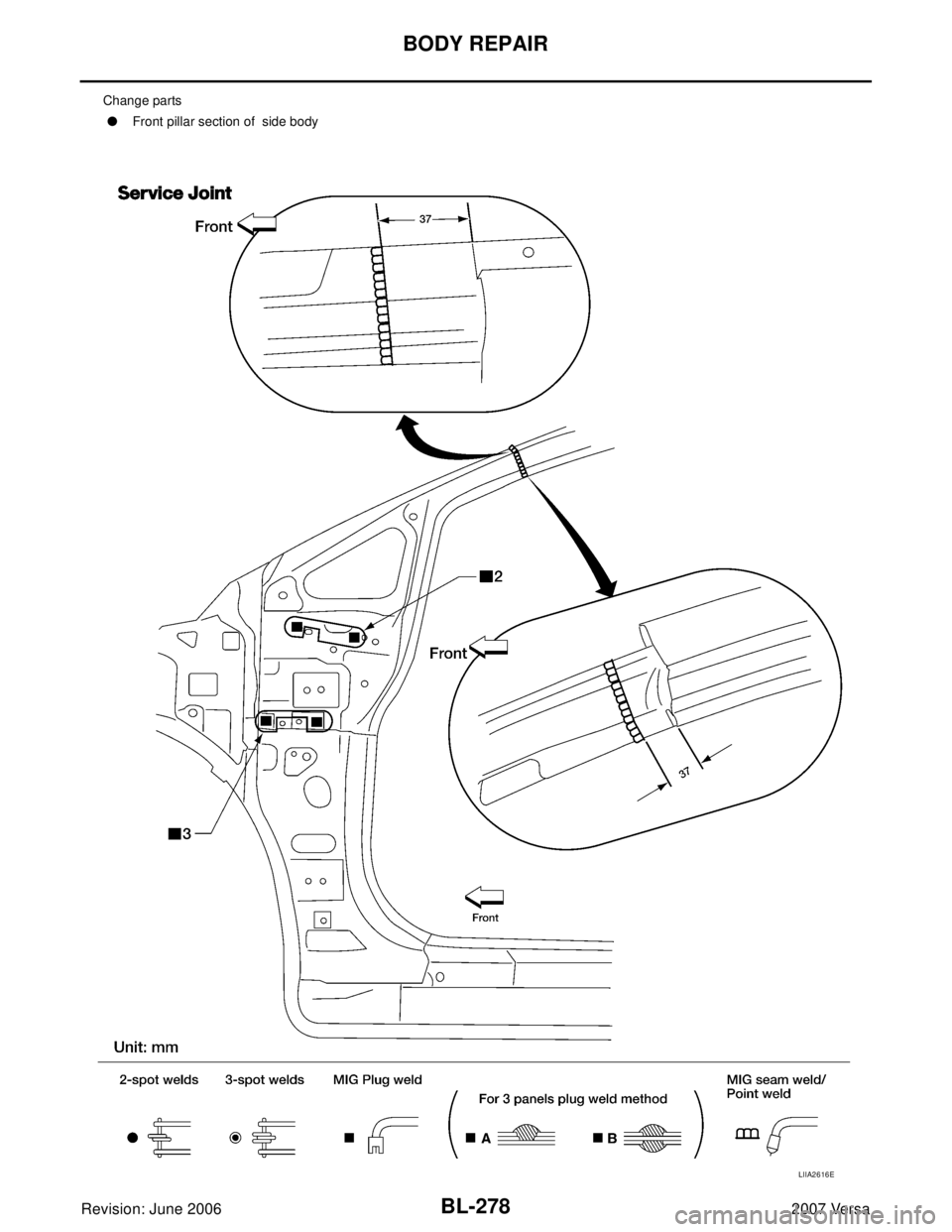

FRONT PILLAR

Work after the rear hoodledge reinforcement and the outer sill reinforcement have been removed.
LIIA2615E

BL-278
BODY REPAIR
Revision: June 20062007 Versa
Change parts

Front pillar section of side body
LIIA2616E

BODY REPAIR
BL-279
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa

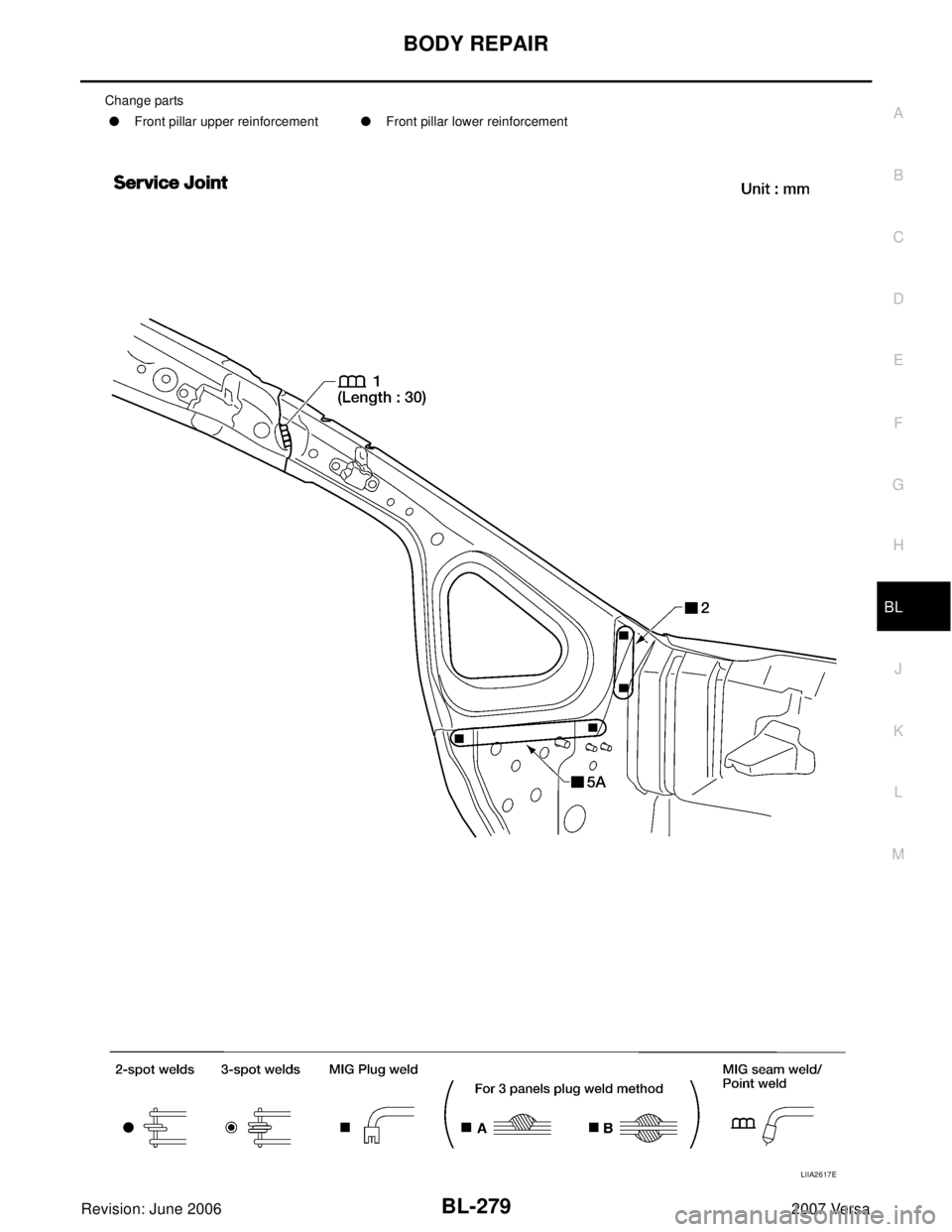

Change parts

Front pillar upper reinforcement
Front pillar lower reinforcement
LIIA2617E

BL-280
BODY REPAIR
Revision: June 20062007 Versa
Change parts

Front pillar inner reinforcement

BODY REPAIR
BL-281
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa

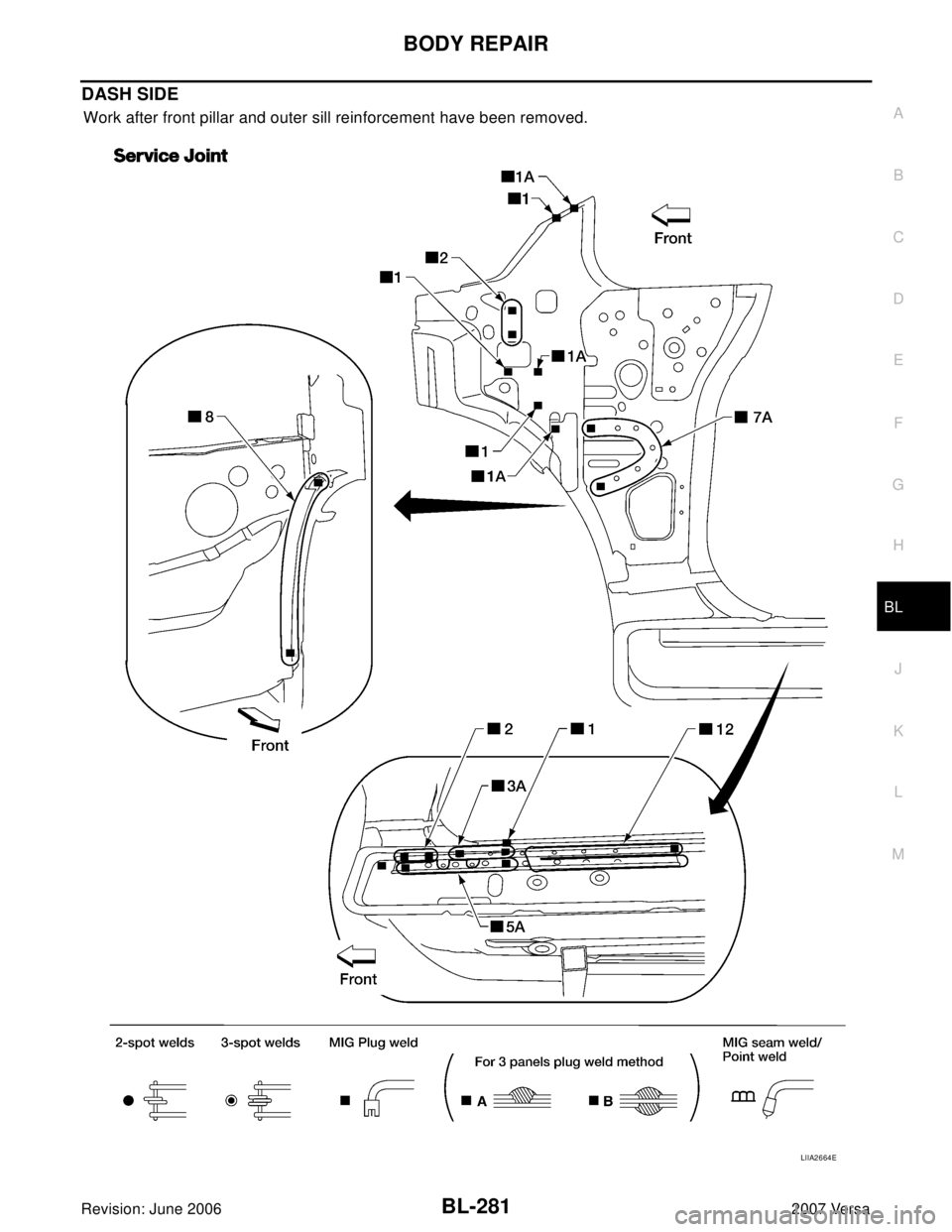

DASH SIDE
Work after front pillar and outer sill reinforcement have been removed.
LIIA2664E
