NISSAN LATIO 2009 Service Repair Manual

DTC P0453 EVAP CONTROL
SYSTEM PRESSURE SENSOR
EC-845
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O
1. Check harness continuity between ECM terminal 42 and EVAP control system pressure sensor terminal
2. Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG OK >> GO TO 15.
NG >> GO TO 14. 14.
DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors E8, F8
• Harness connectors M69, E7
• Harness connectors B102, M13
• Harness for open or short between ECM and EVAP control system pressure sensor
>> Repair open circuit or short to ground or short to power in harness or connectors. 15.
CHECK RUBBER TUBE
1. Disconnect rubber tube connected to EV AP canister vent control valve.
2. Check the rubber tube for clogging, vent and kinked.
OK or NG OK >> GO TO 16.
NG >> Clean the rubber tube using an air blower, repair or replace rubber tube. 16.
CHECK EVAP CANISTER VENT CONTROL VALVE
Refer to EC-821, " Component Inspection " .
OK or NG OK >> GO TO 17.
NG >> Replace EVAP canister vent control valve. 17.
CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR
Refer to EC-846, " Component Inspection " .
OK or NG OK >> GO TO 18.
NG >> Replace EVAP control system pressure sensor. 18.
CHECK IF EVAP CANISTER SATURATED WITH WATER
1. Remove EVAP canister with EVAP canister vent c ontrol valve and EVAP control system pressure sensor
attached.
2. Does water drain from the EVAP canister?
Yes or No Yes >> GO TO 19.
No >> GO TO 21. 19.
CHECK EVAP CANISTER
Weigh the EVAP canister with the EVAP canister vent control valve and EVAP control system pressure sen-
sorattached.
The weight should be less than 1.9 kg (4.2 lb).
OK or NG Continuity should exist.
PBIB1213E

EC-846< SERVICE INFOMATION >
[MR TYPE 1]
DTC P0453 EVAP CONTROL
SYSTEM PRESSURE SENSOR
OK >> GO TO 21.
NG >> GO TO 20. 20.
DETECT MALFUNCTIONING PART
Check the following.
• EVAP canister for damage
• EVAP hose connected to EVAP canister for clogging or poor connection
>> Repair hose or replace EVAP canister. 21.
CHECK INTERMITTENT INCIDENT
Refer to EC-626 .
>> INSPECTION END
Component Inspection INFOID:0000000004537341
EVAP CONTROL PRESSURE SENSOR
1. Remove EVAP control system pressure sensor wit h its harness connector connected from EVAP canister.
Always replace O-ring with a new one.
2. Install a vacuum pump to EVAP control system pressure sensor.
3. Turn ignition switch ON and check output voltage between ECM terminal 42 (EVAP control system pressure sensor signal) and
ground under the following conditions.
CAUTION:
• Always calibrate the vacuum pump gauge when using it.
• Do not apply below -93.3 kP a (-700 mmHg, -27.56 inHg) or
pressure over 101.3 kPa (760 mmHg, 29.92 inHg).
4. If NG, replace EVAP control system pressure sensor. Applied vacuum kPa
(mmHg, inHg) Voltage V
Not applied 1.8 - 4.8
-26.7 (-200, -7.87) 2.1 to 2.5V lower than above value PBIB3314E

DTC P0455 EVAP CONTROL SYSTEM
EC-847
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O
DTC P0455 EVAP CONTROL SYSTEM
On Board Diagnosis Logic INFOID:0000000004537342

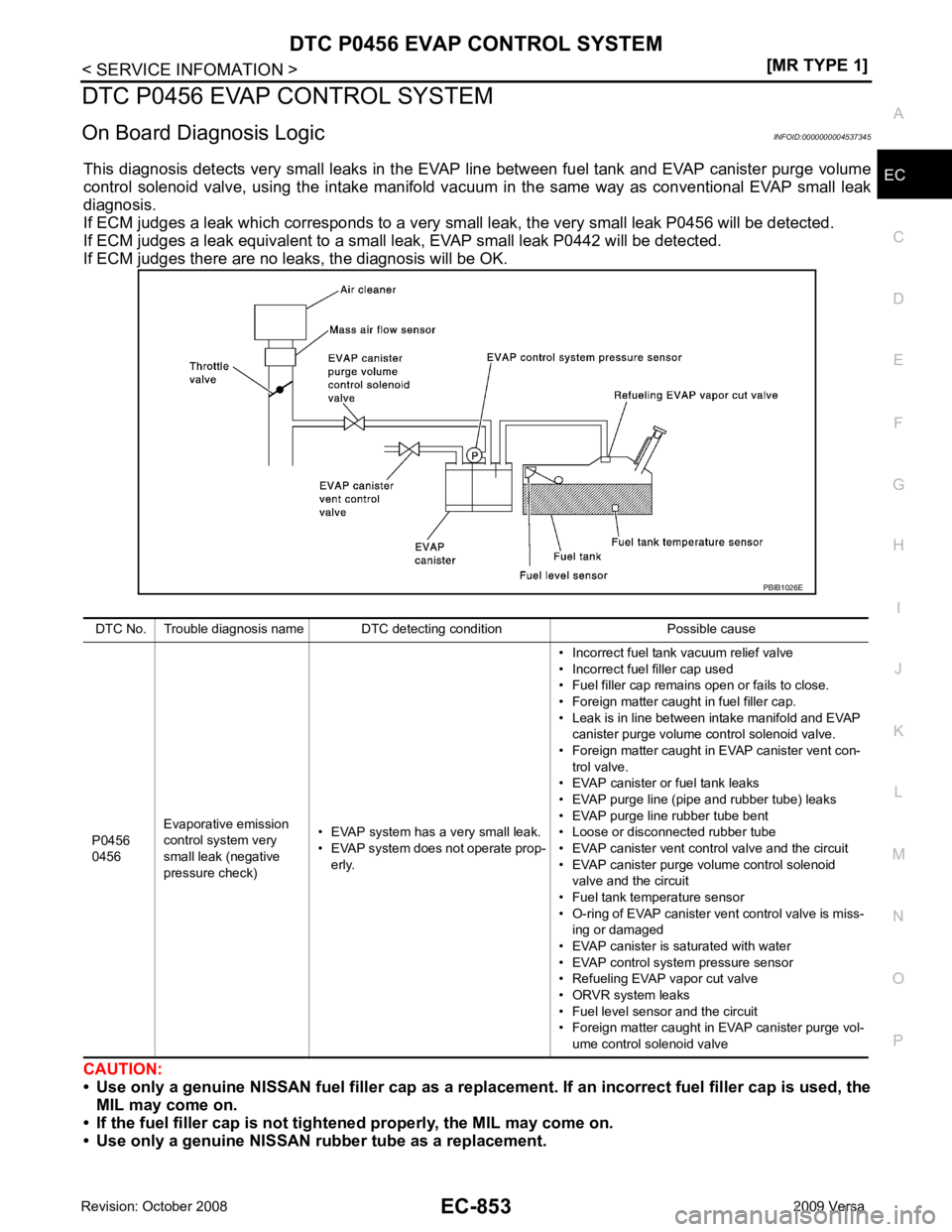

This diagnosis detects a very large leak (fuel filler cap fell off etc.) in EVAP system between the fuel tank and
EVAP canister purge volume control solenoid valve.
CAUTION:
• Use only a genuine NISSAN fuel filler cap as a replacemen t. If an incorrect fuel filler cap is used, the
MIL may come on.
• If the fuel filler cap is not tigh tened properly, the MIL may come on.
• Use only a genuine NISSAN rubber tube as a replacement.
DTC Confirmation Procedure INFOID:0000000004537343
CAUTION:
Never remove fuel filler cap duri ng the DTC Confirmation Procedure.
NOTE: DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0455
0455 EVAP control system
gross leak detected • EVAP control system ha
s a very large leak
such as fuel filler cap fell off.
• EVAP control system does not operate prop- erly. • Fuel filler cap remains open or fails to
close.
• Incorrect fuel tank vacuum relief valve
• Incorrect fuel filler cap used
• Foreign matter caught in fuel filler cap.
• Leak is in line between intake manifold and EVAP canister purge volume control
solenoid valve.
• Foreign matter caught in EVAP canister vent control valve.
• EVAP canister or fuel tank leaks
• EVAP purge line (pipe and rubber tube) leaks
• EVAP purge line rubber tube bent.
• Loose or disconnected rubber tube
• EVAP canister vent control valve and the
circuit
• EVAP canister purge volume control so- lenoid valve and the circuit
• Fuel tank temperature sensor
• O-ring of EVAP canister vent control valve is missing or damaged.
• EVAP control system pressure sensor
• Refueling EVAP vapor cut valve
• ORVR system leaks PBIB1026E

EC-848< SERVICE INFOMATION >
[MR TYPE 1]
DTC P0455 EVAP CONTROL SYSTEM
• Make sure that EVAP hose are connected to EVAP canister purge volume control solenoid valve
properly.
• If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
• Perform “DTC WORK SUPPORT” when the fuel level is between 1/4 and 3/4 full, and vehicle is placed
on flat level surface.
• Open engine hood before conducting the following procedure.

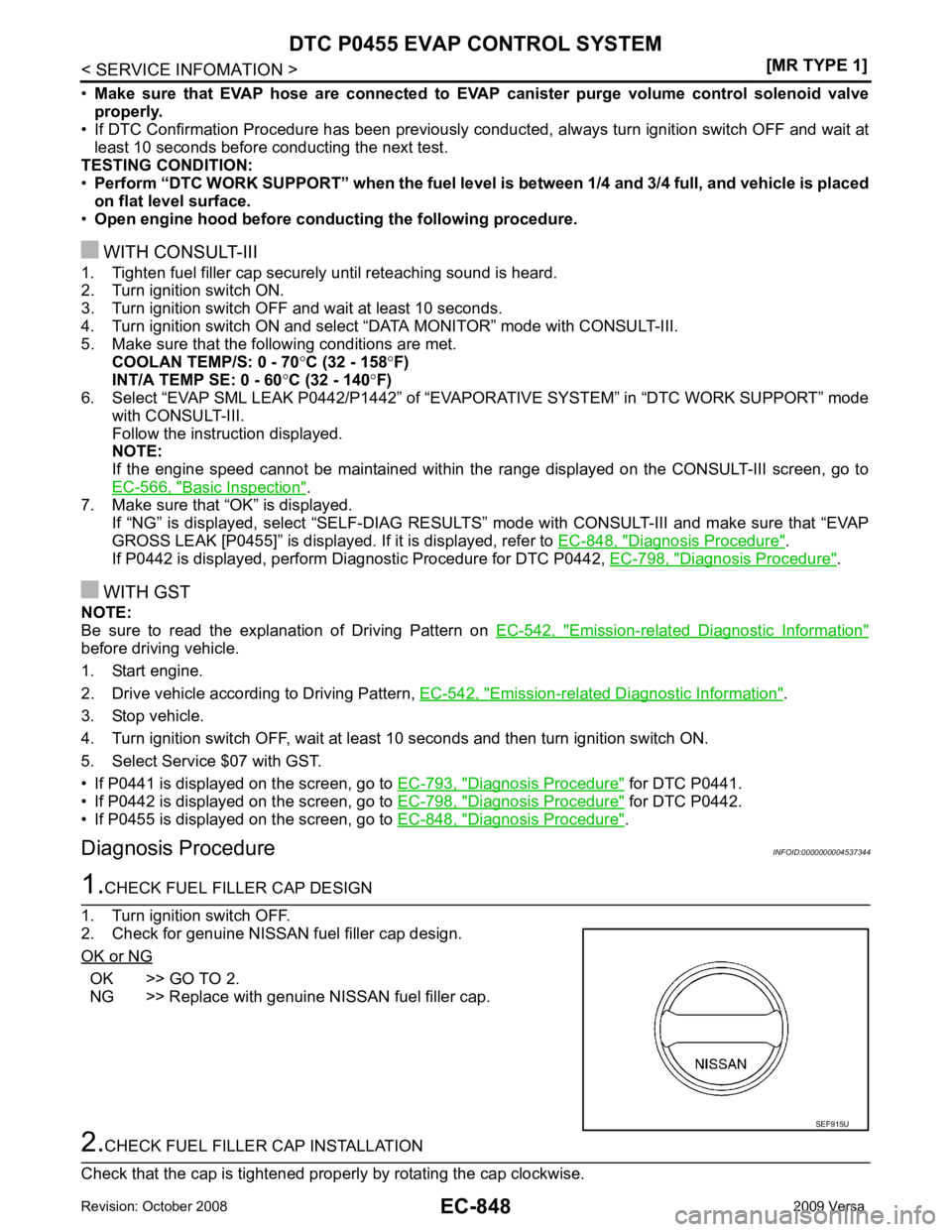

WITH CONSULT-III
1. Tighten fuel filler cap securely until reteaching sound is heard.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON and select “DATA MONITOR” mode with CONSULT-III.
5. Make sure that the following conditions are met.
COOLAN TEMP/S: 0 - 70 °C (32 - 158 °F)
INT/A TEMP SE: 0 - 60 °C (32 - 140 °F)
6. Select “EVAP SML LEAK P0442/P1442” of “EV APORATIVE SYSTEM” in “DTC WORK SUPPORT” mode
with CONSULT-III.
Follow the instruction displayed.
NOTE:
If the engine speed cannot be maintained within t he range displayed on the CONSULT-III screen, go to
EC-566, " Basic Inspection " .
7. Make sure that “OK” is displayed.
If “NG” is displayed, select “SELF-DIAG RESULT S” mode with CONSULT-III and make sure that “EVAP
GROSS LEAK [P0455]” is displayed. If it is displayed, refer to EC-848, " Diagnosis Procedure " .
If P0442 is displayed, perform Diagnostic Procedure for DTC P0442, EC-798, " Diagnosis Procedure " .
WITH GST
NOTE:
Be sure to read the explanation of Driving Pattern on EC-542, " Emission-related Diagnostic Information "
before driving vehicle.
1. Start engine.
2. Drive vehicle according to Driving Pattern, EC-542, " Emission-related Diagnostic Information " .
3. Stop vehicle.
4. Turn ignition switch OFF, wait at least 10 seconds and then turn ignition switch ON.
5. Select Service $07 with GST.
• If P0441 is displayed on the screen, go to EC-793, " Diagnosis Procedure " for DTC P0441.
• If P0442 is displayed on the screen, go to EC-798, " Diagnosis Procedure " for DTC P0442.
• If P0455 is displayed on the screen, go to EC-848, " Diagnosis Procedure " .
Diagnosis Procedure INFOID:00000000045373441.
CHECK FUEL FILLER CAP DESIGN
1. Turn ignition switch OFF.
2. Check for genuine NISSAN fuel filler cap design.
OK or NG OK >> GO TO 2.
NG >> Replace with genuine NISSAN fuel filler cap. 2.
CHECK FUEL FILLER CAP INSTALLATION
Check that the cap is tightened proper ly by rotating the cap clockwise. SEF915U

DTC P0455 EVAP CONTROL SYSTEM
EC-849
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O

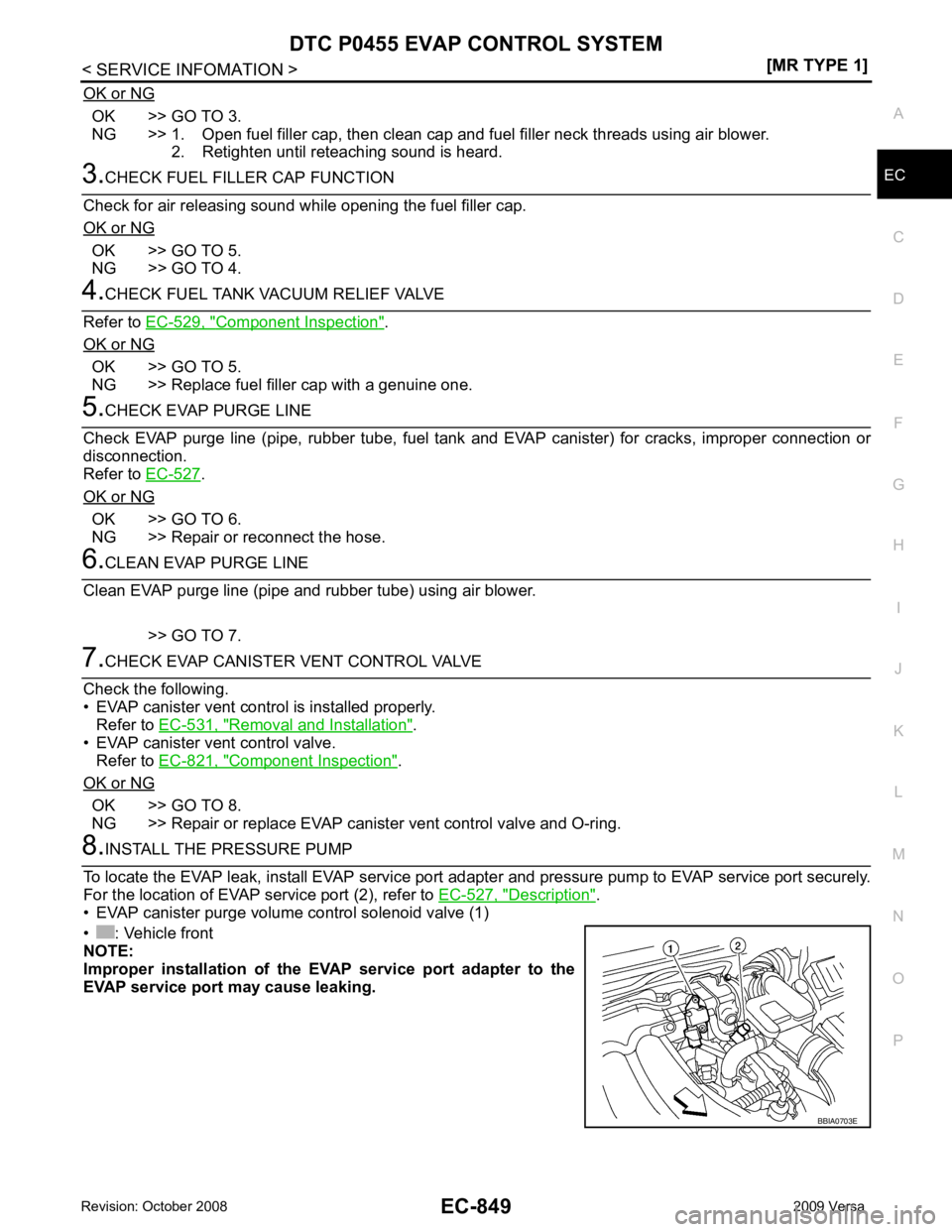

OK or NG OK >> GO TO 3.
NG >> 1. Open fuel filler cap, then clean cap and fuel filler neck threads using air blower.
2. Retighten until reteaching sound is heard. 3.
CHECK FUEL FILLER CAP FUNCTION
Check for air releasing sound while opening the fuel filler cap.
OK or NG OK >> GO TO 5.
NG >> GO TO 4. 4.
CHECK FUEL TANK VACUUM RELIEF VALVE
Refer to EC-529, " Component Inspection " .
OK or NG OK >> GO TO 5.
NG >> Replace fuel filler cap with a genuine one. 5.
CHECK EVAP PURGE LINE
Check EVAP purge line (pipe, rubber tube, fuel tank and EVAP canister) for cracks, improper connection or
disconnection.
Refer to EC-527 .
OK or NG OK >> GO TO 6.
NG >> Repair or reconnect the hose. 6.
CLEAN EVAP PURGE LINE
Clean EVAP purge line (pipe and rubber tube) using air blower.
>> GO TO 7. 7.
CHECK EVAP CANISTER VENT CONTROL VALVE
Check the following.
• EVAP canister vent control is installed properly. Refer to EC-531, " Removal and Installation " .
• EVAP canister vent control valve.
Refer to EC-821, " Component Inspection " .
OK or NG OK >> GO TO 8.
NG >> Repair or replace EVAP canister vent control valve and O-ring. 8.

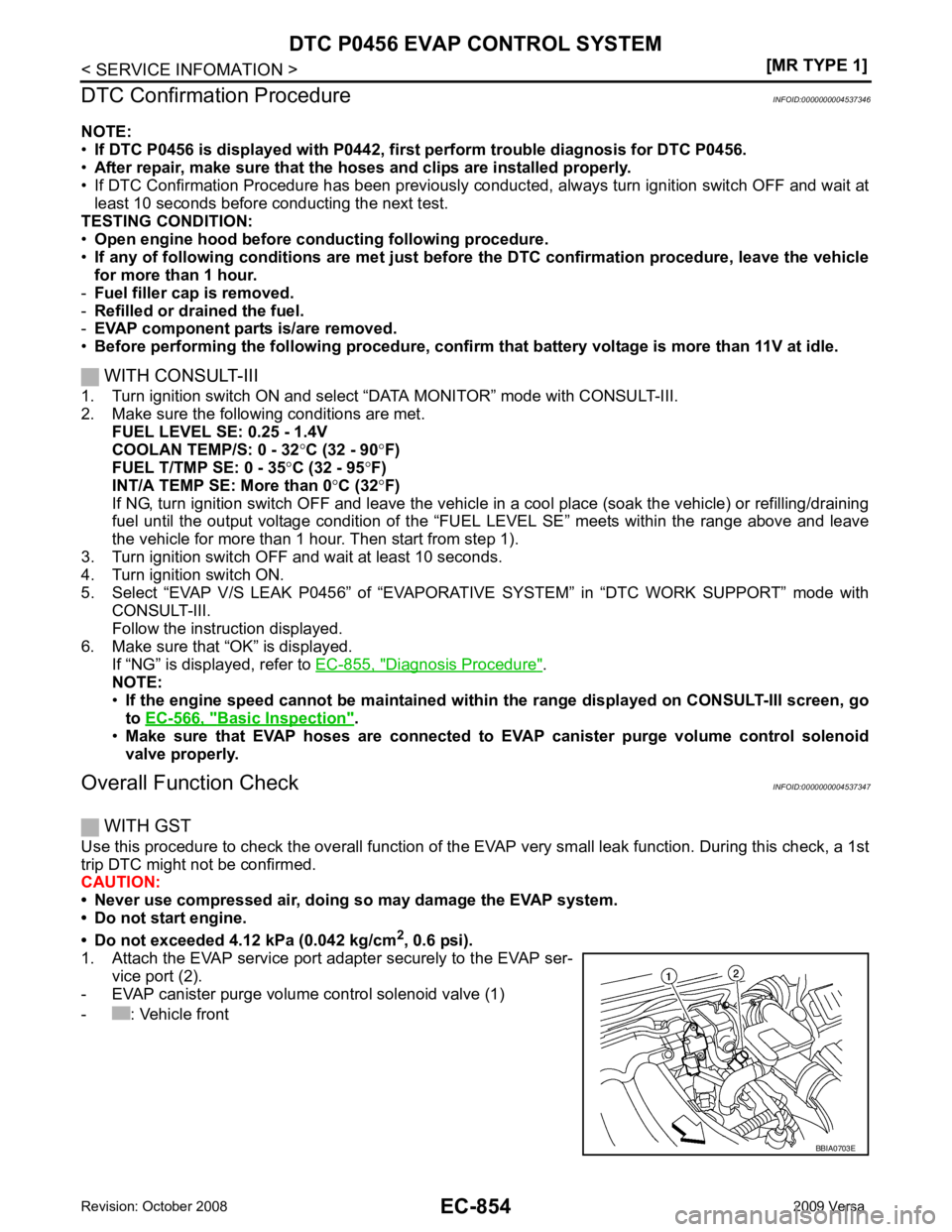

INSTALL THE PRESSURE PUMP

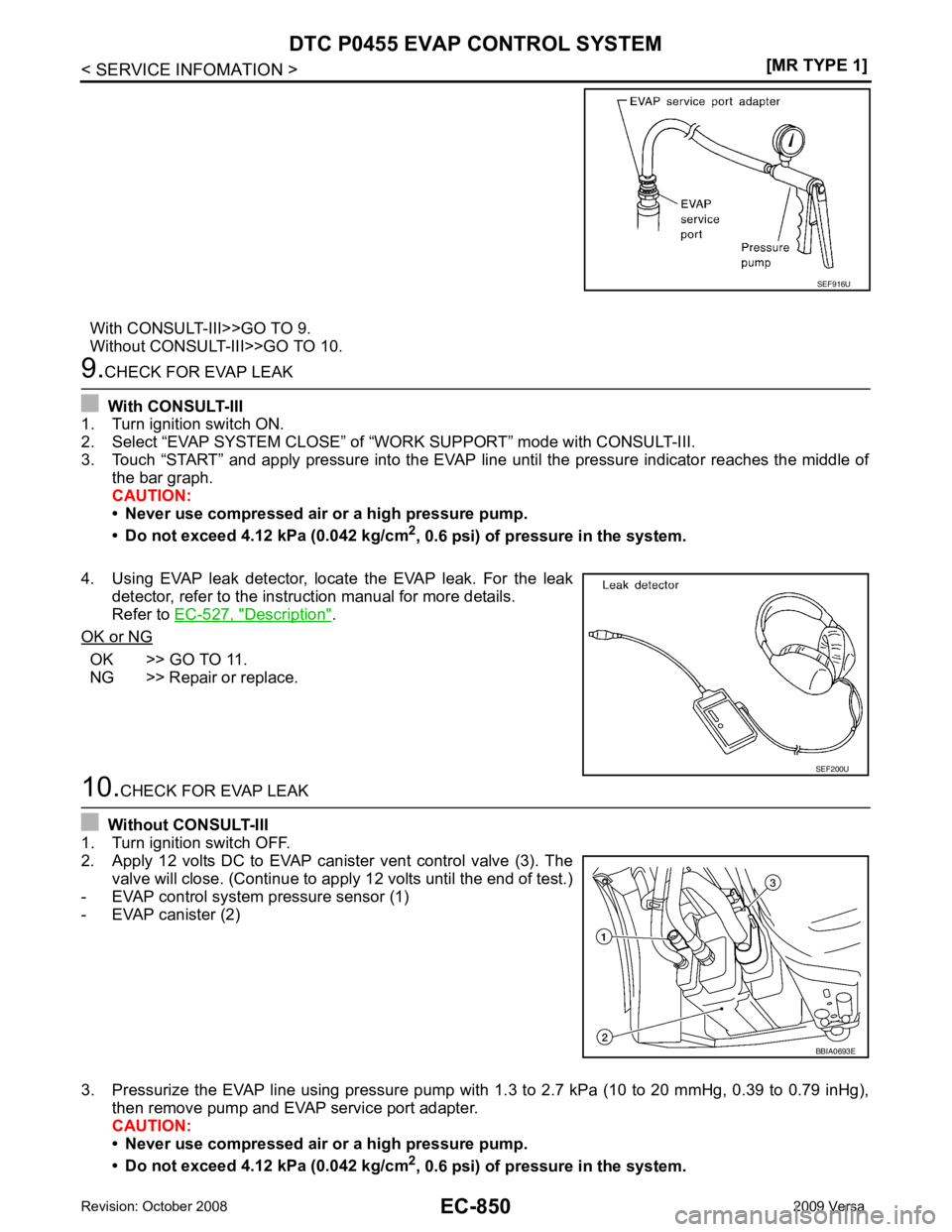

To locate the EVAP leak, install EVAP service port adapter and pressure pump to EVAP service port securely.
For the location of EVAP service port (2), refer to EC-527, " Description " .
• EVAP canister purge volume control solenoid valve (1)
• : Vehicle front
NOTE:
Improper installation of the EV AP service port adapter to the
EVAP service port may cause leaking. BBIA0703E

EC-850< SERVICE INFOMATION >
[MR TYPE 1]
DTC P0455 EVAP CONTROL SYSTEM
With CONSULT-III>>GO TO 9.
Without CONSULT-III>>GO TO 10. 9.
CHECK FOR EVAP LEAK
With CONSULT-III
1. Turn ignition switch ON.
2. Select “EVAP SYSTEM CLOSE” of “WORK SUPPORT” mode with CONSULT-III.
3. Touch “START” and apply pressure into the EVAP line until the pressure indicator reaches the middle of the bar graph.
CAUTION:
• Never use compressed air or a high pressure pump.
• Do not exceed 4.12 kPa (0.042 kg/cm 2
, 0.6 psi) of pressure in the system.
4. Using EVAP leak detector, locate the EVAP leak. For the leak detector, refer to the instruction manual for more details.
Refer to EC-527, " Description " .
OK or NG OK >> GO TO 11.
NG >> Repair or replace. 10.
CHECK FOR EVAP LEAK
Without CONSULT-III
1. Turn ignition switch OFF.
2. Apply 12 volts DC to EVAP canister vent control valve (3). The valve will close. (Continue to appl y 12 volts until the end of test.)
- EVAP control system pressure sensor (1)
- EVAP canister (2)
3. Pressurize the EVAP line using pressure pump with 1.3 to 2.7 kPa (10 to 20 mmHg, 0.39 to 0.79 inHg),
then remove pump and EVAP service port adapter.
CAUTION:
• Never use compressed air or a high pressure pump.
• Do not exceed 4.12 kPa (0.042 kg/cm 2
, 0.6 psi) of pressure in the system. SEF916U
SEF200U
BBIA0693E

DTC P0455 EVAP CONTROL SYSTEM
EC-851
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O

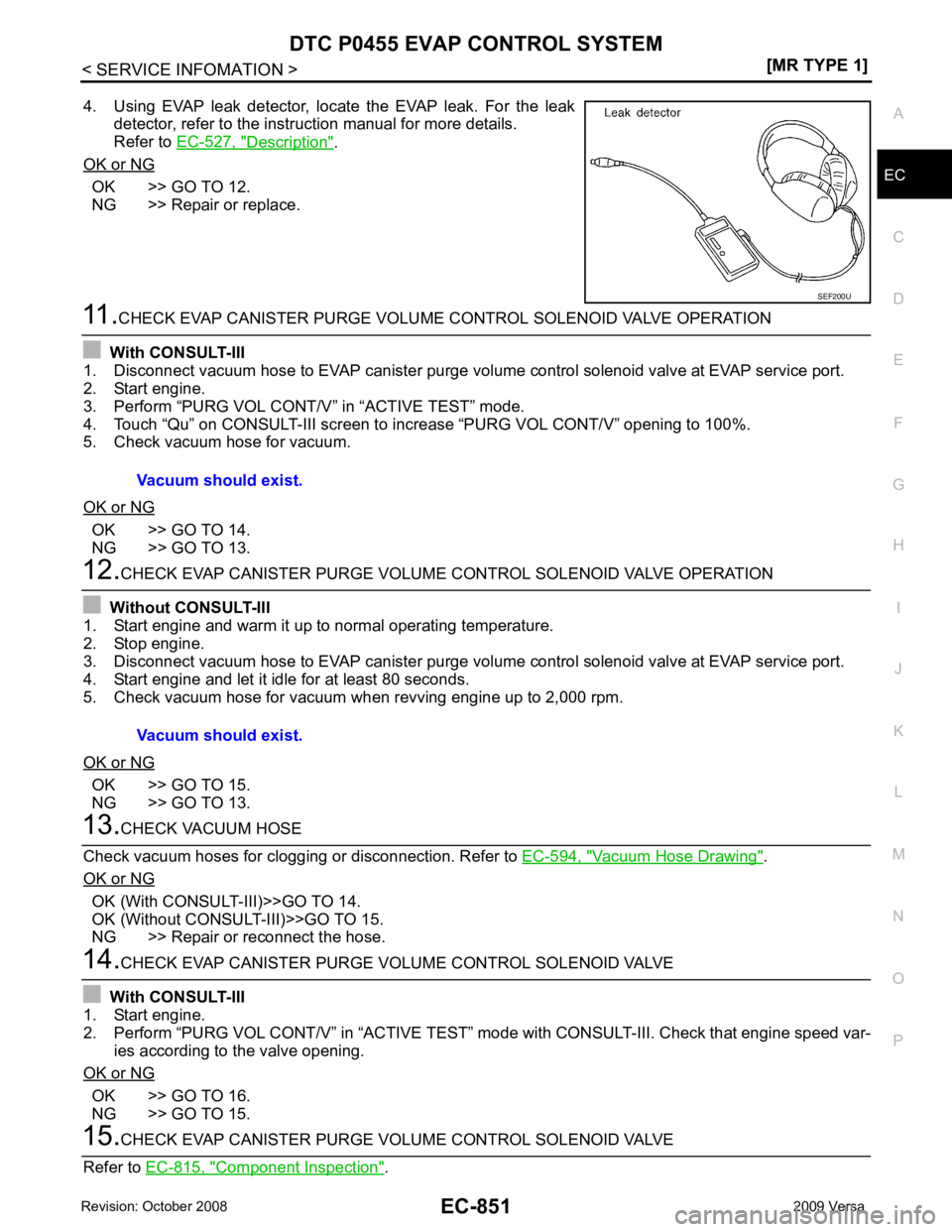

4. Using EVAP leak detector, locate the EVAP leak. For the leak
detector, refer to the instruction manual for more details.
Refer to EC-527, " Description " .
OK or NG OK >> GO TO 12.
NG >> Repair or replace. 11.
CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OPERATION
With CONSULT-III
1. Disconnect vacuum hose to EVAP canister purge volu me control solenoid valve at EVAP service port.
2. Start engine.
3. Perform “PURG VOL CONT/V ” in “ACTIVE TEST” mode.
4. Touch “Qu” on CONSULT-III screen to increase “PURG VOL CONT/V” opening to 100%.
5. Check vacuum hose for vacuum.
OK or NG OK >> GO TO 14.
NG >> GO TO 13. 12.
CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OPERATION
Without CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Stop engine.
3. Disconnect vacuum hose to EVAP canister purge volu me control solenoid valve at EVAP service port.
4. Start engine and let it idle for at least 80 seconds.
5. Check vacuum hose for vacuum when revving engine up to 2,000 rpm.
OK or NG OK >> GO TO 15.
NG >> GO TO 13. 13.
CHECK VACUUM HOSE
Check vacuum hoses for clogging or disconnection. Refer to EC-594, " Vacuum Hose Drawing " .
OK or NG OK (With CONSULT-III)>>GO TO 14.
OK (Without CONSULT-III)>>GO TO 15.
NG >> Repair or reconnect the hose. 14.
CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
With CONSULT-III
1. Start engine.
2. Perform “PURG VOL CONT/V” in “ACTIVE TEST” mode with CONSULT- III. Check that engine speed var-
ies according to the valve opening.
OK or NG OK >> GO TO 16.
NG >> GO TO 15. 15.
CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
Refer to EC-815, " Component Inspection " . SEF200U
Vacuum should exist.
Vacuum should exist.

OK >> GO TO 16.
NG >> Replace EVAP canister purge volume control solenoid valve. Component Inspection " .
OK or NG OK >> GO TO 17.
NG >> Replace fuel level sensor unit. Component Inspection " .
OK or NG OK >> GO TO 18.
NG >> Replace EVAP control system pressure sensor. .
OK or NG OK >> GO TO 19.
>> Repair or replace hoses and tubes. OK >> GO TO 20.
>> Repair or replace hoses, tubes or filler neck tube. Component Inspection " .
OK or NG OK >> GO TO 21.
>> Replace refueling EVAP vapor cut valve with fuel tank. .
>> INSPECTION END

DTC P0456 EVAP CONTROL SYSTEM
EC-853
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O
DTC P0456 EVAP CONTROL SYSTEM
On Board Diagnosis Logic INFOID:0000000004537345
This diagnosis detects very small leaks in the EVAP line between fuel tank and EVAP canister purge volume
control solenoid valve, using the intake manifold vac uum in the same way as conventional EVAP small leak
diagnosis.
If ECM judges a leak which corresponds to a very small leak, the very small leak P0456 will be detected.
If ECM judges a leak equivalent to a small leak, EVAP small leak P0442 will be detected.
If ECM judges there are no leaks, the diagnosis will be OK.
CAUTION:
• Use only a genuine NISSAN fuel filler cap as a replacemen t. If an incorrect fuel filler cap is used, the
MIL may come on.
• If the fuel filler cap is not tigh tened properly, the MIL may come on.
• Use only a genuine NISSAN rubber tube as a replacement. DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0456
0456 Evaporative emission
control system very
small leak (negative
pressure check) • EVAP system has a very small leak.
• EVAP system does not operate prop- erly. • Incorrect fuel tank vacuum relief valve
• Incorrect fuel filler cap used
• Fuel filler cap remains open or fails to close.
• Foreign matter caught in fuel filler cap.
• Leak is in line between intake manifold and EVAP canister purge volume control solenoid valve.
• Foreign matter caught in EVAP canister vent con- trol valve.
• EVAP canister or fuel tank leaks
• EVAP purge line (pipe and rubber tube) leaks
• EVAP purge line rubber tube bent
• Loose or disconnected rubber tube
• EVAP canister vent control valve and the circuit
• EVAP canister purge volume control solenoid valve and the circuit
• Fuel tank temperature sensor
• O-ring of EVAP canister vent control valve is miss- ing or damaged
• EVAP canister is saturated with water
• EVAP control system pressure sensor
• Refueling EVAP vapor cut valve
• ORVR system leaks
• Fuel level sensor and the circuit
• Foreign matter caught in EVAP canister purge vol-
ume control solenoid valve PBIB1026E

EC-854< SERVICE INFOMATION >
[MR TYPE 1]
DTC P0456 EVAP CONTROL SYSTEM
DTC Confirmation Procedure INFOID:0000000004537346
NOTE:
• If DTC P0456 is displayed with P0442, firs t perform trouble diagnosis for DTC P0456.
• After repair, make sure that the hoses and clips are installed properly.
• If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
• Open engine hood before conducting following procedure.
• If any of following conditions are met just befo re the DTC confirmation procedure, leave the vehicle
for more than 1 hour.
- Fuel filler cap is removed.
- Refilled or drained the fuel.
- EVAP component parts is/are removed.
• Before performing the following procedure, confirm that battery voltage is more than 11V at idle.
WITH CONSULT-III
1. Turn ignition switch ON and select “DATA MONITOR” mode with CONSULT-III.
2. Make sure the following conditions are met.
FUEL LEVEL SE: 0.25 - 1.4V
COOLAN TEMP/S: 0 - 32 °C (32 - 90 °F)
FUEL T/TMP SE: 0 - 35 °C (32 - 95 °F)
INT/A TEMP SE: More than 0 °C (32 °F)
If NG, turn ignition switch OFF and leave the vehicle in a cool place (soak the vehicle) or refilling/draining
fuel until the output voltage condition of the “FUE L LEVEL SE” meets within the range above and leave
the vehicle for more than 1 hour. Then start from step 1).
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. Select “EVAP V/S LEAK P0456” of “EVAPORATI VE SYSTEM” in “DTC WORK SUPPORT” mode with
CONSULT-III.
Follow the instruction displayed.
6. Make sure that “OK” is displayed.
If “NG” is displayed, refer to EC-855, " Diagnosis Procedure " .
NOTE:
• If the engine speed cannot be maintained with in the range displayed on CONSULT-III screen, go
to EC-566, " Basic Inspection " .
• Make sure that EVAP hoses are connected to EVAP canister purge volume control solenoid
valve properly.
Overall Function Check INFOID:0000000004537347
WITH GST
Use this procedure to check the overall function of the EV AP very small leak function. During this check, a 1st
trip DTC might not be confirmed.
CAUTION:
• Never use compressed air, doing so may damage the EVAP system.
• Do not start engine.
• Do not exceeded 4.12 kPa (0.042 kg/cm 2
, 0.6 psi).
1. Attach the EVAP service port adapter securely to the EVAP ser- vice port (2).
- EVAP canister purge volume control solenoid valve (1)
- : Vehicle front BBIA0703E
