Without CONSULT-III
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 94 and ground with press- ing each button.
OK or NG OK >> GO TO 8.
NG >> GO TO 3. OK >> GO TO 5.
NG >> GO TO 4. Switch Condition Voltage [V]
MAIN switch Pressed Approx. 0
Released Approx. 4.0
CANCEL switch Pressed Approx. 1.0
Released Approx. 4.0
RESUME/ACCELER-
ATE switch Pressed Approx. 3.0
Released Approx. 4.0
SET/COAST switch Pressed Approx. 2.0
Released Approx. 4.0

Component Inspection " .
OK or NG OK >> GO TO 8.
NG >> Replace ASCD steering switch. .
>> INSPECTION END
Component Inspection INFOID:0000000004537421
ASCD STEERING SWITCH
1. Disconnect combination switch (spiral cable) harness connector M31.
2. Check continuity between combination switch (spiral cable) ter- minals 14 and 15 with pushing each switch.
If NG, replace ASCD steering switch. Switch Condition Resistance [
Ω]
MAIN switch Pressed Approx. 0
Released Approx. 4,000
CANCEL switch Pressed Approx. 250
Released Approx. 4,000
RESUME/ACCELERATE
switch Pressed Approx. 1,480
Released Approx. 4,000
SET/COAST switch Pressed Approx. 660
Released Approx. 4,000

EC
NP
O
DTC P1572 ASCD BRAKE SWITCH
Component Description INFOID:0000000004537422
When the brake pedal is depressed, ASCD brake switch (2) is
turned OFF and stop lamp switch (1) is turned ON. ECM detects the
state of the brake pedal by this input of two kinds (ON/OFF signal).
Refer to EC-524 for the ASCD function.
CONSULT-III Reference Val ue in Data Monitor Mode INFOID:0000000004537423
Specification data are reference values.
On Board Diagnosis Logic INFOID:0000000004537424
This self-diagnosis has the on e trip detection logic.
The MIL will not light up for this diagnosis.
NOTE:
• If DTC P1572 is displayed with DT C P0605, first perform the trouble diagnosis for DTC P0605. Refer
to EC-872 .
• This self-diagnosis has the one trip detection logic. When malfunction A is detected, DTC is not
stored in ECM memory. And in that case, 1st trip DTC and 1st trip freeze frame data are displayed.
1st trip DTC is erased when igniti on switch OFF. And even when ma lfunction A is detected in two
consecutive trips, DTC is not stored in ECM memory. DTC No.
Trouble Diagnosis
Name DTC Detecting Condition Possible Cause
P1572
1572 ASCD brake switch A)
When the vehicle speed is above 30km/h (19
MPH), ON signals from the stop lamp switch
and the ASCD brake switch are sent to ECM
at the same time. • Harness or connectors
(Stop lamp switch circuit is shorted.)
• Harness or connectors (ASCD brake switch circuit is shorted.)
• Harness or connectors
(ASCD clutch switch circuit is shorted.)
(M/T)
• Stop lamp switch
• ASCD brake switch
• ASCD clutch switch (M/T)
• Incorrect stop lamp switch installation
• Incorrect ASCD brake switch installation
• Incorrect ASCD clutch switch installation (M/T)
• ECM
B)
ASCD brake switch signal is not sent to ECM
for extremely long time while the vehicle is
driving

Diagnosis Procedure " .
If 1st trip DTC is not detec ted, go to the following step.
6. Drive the vehicle for at least 5 consecutive seconds under the following condition.
7. Check 1st trip DTC.
8. If 1st trip DTC is detected, go to EC-910, " Diagnosis Procedure " .
WITH GST
Follow the procedure “WITH CONSULT-III” above.

EC
NP
O

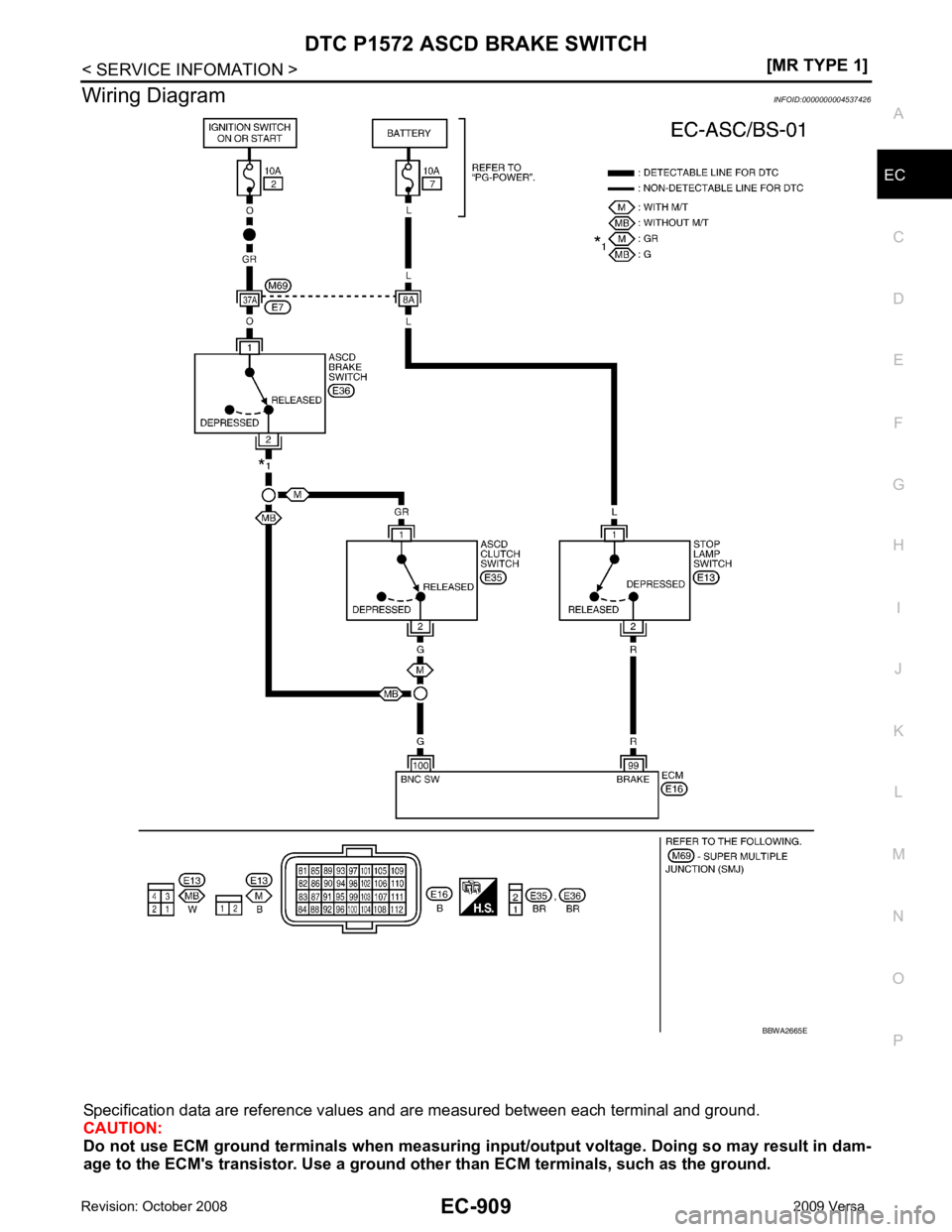

Wiring Diagram
INFOID:0000000004537426
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals wh en measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground.

OK >> GO TO 2.
NG (M/T models) >>GO TO 3.
NG (A/T and CVT models) >>GO TO 4. CONDITION INDICATION
Clutch pedal and/or brake pedal: Slightly depressed OFF
Clutch pedal and brake pedal: Fully released ON
CONDITION INDICATION
Brake pedal: Slightly depressed OFF
Brake pedal: Fully released ON
CONDITION VOLTAGE
Clutch pedal and/or brake pedal: Slightly depressed Approximately 0V
Clutch pedal and brake pedal: Fully released Battery voltage
CONDITION VOLTAGE
Brake pedal: Slightly depressed Approximately 0V
Brake pedal: Fully released Battery voltage

EC
NP
O
Without CONSULT-III
Check voltage between ECM terminal 99 and ground under the fol-
lowing conditions.
OK or NG OK >> GO TO 15.
NG >> GO TO 11. OK >> GO TO 9.
NG >> GO TO 4. CONDITION VOLTAGE
Brake pedal: Fully released Approximately 0V
Brake pedal: Slightly depressed Battery voltage BBIA0709E

EC-912< SERVICE INFOMATION >
[MR TYPE 1]
DTC P1572 ASCD BRAKE SWITCH
2. Disconnect ASCD brake switch (2) harness connector.
- Stop lamp switch (1)
3. Turn ignition switch ON.
4. Check voltage between ASCD brake switch terminal 1 and ground with CONSULT-III or tester.
OK or NG OK (M/T models) >>GO TO 6.
OK (A/T and CVT m odels) >>GO TO 7.
NG >> GO TO 5. 5.
DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors M69, E7
• 10A fuse
• Harness for open or short between ASCD brake switch and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors. 6.
CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Check harness continuity between ASCD brake switch terminal 2 and ASCD clutch switch terminal 1.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors. 7.
CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 100 and ASCD brake switch terminal 2.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors. 8.
CHECK ASCD BRAKE SWITCH
Refer to EC-914, " Component Inspection " . BBIA0708E
Voltage: Battery voltage
PBIB0857E
Continuity should exist.
Continuity should exist.

DTC P1572 ASCD BRAKE SWITCH
EC-913
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O

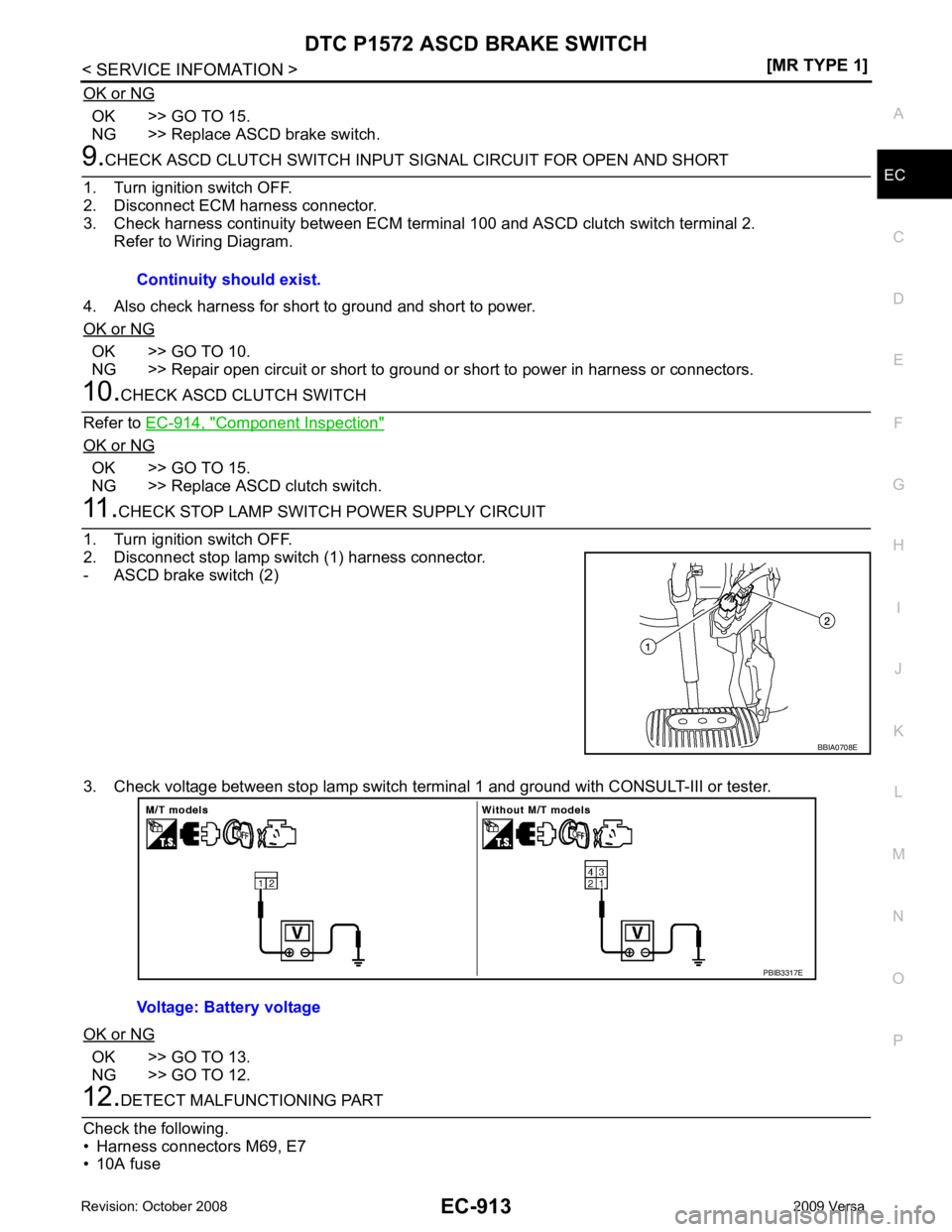

OK or NG OK >> GO TO 15.
NG >> Replace ASCD brake switch. 9.
CHECK ASCD CLUTCH SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 100 and ASCD clutch switch terminal 2.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG OK >> GO TO 10.
NG >> Repair open circuit or short to ground or short to power in harness or connectors. 10.
CHECK ASCD CLUTCH SWITCH
Refer to EC-914, " Component Inspection "
OK or NG OK >> GO TO 15.
NG >> Replace ASCD clutch switch. 11.
CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch (1) harness connector.
- ASCD brake switch (2)
3. Check voltage between stop lamp switch terminal 1 and ground with CONSULT-III or tester.
OK or NG OK >> GO TO 13.
NG >> GO TO 12. 12.
DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors M69, E7
• 10A fuse Continuity should exist.
BBIA0708E
Voltage: Battery voltage PBIB3317E

OK >> GO TO 14.
NG >> Repair open circuit or short to ground or short to power in harness or connectors. Component Inspection "
OK or NG OK >> GO TO 15.
NG >> Replace stop lamp switch. .
>> INSPECTION END
Component Inspection INFOID:0000000004537428
ASCD BRAKE SWITCH
1. Turn ignition switch OFF.
2. Disconnect ASCD brake switch harness connector.
3. Check continuity between ASCD brake switch terminals 1 and 2 under the following conditions.
If NG, adjust ASCD brake switch installation, refer to BR-6 , and
perform step 3 again.
ASCD CLUTCH SWITCH
1. Turn ignition switch OFF.
2. Disconnect ASCD clutch switch harness connector. Continuity should exist.
Condition Continuity
Brake pedal: Fully released. Should exist.
Brake pedal: Slightly depressed. Should not exist.
