NISSAN LEAF 2013 1.G Service And Maintenance Guide
Manufacturer: NISSAN, Model Year: 2013, Model line: LEAF, Model: NISSAN LEAF 2013 1.GPages: 40, PDF Size: 0.4 MB
Page 31 of 40

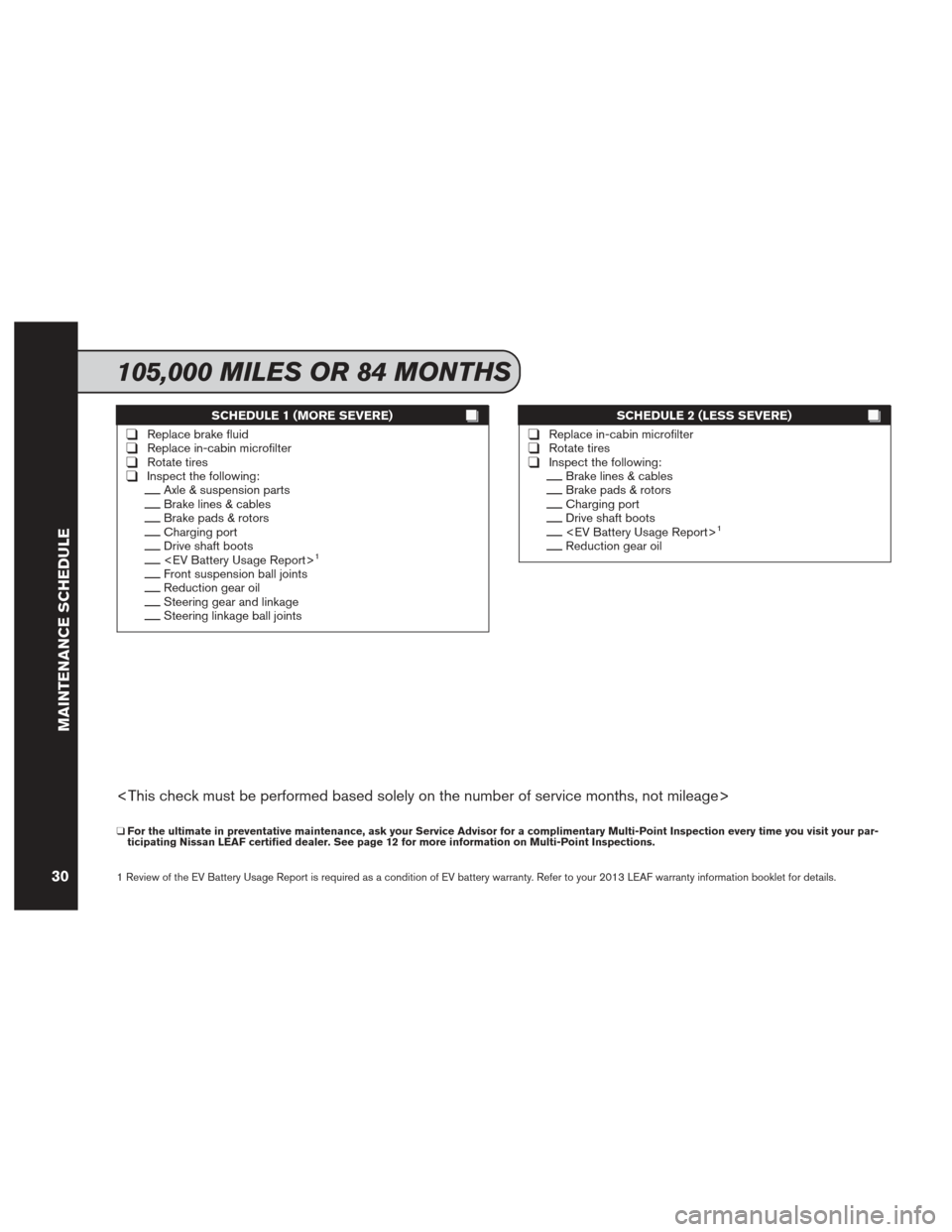

SCHEDULE 1 (MORE SEVERE)
❑Replace brake fluid❑Replace in-cabin microfilter❑Rotate tires❑Inspect the following:__Axle & suspension parts__Brake lines & cables__Brake pads & rotors__Charging port__Drive shaft boots__
__Front suspension ball joints__Reduction gear oil__Steering gear and linkage__Steering linkage ball jointsSCHEDULE 2 (LESS SEVERE)
❑Replace in-cabin microfilter❑Rotate tires❑Inspect the following:__Brake lines & cables__Brake pads & rotors__Charging port__Drive shaft boots__
__Reduction gear oil
❑
For the ultimate in preventative maintenance, ask your Service Advisor for a complimentary Multi-Point Inspection every time you visit your par-
ticipating Nissan LEAF certified dealer. See page 12 for more information on Multi-Point Inspections.
1 Review of the EV Battery Usage Report is required as a condition of EV battery warranty. Refer to your 2013 LEAF warranty information booklet for details.
105,000 MILES OR 84 MONTHS
30
MAINTENANCE SCHEDULE
Page 32 of 40

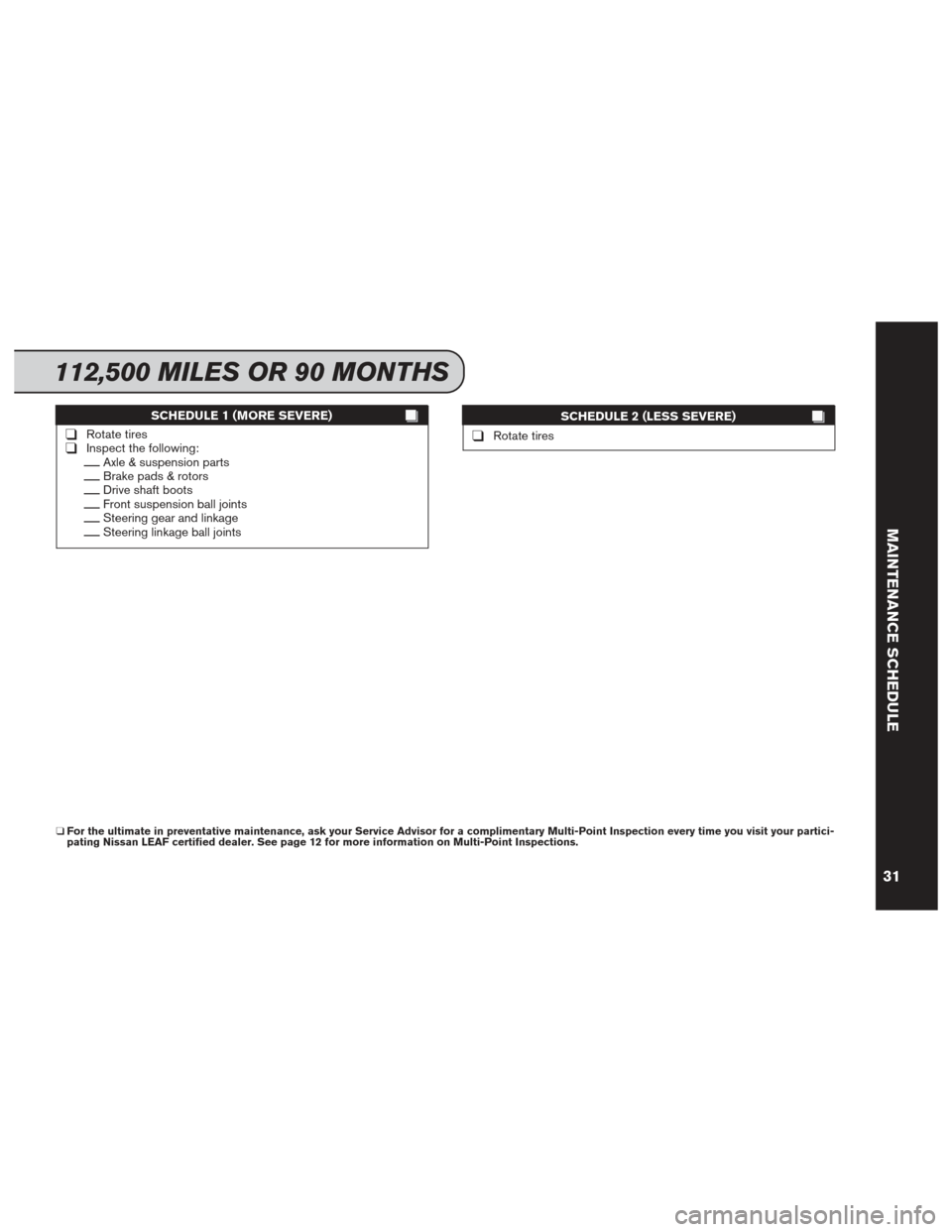

SCHEDULE 1 (MORE SEVERE)
❑Rotate tires❑Inspect the following:__Axle & suspension parts__Brake pads & rotors__Drive shaft boots__Front suspension ball joints__Steering gear and linkage__Steering linkage ball jointsSCHEDULE 2 (LESS SEVERE)
❑Rotate tires
❑
For the ultimate in preventative maintenance, ask your Service Advisor for a complimentary Multi-Point Inspection every time you visit your partici -
pating Nissan LEAF certified dealer. See page 12 for more information on Multi-Point Inspections.
112,500 MILES OR 90 MONTHS
31
MAINTENANCE SCHEDULE
Page 33 of 40

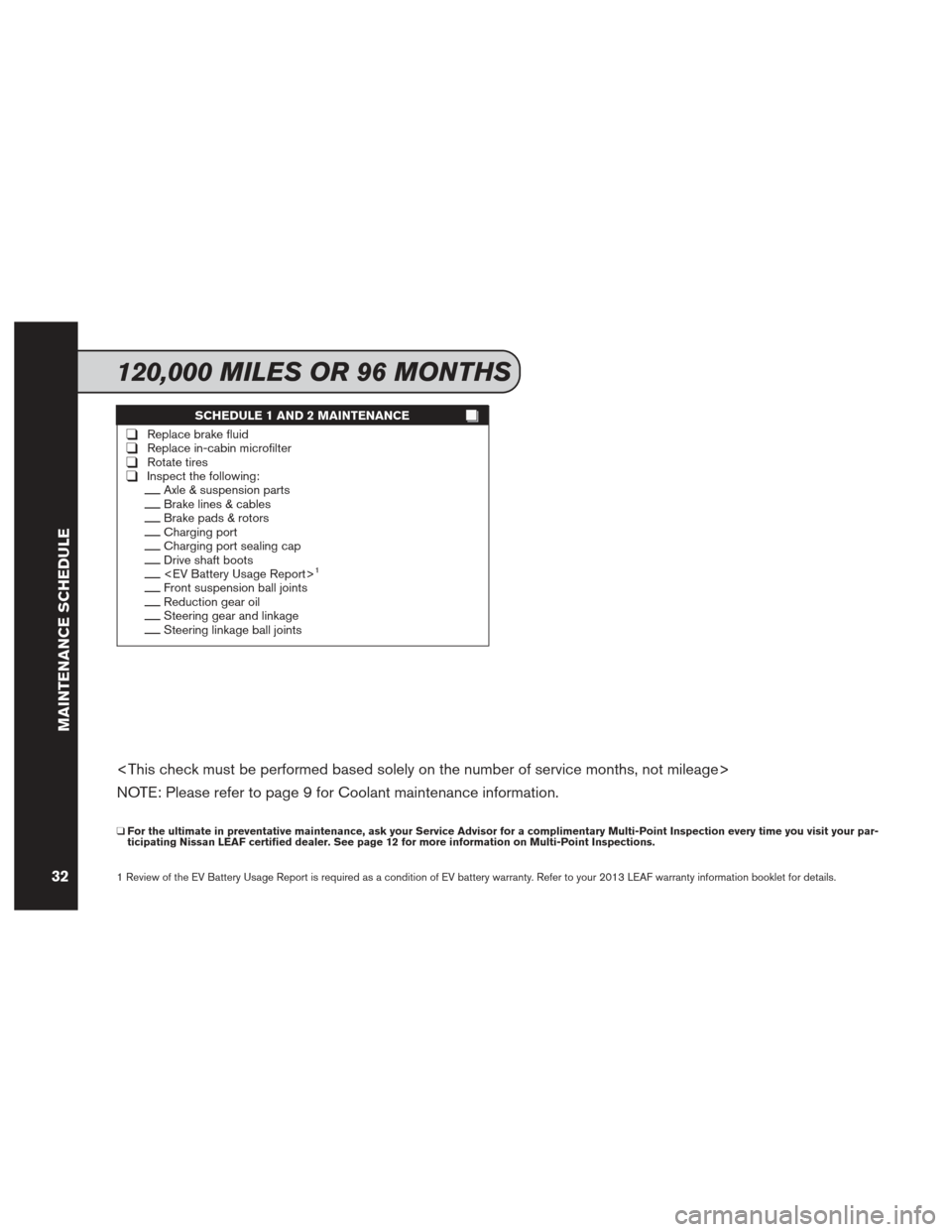

SCHEDULE 1 AND 2 MAINTENANCE
❑Replace brake fluid❑Replace in-cabin microfilter❑Rotate tires❑Inspect the following:__Axle & suspension parts__Brake lines & cables__Brake pads & rotors__Charging port__Charging port sealing cap__Drive shaft boots__
__Front suspension ball joints__Reduction gear oil__Steering gear and linkage__Steering linkage ball joints
NOTE: Please refer to page 9 for Coolant maintenance information.
❑For the ultimate in preventative maintenance, ask your Service Advisor for a complimentary Multi-Point Inspection every time you visit your par-
ticipating Nissan LEAF certified dealer. See page 12 for more information on Multi-Point Inspections.
1 Review of the EV Battery Usage Report is required as a condition of EV battery warranty. Refer to your 2013 LEAF warranty information booklet for details.
120,000 MILES OR 96 MONTHS
32
MAINTENANCE SCHEDULE
Page 34 of 40
When replacing the Li-ion battery assembly or module, be
sure to record the ID in the space provided.
Please confirm the service manual for module location.
Li-ion BATTERY REPLACEMENT RECORD
33
Page 35 of 40
Li-ion BATTERY REPLACEMENT RECORD
34
Page 36 of 40

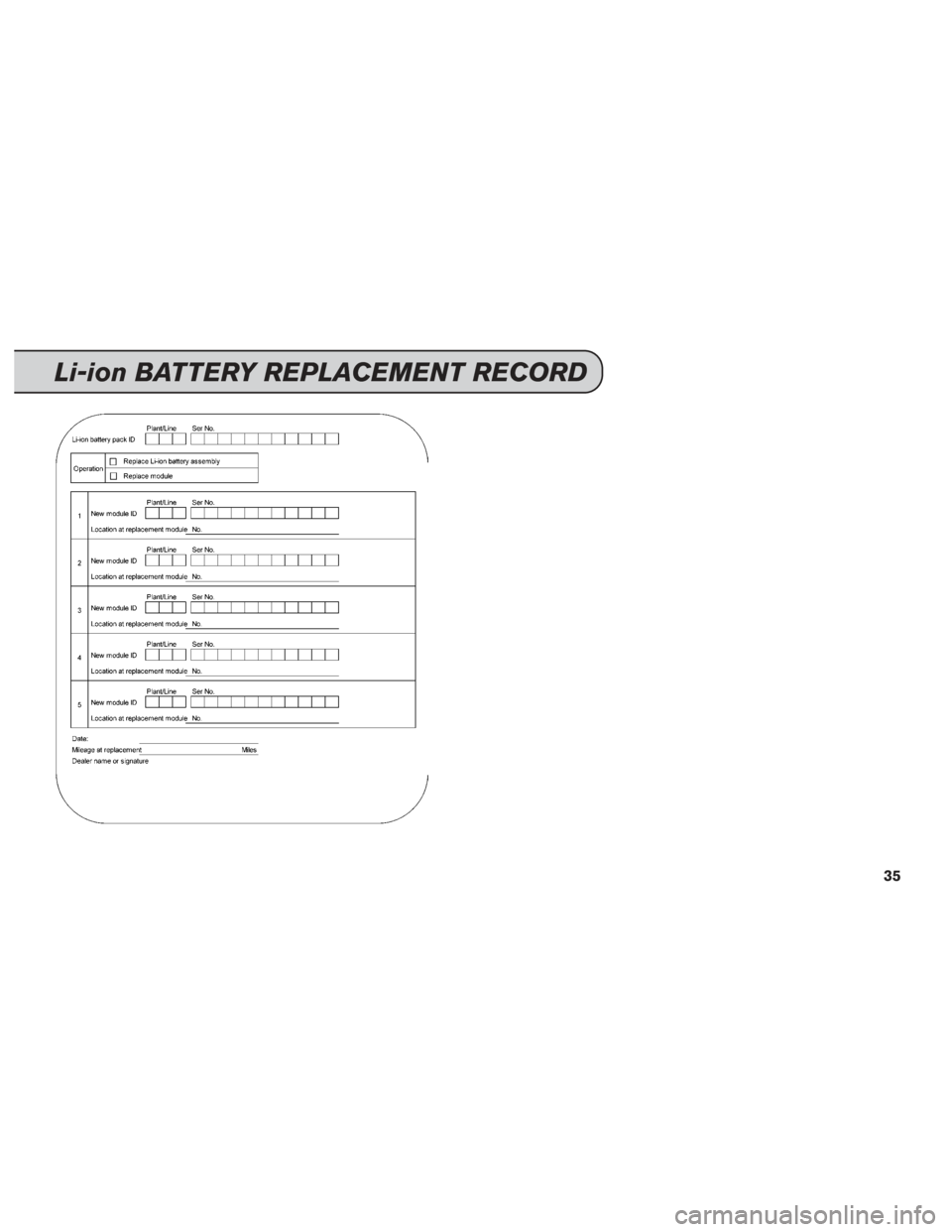

Li-ion BATTERY REPLACEMENT RECORD
35
Page 37 of 40

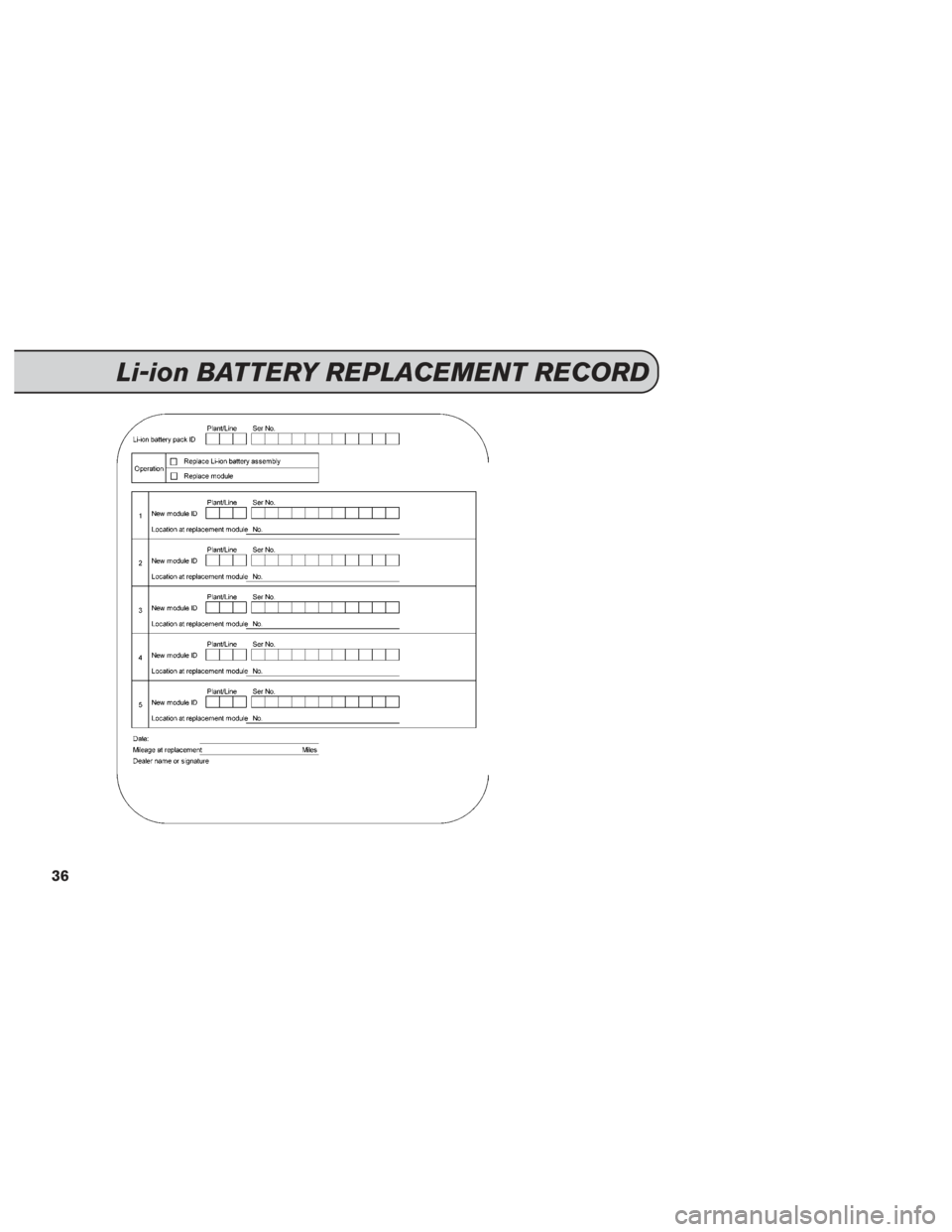

Li-ion BATTERY REPLACEMENT RECORD
36
Page 38 of 40
7,500 Miles or 6 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:15,000 Miles or 12 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:22,500 Miles or 18 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:
30,000 Miles or 24 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp: 37,500 Miles or 30 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:45,000 Miles or 36 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:
52,500 Miles or 42 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp: 60,000 Miles or 48 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:67,500 Miles or 54 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:

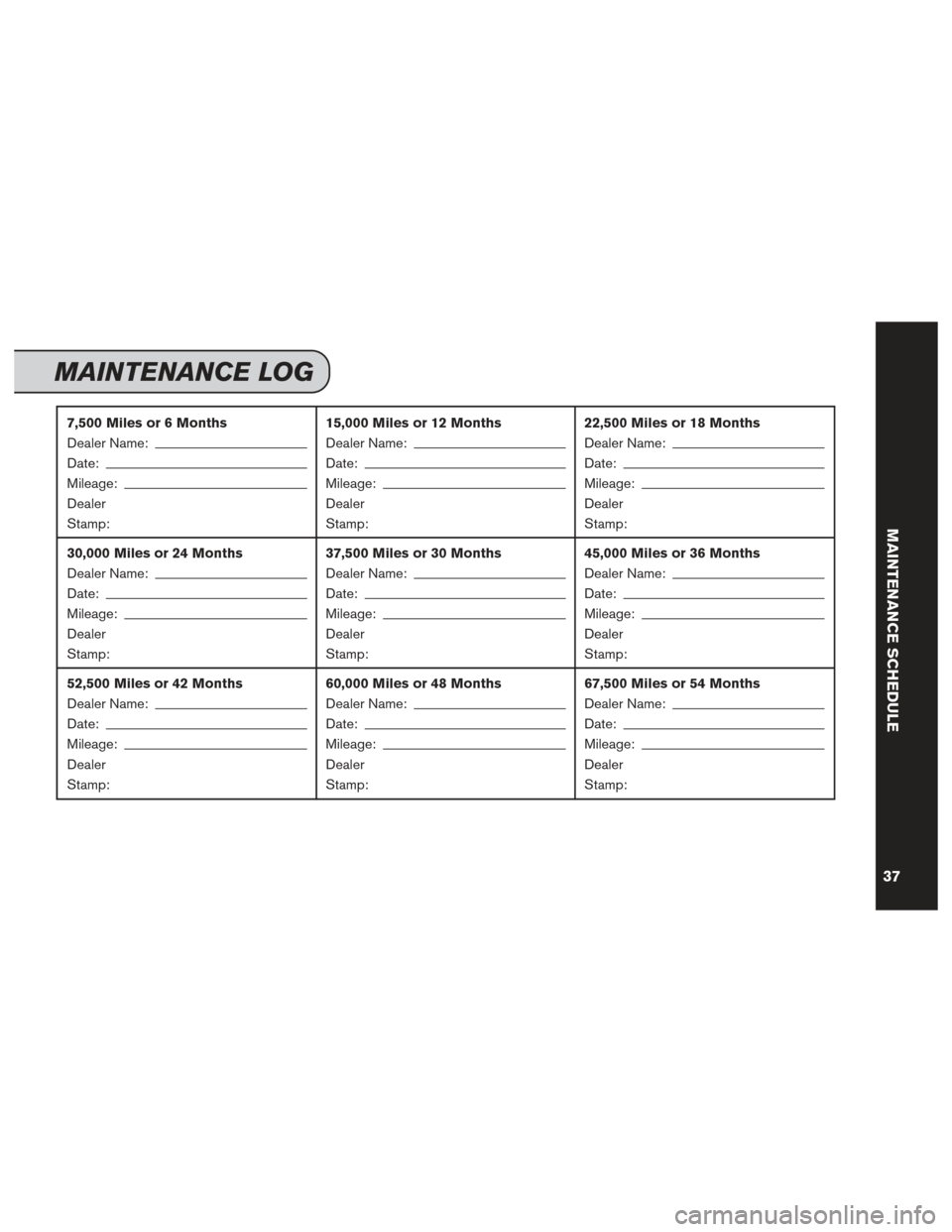

MAINTENANCE LOG
37
MAINTENANCE SCHEDULE
Page 39 of 40
75,000 Miles or 60 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:82,500 Miles or 66 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:90,000 Miles or 72 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:
97,500 Miles or 78 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp: 105,000 Miles or 84 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:112,500 Miles or 90 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:
120,000 Miles or 96 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:

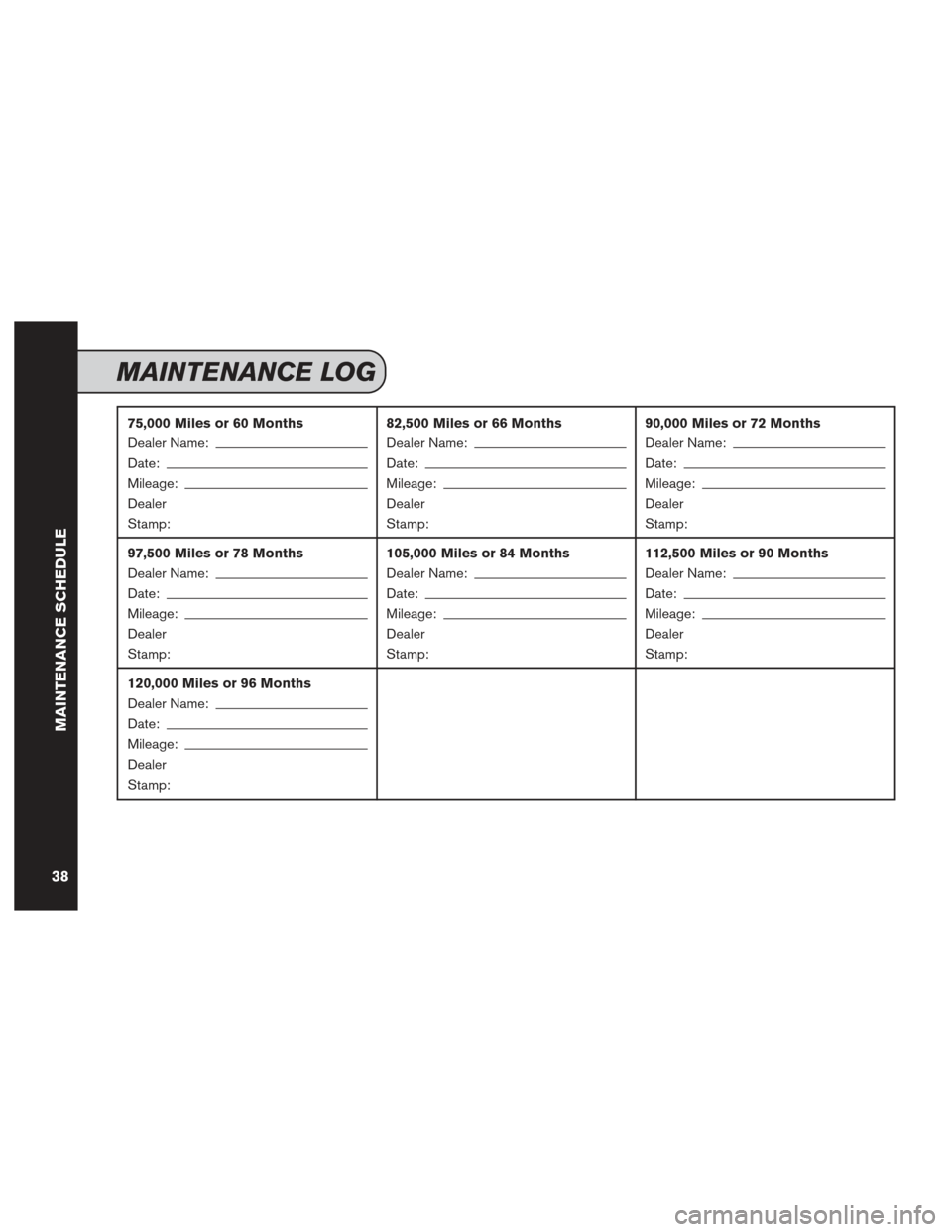

MAINTENANCE LOG
MAINTENANCE SCHEDULE
38
Page 40 of 40
®
2013 L EAFTM
SERVICE AND MAINTENANCE GUIDE
